Rackmount CV-1602 User manual

www.rackmountsolutions.net
1-866-207-6631
sales@rackmountsolutions.net
2 Console DB-15 KVM User Manual
CV-802 / CV-1602

Installation
C
e
b
yr
V
e
iw
C
e
b
yr
V
ei w
■Install each bracket using screws pro-
vided shown in Figure 1.
■Fix the KVM into the rack
* Hardware for fixing the mounting bracket
to the rack is not provided
Figure 1. Installing the bracket to the KVM.
Figure 2. Fixing the KVM into the rack.
AB
screw A: M3.2 x 4.5 mm
screw B: M4 x 10 mm
CV-802 / CV-1602 Two Console DB-15 KVM

CV-802 / CV-1602 Two Console DB-15 KVM
KVM switch x 1 pc
Screw M3.2 x 4.5mm x 4 pcs
Screw M4 x 10mm x 8 pcs
Bracket x 1 set
Receiver x 1 pc
User manual x 1 pc
Power adapter x 2 pcs (12V DC for KVM switch ; 9V DC for receiver)
CB-6 2-in-1 USB KVM cable (for receiver) x 1 pc
5
4
2
6
1
3
8
7
UserManual
1 65
4
32 7 8
Cat.5RemoteConsole
Remote I/OLocalComputer
KeyboardMouseRemoteLocal
Console
Select
VGA9VDC
500mA
Package Content (only for rackmount KVM)

CV-802
CV-1602
Power
Input
Local Console
Cascade
Cat.5 Remote Console
RemoteI/OLocalComputer
KeyboardMouseRemoteLocal
Console
Select
VGA9VDC
500mA
Receiver
Connection
Cat5 cable
(up to 1,000 ft)
CV-802 / CV-1602 Two Console DB-15 KVM
Remote
console
CD-6
KVM cable
CD-6
KVM cable
Cat.5RemoteConsole
RemoteI/OLocal Computer
KeyboardMouseRemoteLocal
Console
Select
VGA9VDC
500mA
Receiver
Cat5 cable
(up to 1,000 ft)
Connection
Rackmount KVM
Connection
KVM modules
back

Receiver Connection
Keyboard Mouse
Console
LEDs
Console
Select
9VDC VGA Local Computer Remote
I/O
9V DC Power
Adapter
CV-802 / CV-1602
Monitor
CB-6 KVM cable
USB
Cat5 cable
(up to 1,000 ft)
Receiver
CV-802 / CV-1602 Two Console DB-15 KVM
Front View Rear View
Receiver Box

Cascade
■Cascaded KVM ( Bank 2 to 8 ) must be single console USB KVM - CV-S801 / CV-S1601
■With the CV-802 cascade up to 120 servers. With the CV-1602 cascade up to 128 servers.
■Cascading multiple KVM by CBC-6 cable
Local Console
Bank 1
Local Console
CBC-6 cascade cable
Bank 2
Bank 1
Bank 8
Cascade
Bank 2
Bank 8
CV-802 / CV-1602 Two Console DB-15 KVM
Cascade
back
Cascade
Rackmount KVM
Cascade
KVM modules
CBC-6 cascade cable
CV-1602 two console DB-15 KVM
CV-S1601 USB DB-15 single console KVM
CV-1602 two console DB-15 KVM
CV-S1601 USB DB-15 single console KVM

KVM Membranes
Power ON
■Turn off all servers and KVM switches
■Make sure all cables / connectors are properly connected
■Recommend Power ON sequence is monitor, KVM switch finally computer
16 ports
Bank
No.
Online Channel
Channel Select Button Shift
Button
Online Channel Green LED on indicating a PC is connecting to the port
Selected Channel RED LED on indicating a selected channel
Bank Button Select the bank from1 to 8
Channel Select Button Press to select channel from 1 to 8
Shift Button Press & hold follow with a channel button to select channel from 9
to 16
Bank No. 7-Segment BANK LED indication
Front Panel - Port LED Indications
8 ports
Bank Button
Selected Channel

Password
The password is disabled by default (i.e. There is no password required when you power on the KVM switch
for the first time)
■Enable password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P
3. In SUPERVISOR level, enter “00000000” eight zeros in user name & password field
(Do not use “0” on number pad)
4. In USER level, press Space bar + Enter in user name & password field
Remark: Automatic logout after 10 minutes of inactivity
■Set your own user name & password
1. Login the KVM in SUPERVISOR level by pressing “00000000” eight zeros in user name & password
field
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Set password in SUPERVISOR & USER level
a. In the left-top row “S” (SUPERVISOR), press Enter to set your own user name & password
b. In the row 1 to 8 (USER), press Enter to set your own user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore. SPACE does not have underscore.
b. Press any alphanumeric key to move to next input item. SPACE is treated as a valid
character
■Change your password
1. Login the KVM in SUPERVISOR level by pressing your own user name & password
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Change password in SUPERVISOR & USER level
a. In the left-top row “S” (SUPERVISOR), press Enter to change your user name & password
b. In the row 1 to 8 (USER), press Enter to change your user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore. SPACE does not have underscore.
b. Press any alphanumeric key to move to next input item. SPACE is treated as a valid
character
■Disable your password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the KVM hotkey Scroll Lock + Scroll Lock + P
3. You don’t need user name & password to access the KVM OSD menu
■Forget your password
Please contact your supplier for further support
Remark:
■You must press the KVM hotkey within 2 seconds
■A beep sound will be heard for successful entering KVM hotkey
Password for CV-802 / CV-1602

OSD operation
next to the system name The PC is powered on
next to the system name The PC is selected
F1 Access F1 MAIN MENU
F2 Logout the OSD menu
F3 Previous menu
Esc Cancel / Quit
Enter Complete / Switch to selected port
Switch to previous or next port
PgUp/PgDn Switch to previous bank or next bank
1 / 2 / 3 / 4 Display port 01 ~ 08 / 09 ~ 16 / 17 ~ 24 / 25 ~ 32
Remark: Display port 17 ~ 32 for 32 port model only
KVM OSD
OSD Menu
F1 Main Menu
egnahcegaugnalDSOEGAUGNAL10
eDTIDEEMANTROP20 fine port name
emantropybgnihcraeskciuQHCRAESTROP30
drowssapegnahCYTIRUCESRESU40
eDTSILSSECCA50 fine user access authority
yektohegnahCYEKTOH60
lavretniemityalpsidnacsyfidoMSGNITTESEMIT70
deepsesuomDSOyfidoMESUOMDSO80

KVM Hotkey
Hotkey Function
Scroll Lock + Scroll Lock + Space Bar Calling OSD menu
Right-button mouse + Esc Calling OSD menu
Scroll Lock + Scroll Lock + Switch to previous port
Scroll Lock + Scroll Lock + Switch to next port
Scroll Lock + Scroll Lock + PgUp / PgDn Switch to previous bank or next bank
Scroll Lock + Scroll Lock + Bank no. + Port no. Switch to specific port
Scroll Lock + Scroll Lock + BTurn the buzzer ON and OFF
* Default the buzzer is ON
Scroll Lock + Scroll Lock + PLogout the KVM if password security is
ON. Show up the status windows
Advance hotkeys (for Supervisor login only)
Scroll Lock + Scroll Lock + S
Activate auto-scan mode for connected
servers
*Press any key to exit the auto-scan
mode
Scroll Lock + Scroll Lock + R
Reset all the KVM settings to factory
default
*Except User Security settings
Scroll Lock + Scroll Lock + UDisable and enable password security
*Default security is OFF
Local Console Hotkey for CV-802 / CV-1602
Hotkey Function
Caps Lock + Caps Lock + F1 Show up the Help OSD windows
Caps Lock + Caps Lock + F2 Select Hotkey
*Default is Caps Lock
Caps Lock + Caps Lock + CToggle switch between remote & local port
Caps Lock + Caps Lock + QTurn thr buzzer ON & OFF
*Default the buzzer is ON
Caps Lock + Caps Lock + SActivate auto-scan mode for remote & local port
*The scan time interval is 5 seconds
Caps Lock + Caps Lock + AAuto-adjust the video signal
Remote Console Hotkey for CV-802 / CV-1602
Remarks:
■Example of “Scroll Lock + Scroll Lock + Bank no. + Port no.”
- Bank No. : 1 to 8
- Port No. : 01 to 16
- e.g. Bank 1 Port 4 : Scroll Lock + Scroll Lock + 1+ 0+ 4
- e.g. Bank 2 Port 16 : Scroll Lock + Scroll Lock + 2+ 1+ 6
■You must press the hotkey within 2 seconds
■A beep sound will be heard for successful entering
■The numeric keypad is not supported, while in OSD screen, the arrow keys, PgUp, PgDn, and Enter keys
are supports

Optional Accessories
1. PS/2 3-in-1 KVM cable
1.1 CD-6 6 feet
1.2 CD-10 10 feet
1.3 CD-15 15 feet
1.4 CD-33 33 feet
2. USB KVM cascade cable
2.1 CBC-6 6 feet
3. SUN / iMAC USB to PS/2 adapter
3.1 SUN-31 kit
5. Power cord
4.1 IEC power cord
4.2 NEMA 5-15 power cord (US)
4.3 BS 1363 power cord (UK)
4.4 CEE 7/4 power cord (German)
4.5 AS 3112 power cord (Australia)

DC Power 12V, 24V, 48V Input
V84V42V21ledoM
Input rating
tloV-84tloV-42tloV-21:egatlovtupnI
V57~63V63~81V81~9:egnartupnI
Input current
Am05Am05Am05daoloN-
Am0221Am0542Am0594daollluF-
Output rating
tloV-21tloV-21tloV-21:egatlovtuptuO
A61.4A61.4A61.4:tnerructuptuO
Ef?ciency 84% 85% 85%
Remarks:
■Package does not include power cord

CV-802 / CV-1602
▀KVM Port
Number of ports: 8 or 16
Connector: HDDB 15-pin
Connectivity: CD-6 / 10 / 15 / 33 6' / 10' / 15' / 33' 3-in-1 PS/2 KVM cable
▀Local Console
Graphic connector: HDDB15-pin VGA
Resolution: Up to 1920 x 1440
Input device: 2 x USB type A for keyboard & mouse
▀Remote Console
Connector: HDDB 15-pin, VGA
Resolution: Up to 1600 x 1200 (500 feet), Up to 1024 x 768 (1000 feet)
Input device: 2 x USB type A for keyboard & mouse
Remote I/O: RJ45 via Cat5 / Cat5e / Cat6 cable up to 1000 feet
Compensation: Auto adjust for cable length
▀On Screen Display
Port name: Up to 10 characters long
Port select: Front membrane button, Hotkey & On screen menu
Security: Support eight character password
Auto scan: 5~99 seconds
▀Expansion: Up to 128 servers by 8-level cascade
▀Compatibility
Multi-platform: Mix PCs, SUNs, IBMs, HPs, DELLs Server
Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
▀Power
retpadaCAaivzH06ro05taCAV042ro001:tupnI
Option DC: 12V / 24V / 48V DC input
▀Regulatory Approval: FCC, CE
▀Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
▀Product Information
Dimension (W x D x H): 443 x 180 x 44 mm / 17.3 x 7.1 x 1.73 inch
Net weight: CV-802 / CV-1602 : 4 kg / 9 lb
▀Packing Information
Dimension (W x D x H): 510 x 400 x 77 mm / 20.1 x 15.7 x 3 inch
Gross weight: CV-802 / CV-1602 : 4.5 kg / 10 lb
Specification

General
1. How do the KVM switches allow the user to switch ports?
There are two ways to switch ports. One is the membrane buttons on the front and the other way is
with Hot-key commands.
2. What operating systems do the KVMs support?
The KVMs support multi-platform support allows you to control Windows-based computers, Sun So-
laris systems, Linux, or even Macs by a single KVM switch. The KVM switches support multi-platform
operating systems including but not limited to DOS, Windows 95/98/ME/NT/2000/XP, Linux, Solaris
and Mac OS.
3. Do I have to power down the KVMs to add a new server ?
The KVMs are hot-pluggable and allows servers or devices to be added or removed without power-
ing down the switch, but components of connected devices, such as the servers, may not be hot-
pluggable. We suggest that turn off power to all devices before connecting them.
4. Why I can’t login with default password on KVM switch
The default username and password for the KVM switch is eight zeros - “00000000”. Please check
i. The “Num lock” is not turned on. (for notebook type keyboard)
ii. The numeric (number) keys on the number pad are not accepted by KVM, only the main
number keys.
5. Can I disable the KVM password ?
Yes, for Cat5 KVM, USB KVM, two console PS/2 KVM & IP PS/2 KVM, user can disable/ enable the
KVM password by hotkey.
No, for PS/2 KVM, user can’t disable the KVM password.
6. What do I do if I forget the password?
If the user change the default password and lose the password, pls contact the supplier for further
support.
7. How many levels of KVM cascade are supported?
8 levels are supported.
8. Can I cascade the different types KVM switches together ?
No, only same type KVM can cascade together. (e.g. PS/2 to PS/2, USB to USB,..)
9. Why am I getting ghosting images or shadowing?
i. Check that all video cables are inserted properly.
ii. Check whether the KVM supports the resolution and refresh-rate on your servers.
iii. Check whether the graphics card you are using supports the resolution and refreshrate on
your server or not.
iv. Connect the monitor directly into the servers you are having trouble with to see if problem
still appears.
FAQ

10. The server VGA resolution does not match the resolution of monitor ?
The KVM supports DDC function which will dynamically detect and the DDC data.
The problem may come from the power on sequence.
- For KVM switch
The recommended power on sequence is - monitor, KVM switch and then servers.
- For remote console box
It supports DDC function but does not support hot-plug, the recommend power on se
quence is – monitor, remote console box and then servers.
Two console KVM
What is the resolution support on remote console ?
The remote console can support up to 1,000 feet at 1024 x 768, and up to 500 feet at 1600 x 1200.
Why am I getting ghosting images or shadowing on remote console ?
Press “Scroll lock + Scroll lock + A” on the keyboard connected to remote console box to force auto-
adjusting the video signal to optimize.
FAQ

1. There is no LED display on KVM membrane switch
i. Make sure the power adapter plugged into the KVM Switch, if the LED’s still off, perform soft
reset to KVM switch.
ii. Power cycle KVM switch.
2. I can power on the KVM, but I am not getting any picture at all, how can I solve this?
Switching to another port and checking if this port has the same problem
a. If you switch to another port, please check the screen resolution is the same.
b. Check the OSD menu is available on the hot keys “Scroll lock + Scroll lock + space bar”.
If the problems persist, please make sure the cables are inserted properly and the boot up
sequence is followed.
3. The screen is on but the keyboard and mouse don’t work
i. Check the server by using a different keyboard and mouse.
ii. For PS/2 servers
The keyboard and mouse are not hot pluggable.
iii. For USB servers
Unplug and plug allowing a few seconds for the bus emulation process to complete.
iv Do not press any keys on the keyboard whilst the server is booting up. This can cause a
keyboard error or cause the keyboard not to detect the KVM switch.
v. Try a different keyboard, but use only 101/102/104-key keyboard
vi. Avoid moving the mouse whilst switching the KVM ports.
4. There is no LED display on the Cat5 dongle
The LED on the Cat5 dongle will flash when plugged into the USB or USB server. The light will then
become steady when the KVM switch has connected. If the LED light is on and not flashing when
plugged into server, please unplug the USB or PS/2 and try again. Or try another good Cat5 dongle
to verify if problem still appears. If the problem persists, please contact your supplier.
Troubleshooting
This manual suits for next models
1
Table of contents
Popular Matrix Switcher manuals by other brands

Black Box
Black Box XPT-DVI4X4 manual

High Sec Labs
High Sec Labs SX22 N Series Quick setup guide

Contro l4
Contro l4 C4-16S2-E-B Installation and setup guide

AVPro Edge
AVPro Edge AC-MX88-AUHD-HDBT-GEN2 user manual

Channel Plus

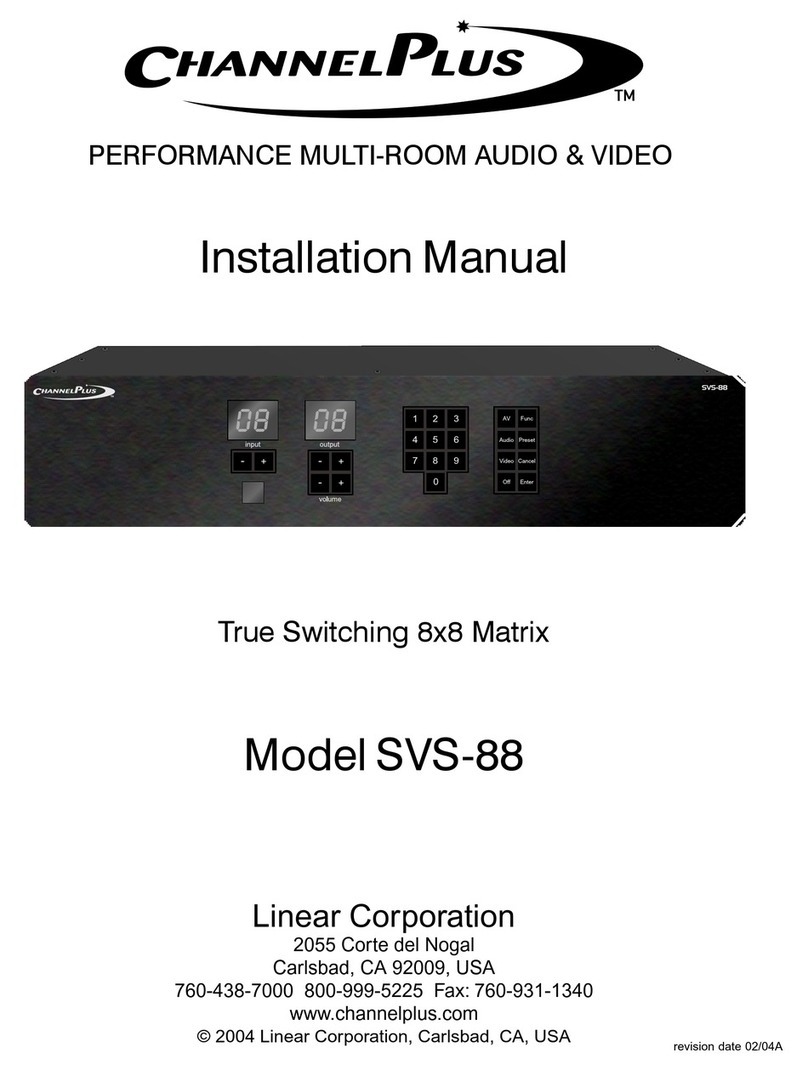

Channel Plus SVS-88 installation manual

Vivo Link

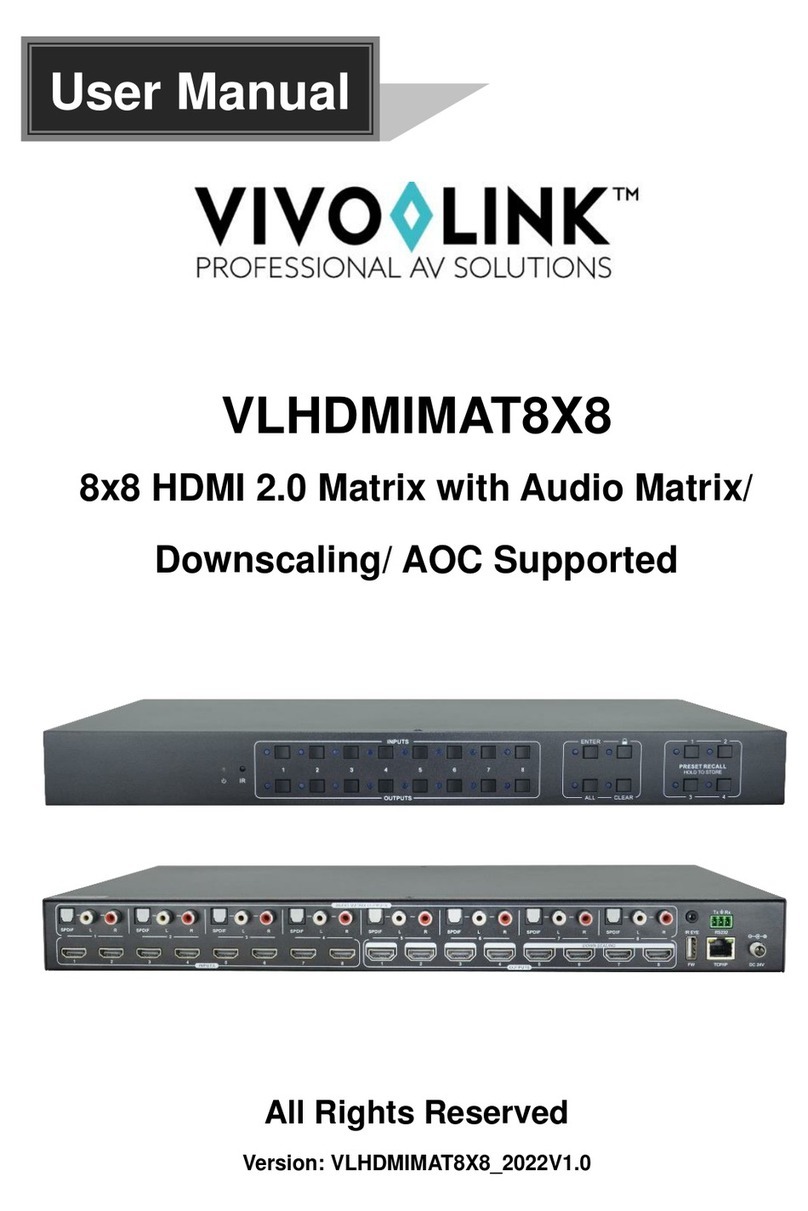

Vivo Link VLHDMIMAT8X8 user manual
