3 and 4 Star Gas Storage Water Heaters
H3958 026271 Rev. A
Installation Details
Owner’s Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.

Owner’s Manual – Gas Storage
H3958 026271 Rev. A
Welcome 1
InstallationDetails 2
GasConnections 5
Specications 6
CommissioningAdjustments 7
Owner’sInformation 10
SystemMaintenance 12
Troubleshooting 14
Warranty 16
OtherInformation 19
Notes 20
Contents
Radiant®isaregisteredtrademarkofDuxManufacturingLimited.
©DuxManufacturingLimited2012.Allrightsreserved.

Owner’s Manual – Gas Storage
1
H3958 026271 Rev. A
Your decision to purchase a Radiant Hot
Water system will reward you for many
years to come.
Since 1915, the Dux range has seen
continuous research and development,
resulting in many breakthroughs in the
efciency, reliability and longevity of hot
water systems.
Radiant water heaters are manufactured
in Australia in a state-of-the-art facility,
using a Quality Endorsed Company
production system.
This is your assurance that you have
purchased the highest quality water
heater available, one that will provide
continuous hot water for all your needs
– safely, economically, and for many
years to come.
To be upfront about it, we want Radiant
to be your brand of choice. So you can
depend on us to provide more than just
a hot water system.
You can rely on Radiant products and
choose them with condence. We’ll
make sure you have the information, the
quality and the innovation you’re looking
for, including the latest energy-saving
alternatives. If you should ever have a
problem – and we’ll bet you won’t –
you’ll nd that we’re easy to get hold of,
friendly to talk to and quick to act. Our
service is all about providing anything
you need as soon as you need it.
Go with Radiant and you’ll have a
dependable, economical, efcient hot
water system designed to perform well,
year after year. And that’s a promise.
Welcome

Owner’s Manual – Gas Storage
2H3958 026271 Rev. A
Pool Heating
This water heater must not be used for
pool heating.
Installation Requirements
This water heater must be installed
by a licensed tradesperson, and in
accordance with:
• AS/NZS3500.4 “National Plumbing
and Drainage Code Hot Water
Supply Systems – Acceptable
Solutions”.
• AS5601/AG601 “Gas Installations”.
• Local authority regulations.
• Outside Australia and New Zealand,
please refer to local plumbing and
building codes and regulations.
• Notice to Victorian customers
from the Victorian Plumbing
Industry Commission – this water
heater must be installed by a
licensed person as required by the
Victorian Building Act (1993). Only
a licensed person will give you a
compliance certicate, showing
that the work complies with all
the relevant Standards and only a
licensed person will have insurance
protecting their workmanship for 6
years.
Outdoor Tank Installation

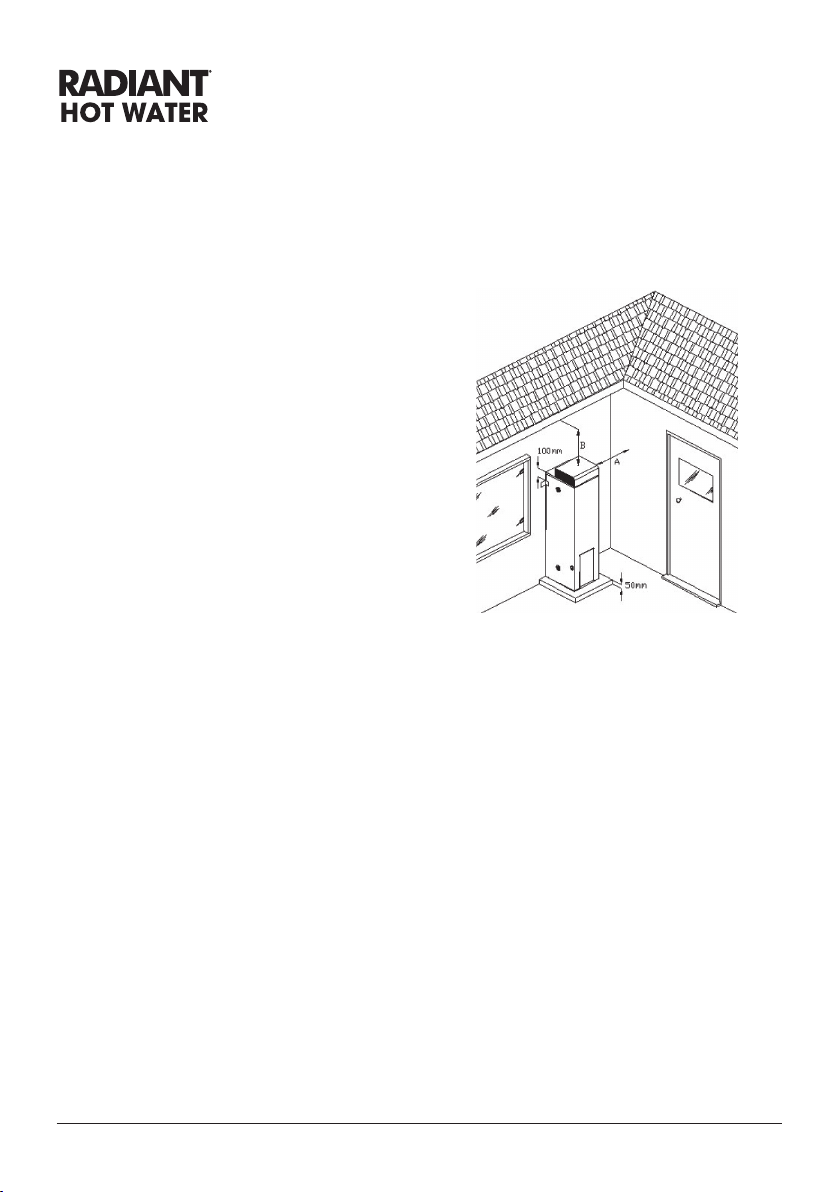

The water heater must be installed
outdoors, with the minimum clearances
as shown in the gure below.
A = 500mm B=300mm min
For further details, refer to
AS 5601 – Gas Installation Code
We recommend a re-proof plinth
be installed under the water heater.
Minimum clearance around the windows
and doors must be maintained – refer to
AS 5601.
Location
The water heater should be located as
close as possible to the most frequently
used hot water outlet. Ensure that the
data label is clearly visible and that there
is adequate access for servicing the unit.
Note: All models are equipped with a
sacricial anode, accessible through the
top cover. Allow 50% of the height of
Installation Details

Owner’s Manual – Gas Storage
3
H3958 026271 Rev. A
the water heater for clearance above to
replace the anode.
A properly drained overow tray must
be used where property damage
could occur from water spillage. (See
AS/NZS3500.4.2 for further details).
Warranty does not cover consequential
damage due to heater leakage.
Water Supply Pressure
This water heater is designed for direct
connection to water supply pressures of
no greater than:
All Models – 1120kPa
Where the mains pressure can exceed
or uctuate beyond the pressure
shown above a pressure limiting device
(complying with AS1357) must be
tted in the cold water inlet supply.
This device must be installed after
the isolating valve and set below the
pressure shown above. Note during
periods of lower demand water pressure
may increase.
Pressure & Temperature Relief
Valve
The Pressure & Temperature Relief Valve
is supplied loose with the water heater.
The valve rating is:
All Models – 1400kPa
The PTR valve must be installed directly
into the top socket marked “RELIEF
VALVE”. The drain line from this valve
must run in a continuously downward
direction in a frost-free ambient position
with the discharge end left open to
atmosphere permanently.
The PTR Valve is not intended to enable
connection of the water heater to
supplementary energy sources such as
solar panels or slow combustion stoves
(refer AS/NZS 3500.4 for guidance on
these types of installations).
Open the PTR Valve for approximately
10 seconds by lifting the lever on the
valve to ensure water is relieved to waste
through the relief drain pipe. Lower lever
gently and check that it closes correctly.
Warning: We recommend that you
open the PTR valve at least once every
6 months. Failure to do this may result in
problems with the water heater.
The PTR Valve must not be tampered
with or removed. The water heater must
not be operated unless this valve is
tted and in working order.
The PTR Valve should be checked for
adequate performance or replaced at
intervals not exceeding 5 years, or less
in areas where local regulations apply.
Important: The PTR Valve and its
drain outlet pipe must not be sealed or
blocked. It is normal for the PTR valve
to leak a small amount of water during
heating cycles.
Plumbing Connections

Owner’s Manual – Gas Storage
4H3958 026271 Rev. A
Cold Water Connection
It is mandatory to t the following items
between the supply main and the
RP¾"/20mm socket in the water heater.
• an isolating valve
• a non return valve
• a line strainer
• a union
All ttings must be approved by the
relevant Authority and in accordance to
the plumbing code.
Note for S.A. and W.A.: It is a state
requirement that a pressure relief
valve be tted on the cold water
supply line between the non re-
turn valve and the water heater.
Hot Water Connection
The hot water line should be connected
to the “OUTLET” socket on the tank.
Insulation of Pipes
All hot water pipes must be insulated
with UV stabilized insulation.
Temperature Protection
All water heaters have the ability to
produce hot water very quickly. To
reduce the risk of scald injury, it is
mandatory under the requirements of
Australian Standard AS/NZS3500.4.2
that a suitably approved temperature
control device, such as a tempering
valve, be tted to the hot water supply
to outlets used primarily for personal
hygiene.
Plumbing Connections
Note: a combined isolating valve/non-return valve/line strainer may be used.
Pressure relief valve only required where local regulations demand.
Union
Connection
Non-return
Valve
Line
Strainer
Cold Water
Inlet
Drain
Pressure
Relief Valve
Isolating Valve
(Spindle Vertical)
Inlet Connections

Owner’s Manual – Gas Storage
5
H3958 026271 Rev. A

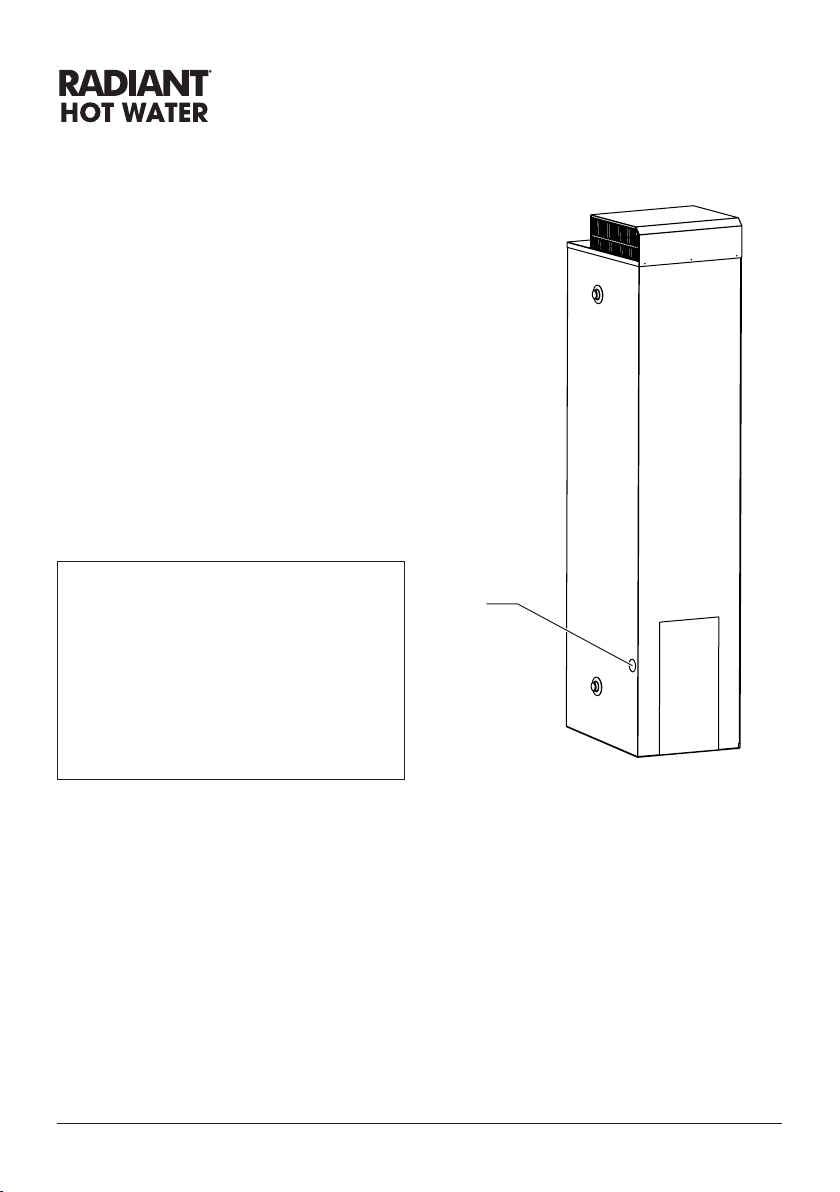

Refer to the Data Label for correct gas
type. Gas piping should be connected
through the side of the case (see gure
below).
The plastic grommet must be installed
around the pipe and clipped into the
case.
The gas control is tted with a
RC½"/15mm socket. A union
connection should be used.
Gas pipe sizes should be in accordance
with AS5601/AG601.
WARNING
Under no circumstances must the
ue terminal cover be removed /
or dis-assembled from the water
heater, except by a fully qualied
and authorised person.
Damage to the water heater will
occur and warranty will be void.
Gas
Entry
Gas Connections

Owner’s Manual – Gas Storage
6H3958 026271 Rev. A
Tank Specifications
3 Star 4 Star
Model Numbers 135RAD3N
135RAD3L
170RAD3N
170RAD3L
135RAD4N
135RAD4L
170RAD4N
170RAD4L
Capacity (L) 135 170 135 170
Net Weight Empty (kg) 72 86 72 86
Relief Valve Pressure (kPA) 1400 1400 1400 1400
Gas Consumption (MJ/h) 135RAD3N: 33
135RAD3L: 29
170RAD3N: 33
170RAD3L: 29
135RAD4N: 23.5
135RAD4L: 22.5
170RAD4N: 27
170RAD4L: 26

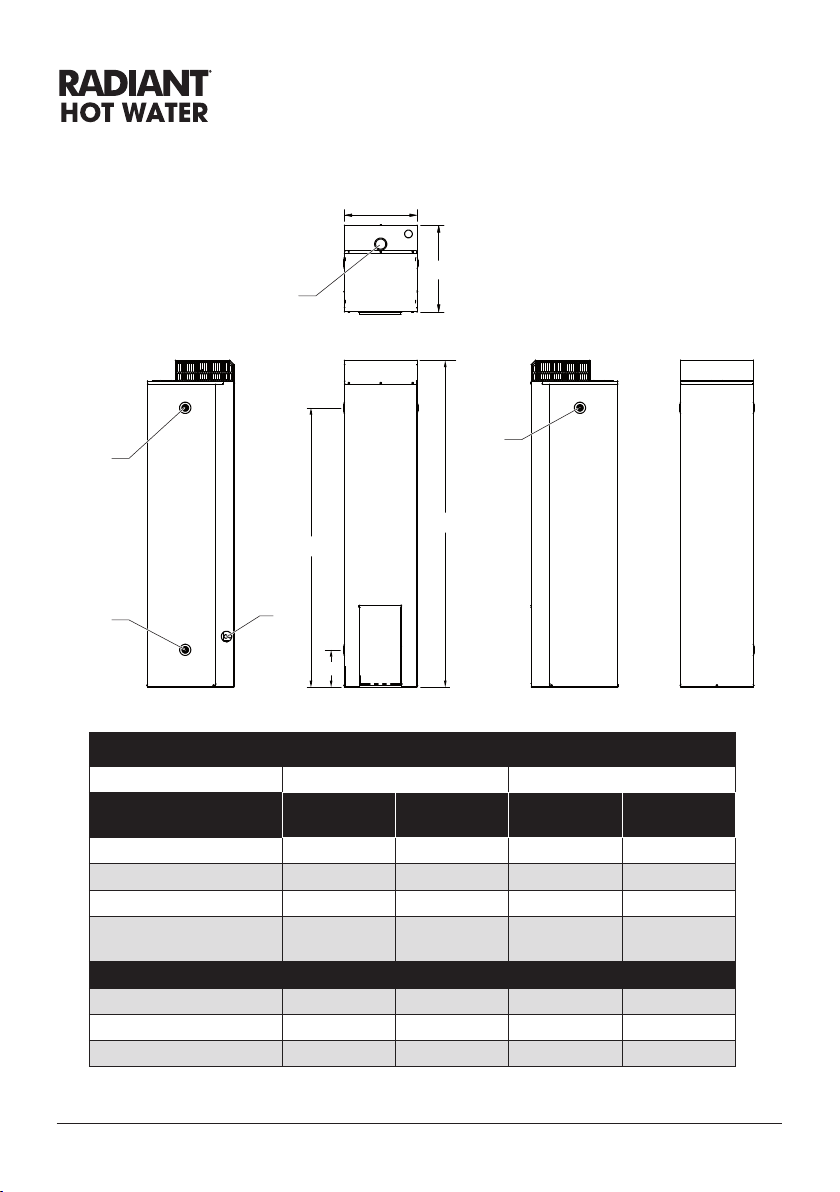

Dimensions (mm)
Height (A) 1601 1896 1601 1896
Hot Water Outlet (B) 1326 1621 1326 1621
Cold Water Inlet (C) 221 221 221 221
502
422
B
C
A
Access to
Anode
Front View
Top View
Left View Right View Rear View
Hot
Water
Outlet
Cold
Water
Inlet
Gas
Inlet
PTR
outlet
Specifications

Owner’s Manual – Gas Storage
7
H3958 026271 Rev. A
Note: Commissioning adjustments
must be done only by a licensed
tradesperson.
Lighting the Water Heater
The water heater must be lled with
water before lighting. Instructions for
lighting procedure are on the inside of
the access cover and shown below:
1. Turn the knob fully clockwise to the
“•” (off) position.
2. Wait 5 minutes so any build-up of
unburnt gas can escape.
3. Turn the knob to the (pilot)
position.

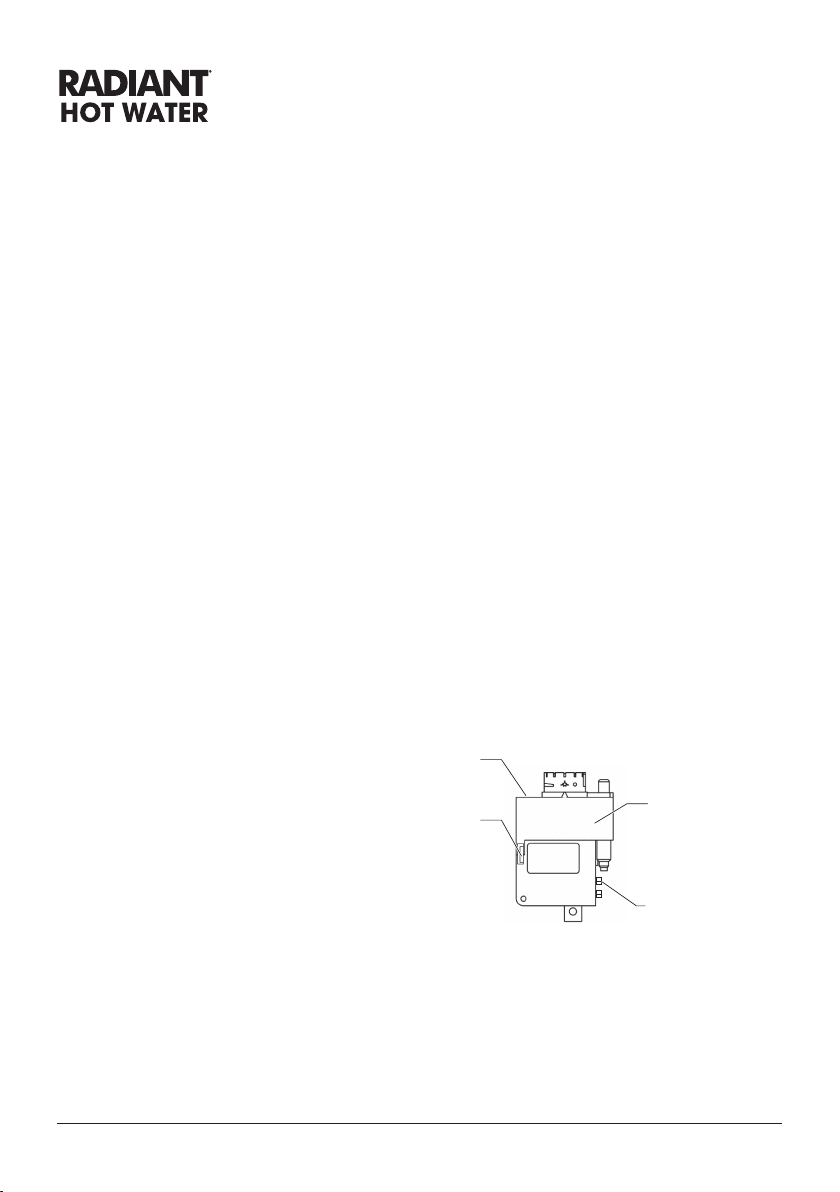

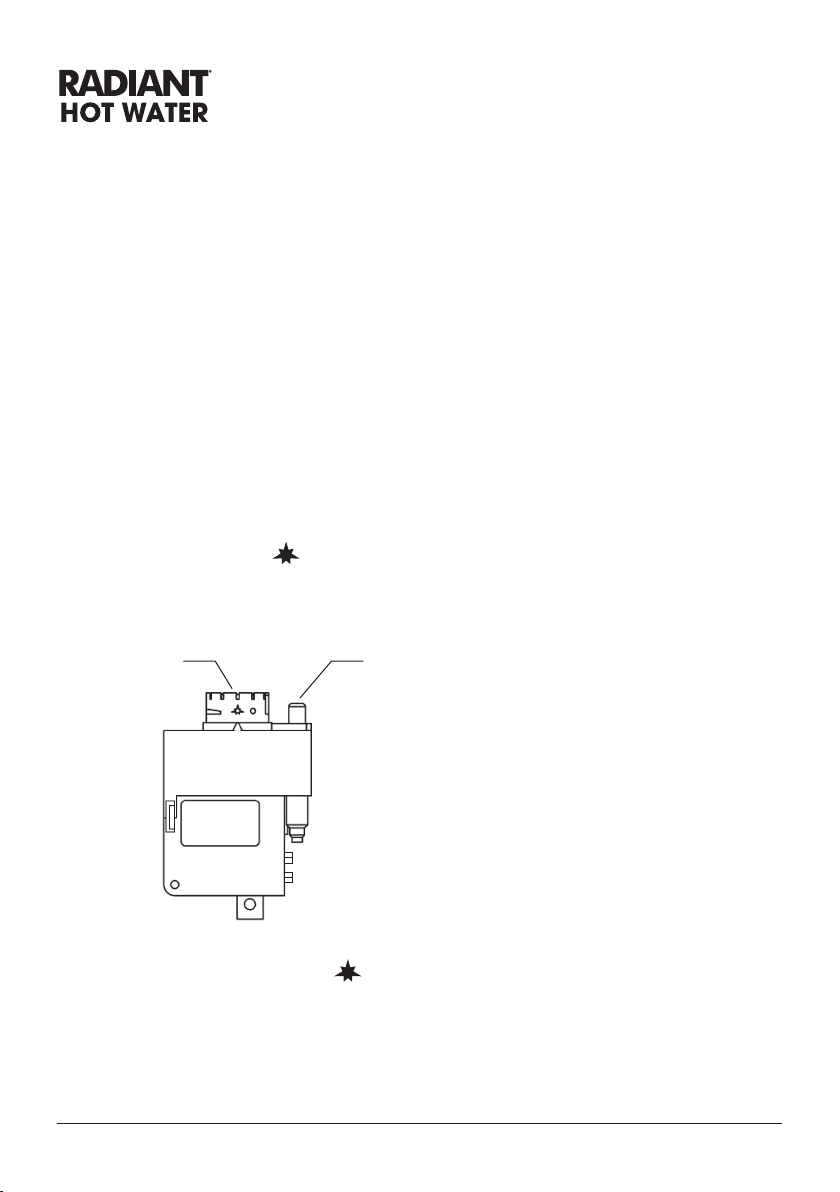

Thermostat and
gas control knob Igniter
4. Depress the knob fully (until
disappears below housing) and
after 30 seconds, whilst keeping
the knob depressed, repeatedly
press the igniter button (for up to 40
seconds) until the pilot ame ignites.
Note: It is not possible to depress
the knob fully if the gas control has
activated its safety shut-off feature.
In this case, wait 60 seconds for the
gas control to reset.
5. Keep the knob depressed for 20
seconds after the pilot ame lights.
The pilot ame can be observed if
a mirror is placed directly below the
pilot assembly.
6. Release the knob and check if the
pilot is still alight.
7. If pilot has failed to light or has not
remained alight, turn gas control
knob to “•” (off). Wait 5 minutes for
the escape of unburnt gas, then
begin again at step 3.
8. When the pilot ame remains alight
with the knob released, turn the
knob anticlockwise to one of the
number settings. A setting of “6” is
recommended and this will give a
water temperature of about 60ºC.
9. Turn the knob to a higher number
for higher water temperatures or
a lower number for lower water
temperatures.
10. Set the test point pressure as
per the instructions on page 8.
11. Replace the access panel and
ensure that it is rmly in position
before operating the appliance.
12. If the burner does not light at
the selected setting, the water
Commissioning Adjustments

Owner’s Manual – Gas Storage
8H3958 026271 Rev. A
may already be at the selected
temperature.
Warning: Do not attempt to light if
the pilot is out and the knob is in the
“ON” position (one of the number
settings). Follow steps above.
Shutting Down The Water Heater
1. Turn the knob to “•” (off) position.
2. Turn water off at water isolating
valve.
Turning Off Gas To The Appliance
1. Turn the knob to “•” (off) position.
2. Turn off the gas isolation valve.
To maintain safety and efciency this
heater should be serviced annually by
an authorised service agent.
Main Gas Pressure Regulator
Adjustment
The main burner pressure must be
set at installation in accordance
with that marked on the Data
Plate. Adjust the Gas Control as
required to achieve specied gas
test point pressure. If problems are
encountered in this process contact
the Dux Service Department.
Failure to accurately set the pressure can
result in damage to the water heater, and
automatically cancels the Manufacturer’s
Warranty. This water heater is to be
installed only by an Authorised Person.
The pressure is best checked by
connecting a water manometer or
equivalent to the test point nipple. The
test point pressure must comply
with the value on the Data Label.
If adjustment is necessary, follow the
instructions below:
1. Remove the securing screw (1) from
the top of the Gas Control and lift
the plastic cover (2) upwards.
2. Locate the regulator adjustment
screw on the lower left hand side of
the Gas Control (3).
3. Light the burner. Rotate adjustment
screw clockwise to increase, or anti-
clockwise to decrease pressure.
4. Replace the plastic cover and
securing screw.
5. Replace the test point nipple
blanking screw and test for gas
leaks.
Commissioning Adjustments
1
3
2
Test Point Nipple
(top screw)

Owner’s Manual – Gas Storage
9
H3958 026271 Rev. A
Note: Pressure adjustments at gas
cylinder regulator should be conducted
as required to ensure correct supply
pressure to water heater as per
AS5601/AG601.
Ignition System (Spark Gap)
If there is no spark or the spark looks
weak, adjust as follows:
1. Check the gap between the spark
electrode and the pilot burner is 3 –
5mm and adjust as necessary.
2. Push the igniter button to test for a
spark.
Warning: Test the spark gap only where
there is no build up of gas.
Note: Instruct owner in water heater
operation before leaving.
Commissioning Adjustments

Owner’s Manual – Gas Storage
10 H3958 026271 Rev. A
Safety
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
Children and animals should be
supervised to ensure that they do not
interfere with the appliance.
Warning: it is essential for the safe
operation of this gas heater that clothing
or any other ammable material should
not be placed against or on top of the
water heater. In addition, do not store
ammable or corrosive materials, such
as dry cleaning uids, pool chemicals,
etc., in close proximity to the heater.
The use of aerosol sprays in the vicinity
of the heater should be avoided. The
propellant gases used in these devices,
e.g. y-spray, hair-spray and laundry
aids, can break down in the ames of the
burner and produce corrosive agents.
DO NOT place articles on or against
this appliance.
DO NOT use store chemicals or
ammable materials, or spray aerosols
near this appliance.
DO NOT operate with panels or covers
removed from the appliance.
Water Quality
Your Dux water heater has been
manufactured to suit water conditions of
most Australian metropolitan supplies.
Please note that harsh water supplies
can have a detrimental effect on the
water heater and its life expectancy. If
you are unsure about your water quality
you can obtain information from your
local water supply authority.
The water heater is designed for use in
areas where the Total Dissolved Solids
(TDS) content of the water supply is less
than 2500 mg/L. In areas where the
TDS exceeds 600mg/L the magnesium
alloy anode (supplied in the heater) may
become over reactive. To alleviate this,
the anode should be replaced with an
aluminium alloy anode, available from
your local Dux supplier.
Water can also be very corrosive,
measured by the saturation index. If the
water saturation index is greater than
0.40 an expansion control valve should
be tted and where the index is greater
than 0.80 the water heater installed
should be a Hard Water Model. Please
consult our Service Department for
advice if required.
Owner’s Information

Owner’s Manual – Gas Storage
11
H3958 026271 Rev. A
How Long Will The Heater Run
Each Day?
The length of time that the heater will run
each day will vary dependent upon the
amount of hot water being used by the
household.
Caution: All water heaters have
the ability to produce hot water in a
surprisingly short time. To reduce the
risk of scald injury, it is mandatory
under the requirements of Australian
Standards AS3500 that an Australian
Standards approved temperature
control valve be tted to the hot water
supply pipe work. This valve should be
checked at regular intervals to ensure its
operation and settings remain correct.
What Should I Do During Holidays?
If the hot water system is not used,
for two weeks or more, a quantity
of hydrogen gas, which is highly
ammable, may accumulate in the water
heater. To dissipate this gas safely, it is
recommended that a hot tap be turned
on for several minutes at a sink, basin
or bath but not a dishwasher, clothes
washer, or other appliance. During this
procedure there must be no smoking,
open ame or any other electrical
appliance operating nearby. If hydrogen
is discharged through the tap, it will
probably make an unusual noise similar
to air escaping.
Important: there are no user
serviceable components in the
system. Only an authorised service
representative is permitted to
remove any covers or make setting
adjustments.
Owner’s Information

Owner’s Manual – Gas Storage
12 H3958 026271 Rev. A
How Does My System Work?
The Dux water storage tank is used
to store the heated water ready
for household use. It has a high
temperature vitreous enamel lining to
provide long life, and a high density
polyurethane insulation to ensure
minimal heat loss.
Never turn the gas supply off during
normal use.
This Dux water heater is designed such
that there is little to do regarding system
maintenance other than that detailed in
this Owner’s Manual.
Personally inspecting or servicing any
part of the system is not recommended.
Anode
The recommended time after installation
when the anode should be inspected by
an authorised person is 5 years.
After every 5 years of operation you
should contact the local service agent
to replace all safety valves and anodes
to ensure continued system life and
operational safety. In locations where the
water has a Total Dissolved Solids (TDS)
content greater than 600 ppm, this
service is recommended every 3 years.
Six Monthly Service – By Owner
Operate the Pressure & Temperature
Relief Valve for approximately 10 seconds
by operating the easing lever on the
valve to ensure water is relieved to waste
through the relief drain pipe. Check to
ensure the valve closes correctly.
Five Year Service – By Authorised
Personnel Only
The ve year service must be carried
out by a licensed tradesperson. It is
recommended that this service be
carried out by your local Dux agent.
The service should include the following:
• Replace the Pressure &
Temperature Relief Valve.
• Replace the anodes (in areas of
harsh or adverse water conditions, a
more frequent check of the anodes
is recommended).
• Flush the water heater by doing the
following:
i. Turn off gas supply.
ii. Turn off the cold water supply to
the water heater at the isolating
valve.
iii. Gently operate the easing lever
on the Pressure & Temperature
Relief Valve to release the
pressure in the water heater.
iv. Disconnect the cold water inlet
union to the heater and attach a
drain hose.
System Maintenance
502
422
B
C
A
Access to
Anode

Owner’s Manual – Gas Storage
13
H3958 026271 Rev. A
v. Gently operate the Pressure &
Temperature Relief Valve to let air
into the heater and allow water
to escape through the hose.
vi. Flush the heater until clear water
appears then reconnect all
ttings, ll the heater and restore
the gas supply.
System Maintenance

Owner’s Manual – Gas Storage
14 H3958 026271 Rev. A
What Should I Check Before
Making A Service Call?
If there is not enough hot water, it is
recommended that the following points
be considered before making a service
call. If after checking the following points
the problem has not been identied,
please contact Dux on 1300 365 115.
Water Discharge From Pressure &
Temperature Relief Valve (PTR)
It is not unusual for a small quantity of
water to discharge during the heating of
water in your storage tank. The amount
of discharge will depend on hot water
usage and size of the storage tank.
As a guide, it will discharge 3% of the
storage capacity of water in the heating
period.
Continuous Trickle (PTR)
This is most likely due to a build up of
foreign matter. In this case, try gently
raising the easing lever on the PTR Valve
for a few seconds, then release gently.
This may dislodge a small particle of
foreign matter and rectify the fault.
Steady Flow (PTR) – More than
20L per day
This may be caused by excessive water
supply pressure, a faulty PTR Valve or a
faulty thermostat. Contact Dux on 1300
365 115.
Insufcient Hot Water
• Is the Pressure & Temperature Relief
Valve discharging too much water?
• Do you have the correct size water
heater for your requirements? Sizing
details are available from your Dux
supplier.
• Is one outlet (such as the shower)
using more hot water than you
think?
• Carefully review the family's hot
water usage and if necessary
check the shower ow rates with a
bucket, measuring the amount of
water used over that period of time.
If it is not possible to adjust water
usage patterns, an inexpensive ow
control valve can easily be tted to
the shower outlet.
• Consider that often the hot water
usage of showers, washing
machines and dishwashers can
be under estimated. Review these
appliances to determine if your daily
usage is greater than the storage
volume of your water heater. For
example, if you have a 170 litre
storage tank and you are using
300 litres of water it is possible that
there will be certain times of the day
where there is insufcient hot water.
• Is there a leaking hot water pipe or
dripping hot water tap? A small leak
can waste a large quantity of hot
water.
Troubleshooting

Owner’s Manual – Gas Storage
15
H3958 026271 Rev. A
• Replace faulty tap washers and
have your plumber rectify any
leaking pipe work.
Troubleshooting

Owner’s Manual – Gas Storage
16 H3958 026271 Rev. A
Radiant Hot Water Unit
Manufactured by Dux
Manufacturing Limited (“Dux”)
Terms of Warranty and
Replacement Guarantee
All Radiant water heaters manufactured
and sold after 1 January 2012 are
backed by a comprehensive one (1) year
full parts and labour warranty (conditions
apply – see below).
Furthermore, the Radiant tank includes
a guarantee to replace your hot water
unit if the inner cylinder fails within ve
(5) years (conditions apply – see below).
The terms of the Warranty and
replacement guarantee are set out
below.
1 Year Comprehensive Warranty
Your hot water system and its com-
ponents (“Unit”) are covered by 1 year
(parts and labour) warranty against
defective factory materials or workman-
ship.
This warranty period commences from
the date of installation of the Unit provid-
ing you have proof of this installation
date. Where the date of completion of
installation is not known or cannot be
proven, then this warranty will com-
mence one (1) month after the date of
manufacture (refer to the data label on
the unit).
5 Year Replacement Guarantee
If an inner cylinder fails on a Dux hot
water unit within a further four (4)
years after the end of the initial one (1)
year warranty period, Dux will provide
a free replacement hot water unit
at the nearest approved Dux agent
or Dux ofce to the owner’s home.
Under this replacement guarantee,
the transport, installation and labour
costs of delivering the replacement hot
water unit and removing and replacing
the existing hot water unit with the
replacement hot water unit will be
the responsibility of the owner of the
existing hot water unit.
Conditions of Warranty and Re-
placement Guarantee
The benets provided to you by the
warranty and replacement guarantee
(collectively “Warranty”) are in addition
to the guarantees and other rights and
remedies available to you under the
Australian Consumer Law (“ACL”).
If the Unit fails to conform to this
Warranty during the applicable period,
Dux will replace any failed component
or where necessary, in the absolute
discretion of Dux, replace the Unit free
of charge including reasonable labour
costs incurred in normal business
working hours.
This Warranty only applies to defects
which have arisen solely from faulty
materials or workmanship in the Unit
and does not apply to other defects
Warranty

Owner’s Manual – Gas Storage
17
H3958 026271 Rev. A
which may have arisen as a result
of, without limitation, the following:
accidental damage, abuse, misuse,
maltreatment, abnormal stress or strain,
harsh or adverse water conditions
including excessive water pressure or
temperature, neglect of any kind or
otherwise as a result of any use of the
Unit contrary to the product manual
or other instructions provided by Dux.
Alterations or repair of the Unit other
than by an accredited and licensed
service agent or technician are not
covered. Attachment of accessories
or use of non genuine replacement
parts other than those manufactured
or approved by Dux are not covered by
this Warranty.
This Warranty applies only to the
Unit and does not cover any ancillary
plumbing or electrical parts supplied by
the installer such as pressure limiting
valve, tempering valve, line strainer,
stop cocks, non-return valve, electrical
switches, pumps or fuses, or faulty
installation.
The Unit must be installed by a licensed
plumber in accordance with information
set out in the Owner’s Manual and/
or Installer’s Guide supplied with the
Unit and/or any relevant statutory
requirements.
In addition to this Warranty, certain
legislation (including the ACL) may give
you rights which cannot be excluded,
restricted or modied. This Warranty
must be read subject to such legislation
and nothing in this Warranty has
the effect of excluding, restricting or
modifying those rights.
If Dux fails to meet a guarantee under
the ACL, your remedy for such failure
may be limited to any one or more of the
following:
• replacement of the Unit;
• repair of the Unit;
• refunding the cost of the Unit;
• payment of reasonable costs of
having the Unit repaired;
• payment in respect of the reduced
value of the Unit.
Any defective part of the Unit must be
returned to the point of sale before
replacement can be considered under
the terms of this Warranty. If the costs
of returning any defective parts are
unreasonable, please contact Dux on
1300 365 115 (Australia) or 0800 729
389 (New Zealand) so that we can
arrange a collection if appropriate.
Warranty claims can be made at the
point of sale or by posting or faxing a
warranty claim to Dux (contact details
listed below) within one (1) month of the
appearance of a defect. Warranty claims
under this extended warranty must
include the following details:
• Date of Purchase;
• Location of Purchase;
Warranty

Owner’s Manual – Gas Storage
18 H3958 026271 Rev. A
• Proof of Purchase;
• Date of Installation;
• Contact Details;
• Product Serial Number.
Contact details
Dux’s contact details are as follows:
Business Address:
Dux Manufacturing Limited
Lackey Road
Moss Vale, NSW, 2577
Australia
Telephone:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Facsimile:
(61 2) 4868 0257
Email:
[email protected]
Note: If the Unit is located in a
position that does not comply with
the installation instructions or relevant
statutory requirements, then this
Warranty does not cover major
dismantling or removal of cupboards,
doors, walls or special equipment and/
or excessive labour, at the determination
of Dux, to make the Unit accessible for
repair or replacement.
As required by legislation, including
under the ACL, any claims for damage
to furniture, carpets, walls, foundations
or any other consequential loss either
directly or indirectly due to defects
of any kind in a Unit will only be met
by Dux where the damage could be
considered reasonably foreseeable.
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major failure
and for compensation for any other
reasonably foreseeable loss or damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to
be of acceptable quality and the failure
does not amount to a major failure.
Warranty
