Radical Sportscars SR 3 SL User guide

Owner Handbook

Owners handbook 1/3
VEHICLE IDENTIFICATION
MODEL
CHASSIS No
REGISTRATION No
DATE / / 20
This section must be completed by the original
selling distributor or Radical Sportscars.
Radical Sportscars
Unit 24-26 Ivatt Way Business Park
Westwood
Peterborough
Cambridgeshire
PE3 7PG
United Kingdom
T+44(0)1733 331616
F+44(0)1733 294959
E [email protected]
W www.radicalsportscars.com
No. 7225 V1
7/12 – 100

contents
Introduction 05
Disclaimer 06
Pre-delivery check 07
Getting started 11
Exterior overview 08
Interior overview 10
Controls 12
LCD dashboard 17
Security and safety 21
Driving your SL 24
Driving technique 27
Maintenance 08
Engine bay overview 30
User maintenence 32
Jacking & towing 37
Specification 39
Radical success 41
03

04

introduction
Dear Radical owner,
Thank you for purchasing a SR3 SL and welcome to
the worldwide Radical family. The SR3 SL is our first-
ever model designed specifically for road use, a fully
European Type Approved roadster with outstanding
performance and roadholding.The SR3 SL is a truly
unique sportscar and, if properly maintained, will give
you an amazing driving experience whether on the
open road or on a race circuit. Although your car has
been carefully constructed, inspected and run-up on
our in-house rolling road dynamometer, please do not
press the Engine Start button until you have read
through this Owner’s Handbook, carried out all the
checks and learnt how to get the best from your car.
You will find all the help and support you need
via the information and contacts on our global
website network:
http://www.radicalsportscars.com
Parts, consumables and merchandise can be
purchased online, while technical advice, sales
and aftersales advice is just an email or
telephone call away.
Phil Abbott
Radical Co-Founder
05

disclaimer
CAUTION:
The Radical SR3 SL is a high-performance
road and track vehicle, with extreme handling
and speed capabilities. Due to the intense nature
of the SR3 SL, we advise all owners to read this
owner’s manual thoroughly before driving, always
driving within your own capabilities, paying close
attention to local traffic regulations, the
prevailing weather conditions, road surface and
other road users.
It is recommended that SR3 SL owners seek
professional performance driving instruction on
purchase of an SR3 SL.
06

Pre delivery check
07
BODYWORK/EXTERIOR
> Check for damage during transit
> Ensure all body catches are tight
> Clean and polish bodywork
TYRES
> Visual inspection for damage during transit
> Tyre pressure check and adjustment to
factory settings
> Ensure valve caps present
DASHBOARD
> Check functionality of all buttons and functions
> Set speedometer to correct units (MPH/KPH)
> Zero odometer
ENGINE BAY
> Visual inspection of engine bay
> Check oil level, adjust level as required
> Check coolant level in swirl pot, adjust level as
required, check coolant is circulating when
engine running
> Clean airbox and area around engine
ELECTRONICS
> Check ECU/sensor operation and rectify any
faults indicated, clear ECU of data
ROAD TEST
> Brief road test to check functionality of:
1. Starter
2. Throttle/clutch/brakes
3. Paddleshift system
4. Handbrake (adjust if required)
5. Lighting, instruments and controls
Before you take receipt of your new Radical SR3 SL, your local Radical distributor has performed the following
check to ensure that it is ready for use:

Pre delivery check
08
SAFETY KIT
> Compile safety kit relevant to local/national
regulations, such as:
1. Warning triangle
2. Bulb and fuse kit
3. Tyre repair kit
4. Reflective vest
5. First aid kit
DOCUMENTATION
> Complete, sign and stamp Pre-Delivery
Inspection entry in Service Record
> Compile customer pack containing:
1. SR3 SL Owner’s Manual (this document)
2. Dipstick and wheel nut socket
3. ECU Data Download Cable
4. Copy of EU Certificate Of Confirmity
5. Spare key and immobiliser tag
DISTRIBUTOR-CUSTOMER HANDOVER
Your local Radical distributor will carry out the
following handover to ensure you are completely
happy in the operation and everyday maintenance
of your new Radical SR3 SL:
> Adjustment of the seat, harnesses and controls
> Instrumentation and dashboard
> Driving including paddleshift operation
> Location of oil filling points, coolant and filters
> Location of jacking and towing points
> Explanation of safety points regarding
harnesses, tyres etc.
> Adjustment of pedals for first owner
> Customer and distributor sign below;
copy returned to Radical Sportscars UK
> Damper set up
> Explanation of data downloading (if optioned)
> Explanation of engine map switch (if optioned)
> Explanation of starting and stopping the engine
24 hours after delivery is taken by the SR3 SL
customer, your local Radical Distributor will contact
you to ensure you are happy with the operation of
your new purchase.

Pre delivery check
09
Date: nnnn/nnnn/nnnnnnnn
I confirm that (distributor stamp)
has carried out the Radical SR3 SL Handover Procedure and I am satisfied with the vehicle’s operation,
maintenance and service schedule upon delivery.
Customer Signature: Print Name:

10

Getting started
Exterior overview
Interior overview
Controls
LCD dashboard
Security and safety
11

Exterior overview
12
3
1
7
9
2
4
5
6
8

Exterior overview
13
6Towing 37
7Refuelling, correct fuel grade 33
8Bodywork cleaning and care 35
9Centre-lock wheel removal/fitting 38
1Seat adjustment 25
2Tyre pressures/specification 33
3Front/rear body clips and catches 34
4Front lighting bulb replacement 35
5Dipped beam handing – left/right 36

14

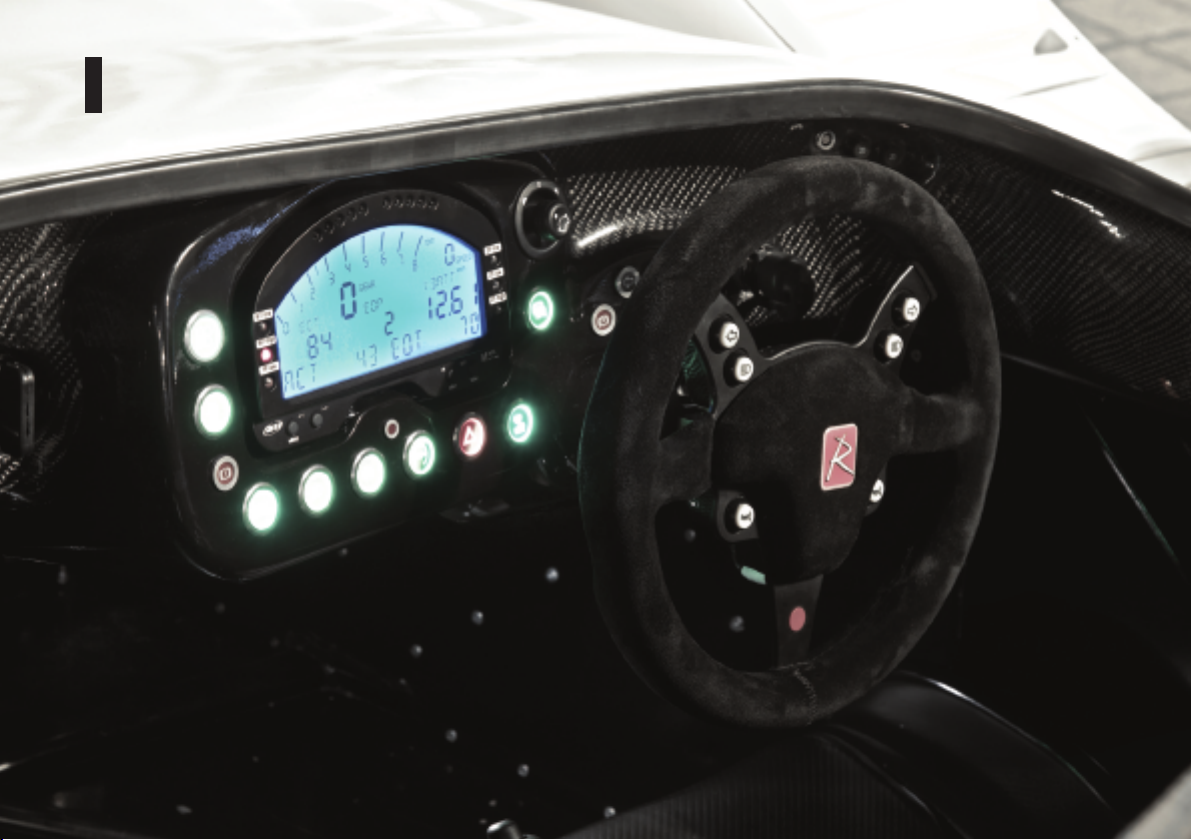

Interior overview
Controls
LCD Dashboard
Safety and security

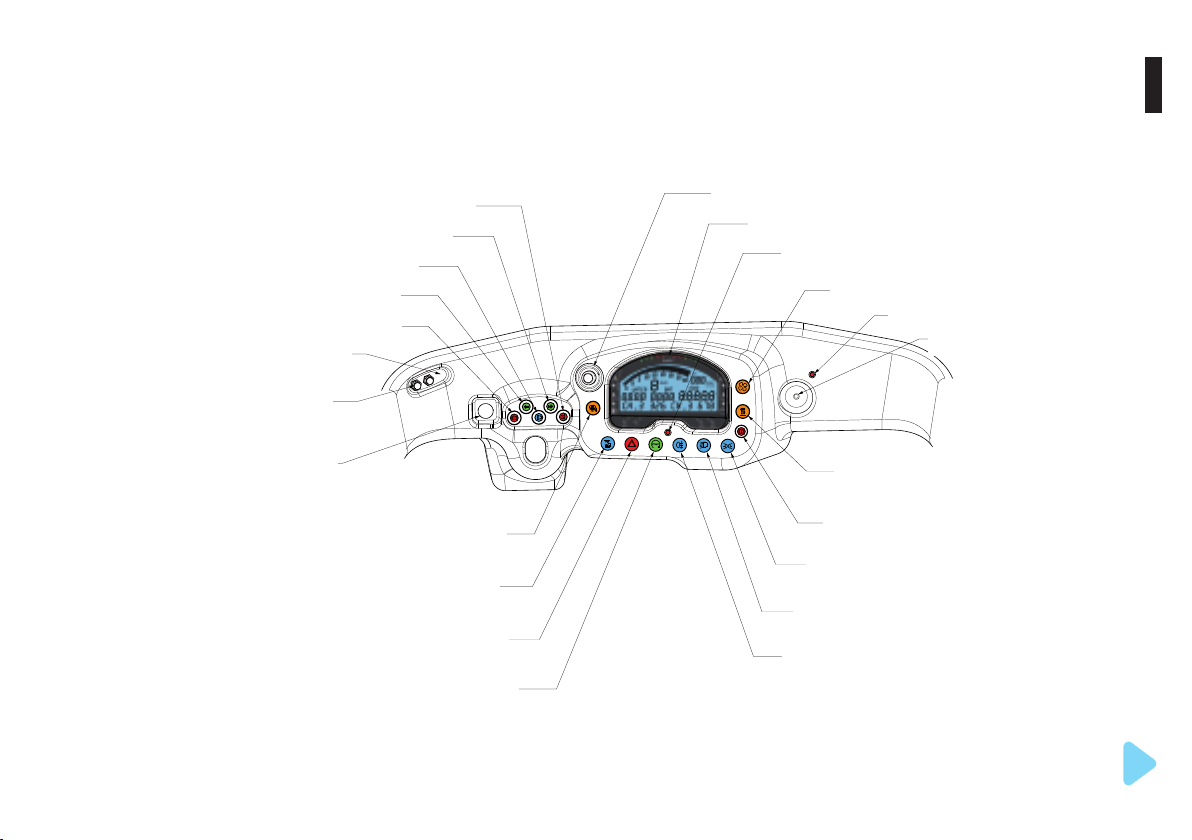

Interior overview
15
UMaster electrical switch
UCockpit fan on/off button
UImmobiliser activation indicator
UMulti-function LCD dashboard
UElectric mirror adjustment joystick
UCockpit heating on/off button
UMaster switch light
UBrake fluid warning light
USidelights on/off button
UDipped beam headlights on/off button
URear foglight on/off button
Rear foglight indication light U
Main beam indication light U
Turning indicator lights U
Turning indicator lights U
Parking handbrake indication light U
Data download socket for LCD U
LCD dash (aftermarket option) U
Steering wheel dash connector U
Dashboard circuit breakers U
Footwell/courtesy light on/off button U
Hazard warning lights on/off button U
Electric mirror heating on/off button U
Engine start button U

16
Controls
URight indicator
Left indicator U
Horn U
Engine map change switch (optional) U
Flash/main beam U
Down gearshift paddle U
UFlash/main beam
USteering wheel centre
UUp gearshift paddle
UHorn

Controls
17
INDICATORS
With the wheels straight ahead, pressing the
leftmost indicator button causes the flashing
left-turn indicators to operate. Pressing the
rightmost indicator button causes the flashing
right-turn indicators to illuminate. Indicators can
be cancelled by pressing the button again, or will
self-cancel after 30 seconds.
LIGHT CONTROLS
The steering wheel-mounted light switches
operate with different logic depending on whether
the car’s dipped-beam headlights are illuminated.
Daytime running lights (DRLs): these will
illuminate when the ignition key is switched to the
‘on’ position and will remain on, regardless of
whether the engine is running.
Sidelights: pressing the sidelight button on the
dashboard (see Interior Overview page) will
illuminate the LED sidelights. Illumination of
dashboard switches and the multifunction LCD
screen will also occur. Sidelights and dash
illumination are switched off when the sidelight
button is presses again, or the ignition is
switched off.
Dipped beam: Dipped beam can only be
activated once the sidelights have been turned
on. Press the headlight button on the dashboard
(see Interior Overview page) to switch on the
dipped beam headlights.Main beam: With the
dipped beam headlights already on, main beam is
selected by pressing either of the steering
wheel-mounted main beam buttons. The head-
lights will remain on main beam until the button(s)
are pressed again.
Flash function: Oncoming traffic can be flashed
by the main beam headlights, when not on dipped
beam. With only the DRLs/sidelights on, pressing
the steering wheel-mounted main beam buttons
will illuminate main beam for as long as the button
is depressed. The headlights will extinguish as
soon as the button is released.

18
Controls
HORN
Pressing either of the two horn buttons operates
the audible warning device for as long as the
button is depressed.
DOWN GEARSHIFT PADDLE
Used to select a lower gear, neutral from first gear,
or reverse gear from neutral ONCE STATIONARY.
Please see the Driving Your SL section for more
details.
UP GEARSHIFT PADDLE
Used to select a higher gear, first gear from
neutral, or neutral from reverse gear ONCE
STATIONARY. Please see the Driving Your SL
section for more details.
STEERING WHEEL CENTRE
Padded for occupant safety in the event of an
impact, in conjunction with the use of the safety
harnesses. This can be removed for access to the
steering wheel boss securing screws if required.
ENGINE MAP CHANGE SWITCH
(OPTIONAL FEATURE)
As a optional feature in certain markets, the
steering wheel can be equipped with a multi-
position engine mapping switch, allowing the
engine’s power and torque characteristics to be
adjusted on-the-fly.

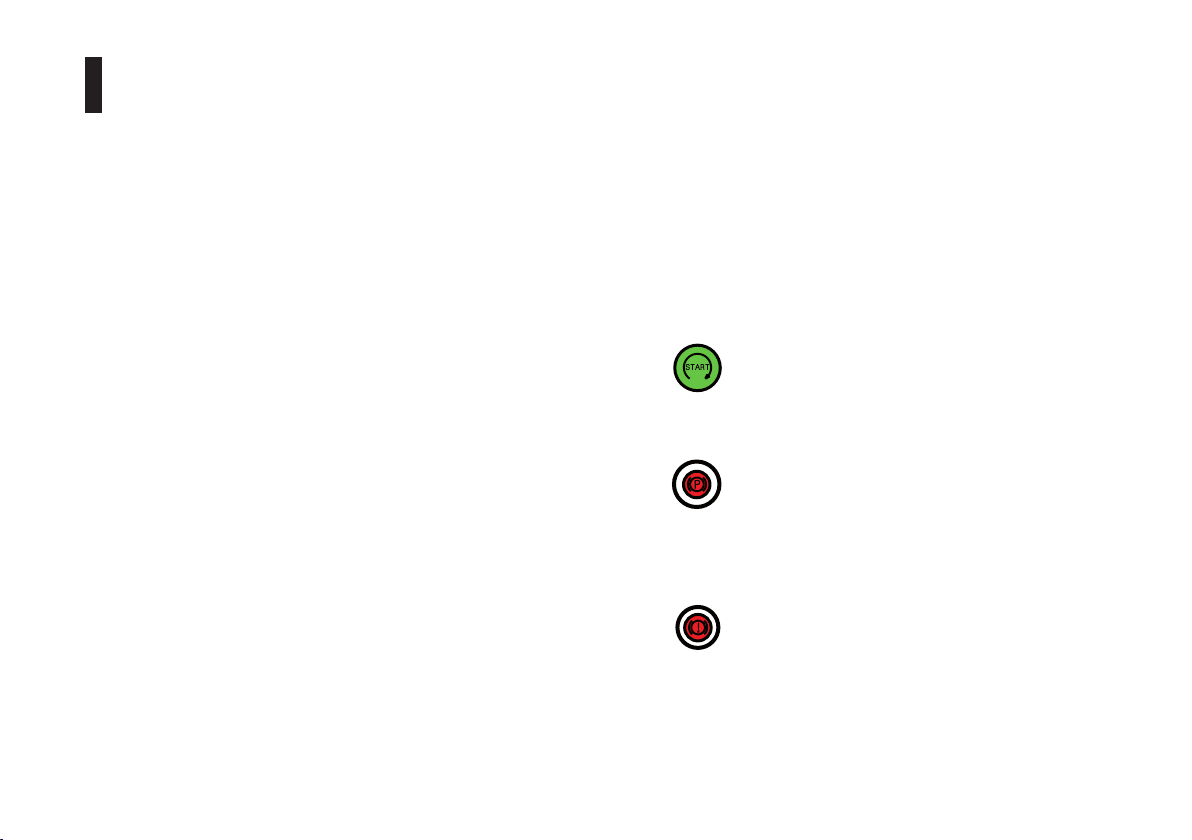

ENGINE START BUTTON
Activates the starter motor once the igntition has
been turned on at the steering column key and
electrical master switch.
PARKING HANDBRAKE INDICATION LIGHT
Indicates when the handbrake is acting on the rear
wheels. Please ensure this extinguishes before
driving away, and investigate if the light illuminates
whilst driving.
BRAKE FLUID WARNING LIGHT
Warns of low brake fluid level or brake pressure.
If this illuminates whilst driving STOP THE
VEHICLE IMMEDIATELY and investigate/check
brake fluid level.

Controls
19

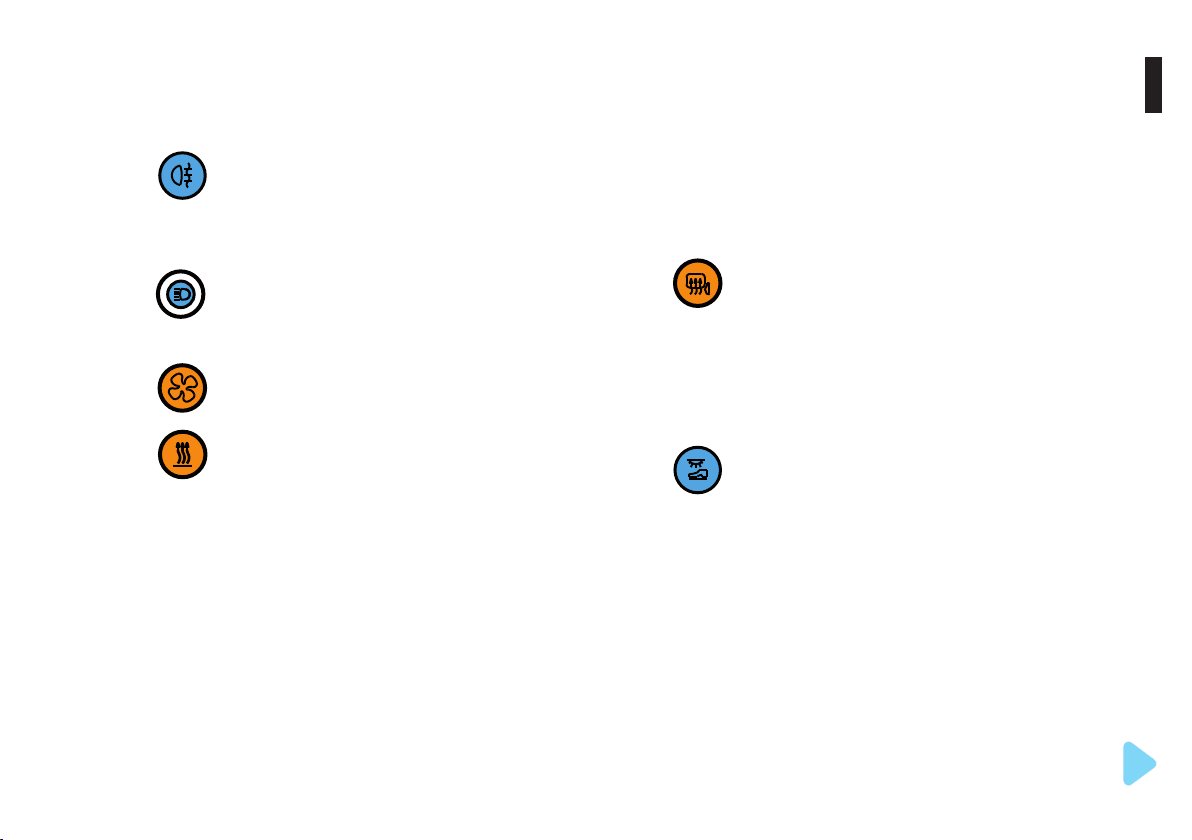

REAR FOGLIGHT ON/OFF BUTTON
Press to activate the rear high-intensity LED
foglight. An indication light will also appear on the
dash to show the foglights are illuminated.
MAIN BEAM INDICATION LIGHT
Illuminates to indicate when main beam headlights
are illuminated.
COCKPIT FAN ON/OFF BUTTON
Activates the cockpit circulation fan. This will blow
air into the footwell area from beneath the dash, at
ambient temperature. To circulate warm air press
the COCKPIT HEATING ON/OFF BUTTON once
the fan is running. Air will be heated by the engine
coolant circulating through the heater matrix.
ELECTRIC MIRROR ADJUSTMENT JOYSTICK
The Radical SR3 SL is fitted with electrically
adjustable electric mirrors. Twist the joystick
clockwise or counter-clockwise towards the mirror
for adjustment, then move the joystick to adjust
the mirror position. Twist the joystick back into
the central, upright position when not in use, to
prevent accidental movement of the mirrors.
ELECTRIC MIRROR HEATING
ON/OFF BUTTON
Activates electric heating elements in the rear-view
mirrors, to demist for a clear rear view. Press to
commence heating, the elements will switch off
automatically after ten minutes, when the button is
pressed again or when the ignition is turned off.
FOOTWELL/COURTESY LIGHT
ON/OFF BUTTON
Turns on the under-dash footwell lighting to aid
egression from the car. This will also automatically
illuminate for 30 seconds after the ignition key is
turned off.

20
Controls
DASHBOARD CIRCUIT BREAKERS
Protect the multi function LCD dashboard from
damage. These will pop out if tripped but can be
reset by pushing the ‘button’ top back in. If the
circuit breakers trip repeatedly, there is an
electrical fault which should be investigated.
DATA DOWNLOAD SOCKET FOR LCD DASH
Allows the parameters of the multifunction LCD
dashboard to be adjusted, and timing/telemetry
data to be downloaded (optional feature; ask your
Radical distributor for more details).
