FEATURES
Your RadioShack ET-536 10 Channel/
ET-549 25-Channel Cordless Tele-
phone with 10-Number Memory is de-
signed to exacting standards that
ensure reliability, long life, and out-
standing performance.
Its features include:
10 Channels (ET-536) / 25 Channels
(ET-549) — lets you change to a clear-
er channel during a call to reduce static
interference.
10-Number Memor
y
Dialin
g
— lets
you store up to 10 numbers in memory
for easy dialing.
Super CCT Noise-Reduction
Circuitr
y
— provides clear telephone
conversations, giving you sound clarity
comparable to that of a corded phone.
Securit
y
Access-Protection Code —
automatically prevents other cordless
phone users from using your phone
line while the handset is off the cradle.
COM-LOK® — ensures that other
cordless phone users cannot use your
phone line when the handset is on the
cradle.
Redial — lets you quickly redial the
last number dialed.
Pa
g
e — lets you send a paging signal
from the base to the handset to page
someone or locate the handset if you
misplace it.
Flash — sends an electronic switch-
hook signal for use with special phone
services, such as Call Waiting.
Pro
g
rammable Rin
g
ers — let you
select from four ringer types and
change the type from the handset.
Tone/Pulse Dialin
g
— lets you use
your phone with tone or pulse service.
Quick Talk — lets you make or an-
swer a call by simply lifting the handset
from the base.
Hearin
g
-Aid Compatibilit
y
— lets
you use your phone with hearing aids
that have a T (telephone) switch.
This telephone has been tested and
found to comply with all applicable UL
and FCC standards.
We recommend you record your
phone’s serial number here. The num-
ber is on the bottom panel of the base.
Serial Number: __________________
© 1997 Tandy Corporation.
All Rights Reserved.
COM-LOK is a registered trademark used by Tandy Corporation
RadioShack is a trademark used by Tandy Corporation.
43-1036.fm Page 2 Tuesday, August 17, 1999 9:52 AM

3
Important Note: Cordless phones
such as this one require AC power to
operate. When the AC power is off,
you cannot dial out or receive incoming
calls using your ET-536/ET-549. To be
safe, you should also have a phone
that does not need AC power to oper-
ate (not a cordless phone) so you can
still make and receive calls if there is
an AC power failure.
Warning: To prevent fire or shock
hazard, do not expose this product to
rain or moisture.
This symbol is intended to alert you
to the presence of uninsulated dan-
gerous voltage within the product’s
enclosure that might be of sufficient
magnitude to constitute a risk of
electric shock. Do not open the
product’s case.
This symbol is intended to inform
you that important operating and
maintenance instructions are in-
cluded in the literature accompany-
ing this product.
READ THIS BEFORE
INSTALLATION
Each device that you connect to the
phone line draws power from the
phone line. We refer to this power draw
as the device’s Ringer Equivalence
Number, or REN. The REN is shown
on the bottom of the base.
If you are using more than one phone
or other device on the line, add up all
the RENs. If the total is more than five,
your phones might not ring. In rural ar-
eas, a total REN of three might impair
ringer operation. If ringer operation is
impaired, remove a device from the
line.
FCC STATEMENT
This telephone complies with Part 68
of
FCC Rules
. You must, upon re-
quest, provide the FCC Registration
Number and the REN to your phone
company. These numbers are located
on the bottom panel of the base.
Note: You must not connect your
phone to any of the following:
• coin-operated systems
• party-line systems
• most electronic key phone sys-
tems
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE-
ABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
CAUTION !
!
43-1036.fm Page 3 Tuesday, August 17, 1999 9:52 AM

4
CONTENTS
Installation ............................................................................................................ 5
Selecting a Location ........................................................................................ 5
Placing the Base on a Desk Top ............................................................... 5
Mounting the Base on a Wall Plate ........................................................... 6
Mounting the Base Directly on the Wall .................................................... 8
Connecting and Charging the Battery ............................................................. 9
Setting the Dialing Mode ............................................................................... 11
Setting the Ringer Tone and Volume ............................................................. 11
Operation ............................................................................................................ 12
Making and Receiving Calls .......................................................................... 12
Changing the Channel ....................................................................................12
Using Redial .................................................................................................. 12
Using Flash .................................................................................................... 13
Using Tone Services on a Pulse Line ............................................................ 13
Paging ........................................................................................................... 14
Memory Dialing .............................................................................................. 14
Storing a Number in Memory ...................................................................14
Entering a Pause .................................................................................... 15
Dialing a Memory Number ...................................................................... 15
Chain-Dialing Service Numbers .............................................................. 15
Testing Stored Emergency Numbers ...................................................... 15
Troubleshootin
g
................................................................................................. 16
Care and Maintenance ....................................................................................... 18
Replacing the Battery .................................................................................... 19
The FCC Wants You to Know ........................................................................ 20
Lightning ........................................................................................................ 20
43-1036.fm Page 4 Tuesday, August 17, 1999 9:52 AM

5
INSTALLATION
SELECTING A LOCATION
You can place the phone on a desk top
or table, or mount it on a wall. Select a
location that is:
• near an AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical appliances, metal walls
or filing cabinets, wireless inter-
coms, alarms, and room monitors
• away from other cordless phones
The base’s location affects the hand-
set’s range. If you have a choice of
several locations, try each to see
which provides the best performance.
Caution: The supplied RadioShack
adapter was designed specifically for
your ET-536/ET-549. Use only the
supplied adapter.
Notes:
• Your telephone connects directly
to a modular telephone line jack. If
your phone line jack is not a mod-
ular jack, you can update the wir-
ing yourself, using jacks and
adapters available at your local
RadioShack store. Or, you can let
the phone company update the
wiring for you.
• The phone company will charge
you for the installation of neces-
sary jacks.
• The USOC number of the jack to
be installed is RJ11C (RJ11W if
you want to mount it on a wall
plate).
Placing the Base
on a Desk Top
Follow these steps when you place
the base on a desk, shelf, or table.
1. Plug one end of the supplied mod-
ular cord into the TEL LINE jack on
the back of the base.
2. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.
43-1036.fm Page 5 Tuesday, August 17, 1999 9:52 AM

6
3. Route the adapter’s cord through
the strain relief slot on top of the
base.
4. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
5. Plug the modular cord’s other end
into a modular phone line jack.
6. Fully extend the base’s antenna
and place it in a vertical position.
Mounting the Base
on a Wall Plate
1. Plug one end of a short modular
cord (such as Cat. No. 279-390,
not supplied) into the TEL LINE
jack on the back of the base.
2. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.
43-1036.fm Page 6 Tuesday, August 17, 1999 9:52 AM

7
3. Route the modular cord through
the top groove and the adapter
cord through both grooves on the
bottom of the base.
4. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.

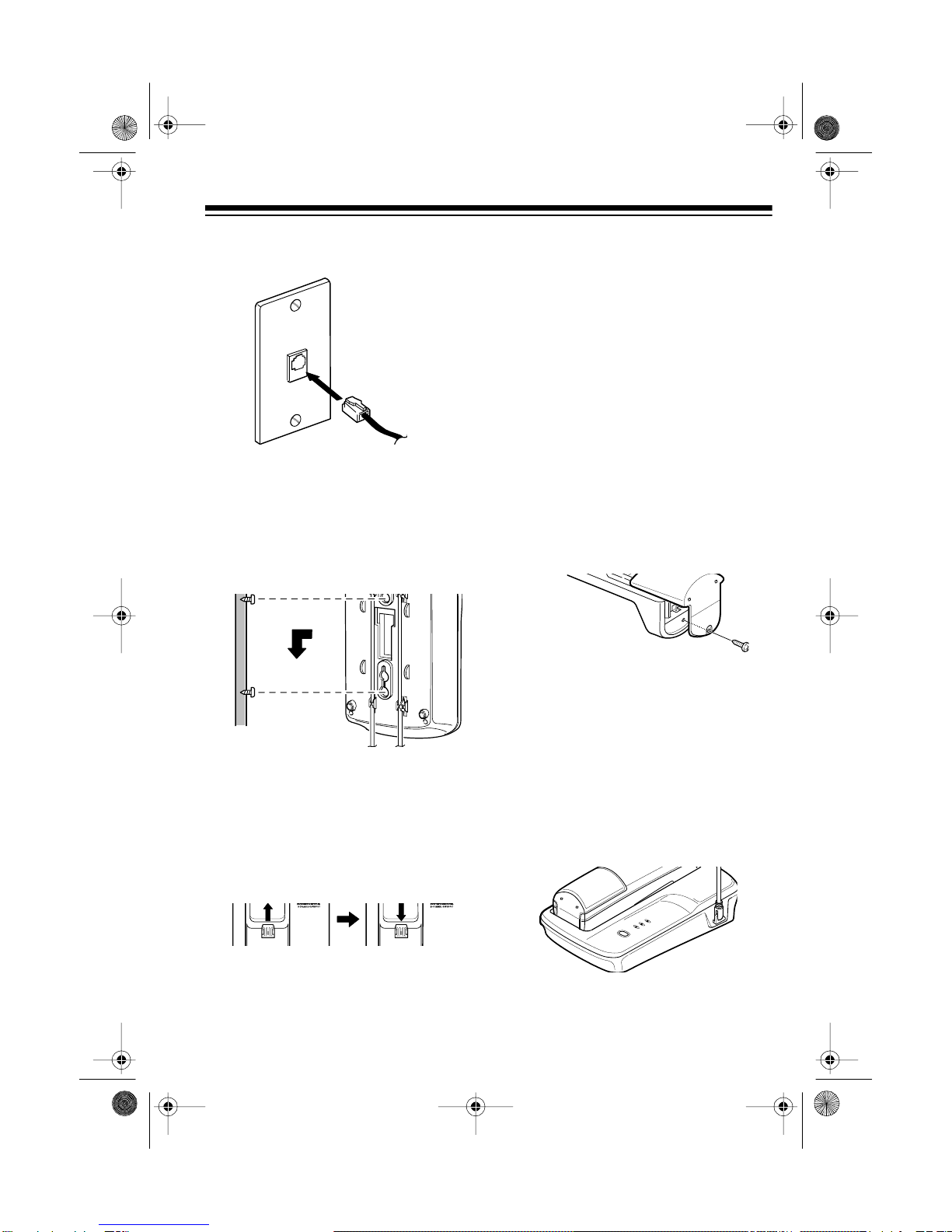

5. Plug the short modular cord’s
other end into the wall plate jack,
then align the base’s keyhole slots
with the wall plate studs and slide
the base downward to secure it.
6. Press and lift out the handset
holder, rotate it 180°, then snap it
back into place so it holds the
handset.
7. Fully extend the base’s antenna
and place it in a vertical position.
Top
Groove
Both
Grooves
43-1036.fm Page 7 Tuesday, August 17, 1999 9:52 AM

8
Mounting the Base
Directly on the Wall
For this mounting method, you need
two wood screws (not supplied) with
heads that fit into the keyhole slots on
the bottom of the base.
1. Drill two holes 315/16
inches apart. Then
thread a screw into
each hole, letting
the heads extend
about
5/16 inch from
the wall.
2. Plug one end of the supplied mod-
ular cord into the TEL LINE jack on
the back of the base.
3. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.

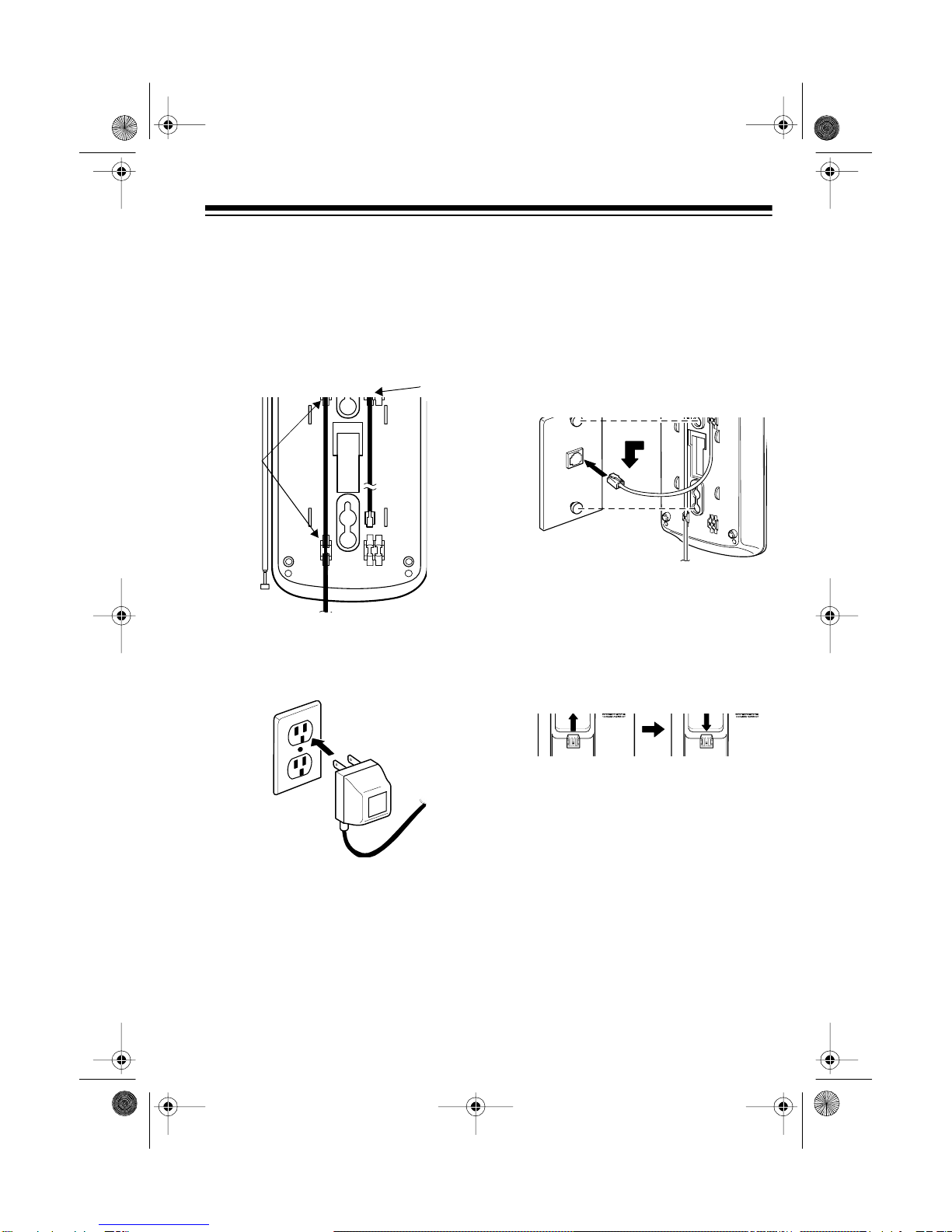

4. Route the modular and adapter’s
cords through both grooves on the
bottom of the base.
5. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
315/16
5/1
5/
1
Both
Grooves Both
Grooves
43-1036.fm Page 8 Tuesday, August 17, 1999 9:52 AM

9
6. Plug the cord’s other end into a
modular phone line jack.
7. Align the keyhole slots with the
mounting screws and slide the
base downward to secure it.
8. Press and lift out the handset
holder, rotate it 180°, then snap it
back into place so it holds the
handset.
9. Fully extend the base’s antenna
and place it in a vertical position.
CONNECTING AND
CHARGING THE
BATTERY
The ET-536/ET-549 comes with a re-
chargeable nickel-cadmium battery in-
stalled in the handset. Before using
your phone, you must connect the bat-
tery then charge it for about 14 hours.

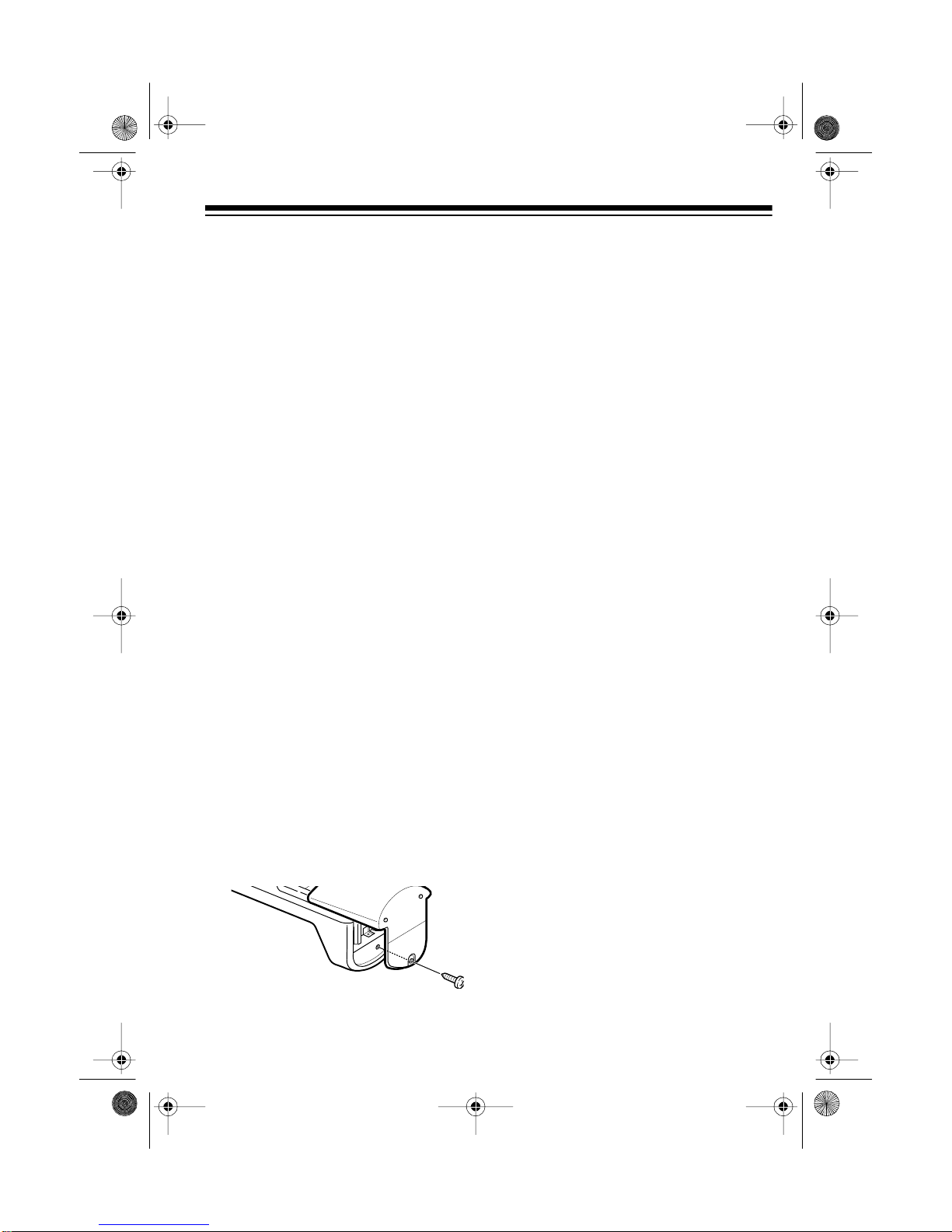

1. Remove the screw on the battery
compartment cover on the bottom
of the handset. Press down and
slide off the handset’s battery
compartment cover in the direc-
tion of the arrow.
2. Insert the battery pack’s plastic
connector into the phone’s socket.
The plug fits only one way.
3. Replace the cover and tighten the
screw.
4. To charge the battery, simply
place the handset on the base.
43-1036.fm Page 9 Tuesday, August 17, 1999 9:52 AM

10
The CHARGE indicator on the base
lights.
Recharge the battery when the BATT
LOW indicator flashes.
Notes:
• If the CHARGE indicator does not
light when you place the handset
on the base, be sure the battery
and AC adapter are correctly and
securely connected.
• When you first use the phone after
charging or recharging the battery,
the phone might not work and you
might hear an error tone. If this
happens, return the handset to
the base for about 5 seconds.
• If the BATT LOW indicator does
not light, but the phone does not
work, recharge the battery. The
battery charge might be too low to
light the indicator.
• If the battery pack gets weak dur-
ing a call, the handset sounds a
beep every 30 seconds, and the
BATT LOW indicator flashes every
3 seconds. If this happens, you
cannot make another call on the
phone until you recharge the bat-
tery.
• About once a month, fully dis-
charge the battery by keeping the
handset off the base until the
BATT LOW indicator lights. Other-
wise, the battery loses its ability to
fully recharge.
• Using a pencil eraser, clean the
charging contacts on the handset
and the base about once a month
to make sure they are not dirty or
tarnished.
• If the battery gets completely dis-
charged, the ET-536/ET-549
loses the security access-protec-
tion code. To reset the security
code, place the handset on the
base and charge the battery.
• The supplied battery should last
for about a year. When the battery
loses its ability to fully recharge,
order a replacement battery from
your local RadioShack store (see
“Replacing the Battery” on Page
19.
43-1036.fm Page 10 Tuesday, August 17, 1999 9:52 AM

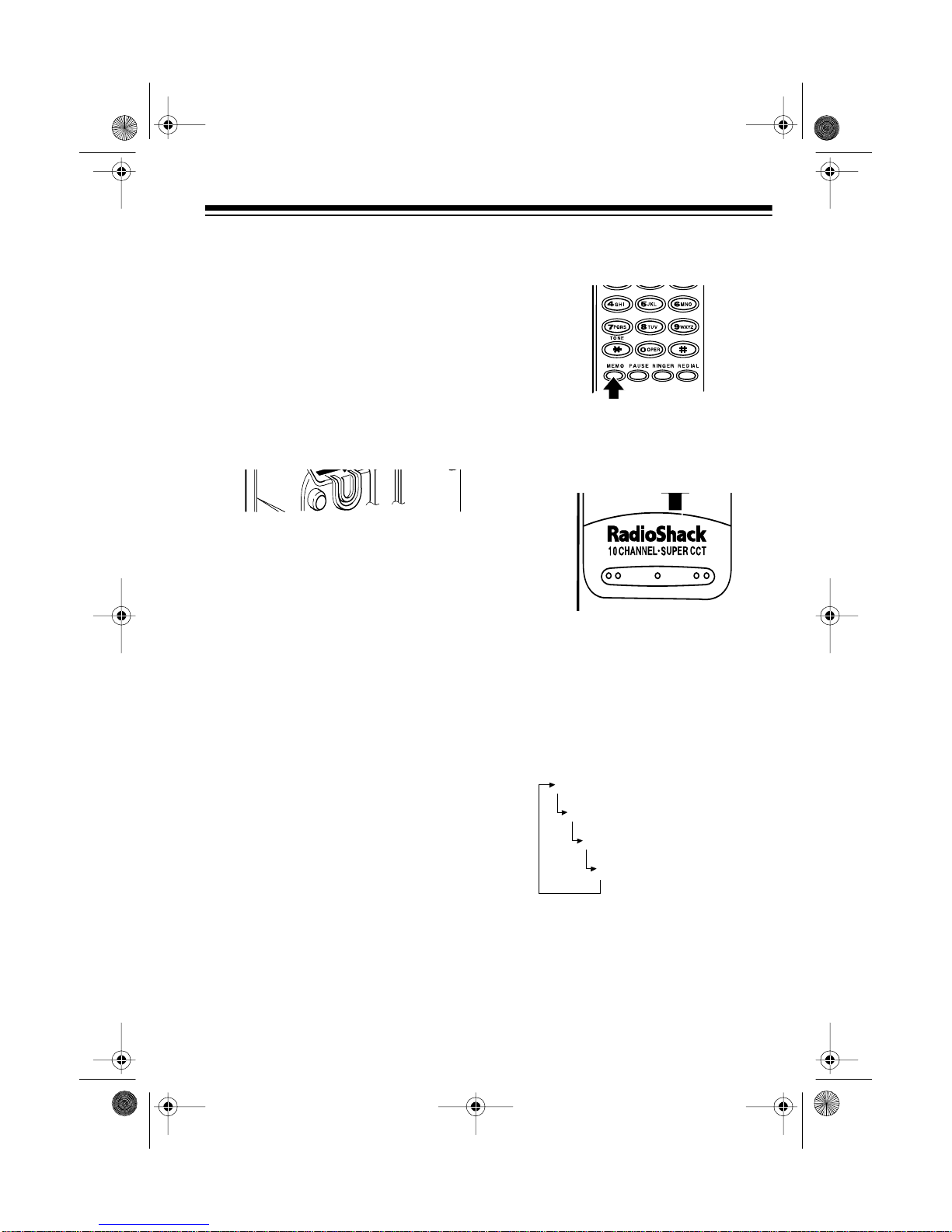

11
SETTING THE DIALING
MODE
Set P• •T on the back of the base for
the type of service you have. If you
are not sure which type you have, do
this test.
1. Set P• •Tto T (tone).
2. Lift the handset and listen for a
dial tone.
3. Press any number other than 0.
Note: If your phone system
requires that you dial an access
code (9, for example) before you
dial an outside number, do not
press the access code either.
If the dial tone stops, you have
touch-tone service. Leave P• •T
set to T.
If the dial tone continues, you
have pulse service. Set P• •Tto P
(pulse).
SETTING THE RINGER
TONE AND VOLUME
You can select one of four different
ringer/tone volume settings when the
phone is not in use.
1. Lift the handset. If you hear a dial
tone, press TALK to turn it off.
2. Press RINGER. The phone sounds
the current ringer tone and vol-
ume.
3. Repeatedly press RINGER until
you hear the desired ringer tone
and volume.
Each time you press RINGER, the
ringer changes in the following
order:
High-volume “chirping”
Low-volume “chirping”
High-volume “warbling”
Low-volume “warbling”
43-1036.fm Page 11 Tuesday, August 17, 1999 9:52 AM

12
OPERATION
MAKING AND
RECEIVING CALLS
To make or answer a call, lift the hand-
set. Or, if the handset is away from the
cradle, press TALK. The BATT LOW
indicator on the handset and the IN
USE indicator on the base light.
To end a call, place the handset on the
cradle or press the handset’s TALK
button.
Note: If you press TALK to hang up
and the phone does not disconnect,
place the handset on the cradle or
press TALK again while holding the
handset closer to the base.
CHANGING THE
CHANNEL
If you notice interference, static, or
noise during a call, you can press CH
(channel) to find a clearer channel.
The ET-536/ET-549 changes to a dif-
ferent channel each time you press
CH.
Note: If the handset is too far from the
base, the channel might not change.
Move closer to the base and try again.
USING REDIAL
REDIAL lets you quickly dial the last
number dialed. When you hear a dial
tone, simply press REDIAL.
43-1036.fm Page 12 Tuesday, August 17, 1999 9:52 AM

13
Notes:
• The redial memory holds up to
32 digits, so you can redial long-
distance as well as local num-
bers.
• The redial memory also holds
pause entries. See “Entering a
Pause” on Page 15.
• The redial memory does not store
a flash entry or any digits you
press after FLASH (see “Using
Flash.”).
USING FLASH
FLASH performs the electronic equiva-
lent of a switchhook operation for spe-
cial services, such as Call-Waiting.
For example, if you have call waiting,
press FLASH to answer an incoming
call without disconnecting the current
call. Press FLASH again to return to
the first call.
Note: If you do not have any special
phone services, pressing FLASH might
disconnect the current call.
USING TONE SERVICES
ON A PULSE LINE
Some special services, such as bank-
by-phone, require tone signals. If you
have pulse service, you can still use
these special tone services by follow-
ing these steps.
1. Be sure P• •Tis set to P.
2. Lift the handset from the cradle or
press TALK.
3. Dial the service’s main number.
4. When the service answers, press
TONE. Any additional numbers
you dial are sent as tone signals.
5. After you complete the call, return
the handset to the cradle or press
TALK. The phone automatically
resets to the pulse mode.
43-1036.fm Page 13 Tuesday, August 17, 1999 9:52 AM

14
PAGING
To page the person who has the hand-
set or to locate the handset when the
phone is not in use, press PAGE on the
base. The handset beeps five times.
MEMORY DIALING
You can store up to 10 numbers in
memory, then dial a stored number by
pressing a one-digit memory location
number.
Note: Each number you store can be
up to 16 digits long.
Storing a Number in Memory
Note: An error tone sounds and the
phone exits the programming mode if
you wait more than 20 seconds be-
tween each key press.
1. Lift the handset. If you hear a
tone, press TALK to turn it off.
2. Press MEMO. The BATT LOW
indicator blinks.
3. Enter the number and any TONE
and PAUSE entries (see “Using
Tone Services on a Pulse Line” on
Page 13 and “Entering a Pause”
on Page 15).
Note: Each TONE or PAUSE entry
uses one digit of memory.
4. Press MEMO, then enter the mem-
ory location number (0-9). A single
tone sounds to indicate that the
number is stored.
Note: If five quick beeps sound,
you have made an entry error and
the number was not stored. Start
again from Step 2.
43-1036.fm Page 14 Tuesday, August 17, 1999 9:52 AM

15
5. For each stored number, write the
person’s or company’s name next
to the appropriate location number
on the supplied MEMORY direc-
tory sticker. (Use a pencil in case
you want to change the number
later.) Attach the sticker to the
phone.
To erase a stored number, simply
store a new number in its place. Or,
skip Step 3, then press the memory lo-
cation number (0-9) you want to clear.
A tone sounds.
Entering a Pause
In some telephone systems, you must
dial an access code (9, for example)
and wait for a second dial tone before
you can dial an outside number. You
can store the access code with the
phone number. However, you should
also store a pause after the access
code to allow the outside line time to
connect.
To do so, press PAUSE. Each press
enters a 2-second pause. For a longer
pause, press PAUSE additional times.
Dialing a Memory Number
To dial a number stored in memory, lift
the handset from the cradle or press
TALK.
When you hear a dial tone, press
MEMO and enter the memory location
number for the number you want to
dial.
Chain-Dialing Service
Numbers
When calling special services (such as
alternate long distance or bank by
phone), dialthe service’s main number
first. Then, at the appropriate place in
the call, press MEMO and the number
for the location where the additional in-
formation is stored.
Testing Stored Emergency
Numbers
If you store an emergency service’s
number (police department, fire de-
partment, ambulance) and you choose
to test the stored number, make the
test call during the late evening or early
morning hours to avoid peak demand
periods. Also, remain on the line to ex-
plain the reason for your call.
43-1036.fm Page 15 Tuesday, August 17, 1999 9:52 AM

16
TROUBLESHOOTING
We do not expect you to have any problems with your phone, but if you do, the fol-
lowing suggestions might help.
Problem Suggestion
Low volume or unusual
sounds. Someone has picked up another phone on the same line. Hang up the other phone.
Severe noise interference. • Press CH to change the channel.
• Keep the handset away from computers,
remote control toys, wireless microphones,
alarm systems, intercoms, room monitors,
fluorescent lights, and electrical appli-
ances.
• Move to another location or turn off the
source of interference.
The phone cannot be oper-
ated at a useful distance from
the base because the signal
becomes weak or noisy
(handset’s range has
decreased).
• Fully extend the base’s antenna in a verti-
cal position.
• Be sure neither antenna is touching a
metal surface.
• Return the handset to the cradle, and
recharge the battery.
The phone does not work or
works poorly. Be sure the base’s phone line cord and AC adapter are correctly and securely connected,
and the battery is charged.
The handset battery does not
charge. • Check the charging contacts on the hand- set and base. If they are dirty, clean them
with a pencil eraser.
• Be sure the battery is connected correctly.
43-1036.fm Page 16 Tuesday, August 17, 1999 9:52 AM

17
If you still have problems, disconnect the phone. If other phones on the same line
work properly, the fault is in this phone or its installation. If you cannot find the prob-
lem, take your phone to your local RadioShack store for assistance
Handset does not ring or
receive a page. • The battery pack might be weak. Charge the battery.
• Extend the base’s antenna vertically.
• Move the handset closer to the base.
• Move the base away from other electrical
devices and sources of noise.
The handset stops working or
works poorly during a call. • Move the handset closer to the base.
• Fully extend the base’s antenna, and place
it in a vertical position.
• Make sure the charging contacts on the
handset and base are clean.
• Be sure the handset’s battery is charged.
(If the battery power is too low, it does not
have enough power to light the BATT LOW
indicator.)
• If the base loses power while the handset
is off of it, the security access-protection
code might change. Restore power to the
base, then place the handset back on the
base. The CHARGE indicator lights, indi-
cating that the code is set again.
The call is too noisy. Change channels or hang up and redial the
number.
Problem Suggestion
43-1036.fm Page 17 Tuesday, August 17, 1999 9:52 AM

18
CARE AND MAINTENANCE
Your RadioShack ET-536 10 Channel/ET-549 25-Channel Cordless Telephone with
10-Number Memory is an example of superior design and craftsmanship. The fol-
lowing suggestions will help you care for your cordless telephone so you can enjoy
it for years.
Keep the phone dry. If it gets wet, wipe it dry immediately. Liquids
might contain minerals that can corrode the electronic circuits.
Handle the phone gently and carefully. Dropping it can damage cir-
cuit boards and cases and can cause the phone to work improperly.
Use and store the phone only in normal temperature environments.
Temperature extremes can shorten the life of electronic devices and
distort or melt plastic parts.
Keep the phone away from dust and dirt, which can cause premature
wear of parts.
Wipe the phone with a damp cloth occasionally to keep it looking
new. Do not use harsh chemicals, cleaning solvents, or strong deter-
gents to clean the phone.
Modifying or tampering with the telephone’s internal components can cause a mal-
function and might invalidate your telephone’s warranty and void your FCC authori-
zation to operate it. If your phone is not performing as it should, take it to your local
RadioShack store for assistance. If the trouble is affecting the phone lines, the
phone company might ask you to disconnect your phone until you have resolved the
problem.
CLEANER
43-1036.fm Page 18 Tuesday, August 17, 1999 9:52 AM

19
REPLACING THE
BATTERY
If you follow the instructions in “Con-
necting and Charging the Battery” on
Page 9, the battery should last about
one year. If the battery will not hold a
charge for more than 2 hours after an
overnight charge, replace the battery
with a new 3.6 V, 300 mAh battery with
a connector that fits the socket in the
battery compartment. You can order a
replacement battery through your local
RadioShack store.
Install the new battery as described
below, then charge the battery (see
“Connecting and Charging the Bat-
tery” on Page 9).
Note: To avoid losing phone numbers
stored in memory, try to install and be-
gin charging the new battery within 1
minute.
1. Remove the screw on the battery
compartment cover on the bottom
of the handset. Press down and
slide off the handset’s battery
compartment cover in the direc-
tion of the arrow.
2. Gently pull on the battery connec-
tor to disconnect it, then remove
the battery.
3. Insert a fresh battery and insert its
connector into the socket inside
the battery compartment.
4. Replace the cover and tighten the
screw.
Cautions:
• You must use a replacement bat-
tery of the same size and type.
• Do not dispose of the battery in a
fire because it might explode.
• Do not open or mutilate the bat-
tery.
• Be careful not to short the battery
by touching it with conducting
materials, such as rings, brace-
lets, and keys. The battery or con-
ductor might overheat and burn.
Important: This product contains a re-
chargeable nickel cadmium battery. At
the end of the battery’s useful life, it
must be recycled or disposed of proper-
ly. Contact your local, county, or state
hazardous waste management authori-
ties for information on recycling or dis-
posal programs in your area. Some
options that might be available are: mu-
nicipal curb-side collection, drop-off box-
es at retailers such as your local
RadioShack store, recycling collection
centers, and mail-back programs.
43-1036.fm Page 19 Tuesday, August 17, 1999 9:52 AM

20
THE FCC WANTS YOU
TO KNOW
In the unlikely event that your phone
causes problems on the phone line,
the phone company can temporarily
discontinue your service. If this hap-
pens, the phone company attempts to
notify you in advance. If advance no-
tice is not practical, the phone compa-
ny notifies you as soon as possible and
advises you of your right to file a com-
plaint with the FCC.
Also, the phone company can make
changes to its lines, equipment, opera-
tions, or procedures that could affect
the operation of this telephone. The
telephone company notifies you of
these changes in advance, so you can
take the necessary steps to prevent in-
terruption of your telephone service.
Your phone might cause TV or radio
interference even when it is operating
properly. To determine whether your
phone is causing the interference, turn
off your phone. If the interference goes
away, your phone is causing the inter-
ference.
Try to eliminate the interference by:
• Moving your phone away from the
receiver
• Connecting your phone to an AC
outlet that is on a different electri-
cal circuit from the receiver
• Contacting your local Ra-
dioShack store for help
If you cannot eliminate the interfer-
ence, the FCC requires that you stop
using your phone.
Some cordless phones operate at fre-
quencies that might cause interference
to nearby TVs and VCRs. To minimize
or prevent such interference, the base
of the cordless phone should not be
placed near or on top of a TV or VCR.
LIGHTNING
Your telephone has built-in lightning
protection to reduce the risk of damage
from surges in telephone line and pow-
er line current. This lightning protection
meets or exceeds FCC requirements.
However, lightning striking the tele-
phone or power lines can damage your
telephone.
Lightning damage is not common.
Nevertheless, if you live in an area that
has severe electrical storms, we sug-
gest you unplug your phone during
storms to reduce the possibility of
damage.
43-1036.fm Page 20 Tuesday, August 17, 1999 9:52 AM
