42-4058

OWNER’S MANUAL — Please read before using this equipment.

RadioShack and RadioShack.com are trademarks

used by RadioShack Corporation.

32-Note Polyphonic Sound — lets you play

and hear up to 32 notes at the same time, so you

can play or create almost any type of music.

Large Display — shows you the notes and

chords as you play them, along with the current

tone, rhythm, and tempo. The built-in backlight

makes it easy to read, even in dim light.

61 Full-Sized Keys with Touch Response — provide the feel of a fine musical instrument.

The keyboard’s volume varies in response to the force of your touch, just like an acoustic

piano, so you can add emotion to your music.

248 Tones — uses technology usually found only on

professional equipment to allow you to set your

keyboard to sound like anything from a harpsichord to a

honky-tonk piano. 100 of these tones have

corresponding advanced tones, created by

programming in digital signal processor (DSP) effects

and other settings. You can even create up to 32 of

your own tones with the custom tone synthesizer

feature (see “Using the Tone Synthesizer” on Page 13).

100 Auto-Rhythms — provide a steady beat for

many styles of music, from rhumba to rock (see

“Using the Preset Auto-Rhythms” on Page 9).

Data Expansion System — lets you download

additional tones, up to four sets of accompaniment

data, DSP settings, and registration from your PC

and store them in your keyboard’s memory (see

“Using the Data Download Service” on Page 21).

Auto Accompaniment — lets you automatically play a

preset harmonic pattern to match the selected auto-

rhythm (see “Using Auto Accompaniment” on Page 10).

Mixer Function — lets you make the

keyboard sound multiple tones for auto

accompaniment or memory playback, or to

play MIDI data received from another MIDI

device (see “Using the Mixer” on Page 12).

This Owner’s Manual explains how to use this electronic keyboard. It does not teach music.

The keyboard conforms to most, but not all, General MIDI specifications. Because of this, you might

experience some incompatibility when using the keyboard with another General MIDI device. For

more information, see “Using MIDI” on Page 19. Your keyboard also includes a MIDI (Musical

Instrument Digital Interface) feature, which lets you connect it to other MIDI-equipped musical

instruments or devices — even your personal computer.

%106'065

The FCC Wants You to Know ..................... 2

Connecting Power ....................................... 2

Installing Batteries ................................... 2

Using AC Power ...................................... 2

Connecting Headphones ............................ 3

Listening Safely ....................................... 3

Connecting an External Amplifier ................ 3

Using the Sheet Music Stand ...................... 3

A Quick Look at Your Keyboard .................. 3

Basic Operation .......................................... 5

Playing the Demonstration Tunes ............ 5

Using the Preset Tones ............................ 5

Using an Advanced Tone ......................... 6

Using Reverb and Chorus ........................... 6

Selecting Reverb/Chorus ......................... 6

Changing the Reverb or

Chorus Parameters .................................. 6

DSP (Digital Signal Processor) ................... 7

Selecting a DSP Type .............................. 7

Setting Basic DSP Parameters ................ 7

Changing DSP Parameters ..................... 7

Saving DSP Parameter Settings .............. 7

Using the Equalizers ................................... 7

Selecting the Equalizer Type ................... 7

Adjusting the Gain ................................... 8

Using SPLIT ................................................ 8

Using LAYER .............................................. 8

Using SPLIT and LAYER Together ............. 8

Using the Preset Auto-Rhythms .................. 9

Selecting/Playing an Auto-Rhythm ........... 9

Using SYNCHRO ..................................... 9

Using INTRO ............................................ 9

Using FILL-IN ........................................... 9

Using FILL-IN NEXT ............................... 10

Using ENDING ....................................... 10

Using Auto Accompaniment ...................... 10

Adjusting the Accompaniment Volume ... 10

Concert Chord ........................................ 10

Standard Fingering ................................. 11

Full-Range Chords ................................. 11

Using Auto Harmonize ........................... 12

Using One-Touch Preset ........................ 12

Using the Mixer .......................................... 12

Using the Tone Synthesizer ....................... 13

Using the Registration Memory ................. 14

Storing a Setup ....................................... 14

Recalling a Setup ................................... 14

Special Features ........................................ 14

Changing Keys ....................................... 14

Tuning the Keyboard .............................. 14

Using Touch Response .......................... 15

Using a Sustain Pedal ............................ 15

Adjusting the Display Contrast ............... 15

Resetting the Keyboard .......................... 15

Using the Song Memory ............................ 16

Real-Time Recording .............................. 16

Playing Back from Song Memory ........... 17

Step Recording ....................................... 17

Recording Multiple Tracks ...................... 18

Editing Memory Contents ....................... 18

Editing a Song ........................................ 18

Using MIDI ............................................. 19

About MIDI ............................................. 19

Making the MIDI Connections ................ 20

MIDI Data ............................................... 20

Changing MIDI Settings ......................... 20

Notes About the

MIDI Implementation Chart .................... 20

Using the Data Download Service ......... 21

Troubleshooting ......................................... 22

Care .......................................................... 22

Service and Repair .................................... 22

Tone List .................................................... 23

Panel Tones ........................................... 23

Advanced Tones .................................... 25

GM Tones ............................................... 27

Drum Sounds ......................................... 29

User Tones ............................................. 29

Drum Assignment List ............................ 30

Fingered Chord Chart ............................ 31

Effect List ................................................... 32

Reverb ................................................... 32

Chorus ................................................... 32

DSP ........................................................ 32

DSP Algorithm List ................................. 34

MIDI Implementation Chart ....................... 41

Specifications ............................................ 42

/&/+&+-G[DQCTF

The FCC Wants You to Know

6*'(%%9#065;1761-019

This equipment has been tested and found

to comply with the limits for a Class B digital

device, pursuant to Part 15 of the

FCC

Rules

. These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate

radio frequency energy and, if not installed

and used in accordance with the

instructions, may cause harmful interference

to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user is

encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

• Consult your local RadioShack store or

an experienced radio/TV technician for

help.

• If you cannot eliminate the interference,

the FCC requires that you stop using

your keyboard.

Changes or modifications not expressly

approved by RadioShack may cause

interference and void the user’s authority to

operate the equipment.

You must use shielded interface cables with

this equipment.

%100'%6+0)219'4

You can power your keyboard using internal

batteries or with standard AC power using

an optional AC adapter.

The keyboard retains the following settings

in its memory even when the power is turned

off as long as power is supplied to it (either

by the batteries or AC adapter):

• tone number

• layer and split

• split point

• touch response

• reverb/chorus

•DSP

• equalizer

• rhythm number

• tempo

•mixermode

• MIDI keyboard channel

• MIDI in chord judge

• MIDI accompaniment out

• assignable jack

• accompaniment volume

• user area tone (synthesizer tone)

• user area accompaniment

• user area DSP

• song memory

• registration mode

If the keyboard loses power (by

disconnecting the AC adapter when

batteries are not installed or the batteries

lose power), these settings are lost or

initialized to factory settings.

You can also delete or initialize some

settings independently. See “Resetting the

Keyboard” on Page 15.

+056#..+0)$#66'4+'5

Your keyboard can use 6 D batteries (not

supplied) for power. For the best per-

formance and longest life, we recommend

RadioShack alkaline batteries. 





1. While pressing the tabs on the battery

compartmentcover onthe bottom of the

keyboard, pull up the cover to remove it.

2. Place the batteries in the compartment

as indicated by the polarity symbols (+

and –) marked next to the compartment.

3. Replace the cover.

When the keyboard stops operating

properly, replace the batteries. 



R

75+0)#%219'4

You can power the keyboard using a 9V,

800 mA AC adapter and a size M

Adaptaplug™ adapter (neither supplied).

Both are available at your local RadioShack

store. Connecting an AC adapter

automatically disconnects any internal

batteries. 





1. Set the AC adapter’s voltage switch to

9V.

2. Insert the Adaptaplug adapter into the

adapter’s cord so it reads – TIP.

3. Connect the AC adapter’s barrel plug to

DC 9V on the back of the keyboard.

4. Plug the AC adapter’s other end into a

standard AC outlet.

+/2146#06

If an icon appears at the end of a paragraph,

go to the box on that page with the

corresponding icon for pertinent information.

R— Warning — Important





— Caution °

°°

°— Hint

±— Note

R9#40+0)R

Dispose of old batteries promptly and properly.

Do not burn or bury them.

%#76+10

Installing Batteries

• Use only fresh batteries of the required size

and recommended type.

• Do not mix old and new batteries, different

types of batteries (standard, alkaline, or

rechargeable), or rechargeable batteries of

different capacities.

• If you do not plan to use the keyboard with

batteries for a week or more, remove the

batteries. Batteries can leak chemicals that

can destroy electronic parts.

Using AC Power

You must use a Class 2 power

source that supplies 9V DC and

delivers at least 800 mA. Its

center tip must be set to negative and its

plug must fit the keyboard's DC 9V jack.

Using an adapter that does not meet these

specifications could damage the keyboard

or the adapter.

• Always connect the AC adapter to the

keyboard before you connect it to AC

power. When you finish, disconnect the

adapter from AC power before you

disconnect it from the keyboard.

The FCC Wants You to Know

Connecting HeadphonesConnecting Headphones

%100'%6+0)*'#&2*10'5

To listen to your keyboard without disturbing

others, you can connect an optional pair of

stereo headphones with a 1/4-inch (6.35 mm)

plug. Your local RadioShack store sells a

wide selection of headphones. Insert the

headphones’ plug into PHONES/OUTPUT on

the back of the keyboard. Connecting

headphones disconnects the keyboard’s

built-in speakers.

.+56'0+0)5#('.;

To protect your hearing, follow these

guidelines when you use headphones.

• Set the volume to the lowest setting

before you begin listening. After you

begin listening, adjust the volume to a

comfortable level.

• Do not listen at extremely high volume

levels. Extended high-volume listening

can lead to permanent hearing loss.

• Once you set the volume, do not

increase it. Over time, your ears adapt

to the volume level, so a volume level

that does not cause discomfort might

still damage your hearing.

%100'%6+0)#0':6'40#.#/2.+(+'4

To amplify your keyboard’s sound, you can

connect it to an optional external amplifier

using an audio cable with a 1/4-inch (6.35

mm) plug (not supplied). To connect an

external amplifier to your keyboard, insert

the cable’s plug into PHONES/OUTPUT on

the back of the keyboard, then connect the

other end of the cable to theamplifier’sinput

jack(s) (such as AUX IN or TAPE IN). Your

local RadioShack store sells a full line of

amplifiers, speakers, and cables.

75+0)6*'5*''6/75+%56#0&

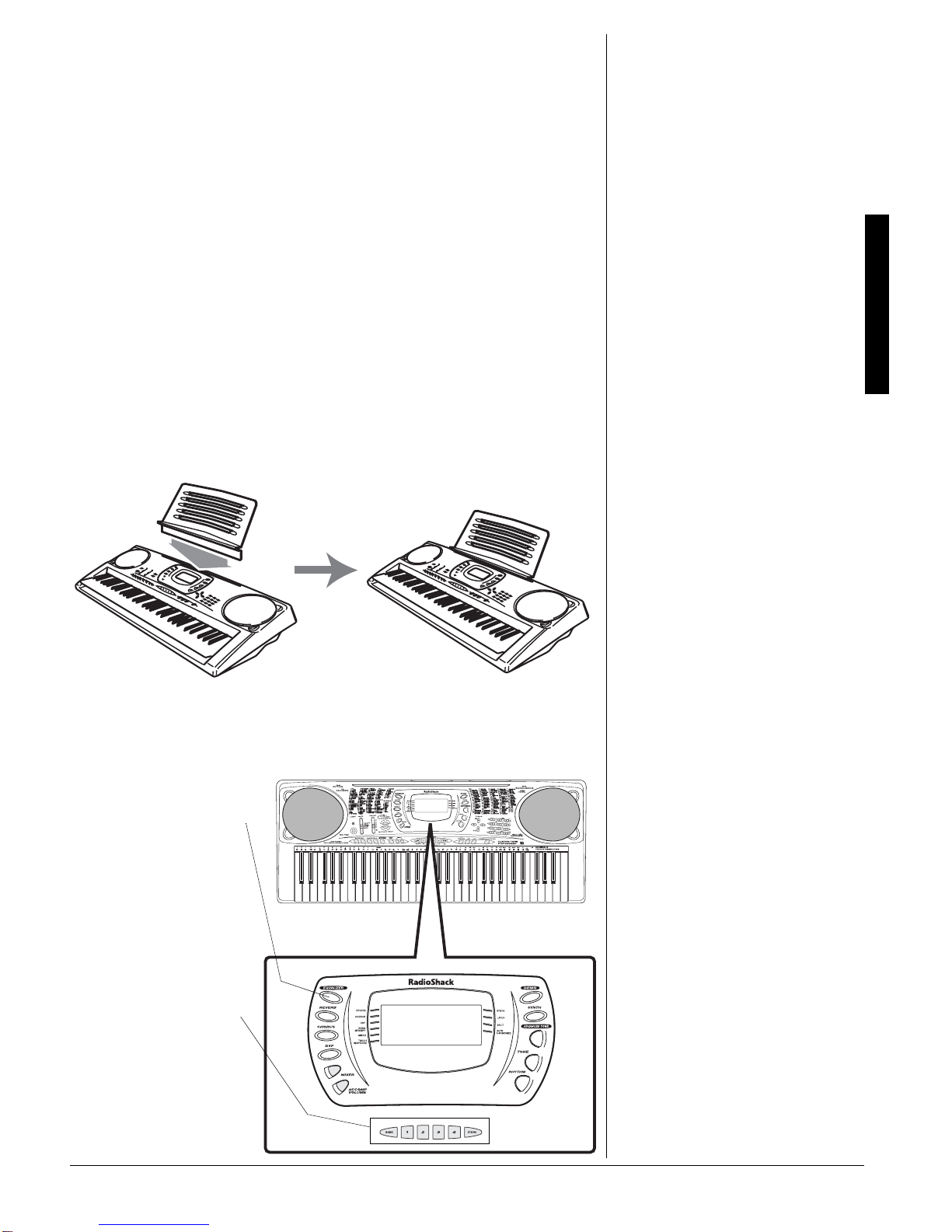

To easily view sheet music while playing

your keyboard, insert the supplied sheet music stand into the slot on the top back

panel.

#37+%-.11-#6;174-';$1#4&

Preset 4-Band Equalizers —

lets you easily set the tone to

your favorite sound mix

(Standard, Jazz, Rock,

Dance, Classic, Mellow,

Bright, and so on). You can

even tailor the response of

each frequency band (see

“Using the Equalizers” on

Page 7).

Registration Memory — lets

you store up to 32 different

setups of the keyboard’s

controls, so you can instantly

recall them when you need

them (see “Using the

Registration Memory” on

Page 14).

A Quick Look at Your Keyboard

Tempo Control — lets

you speed up or slow

down the tempo of any

selected music pattern.

Split Function — lets you use different sounds for the

low- and high-end keys (see “Using SPLIT” on Page 8).

Sustain/Assignable Jack — lets you

connect a sustain pedal (not supplied,

available at your local RadioShack

store or at

RadioShack.com

) to the

keyboard so you can sustainor soften

your keyboard’s sound, or start/stop

an auto-rhythm (see “Using a Sustain

Pedal” on Page 15).

MIDI In/Out Jacks —

let you connect the

keyboard to another

MIDI-equipped

device. To connect a

MIDI device to your

keyboard, see

“Making the MIDI

Connections” on

Page 20.

Headphones/Output Jack —

lets you connect headphones

so you can play without

disturbing others, or an external

amplifier so you can play for a

crowd (neither supplied).

Layer Function — lets you set the keyboard to play two

different tones at the same time, giving your music a

“layered” effect (see “Using LAYER” on Page 8).

Tune Control — lets you adjust the pitch of your

keyboard so you can play in tune with other

instruments (see “Tuning the Keyboard” on Page 14).

Transpose Function — lets you instantly

change the key of the music, even while

you are playing (see “Changing Keys” on

Page 14).

Effects — lets you add reverb, chorus, and more powerful

sound effects – even tailor a parameter to create your own

effect (see “Using the Preset Tones” on Page 5).

Fill-In Rhythm — lets you insert a

short variation into any auto-rhythm

(see “Using FILL-IN” on Page 9).

Auto Harmonize — lets you automatically add harmony to your

melodies (see “Using Auto Harmonize” on Page 12).

(Back of Keyboard)

Song Memory — lets you set the keyboard to record up to two songs, six

tracks, and 3,500 notes. The recording remains stored even while the

keyboard is off (see “Using the Song Memory” on Page 16).

Automatic Intro/Ending Rhythm

— you can set the keyboard so it

automatically adds a 3- to 8-

measure introduction or 3- to 8-

measure ending to the selected

auto-rhythm (see “Using INTRO”

on Page 9).

Basic Operation

$#5+%12'4#6+10

1. Slide VOLUME to MIN (minimum). 

2. To turn on the keyboard, press POWER.

The POWER indicator lights and the

display turns on. ±

3. Slide MODE to NORMAL.

4. Slide VOLUME toward MAX slightly and

begin playing the keyboard.

• To select an auto-rhythm, see “Using

the Preset Auto-Rhythms” on

Page 9.

• To play auto accompaniment, see

“Using Auto Accompaniment” on

Page 10.

5. Slide VOLUME toward MAX to increase

the sound level or toward MIN to

decrease it.

6. To turn off the keyboard, press POWER.

The POWER indicator and the

keyboard’s display turn off.

To save power, the keyboard automatically

turns off after about 6 minutes if you do not

press a key. To turn on the keyboard again,

press POWER. To cancel auto power off,

turn on the keyboard while holding down

TONE. The next time you turn the keyboard

off then back on again, it will automatically

turn off after about 6 minutes.

2.#;+0)6*'

&'/10564#6+10670'5

Your keyboard can play two prepro-

grammed demonstration tunes. To start the

demonstration, press DEMO. The keyboard

plays the first demonstration tune (No. 0).

To select the other tune, press –or +on the

keypad. The selected tune’s number

appears and the tune plays.

75+0)6*'24'5'6610'5

Your keyboard can sound like 248 different

musical instruments or sound effects. The

TONES list on the keyboard’s top panel

shows the name and three-digit number for

the first 100 preset tones. For tones 100-

227, see “GM Tones” on Page 27. ±

Follow these steps to select and play a

preset tone.

1. Press TONE.JED;

JED;JED;

JED; and the current

tone’s number appear. ±

2. To play a different tone, choose a

preset tone from the TONES list and

enter its three-digit number on the

keypad. Precede a single- or two-digit

number with zeroes. As you press the

keys, the selected digits appear. ±

3. Play the keyboard to hear the selected

tone and adjust VOLUME to the desired

level.

±016'±

Basic Operation

The keyboard automatically selects the tone

GRAND PIANO (No. 000) when you turn the

power on. Each time you turn it on after that, it

selects the last selected tone. To select a

different tone, see “Using the Preset Tones”.

Using the Preset Tones

• The keyboard has 32-note (maximum)

polyphonic sound. This means that you can

play up to 32 different notes at the same

time with most of the keyboard’s preset

tones. Some tones are only capable of 16-

note polyphony.

• Most tones on this keyboard have been

recorded and processed using a technique

called

digital sampling

. To ensure a high

level of tonal quality, samples are taken in

the low, mid, and high ranges and are then

combined to sound amazingly close to the

originals. You might notice very slight

differences in volume or sound quality for

some tones when you play them at different

positions on the keyboard. This is an

unavoidable result of multiple sampling and

is not a malfunction.

• Repeatedly press + or – to select the next

highest or lowest numbered tone.

• If you enter an incorrect first digit, press

TONE to clear your entry, then enter the

correct digit.

• When you select one of the drum sets (tone

numbers 228–237), each key plays a

different percussion sound. See “Drum

Assignment List” on Page 30. The drum set

sounds change when you change the

rhythm number, play back data stored in

memory, or receive MIDI program change

data.

• Tone numbers 238–247 are the user tone

area. See “Using the Tone Synthesizer” on

Page 13.

+/2146#06

To prevent hearing damage, always set the

keyboard’s volume to MIN before you turn it on

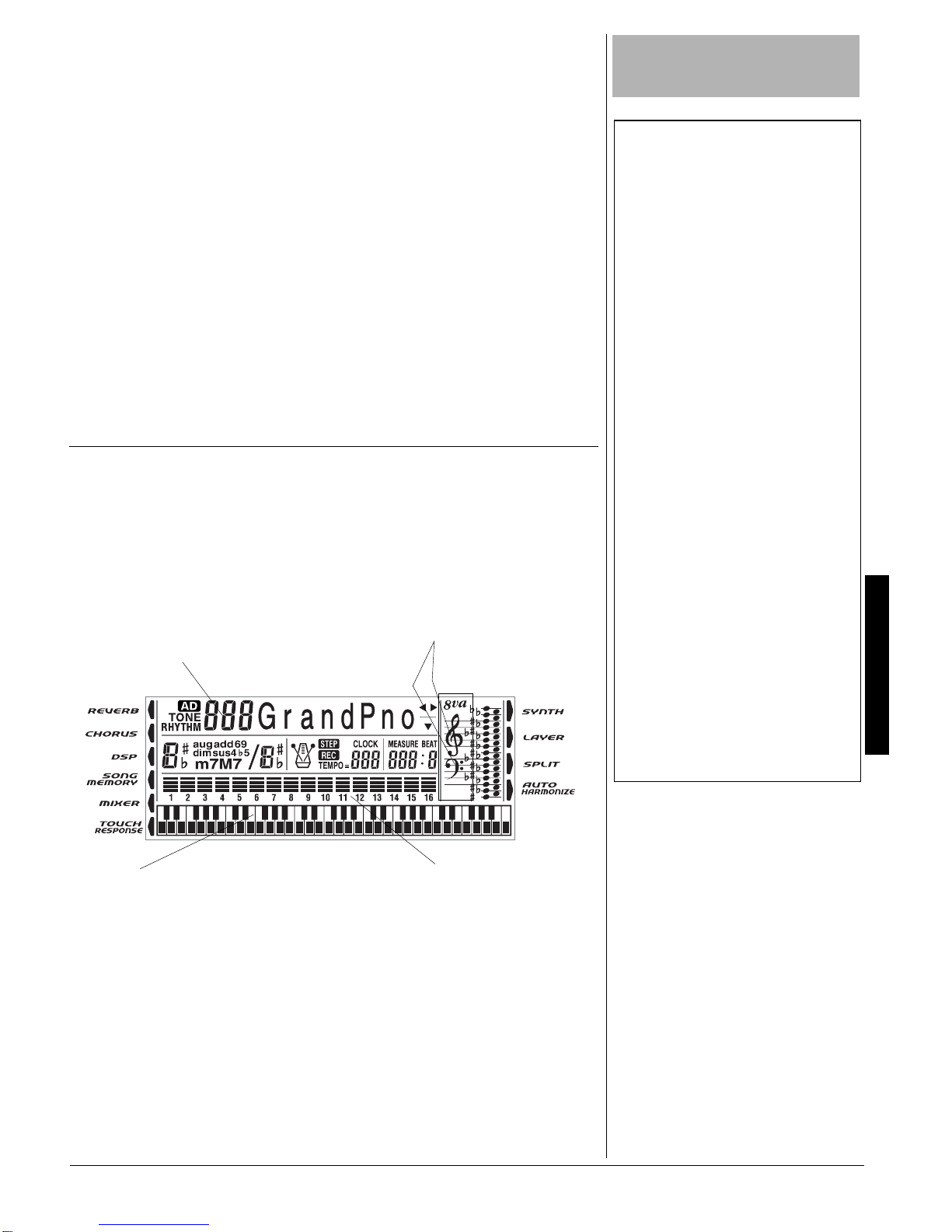

The demo tune number appears here. The treble and bass

clefs show the notes as

they play.

The bar graph shows the

sound level on each of the

16 channels. See “Using the

Mixer” on Page 12.

The keyboard at the bottom of the display

shows the location of the keys being pressed.

Using Reverb and Chorus

4. To select a different tone, repeat Step 2

while JED;

JED;JED;

JED; appears.

75+0)#0#&8#0%'&610'

The first 100 tones (numbers 00 to 99) have

corresponding advanced tones. The

advanced tones use variations of standard

tones created by programming in effects

(DSP) and other settings. For example,

PIANO is modified into STEREO PIANO,

ORGAN becomes ROTARY SPEAKER

ORGAN, and so on. See “Advanced Tones”

on Page 25.

If a tone number outside the range of 000 to

099 is selected when you press ADVANCED

TONE, the tone automatically changes to the

advanced tone version of tone number 00.

Only one of the channels (1 to 16) can have

an advanced tone. If you assign an

advanced tone to another channel, the tone

in the currently assigned channel becomes

the standard tone.

Press ADVANCED TONE to select the

advanced tone. 7:

7:7:

7: appears, and the

currently selected tone changes to its

advanced version. Repeatedly press +or –

to scroll through the advanced tones, or use

the number buttons to enter the two-digit

tone number.

Press TONE to return to the standard tone.

7:7:

7: disappears.

75+0)4'8'4$#0&%*1475

The reverb feature creates ambience by

causing the sound to linger and reverberate.

You can choose from 16 different reverb

effects. See “Reverb” on Page 32 for details.

The chorus feature gives sound greater

depth by causing it to vibrate. You can

choosefrom 16 different chorus effects. See

“Chorus” on Page 32 for details.

5'.'%6+0)4'8'4$%*1475

1. Press REVERB or CHORUS. The

indicator next to REVERB or CHORUS

lights.

2. Repeatedly press +or –or use the

number buttons to enter a number to

display the effect you want. See

“Reverb” or“Chorus” on Page 32 for the

type of the effects and the

corresponding numbers.

%*#0)+0)6*'4'8'4$14

%*14752#4#/'6'45

You can control the parameters of an effect

to change how it sounds. The parameters

you can control vary depending on the effect

type.

1. After selecting the effect you want,

press G(ENTER). The parameter

setting screen appears.

2. Repeatedly press Ior J(CURSOR) to

display the parameter you want to

change.

Reverb Parameters

Reverb effects are classified as reverb

or delay type. Parameter settings vary

depending on the type.

Reverb Type Parameters (No. 0 to 5, 8

to 13)

HlX

HlXHlX

HlX (Reverb) B[l[b

B[l[bB[l[b

B[l[b (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) —

Controls the reverb size. A larger

number produces larger reverb.

HlX

HlXHlX

HlX J_c[

J_c[J_c[

J_c[ (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) —Controls how

long reverb continues. A larger number

produces longer reverb.

;HB[l[b

;HB[l[b;HB[l[b

;HB[l[b (Initial Echo Sound) (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-)

— Controls the initial reverb volume.

The initial echo sound is the first sound

reflected from the walls and ceiling. A

larger value specifies a larger echo

sound.

>_]^:Wcf

>_]^:Wcf>_]^:Wcf

>_]^:Wcf (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) — – Adjusts the

damping of high frequency

reverberation. A smaller value damps

high sounds, creating a dark reverb. A

larger value does not damp high

sounds, creating a brighter reverb.

Delay Type Parameters (No. 6, 7, 14,

15)

:[bWoB[l[b

:[bWoB[l[b:[bWoB[l[b

:[bWoB[l[b (&&&

&&&&&&

&&& to'(-

'(-'(-

'(-) — Specifies the

size of the delay sound. A higher value

produces a larger delay sound.

:[bWo<8

:[bWo<8:[bWo<8

:[bWo<8 (Feedback) (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) —–

Adjusts delay repeat. A higher value

produces a greater number of repeats.

;HB[l[b

;HB[l[b;HB[l[b

;HB[l[b(Initial Echo Sound) (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-)

— Controls the initial reverb volume.

The initial echo sound is the first sound

reflected from the walls and ceiling. A

larger value specifies a larger echo

sound.

>_]^:Wcf

>_]^:Wcf>_]^:Wcf

>_]^:Wcf (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) — – Adjusts the

damping of high frequency

reverberation. A smaller value damps

high sounds, creating a dark reverb. A

larger value does not damp high

sounds, creating a brighter reverb.

Chorus Parameters

9^e

9^e9^e

9^e (Chorus) B[l[b

B[l[bB[l[b

B[l[b (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-)—Sets the

size of the chorus sound.

9^e

9^e9^e

9^e HWj[

HWj[HWj[

HWj[ (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-)—Sets the

undulation speed of the chorus sound.

A higher value produces faster

undulation.

DSP (Digital Signal Processor)

9^e

9^e9^e

9^e :[fj^

:[fj^:[fj^

:[fj^ (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-)—Sets the

undulation depth of the chorus sound. A

higher value produces deeper

undulation.

3. Repeatedly press +or –or use the

number buttons to input the parameter

setting you want.

4. Press H(EXIT). This returns to the

effect selection screen. ±

&52&+)+6#.5+)0#.241%'5514

DSP effects are applied to the path between

the sound source and output. You can add

the effect to any sound, even after you

added reverb or chorus effect. See “DSP”

on Page 32 for more details.

You can also create your own DSP effects

or download the data from

www.radioshack.com

and transfer it to the

keyboard. The keyboard has ten DSP effect

memories so you can store custom DSP

effects. See “Saving DSP Parameter

Settings” on this page and “Using the Data

Download Service” on Page 21 for more

information.

5'.'%6+0)#&526;2'

1. Press DSP. The indicator next to DSP

lights.

2. Repeatedly press +or –to select the

DSP type you want. See “DSP” under

“Effect List” on Page 32 for the type of

the effects and the corresponding

numbers. The DSP number (&&&

&&&&&&

&&& to '&/

'&/'&/

'&/),

7 (advanced tone), or Kih

KihKih

Kih (user tone

created using DSP) appears.

5'66+0)$#5+%&52

2#4#/'6'45

You can change these basic DSP

parameters.

:IFLeb

:IFLeb:IFLeb

:IFLeb (Volume) (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) — Sets the

post DSP volume.

:IFFWd

:IFFWd:IFFWd

:IFFWd(#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) — Sets the post DSP

stereo pan (relative position between left

and right channels).

:IF>eb ed%e<<

:IF>eb ed%e<<:IF>eb ed%e<<

:IF>eb ed%e<<—Select ed

eded

ed to keep the

current DSP line after you change the tone.

Select e<<

e<<e<<

e<< to change the DSP line to the

original setting of the newly selected tone.

For advanced tones, changing the tone

turns off all DSP line settings except on the

currently selected channel.

1. Press DSP.

2. Repeatedly press Ior J(CURSOR) to

display the parameter you want to

change.

3. Repeatedly press +or –or enter a

number using the number buttons to

change the parameter setting.

4. Press H(EXIT).

%*#0)+0)&522#4#/'6'45

You can control the relative strength of a

DSP and how it is applied.

1. After selecting the DSP type you want,

press G(ENTER).

2. Repeatedly press Ior J(CURSOR) to

display the parameter you want to

change.

Parameters 0 to 7 — These depend on

the algorithm of the selected DSP. See

“DSP Algorithm List” on Page 34.

:$HlXId 

:$HlXId :$HlXId 

:$HlXId (DSP Reverb Send) (&&&

&&&&&&

&&& to

'(-

'(-'(-

'(-) — Sets how much of the DSP-

processed sound is sent to reverb.

:$9^eId

:$9^eId:$9^eId

:$9^eId (DSP Chorus Send) (&&&

&&&&&&

&&& to

'(-

'(-'(-

'(-) — Sets how much of the DSP-

processed sound is sent to chorus. ±

3. Repeatedly press +or –or enter a

number using the number buttons to

change the parameter setting.

4. Press H(EXIT).

5#8+0)&522#4#/'6'4

5'66+0)5

You can save up to 10 modified DSP

settings in the user area for later recall.

1. After making the DSP parameter

settings you want, press G(ENTER).

The DSP number of the user area

flashes.

2. Repeatedly press +or –to select the

user area DSP number (100-109) you

want to save.

3. Press G(ENTER) to store the effect.

IWl[EA

IWl[EAIWl[EA

IWl[EA briefly appears and the display

returns to the tone or rhythm selection

screen.

75+0)6*''37#.+ '45

The keyboard has 10 preset four-band

equalizers. You can also adjust the gain of

each of the four bands to suit your personal

preference.

5'.'%6+0)6*''37#.+ '4

6;2'

1. Press EQUALIZER. The currently

selected equalizer type appears.

±016'±

Changing the Reverb or Chorus

Parameters

You can turn effects on/off or change the effect

level for each keyboard channel separately.

See “Using the Mixer” on Page 12 for more

information.

Selecting a DSP Type

You must turn on the DSP lines of the required

parts using the mixer function. See “Using the

Mixer” on Page 12.

Changing DSP Parameters

• The effects can be turned on/off or have

their levels set separately for each

keyboard channel. See “Using the Mixer”

on Page 12.

• Playing a demo tune automatically changes

the effect to the one assigned to the tune.

You cannot change or cancel a demo tune

effect.

• Changing the effect setting while the

keyboard is playing causes a slight break in

the sound when the effect changes.

• The advanced tones automatically turn on

the DSP line for more effective tones. If you

assign an advanced tone to a keyboard part

(Channels 1 through 4), the DSP line turns

on automatically and the DSP selection

changes according to the advanced tone

settings.

• In the mixer mode, the DSP line on/off

setting for a part with an advanced tone is

on, while the setting for a part that does not

have an advanced tone is off. DSP effects

previously applied to these parts are

cancelled and the tone might sound

different. Use the mixer editing sequence to

turn DSP back on (see“Using the Mixer” on

Page 12).

Using SPLIT

2. Repeatedly press +or –or enter a

number using the number buttons to

select the equalizer type you want.

The equalizer type (IjWd Wh

IjWd WhIjWd Wh

IjWd Wh ,8Wii!

8Wii!8Wii!

8Wii!,

Jh[Xb[!

Jh[Xb[!Jh[Xb[!

Jh[Xb[!,Bek d[ii

Bek d[iiBek d[ii

Bek d[ii,C[bbem

C[bbemC[bbem

C[bbem,8h_]^j

8h_]^j8h_]^j

8h_]^j,HeYa

HeYaHeYa

HeYa,

:WdY[

:WdY[:WdY[

:WdY[,@Wpp

@Wpp@Wpp

@Wpp, or 9bWii_Y

9bWii_Y9bWii_Y

9bWii_Y) appears. The bar

graph on the display shows the

frequency response of the type that

appears.

Press H(EXIT) or EQUALIZER to exit the

equalizer setting screen.

#&,756+0)6*')#+0

1. After selecting the equalizer type, press

G(ENTER).

2. Repeatedly press Ior J(CURSOR) to

select the band youwant to adjust (Bem

BemBem

Bem,

C_ Bem

C_ BemC_ Bem

C_ Bem,C_ >_]^

C_ >_]^C_ >_]^

C_ >_]^, or >_]^

>_]^>_]^

>_]^). The bar

graphs for the corresponding frequency

range flash.

3. Repeatedly press +or –or enter a

number using the number buttons to

make the adjustment for the band you

want. You can adjust within therange of

–12 to +12. The bar graphs change in

magnitude as you adjust.

4. Press H(EXIT) to return to the equalizer

type selection screen, then press

EQUALIZER to exit the equalizer mode.

75+0)52.+6

The SPLIT feature lets you play two different

tones on opposite ends of the keyboard, so

the low-end keys play one tone, and the

high-end keys play another. The main tone

sounds in Channel 1 and the split tone

sounds in Channel 3. You can use the mixer

function to change the volume or other

settings in each channel. See “Using the

Mixer” on Page 12. You can change the split

point at any time.

1. Press TONE.

2. Use the number buttons to enter the

three-digit numberfor thetone you want

the high-end keys to play.

3. Press SPLIT. The SPLIT indicator

appears.

4. Enter the three-digit number for the

tone you want the low-end keys to play.

5. Hold down SPLIT, and press the key

where you want the high-end tones to

begin. The selected key’s name

appears.

For example, if you set the split point to

be F below middle C, <)

<)<)

<) appears. ±

6. Play both the low and high-end keys to

hear the selected split tones.

To select a different low-end tone

, enter

the three-digit number for the new low-

end tone while the SPLIT indicator

appears.

To select a different high-end tone

press SPLIT to turn off its indicator, then

enter the three-digit number for the new

high-end tone. Then press SPLIT again

so the SPLIT indicator appears.

To cancel SPLIT

, repeatedly press

SPLIT until its indicator disappears. ±

75+0).#;'4

The keyboard lets you play two different

preset tones at the same time, creating a

“layered” effect when you press one key.

The first tone you select is called the

base

tone

and the second tone is called the

layer

tone

1. Press TONE.

2. Enter the three-digit number for the

base tone then press LAYER. The

LAYER indicator appears.

3. Enter the three-digit number for the

layer tone.

4. Play the keyboard to hear the selected

layered tones.

To select a different layer tone

, enter

the three-digit number for the new layer

tone while the LAYER indicator

appears.

To select a different base tone

, press

LAYER to turn off itsindicator, then enter

the three-digit number for the new base

tone. Then press LAYER again so the

LAYER indicator appears.

To cancel LAYER

, repeatedly press

LAYER until its indicator disappears. ±

75+0)52.+6#0&.#;'461)'6*'4

You can combine the split and layer

features, so you can play one layered

combination of tones on the low-end keys

and another on the high-end keys.

1. If the SPLIT or LAYER indicator is on,

press SPLIT or LAYER to turn it off.

2. Enter the number for the high-end base

tone on the keypad.

±016'±

Adjusting the Gain

Gain settings apply only to the current

equalizer type. When you change the

equalizer type, the default gain settings for the

newly selected equalizer type take effect.

Using Split

• If SPLIT is on when you turn off the

keyboard, it remains on the next time you

turn the keyboard back on.

• When you turn on SPLIT, the last selected

settings appear.

• When you select Concert Chord or

Fingered auto accompaniment, the

accompaniment keyboard range is shifted

to the split point you set.

Using Layer

• If LAYER is on when you turn off the

keyboard, LAYER will still be on the next

time you turn on the keyboard.

• When you turn on LAYER, the previous

tone settings appear.

Using the Preset Auto-RhythmsUsing the Preset Auto-Rhythms

3. Repeatedly press SPLIT until the SPLIT

indicator appears.

4. Enter the number for the low-end base

tone.

5. Repeatedly press SPLIT until the SPLIT

indicator disappears.

6. Repeatedly press LAYER until the

LAYER indicator appears.

7. Enter the number of the layered tone for

the high-end keys.

8. Press SPLIT. The SPLIT indicator

appears.

9. Enter the number of the layered tonefor

the low-end keys.

10. If desired, hold down SPLIT then press

the key where you want the high-end

tones to begin.

11. Play the keyboard to hear the selected

tones.

To cancel the SPLIT/LAYER combination,

press each button so both the SPLIT and

LAYER indicators disappear.

75+0)6*'24'5'6#7614*;6*/5

Your keyboard has100 preset auto-rhythms

that provide a steady beat for your music.

The name and two-digit number of each

preset auto-rhythm is listed on the

keyboard’s top panel. You can also

download up to 4 sets of accompaniment

data and store them into the keyboard’s

memory. See “Using the Data Download

Service” on Page 21.

You can play a preset auto-rhythm on the

keyboard in any of the following ways:

• Select and play a rhythm (see

“Selecting/Playing an Auto-Rhythm”)

• Synchronize the start of a rhythm with

your music (see “Using SYNCHRO”)

• Start a rhythm with a special

introduction (see “Using INTRO”)

• Briefly vary the pattern of a rhythm (see

“Using FILL-IN”)

• Play an alternate version (variation) of a

rhythm (see “Using FILL-IN NEXT” on

Page 10)

• Stop a rhythm with a special ending

(see “Using ENDING” on Page 10)

5'.'%6+0)2.#;+0)#0

#7614*;6*/

1. Press RHYTHM. H>OJ>C

H>OJ>CH>OJ>C

H>OJ>C and the name

and number of the current auto-rhythm

appear. ±

2. To select a different rhythm, choose an

auto-rhythm from the 100 RHYTHMS

list and enter its three-digit number on

the keypad. Precede a single- or two-

digit number with zeroes. Or, repeatedly

press +or –to move to the next higher

or lower numbered rhythm. ±

3. Set MODE to NORMAL, then press

START/STOP to start the selected auto-

rhythm.

Or, you can press VARIATION/FILL-IN 1

or 2to start the rhythm. Each of the

keyboard’s preset auto-rhythms has a

built-in variation (alternate) to its normal

beat pattern. The variation differs

slightly from the normal rhythm, so it is

almost like having two rhythms in one!

4. Adjust VOLUME to the desired level.

5. To change the auto-rhythm speed,

press (or hold down) TEMPO ¼or ¹.

The current tempo setting appears. ±

6. Play the keyboard along with the auto-

rhythm.

7. To select a different rhythm, repeat

Steps 1 and 2.

8. To stop the auto-rhythm, press START/

STOP.

75+0)5;0%*41

This feature lets you synchronize the start of

an auto-rhythm with the beginning of your

music.

After you select and enter an auto-rhythm,

press SYNCHRO/FILL-IN NEXT, then begin

playing the keyboard. The keyboard auto-

matically begins to play the rhythm when

you press any key in the accompaniment

keyboard range (see “Using Auto

Accompaniment” on Page 10).

75+0)+0641

This feature lets you start the selected auto-

rhythm with a light, 3- to 8-measure intro-

duction that blends easily into the selected

rhythm.

To start a rhythm with an introduction, select

and enter the rhythm, then press INTRO/

ENDING 1 or 2. The introduction for the

selected variation (1 or 2) plays, then the

selected auto-rhythm automatically starts.

75+0)(+..+0

This feature lets you insert a short (1- to 2-

measure) variation in the beat pattern of a

selected auto-rhythm. While the auto-

rhythm is playing, press and release

VARIATION/FILL-IN 1 or 2, corresponding to

the variation you started with. The keyboard

inserts a 1- to 2-measure fill-in of either

variation, then the original rhythm

±016'±

Selecting/Playing an Auto-Rhythm

• The keyboard automatically selects the

rhythm 8 BEAT 1 (No. 000) when you turn

the power on. Each time you turn it on after

that, it selects the last selected rhythm.

• If you incorrectly enter the first digit of the

rhythm, press RHYTHM to clear the entry

and return to the last selected auto-rhythm.

• You can also adjust the tempo by first

pressing TEMPO ¼or

¹, then entering the

desired number of beats per minute in three

digits (030 to 255), or by holding down + or

– on the keypad.

• To reset the tempo to its default (original)

speed, press TEMPO ¼and

¹at the same

time.

Using Auto Accompaniment

automatically resumes at the end of the

current measure.

When you press another variation button

(VARIATION/FILL-IN 2 while you are playing

variation 1, for example), thekeyboard starts

to play the newly-selected variation and

does not insert a fill-in.

75+0)(+..+00':6

To switch to the other variation of the

selected auto-rhythm during play, press

SYNCHRO/FILL-IN NEXT while the rhythm is

playing. The fill-in pattern of the current

variation plays, then fill-in of the other

variation, and the rhythm switches to the

other variation.

75+0)'0&+0)

To end the selected rhythm with a special

flourish, press INTRO/ENDING 1 or 2while

the auto-rhythm is playing. The keyboard

plays a special ending of the selected type

(1 or 2), then automatically stops the rhythm.

The ending pattern starts immediately if you

press the button before the second beat of

the current measure. If you press after the

second beat, the ending pattern starts from

the next measure.

75+0)#761#%%1/2#0+/'06

The 18 keys on the left side of the keyboard

with note labels above them are called

accompaniment keys.

You can set the keyboard to play three

different types of auto accompaniment using

the accompaniment keys. ±

•Concert Chord — lets you play chords

on the accompaniment keys using

chord formations of from one to four

notes. The number of keys you press

determines the type of chord that plays

(see “Concert Chord”).

•Standard Fingering — lets you play

chords on the accompaniment keys

using standard chord formations of

three or four notes (see “Standard

Fingering” on Page 11).

•Full-Range Chord — lets you play the

melody using the entire keyboard while

the keyboard plays accompaniment

based on your auto-rhythm selection.

Theauto-accompanimentpatternsconsistof

four parts: chord 1, chord 2, bass, and

rhythm. You can delete any of the parts by

using the mixer function. See “Using the

Mixer” on Page 12.

#&,756+0)6*'

#%%1/2#0+/'0681.7/'

The keyboard lets you adjust the volume of

your accompaniment separately from the

overall volume of the keyboard.

1. Press ACCOMP VOLUME. The current

accompaniment volume setting

appears.

2. Within 5 seconds, enter a number from

0 0 0 (softest) to 1 2 7 (loudest) on the

keypad. The numbers appear as you

press the keys.

Or, press ACCOMP VOLUME then

repeatedly press –or +to select the

next lowest or highest accompaniment

volume setting.

To reset the accompaniment volume to

its default value of 87, press ACCOMP

VOLUME then press –and +at the same

time.

%10%'46%*14&

The concert chord method lets beginning key-

board players easily select and play a chord.

The number of accompaniment keys you

press determines the type of chord that

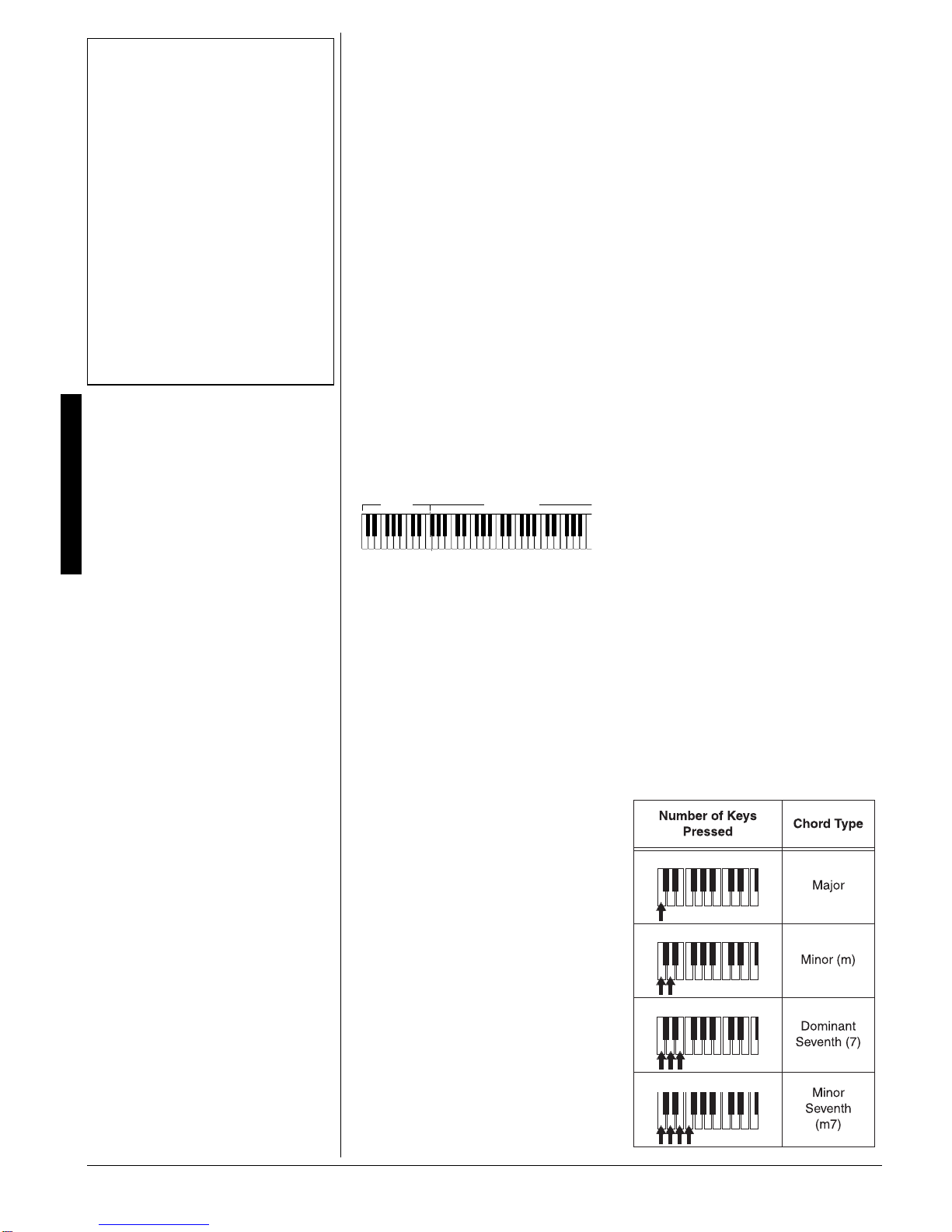

plays. This chart shows the chord type that

plays when you press one, two, three, or

four accompaniment keys at the same time.

±016'±

Using Auto Accompaniment

• You can use the keyboard’s rhythm controls

(INTRO/ENDING 1 or 2,VARIATION/FILL-

IN 1 or 2, and SYNCHRO/FILL-IN NEXT)

with all three types of auto accompaniment.

• After you press the auto accompaniment

keys while using concert chord or standard

fingering, the keyboard plays the same

chord until you press other accompaniment

keys to play a different chord or press

START/STOP.

• When you select Concert Chord or

Standard Fingering mode, the range of the

accompaniment keys is set by the split

point. See “Using SPLIT” on Page 8.

Concert Chord

You can press any labeled note(s) to the right

of the lowest note in the chord to produce a

minor, a dominant seventh, or minor seventh

chord.

Accompaniment

Keyboard Melody

Keyboard

C D E F G A B C D E F

Using Auto Accompaniment

The lowest note you play determines the

key of the chord. For example, if the lowest

note is C, the keyboard plays a C chord. ±

1. Set MODE to CONCERT CHORD.

2. Enter a two-digit auto-rhythm number.

3. To start the auto-rhythm before the auto

accompaniment, press START/STOP or

INTRO/ENDING 1 or 2.

Or, to synchronize the start of the

selected auto-rhythm with your

accompaniment, press SYNCHRO/FILL-

IN NEXT.

4. Begin the accompaniment at the

desired interval by pressing the desired

accompaniment key(s).

To play a melody along with the

accompaniment, press any key(s) to

the right of the accompaniment keys.

5. Adjust the tempo and VOLUME to the

desired levels.

6. To change chords without interrupting

the rhythm, simply press the auto

accompaniment key(s) required to form

the new chord.

7. To stop auto accompaniment and the

auto-rhythm, press START/STOP.

56#0&#4&(+0)'4+0)

The standard fingering method uses

standard formations of three or four notes,

and lets the experienced musician play a

wider variety of accompaniment chords. ±

This chart shows the 15 chord types you

can play on your keyboard by using

standard fingering.

Follow these steps to start standard

fingering auto accompaniment.

1. Set MODE to FINGERED.

2. Select and enter an auto-rhythm.

3. To start the auto-rhythm before your

auto accompaniment, press START/

STOP or INTRO/ENDING 1 or 2.

Or, to synchronize the start of the

selected auto-rhythm with your

accompaniment, press SYNCHRO/FILL-

IN NEXT.

4. Begin the accompaniment at the

desired interval by pressing at least

three accompaniment keys to play the

desired chord.

To play a melody along with the

accompaniment, press any key(s) to

the right of the accompaniment keys.

5. Adjust TEMPO and VOLUME to the

desired levels.

6. To change chords without interrupting

the rhythm, simply press the auto

accompaniment keys required to form

the new chord.

7. To stop auto accompaniment and the

auto-rhythm, press START/STOP.

(7..4#0)'%*14&5

While the concert chord and standard

fingering methods limit chord formations to

the accompaniment keys, the full-range

chord method lets you play chords of any

type using any of the keyboard’s keys.

Set MODE to FULL RANGE CHORD and

follow the steps under “Standard Fingering”.

If you press three or more keys that form a

chord anywhere on the keyboard, the

keyboard plays that chord. The keyboard

responds with melody sounds if you press

fewer than three keys. ±

In the full-range chord mode, the keyboard

recognizes 23 more chords (in addition to

the 15 in the fingered chord mode). The

following is an example of those chords with

C as the base note.

C6Cm6C69.

CDEFG A

JBJ

C_

mDmFm Gm Am B

C_

Dm7J5AJ7F7Fm7Gm7AJadd9

C_

±016'±

Standard Fingering

• You do not have to press the key marked

with parentheses on the keyboard in the

chart to produce a 7, m7, M7, mM7, add9,

or madd9 chord.

• Although the chart shows only one possible

fingering position for each chord, it is

possible to play a chord using several

different positions. For example, the

following three positions produce the same

C chord.

• When you play an aug, 7J5, or dim7 chord,

the lowest note you play determines the

root of the chord. Be sure that your

fingering correctly defines the root you

want.

• See “Fingered Chord Chart” on Page 31 for

all the chords you can play on your

keyboard using standard fingering

accompaniment.

Full-Range Chords

• You cannot use inverted fingerings. The

lowest note is the root.

• You can play the same chord without

pressing the 5th G.

• When the notes of a chord are more than 5

notes apart, the lowest sound becomes the

base note.

Using the Mixer

75+0)#761*#4/10+ '

When using auto-accompaniment in the

fingered or concert chord modes, press

AUTO HARMONIZE to automatically add

harmony to your melodies. The indicator

next to AUTO HARMONIZE lights, and the

keyboard adds harmony based on the chord

playing on the accompaniment key section.

75+0)10'617%*24'5'6

The keyboard’s one-touch preset feature

recalls these characteristics for a selected

rhythm:

• tone

• tempo

• layer on/off

• effect type

• auto harmonize on/off

After selecting a rhythm, press ONE TOUCH

PRESET. The keyboard enters synchro

standby mode. Start the accompaniment.

The rhythm plays at a suitable setting and

the keyboard sounds the selected tone for

the selected rhythm.

75+0)6*'/+:'4

The keyboard plays multiple parts at the

same time in up to 16 separate channels

during auto accompaniment, or memory

playback, or when receiving MIDI data. You

can control the on/off setting, volume, and

parameters of each of the keyboard’s

channels just as you would with a sound

mixer.

This table shows the parts assigned to each

channel. ±

'FKVKPIVJG5VCVWUQHC%JCPPGN

You can turn a channel off to delete a

specific part.

1. Press MIXER. The MIXER indicator and

the last selected channel appear.

2. Repeatedly press +or –to select the

channel you want to edit.

3. Repeatedly press G(ENTER) then J

(CURSOR) to display the current status

of the channel — ed

eded

ed or e<<

e<<e<<

e<<.

4. Press +to turn on the channel or –to

turn it off.

eded

ed (default): Turns on the current

channel. A bar appears at the bottom of

the level meter for the selected channel.

e<<

e<<e<<

e<<: Turns off the current channel. The

bar at the bottom of the level meter

disappears.

5. To edit other channels, press H(EXIT)

to return to the channel selection

screen, then repeat steps 2–4.

To exit the edit mode, press MIXER. The

display shows the edited status of the

channels.

'FKVKPI2CTCOGVGTU

You can change the settings of six parame-

ters for the selected channel.

1. Select the channel you want to edit as

described in Steps 1 and 2 of “Editing

the Status of a Channel”.

2. Press G(ENTER) to enter the

parameter edit mode.

3. Repeatedly press Ior Jto select the

parameter you want to change.

Tone Parameters

Jed[De$

Jed[De$Jed[De$

Jed[De$ (&&&

&&&&&&

&&&to (*-

(*-(*-

(*-) — sets the tone

assigned to the channel. When the

assigned tone is an advanced tone, the

display shows only two digits.

FWhjed%e<<

FWhjed%e<<FWhjed%e<<

FWhjed%e<< – turns each channel on or

off.

Lebkc[

Lebkc[Lebkc[

Lebkc[ (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) — controls the

volume of the selected channel.

FWd

FWdFWd

FWd (#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) — controls the pan

(relative position of the tone between

left and right speaker channels). #,*

#,*#,*

#,* is

fully left, &

&is the center position, and

!,)

!,)!,)

!,) is fully right.

EYj

EYjEYj

EYj (Octave) I^_\j

I^_\jI^_\j

I^_\j (#(

#(#(

#( to !(

!(!(

!() – shifts the

range of the tone up or down by octave.

Tuning Parameters

9(Coarse) Jkd[

Jkd[Jkd[

Jkd[ (¶(*

¶(*¶(*

¶(* to !(*

!(*!(*

!(*) — coarsely

tunes the pitch of the selected channel

in semitone units.

<_d[Jkd[

<_d[Jkd[<_d[Jkd[

<_d[Jkd[ (¶'&&

¶'&&¶'&&

¶'&& to !'&&

!'&&!'&&

!'&&) — fine tunes the

pitch of the selected channel in cent

±016'±

Using Auto Harmonize

• Auto harmonize does not work when you

select full range chord auto accompaniment

or no auto accompaniment.

• The harmony melody in auto harmonize

mode uses Channel 5. You can change the

tone or volume setting of the harmony by

using the keyboard’s mixer function (see

“Using the Mixer”).

Using the Mixer

• Normally, keyboard play is assigned to

Channel 1. When you use auto

accompaniment, parts are assigned to

Channels 6–10.

• When you use the keyboard as the sound

source for another MIDI device, all 16

channels are assigned musical instrument

parts, Channel 10 is reserved for drum

parts only, per MIDI standard.

• The mixer settings also affect the

corresponding MIDI output.

%JCPPGN 2CTV

1 Main tone

2Layered tone

3 Split tone

4Layered/split tone

5 Harmonize tone

6Auto accompaniment part 1

7 Auto accompaniment part 2

8Auto accompaniment part 3

9 Auto accompaniment bass part

10 Auto accompaniment rhythm part

11 Memory track 1

12 Memory track 2

13 Memory track 3

14 Memory track 4

15 Memory track 5

16 Memory track 6

Using the Tone Synthesizer

units. A cent is one hundredth of a

semitone. There are 12 semitones per

octave.

Effect Parameters

HlX

HlXHlX

HlX (Reverb) I[d

I[dI[d

I[d (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) – controls

how much reverb is applied. &&&

&&&&&&

&&& is

reverb off, '(-

'(-'(-

'(-is maximum.

9^e

9^e9^e

9^e (Chorus) I[d

I[dI[d

I[d (&&&

&&&&&&

&&& to '(-

'(-'(-

'(-) – controls

how much chorus is applied. &&&

&&&&&&

&&& is no

chorus, '(-

'(-'(-

'(- is maximum.

:IFB_d[ed

:IFB_d[ed:IFB_d[ed

:IFB_d[ed/e<<

e<<e<<

e<< – use to turn the DSP

line on or off for a particular channel.

4. Repeatedly press +or –or enter a

number using the number buttons to

change the parameter setting.

5. To edit other channels, press H(EXIT)

to return to the channel selection

display, select the channel, then repeat

Steps 2–4.

6. To exit the parameter edit mode, press

MIXER.

75+0)6*'610'5;06*'5+ '4

The keyboard’s custom tone synthesizer

lets you create up to 32 of your own original

tones. To create a “user” tone, you simply

select one of the keyboard’s 100 preset

tones or 127 GM tones, change its para-

meters, then store the new tone in a

memory location from 238 to 247. You

select and use a user tone as you would a

preset tone. ±

The parameters you can change are divided

into the following groups. ±°

°°

• Volume Characteristic — Attack Time,

Release Time, Resonance, Cutoff

Frequency

• Tone Pitch — Vibrato type, Vibrato

Delay, Vibrato Depth, Vibrato Rate,

Octave Shift

• Tone Characteristic — Level, Touch

Sense, Reverb Send, Chorus Send,

DSP Line, DSP Type, DSP Parameter

%TGCVKPICPF5VQTKPIC

7UGT6QPG

1. Select the preset tone (except 228–

237) you want to use as a basisfor your

user tone.

2. Press SYNTH. The keyboard enters the

Custom Tone Synthesizer mode and

7jaJ_c[

7jaJ_c[7jaJ_c[

7jaJ_c[ (Attack Time, the first

parameter) appears.

3. Repeatedly press Ior J(CURSOR) to

display the parameter you want to

change.

Attack Time (7jaJ_c[

7jaJ_c[7jaJ_c[

7jaJ_c[) (#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) —

Sets the speed of the attack (the period

from when you press a key to when the

tone reaches its maximum volume). The

greater the value, the quicker the attack.

Release Time (H[b$J_c[

H[b$J_c[H[b$J_c[

H[b$J_c[) (¶,*

¶,*¶,*

¶,* to !,)

!,)!,)

!,)) —

Controls the speed of a tone’s release

(the period from when you release a

key to when the tone stops sounding).

The greater the value, the quicker the

release.

Vibrato Type (L_X$Jof[

L_X$Jof[L_X$Jof[

L_X$Jof[)I_d

I_dI_d

I_d,jh_

jh_jh_

jh_,I7K

I7KI7K

I7K, or

Igh

IghIgh

Igh — Sets the vibrato type as sine

wave (I_d

I_dI_d

I_d), triangle wave (jh_

jh_jh_

jh_), sawtooth

wave (I7K

I7KI7K

I7K), or square wave (Igh

IghIgh

Igh).

Vibrato Delay (L_X:[bWo

L_X:[bWoL_X:[bWo

L_X:[bWo) (#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) —

Sets the amount of time before vibrato

starts.

Vibrato Depth (L_X:[fj^

L_X:[fj^L_X:[fj^

L_X:[fj^) (#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) —

Sets the depth of vibrato effect.

Vibrato Rate (L_X$HWj[

L_X$HWj[L_X$HWj[

L_X$HWj[) (#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) —

Sets the speed of the vibrato effect.

Cut Off Frequency (9#e\\<hg

9#e\\<hg9#e\\<hg

9#e\\<hg) (#,*

#,*#,*

#,* to

!,)

!,)!,)

!,)) — – Adjusts the timbre of the

sound. A higher cut off frequency gives

brighter timber, lower cut off frequency

produces a softer timbre.

Resonance (H[iedWd

H[iedWdH[iedWd

H[iedWd) (#,*

#,*#,*

#,* to !,)

!,)!,)

!,)) —

Sets the resonance of the tone.

Resonance enhances the harmonic

component around the cut off frequency

to create adistinctive sound. The larger

the value, the more distinctive the

sound. ±

Octave Shift (EYjI^_\j

EYjI^_\jEYjI^_\j

EYjI^_\j) (#(

#(#(

#( to !(

!(!(

!()—

Shifts the range of the tone up or down

by octave.

Level (B[l[b

B[l[bB[l[b

B[l[b) (&

&to '(-

'(-'(-

'(-) — Controls the

overall volume of the tone. The greater

the value, the greater the volume.

Setting a level of zero means that the

tone does not sound at all.

Touch Sensitivity (JY^I[di[

JY^I[di[JY^I[di[

JY^I[di[) (¶,*

¶,*¶,*

¶,* to

!,)

!,)!,)

!,)) — Controls changes in the volume

of the tone depending on how hard you

strike the keys. You can specify more

volume for stronger striking and less

volume for lighter striking, or you can

specify 00 to set the same volume re-

gardless of how hard you strike the keys.

Reverb Send (HlXI[d

HlXI[dHlXI[d

HlXI[d ) (&

&to '(-

'(-'(-

'(-) —

Controls the reverb effects.

Chorus Send (9^eI[d

9^eI[d9^eI[d

9^eI[d ) (&

&to '(-

'(-'(-

'(-) —

Controls the chorus effects.

DSP Line (:IFB_d[

:IFB_d[:IFB_d[

:IFB_d[)ed

eded

ed/e<<

e<<e<<

e<< — Sets DSP

line on or off.

DSP Type (Number and name of the

applied DSP appears) — Selects the

DSP type.

DSP Parameter — Sets DSP

parameters. See “DSP (Digital Signal

Processor)” on Page 7. ±

±016'±

Using the Tone Synthesizer

• You cannot use tones 228–237 (drum set

tones) as base tones.

• The preset tone you use as the basis for a

user tone is not changed.

• Tone locations 238–247 initially contain the

tone number 000. The user tone you store

in any of those locations replaces it.

Creating and Storing a User Tone

• A new or revised user tone replaces the

existing user tone.

• Layer, split, auto accompaniment, demo

tune play, and MIDI functions are all

disabled while the keyboard is in the

Custom Tone Synthesizer mode.

• For some tones, setting the resonance too

high might cause distortion or noise. If you

encounter this, lower the resonance setting

• While you are setting the three DSP

parameters, an indicator appears next to

DSP.

°°

°*+06°

°°

°

• To make it easier to create your own tone,

start with a preset tone that is similar to the

one you are trying to create.

• Experiment with different settings. There are

no real rules about what a tone should

sound like. Let your imagination run free

and experiment with different combinations.

You might be surprised at what you can

achieve!

Using the Registration Memory

When you store a tone with DSP line

turned on, all the DSP parameters are

recalled as you select the tone.

4. Repeatedly press +or –to change the

parameter’s setting, or use the number

buttons to directly enter a value for the

parameter.

If you want to change another

parameter, repeat Steps 3, 4, and 5.

5. To store the settings, press G(ENTER)

to display the tone number (().

().().

(). – (*-

(*-(*-

(*-)

where you want to save the user tone. ±

6. Repeatedly press + or – until the tone

number you want appears.

7. Press G(ENTER) to save the user tone.

IWl[EA

IWl[EAIWl[EA

IWl[EA appears briefly and the

keyboard exits the Custom Tone

Synthesizer mode.

Or, press H(EXIT) to exit the Custom

Tone Synthesizer mode without storing

a new tone.

75+0)6*'4')+564#6+10/'/14;

Your keyboard can save different setups of

controls in its registration memory. This lets

you instantly recall your favorite settings.

The registration memory consists of four

banks (0 – 3), each with four memory

locations (1 – 4), totaling up to 16 settings.

You can save each of the following settings

in each registration memory: ±

•tone

•rhythm

• tempo

• split on/off

• split point

• layer on/off

• mixer settings (Channels 1–10)

• effect settings

• equalizer settings

• touch response settings

• assignable jack setting (see “Using a

Sustain Pedal” on Page 15)

• transpose (see “Changing Keys” on

Page 14)

• tuning (see “Tuning the Keyboard” on

Page 14)

• accompaniment volume

• auto harmonize on/off

5614+0)#5'672

1. Set the desired controls to the setting

you want to store.

2. Within 5 seconds, repeatedly press

BANK until the desired bank number

appears.

3. While holding down STORE, press the

desired REGISTRATION button (1,2,3,

or 4). Ijeh[

Ijeh[Ijeh[

Ijeh[appears after the selected

bank/location number/letter.

4. Release STORE and REGISTRATION.

5. Repeat Steps 1–4 to store more setups.

4'%#..+0)#5'672

1. Repeatedly press BANK until the

desired bank number appears.

2. Within 5 seconds, press the desired

REGISTRATION button (1,2,3, or 4).

H[YWbb

H[YWbbH[YWbb

H[YWbbappears after the selected bank/

location number/letter.

52'%+#.('#674'5

%*#0)+0)-';5

The keyboard automatically selects the key

of middle C each time you turn it on. For

added flexibility as you play, the keyboard

lets you change (transpose) the musical key

in which it plays. You can transpose the key

up or down 24 semitones (two octaves). ±

1. Press TOUCH/TRANSPOSE/SETTING,

then repeatedly press Ior J(CURSOR)

until &&JhWdi

&&JhWdi&&JhWdi

&&JhWdi appears. The displayed

number is the number of semitones to

which the keyboard is set, compared to

its default key.

2. Within 5 seconds, repeatedly press

–or +to lower or raise the key. Each

time you press –or +, the key changes

by 1 semitone. As you raise thekey, 1 is

C#, 2 is D, and so on. As you lower the

key, –1 is B, –2 is BJ, –3 is A, and so on.

3. Press TOUCH/TRANSPOSE/SETTING to

exit the menu setting mode.

670+0)6*'-';$1#4&

Although your keyboard never goes out of

tune, it lets you adjust its pitch to match

other instruments or musical recordings.

A cent is the measurement that represents

the acoustical interval between two tones.

1,200 cents equal 1 octave. You can tune

the keyboard to within –99 to +99 of its

default pitch.±

1. Press TOUCH/TRANSPOSE/SETTING,

then repeatedly press Ior J(CURSOR)

until &&Jkd[

&&Jkd[&&Jkd[

&&Jkd[ appears. The number on

±016'±

Using the Registration Memory

• You cannot use the registration memory

while you are using the synthesizer,

memory, or demo tune functions.

• You cannot delete a registration setup from

memory, but you can store a different setup

in its place.

• You can use the keyboard’s MIDI function

to save your setup data to your PC or other

storage device.

Changing Keys

• You cannot change the key while a

prerecorded tune is selected or playing.

• A semitone is a measurement that

represents the acoustical interval between

the tones of any two keys on the keyboard.

For example, the difference between C and

C# or B and C is one semitone.

• The transpose setting also affects memory

playback (see “Playing Back from Song

Memory” on Page 17) and auto

accompaniment.

• The keyboard automatically resets the key

to the default value of 0 (middle C) each

time you play a pre-recorded tune.

Tuning the Keyboard

• You cannot tune the keyboard while a

prerecorded tune is displayed or playing.

• The tuning setting also affects memory

playback (see “Playing Back from Song

Memory” on Page 17) and auto

accompaniment.

• The keyboard automatically resets the

tuning pitch to the default value of 00

(cents) each time you turn off the keyboard.

Special Features

the display is the number of “cents” to

which the keyboard is currently tuned,

compared to its default pitch.

2. Within 5 seconds, repeatedly press–or

+to lower or raise the keyboard’s pitch.

Each time you press the key, the

number decreases or increases by 1

cent.

75+0)617%*4'52105'

Your keyboard’stouch response feature lets

you adjust the volume of your music’s tone

based on how hard you strike the key(s), so

you can add emotion to your music.

1. Press TOUCH/TRANSPOSE/SETTING.

JekY^

JekY^JekY^

JekY^ and the current setting (default: (

((

(

DehcWb

DehcWbDehcWb

DehcWb) appear.

2. Within 5 seconds, repeatedly press–or

+to select the touch response level, e<<

e<<e<<

e<<

JekY^

JekY^JekY^

JekY^,'B_]^j

'B_]^j'B_]^j

'B_]^j,(DehcWb

(DehcWb(DehcWb

(DehcWb, or )>[Wlo

)>[Wlo)>[Wlo

)>[Wlo.

At the B_]^j

B_]^jB_]^j

B_]^jsetting, light key pressure

results in a loud sound, and very heavy

key pressure results in a more powerful

sound. When you select e<<JekY^

e<<JekY^e<<JekY^

e<<JekY^, the

indicator next to TOUCH RESPONSE

disappears and the tone does not

change regardless of how you press

the key. ±

75+0)#5756#+02'&#.

For added flexibility and control as you

make music, you can connect an optional

sustain pedal, available through your local

RadioShack store or online at

www.radioshack.com

. A sustain pedal lets

you sustain or soften the keyboard’s sound,

or even start and stop an auto-rhythm.

To connect a sustain pedal to your

keyboard, insert the pedal’s plug into

SUSTAIN/ASSIGNABLE JACK on the back of

the keyboard.

You can adjust the keyboard to these

settings when you use a sustain pedal.

IKI

IKIIKI

IKI (Sustain)—Causes one or more

notes to linger after they are played.

Iei

IeiIei

Iei (Sostenuto)—Similar to sustain, but

only sustains the key that was pressed

when you press the pedal.

I<j

I<jI<j

I<j (Soft)—Softens the sound.

h^o

h^oh^o

h^o— Starts or stops the selected

rhythm.

Follow these steps to change the setting for

SUSTAIN/ASSIGNABLE JACK.

1. Press TOUCH/TRANSPOSE/SETTING,

then repeatedly press Ior J(CURSOR)

until B9:%@WYa

B9:%@WYaB9:%@WYa

B9:%@WYa appears.

2. Repeatedly press G(ENTER) then

repeatedly press Ior J(CURSOR) until

@WYa

@WYa@WYa

@WYa and the current setting (default:

IKI

IKIIKI

IKI) appear.

3. Within 5 seconds, repeatedly press + or

– until the desired setting (IKI

IKIIKI

IKI,IeI

IeIIeI

IeI,I<j

I<jI<j

I<j,

or h>o

h>oh>o

h>o) appears.

Press the sustain pedal as you play to

hear the desired sound or to start/stop

the selected auto-rhythm.

#&,756+0)6*'

&+52.#;%1064#56

1. Press TOUCH/TRANSPOSE/SETTING,

then repeatedly press Ior J(CURSOR)

until B9:%@WYa

B9:%@WYaB9:%@WYa

B9:%@WYa appears.

2. Press G(ENTER). &,9edjhWij

&,9edjhWij&,9edjhWij

&,9edjhWijappears.

3. Within 5 seconds, repeatedly press+or

–until you can view the display clearly.

The number changes from 0 to 12.

4'5'66+0)6*'-';$1#4&

The keyboard retains various settings even

when you turn the power off, so long as you

do not disconnect power. You can, however,

delete or initialize some settings without

deleting others.

1. Press TOUCH/TRANSPOSE/SETTING,

then repeatedly press Ior J(CURSOR)

until ?d_j%:[b

?d_j%:[b?d_j%:[b

?d_j%:[b appears.

2. Press G(ENTER). ?d_jC_n5

?d_jC_n5?d_jC_n5

?d_jC_n5 appears.

3. Within 5 seconds, repeatedly press

Ior J(CURSOR) until the item youwant

to reset appears.

?d_jC_n5

?d_jC_n5?d_jC_n5

?d_jC_n5— Initializes the mixer

parameters you assigned by the mixer

function or by input from an external

sequencer.

?d_jFWh5

?d_jFWh5?d_jFWh5

?d_jFWh5— Initializes all parameters,

except for the display contrast setting.

h>oddd:[b5

h>oddd:[b5h>oddd:[b5

h>oddd:[b5— Deletes the data of the

user rhythm number

nnn

. See “Using

the Data Download Service” on

Page 21.

?d_jIoi5

?d_jIoi5?d_jIoi5

?d_jIoi5— Deletes all data in the user

area.

4. Press YES.Ikh[5

Ikh[5Ikh[5

Ikh[5 appears, prompting

you to confirm the initialization/deletion.

Press YES again. The keyboard

completes initialization/deletion and

exits the menu setting mode.

±016'±

• The touch response setting does not affect

memory playback, auto accompaniment, or

received MIDI data.

• The MIDI data sent out from the keyboard is

affected by the touch response setting.

Using the Song Memory

75+0)6*'510)/'/14;

The keyboard lets you record up to two

separate songs (with up to about 3,500

notes) in memory for later playback. You

can use either of two methods to record a

song — real-time recording (you record as

you play) or step recording (you enter notes

and chords one-by-one).

You can record on each of the keyboard’s

six tracks separately. Besides notes, each

track can have its own tone number. Then,

when you play back the tracks together, it

sounds like an entire six-piece band. Also,

you can use different mixer settings for each

track.

Track 1 is the main track, and you can use it

to record auto accompaniment, as well as

keyboard play. Tracks 2 through 6 are

melody tracks, and you can use these for

recording a secondary melody that includes

keyboard play.

Because each track is independent of the

others, you only need to re-record a single

track if you make a mistake while recording

on it.

If the remaining memory is less than 100

notes, the measure and beat numbers flash.

When memory becomes full, recording

automatically stops (and auto-

accompaniment or rhythm stops playing, if

used).

Memory contents are saved as long as

power is supplied to the keyboard.

Unplugging the adapter without batteries or

with weak batteries erases the memory. To

prevent data loss, connect an adapter

before replacing the batteries.

Turning off the keyboard while recording

erases the contents of the track you were

recording.

You can transfer memory contents to

another MIDI device.

4'#.6+/'4'%14&+0)

With real-time recording, the notes are

recorded as you play them on the keyboard.

°°

1. Repeatedly press SONG MEMORY until

H[Yeh

H[YehH[Yeh

H[Yeh appears. ±

2. Within 5 seconds, press +or –(or 0or 1)

to select a song number.

3. Press CHORD/TR 1 to select Track 1.

While the keyboard is in memory record

mode, the level meters for channels 11

through 16 correspond to memory

tracks 1 through 6. When all four bars

are lit, that channel has something in

memory: if only one bar is lit, that track

is empty.

4. If desired, you can change the following

settings:

• Tone number

• Rhythm number. (To record without

an auto-rhythm, skip Step 5 of “Real-

Time Recording.” Recording starts

when you press a key.)

• Tempo. (Do not change the tempo

unless you already know the desired

tempo. Pressing START/STOP to hear

the tempo causes recording to

begin).

•MODE

5. Press START/STOP to start recording.

°°

To start recording with synchro start

press SYNCHRO/FILL-IN NEXT insteadof

START/STOP. Recording starts when

you play a note or a chord on the

accompaniment keys.

To synchro start auto accompaniment

with an intro pattern

, press SYNCHRO/

FILL-IN NEXT and then INTRO/ENDING 1

or 2instead of START/STOP. Recording

starts with the intro pattern when you

play a note or a chord on the

accompaniment keys.

To start auto accompaniment during a

recording

, press INTRO/ENDING 1 or 2

instead of START/STOP. Play the melody

keys to start recording. When you reach

the point where you want

accompaniment to start, play a chord on

the accompaniment keys.

6. Play the keyboard. You can also record

auto accompaniment chords, tuning,

and pedal operations.

7. Press START/STOP to end recording.

If you make a mistake, press START/

STOP to stop recording and begin again

from Step 1, or you can edit the

contents. See “Editing Memory

Contents” on Page 18.

This data is stored on Track 1 along

with the notes you played:

• tone number

• rhythm number

• rhythm controller (INTRO/ENDING 1

or 2, VARIATION/FILL-IN 1 or 2, etc.)

operations

• pedal operations

• accompaniment volume

• effect type

See “Recording Multiple Tracks” on

Page 18 to record on the other five

tracks. ±

±016'±

•SONG MEMORY is a four-way switch.

When you press it once, the keyboard

enters the memory playback mode. When

you press it again, it enters the real-time

memory record mode. When you press the

button a third time, it enters the step

recording mode. When you press the button

a fourth time, it turns off the memory

function.

• When you record on a track that contains

data, the new recording replaces the

previous recording.

• The touch response setting (on/off) is not

recorded. However, the strength of the

strike is recorded.

• Channel 1 mixer parameters are

automatically recorded to Track 1.

• Check the display for Channels 11–16 to

see which memory tracks contain data and

which are empty.

°°

°*+06°

°°

°

To record using an intro, ending, or fill-in, use

INTRO/ENDING 1 or 2,SYNCHRO/FILL-IN

NEXT,VARIATION/FILL-IN 1, or VARIATION/

FILL-IN 2 as you normally would.

Using the Song Memory

2.#;+0)$#%-(41/

510)/'/14;

1. Repeatedly press SONG MEMORY until

FbWo

FbWoFbWo

FbWo appears.

2. Within 5 seconds, repeatedly press +or

–(or 0or 1) to select a song number.

3. Within 5 seconds, press START/STOP to

play back the song you selected. You

can use TEMPO to adjust the playback

tempo.

4. Press START/STOP again to stop

playback. ±

56'24'%14&+0)

With step recording, you can record a chord

progression one chord at a time. (If you

want to record one note at a time, refer to

“Recording Multiple Tracks” on Page 18.)

Follow these steps to record chords with

step recording.

1. Repeatedly press SONG MEMORY until

Ij[fH[Y

Ij[fH[YIj[fH[Y

Ij[fH[Y appears.

2. Within 5 seconds, repeatedly press

+ or – to select a song number.

3. If desired, you can change the rhythm

number and MODE settings.

4. Press CHORD/TR1 to select Track 1.

The REC indicator flashes briefly, then

lights steadily.

5. Press SYNCHRO/FILL-IN NEXT, then

play a chord using the chord play

method determined by the current

MODE setting (Fingered, Concert

Chord, Full Range Chord, or Normal).

When MODE is set to NORMAL

specify the chord using the root keys

and chord-type keys. See “Specifying

Chords in the Normal Mode”.

To start accompaniment with an intro

pattern

, press INTRO/ENDING 1 or 2

after SYNCHRO/FILL-IN NEXT.

To switch to a rhythm variation

, press

VARIATION/FILL-IN 1 or 2immediately

before playing the chord.

To insert an ending or fill in

, press

INTRO/ENDING 1 or 2, or VARIATION/

FILL-IN 1 or 2immediately before

entering the chord.

To step-record chords without a rhythm

skip this step. The chord of the

specified length is recorded. A rest can

be specified there, so you can createan

original chord pattern.

To add chord accompaniment during

rhythm play

, enter rests from the

beginning of the recording up to where

you want accompaniment to start. Then

enter only the chords (no rests).

6. Use the number buttons to specify the

length of the chord. See “Specifying the

Length of a Note.”

7. For each additional chord you want to

enter, play the chord and use the

number buttons to specify its length.

8. When you finish recording, press

START/STOP. The keyboard is now in

playback standby mode. You can try

playing back the song by pressing

START/STOP.±

5RGEKH[KPI%JQTFUKPVJG0QTOCN

/QFG

To enter chords when MODE is set to

NORMAL during step recording, you must

specify them using a method other than

Concert Chord or Fingered. That way, you

can enter 18 chord types using only two

keys.

While holding down the desired chord root

key, press the chord key to specify the chord.

The root and chord types are labeled above

each key. The chord root letter and type of

chord also appear as you play a chord.

5RGEKH[KPIVJG.GPIVJQH

C0QVG

During step recording, repeatedly press

+ or – or enter a number using the number

buttons to specify the length of each note.

Use numbers 1through 6to specify whole

notes (1), half notes (2), quarter notes (3),

eighth notes (4), 16th notes (5), and 32nd

notes (6).

To enter a dot or triplicate

, hold down 7(dot)

or 9(triplicate), then press 1through 6.

To enter a tie

, press 8then enter the first

and second notes.

To enter a rest,

press 0, then press 1

through 9to specify the length of the rest.

%QTTGEVKPI/KUVCMGU

Before finishing your step recording entry,

you can move the entry point back to correct

the data you entered. This deletes all data

after the point where you make corrections.

1. Before you press START/STOP to end

recording, press I(CURSOR). This moves

the entry point back one “space.” The

data recorded at the current entry point

appears, the REC indicator turns off,

and the STEP indicator flashes.

2. While monitoring the data on the

display, repeatedly press Ior J

(CURSOR) to move the entry point to

the data you want to change.

3. Press G(ENTER) then press J

(CURSOR). H[mh_j[5

H[mh_j[5H[mh_j[5

H[mh_j[5 appears.

4. Press YES to clear all data after the

current entry point. Press NO or H

±016'±

Playing Back from Song Memory

• You can use change the rhythm, use layer

and/or split during memory playback.

• Pressing START/STOP during the song

restarts the song from the beginning.

• You can set the volume and pan position of

the playback tracks using the mixer. This

setting data is output through MIDI OUT.

• The entire keyboard functions as a melody

keyboard during playback, regardless of the

MODE setting.

Step Recording

• If you make a mistake, see “Correcting

Mistakes”.

• When you record on a track that already

contains data, the keyboard automatically

locates the end of the previous recording —

measure, beat, or clock (1/48 of a beat) —

and adds your new entry to it.

• You can enter a 0 (a rest) in Step 5 of “Step

Recording”, but the rest is ignored when the

accompaniment plays.

• The rhythm number and INTRO/ENDING 1

or 2, SYNCHRO/FILL-IN NEXT, and

VARIATION/FILL-IN 1 or 2 operations are

stored on Track 1, along with the notes you

played. See “Recording Multiple Tracks” to

record on the other five tracks.

• During recording on Tracks 2 through 6, the

entire keyboard functions as a melody

keyboard, regardless of the current MODE

setting.

• The tone number is stored on the selected

track in addition to the notes you played.

• You can turn off a track during playback by

using the mixer function (see “Using the

Mixer” on Page 12).

Correcting Mistakes

The REC indicator lights and the STEP

indicator stops flashing when you move to the

end of the recording.

Using the Song Memory

(EXIT) to cancel the rewrite operation.

4'%14&+0)/7.6+2.'

64#%-5

In addition to Track 1, where you record auto

accompaniment as well as keyboard play,

there are five other tracks you can use to

record melody parts only. You can record

different tones on these tracks and build a

full ensemble of instruments.

You can play back what you already

recorded on Track 1 (or any other track)

while you record on Tracks 2–6.

4GCN6KOG4GEQTFKPI

1. Repeatedly press SONG MEMORY until

H[Yeh

H[YehH[Yeh

H[Yeh appears.

2. Within 5 seconds, repeatedly press

+ or – to select a song number.

3. Press the desired SONG MEMORY

TRACK (2–6) to select the track you

want to record on.

4. If desired, you can change the tone

number and tempo settings. You can

change the tempo to one that is easy

for you to follow.

5. Press START/STOP to start recording.

The contents of any tracks already

recorded start to play.

6. Play on the keyboard what you want to

record on the selected track.

7. Press START/STOP to end recording.

If you used them, tone number and optional

pedal operation are also stored on the

selected track in addition to the notes you

played.

5VGR4GEQTFKPI

1. Repeatedly press SONG MEMORY until

Ij[fH[Y

Ij[fH[YIj[fH[Y

Ij[fH[Y appears.

2. Within 5 seconds, repeatedly press

+or –to select a song number.

3. Press the desired SONG MEMORY

TRACK (2–6) to select the track you

want to record on.

4. Change the tone, if desired. After

selecting a tone, press any keyboard

key to clear the tone selection display

and return to the note input screen.

5. Use the keyboard to enter notes or 0to

enter rests.

• When you enter a note using the

keyboard with touch response turned

on, the key pressure is also

recorded.

• To delete a rest entry, press 0again.

6. Use 1–9to enter the length of the note

or rest.

7. Continue entering notes by playing

them and specifying their length.

8. Press START/STOP to end recording.

'&+6+0)/'/14;%106'065

You can recall and change individual notes

and parameter settings from a song in

memory. ±

1. Repeatedly press SONG MEMORY until

Ij[fH[Y

Ij[fH[YIj[fH[Y

Ij[fH[Yappears.

2. Within 5 seconds, repeatedly press

+or –to select a song number.

3. Use SONG MEMORY TRACK (1–6) to

select the track you want to edit.

4. Press I(CURSOR) to enter edit mode.

5. Repeatedly press Ior J(CURSOR) to

move to the entry you want to change.

You can change the parameter that is

flashing on the display. To change a

different parameter, repeatedly press I

or J(CURSOR) so the parameter you

want to edit flashes.

6. Make the desired changes to the

selected parameter.

The procedures you use to change a

parameter depend on the type of data it

contains. See “Editing Techniques and

Display Contents”.

7. Repeat Steps 5 and 6 to edit other

parameters.

8. Press START/STOP when you are

finished.

'FKVKPI6GEJPKSWGUCPF&KURNC[

%QPVGPVU

Key Pressure (Velocity) — Repeatedly

press + and – or use the number buttons to

adjust the key pressure.

Pitch — Enter a new note on the keyboard

or repeatedly press + or – to change to the

next higher or lower note. The keyboard and

the staff on the display show your new entry.

Chord — Use the appropriate chord

fingering method for the MODE setting.

Tone Number/Rhythm Number —

Repeatedly press + or – or use the number

buttons to enter a number.

Rhythm Controller (INTRO/ENDING 1 or 2,

VARIATION/FILL-IN 1 or 2,SYNCHRO/FILL-IN

NEXT) — Press the button for the function

you want to change to.

'&+6+0)#510)

You can delete an entire song, a specific

track, or data associated with the song.

±016'±

• Do not change a note identical to the

preceding or succeeding note. Doing so

might alter the length of the note and you

will have to re-record the entire track.

• When you change note, key pressure, or

chord, the keyboard sounds the new setting

so you can hear what it sounds like.

• Some parameters are stored in the initial

portion of the memory, called “Panel

Record.” You cannot edit data in this field

using the procedure described here. See

“Rewriting Song Data (Panel Record)” on

Page 19.

• The tone and rhythm you selected before

beginning recording are stored in the panel

record. You can only change tone or rhythm

during recording.

• The only parameters that can be edited for

Tracks 2–6 are notes and tone numbers.

• You cannot add data to a recording.

• You cannot move portions of a recording to

a different location within the recording.

• You cannot change note lengths.

Using the Song MemoryUsing the Song Memory

&GNGVKPIC5QPI

1. Repeatedly press SONG MEMORY until

FbWo

FbWoFbWo

FbWo appears.

2. Repeatedly press +or –to select the

song number.

3. Press G(ENTER). Ied]:[b5

Ied]:[b5Ied]:[b5

Ied]:[b5 appears

4. Press YES.Ikh[5

Ikh[5Ikh[5

Ikh[5 appears, prompting

you to confirm the deletion.

5. Press YES again.

&GNGVKPI#NN&CVCKPC

5RGEKHKE6TCEM

1. Repeatedly press SONG MEMORY until

FbWo

FbWoFbWo

FbWo appears.

2. Repeatedly press + or – to select the

song number.

3. Press G(ENTER). Ied]:[b5

Ied]:[b5Ied]:[b5

Ied]:[b5 appears

4. Repeatedly press Ior J(CURSOR) until

Jh$:[b5

Jh$:[b5Jh$:[b5

Jh$:[b5 appears.

5. Press the appropriate SONG MEMORY

TRACK (1-6) to select the track(s) you

want to delete. You can specify more

than one track by pressing more than

one button. ±

6. Press YES.Ikh[5

Ikh[5Ikh[5

Ikh[5 appears, prompting

you to confirm the deletion.

7. Press YES again to delete the track(s).

4GYTKVKPI5QPI&CVC

2CPGN4GEQTF

Each song in the keyboard’s memory has a

section in its header called the

panel record

This section contains initial data for the

recording. You can rewrite this portion if

necessary.

The settings stored in panel records are:

•Rhythm

• Tempo

• Accomp Volume

• Reverb On/Off

• Reverb Type

•ChorusOn/Off

•ChorusType

• DSP Type

• Equalizer Type

The following mixer parameters are also

stored in the panel record:

•Tone

• Part On/Off

•Volume

•Pan

•OctShift

• Coarse Tune

• Fine Tune

• Reverb Send

• Chorus Send

1. Repeatedly press SONG MEMORY until

FbWo

FbWoFbWo

FbWo appears.

2. Repeatedly press + or – to select the

song number.

3. Make the changes in settings as

desired.

4. Press G(ENTER). Ied]:[b5

Ied]:[b5Ied]:[b5

Ied]:[b5 appears.

5. Repeatedly press IorJ(CURSOR) until

Fd[bH[Y5

Fd[bH[Y5Fd[bH[Y5

Fd[bH[Y5appears.

6. Press YES to rewrite the header data.

75+0)/+&+

Your keyboard includes a feature called

MIDI (Musical Instrument Digital Interface).

MIDI is the universal standard for sending

and receiving performance data between all

types of electronic musical instruments,

regardless of manufacturer. Using MIDI, you

can play music on your keyboard and

another instrument at the same time while

pressing the keys on only one, record your

music to a sequencer, acquire a wider

selection of preset tones from a sound

module, and much more.

Connecting your keyboard to another MIDI

device requires a MIDI cable (not supplied).

For detailed specifications of the MIDI

function, see the “MIDI Implementation

Chart” on Page 41. For more information

about MIDI parameters, visit

www.radioshack.com

and download the

“MD-1121 MIDI Implementation.”

#$176/+&+

Every MIDI-equipped instrument has MIDI

OUT and IN terminals, and some also have

a MIDI THRU terminal. Each of these

terminals serves a different purpose.

MIDI OUT sends MIDI data to (“talks to”)

other MIDI instrument(s).

MIDI IN receives (“listens to”) MIDIdata sent

by other MIDI instrument(s).

MIDI THRU lets you connect (“network”)

additional MIDI instruments, and sends

other MIDI devices a copy of all data it

receives through its MIDI IN terminal.

Your keyboard has MIDI OUT and MIDI IN

terminals.

The cable that connects MIDI devices does

not actually carry sound between them, like

a speaker wire carries sound from areceiver

to a speaker. Instead, MIDI-equipped

devices communicate with each other using

digital codes (instructions). One MIDI device

sends digital instructions representing

exactly what is being played on it. The other

MIDI device receives and translates those

instructions, then produces (or records) the

sound exactly as it was played on the first

device.

±016'±

• To deselect a track, simply press its button

again.

• You cannot change the song number while

in track delete standby.

• You cannot select a track that does not

contain recorded data.

• Pressing SONG MEMORY while in track

delete standby mode returns to record

standby mode.

Using the Song Memory

/#-+0)6*'/+&+

%100'%6+105

To connect your keyboard to another MIDI-

equipped device, you mustuse a MIDI cable

(available at RadioShack). 





To send MIDI data from your keyboard, use

a MIDI cable to connect the keyboard’s MIDI

OUT terminal to the other device’s MIDI IN

terminal.

To receive MIDI data on your keyboard, use

a MIDI cable to connect the keyboard’s MIDI

IN terminal to the other device’s MIDI OUT

terminal. ±

/+&+&#6#

Your keyboardcan send and receive several

different types of MIDI data. The keyboard’s

tones, rhythms, and other types of MIDI data

are sent automatically as you play.

The keyboard parts (Channels 1 through 4)

are sent over the corresponding channels.

When you turn auto harmonize on (see

“Using Auto Harmonize” on Page 12), the

harmonized notes are sent.

You can set accompaniment parts to be sent

over the corresponding channels (Channels

6 – 10). See “Changing MIDI Settings.” The

keyboard’s prerecorded tunes cannot be

sent as MIDI data.

The keyboard can receive data over all 16

MIDI mixer channels at the same time.

The received message is interpreted as

chord change data when you set MODE to

CONCERT CHORD or FINGERED. See

“Changing MIDI Settings.”

%*#0)+0)/+&+5'66+0)5

1. Press TOUCH/TRANSPOSE/SETTING,

then repeatedly press Ior J(CURSOR)

until C?:?

C?:?C?:?

C?:?appears.

2. Press G(ENTER). &'A[oX 9^

&'A[oX 9^&'A[oX 9^

&'A[oX 9^ appears.

3. Within 5 seconds, repeatedlypress Ior

Juntil the parameter you want to

change appears.

A[oX 9^

A[oX 9^A[oX 9^

A[oX 9^ (Keyboard Basic Channel)

(Default: &'

&'&'

&') — Sets the channel for

sending MIDI data to an external

device.

9^eh

9^eh9^eh

9^eh (MIDI In Chord Judge) (Default:

E\\

E\\E\\

E\\) — When set to on, the keyboard

interprets the received basic channel

note data as auto accompaniment

chords using the current chord fingering

method.

7YecfEkj

7YecfEkj7YecfEkj

7YecfEkj (Accompaniment Out)

(Default: E\\

E\\E\\

E\\) — Set to ed

eded

ed to send auto

accompaniment as MIDI data.

BeYWb

BeYWbBeYWb

BeYWb (Local Control) (Default: Ed

EdEd

Ed) — Set

to ed

eded

ed to send data to the keyboard’s

speakers and another MIDI device

simultaneously. Set to e<<

e<<e<<

e<< to send data

only to another MIDI device (the

keyboard’s speakers are muted).

4. Repeatedly press +or –or use the

number buttons to change the setting

as required. Then press H(EXIT).

016'5#$1766*'/+&+

+/2.'/'06#6+10%*#46

The “MIDI Implementation Chart” on

Page 41 shows specific details about how

your keyboard is compatible with the MIDI

standard. The following notes explain how

the keyboard works within the MIDI

standard.

Basic Channel — The MIDI standard

allows for the use of up to 16 channels to

exchange data. Like a TV broadcast, each

of these channels cancontain different data.

The keyboard can send and receive data on

all 16 of these channels.

Mode — The MIDI standard allows for four

separate modes of operation. The keyboard

sends and receives data in Mode 3. This

means that the data sent and received by

the keyboard can be polyphonic and can be

sent or received on only one channel at a

time.

Note Number — The MIDI standard allows

for note numbers from 0 through 127. This

number represents each possible note that a

device can play. The lowest note number (0)

is five octaves below middle C and the

highest note number (127) is three octaves

above middle C. The keyboard can send

and receive all 128 note numbers.

Velocity — The MIDI standard allows for

velocity numbers from 0 through 127.

Velocity is how fast a key is pressed (or if

the key is pressed at all) or how loud a note

sounds. A velocity of 0 means that the keyis

not pressed. The lowest velocity (1) is

pianissimo and the highest velocity (127) is

fortissimo. The keyboard can send and

receive all 128 velocity numbers.

Pitch Bender — The keyboard receives

(but cannot send) pitch bending signals.

Control Change — This feature sends data

on various controllers, each having its own

number. For the details of each parameter,

see “MIDI Data”.

Program Change — This feature changes

the preset sounds. Each sound number

corresponds to a program number between

0 and 127. See “MIDI Data”.

System Exclusive — This feature sends

special signals unique to the keyboard.

All Notes Off — This feature is a kind of

panic button: it stops the current sounds

from playing. Only the keyboard receives

this message.

±016'±

You do not need to make both connections if

you are only either sending or receiving.

%#76+10

• Always turn off power to your keyboard and

the other MIDI device before you connect or

disconnect MIDI cables.

• As you make the cable connections, be

sure to align the MIDI cable pins with the

matching holes on your keyboard’s MIDI

OUT and MIDI IN terminals. If you have

trouble plugging in the cable, do not force it!

You might damage the plug or the

instrument.

This manual suits for next models

Table of contents

Other Radio Shack Electronic Keyboard manuals

Radio Shack

Radio Shack CONCERTMATE 580 User manual

Radio Shack

Radio Shack 735A-E-002A User manual

Radio Shack

Radio Shack LK-1500 User manual

Radio Shack

Radio Shack MD-1160 User manual

Radio Shack

Radio Shack MD-1700 User manual

Radio Shack

Radio Shack MD-982 User manual

Radio Shack

Radio Shack MD-1211 User manual

Radio Shack

Radio Shack MD500 User manual

Radio Shack

Radio Shack MD-981 User manual

Radio Shack

Radio Shack LK-1261 User manual

Radio Shack

Radio Shack MD501 User manual

Radio Shack

Radio Shack MD-1600 User manual

Radio Shack

Radio Shack CK-480 User manual

Radio Shack

Radio Shack MIDI Keyboard User manual

Radio Shack

Radio Shack LK-1161 User manual

Radio Shack

Radio Shack MD-992 User manual

Popular Electronic Keyboard manuals by other brands

Yamaha

Yamaha Portable Grand TPG-535 Gebruikershandleiding

Akai

Akai MPK25 quick start guide

Orla

Orla KX10 Piano Accordion Addendum to owner's manual

Casio

Casio Celviano AP420ES1B user guide

Yamaha

Yamaha PSR-E233 owner's manual

Technics

Technics SX-KN200 owner's manual

Roland

Roland Fantom G6 Features guide

M-Audio

M-Audio Session KeyStudio user guide

Hammond

Hammond SKX reference guide

Casio

Casio HT-3000 Operation manual

Casio

Casio CTK-550 Operation manual

M-Audio

M-Audio Axiom AIR 61 Guide

Yamaha

Yamaha Portatone PCR-800 owner's guide

Yamaha

Yamaha PortaSound PSS-390 owner's manual

Yamaha

Yamaha Portatone PSR-37 owner's guide

Keith McMillen Instruments

Keith McMillen Instruments QuNexus Reference manual

Current

Current SC6014 manual

Yamaha

Yamaha Electone D-3 Playing guide

Radio Shack 42-4058 User manual

Popular Electronic Keyboard manuals by other brands
