Radius RWB36 User manual

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
Operating Instructions (ENG)
MODELS: RWB36
WALK BEHIND SWEEPER
Read instructions before operating the machine.
B
980200 03/11/08

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
MACHINE DATA LOG/OVERVIEW
980200 05/28/04
2
MODEL _______________________________________
DATE OF PURCHASE __________________________
SERIAL NUMBER ______________________________
SALES REPRESENTATIVE # _____________________
YOUR DEALER
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
TABLE OF CONTENTS
980200 05/28/04
3
Machine Data Log/Overview................................2
Table of Contents.................................................3
HOW TO USE THIS MANUAL
How to use this Manual........................................1-1
SAFETY
Safety Instructions................................................2-1
Hazard Intensity Level..........................................2-2
Security Warning..................................................2-3
OPERATIONS
Unpacking the machine........................................3-1
Preparing for Operation........................................3-1
Controls................................................................3-2
Machine Operation...............................................3-2
Starting Machine...............................................3-2
Tips for Operation. ............................................3-2
Cleaning Waste Bins.........................................3-2
MAINTENANCE
Batteries...............................................................4-1
Battery Maintenance.........................................4-1
Battery Recharge..............................................4-1
Filter Maintenance................................................4-1
Cleaning Filter...................................................4-1
Replacing Filter.................................................4-1
Brush Maintenance..............................................4-2
Replacing/Adjusting Side Brush........................4-2
Replacing/Adjusting Main Brush.......................4-2
Belt Maintenance. ................................................4-2
Replace Main Brush Belt. .................................4-2
Replace Side Brush Belt...................................4-3
Replace Drive Belt. ...........................................4-3
Flap Maintenance.................................................4-3
Replace Outer Side Flap. .................................4-3
Replace Inner Side Flap...................................4-3
Replace Center Flap.........................................4-3
Cable Maintenance..............................................4-4
Replace Traction Cable. ...................................4-4
Replace Side Brush Lifting Cable.....................4-4
Motor Fan Maintenance.......................................4-4
Service Schedule.................................................4-5
Machine Troubleshooting.....................................4-5
Scrapping the Machine ........................................4-5
GROUP PARTS LIST
Frame/Body Group...............................................5-1
Brush/Belt Group..................................................5-3
Motor/Drive Group................................................5-7
Battery/Filter Group............................................5-11
Brake Group.......................................................5-13
EC Declaration of Conformity.............................5-15
Warranty.............................................................5-16

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
HOW TO USE THIS MANUAL
980200 05/28/04
1-1
This manual contains the following sections:
- HOW TO USE THIS MANUAL
- SAFETY
- OPERATIONS
- MAINTENANCE
- PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers.
When placing an order for parts, the machine model
and machine serial number are important. Refer to
the MACHINE DATA log which is filled out during the
installation of your machine. The MACHINE DATA
log is located on the inside of the front cover of this
manual.
Always ensure that the machine is provided with a
nameplate giving the Serial Number and CE
marking in the position shown. If missing, please
contact your dealer immediately.
The SAFETY section contains important information
regarding hazard or unsafe practices of the machine.
Levels of hazards is identified that could result in
product or personal injury, or severe injury resulting
in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
- Batteries
- Brushes
- Belts
- Service Schedule
- Machine Troubleshooting
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
- REF – column refers to the reference
number on the parts illustration.
- PART NO. – column lists the part
number for the part.
- QTY – column lists the quantity of the
part used in that area of the machine.
- DESCRIPTION – column is a brief
description of the part.
- SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs. If
column has an asterisk (*), call
manufacturer for serial number.
Data
Plate
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The 98# on the lower left corner of the front
cover is the part number for this manual.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
IMPORTANT SAFETY INSTRUCTIONS
When using a battery powered appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
!
WARNING:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient exceeding 2% unless the optional parking brake is installed on the
machine. Do not leave unattended on such surface.
Do not use the machine to soak up liquid, toxic substances, or bio-hazardous materials.
Do not use a jet of water in order to wash the machine.
Do not use the machine to sweep up cables, straps, wires, or similar materials.
SAVE THESE INSTRUCTIONS
980200 05/28/04 2-1

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
HAZARD INTENSITY LEVEL
980200 05/28/04
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
!WARNING
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
!CAUTION
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To identify actions which must be followed for safe operation or equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the
equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on
the machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use manufacturer approved replacement parts.
!WARNING
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep
solution tank in raised position when charging. Keep sparks and flames away from the batteries. Do not
smoke around batteries.
!WARNING
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin
contact with the acid contained in the batteries.
!WARNING
Never allow metal to lie across battery tops.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
SECURITY WARNING
980200 05/28/04 2-
3
IMPORTANT NOTE
Precautions to be taken before attempting to start machine:
To facilitate transport, the side brush, the handlebar and the upper casing have not been assembled in their
actual work position. Therefore before using he machine, assemble them as shown in this manual.
IMPORTANT:
The Manufacturer cannot and will not be held responsible for damage in the event the machine is used for
purposes other than those it was designed for. The machine must never be tampered with for any reason
whatsoever; In this event, the manufacturer will void all warranties and will accept NO responsibility for improper
use or damage to the machine.
The machine, composed of a brush and a suction system, is to be used EXCLUSIVELY to clean DRY surfaces.
Any other use could cause damage to people and/or property and is therefore PROHIBITED.
FOREWARD:
The purpose of this manual is to inform the operator of the basic rules, safety rules and criteria which must be
observed when using, adjusting and maintaining the machine. The machine has been developed and
manufactured to ensure an excellent performance and the utmost comfort and ease of operation in a variety of
working conditions. Before delivery, the machine has been checked at our factory and by our dealer to make sure
it is handed over to you in perfect working order. To maintain the machine in this condition and ensure problem
free operation, it is essential to follow the routine maintenance instructions given in this manual.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
OPERATIONS
980200 05/28/04
3-1
UNPACKING THE MACHINE
Unpack the machine with the utmost care; avoid
carrying out any operation that could damage your
unit.
Once it has been unpacked, check for damage of
any visible component. If you notice damage, DO
NOT operate your machine and contact your dealer
immediately.
For packaging and transport purposes, some parts
and accessories are supplied disconnected from the
machine. To assemble them, carefully follow the
instructions given in following sections.
Contents of package:
• Machine
• Side Brush
• Manual
• Ignition keys (set of 2)
• Declaration of Conformity
• Warranty Registration
NOTE: In the case one of the above mentioned
items is missing, please inform your dealer
immediately for replacement.
NOTE: For security reasons during the transport, the
ignition keys are attached to the handle.
Take care to keep packaging materials (bags,
cartons, pallets, hooks, etc) out of reach of
children.
PREPARING THE MACHINE FOR OPERTION
Mounting the Side Brush:
1. Switch the brush lift lever to OFF.
2. Remove the screw from the side brush drive
shaft.
3. Fit the brush on the shaft.
4. Screw on the screw and washer.
Mounting the Handlebar:
1. Loosen the handlebar fixing screws.
2. Put the handlebar in most comfortable work
position.
3. Tighten the handlebar fixing screws.
Fixing
Screws
Position 1
Position 2
Mounting the Bonnet:
Prepare the battery motor before proceeding to the
assembly of the cover. Once you have done this:
1. Loosen the bonnet fixing handwheels.
2. Position the bonnet on machine.
3. Tighten the handwheels.
PREPARING THE BATTERY
The battery must be prepared before it is mounted
on the machine. This simple precaution will prevent
the machine from being damaged by the electrolytic
liquid of the battery.
!CAUTION
Always prepare the battery in a sufficiently ventilated
environment. DO NOT smoke or use flame during
this operation.
!WARNING
To prepare the battery:
1. Remove the caps from the battery cells.
2. Fill with Distilled water.
3. Plug the battery into the on-board charger of
machine.
Wait for the charge indicator light to be GREEN. This
indicates a full charge.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
OPERATIONS
980200 05/28/04 3-
2
!CAUTION
CONTROLS
1) Traction Lever: by pressing this lever, the
machine will start moving forwards.
2) Filter Shaker Lever: This lever operates the
filter shaker to clean the filter.
3) Flap Raise Lever
4) Front Hopper Unlocking Lever
5) Side Brush Control
Lever: switch the lever to ON and the side
brush will move to work position and start
spinning. To stop the brush, switch the lever
to OFF.
6) Timer: Displays the total amount of work
hours of the machine.
7) Charge Indicator Light: Light indicates the
state of battery during operation.
8) Air Suction Inlet Knob: (located under the
cover) this opens or closes the suction valve.
9) Battery Charge Connector: Connector
allows the battery to be charged.
10) Suction Switch
11) Key Switch: Starts and stops all of machine
functions.
STARTING THE MACHINE
1. The machine must be used by authorized personnel only.
DO NOT leave the machine UNATTENDED when it is
running. Turn off power and remove the key before leaving
the machine.
2.
3. To start the machine carry out the following steps:
1. Make sure the side brush is OFF.
2. Turn the power switch to the ON position. Wait 10
seconds before moving the machine.
4.
3. Check the battery indicator to assess whether the
battery is fully charged or not. If you do not have
enough battery power to operate the machine, turn
power of to machine and proceed to recharging the
battery. (see section on re-charging battery)
4. Pull the traction lever to start cleaning.
NOTE: if you wish to engage the side brush at this
time, make sure to switch to the ON position for the
side brush.
NOTE: This unit has an automatic device built in to prevent
usage of the machine beyond a certain battery charge limit.
The machine will not function until the battery has been fully
charged.
TIPS FOR OPERATION
After you have become acquainted with the start up
procedure, the following are tips to ensure the best results
from your sweeper. These tips will also help reduce damage
to your machine.
7.
6. 8.
5.
• DO NOT use the machine to clean up wires, ropes
or straps.
• DO NOT use the machine to soak up or clean up
liquids of any kind.
• When using the machine on light but bulky material
(sheets of paper, leaves, etc.), raise the front part of
the machine by pressing down the handlebar so that
the machine may tackle the debris easier.
11. 10. 9.
• Operate the filter shaker at the end or your work
session. (see the panel filter section)
• Make sure the center brush is correctly adjusted.
(see adjusting the center brush)

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
OPERATIONS
980200 05/28/04
3-3
CLEANING THE WASTE BINS
Before cleaning of waster bins, make sure all
pertinent parts are off the machine.
!CAUTION
Wastes must be disposed of strictly in accordance to
local, state or governing law in your area.
Front Bin
1. Lift and turn the two bin locks.
2. Grasp the handle/s and remove the bin by
pulling it upwards.
3. Empty the bin.
4. Put the bin back in the machine from the top
5. Turn and lower the two bin locks.
Rear Bin
1. Lift and turn the two bin blocks.
2. Grasp the handle and remove the bin.
3. Empty the bin.
4. Put the bin back in the machine.
5. Turn and press the two locks.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
MAINTENANCE
00 05/28/04 4-1
BATTERY MAINTENANCE
9802
!WARNING
The battery should be serviced in a properly
ventilated area. During maintenance, DO
NOT expose the battery to naked flame.
The battery must be kept clean and dry.
Keep the terminals and poles clean.
Every 10 hours, remove the caps and check
the electrolyte level. If necessary top off
levels with distilled water.
The battery has a 3 hour working life. If you
notice that the battery life starts to get much
shorter check the following:
• Brushes are not obstructed.
• Battery is completely charged.
After checking these two items the battery
life is still decreasing, replace the battery
with a new one.
BATTERY RECHARGE
The life of the battery will depend on the
routine maintenance and discharge level.
DO NOT allow the battery to drop below the
limit signaled by indicator lights. This will
decrease the life of the battery.
If you go to the maximum discharge level,
the machine will automatically shut off and
you will need to re-charge to full capacity
before the machine will operate.
When the machine is OFF:
1. Remove the caps from the battery
cells.
2. Top off levels with distilled water.
3. Plug the battery connector into the
charger connector.
Charge indicator lights
GREEN light: The battery is fully charged.
YELLOW light: The battery is running out;
re-charge as soon as
possible.
RED light: The battery has run out. DO NOT
operate the machine.
Every 200 hours of work, check the state of
motor carbon brushes and replace them if
worn.
Always try to replace them before they reach
1000 hours of work.
FILTER MAINTENANCE
The filter is one of the machine main components. It is
essential for the best results from your machine. If you notice
that dust forms when the machine is at work, check the filter.
Cleaning the Filter:
1. Press and release the lever for the filter shaker.
NOTE: The lever operates a rod that will unclog the
filter.
2. Repeat this step 5 or 6 times.
NOTE: If you are using the machine in a particularly dusty
environment (i.e. cement factory, sawmills, marble processing
factory, etc.), it is wise to use the filter shaker more frequently.
Replacing the filter:
1. Remove the rear bin.
2. Remove the locking clips.
3. While holding the filter shaker rod, remove the filter.
4. Replace in reverse order.
NOTE: The filter features an arrow that shows you the
direction in which the filter should be fitted.
The filter must be replaced after every 200 hours of work.
After the filter has been remounted, make sure the gasket
and filter are dust tight.
Filter Shaker Lever
Locking clips
Filter

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
MAINTENANCE
980200 05/28/04
4-2

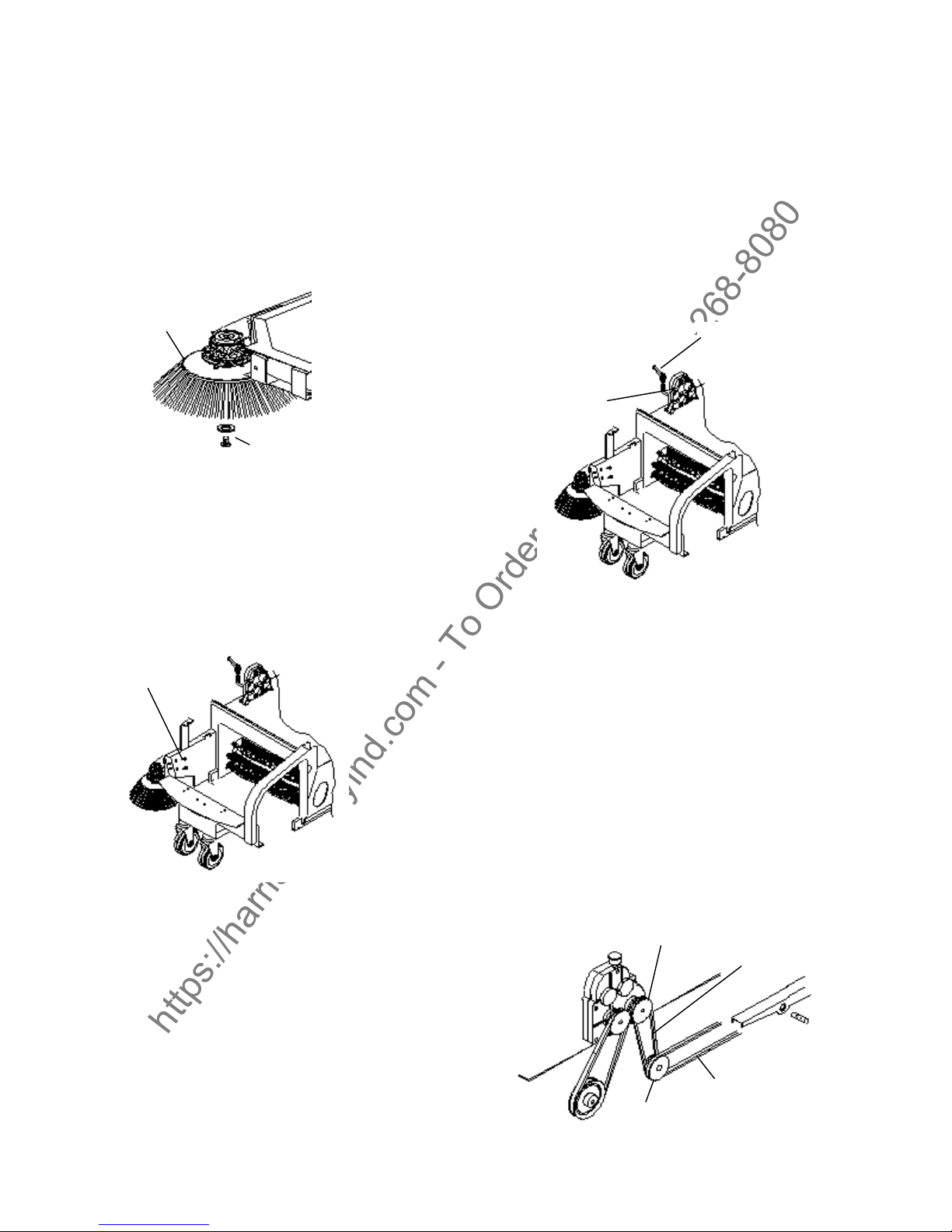

REPLACING AND ADJUSTING THE SIDE BRUSH
Replacing:
1. Lift the front part of machine.
2. Loosen the brush screw/washer; remove
and retain.
3. Remove the warn brush and replace with
new.
4. Secure in place with the brush
screw/washer.
Adjusting:
1. Loosen the positioning screws.
2. Use the slots to move the brush to the
desired position.
3. Tighten the screws when the desired
position is reached.
REPLACING AND ADJUSTING THE MAIN BRUSH
Replacing:
1. Remove the front bin.
2. Loosen the four screws holding the brush in
place; Remove and retain.
3. Remove the worn brush.
4. Replace with the new brush. NOTE: Pay
close attention to the brush direction. The
brush should be installed so the dirt is
directed towards the center of machine.
5. Place the four screws and tighten.
Adjusting:
1. Open the top bonnet. NOTE: By pulling up
the handle, the brush will turn idle. This will
allow you to position the brush in a place
where it will prevent the top bonnet from
closing.
2. Loosen the lock nut.
3. Turn the adjusting handle in the direction
required.
NOTE: Clockwise to increase pressure
Counter Clockwise to decrease
pressure.
Side Brush
REPLACING THE BELTS
To prepare the machine for belt replacement, carry
out the following operations:
1. Remove the top bonnet and front bin.
2. Remove the right wheel.
3. Remove the bumper and right side guard.
Main Brush Belt:
1. Remove side brush belt from groove of
pulley A. Let hang loose.
2. Remove Main brush belt from grooves of
pulley A and B. Discard.
3. Place new belt in grooves of Pulley A and B
in reverse order.
4. Put loose end of side brush belt back in
groove of pulley A.
A
djusting Handle
Locking Nut
Brush
Screw/washer
Positioning
Screws
Side Brush Belt
Main Brush Belt
Pulley A
Pulley B

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
MAINTENANCE
980200 05/28/04 4-
3
REPLACING THE BELTS (Cont.)
Side Brush Belt:
1. Remove side brush belt from
grooves of pulley A.
2. Remove and retain side arm screw.
3. Let the hooks of the side arm come
out of the idle tooth ring.
4. Remove the side brush belt from the
side arm.
5. Place a new belt in reverse order.
6. Tighten the side arm screw.
7. Place the new belt in grooves of
pulley A.
Drive Belt:
1. Remove the screw holding pulley C.
2. Take the pulley out of the reduction
unit shaft. NOTE: Be careful to not
loose the key.
3. Take belt off pulley C and D.
4. Discard belt and replace with new in
reverse order.
REPLACING THE FLAPS
Outer Side Flaps:
1. Remove the rear wheels and
relevant side guards.
2. Remove and retain the screws that
secure the flaps to frame.
3. Replace worn flaps with new flaps in
reverse order.
Inner Side Flaps:
1. Lift the front part of the machine.
2. Remove and retain the screws that secure the flaps
to the frame.
3. Replace worn flaps with new flaps in reverse order.
Center Flaps:
1. Remove the rear wheels and the relevant side
guards.
2. Remove the rear door.
3. Loosen the two flap screws, located on the sides of
the frame.
4. Grasp flap and pull it forward.
5. Replace the worn flap with a new one.
6. Push flap back so the reference points go into their
respective reference holes.
7. Place the two screws back in sides of frame and
tighten.
8. Replace the rear door, rear wheels and relevant
side guards.
Side Brush Belt
Main Brush Belt
Pulley A
Pulley B
Side Arm Screw
Side Arm
Pulley D
Pulley C
Screw
Drive Belt
Center Flap
Side Flaps
Inner Side
Flaps Screws
Center Flap
Screws

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
MAINTENANCE
980200 05/28/04
4-4
REPLACING THE TRACTION CABLE
To replace the cable, proceed as follows:
1. Remove the upper bonnet of the machine.
2. Loosen the security dowel located on the
cable fixing pin.
3. Pull the cable out of the fixing pin and
remove the adjusting screw mounted on the
handle.
4. Press the handle and pull the cable out of its
sheath.
To remount the cable:
1. Fit one end of the cable into the adjustment
screw of the handle (i.e. the end without the
blocking ball)
2. Insert the cable into it’s sheath
3. Hook the cable through the turned
adjustment screw secured to the machine
frame and then through the fixing pin.
4. Tighten the security dowel.
The position of the cable is adjusted by acting on the
two adjustment screws.
REPLACING THE SIDE BRUSH LIFTING CABLE
To replace the side brush lifting cable, proceed as
follows:
1. Remove the upper bonnet and the front bin
of the machine.
2. Remove the front bumper, the right wheel
and the right hand side guard.
3. Loosen the cable clamp.
4. Loosen the security dowel on the fixing pin.
5. Remove the handle from the support and
open it up.
6. Pull the cable out of the two sheaths.
To remount the cable:
1. Put the cable inside the handle.
2. Close up the handle and fix it to the support.
3. Insert the cables into their sheaths.
4. Secure one end of the cables in places with
the clamp and the other end with the fixing
pin.
The position of the cable is adjusted by acting on the
two adjustment screws.
REPLACING MOTOR FAN
1. Remove the top bonnet.
2. Disconnect the battery cables and remove
the battery from the machine.
3. Disconnect the power supply coders of the
motor from the plug.
4. Remove the stop for the cable holder from
the motor.
5. Remove and retain the four motor fixing
screws.
6. Remove the bad motor and replace it by
carrying out the above operations in reverse
order.
NOTE: Make sure the motor is mounted level
with the fan. When reconnecting the battery be
aware of the polarity configuration so you do not
damage the machine.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
MAINTENANCE
980200 05/28/04 4-
5
!CAUTION
All routine and special maintenance must be carried out by authorized personnel or service center. Always use
manufactures spare parts.
!WARNING
Before performing any maintenance on machine, be sure power is OFF and batteries are disconnected.
SERVICE SCHEDULE
Items to Check On Delivery Every
10 hours Every 50 hours Every 100 hours
Battery Liquid levels X X
Belts for adjustment X
Fasteners are tight X
Brushes for wear and tear X
Gaskets for wear and leakage X
All functions are working properly X X
TROUBLESHOOTING
FAULT Cause Remedy
The belt is broken Replace
The motor has burnt out Replace
The Main Brush is not spinning A wire is detached Check; replace or
re-connect
The Side Brush is not spinning The belt has broken Replace
The liquid levels are low Check; Top off levels
The battery does not stay charged The terminal connection is
loose Re-connect terminals
The filter is damaged Replace
The filter is in the wrong
position Correct the position of filter
Dust comes out of fan The gaskets are worn or
damaged Replace
The brushes wear out too quickly The brushes are too low Adjust the brush
The flaps are worn or
damaged Replace
Dust forms during operation The filter is clogged Clean the filter; Replace if
damaged
The motor has burnt out Replace
The suction motor does not work A wire is detached Check; replace or
re-connect
The battery terminals are
disconnected Check; re-connect
The machine does not come one
when powered up The battery is discharged Recharge battery to
maximum level
SCRAPPING THE MACHINE
In the event the machine must be scrapped, please remember that batteries are NOT common waste material.
They must be disposed of in accordance with relevant laws.
The machine is composed different parts. Dismantle it and prepare the wastes for disposal in accordance to their
type or class.
DO NOT USE THE SCRAP PIECES AS SPARE PARTS. KEEP SCRAPS OUT OF REACH OF CHILDREN.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
FRAME/BODY GROUP
980200 05/28/04
5-1
1
2
3
4
4
6
6
7
8
9 6
10
11
12
14
15
13
16
17
18
19
20 21 22
13
11
23 23
24
25 26
27
21
28

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
FRAME/BODY GROUP
980200 03/11/08
5-
2
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 1500226 1 UPPER COVER, BLUE RWB36
2 1500002 2 FIXING SCREW
3 86309760 1 FRONT DRAWER
4 1500213 2 RUBBER HAND GRIP
5 50941 1 LABEL, WINDSOR LOGO NOT SHOWN
6 1500214 2 HOPPER LOCK CLAMPS
7 1500231 1 BACK DRAWER
8 1500215 1 REAR HOPPER GASKET
9 1500232 1 HANDGRIP
10 1500015 2 WASHER 8 X 17
11 1500014 3 SCREW 8 X 16
12 1500230 1 DASHBOARD
13 1500233 6 SCREW 6 X 16
14 1500240 1 FAIRLEAD
15 1500234 1 FRAME RWB36
16 1500182 1 SCREW 3.5 X 9.5
17 1500229 1 LEFT SIDE CASING
18 1500235 1 GRAY FRONT CASING
19 1500236 1 LEVER
20 1500098 2 SCREW 6 X 10
21 1500003 3 BLOCK NUT M8
22 1500237 1 BUMPER
23 1500017 8 SCREW 8 X 10
24 1500228 1 RIGHT SIDE CASING
25 1500009 2 BUSHING
26 1500238 1 HINGE, RIGHT
27 1500239 1 HINGE, LEFT
28 1500025 2 BUSHING
29 500693 2 LABEL, RADIUS NOT SHOWN

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
BRUSH/BELT GROUP
980200 05/28/04
5-3
1
2
2
3
4
5
6
78910
11
12
13 14
15
1617
18 19
20
21
22
22
23
20
80
78
79
10
81
9
10
24
78
77
76
93
94
92
5
5
91
6 48
90
108
89
88
86
84
87
83
82
5
85
6 8
4 910
76
27
75
72
71 69
74
73
44
70 68
54
67 32
29
26
30
31
30
65
66
15 7
16
51
62
54
61
63
55
60
9 10
7
59
55
69
64
7
59
56
9 51
50 48
9
53
37
57 3635
58 33
33
33 34
49 48
47
46 42 31
38
40 39
44
43
45 41
40
40
40
40
41
39
38 31
30
30
36
37
35
24
25
27
27
26
32
31
29 28
52

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
BRUSH/BELT GROUP
980200 05/28/04
5-
4
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 1500242 2 TRACTION HANDLE
2 1500030 1 SIDEBRUSH DRIVE LEVER
3 1500035 1 DRIVE CABLE SHEATH
4 1500036 2 DRIVE CABLE
5 1500029 4 TURNED ADJUSTER DIA. 7
6 1500037 3 DOWEL 5 X 6
7 1500040 4 SCREW 8 X 25
8 1500038 3 WIRE FIXING SCREW
9 1500015 8 WASHER 8 X 17
10 1500039 6 BLOCK NUT M8
11 1500042 1 TRACTION SPRING
12 1500041 1 BELT TIGHTENERS LEVER B
13 1500043 1 SCR BELT TIGHTENER ROLLER
14 1500044 1 BELT TIGHTENER ROLL H15
15 1500045 1 BEARING 608-2RS
16 1500046 1 INNER SNAP RING DIA. 22
17 1500047 1 SPACER
18 1500245 1 BELT TIGHTENER BRACKET
19 1500246 1 ROCKER
20 1500050 2 ROCKER BUSHING
21 1500049 1 ROCKER PIN
22 1500055 6 SCREW 6 X 20
23 1500244 1 BRUSH ADJUSTING ARM
24 1500251 1 MAIN BRUSH ADJUSTMENT BLOCK
25 1500249 1 MAIN BROOM ADJUSTMENT BRACKET
26 1500267 4 BLOCK NUT M6
27 1500066 4 OUTER SNAP RING DIA. 12
28 1500265 4 WASHER 12 X 24
29 1500264 4 SCREW 6 X 25
30 1500057 6 NUT M5
31 1500056 6 SCREW 5 X 70
32 1500263 2 SUPPORT
33 1500212 1 MAIN BROOM, PPL40 16 ROW
34 1500248 1 BRUSH SHAFT
35 1500061 2 SPACER BRUSH SHAFT
36 1500219 2 MAIN BROOM BEARING
37 1500063 2 BEARING SPRT DIA. 80
38 1500254 4 SPACER
39 1500253 4 WASHER 12 X 48
40 1500054 2 ROTARY SPRT WHEEL DIA 100 BLK
41 1500053 2 SCREW 12 X 60
42 1500261 1 SCREW 8 X 50
43 1500031 1 SCREW 6X 16
44 1500006 1 WASHER 6 X 24 X 2
45 1500098 3 SCREW 6 X 10
46 1500096 1 SIDE BRUSH
47 1500095 1 SIDE BRUSH DRAGGING FLANGE
48 1500003 2 BLOCK NUT M8
49 1500094 1 SIDE BRUSH SUPPORT
50 1500093 2 WASHER 8 X 24
51 1500017 3 SCREW 8 X 10
52 1500082 6 BALLS 11/32
53 1500262 1 SIDE BUMPER

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
BRUSH/BELT GROUP
980200 05/28/04
5-5
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
54 1500065 3 OUTER SNAP RING DIA. 15
55 1500070 2 BEARING HK 1012
56 1500091 1 PULLEY DIA. 27 X 15
57 1500062 2 DOWEL 6 X 5
58 1500060 1 KEY 5 X 5 X 15
59 1500090 2 SPACER
60 1500092 1 BELT DIA. 8 X 1000
61 1500250 1 PULLEY
62 1500260 1 TRACTION SPRING
63 1500097 1 PULLEY DIA. 30 X 15
64 1500088 1 OUTER SNAP RING DIA. 25
65 1500257 1 SPACER DIA. 12 H7
66 1500258 1 BELT TIGHTENER ROLL
67 1500029 1 TURNED ADJUSTER DIA. 7
68 1500218 1 MAIN BROOM BELT
69 1500086 2 BEARING 6005 2RS
70 1500087 1 IDLE TOOTH RING
71 1500085 1 BUSHING FOR BEARING
72 1500100 1 BEARING HK 1412
73 1500116 1 SCREW 6 X 10
74 1500256 1 PULLEY
75 1500069 2 SIDE ARMS FELT WASHER
76 1500067 4 BRUSH ADJUSTING FIXING PIVOT
77 1500243 1 BRACKET
78 1500032 3 WASHER 6 X 12
79 1500052 3 CLOCK NUT M6
80 1500252 1 PIN FOR ROCKER
81 1500266 1 PIN FOR ROCKER
82 1500071 1 SIDE BRUSH SHAFT SPACER
83 1500083 1 TOOTHED RING, SIDE BRUSH TK
84 1500081 1 SIDE BRUSH BEARING RINGS
85 1500255 1 SPRING
86 1500080 1 WASHER 8 X 32
87 1500078 1 SCREW 8 X 22
88 1500079 1 SIDE BRUSH LIFTING LEVER
89 1500076 1 PIN 17 X 34
90 1500216 1 LIFT FLAP CABLE SHEATH
91 1500077 1 CLAMP DIA. 7
92 1500075 1 SIDE BRUSH LIFTING CABLE
93 1500074 1 SIDE BRUSHING SHEATHING
94 1500027 1 SIDE BRUSH SHEATHING
