RADLEY 5125-017 User manual

1
PRODUCT SPECIFICATIONS
40V Max* Lawn Mower
Owner's Manual
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665 (Monday through Friday 9am – 5pm Eastern Standard Time)
Technical questions
Replacement parts
Parts missing from package
BATTERY AND CHARGER
40V MAX* LAWN MOWER
2 x 20V 4.0Ah Li-ion (Maximum charged
battery voltage, each measured without
load, is 20V and each with a nominal
voltage of 18V)
Battery
Dual charger
Replacement battery
Replacement charger
Up to 140 minutes, Class II
5350-014
5350-013
40V (2 x 20V) No Load
3300 RPM
47" /120cm x 13¾" /35cm x 37" /95cm
13"/34cm
11/8"- 31/8" /30-80mm, 6 levels
9 gallons (35 L)
22 lbs. /9.9 kg
Rated voltage
Rated no load speed
Dimensions
Cutting width
Cutting height
Grass catcher volume
Weight

2
5125-017
Product specifications
Table of contents
General safety warnings
Lawn mower safety
Battery Pack and Charger Safety
Recycling and disposal

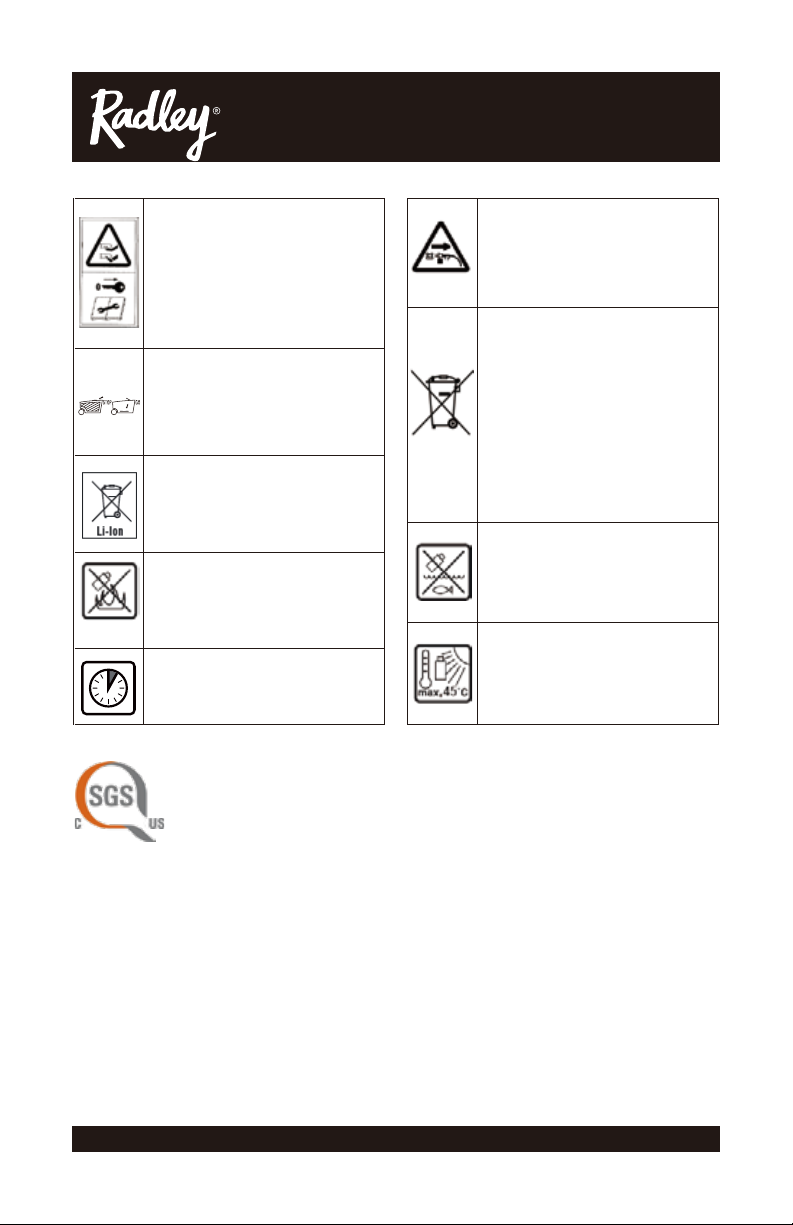

Symbols
Assembly

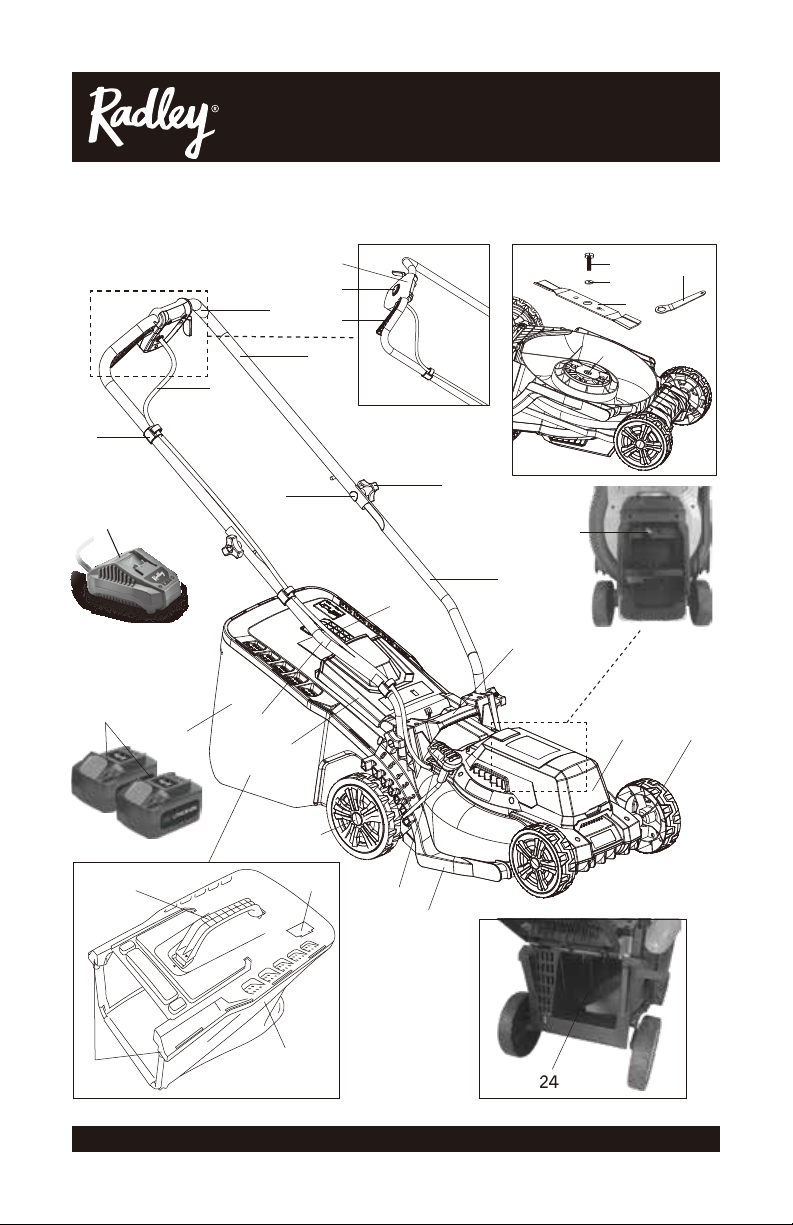

Know your lawn mower
Assembly

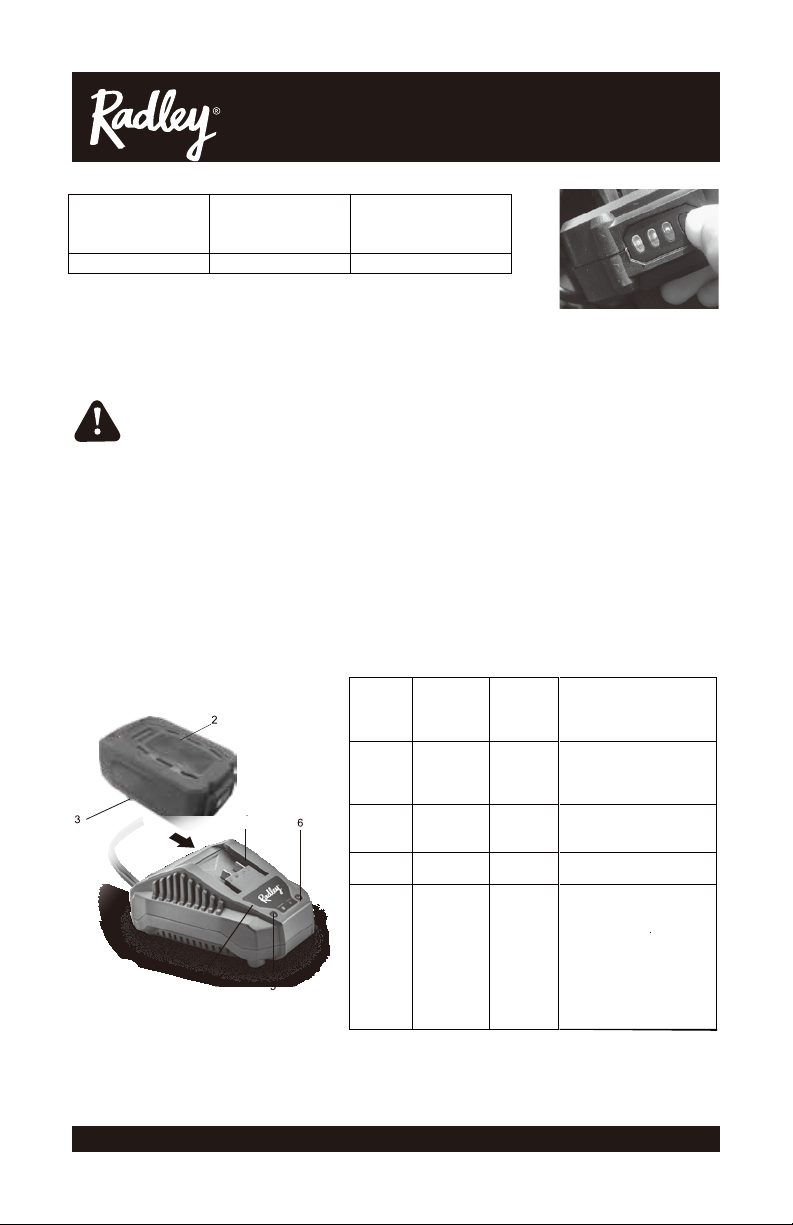

Know your battery
Operation
Maintenance
Exploded view
Parts list
Warranty
………….……………………………………………………………1
………….……………………………………………………………2
……….……………………………………………………………3-4
……….……………………………………………………………4-6
………………………………………………………6-8
……….……………………………………………………………9
…….……………………………………………………………10-12
…………………………………………………………13
….……………………………………………………………13-14
….……………………………………………………………15-17
….……………………………………………………………17-18
….……………………………………………………………19-22
.….……………………………………………………………23-25
……….……………………………………………………………26
….……………………………………………………………27-29
…….………………………………………………………………30
TABLE OF CONTENTS

3
SAVE THESE INSTRUCTIONS FOR REFERENCE
40V Max* Lawn Mower
Owner's Manual
WARNING: Before using this tool or any of its accessories, read this manual
and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not meant
to cover all possible situations. It must be understood that common sense and
caution are factors which cannot be built into the product.
EYE, EAR & LUNG PROTECTION
GENERAL SAFETY WARNINGS
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS OR ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription eyeglasses ARE
NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if broken
during the operation of a garden tool.
WARNING: Use hearing protection, particularly during extended periods of
operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A GARDEN TOOL IN A DUSTY ENVIRONMENT.
Lead from lead-based paints.
Crystalline silica from bricks, cement, and other masonry products.
Arsenic and chromium from chemically treated lumber.
The level of risk from exposure to these chemicals varies, according to how often
this type of work is performed. In order to reduce exposure to these chemicals,
work in a well ventilated area, and use approved safety equipment, such as a dust
mask that is specifically designed to filter out microscopic particles.
WARNING: Dust that is created by power sanding, sawing, grinding, drilling,
and other construction activities may contain chemicals that are known to cause
cancer, birth defects, or other genetic abnormalities. These chemicals include:
ELECTRICAL SAFETY
WARNING: To avoid electrical hazards, fire hazards or damage to the tool,
use proper circuit protection.

4
5125-017
READ ALL INSTRUCTIONS BEFORE USING THIS 40V MAX* LAWN MOWER
LAWN MOWER SAFETY
WARNING: Ventilation openings in batteries and chargers must always
be open to allow cooling air to circulate freely. Air vents that are blocked,
restricted or covered may result in the battery or charger overheating. Overheating
may lead to damage to the tool or cause a fire, resulting in possible serious injury.
This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
product. Cleaning and user maintenance shall not be made by children
without supervision.
SAFETY WARNINGS
1.
2.
Read the instructions carefully. Be familiar with the controls and the proper
use of the product.
Never allow children or people unfamiliar with these instructions to use the
product. Local regulations can restrict the age of the operator.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or
hazards occurring to other people or their property.
SPECIFIC SAFETY RULES FOR ELECTRICALLY POWERED LAWN MOWERS
1.
2.
3.
4.
While mowing, always wear substantial footwear and long trousers. Do not
operate the product when barefoot or wearing open sandals. Avoid wearing
clothing that is loose fitting or that has hanging cords or ties.
Thoroughly inspect the area where the product is to be used and remove all
objects which can be thrown by the product.
Before using, always visually inspect to see that the cutting blade, cutting
blade bolts and cutting blade assembly are not worn or damaged. Replace
worn or damaged cutting blades and bolts in sets to preserve balance.
Replace damaged or unreadable labels.
CAUTION! Do not touch a rotating cutting blade.
PREPARATION
TRAINING
1.
2.
3.
4.

SAVE THESE INSTRUCTIONS FOR REFERENCE
5
40V Max* Lawn Mower
Owner's Manual
LAWN MOWER SAFETY CONT’D
Keep all nuts, bolts and screws tight to be sure the product is in safe working
condition.
Check the grass catcher frequently for wear or deterioration.
MAINTENANCE AND STORAGE
1.
2.
Operate the product in daylight or in good artificial light.
Avoid operating the product in wet grass, where feasible.
Always be sure of your footing on slopes.
Walk, never run.
OPERATION
1.
2.
3.
4.
Mow across the face of slopes, never up and down.
Exercise extreme caution when changing direction on slopes.
Do not mow excessively steep slopes.
Use extreme caution when reversing or pulling the product towards you.
Stop the cutting blade(s) if the product has to be tilted for transportation
when crossing surfaces other than grass, and when transporting the product
to and from the area to be mowed.
Never operate the product with defective guards, or without safety devices,
for example deflectors and/or grass catchers, in place.
Start the product or switch on the product carefully according to instruc-
tions and with feet well away from the cutting blade(s).
Do not tilt the product when switching on the motor, except if the product
has to be tilted for starting. In this case, do not tilt it more than absolutely
necessary and lift only the part, which is away from the operator.
Do not start the product when standing in front of the discharge chute.
Do not put hands or feet near or under rotating parts. Keep clear of the
discharge opening at all times.
Never pick up or carry a product while the safety key is inserted.
Stop the machine, and remove the disabling device. Make sure that all
moving parts have come to a complete stop:
- Whenever you leave the product.
- Before clearing blockages or unclogging chute.
- Before checking, cleaning or working on the product.
- After striking a foreign object. Inspect the machine for damage and make
repairs before restarting and operating the product.
If the product starts to vibrate abnormally (check immediately).
- Inspect for damage.
- Replace or repair any damaged parts.
- Check for and tighten any loose parts.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

6
5125-017
READ ALL INSTRUCTIONS BEFORE USING THIS 40V MAX* LAWN MOWER
WARNING! Only use the charger supplied with this kit to charge the 20V
Li-ion batteries for this tool. Charging any other batteries may damage the charger
and possibly cause serious injury.
BATTERY PACK & CHARGER SAFETY
Be careful during adjustment of the product to prevent entrapment of the
fingers between moving blades and fixed parts of the product.
Allow the product to cool before storing in any enclosure.
When servicing the blades be aware that, even though the power source is
switched off, the blades can still be moved.
Replace worn or damaged parts for safety. Use only genuine replacement
parts and accessories.
Wear strong work gloves when removing and reassembling the cutting
device.
3.
4.
5.
6.
7.
Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used
with another battery pack. Incorrect use may result in electric shock,
overheating or leakage of corrosive liquid from the battery.
Use machines only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
Be aware of possible hazards when not using your battery tool or when
changing accessories. To reduce risk, remove the safety key and battery pack
from the machine while not in operation. This will reduce the risk of electric
shock, fire or serious personal injury.
Do not place appliances or their batteries near fire or heat. Continuous
intense sunlight, fire or other heat sources may cause an increased danger of
explosion.
Do not crush, drop or damage the battery pack. Do not use a battery pack or
charger that has been dropped or received a sharp blow. A damaged battery
is subject to explosion. Properly dispose of a dropped or damaged battery
immediately.
Batteries can explode in the presence of a source of ignition, such as a pilot
light. To reduce the risk of serious personal injury, never use any cordless
product in the presence of an open flame. An exploded battery can propel
debris and chemicals. If exposed, flush with water immediately.
Do not charge battery in a damp or wet location. Following this rule will
reduce the risk of electric shock.
1.
2.
3.
4.
5.
6.
7.
BATTERY SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS FOR REFERENCE
7
40V Max* Lawn Mower
Owner's Manual
Longer life and better performance can be obtained if the battery pack is
charged when the air temperature is between 75˚F /24˚C and 64˚F/18 ˚C. Do
not charge the battery pack in air temperature below 41˚F / 5˚C or above
105˚F / 40.5˚C. This is important as it can prevent serious damage to the battery
pack.
Under extreme usage or temperature conditions, battery leakage may occur.
If liquid comes in contact with your skin, wash immediately with soap and
water. If liquid gets into your eyes, flush them with clean water for at least
10 minutes, then seek immediate medical attention.
When battery pack is not in use, keep it away from other metal objects like:
paper clips, coins, keys, nails, screws, or other small metal objects that can
make a connection from one terminal to another. Shorting the battery
terminals together may cause sparks, burns, or a fire.
Do not disassemble the battery and avoid mechanical damage to the battery.
Risk of short circuit and fumes may be emitted. Ensure fresh air and seek
medical assistance in the event of discomfort.
Always remove battery pack from your tool when you are assembling parts,
making adjustments, cleaning, or when not in use. Removing battery pack
will prevent accidental starting that could cause serious personal injury.
Always remove battery pack before storing the device. When battery
becomes fully charged, unplug the charger from the power supply and
remove the battery pack from the charger.
Keep battery pack dry, clean, and free from oil and grease. Always use a dry
cloth when cleaning. Never use brake fluids, gasoline, petroleum-based
products, or any solvents to clean battery pack.
Keep the battery pack out of the reach of children.
8.
9.
10.
11.
12.
13.
14.
15.
The plug of the charger must match the outlet. Never modify the plug in any
way. Unmodified plugs and matching outlets will reduce the risk of electric
shock.
Ensure the battery pack is charged indoors only, in a dry, cool and well
ventilated environment.
Do not subject the battery to strong sunlight over long periods and do not
leave it near a heat source. Heat damages the battery and there is a risk of
explosion.
Allow a hot battery to cool before charging.
Do not use non-rechargeable batteries!
1.
2.
3.
4.
5.
CHARGER SAFETY INSTRUCTIONS

8
5125-017
READ ALL INSTRUCTIONS BEFORE USING THIS 40V MAX* LAWN MOWER
Avoid mechanical damage to the charger. This can result in internal short
circuits.
Do not operate the charger on easily inflammable surfaces (e.g. paper,
textiles, etc.). The heating of the battery charger during the charging process
could pose a fire hazard.
Do not abuse the cord of the charger. Never use the cord for carrying, pulling
or unplugging the charger.
Keep the cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
Do not operate the charger with a damaged cord or plug, which could cause
shorting and electric shock. If damaged, immediately discontinue use.
Replace the charger with the identical unit as listed in the Product
Specifications in this manual. If the power cord for this equipment is
damaged, it must be replaced by the manufacturer, a customer service agent
of the same or qualified person in order to prevent hazards.
Do not use a charger that has been dropped or received a sharp blow.
The voltage indicated on the charger rating plate must correspond to the
voltage of the power source.
Never touch the mains plug with wet hands.
The battery of the appliance is not fully charged at the time of delivery. It
therefore needs to be fully recharged before you use it for the first time. For
the first recharge cycle, charge the battery pack fully. Slot the battery into
the base and plug the battery charger into an outlet.
It is good practice to unplug the charger and remove the lithium-ion battery
pack when not in use.
This charger is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the charger by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
charger.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Do not attempt to charge battery packs other than those supplied. The
charger and battery pack supplied with it are specifically designed to work
together.
Before each use, check the charger, cable and plug. Do not use a defective
charger and do not disassemble the charger. Incorrect reassembly may result
in the risk of fire, electric shock or electrocution.
Protect the charger against moisture and wet conditions. There is a danger of
electric shock.
Operate the charger only with the appropriate original batteries.
Charging other batteries may result in injuries and risk of fire.
6.
7.
8.
9.

9
140V Max* Lawn Mower
Owner's Manual
RECYCLING AND DISPOSAL
WARNING! Do not dispose of batteries/rechargeable batteries into household
waste!
Please recycle where facilities exist. Check with your local authority or local store
for recycling advice.

Only use the battery
charger indoors.
Recycle electrical waste
products in an environ-
mentally safe way where
facilities exist.
10
5125-017
SAFETY SYMBOLS
Ampere
VoltsV
A
Hz
W
kW
L
kg
mA
mAh
Watts
Hertz
Kilowatts
Litres
Kilograms
Milliampere
Milliampere-hour
min-1
mm
dB(A)
S
m/s²
per minute
Millimetre
Metres per second
squared.
Unlock / to loosen.
Decibel (A-rated)
Seconds
Alternating current
Direct current
Double insulation
No load speed
Diameter
Directional arrow
Polarity
With fuse (xx °C)
Lock / to tighten or secure.
WARNING! Please read all of the safety and operating instructions carefully
before using this tool. Please pay particular attention to all sections of this User
Guide that carry warning symbols and notices. Some of the following symbols
may be used on this tool.

Protection class II (Double
insulation).
Guaranteed sound power
level value in dB.
Read the operator’s manual.
Warning! Danger. Inspect the area where the
product is to be used and
remove all objects which
can be thrown by the
product.
If objects are hidden while
operating stop the product
and remove the object.
Cutting device continues
to rotate after the product
is switched off. Wait until
all machine components
have completely stopped
before touching the
product.
Objects thrown by the
product could hit the user
or other bystanders.
Always ensure that other
people and pets remain at
a safe distance from the
product when it is in
operation. In general,
children must not come
near the area where the
product is.
Keep hands and feet away
from sharp rotating parts –
danger of injury! When
cleaning, repairing, or
inspecting, make certain
the cutting device and all
mowing parts have
stopped.
Wear hearing protection.
WARNING! Beware of
electric shocks.
Wear CSA Approved Eye
Protection.
Switch the product off and
remove the battery pack
to disconnect from the
power supply before
assembly, cleaning,
adjustments, maintenance,
storage and transportation.
Wear a face mask.
Wear protective helmet
and eye protection.
Wear protective gloves.
Wear protective footwear.
Do not expose the product
to rain or wet conditions.
Mow across the face of
slopes, never up and down.
11
40V Max* Lawn Mower
Owner's Manual

12
5125-017
Remove plug from the
power source immediately
if the power cord is
damaged or cut.
Beware of sharp blades.
Blades continue to rotate
after the motor is switched
off - Remove disabling
device before
maintenance.
GO – grass catcher ready
for grass collection
STOP - grass catcher full,
empty it
Crossed out dust bin.
Batteries and battery
packs should not be
disposed of with house-
hold waste. Please recycle
where facilities exist.
Check with your Local
Authority or local store for
recycling advice.
Batteries contain
Lithium-ion. Do not
dispose of batteries in
household waste. Do not dispose of battery
packs in rivers or immerse
in water.
Do note expose battery
packs to heat in excess of
45˚C.
Do not dispose of battery
packs in fire. They will
explode or leak and cause
injury.
This symbol designates that this tool is listed with Canadian and U.S.
requirements by cSGSus Testing Laboratories, Inc.
UL1447, CSA C22.2 No.147
GY225304
Approx. charging time

13
40V Max* Lawn Mower
Owner's Manual
KNOW YOUR 40V MAX* LAWN MOWER
1
2
3
5
7 9
16
6
4
17
20
21 26
29
25
27
28
19
15
10
24
12
16
15
23
22
11
13
14
18
31
30 8

14
5125-017
S/N
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Grip handle
Upper handlebar
Knob (x4)
a. Washer (x4)*
Bolt (x2)
Lower handlebar (Left)
Transport handle
Battery compartment cover
Safety key
Front wheel (x2)
Deck
Lever for cutting height
adjustment
Rear wheel (x2)
Deflector guard
Lower handlebar (Right)
Grass catcher
Part name S/N
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Carry handle
Wire clip (x2)
Control cord
Start lever
Safety lock-off switch
Switch box
Full bag indicator
Hook (x2)
Rear discharge chute
Cutting blade
Hex bolt
Blade holder
Hex wrench
Washer
Charger
Battery pack (x2)
Part name

UNPACKING
ASSEMBLY
WARNING: The mower must be fully assembled before operation! Do
not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to battery power before it is completely
assembled!
NOTE: Take care of small parts that are removed during assembly or when
making adjustments. Keep them secure to avoid loss.
Unpack all parts and lay them on a flat, stable surface.
Remove all packing materials.
Make sure the delivery contents are complete and free of any damage. If
you find that parts are missing or show damage do not use the product and
contact Customer Service @ 1-866-349-8665. Using an incomplete or
damaged product represents a hazard to people and property.
Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
1.
2.
3.
4.
LOWER HANDLEBAR
Align the mounting hole of the lower handlebar (5/14) with the mounting
hole of handle support (Fig. 3, step 1).
Attach the washer (3a) to the bolt and secure the lower handlebar (5/14) by
turning the knob (3) clockwise for tightening (Fig. 3, step 2).
Make sure that the control cord (18) aligns on the upper side of the lower
handlebar (right) (14).
1.
2.
3.
FIG.3
15
40V Max* Lawn Mower
Owner's Manual
2
3
4
5
6
1
2
1
2
14
18
3
3a
3
3a
5

5125-017
16
UPPER HANDLEBAR
Align the upper handlebar (2) to the lower handlebar (5 / 14) and ensure the
switch box (21) is pointed downward when viewed from behind.
Pass the bolts (4) through the mounting holes of handles (Fig. 4, step 1).
Attach the washer (3a) to the bolt (4) and secure the upper handlebar (2) by
turning the knob (3) clockwise for tightening (Fig. 4, step 2).
1.
2.
3.
GRASS CATCHER
Align and insert the carry handle (16) to the slots of top frame of grass
catcher (15) until handle clicks into place (Fig. 6).then use screw to fix
handle both sides.
The grass catcher is ready for use.
1.
2.
Secure the control cord (18) with two wire clips (17) (Fig. 5).4.
FIG.4 FIG.5
FIG.6
1
2
2
11
21
18
17
2
14
3
3a
3a
4
5
3
2
3
4
5
6
1
16 15

17
40V Max* Lawn Mower
Owner's Manual
KNOW YOUR BATTERY
Open the deflector guard (13), hold it in position (Fig. 7, Step 1); Insert the
grass catcher (Fig. 7, step 2).
Align and hook the grass catcher into the attachment slots of rear discharge
chute (24).
3.
4.
WARNING: Do not attempt to use the mower without the grass catcher
attached - danger of flying objects! The motor must be switched off and
the blade must have stopped rotating before you remove the grass
catcher. The grass catcher must be fully assembled with the top part,
bottom part and collection tongue all in position before first use.
FIG.7
13
15
2
3
4
5
6
1
24
CHECKING THE BATTERY CHARGE STATUS
The level of charge remaining in the battery can be checked by using the battery
LED power indicator that is contained on the end of the battery.
NOTE: The battery charge remaining may be checked while the battery is
installed in the tool with the ON/OFF switch turned OFF. It may also be checked
while the battery is removed from the tool. DO NOT check the battery charge
remaining while the battery is in the charger.
You will get a false reading and you may also damage the battery status system.
1. Press and hold the battery status button located on the end of the battery
2. One or more of the three LED lights in the LED window will come ON to
indicate the amount of charge that is remaining in the battery as follows:
2
1

WARNING: Charge in a safe location away from moisture and heat
sources!
5125-017
18
3. Release the battery status button to turn the LED’s OFF.
1 light
(Red light ON)
2 lights
(R
ed and Orange
light ON)
3 lights
(Red/Orange/Green
ON)
-Fully charged
1/3or less 1/3-2/32/3
CHARGING THE BATTERY PACK
Place the battery charger (Fig. 8-1) in a dry location near a 110-120V 60 Hz
electrical outlet.
Plug the battery charger into the outlet and make sure the green LED
indicator light (Fig. 8-5) comes ON. If it does not, refer to the chart (Fig. 9) to
identify the problem.
Turn the battery pack (Fig. 8-2) upside down and slide it onto the charger (Fig. 8-1).
1.
2.
3.
NOTE: Make sure the grooves (Fig. 8-3) in the sides of the battery slide over the
matching tabs on the charger (Fig. 8-4) until the battery latch “clicks” into
place.
Green
Light
Red
Light
Battery
Inserted
Into
Charger
Charging
Status
ON OFF NO
Charger
connected
to power supply.
OFF ON YES Battery
being charged.
ON OFF YES Battery
fully
charged
.
Battery is charged but
not operational on tool.
This may indicate
defective / bad
contact on battery or
charging conditions
are either too hot or
too cold.
ON OFF YES
Fig. 9
Fig. 8

CUTTING HEIGHT ADJUSTMENT
WARNING: Switch the product off and wait that the cutting blade has
come to a complete stop before adjusting the cutting height!
Remove the safety key (8) before adjusting the cutting height!
19
40V Max* Lawn Mower
Owner's Manual
WARNING: Do not immerse the battery pack in water. Sudden cooling
could cause a hot battery to explode or leak.
NOTE: Make sure the grooves in the sides of the battery slide over the matching
tabs of the battery compartment. The battery release button will “click” into
place when the battery is fully installed.
NOTE: Lawn mower will only operate with both batteries charged and installed.
OPERATION
INSTALLING THE BATTERY PACKS (Fig. 10)
Open the battery compartment cover.
Unplug the safety key (8).
Remove the discharged battery packs by pressing downward on the
battery release button and sliding the battery pack backward until it is
removed from the battery compartment.
Slide the fully charged battery packs onto the matching taps in the battery
compartment where the discharged battery packs have been removed.
Reinstall the safety key (8).
Close the battery compartment cover.
1.
2.
3.
4.
5.
6.
Fig. 10
8
1
