RadTech BLIZZARD B84C-L User manual

OWNER'S MANUAL
OM0460SB-A / Rev0 09-17
PLEASE READ THIS MANUAL CAREFULLY
KEEP READY AT ALL TIMES
B84C-L
3-Point Snowblower
SERIAL NO. 21700001 AND UP
30 HP @ 50 HP (PTO)

INTRODUCTION
[1]
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained
according to instructions. Read and understand
this manual before operation, and keep it in
your files for further reference.
This manual has been prepared to assist the owner
and operators in the safe operation and suitable
maintenance of the equipment. The information is
applicable to products at the time of manufacture
and does not include modifications made
afterwards.
Read and understand this operator's manual before
attempting to put equipment into service.
Familiarize yourself with the operating instructions
AND ALL THE SAFETY RECOMMENDATIONS
contained in this manual and those labeled on the
equipment and on the machine. Follow the safety
recommendations and make sure that those with
whom you work follow them.
TO THE DEALER
Give this manual to the owner upon delivery of the
equipment.
TO THE PURCHASER AND THE DEALER
Illustrations
The illustrations may not necessarily reproduce the
full detail and the exact shape of the parts or depict
the actual models, but are for reference only.
Direction Reference
All references to right and left, forward or rearward
are from the operator seat.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your equipment and machine. It is also advisable to supply them to your insurance
company. It will be helpful in the event that equipment or machine is lost or stolen
MODEL:_________________________________________________________________________
SERIAL NUMBER:_________________________________________________________________
DATE OF PURCHASE:______________________________________________________________
DEALER NAME:___________________________________________________________________
DEALER TELEPHONE NUMBER:_____________________________________________________

INTRODUCTION
[2]
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to
be certain anyone operating this product reads this manual, and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.

TABLE OF CONTENT
[3]
INTRODUCTION ...................................................................................................................................... 1
TABLE OF CONTENT ............................................................................................................................... 3
SAFETY INFORMATION .......................................................................................................................... 5
GENERAL SAFETY INFORMATION – Pictograms .................................................................................. 8
SPECIFICATIONS ................................................................................................................................... 10
SAFETY LABELS ................................................................................................................................... 11
ESTIMATED ASSEMBLY TIME .............................................................................................................. 12
ASSEMBLY ............................................................................................................................................. 13
Snowblower assembly B84C-L ....................................................................................................... 13
Installation of the Chute ................................................................................................. 13
Snowblower installation with a 3-Point Hitch ................................................................... 14
Snowblower installation with a Quick Hitch ..................................................................... 15
Preparation of the driveline ............................................................................................................. 16
Recommendations for Driveline Angles .......................................................................... 16
Angles at Each End of Driveline ..................................................................................... 16
Determining Driveline Length .......................................................................................... 17
Driveline installation ........................................................................................................ 19
Remove the Snowblower from the Tractor ...................................................................................... 20
OPERATION .......................................................................................................................................... 21
General Preparation ....................................................................................................................... 21
Controls ......................................................................................................................................... 21
Up and Down Control ..................................................................................................... 21
Work and Travel Speed .................................................................................................. 21
Engaging the Drive Mechanism ...................................................................................... 21
Manual Rotation - Option ................................................................................................ 21
Hydraulic Rotation - Option ............................................................................................. 21
Manual Deflector ............................................................................................................ 22
Hydraulic Deflector - Option ............................................................................................ 22
Electric Deflector - Option ............................................................................................... 22

TABLE OF CONTENT
[4]
OPERATION (continued)
Adjustments ................................................................................................................................... 23
Skid Shoes Adjustment ................................................................................................... 23
Drive Chain Tension Adjustment..................................................................................... 23
Unclog the Chute ............................................................................................................ 23
Snow Removal Methods ................................................................................................................. 24
MAINTENANCE ...................................................................................................................................... 25
Maintenance ................................................................................................................................... 25
Maintenance Schedule.................................................................................................................... 26
Shearbolts ...................................................................................................................................... 26
Lubrication ...................................................................................................................................... 27
Gearbox ....................................................................................................................................... 28
Oil Level – Oil Fill Up ...................................................................................................... 28
Oil Change ...................................................................................................................... 28
TROUBLE SHOOTING ........................................................................................................................... 29
STORAGE .............................................................................................................................................. 33
PARTS .................................................................................................................................................... 34
Snowblower 84” - FRONT ............................................................................................................... 34
Snowblower 84" - REAR ................................................................................................................ 36
Chute and Deflector ........................................................................................................................ 38
Gearbox - 663485 ........................................................................................................................... 40
Driveline - 662194 ........................................................................................................................... 41
AVAILABLE OPTIONS ............................................................................................................................ 42
TORQUE SPECIFICATION TABLE ........................................................................................................ 43
ADAPTER INSTALLATION PROCESS ................................................................................................... 44

SAFETY INFORMATION
[5]
Children
Tragic accidents can occur if the operator is
not alert to the presence of children. Children
are generally attracted to machines and the
work being done. Never assume children will
remain where you last saw them
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children
enter the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine
or attachment even when the machine is
turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
Before Operation
1. Read and understand both the machine
AND implement operator's manual
before using the snowblower. Know how
to operate all controls and how to stop
the unit and disengage the controls
quickly. Lack of knowledge can lead to
accidents.
2. Park the machine/implement on level
ground, set the parking brake, lower the
implement to the ground, place all
control levers in neutral, shut off the
engine and remove the ignition key and
allow the rotating parts to stop BEFORE
making any implement adjustments,
repairs or inspections.
3. Keep clear of all rotating parts. Do not
put hands or feet under, or into
snowblower and subframe with engine
running.
4. For your safety, do not work under any
hydraulically supported machine elements, they
may creep down, suddenly drop or be
accidentally lowered. Do not use loader, quick
hitch, or an implement as a jack for servicing.
5. Do not operate the machine/implement that is
defective or has missing parts. Make sure that
all recommended maintenance procedures are
completed before operating the unit.
6. Keep the machine/implement clean. Snow, dirt
or ice build-up can lead to malfunction or
personal injury from thawing and refreezing in
garage. Inspect and clean every rotating parts.
7. Do not modify or alter this implement or any of
its components, or any implement function
without first consulting your dealer. The
manufacturer will not claim responsibility for
fitment of unapproved parts and/or accessories
and any damages as a result of their use.
8. Verify that all machine/implement safety
protective devices are in place. Shields, guards
and covers must be correctly installed at all
times. When necessary to remove these for
servicing, cleaning, or repair work, they must be
reinstalled immediately.
9. Always make sure all implement components
are properly installed and securely fastened.
10. Check that all machine/implement drivelines are
in good working order.
11. Check for moving parts excessive wear
regularly. ALWAYS USE GENUINE PARTS
WHEN REPLACEMENT PARTS ARE
REQUIRED.
12. Prior to operation, clear work area and mark all
curbs, pipes, etc. that cannot be moved.
13. Inspect the machine/implement after striking
any foreign object to assure that all
machine/implement parts are safe and secure
and not damaged.
14. Handle fuel with care, as it is highly flammable.
Use approved fuel container.
15. Never add fuel to a running engine or a hot
engine.
16. Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors. Replace fuel cap securely
and wipe up spilled fuel. Always refuel using a
properly grounded system.

SAFETY INFORMATION
[6]
17. Check all machine controls regularly and
adjust where necessary. Make sure that the
brakes are evenly adjusted. Periodically
check all nuts and bolts for tightness,
especially wheel hub and rim nuts.
18. Make sure the machine is counterweighted
and has tire chains for better traction and
stability as recommended by your dealer.
Weights provide the necessary balance to
improve stability, traction and steering. Use
only those recommended by your dealer.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a
suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises.
During Operation
1. Never allow anyone to operate the machine
and implement until they have read the
manuals completely and are thoroughly
familiar with their basic operation. Lack of
operating knowledge can lead to accidents.
2. Do not allow anyone to ride on the
machine/implement at any time. The only
one allowed is the operator that MUST sit
in the driver seat.
3. Never allow anyone near the work area.
The debris that can be thrown could cause
serious personal injuries.
4. Never stand alongside of the implement
while the engine is running.
5. Never operate the implement without safety
protective devices in place. All
machine/implement shields, guards and
covers must be correctly installed at all
times.
6. Keep clear of all rotating parts. Do not put
hands or feet under, or into the implement
with engine running.
7. If the implement starts to vibrate
abnormally, disengage the PTO, stop the
engine immediately and check for cause.
Excessive vibration is generally a sign of
trouble.
8. Park the machine/implement on level ground,
place the transmission in neutral, set the parking
brake, disengage the driving system, lower the
equipment to the ground, place all levers
including auxiliary control levers in neutral, shut
off the engine and remove the ignition key
BEFORE LEAVING THE MACHINE.
9. Always drive the machine at speeds compatible
with safety, especially when operating over
rough ground, crossing ditches, slippery surface
or when turning.
10. Operate only with good visibility and during
daylight hours, or when the area is well lit with
bright artificial light.
11. Do not run the engine indoors except when
starting engine and transporting attachment in or
out of building. Carbon monoxide gas is
colorless, odorless and deadly.
12. Exercise extreme caution when operating on or
crossing a gravel drive, walks, or roads. Stay
alert for hidden hazards or traffic.
13. Use extra caution when backing up.
14. Operate up and down (not across) intermediate
slopes. Avoid sudden starts and stops. Drive
machine backwards up steeper slopes with the
implement off. Then operate as you travel down
the slope.
15. Never park the machine on a steep slope. Do
not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
16. Disengage power to implement when
transporting or when not in use

SAFETY INFORMATION
[7]
Stay Clear of Rotating Drivelines
1. Entanglement in rotating driveline can cause
serious injury or death.
2. Keep tractor master shield and driveline
shields in place at all times. Make sure
rotating shields turn freely.
3. Wear close fitting clothing. Stop the engine
and be sure that PTO driveline is stopped
before making adjustments, connections, or
cleaning out PTO driven equipment.
4. Do not install any adapter device between the
tractor and the primary implement PTO drive
shaft that will allow a 1000 rpm tractor shaft to
power a 540 rpm implement at speeds higher
than 540 rpm.
5. To use the blower with PTO at 1000 rev / min,
see your dealer to install the appropriate set
of gears.
6. Do not install any adapter device that results
in a portion of the rotating implement shaft,
tractor shaft, or the adapter to be unguarded.
The tractor master shield shall overlap the
end of the splined shaft and the added
adaptor device as outlined in the table.

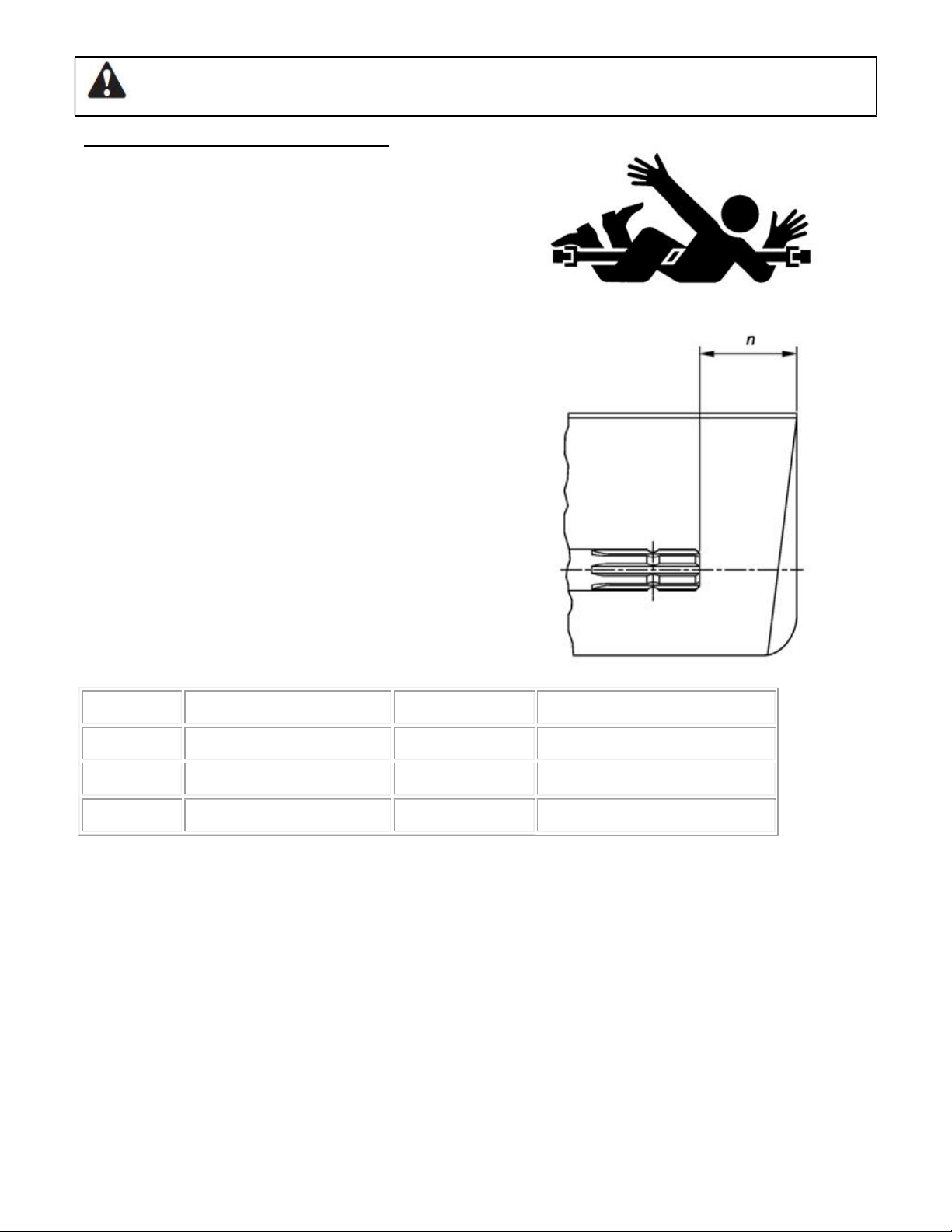

PTO Type Diameter Splines n ± 5 mm (0.20 in.)
1 35 mm (1.378 in.) 6 85 mm (3.35 in.)
2 35 mm (1.378 in.) 21 85 mm (3.35 in.)
3 45 mm (1.772 in.) 20 100 mm (4.00 in.)

GENERAL SAFETY INFORMATION
[8]

GENERAL SAFETY INFORMATION
[9]
(1) Safety stand
(2) Secure point for safety stand

SPECIFICATIONS
[10]
Specifications B84C-L
General
Type
2
stage
Direction of impeller rotation
CCW
PTO power requirements
30
-
50 HP
Shipping weight
715
Lbs
Operating weight, incl. chute & hyd. deflector
665
Lbs
Set
-
up time
60 min
Working width
8
4"
Working height
27 1/2"
Overall width
8
5 1/4"
Overall height (without chute)
32 1/4"
Overall height (with chute closed)
59"
Overall length
45
1/2"
Impeller
Impeller diameter
24"
Impeller width
9"
Number of impeller blade
4
Impeller shaft diameter
1 3/8"
Impeller RPM
540 RPM
Auger
Auger
-
Single / dual
Simple
Main auger diameter
15"
Auger driven system
Chain No.60
Second auger di
ameter
N/A
Second auger driven system
N/A
Auger RPM
200 RPM
Housing
Housing thickness
11 Ga
Side panel thickness
11 Ga
Impeller housing thickness
10 Ga
Chute
Chute position
Right
Rotation of the chute
Manual or hydraulic
Flow restrictor (rota
tion)
Yes
Flow restrictor (deflector)
No
Hoses support
Yes
Deflector adjustment
(2 part chute)
Manual
(hydr. in option)
(3 part chute)
N/A
Cutting edge
Replaceable and reversible
Yes
Cutting edge material
Carb. Steel
Cutting edge dimension
3
/8" x 1 1/2"
Skid shoes
Replaceable and reversible
Yes, 3 positions adjustable
Skid shoe material
Carb
on
steel
Drive
Main driving system
Driveline series 50
and Hitch
Chain idler
Yes
Parking stand
Yes
Number of auger shear bolt
1 (on the drive sh
aft)
Number of impeller shear bolt
1 (on the driveline)
Type of hitch
3 pts, cat. 1 & 2
Compatibility with quick hitch
Yes, cat. 1 only

SAFETY LABELS
[11]
IMPORTANT: Keep all decals clean and legible. Replace all
missing, illegible, or damaged decals.
IMPORTANT: Decal placement locations shown are
approximate; decals should not be placed in a location where
the operator’s field of view is impeded, and should not cover
any portion of other decals installed in the same vicinity.
INSTALLING OR REPLACING DECALS: Thoroughly clean
the area where decal is to be placed using mild soap and
water. Allow the surface to fully dry. Remove the backing
from the decal, exposing the adhesive surface. Apply the
decal to the recommended position shown in the diagram
below and smooth out any bubbles.
2500785
2500786

ESTIMATED ASSEMBLY TIME
[12]
Refer to the following table for the estimated assembly time to open the package and assemble the equipment
and options.
The assembly times of the table are only a reference under normal conditions according to the following
assumptions:
1. The assembly is done by a competent person who is familiar with the equipment.
2. The following tools and materials are prepared:
- Wrench set (flat wrenches)
- Ratchet & socket set
- Cutting pliers
- Security gloves
3pt Snowblower
Estimated installation time, snowblower only 60 min
2nd installation time (on the tractor) 10 min
Estimated installation time of the Manual Rotation (BER0077) 25 min
Estimated installation time of the Hydraulic Rotation (BER0078) 25 min
Estimated installation time of the Hydraulic Deflector (BER0079A) 20 min
Estimated installation time of the Electric Deflector (BER0080) 45 min

ASSEMBLY
[
13
]
WARNING: To avoid serious injury or death: Read and understand SAFETY
INFORMATION on previous pages before installation and operation Perform all assembly with
the assembly properly secured and supported.
TRACTOR PREPARATION
See Dealer for Tractor Preparation information.
SNOWBLOWER ASSEMBLY
The snowblower is assembled at the factory except for the parts in the hardware bag provided with the
snowblower, the chute and the options if appropriate. Use the present manual and lay out all parts for
assembly. Separate bolts and nuts into various sizes. After assembly, torque all the bolts according to
the Torque Specification Table at the end of the manual.
Installation of the Chute
WARNING: To avoid serious
personal injury or death: Park the vehicle
on level ground, place the transmission in
neutral, set the parking brake, place all
control levers in neutral, shut off the
engine, remove the ignition key and allow
the rotating parts to stop BEFORE working
on the vehicle.

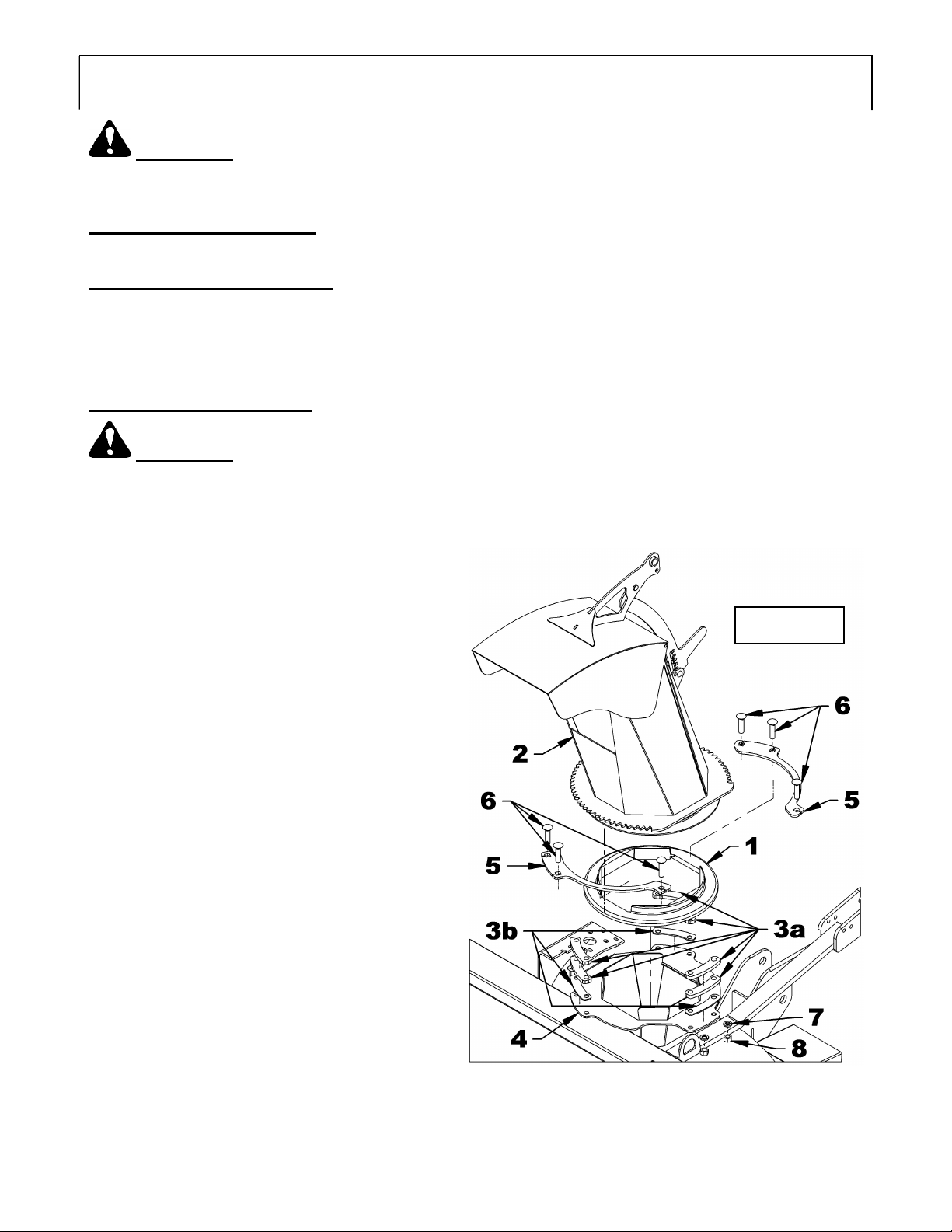

1. Figure 1: Place the rotation bushing
(item 1) on the snowblower chute base
(item 4).
2. Figure 1: Install the chute (item 2) over the
rotation bushing and install the six 3/8"
spacers (item 3a) and the three 11GA thin
spacers (item 3b) on the chute base
(item 4).
3. Figure 1: Apply grease under the retaining
plates (items 5-6) before installation.
NOTE: Use high quality grease designated
"extreme pressure" and containing
molybdenum disulfide. This grease can
specify "Moly EP" on its label.
4. Figure 1: Attach the two retaining plates
with 3 holes (items 5) by placing the 2
holes section toward the plate of the
rotation support with six 1/2" x 2" carriage
bolts, six 1/2" lockwashers and six 1/2" hex
nuts (items 6-7-8).
5. Tighten all bolts according to the Torque
Specification Table at the end of the
manual.
Figure 1

ASSEMBLY
[
14
]
Snowblower Installation with a 3-Point Hitch
1. Figure 2: Make sure the parking stand is
lowered. To do this, remove the round wire lock
pin (item 9) from the parking stand (item 8),
lower the parking stand and insert the round
wire lock pin (item 9) under the snowblower
attachment tube.
2. Figure 2: Category 1 - Attach the tractor lower
arms (item 2) with the two pins (item 1) and
secure with the 7/16" linchpins (item 3) in the
lower holes (item 4).
Figure 2: Category 2 – Insert the 1 1/8" x
2 1/2" bushing (item 10) in each tractor lower
arms (item 2). Then, attach the tractor lower
arms in the lower holes of the snowblower
(item 4) with a pin (item 1) and secure with a
7/16" linchpin (item 3).
3. Figure 2: Category 1 - Attach the tractor upper
arm (item 5) between the plates of the
snowblower upper hitch (item 7) with the pin
and the linchpin (item 6) provided with the
tractor.
Figure 2: Category 2 – Insert a 1" x 1 3/4"
bushing (item 11) in the upper arm of the
tractor (item 5). Then attach the upper arm of
the tractor between the plates of the
snowblower upper hitch (item 7) with the pin
and the linchpin (item 6) provided with the
tractor.
4. Figure 2: Adjust the snowblower using the
upper arm of the tractor (item 5) so that the
snowblower is perpendicular to the ground.
5. Figure 2: Adjust the anti-sway arms of the
tractor to prevent lateral swinging of the
snowblower. Make sure there is no contact with
the tires.
6. Figure 2: Raise the parking stand. To do this,
remove the round wire lock pin (item 9) from
the parking stand (item 8), raise the parking
stand and insert the round wire lock pin
(item 9) over the snowblower attachment tube.
7. Go to " Preparation of the Driveline " section
for further installation of the blower.
Before connecting snowblower driveline to
tractor drive shaft, make sure driveline is
not too long in raised, lowered and middle
position. If the driveline is too long it must
be shortened, to avoid damaged to tractor.
See pages 17 and 18 for instructions.
CAUTION
Figure 2

ASSEMBLY
[
15
]
Snowblower Installation with a Quick Hitch (Category 1 only)
NOTE : For the installation of the snowblower with
a Quick Hitch, two 1 1/2" x 2 1/8" bushings
(668059) (item 10) and one 1 1/4" x 1 7/8"
bushing (668058) (item 11) are required, but they
are not supplied with the snowblower.
1. Figure 3: Make sure the parking stand is
lowered. To do this, remove the round wire lock
pin (item 9) from the parking stand (item 8),
lower the parking stand and insert the round
wire lock pin (item 9) under the snowblower
attachment tube.
2. Figure 3: Insert a 1 1/2" x 2 1/8" bushing
(item 10) between the plates of the snowblower
lower hitch and secure in the upper hole
(item 4) with the pin (item 1) and the 7/16"
linchpin (item 3). Do the same on the other
side.
3. Figure 3: Insert a 1 1/4" x 1 7/8" bushing
(item 11) between the plates of the snowblower
upper hitch (item 7) and secure with the pin
and the linchpin (item 6) provided with the
tractor.
4. Figure 3: Make sure that the quick release
latches (item 2) are securely closed. Lower the
3-Point so that the hooks on the quick hitch
(item 2) are lower than the snowblower pins
and bushings (items 1 and 10). Reverse the
tractor slowly until the hooks are under
snowblower pins and bushings (items 1 and
10). Then, raise the 3-Point until the quick-
release latches (item 2) snap on the pins with
the snowblower bushings (items 1 and 10) to
lock the system.
5. Figure 3: Adjust the snowblower using the
upper arm of the tractor (item 5) so that the
snowblower is perpendicular to the ground.
6. Figure 3: Raise the parking stand. To do this,
remove the round wire lock pin (item 9) from
the parking stand (item 8), raise the parking
stand and insert the round wire lock pin
(item 9) over the snowblower attachment tube.
7. Go to " Preparation of the Driveline " section
for further installation of the blower.
Before connecting snowblower driveline
to tractor drive shaft, make sure driveline
is not too long in raised, lowered and
middle position. If the driveline is too
long it must be shortened, to avoid
damaged to tractor. See pages 17 and 18
for instructions.
CAUTION
Figure 3

ASSEMBLY
[
16
]
PREPARATION OF THE DRIVELINE
Recommendations for Driveline Angles
IMPORTANT: To obtain the proper universal
joint angles, it is recommended to adjust the
3-Point hitch at the furthest point from the
tractor recommended by the manufacturer.
The universal joint angle is directly related with
the life of driveline. To reduce the angle, it is
necessary to increase the distance between
the snowblower and the tractor.
Angles of Driveline Joints Too Large
Avoid
Reasonable Angles of Driveline Joints
Acceptable
Unequal Angles at Driveline Joints
Avoid
Equal Angles at Driveline Joints
Recommended
Angles at Each End of Driveline
A popular habit is to change the snowblower angle to obtain a better scraping effect. This practice can
become harmful to the driveline since the angle at each end is unequal. This results in a fan speed
variation as well as a drastic increase of load on cross and bearings. To be avoided: It is
recommended to always keep tractor driveline and snowblower input shaft parallel.

ASSEMBLY
[
17
]
Determining Driveline Length
IMPORTANT: Before using the equipment,
make sure the driveline is not too long. At
working, the two half drivelines must intersect
each other sufficiently to insure maximum
efficiency but there must not be any
interference.
1. Figure 4: To determine the "L" length for
your tractor model first find the "X" factor
by measuring the horizontal distance
between the end of the tractor's drive shaft
and the end of the snowblower's driven
shaft when the snowblower is in transport
position as shown in figure.
2. Choose in the table below the "Y" factor
according to the driveline series and deduct
that number from "X" measured previously
to determine "L" (fig.7) which is the center-
to-center length between the universal
joints.
NOTE : The driveline series is inscribed on the
plastics guards.
L = X – Y
DRIVELINE SERIES Y MINIMUM
CROSSING
20 Series 4 1/2" 5 1/4"
40 and 50 Series 5 1/2" 7 1/2"
Figure 4

ASSEMBLY
[
18
]
3. Figure 5: Hold the two half-shaft side by
side and locate the "L" length between the
two center-to-center half-shaft universal
joints. Mark off the zone to be cut on both
halves opposite each half-shaft guard as
shown in figure.
4. Figure 5A: Cut off inner and outer guard
tubes as well as the inner and outer
telescopic sections.
5. Figure 5A: Cut the guard a second time
leaving the same distance between the end
of the guard and the end of the shaft as
existed before. To obtain the proper
distance "A" shown in figure, cut the guard
according to the following table:
6. Figure 5A: File down tubes and remove
chips.
7. Apply grease to inside of outer telescopic
section.
IMPORTANT: Work with fully guarded
shafts only!
DISTANCE A
Male PTO Female PTO
1 3/4" 1 1/4"
Figure 5
Figure 5A
A
