RadTech S1SB-54A User manual

OM 0495SB-A
Rev0 06-21
54” SNOWBLOWER
S1SB-54A
For John Deere Tractor Series 1: 1023E, 1025R
SERIAL NUMBER 22100000 AND UP
OPERATOR'S AND PARTS
MANUAL

INTRODUCTION
OM 0495SB-A [1]
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained
according to instructions. Read and understand
this manual before operation, and keep it in your
files for further reference.
This manual has been prepared to assist the owner
and operators in the safe operation and suitable
maintenance of the equipment. The information is
applicable to products at the time of manufacture
and does not include modifications made
afterwards.
It is essential to read and understand this operator's
manual before attempting to put equipment into
service. Familiarize yourself with the operating
instructions AND ALL THE SAFETY
RECOMMENDATIONS contained in this manual
and those labeled on the equipment and on the
machine. Follow the safety recommendations and
make sure that those with whom you work follow
them.
TO THE DEALER
Give this manual to the owner upon delivery of the
equipment.
TO THE PURCHASER AND THE DEALER
Illustrations
The illustrations may not necessarily reproduce the
full detail and the exact shape of the parts or depict
the actual models but are for reference only.
Direction Reference
All references to right and left, forward or rearward
are from the operator seat looking at the implement.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your equipment and machine. It is also advisable to supply them to your insurance company.
It will be helpful in the event that equipment or machine is lost or stolen
MODEL:_________________________________________________________________________
SERIAL NUMBER:_________________________________________________________________
DATE OF PURCHASE:______________________________________________________________
DEALER NAME:___________________________________________________________________
DEALER ADDRESS:________________________________________________________________
DEALER TELEPHONE NUMBER:_____________________________________________________

INTRODUCTION
OM 0495SB-A [2]
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to be
certain anyone operating this product reads this manual, and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.

TABLE OF CONTENTS
OM 0495SB-A [3]
INTRODUCTION ...................................................................................................................................... 1
TABLE OF CONTENTS............................................................................................................................. 3
SAFETY INFORMATION........................................................................................................................... 5

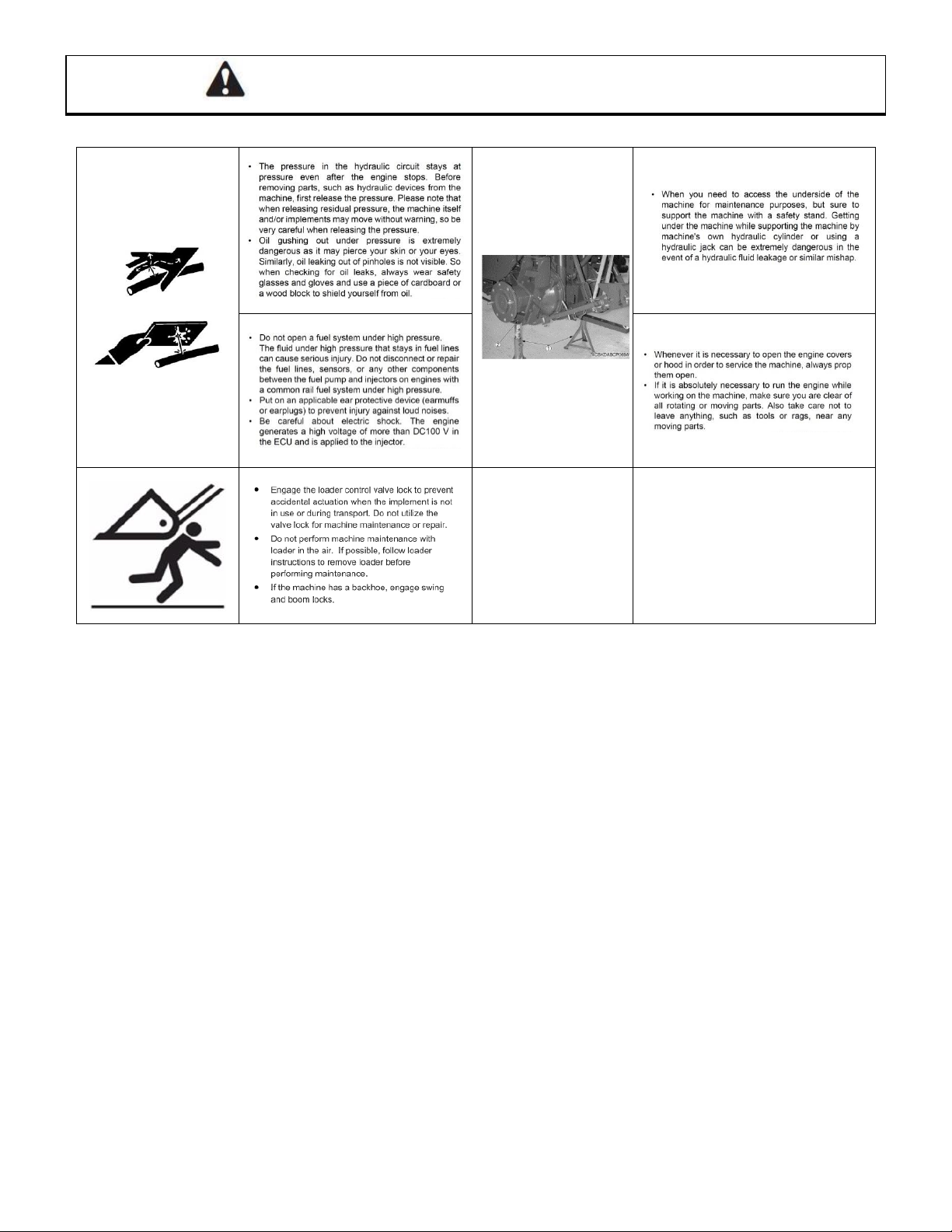

GENERAL SAFETY INFORMATION –Pictograms ................................................................................... 7
SPECIFICATIONS..................................................................................................................................... 9
SAFETY LABELS.................................................................................................................................... 10
ESTIMATED ASSEMBLY TIME .............................................................................................................. 11
ASSEMBLY............................................................................................................................................. 12
Snowblower Assembly.................................................................................................................... 12
Installation of the electric deflector.................................................................................. 13
Installation of the chute................................................................................................... 14
Installation of the verticle knives..................................................................................... 16
Installation of the hitch pins............................................................................................. 16
Installation of electric harness # 4000174....................................................................... 17
Electrical diagram of the chute deflector......................................................................... 18
Installation of harness with fuse # 4000173.................................................................... 19
Installation of harness with fuse # 4000173.................................................................... 21
Installing the rotation sensor harness ............................................................................. 24
OPERATION .......................................................................................................................................... 27
SNOWBLOWER CONNECTION AND DISCONNECTION PROCEDURE...................................... 27
Lift control....................................................................................................................... 27
Precautions to follow BEFORE each connection ............................................................ 27
Procedure for Connecting the Snowblower..................................................................... 28
Precautions to follow BEFORE each disconnection........................................................ 31
Procedure for Disconnecting the Snowblower ................................................................ 31
PREPARATIONS ........................................................................................................................... 33

TABLE OF CONTENTS
OM 0495SB-A [4]
OPÉRATION (continued).............................................................................................................................
OPÉRATION .................................................................................................................................. 34
Engine speed........................................................................................................................... 34
Increased Adhesion and Stability............................................................................................. 34
Engaging the drive Mechanism................................................................................................ 34
Controls................................................................................................................................... 34
ADJUSTMENTS ............................................................................................................................. 35
Adjustment of the Deflector...................................................................................................... 35
Adjustment of the Skid Shoes.................................................................................................. 35
Snow removal methods................................................................................................................... 36
MAINTENANCE ...................................................................................................................................... 37
MAINTENANCE.............................................................................................................................. 37
Gear Box and Reduction Box.......................................................................................... 38
Oil Level - Filling ............................................................................................................. 38
Oil change....................................................................................................................... 38
Shear Bolts..................................................................................................................... 39
Repositioning the Augers................................................................................................ 39
Maintenance schedule.................................................................................................... 39
Problem : Hydraulic chute rotation is slow or does not turn............................................. 40
LUBRICATION................................................................................................................................ 41
TROUBLE SHOOTING............................................................................................................................ 42
STORAGE............................................................................................................................................... 43
PARTS .................................................................................................................................................... 44
54 "Snow Blower - Rear.................................................................................................................. 44
54 "Snow Blower - Front ................................................................................................................. 46
Chute and Electric Deflector ........................................................................................................... 48
Reduction Box –"4500184 and 4500228"....................................................................................... 50
Gear Box –"4500183" .................................................................................................................... 51
Female driveline–"4700044" .......................................................................................................... 52
WRRANTY ............................................................................................................................................. 53
TORQUE SPECIFICATION TABLE......................................................................................................... 54
ADAPTER INSTALLATION PROCESS................................................................................................... 55

SAFETY INFORMATION
OM 0495SB-A [5]
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children enter
the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine
or attachment even when the machine is
turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
Before Operation
1. Read and understand both the machine
AND implement operator's manual. Know
how to operate all controls and how to
stop the unit and disengage the controls
quickly. Lack of knowledge can lead to
accidents.
2. Park the machine/implement on level
ground, set the parking brake, lower the
implement to the ground, place all control
levers in neutral, shut off the engine and
remove the ignition key and allow the
rotating parts to stop BEFORE making
any implement adjustments, repairs or
inspections.
3. Keep clear of all rotating parts. Do not put
hands or feet under, or into snowblower
and subframe with engine running.
4. For your safety, do not work under any
hydraulically supported machine elements, they
may creep down, suddenly drop or be
accidentally lowered. Do not use loader, quick
hitch, or an implement as a jack for servicing.
5. Do not operate the machine/implement that is
defective or has missing parts. Make sure that all
recommended maintenance procedures are
completed before operating the unit.
6. Keep the machine/implement clean. Snow, dirt
or ice build-up can lead to malfunction or
personal injury from thawing and refreezing in
garage. Inspect and clean every rotating parts.
7. Do not modify or alter this implement or any of
its components, or any implement function
without first consulting your dealer. The
manufacturer will not claim responsibility for
fitment of unapproved parts and/or accessories
and any damages as a result of their use.
8. Verify that all machine/implement safety
protective devices are in place. Shields, guards
and covers must be correctly installed at all
times. When necessary to remove these for
servicing, cleaning, or repair work, they must be
reinstalled immediately.
9. Always make sure all implement components are
properly installed and securely fastened.
10.Check that all machine/implement drivelines are
in good working order.
11.Check for moving parts excessive wear
regularly. ALWAYS USE GENUINE PARTS
WHEN REPLACEMENT PARTS ARE
REQUIRED.
12.Prior to operation, clear work area and mark all
curbs, pipes, etc. that cannot be moved.
13.Inspect the machine/implement after striking any
foreign object to assure that all
machine/implement parts are safe and secure
and not damaged.
14.Handle fuel with care, as it is highly flammable.
Use approved fuel container.
15.Never add fuel to a running engine or a hot
engine.
16. Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors. Replace fuel cap securely
and wipe up spilled fuel. Always refuel using a
properly grounded system.

SAFETY INFORMATION
OM 0495SB-A [6]
17. Check all machine controls regularly and
adjust where necessary. Make sure that the
brakes are evenly adjusted. Periodically
check all nuts and bolts for tightness,
especially wheel hub and rim nuts.
18. Make sure the machine is counterweighted
and has tire chains for better traction and
stability as recommended by your dealer.
Weights provide the necessary balance to
improve stability, traction and steering. Use
only those recommended by your dealer.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a
suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises.
During Operation
1. Never allow anyone to operate the machine
and implement until they have read the
manuals completely and are thoroughly
familiar with their basic operation. Lack of
operating knowledge can lead to accidents.
2. Do not allow anyone to ride on the
machine/implement at any time. The only
one allowed is the operator that MUST sit in
the driver seat.
3. Never allow anyone near the work area. The
debris that can be thrown could cause
serious personal injuries.
4. Never stand alongside of the implement
while the engine is running.
5. Never operate the implement without safety
protective devices in place. All
machine/implement shields, guards and
covers must be correctly installed at all
times.
6. Keep clear of all rotating parts. Do not put
hands or feet under, or into the implement
with engine running.
7. If the implement starts to vibrate abnormally,
disengage the PTO, stop the engine
immediately and check for cause. Excessive
vibration is generally a sign of trouble.
8. Park the machine/implement on level ground,
place the transmission in neutral, set the parking
brake, disengage the driving system, lower the
equipment to the ground, place all levers
including auxiliary control levers in neutral, shut
off the engine and remove the ignition key
BEFORE LEAVING THE MACHINE.
9. Always drive the machine at speeds compatible
with safety, especially when operating over rough
ground, crossing ditches, slippery surface or
when turning.
10. Operate only with good visibility and during
daylight hours, or when the area is well lit with
bright artificial light.
11. Do not run the engine indoors except when
starting engine and transporting attachment in or
out of building. Carbon monoxide gas is
colorless, odorless and deadly.
12. Exercise extreme caution when operating on or
crossing agravel drive, walks, or roads.Stayalert
for hidden hazards or traffic.
13. Use extra caution when backing up.
14. Operate up and down (not across) intermediate
slopes. Avoid sudden starts and stops. Drive
machine backwards up steeper slopes with the
implement off. Then operate as you travel down
the slope.
15. Never park the machine on a steep slope. Do not
attempt to operate on steep slopes. If operating
on slopes is necessary, exercise extreme caution
when changing direction.
16. Disengage power to implement when
transporting or when not in use

GENERAL SAFETY INFORMATION
OM 0495SB-A [7]

GENERAL SAFETY INFORMATION
OM 0495SB-A [8]
(1) Safety stand
(2) Secure point for safety stand

SPECIFICATIONS
OM 0495SB-A [9]
Specifications
S1SB-54A
Cutting width
54"
Cutting height (Frame only)
21"
Cutting height (Vertical knives)
31"
Length
35"
Simple/double auger
Single
Diameter of the auger
12 3/4"
Spiral auger thickness
0.135"
Fan diameter
15 3/4"
Fan width
5 5/8"
Diameter of the auger drive
1.38"
Number of fan blades
4
Tractor RPM
2 100
Fan RPM
840
Auger RPM
168
Drive shaft PTO
7E
Skid shoes
Adjustable & replaceable
4 positions
Skid shoe material
Carbon steel
Thickness of the sides
3/16"
Snowblower botton thickness
12 Ga
Thickness of the contour of the tank
12 Ga
Fan contour thickness
12 Ga
Fan blade thickness
3/16"
Cutting edge
Replaceable, Steel CHT
Cutting edge dimension
1/4" x 2"
Parking stand
No
Type of hitch
4 pt hitch
Operating weight - hyd. Rotation. &
deflector
290 lb
Approximate Shipping Weight
525 lb
Deflector adjustement (standard)
Electric with motor
Chute rotation (standard)
Hydraulic with motor
Type of chute
2 parts

SAFETY LABELS
OM 0495SB-A [10]
IMPORTANT: Keep all decals clean and legible.
Replace all missing, illegible, or damaged decals.
IMPORTANT: Decal placement locations shown
are approximate; decals should not be placed in a
location where the operator’s field of view is
impeded and should not cover any portion of other
decals installed in the same vicinity.
INSTALLING OR REPLACING DECALS:
Thoroughly clean the area where decal is to be
placed using mild soap and water. Allow the
surface to fully dry. Remove the backing from the
decal, exposing the adhesive surface. Apply the
decal to the recommended position shown in the
diagram below and smooth out any bubbles.

ESTIMATED ASSEMBLY TIME
OM 0495SB-A [11]
Refer to the following table for the estimated assembly time to open the package and assemble the equipment
and options.
The assembly times of the table are only a reference under normal conditions according to the following
assumptions:
1. The assembly is done by a competent person who is familiar with the equipment.
2. The following tools and materials are prepared:
- Wrench set (flat wrenches)
- Ratchet & socket set
- Cutting pliers
- Security gloves
- Jack
- Jack stand
Snowblower 54"
S1SB-54A
Estimated initial installation time
35 - 45 min
2nd installation step (on the tractor)
4 - 6 min

ASSEMBLY
OM 0495SB-A [12]
SNOWBLOWER ASSEMBLY
The snowblower is assembled at the factory, however, the chute must be assembled and installed. Before
proceeding with assembly, separate all hardware according to their dimensions. When assembly is
complete, and unless otherwise specified, tighten all bolts referring to the torque table located at the end of
the manual.
TRACTOR PREPARATION
If applicable, remove the lawn mower from the tractor and front loader following the instructions in the tractor
owner's manual.
IMPORTANT: The front loader and the subframe must never be installed simultaneously on the tractor.
LUBRICATION: Use a high-quality grease designated "extreme pressure" and containing molybdenum
disulphide. This grease may specify "Moly EP" on its label.
WARNING
To avoid serious personal injury or
death:
Read and understand SAFETY
INFORMATION on previous pages before
installation and operation Perform all
assembly with the assembly properly
secured and supported.
WARNING
To avoid serious personal injury or
death:
Park the vehicle on level ground, place the
transmission in neutral, set the parking
brake, place all control levers in neutral,
shut off the engine, remove the ignition key
and allow the rotating parts to stop BEFORE
starting installation on the tractor.

ASSEMBLY
OM 0495SB-A [13]
Installation of the electric deflector (Figure 1)
1. Figure 1: Apply a light layer of recommended
grease to the teeth of the rack (item 1) and
insert the rack inside the rack guide (item 2) as
shown in the image on the left.
2. Figure 1: Fix the guide plate (item 5A), the
rack guide (item 2), the three spacers (item 6),
the second guide plate (item 5B) and the
electric motor (item 4) ) on the side of the chute
(item 7) using the three 1/4"NC x 2" hex bolts
(item 3) and the nylon insert locknuts (item 8).
3. Figure 1: Apply a light layer of recommended
grease inside the hole in the rack (item 1) insert
the ø3/8" x 19/32" pivot bearing (item 10) and
place two flat nylon washers (item 9A) between
the deflector and the rack, in order to leave a
slight play. Install the remaining nylon washers
(item 9B) on the other side of the rack.
IMPORTANT: The movements of the rack must
not be hampered by the nylon washers
(item 9).
4. Figure 1: Secure using the 1/4"NC x 1 1/4" hex
bolt (item 11), 1/4" flat washer (item 12), nylon
washers (item 9B), ø3/8" x 19/32" pivot pad
(item 10), nylon washers (item 9A) and 1/4"
nylon insert locknut (item 8) in the order shown.
N°
PARTS FIGURE 1
QTY
1
Rack
1
2
Rack guide
1
3
Hex bolt ø1/4"NC x 2"
3
4
Electric motor
1
5
Guide plate
1
6
Spacer ø3/8" x .721"
3
7
Chute
1
8
Nylon insert locknut ø1/4"NC
4
9
Flat nylon washer ø716"
3
10
Pivot pad ø3/8" x 19/32"
1
11
Hex bolt ø1/4"NC x 1 1/4"
1
12
Flat washer ø1/4"
1
Figure 1

ASSEMBLY
OM 0495SB-A [14]
Installation of the Chute (Figures 2-4)
1. Figure 2: Remove the gear protector (item 1)
by removing the four nuts, lock washers, flat
washer and bolts (items 2-3-4-5). Keep the
parts on hand.
2. Figure 3: Grease the underside of the
retaining plates (items 2-3) before installing
them.
3. Figure 3: Place the rotation pad (item 9) over
the outlet of the fan by placing the mark
(item 9A) up and to the left of the snowblower,
then place the chute (item 1) . Align the three
3/8" spacers (item 5) and the three 16ga
spacers (item 10) with the six holes on the
outlet of the fan and place the long retaining
plate (item 2) at the front and the two short
retaining plates (item 3) on the sides Secure
each with two 5/16” x 1 1/4” lg carriage bolt
(item 4) , flat waher , lockwashers and nuts
(items 6-7-8)
N°
PARTS FIGURE 2
QTY
1
Gear protector
1
2
Hex nut ø5/16"NC
4
3
Lockwasher ø 5/16"
4
4
Flat washer ø5/16"
4
5
Carriage bolt ø5/16"NC x ø3/4"
4
N°
PARTS FIGURE 3
QTY
1
Chute
1
2
Retaining plate -long
1
3
Retaining plate -short
2
4
Carriage bolt ø5/16"NC x 1 1/4"
6
5
Spacer
3
6
Flat washer ø5/16"
6
7
Lockwasher ø5/16"
6
8
Hex nut ø5/16"NC
6
9
Rotation ring
1
9A
Position indicator
-
10
Spacer
Figure 2
Figure 3

ASSEMBLY
OM 0495SB-A [15]
4. Figure 4: If the motor gear (item 2) is not fully
engaged in the teeth of the chute (item 3),
loosen the two right bolts (item 4). Turn the
hydraulic motor (item 1) so that the teeth of
the gear (item 2) connect as much as
possible with the teeth of the chute gear
(item 3). Tighten the bolts (item 4) to a torque
of 10 lb-ft (13 N-M). Do not use the Torque
Table at the end of the manual for these
bolts.
5. Figure 4: Install a green identification ring on
the hydraulic hose (item 5), and install a
yellow identification ring on the hydraulic
hose (item 6). Position the identification rings
as close as possible to the quick couplings.
NOTE: The two other identification rings will
be installed while connecting the snowblower
to the subframe.
6. Figure 4a: Place the gear protector (item 1)
on the frame and secure with the four
5/16"NC x 3/4" bolts, flat washers,
lockwashers and nuts (items 2, 3, 4 , 5)
N°
PARTS FIGURE 4
QTY
1
Hydraulic motor
1
2
Motor gear
1
3
Chute gear
1
4
Hex bolt. M6 x 1.00 x ø16mm PTD
3
5
Identification ring green
1
6
Identification ring yellow
1
N°
PARTS FIGURE 4a
QTY
1
Gear protector
1
2
Carriage bolt ø5/16"NC x ø3/4"
4
3
Hex nut ø5/16"NC
4
4
Lockwasher ø5/16"
4
5
Flat washer ø5/16"
4
Figure 4
Figure 4a

ASSEMBLY
OM 0495SB-A [16]
Installation of the verticle knives (Figure 5)
1. Secure the vertical knives (item 1) to the right
and left of the snowblower with two 5/16" x 1
1/4" carriage bolts (item 2), flat washers
(item 3) and stover nuts (item 4) as shown.
Installation of the hitch pins (Figure 6)
1. Figure 6:Insert each of the ø1" x 3 7/8" pins
(item 1) in the hole (item 2) on each side of the
snowblower frame.
2. Figure 6:Insert each of the 1/4" round locking
pins (item 3) into the hole (item 4) on each side of
the snowblower frame.
N°
PARTS FIGURE 5
QTY
1
Verticle knives
2
2
Carriage bolts ø5/16"NC x 1 1/4"
4
3
Flat washer ø5/16"
4
4
Stover nut ø5/16"NC
4
N°
PARTS FIGURE 6
QTY
1
Pin ø1" x 3 7/8"
2
2
Storage hole
-
3
Round locking pin ø1/4"
2
4
Storage hole
-
Figure 6
Figure 5

ASSEMBLY
OM 0495SB-A [17]
Installation of Electric Rotation Harness
# 4000174 (Figure 7)
1. Figure 7: Turn the chute all the way to the
right and attach the female connector of the
electrical harness for the deflector to the
electric motor. Secure the harness (item 1) to
the engine with a 1/4" x 15" nylon tie wrap
(item 2) as shown in the figure.
IMPORTANT: Be sure not to over tighten the
electrical harness with the nylon tie wrap.
2. Then cut the excess nylon tie wrap about 1/8"
from the tie.
3. Figure 7: Secure the electrical harness
(item 1) to the motor gear protector with the
nylon tie wrap (item 3) already installed in the
gear protector.
Figure 7

ASSEMBLY
OM 0495SB-A [18]
Electrical diagram of the snowblowers electrical deflector
