Raider RD-GLM09 User manual

USER’S MANUAL
www.raider.bg
RD-GLM09
Contents
2 BG схема
4 BG оригинална инструкции за експлоатация
19 EN instructions’ manual
33 RO instructiuni
47 SR uputstva za upotrebu
54 MK инструкции
69 EL
μετάφραση του πρωτοτύπου των οδηγιών χρήσης
RAIDER
garden tools


G
M





2www.raider.bg


2 4 7 8653

1
111214 131516
17
18

Прочетете ръководството преди употреба!
Refer to instruction manual / booklet!
BG Снимките са с илюстративна цел. Изобразеният модел може да не е напълно идентичен със закупената от вас машина.
EN The pictures are for illustration purpose. The pattern shown may not be exactly the same as the machine you purchased.
Носете защитен костюм!
Always wear a protective suit!
Носете защитни антифони!
Always wear hearing protection!
Носете защитна маска!
Wear dust mask!
Носете защитни очила!
Wear safety glases!
Носете защитни обувки с усилени подметки!
Always wear safety boots with reinforced soles!!
Носете защитни ръкавици!
Always wear safety gloves!

3



Пазете се от въртящите се елементите на машината. Изчакайте въртенето да спре напълно. След изключване ножовете продължават да се въртят по инерция и
могат да предизвикат наранявания. Не поставяйте ръцете или краката си в близост или под въртящите се елементи.
WARNING! There is a risk that stones and other objects could be thrown out by the lawnmower. Always keep other people, children and all domestic animals
at a safe distance
ВНИМАНИЕ! Когато косачката работи, пазете всяка част от тялото, далеч от работната зона на ножа
WARNING! When the mower is working, prohibited any part of body close to the work area of blade
ВНИМАНИЕ! Токсични изпарения; Не използвайте вътре!
WARNING! Toxic fumes; Don’t operate in door
ВНИМАНИЕ! Горивото е запалимо, дръжте се на пожар. Не добавяйте гориво, когато машината работи.
WARNING! Fuel is ammable,keep reaway.Do not add fuel when machine running.

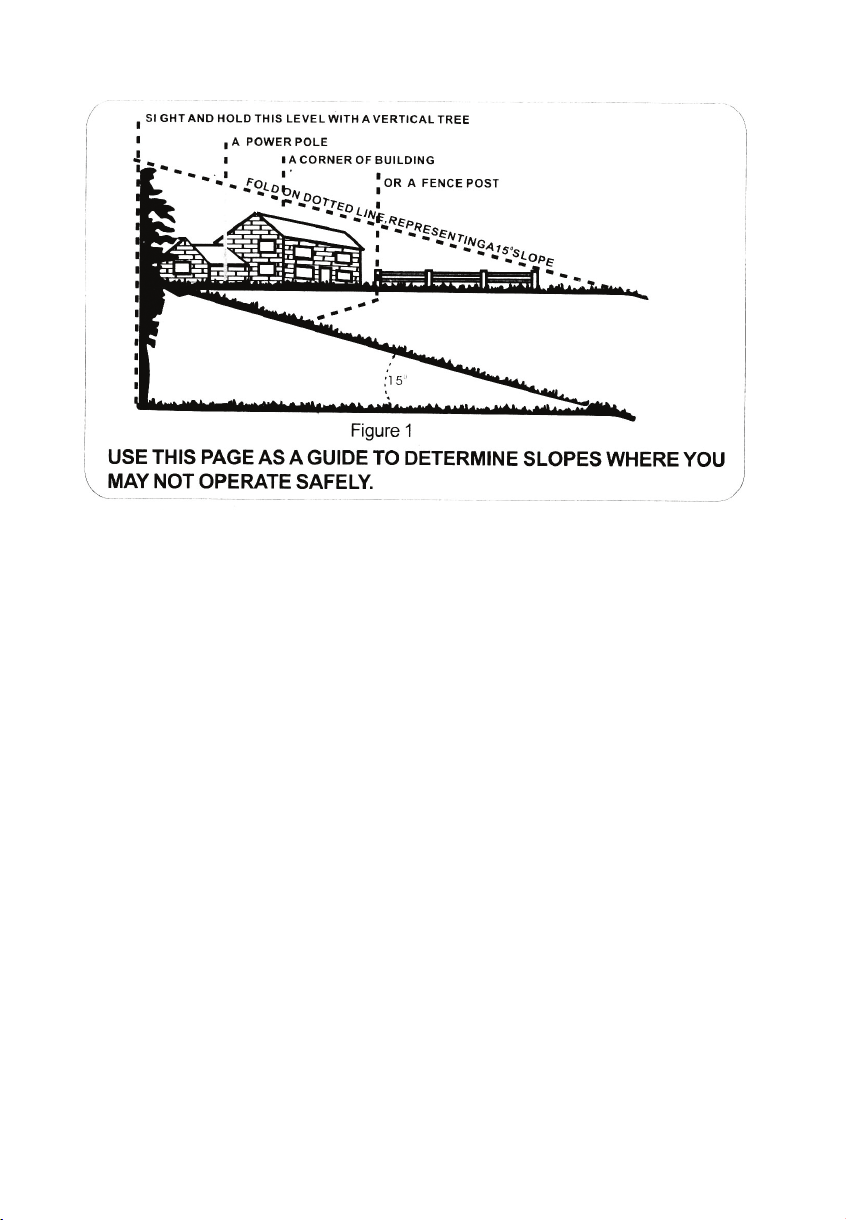

WARNING! Disconnect the wire of spark plug before cleaning transporting making any adjustments or leaving the lawnmower unattended., Never mowing on
the slope which gradient is more than 15 degree.
ВНИМАНИЕ! Изключете кабела на запалителната свещ, преди да почистите, транспорате, оставяте косачката без надзор или всяка друга
интервенция. Никога не косете при наклон на терена по-голям от 15
о
Внимание! Двигателя е горещ по време на работа и известно време след това!
WARNING! Engine hot.
ВНИМАНИЕ! Разчистете зоната за косене преди работа с косачката. Косете далеч от деца и други хора!
WARNING! Clear-up mowing area before operating mower, far away from children and other people.










































4www.raider.bg


          



 

            

            




        



           




 
 
Модел -RD-GLM09
Тип на двигателя -
бензинов,
четиритактов,
едноцилиндров
Гориво -безоловен бензин
Работен обем на двигателя cm3196
Максимална мощност на двигателя W 3200
Обороти на празен ход min-1 2800
Начин на стартиране на двигателя -ръчно
Обем на резервоара за гориво L 0.85
Обем на резервоара за масло L 0.45
Широчина на косене mm 510
Височина на косене mm 30-80
Обем на коша за трева L 65
Ниво на звуково налягане (LpA), K=3 dB 86.4
Ниво на звуково мощност (LwA), K=3 dB 96.2
Стойност на вибрационните ускорения (ah), K=1.5 m/s28.57
Степен на защита - IPX4
BG

5



    
         



          




        
              




            







           
          
  





6www.raider.bg
      







            

  







            


            


              




    

             














 
 

            





7
            
         





     






         




 




          









           






           











8www.raider.bg










           









            
              

          



             

         

            
         

            

          
  

           



    










9


         

        
          
         
             

         

           



           




























 



