Basic Splash Pad Installation Manual
Rev 11-15-11 V.7

Thank you for choosing a splash pad kit from Rain Deck. These kits are
designed to fit in a variety of applications and this manual is intended to
give you general installation instructions while allowing you to custom-
ize your splash pad to your needs. All of our Splash Pad kits are com-
pletely expandable!
If, during the course of installation you may require technical support or
have questions regarding the Rain Deck product, please feel free to
contact us.
Hours of operation are Monday through Friday 8:00am – 5:00pm Pacific time.
Thank you!
888-445-RAIN (7246)
www.raindeck.com
[e-mail]
Your Splash Pad Product and Installation Resource
Company Information

 Permits & Inspections
 Material List
 Kit Parts List
 Warnings
 Pre-Site Grading
 Plumbing Schematic
 Pressure Testing
 Concrete Preparation and Pour
 Housing/Nozzle Installation
 Above Ground Water Feature Installations
 Pump/Filter Plumbing
 Drain and Holding Tank Plumbing
 Electronic Controller
 Surface Material
 Start-Up
*Note: To ensure the proper installation of the splash pad kit, RainDeck highly
recommends that you use qualified, licensed tradesman for plumbing, concrete or other
tradesas required to complete the installation of the splash pad.
ALL ELECTRICAL CONNECTIONS MUST CONFORM TO NATIONAL AND
LOCAL ELECTRICAL CODES AND STANDARDS. A QUALIFIED,
LICENSED ELECTRICIAN IS REQUIRED TO PERFORM ELECTRICAL
CONNECTIONS.
Your Splash Pad Product and Installation Resource
Index

In some areas, it may be necessary to acquire permits and have
inspections on your splash pad installation.
Please verify the permit and inspection requirements with your
local city, county, state or other municipalities before you begin
the installation of your splash pad.
Some municipalities may require a design with specific details.
Rain Deck has an experienced design team that can assist with the
design and layout of your splash pad. Please call, email or visit
our website for details.
For a commercial splash pad, please call us at 888-445-RAIN.
Commercial splash pads almost always have additional
requirements!
Your Splash Pad Product and Installation Resource
Permits & Inspections

Although the Rain Deck splash pad kit contains most of the components
required to install your splash pad, there are additional materials that will
be needed before construction begins. Here is a general list of items that
will be required for installation:
 Rain Deck complete splash pad kit.
 Schedule 40, 3/4” or 1/2” PVC pipe (approximately 150 to 300 feet
depending on distance from manifold to splash pad).
 Schedule 40, 3/4” or 1/2” PVC fittings (T’s, elbows, couplings, 45’s,
etc).
 4” drain pipe and fittings for drain line(s).
 1 ½” schedule 40 PVC pipe (approximately 40’ to 80’ depending on
distance from tank to equipment).
 1 ½” schedule 40 fittings (elbows, couplings, 45’s).
 PVC primer and glue.
 Standard irrigation box for tank lid and additional irrigation box for
manifold unless wall mounted.
 Concrete and surface material if necessary.
 Electrical wiring and connections.
 Fresh water source for water leveler.
Your Splash Pad Product and Installation Resource
Material List

1. Rain Deck Housings (6, 8, 12, or 16)
2. Rain Deck Nozzles (6, 8, 12, or 16)
3. Rain Deck Nozzle Tool
4. Electronic Controller
5. 6” Drain Grate with strainer basket
6. 1 ½” 3-Way Diverter Valve
7. Rain Deck 150 Gallon Burial Grade Holding Tank
8. (2) 1 ½” & (1) 1/2” Bulk-Head Fittings
9. Auto Water Leveler for Tank
10. 1 ½” Check Valve
11. 1.5 HP Pool Grade Pump
12. 150 Square Foot Pool Grade Cartridge Filter
13. Float Chlorinator Dispenser
14. UltraPure UV Ozone Generator
Pool Tie-In Splash Pad Kits Includes Items 1 - 6.
Stand Alone Splash Pad Kits Includes Items 1 - 14.
Your Splash Pad Product and Installation Resource
Kit Parts List

The Rain Deck splash pad kit must be powered by a supply circuit that
is protected by a ground fault circuit interrupter (GFCI). A GFCI is
generally a minimum code requirement. A GFCI is required by most building codes and should be
provided by the installer and must be tested before each use. Installer should consult the GFCI
manufacturers’ instructions for correct installation and operation. All electrical components
should be properly bonded per national and local codes.
ALL ELECTRICAL CONNECTIONS MUST CONFORM TO NATIONAL AND
LOCAL ELECTRICAL CODES AND STANDARDS. A QUALIFIED,
LICENSED ELECTRICIAN IS REQUIRED TO PERFORM ELECTRICAL
CONNECTIONS.
DANGER – RISK OF ELECTRICAL SHOCK. Electrical
components for the Rain Deck splash pad kit should be Installed at least 10 feet (3m)
away from the splash pad surface. All electrical components should be properly
bonded per national and local codes. Do not permit any electrical apparatuses (ie. Radio, TV
etc.) within 10 feet (3m) of splash pad surface.
EXTREME CAUTION – Children should ALWAYS be supervised by a
responsible adult while using the Rain Deck splash pad. The splash pad drain
should never be plugged or restricted allowing for pooling of water on the splash pad area. The
surface of ANY Rain Deck splash pad installation should be designed to NEVER accumulate
more than 2 inches of water in the event the drain should be plugged or restricted. Due to this
requirement, larger splash pads may require more than one drain to meet proper slope guidelines.
CHEMICAL SAFETY – To ensure a safe water play experience, the water chemistry in
the Rain Deck holding tank should be checked before each use. Ensure that the water contains 3
-5 ppm of chlorine OR bromine and check that the UV ozone generator is properly working.
The UV Ozone generator DOES NOT replace the need for chlorine or bromine but must be used
together for optimal water sanitation. NEVER mix chlorine and bromine.
Your Splash Pad Product and Installation Resource
Warnings

Always check before digging to be sure the site is free from utility lines
or other obstructions. We recommend that you contact a local utility
detection company or call 811 within the United states to locate a
certified utility detection company in your area. It is recommended that
you spray paint the splash pad location, valve location, tank location,
p
lumbing runs, electrical runs and equipment location before
construction begins.

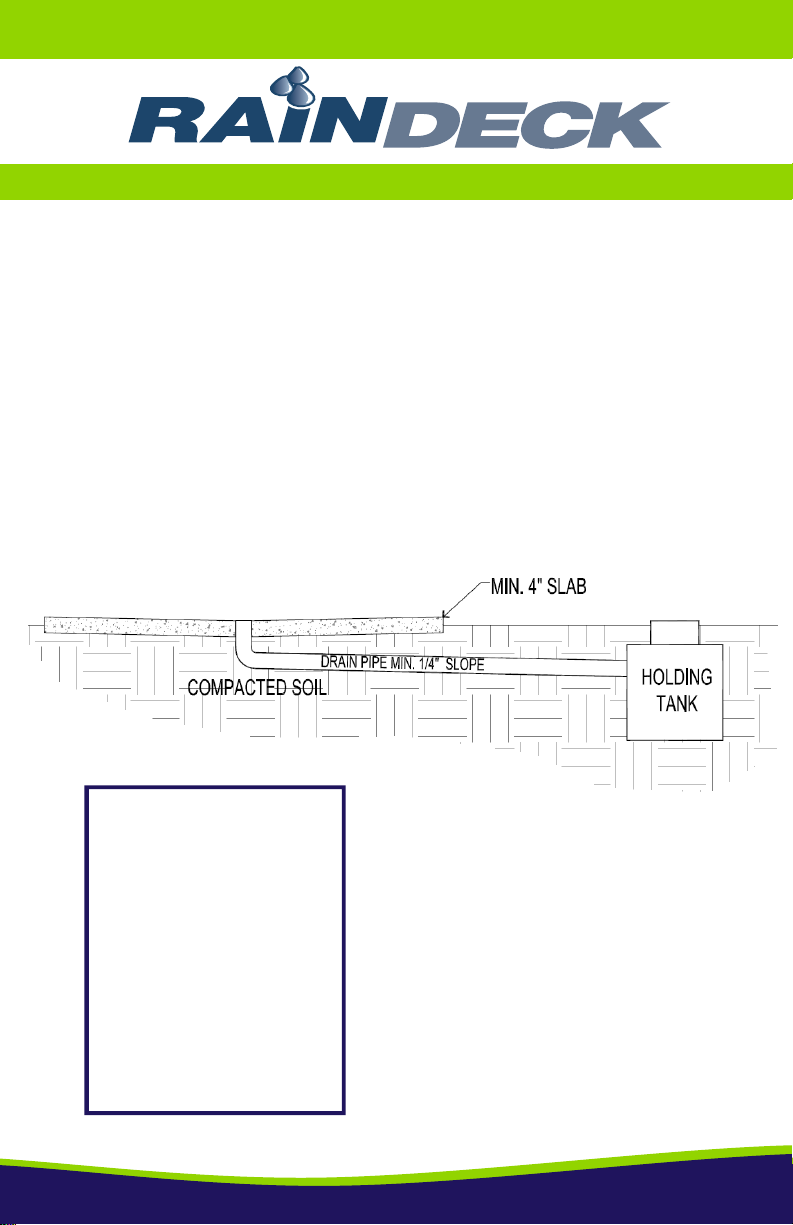

Excavate the splash pad area so that your finished concrete slab is at
desired elevation. Keep in mind that the concrete slab must be a
minimum of 4” thick or per local codes and guidelines.
Grade all other areas around the splash pad site so that water not
captured within the splash pad area will drain away from the splash pad.
Depending on site conditions,
other grading may be necessary.
Your Splash Pad Product and Installation Resource
Pre-Site Grading

Your Rain Deck electronic controller is designed to accommodate up to 8 zones.
Each zone (solenoid) will accommodate 1, 2 or 3 spray jets. Here is a simple
diagram illustrating the plumbing schematic for a 12 nozzle splash pad:
Trench each supply line a minimum of 6” below grade. Use 90º elbows to stub up
½” pipe at desired nozzle locations. We recommend using ½” flex pipe for stub-
bing up. This will allow for adjustability when setting the Rain Deck housings. If
your finished splash pad surface is concrete, you will need to set your nozzles be-
fore pouring concrete. However, if a surface material will be applied over the con-
crete (ie. Rubber, lace), we recommend using a 4” sleeve at the nozzle locations
and setting the Rain Deck housings as a separate step after the concrete has been
poured. SEE THE SECTION TITLED “HOUSING/NOZZLE INSTALLATION”
FOR DETAILS.
Be creative! Locate the spray nozzles in a pattern
that works best for you. Take caution to keep the
spray nozzles a minimum of 24” from the splash
pad edge. All plumbing between the manifold and
the spray nozzles is 1/2” or 3/4”, schedule 40 or
equivalent PVC pipe and fittings unless otherwise
recommended by Rain Deck.
Your Splash Pad Product and Installation Resource
Plumbing Schematic
PLUMB TO MANIFOLD (SOLENOID VALVES)
DRAIN
SPLASH PAD
SPRAY NOZZLES

Before covering any plumbing with hardscape or concrete, cap all spray
lines and pressure test the system. It is recommended the system be
pressurized between 20psi and 25psi for a minimum of 2 hours. Maintain
a pressurized system during the concrete phase of construction to be sure
no damage is done to the pipes.
Your Splash Pad Product and Installation Resource
Pressure Testing

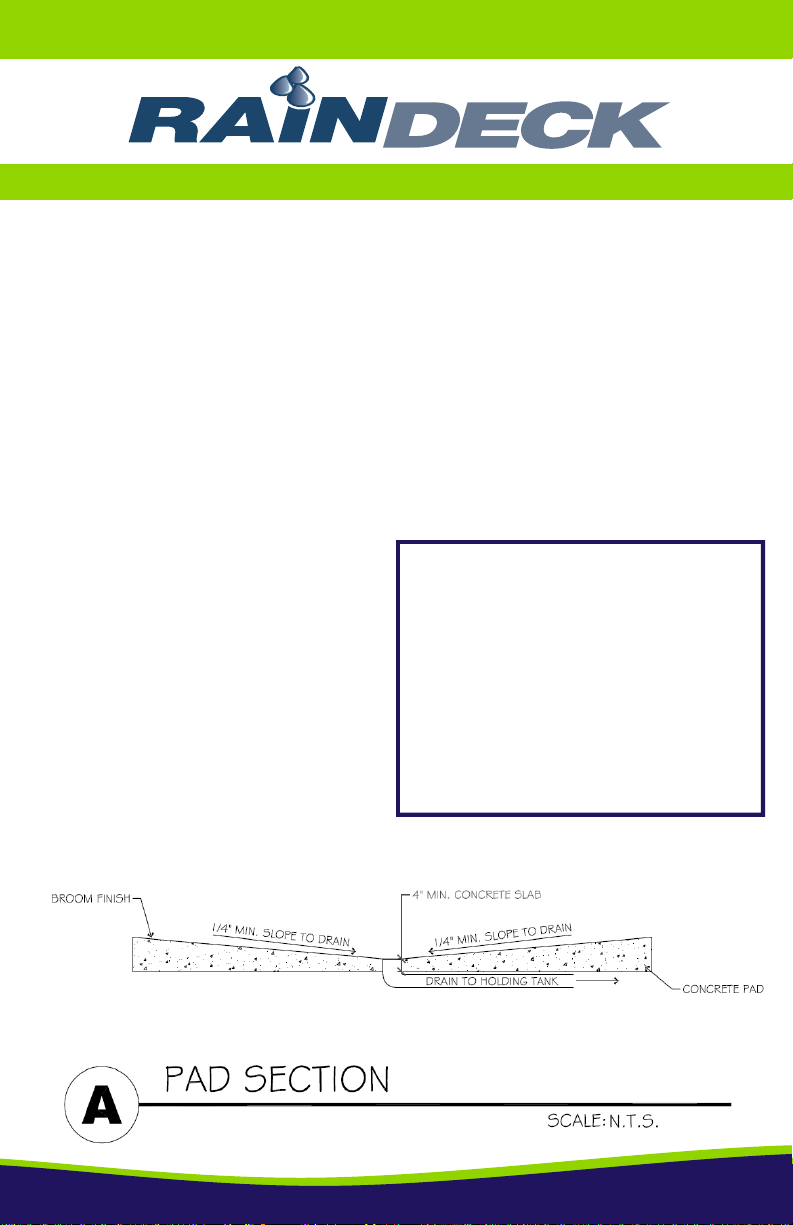

Prepare a proper subsurface grade to allow for a minimum 4” concrete slab with
a minimum slope of 1/4” per foot to the centralized drain(s). All plumbing
should be a minimum of 6” below subsurface grade or as per the local code re-
quirements. We recommend using steel mesh or rebar for concrete reinforce-
ment. Our design team can review your splash pad design to determine control
joints and/or reinforcement requirements. Depending on your area, your project
may have additional concrete requirements. Please check with a professional to
be sure you meet the minimum stan-
dards for a quality concrete slab.
If using sleeves, be sure they are in
place for all stubbed up supply lines.
NOTE: Some Rain Deck products including all above ground features require additional
preparation and footings that need to be complete before the concrete pour. See “Above
Ground Water Feature Installations” if this applies to you.
Your Splash Pad Product and Installation Resource
Concrete Preparation and Pour

NOTE: Please refer to the section heading “Surface Material”
before installing the Rain Deck housings.

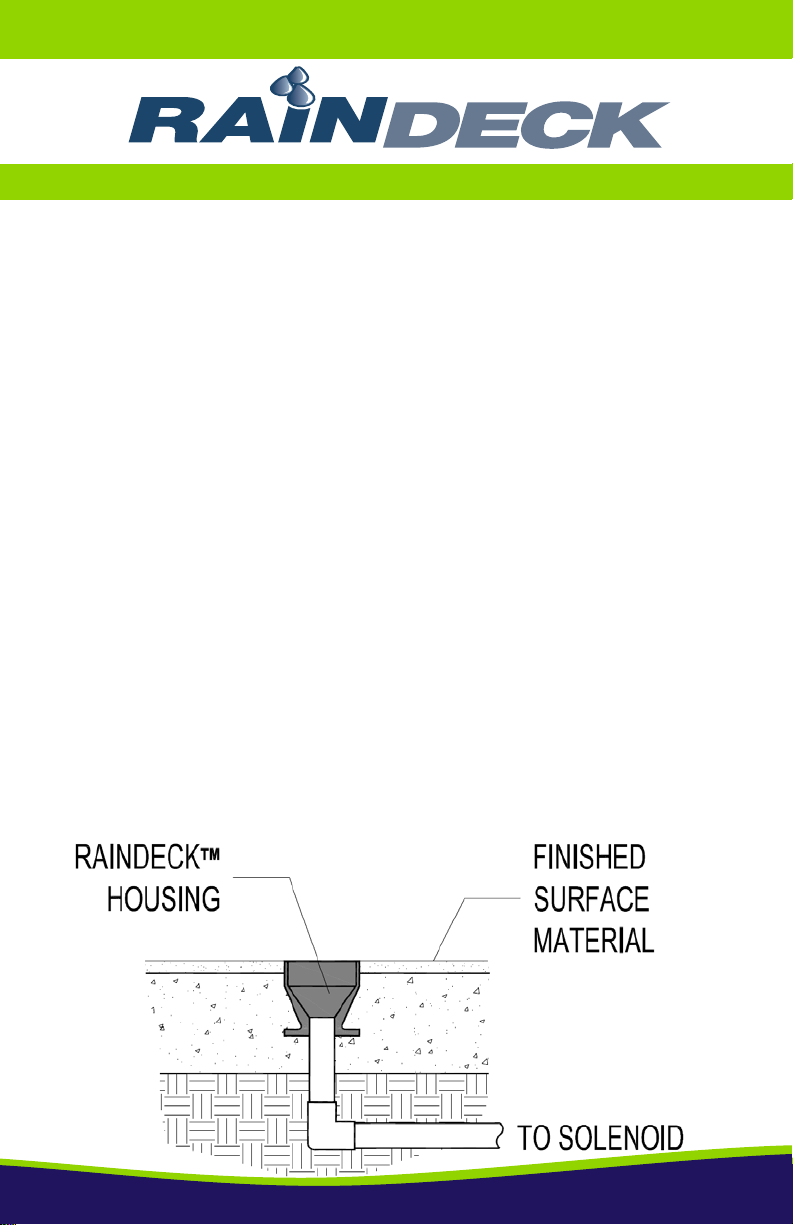

If your supply lines have concrete sleeves, pull the sleeves exposing
the concrete around the ½” risers. Cut the
½” PVC pipe to accommodate the proper
installation of the Rain Deck housing. The
½” riser should be cut so that when the
housing is installed, the top of the housing
will be flush with the top of the finished
surface material (ie. If ½” rubber surfacing
will be applied as a surface material, set the
housings ½” above the finished concrete).
After the Rain Deck housing has been connected to the supply line,
use mortar or a similar concrete
product to fill the void around the
housing. As the mortar sets up,
use a level to ensure that the
housing is level.
Take proper precautions to ensure
concrete or other debris does not get into the Rain Deck housing.
Your Splash Pad Product and Installation Resource
Housing/Nozzle Installation

Rain Deck above ground water features should include a plumbing/
footing detail. Please follow the specific instructions that came with
your above ground water feature.
If you do not have the install detail sheet for the above ground water
feature, please contact Rain Deck before attempting installation.
Your Splash Pad Product and Installation Resource
Above Ground Water Feature Installations

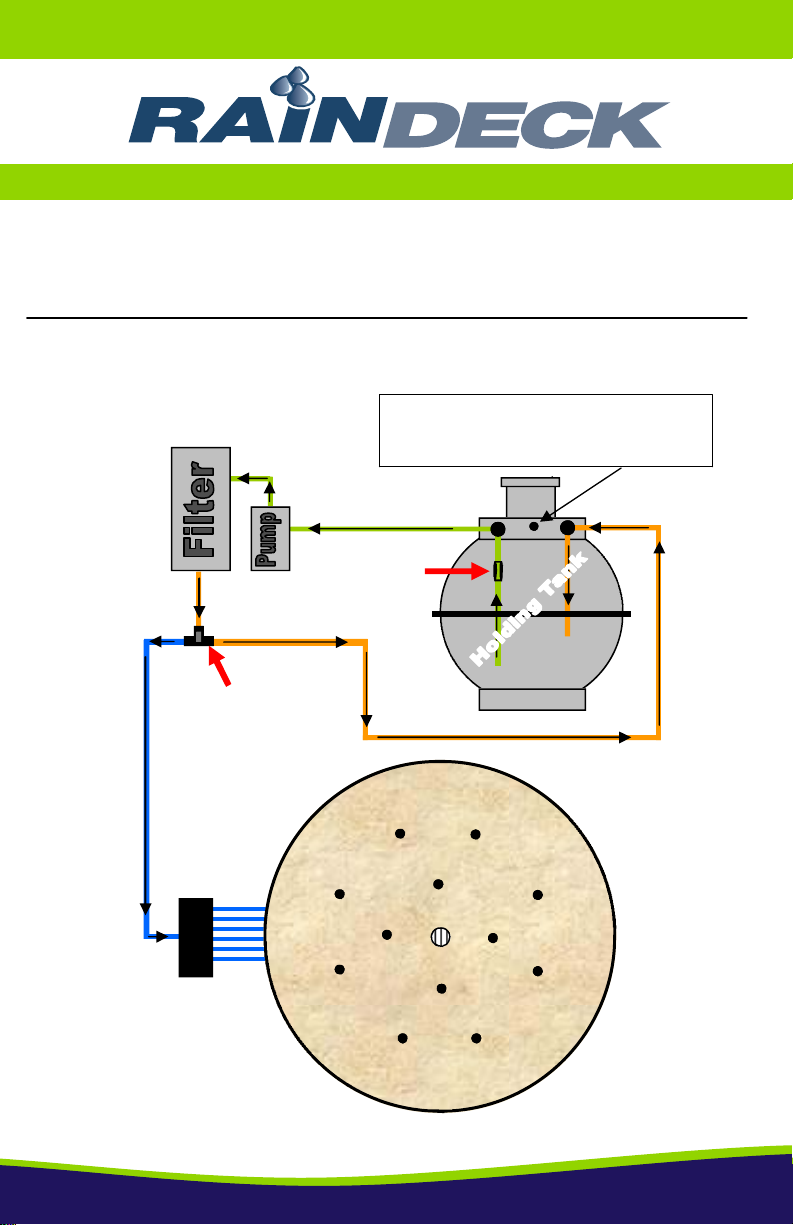

The splash pad system should be plumbed as shown in the following diagram:
NOTE: The pump should be located a minimum of 10 feet (3m) away from the splash
pad area and no more than 30 (9m) feet from the holding tank.
NOTE: The 3-way valve must be fully open to the bypass side and closed to the splash
pad side when starting up the system. Once the system is running, gradually open the 3-
way valve to the splash pad side until desired pressure is achieved.
*Rain Deck recommends using a qualified, licensed plumber during this stage of installation.
Your Splash Pad Product and Installation Resource
Pump/Filter Plumbing
Dedicated 1/2” water supply for water leveler. A
shut-off valve should be plumbed in an accessible
location for winterizing or emergency shut-off.
SUCTION LINE
TO SPLASH PAD
CHECK VALVE
3-WAY VALVE
MANIFOLD
RETURN TO TANK / BYPASS

When excavating for the tank hole, be sure to set the holding tank at a
depth that will accommodate for a minimum of 1/4” per foot slope of the
drain line. We recommend the tank be located on the outside perimeter
of the concrete so it will be accessible for servicing. On a standard
splash pad with less than 20 spray jets, use a 4” drain pipe. See the dia-
gram below.
Your Splash Pad Product and Installation Resource
Drain and Holding Tank Plumbing
NOTE: Before installing the splash pad drain line, check for a proper
fitting connection to the tank.

Your Splash Pad Product and Installation Resource
Electronic Controller*
The Rain Deck electronic controller should be wired according to
the 12 installation instructions on the following page. Please also
refer to the installation instructions that came with the electronic
controller.
*This stage of installation requires an experienced, licensed electri-
cian. Please do not attempt installing an electronic Rain Deck control-
ler unless you are an experienced, licensed electrician.
Please do not hesitate to call RainDeck for FREE technical assistance!

Please do not hesitate to call RainDeck for FREE technical assistance!
Your Splash Pad Product and Installation Resource
Electronic Controller*
Step 1:
Mount controller to vertical surface. This should be a rigid structure or wall.
Step 2:
Remove the 6 Phillips head screws around the perimeter of the front panel.
 Carefully lift the front panel making sure to not pull on the attached wire harness.
 If possible, support front cover without letting it hang from the wires and move onto step 3. If the front
cover cannot be supported, then it can be removed completely by removing the white connector (RD500
-0 only) and the red spade connectors on the cover.
Step 3:
Install the solenoid wires through the sealed plug/nut on the bottom of the box. You will need about 6 inches
of wire passed through the box. This nut may need to be loosened to pass the wires through.
Step 4:
Remove the green connector.
Step 5:
Strip approximately ¼ inch of jacket from each solenoid wire.
Step 6:
Begin installing hot leads on solenoids beginning with #1. (2), (4), (6), or (8) zones.
Step 7:
Using a sealed wire nut, combine all of the solenoid common wires together with a common wire in the cable
bundle (typically white). This will connect to the“C” (common) input on the green connector.
Step 8: (RD500-0 ONLY)
For a fresh water system (or rain diverter valve) you can connect the additional solenoid to an “H” (hot) and
“C” (common) input.
Step 9:
Route and plug in the green connector. Ensure that the solenoid wires are not making contact with the circuit
board.
Step 10:
Fasten the sealed plug/nut so that it creates a seal and clamps onto the solenoid wires.
Step 11:
Re-install the front cover and electrical connections.
Step 12:
Leaving the power off to the controller, plug the controller into a GFCI protected outlet or Rain Deck timer
box.
(RD550-1).

Your surface material can be anything from a non-slip broom finished
concrete to rubber surfacing. We recommend using a non-slip surface
material. Your surface material needs to be determined before setting the
Rain Deck housings. Determine the thickness of the surface material so
that when the Rain Deck housings are mortared into place, the top of the
housing will be flush with the top of the surface material.
When installing the surface material, take precautions to ensure no debris
enters the Rain Deck housings. Generally, taping off the opening on the
Rain Deck housing will be sufficient.
Ensure that the surface material does not interfere with the slope to the
drain. When installing the surface material, occasionally check for
proper slope to the drain.
The finished surface material should cover the entire pad and NOT leave
any gaps around the housings, drain(s) or other areas on the splash pad.
Your Splash Pad Product and Installation Resource
Surface Material

The last step to completing your splash pad is the start-up. At this stage,
all plumbing, electrical, concrete and surface material should be
complete. If the water source (i.e. holding tank, pool) is not yet full, fill
it up. Determine that the 3-way diverter valve is set to the bypass
position so that the water will be returned to the water source and not the
splash pad.
NOTE: The 3-way valve must be fully open to the bypass side and
closed to the splash pad side when starting up the system—failure to
do so may result in over heating the pump and causing damage.
To get the pump and filter primed and running properly, follow the
instruction manual that came with the pump and filter. In general, you
will need to fill the pump basket with water, secure the pump lid and run
the pump while bleeding air from the filter until completely primed.
Once the system is primed and running, slowly divert the water to the
splash pad using the 3-way diverter valve until the desired pressure is
achieved. This should be done before inserting the Rain Deck spray noz-
zles to cause any debris in the system to be flushed. Attach the Rain
Deck spray nozzles by screwing them into the Rain Deck housings.
CONGRATULATIONS! Your splash pad should now be complete.
If you have any questions during the start-up of your splash pad or
require troubleshooting assistance, please feel free to contact Rain Deck.
Your Splash Pad Product and Installation Resource
Start-Up
For Installation Support:
web: www.raindeck.com
email: [e-mail]
phone: 888-445-RAIN (7246)

For Installation Support:
web: www.raindeck.com
email: [e-mail]
phone: 888-445-RAIN (7246)
PROJECT NOTES
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
____________________________________________
