As part of Rexair’s Customer Care program, each Rainbow and Power Nozzle receives a Customer Care serial number
only after passing Quality Control assurance testing. This serial number provides:
For future reference, record the serial number in the space provided below. No authentic, new Rainbow or Power
Nozzle should be sold without this number. If the serial number is missing, Rexair makes no claim as to the origin,
age, or condition of the unit. If you are unable to locate a serial number on your Rainbow or Power Nozzle, please
contact Rexair’s customer service department.
Ownership identication for you
Warranty identication for your Distributor
Assurance of passing Quality Control testing
Assurance of“factory-fresh”condition
Model: e2 - 73 db(A)
YOUR AUTHORIZED RAINBOW DISTRIBUTOR
RAINBOW SERIAL NUMBER
NAME
ADDRESS
CITY/STATE/POSTAL
PHONE
EMAIL
Contact your
local Authorized
Rainbow
Distributor
for advice
on caring for
your Rainbow,
warranty
coverage,
replacement
parts and service
information.
BASED ONTHE PRINCIPLETHAT
Wet Dust Can’t Fly®
THE RAINBOW®USES
The Power of Water®
TO EFFECTIVELY REMOVE DIRT AND
AIRBORNE PARTICLES FROMYOUR HOME.

3
* Asthma & ALLERGY FRIENDLY and ASTHMA & ALLERGY FRIENDLY LOGO
are Certication Marks and Trademarks of ALLERGY STANDARDS LIMITED.
THE ASTHMA AND ALLERGY FOUNDATION OF AMERICA is a Registered
Trademark of AAFA.
Meets
ASP:03:03
Standard for
Vacuum Cleaners
A MESSAGE FROM REXAIR®
We would like to take this opportunity to
congratulate and thank you for choosing the
Rainbow Cleaning System.Your new Rainbow is
the result of more than 75 years of continuous
product research, development and ingenuity.
Today, Rainbow products are sold in all 50 states
and in more than 75 countries around the globe.
We believe the Rainbow is the most eective and
versatile home cleaning system available.
With proper use and care, the Rainbow will
signicantly improve your indoor living
environment and provide years of reliable
service. Please take a few minutes to review this
guide and familiarize yourself with your new
Rainbow Cleaning System.
Should you have questions or experience any
issues with your Rainbow, please contact the
Distributor or dealer from whom you purchased
your Rainbow. If you are unable to contact them,
feel free to contact Rexair’s customer service
department for assistance.
Rexair is a proud member of
the Direct Selling Association
and adheres to the DSA’s Code
of Ethics.
50 W. Big Beaver Road, Suite 350
Troy, Michigan48084
United States of America
[phone]
[e-mail]
rainbowsystem.com
The Rainbow®is certied
asthma & allergy friendly™
by the Asthma and Allergy
Foundation of America*
.
Rainbow®,RainbowMate®,RainMate®, AquaMate®, Rexair®, The Power of Water®,
Wet Dust Can’t Fly®and the congurationoftheRainbow®Cleaning System are
registered trademarks of Rexair LLC, Troy, Michigan, United States.

4
!WARNING:The electried hose contains electrical wires and should be inspected
regularly. Do not use if damaged, cut or punctured. Avoid picking up sharp objects.
Do not use or repair a damaged hose. Contact an Authorized Rainbow Distributor or
ServiceCenterforrepair.Do not immerse handle in liquidforcleaning.Useelectried
hoseonly with Rainbow accessoriesor on carpet moistenedbythe Rainbowcleaning
process. Always turn o this appliance before connecting or disconnecting the hose
or motorized nozzle.
!WARNING: Because of the danger of shock, any electrical appliance should be
used only as directed. There should be no unapproved use of any electrical product.
Electrical leakage and shorts can occur whenever there is electricity. If the user is
standing on the ground, in a basement or in a room where a lm of water can reach
the ground, severe shock could result.Therefore, use the Rainbow only as directed in
this Owner’s Manual.
!CAUTION: The Rainbow water basin will not trap materials that are resistant
to the wetting action of water, including oily or greasy compounds (such as soot or
ashes) and powdery substances (such as ceramic, drywall or plaster dust). Do not use
the Rainbow to pick up or in the vicinity of any volatile or toxic materials.
1. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
2. Unplug the Rainbow when not in use. Turn it o at the master switch before
unplugging.Grasptheplugtodisconnectitfromthewalloutlettoavoiddamage
to cord, plug, prongs or receptacle. Do not pull or carry by cord, use cord as a
handle, close a door on cord, pull or carry around sharp edges or corners. Do not
run appliance over cord. Keep cord away from heated surfaces. Do not use with
damaged cord or plug.
3. Do not leave appliance when plugged in. Unplug Rainbow from outlet when
unattendedandbeforeservicingorreplacingthe drivebeltinmotorizednozzles.
4. IfyourRainboworRainbowaccessory isindisrepair,donot attempttooperate.If
the Rainbow is not working properly, has been dropped, damaged, left outdoors
or dropped into water, contact an Authorized Rainbow Distributor or Service
Center for inspection.
5. DonotcleantheunitorunclogthehoseuntiltheRainbowisswitchedoandthe
plug is removed from the wall outlet.
6. Do not connect to the receptacle of an incandescent light xture or use any
extension cords. Do not use with portable transformers or voltage converters.
7. Do not use the Rainbow or Rainbow accessory to unplug drains. If sewer gas is
drawn into the Rainbow, it could cause an explosion.
!PLEASE READ ALL INSTRUCTIONS BEFORE USING THESE APPLIANCES
USE ONLY MANUFACTURER’S RECOMMENDED ATTACHMENTS
important safety instructions

5
8. Never touch a metal sink, cold or hot water pipe with one hand while touching
the metal parts of any electrical appliance, light xture or switch with the other
hand. Your body could complete an electrical circuit to the ground. Additionally,
wet skin surfaces can greatly increase this hazard. Do not handle plug or
appliances with wet hands.
9. (A) Do not put any objects into openings; Do not use with any openings blocked;
keep free of dust, lint, hair and anything that may reduce airow; (B) Keep hair,
looseclothing,ngersandall partsofthebodyfromopenings andmovingparts;
(C) Use extra care when cleaning on stairs.
10. Do not pick up anything that is burning or smoking, such as cigarettes, matches
or hot ashes. Do not use to pick up ammable or combustible liquids, such as
gasoline, or use in areas where they may be present.
11. To avoid the possibility of re or explosion, do not use Rainbow or Rainbow
accessories in areas where ammable and/or explosive vapor or dust is present.
Some cleaning uids can produce such vapors. Areas where ammable cleaning
uids have been used should be completely dry and thoroughly aired before
being vacuumed.
12. Thisapplianceisprovidedwithdouble insulation.Useonlyidenticalreplacement
parts. See instructions for servicing of double-insulated appliances.
13. The Rainbow is equipped with an interlock switch that prevents the unit from
operatingifthewaterbasinisnotproperlylatched.DONOTATTEMPTTOOVERRIDE
THIS SAFETY FEATURE.
14. Your Rainbow Power Nozzle contains a powerful revolving brush.To avoid bodily
injury, the Rainbow Power Nozzle should not be placed against or close to loose
clothing, jewelry, hair or body surfaces while Rainbow is connected to electrical
outlet. The Power Nozzle does NOT protect against bodily injury or damage to
objects that contact the revolving brush.
15. Toreducetheriskofelectric shock,thisappliancemayhaveapolarizedplug (one
blade is dierent than the other).This plug will t in a polarized outlet only one
way. If the plug does not t fully in the outlet, reverse the plug. If it still does not
t, contact a qualied electrician to install the proper outlet. Do not change the
plug in any way.
16. Ifthecord is damaged,turn o thepowerswitchon the Rainbowand unplug the
unit. Power cords must be replaced by an Authorized Rainbow Distributor.
17. Do not operate any fan with a damaged cord or plug. Discard fan or return to an
Authorized service facility for examination and/or repair.
18. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from trac area and where it will not be tripped over.
19. This is a professional high-power piece of equipment and can cause
electromagneticinterference.Pleasecontactyourlocalutilitycompanyregarding
any special supply connection requirements.
SAVE THESE
INSTRUCTIONS USE THE RAINBOW ONLY AS DIRECTED IN THIS OWNER’S MANUAL
rainbowsystem.com

6
1. CordWrap
2. ExhaustVent Plate
3. Exhaust Air Opening
4. Airow Adapter
5. Power Selector Switch
6. Handle
7. Power Unit
8. Air Inlet Opening
9. Water Basin Latches
10. Attachment Caddy
11. Separator Nut
12. Separator
13. Water Basin
14. Dolly
15. Dolly Foot Latch
16. HEPA Neutralizer
17. Conned Space Cleaner &
InatorTool
18. Refrigerator Coil Cleaner
19. Floor &Wall Brush
20. Cushion Bag (Not shown)
21. CleaningWands
22. Pistol Grip Hose Handle
23. Hose HandleTrigger
24. Hose HandleWand
25. Airow ControlVent
26. CreviceTool
27. Dusting Brush
28. UpholsteryTool
29. Electried Hose
30. Power Nozzle*
* Shown with optional Power Nozzle
To purchase accessories or replacement parts,
please contact an Authorized Rainbow Distributor.
1
5
9
17
29
2
6
10
14
18
22
26
30
3
7
11
19
23
27
4
8
12
16
28
21
24 25
13
15
SERVICING OF DOUBLEINSULATED APPLIANCE
In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is
provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a
double-insulated appliance requires extreme care and knowledge of the system and should be done only by qualied
Rainbow service personnel. Replacement parts for a double-insulated appliance must be identical to the parts they
replace. A double-insulated appliance is marked with the words“DOUBLE-INSULATION”or“DOUBLE-INSULATED.” The
Symbol (square within a square) may also be marked on the appliance. Any servicing other than cleaning should be
performed by an Authorized Rainbow Distributor or Service Center.
get acquainted with your rainbow®

7
Power Selector Switch
The power selector switch controls the speed of the Rainbow’s motor.
HIGH: Use this setting for general cleaning.
OFF: Turns the entire unit o.
LOW: Use this setting for cleaning the air. (See page 13.)
Trigger Lock Switch
The hose handle’s trigger lock switch controls the functionality of the electried hose when using the Power Nozzle,
RainbowMate, RainJet and AquaMate.
FORWARD POSITION: Locks trigger - power is o.
MIDDLE POSITION:(Recommended) Squeeze trigger to activate or release to turn
o  .
BACKWARD POSITION:Trigger is locked - power is on.
Airow ControlVent
The airow control vent on the hose handle can be opened or closed to control airow when vacuuming delicate
items such as curtains and to make the Power Nozzle easier to push on dense carpet. As you clean, you can quickly
determine the proper adjustment.
REDUCED AIRFLOW:Keep vent open and adjust as needed for dierent cleaning
jobs.
FULL POWER:Keep vent fully closed for maximum cleaning performance.
Attachment Caddy
Bring along your most used tools as you clean from room-to-room using the
convenient onboard Attachment Caddy. Attach to the front of the Rainbow by slipping
over the front of the housing into notches located on either side. Press downward to
lock in place. Attachments are stored by slipping them over the posts on the caddy.The
attachment caddy can also be attached to the wand.
power & control at your fi ngertips

8
quick-start guide
In just a few quick steps, you’ll have your Rainbow assembled and ready to begin cleaning.
1. Fill water basin…
Start with cool water from the faucet. Fill the water basin until the top of the dome in the bottom of the basin
is covered. Overlling or under lling will reduce cleaning performance.Water should be replaced when water
action is visibly reduced.
2. Clamp Rainbow to water basin…
Align and set the Rainbow on top of the water basin. Hook the two water basin latches on each side of the
Rainbow to the rim of the water basin and snap up. To disconnect from water basin, release the two clamps and
lift Rainbow. The Rainbow will not operate without the water basin attached.
3. Place Rainbow on dolly…
Place Rainbow with water basin attached on dolly, matching the protruding end of the Rainbow with the
protruding end of the dolly as shown. A foot latch locks Rainbow into place.To release, press foot latch.
4. Attach hose…
Press hose coupling into air inlet opening of power unit until hose clicks.To remove, squeeze both latches and
pull hose from power unit.
5. Connect Wands…
Insert the male end of one wand into the female end of second wand. Press wands together until button lock
clicks.To disconnect, press button on wands and pull apart.
6. Connect hose-handle wand…
Insert the hose-handle wand into the female end of top wand. Push until button lock clicks.To disconnect,
press button on wand and pull apart.
7. Select an attachment…
Determine what type of cleaning you will be performing (see chart on page 11), then insert the desired
attachment into the bottom wand or pistol grip hose handle wand. Button will lock into hole on either wand.To
disconnect, press button on wand and pull o.
8. Plug in the Rainbow and turn on…
Plug the power cord into your most convenient wall outlet. Select HIGH for maximum cleaning performance.

9
1
2
1
2
1
3
5
7
2
4
6
8

10
proper use & care
Change the water when dirty…
Do not clean too long with one lling of water. Check water during cleaning,
and if water becomes too thick with lint and dirt, empty water basin and add
fresh, clean water.The correct water level is the top of the post in the center of
the water basin. Never ll the water basin above this post.
Always empty and clean the water basin…
Immediately after using the Rainbow, remove the water basin and pour out the dirty
water through the air intake opening. Heavier particles will settle to the bottom
of the basin as the water is poured. Once water is poured, remove the remaining
heavier debris and dispose.Then wash the water basin with soap and water. Rinse
and dry thoroughly. Do not store the Rainbow on top of the water basin.
!CAUTION: Always remove, empty and wash the water basin when
cleaning job is nished.This helps to avoid odors, growth of germs and bacteria, and
the development of water scum in the basin. Hand wash only. Not dishwasher safe.
Clean the separator…
For best performance, remove and clean the separator frequently. If necessary, use
the supplied Rainbow Separator Brush/Wrench to loosen the nut. Clean separator
inside and out with soap and water using the Rainbow Separator Brush. Clean and
dry the ange under the separator. Immediately after cleaning, dry and replace
the separator. Hand-tighten the separator nut. Do not force the separator onto the
threaded shaft.
!WARNING: Always replace the separator immediately after cleaning
(hand-tighten only). Do not operate the Rainbow without the separator.
Clearing an obstruction from the hose…
If you notice decreased airow when using the hose, the hose may have become
clogged.To clear obstruction, turn o Rainbow and disconnect from power source.
Then, remove the exhaust vent door on the rear of the Rainbow. Connect the hose
coupling to the exhaust air opening, making sure both latches are locked. Place the
hose handle wand into the air intake opening on the front of the Rainbow.Turn the
Rainbow on and jiggle the hose. Any dirt stuck in the hose will be trapped in the
Rainbow water basin.
Following a few basic maintenance routines will help provide you with years of trouble-free service from your
Rainbow Cleaning System. Neglecting all or part of these instructions may lead to decreased cleaning eciency and
potentially unnecessary service expenses.

11
a complete home cleaning solution
Cleaning the attachments…
The oor and wall brush, dusting brush and upholstery tool can be whisked
clean with the open end of Rainbow hose while Rainbow is running; or remove
attachment and clean in warm, soapy water. Allow to dry before replacing. If
bristles wear out or become damaged, contact your local Rainbow Distributor
for replacement.
Using the Airow Adaptor…
The Rainbow Airow Adaptor reduces air noise through the air inlet opening.
It is recommended to use the adaptor when the Rainbow is used as a blower
or inator. Simply snap the Airow Adaptor into the air inlet opening before
using the Rainbow as a blower or inator.
The Rainbow’s wide assortment of cleaning tools provide the power and versatility to clean practically everything
around your home.
ATTACHMENT Furniture Between cushions Window Treatments Stairs Bare Floors
Carpeted
Floors &
Rugs Walls Hard-to-Reach Spaces
Dusting Brush  
UpholsteryTool   
CreviceTool    
Floor andWall Brush   
Power Nozzle*  
RainbowMate*  
RainJet* 
Squeegee* 
Rexafoamer* 
Inator / Conned-
Space Cleaner  
* Available as an optional accessory. For more information, contact an Authorized Rainbow Distributor.
!CAUTION: Always clean attachments before using on fabrics.To avoid abrasions to delicate surfaces, keep
the dusting brush bristles clean.
!CAUTION: Do not use attachments to clean at-screen televisions or computer screens.

12
a complete home cleaning solution

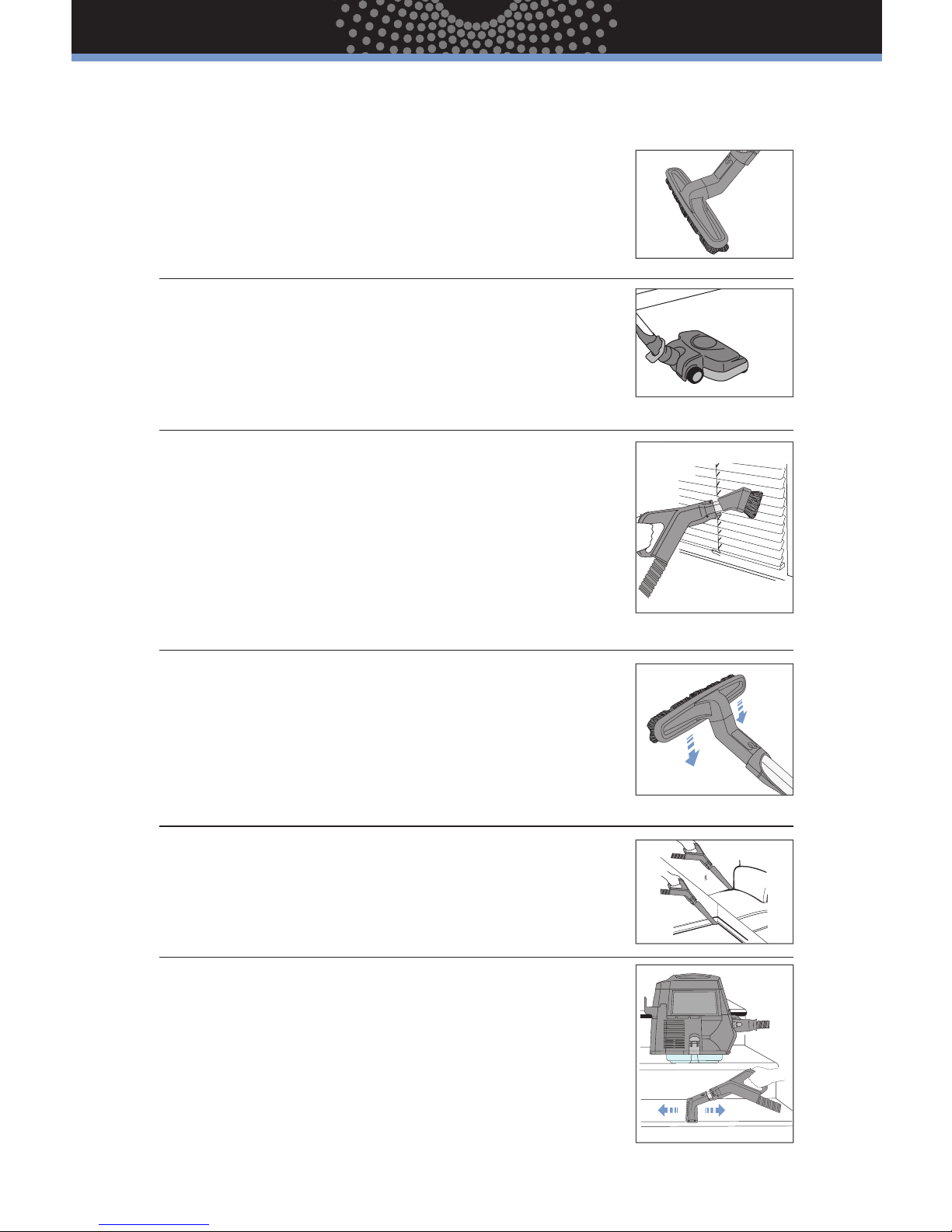

To clean bare oors…
Use the oor & wall brush. For clean and attractive looking hardwood oors and
linoleum tile, the oor and wall brush does an outstanding job of removing surface
litter and dirt. Consistent use will help prevent scratches caused by oor debris. Set
Airow Control to FULL POWER.
To clean carpeted oors…
Use the Power Nozzle.™* The lightweight Rainbow Power Nozzle removes dirt from
deep within your carpet and large rugs. Its powerful revolving brush loosens lint,
threads, hair and dirt, leaving your carpet soft and clean. Active brush edge cleaners
help remove dirt trapped along carpet edges, along baseboards or next to furniture.
Set Airow Control to FULL POWER.
To dust…
Use the dusting brush.Because the Rainbow traps dust in water and releases only
water-washed air back into the home, your home will require less dusting. However,
to keep your home thoroughly clean, don’t forget to dust overlooked places such as
windowsills, picture frames, venetian blinds, lamp shades, lighting xtures, moldings,
houseplants, hats, clothing, screens, drapes and curtains. On lamp shades and similar
fragile objects, reduce the suction by opening the Airow ControlVent. For delicate
objects, airow may be further reduced. TIP:Attach the dusting brush to the optional
extended hose*to reach ceiling fan blades, cornice boards and cobwebs.
To clean walls…
Use the oor & wall brush. All walls … papered, paneled or painted … stay
cleaner longer when dust and dirt are removed regularly. Start from the ceiling and
make your way to the oor, using slow downward strokes. For best results, allow
only the top edge of brush to contact the wall.With a slight space between the
wall and bottom edge of brush, dust is removed before the bristles touch it, thus
avoiding streaks. Set Airow Control to FULL POWER.
To clean narrow spaces…
Use the crevice tool. Use the crevice tool to clean in narrow and tight spaces, such
as between radiator sections, under radiators, along oor edges and baseboards
and deep down between cushions. Set Airow Control to FULL POWER.
To clean carpeted stairs…
Use the upholstery tool. To clean carpeted stairs, remove the Rainbow from the
dolly. Allow the Rainbow to rest solidly on the stair above the one you are cleaning.
Grasp the handle and move the Rainbow one step at a time as you continue
cleaning each stair. Invert the upholstery tool 90 degrees to clean stair risers. Set
Airow Control to FULL POWER.
* Available as an optional accessory. For more information, contact an Authorized Rainbow Distributor.

13

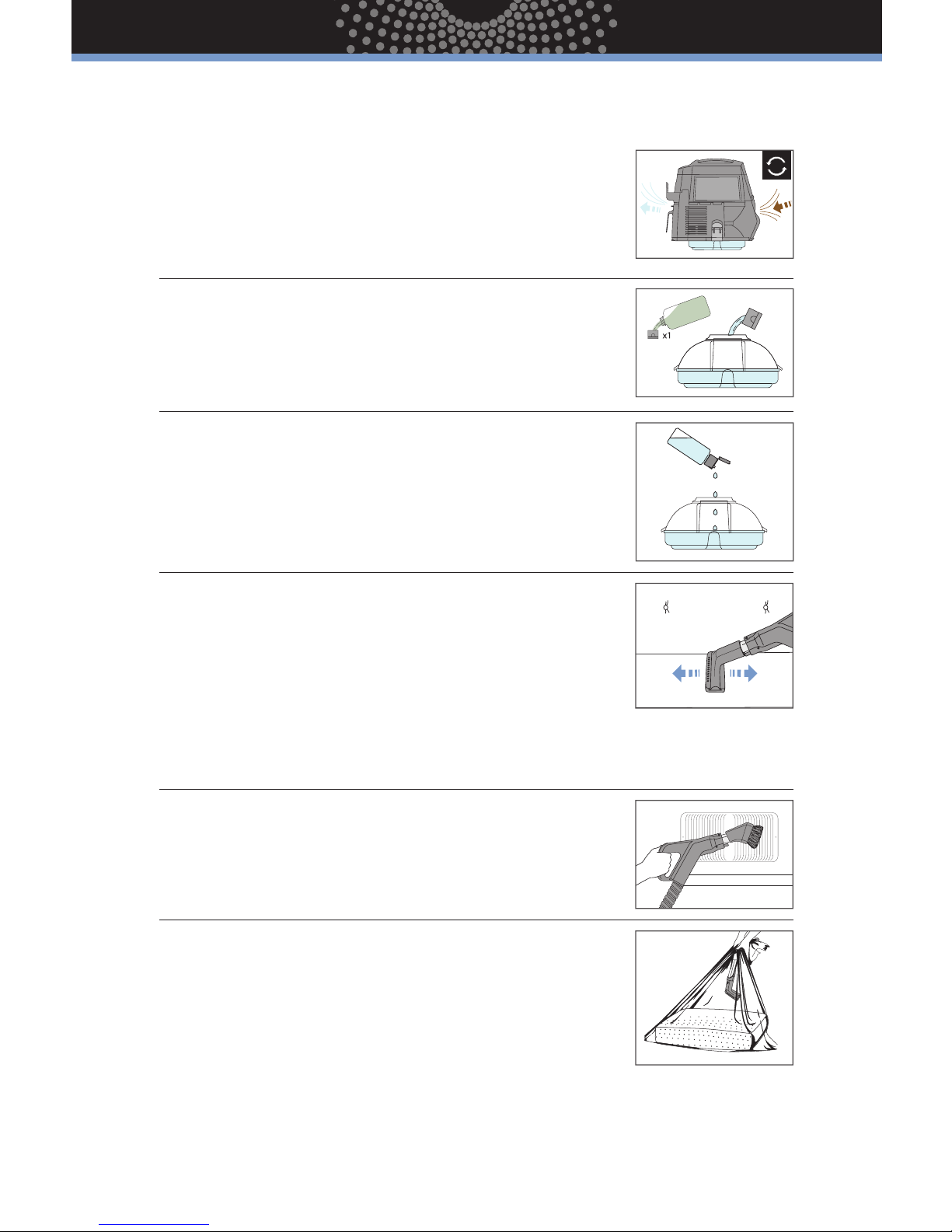

For fresh, water-washed air…
The Rainbow not only cleans your oors and furnishings, it cleans the air! Simply
add water to the basin, position the Rainbow in the center of a room and run
in low-speed mode for about one hour.The Rainbow will remove heavy odors,
airborne dust and other particles from the air, trapping them in the water.
To deodorize…
Use Rainbow Fresh Air Solution.*Before using the Rainbow, simply add one capful
of Rainbow Fresh Air Solution to the water in the basin.The Rainbow will quickly
circulate and refresh the air in the entire area while you clean, alleviating many
objectionable household odors.
To aromatize…
Use Rainbow fragrances*. Add a few drops of any Rainbow fragrance to the water in
the basin. Place the Rainbow in the center of the room and run in low-speed mode. In
a matter of minutes, a pleasant fragrance will permeate your home.
To clean furniture fabric…
Use the upholstery tool. Deeply embedded dirt can reduce the life and vibrancy
of fabric.The Rainbow UpholsteryTool eectively removes dirt from upholstered
furniture.With Rainbow’s exclusive jet brush attached, surface litter and pet hair
disappears like magic. Use the upholstery tool on sofas, chairs, mattresses, pillows,
blankets, closet shelves, drapes and curtains.The upholstery tool may be used
alone or with the Jet Brush attached. TIP:This tool is also great for gently cleaning
clothing and outerwear - including wool, fur coats and delicate fabrics. Adjust
Airow Control to t your cleaning situation.
To clean vents…
Use the dusting brush. Floor and ceiling vents collect and recirculate dust
throughout your home.The soft dusting brush bristles get in between the vent
slots, easily removing stubborn dirt and trapped debris. Set Airow Control to FULL
POWER.
To u cushions and pillows…
Use the cushion bag. This handy plastic bag removes stale, dusty air from cushions
and pillows and is sized to t even your largest cushions. Begin by placing a cushion
in the bag.With the upholstery tool attached to end of hose handle wand, hold the
cushion bag tightly in place around the wand, turn on the Rainbow and watch as
stale, dusty air is sucked out.Without letting go of the bag at the wand, disconnect
the hose from the front of the Rainbow and attach to the Rainbow’s exhaust air
opening. Your cushion is now being“ued”with clean, water-washed air.
a complete home cleaning solution

14
To inate or blow air…
Use the inator tool. The Rainbow inator tool works great for quickly inating air
mattresses, beach balls and other inatable toys.
!WARNING: Be sure inator pin is properly locked in place. If not, it will be
blown forcefully from the tool body.
INSTRUCTIONS:
1. Remove the rear exhaust panel on the Rainbow.
2. Attach Rainbow hose to exhaust opening.
3. Attach Inator Tool to hose handle wand end.
4. Set Airow Control Setting to FULL POWER.
5. Attach inator tool to hose handle.
6. Carefully insert the inator pin into the inator stem of the object to be
inated.
7. Turn Rainbow switch to HIGH.
a complete home cleaning solution
To freshen bedding…
Use the Rainbow Power Nozzle. Mattresses, box springs, bed frames, pillows, cots
and sleeping bags can be thoroughly cleaned with the Rainbow Cleaning System.
Use the Rainbow Power Nozzle to loosen and eliminate hairs, dead skin, dust mites,
crumbs and other particles from your bedding. Caution: Use of the Rainbow Power
Nozzle on ne linens and soft bedding may cause damage.
To clean tight areas…
Use the conned-space cleaner. For detailed cleaning of extra dicult-to-reach
areas, use the conned-space cleaner.This versatile tool can be used with either the
inator pin or exible coil cleaner, depending on your specic cleaning situation.
TIP:The conned-space cleaner works great for detailing the interior of your
vehicle.
To clean under refrigerators…
Use the coil cleaner. One of the most commonly overlooked areas when cleaning
the home is underneath the refrigerator. Refrigerator cooling coils attract dust
and crumbs, and can become less eective and energy-ecient when covered in
dirt. Due to its slender design, the coil cleaner can be used to easily vacuum o the
visible cooling coils of your refrigerator and underneath your washer or dryer.
BLOWER MODE
SUCTION MODE
INFLATOR PIN

15
enhance your rainbow®with accessories
The AquaMate carpet cleaning extraction unit allows
you to achieve professional results without the
professional price tag.The AquaMate works eectively
on most carpet types and dries quickly. Stains caused
by spilled beverages, pets and tracked mud can be
removed quickly.Your neighbors will think your carpets
were professionally cleaned. Use with AquaMate Carpet
Cleaning solution for superior cleaning results.
The RainbowMate’s sleek, lightweight design allows
you to access and clean smaller surfaces such as stairs,
upholstery and vehicle interiors.The RainbowMate
has a motor-driven brush for maximum cleaning
performance.
Goes where no mop has ever gone before.The RainJet’s
self-contained, large-capacity solution tank allows
superior cleaning for those bigger cleaning jobs.
The Sponge and Brush attachments can be used
interchangeably on tile or linoleum oors to scrub away
embedded dirt and debris. Flip the Sponge over and the
Squeegee Pickup Blade leaves oors spotless. Use with
Clean Floor solution for superior cleaning results.
Ready for a Breath of Fresh Air?The RainMate gives you
sweet-smelling air in the most practical, unique and
attractive manner possible. Simply add a few squirts of
your favorite Rainbow fragrance or Rainbow Fresh Air
solution into the RainMate water basin and experience
the great outdoors.
For more information about these products, please contact an Authorized Rainbow Distributor.
Jumbo Floor & Wall Brush
The 14-inch wide Jumbo Floor &Wall Brush covers a
larger area, allowing you to clean large surface more
quickly.
4-Quart (3.76 Liter) Water Basin
The 4-QuartWater Basin is available for larger cleaning
jobs, allowing you to clean for longer periods without
changing the water.The 4-Quart water basin ts the
Rainbow dolly and doubles the cleaning capacity of the
Rainbow.
Extended Hose
The 14-foot Extended Hose provides additional reach
when using Rainbow attachments and the Power
Nozzle. Convenient for cleaning large stairways and tall
ceilings.
Rexafoamer
The Rexafoamer creates“dry”suds from liquid shampoo.
Your rugs and carpets can be shampooed inexpensively,
yet professionally, right in the home. Use with
Rexafoamer Shampoo solution for superior cleaning
results.

16
1
2
Contact an Authorized Rainbow
Distributor for replacement Power Nozzle
belts and other supplies.
the rainbow®power nozzle™ *
!WARNING: To avoid risk of electrical shock, NEVER pick up water or any other uids with the Power Nozzle.
!CAUTION:Use the Power Nozzle for dry pick-up only. Do not use outdoors or on wet surfaces.
!CAUTION: Never pick up hard or sharp objects with the Rainbow Power Nozzle. Items such as pins, hairpins,
tacks, crayons and pencil stubs may cause damage to the brush roll or belt.
!CAUTION: Always make sure your Rainbow is unplugged before attaching your Power Nozzle.
!CAUTION: Always disconnect unit from electrical supply when servicing.
!CAUTION: Do not oil motor.The motor is permanently lubricated and sealed.
!CAUTION: Consult ooring manufacturer prior to using the Rainbow Power Nozzle on bare hard surfaces.
Then test the Power Nozzle in an inconspicuous location to verify the ooring is not damaged by use.
The lightweight Rainbow Power Nozzle removes dirt from deep within your carpet, large rugs and hard surface oors.
Its powerful revolving brush loosens lint, threads, hair and dirt, leaving your carpet soft and clean. Adjustable rollers
allow you to adjust the Rainbow Power Nozzle height as needed for various cleaning surfaces. Set Airow Control to
FULL POWER.
Adjustable Rollers…
The Rainbow Power Nozzle features adjustable rollers
on both sides that allow you to maximize cleaning
performance.
LOW: Typical setting for most carpets and surfaces.
HIGH: For deep pile carpeting and special applications.
* Available as an optional accessory. For more information, contact an Authorized Rainbow Distributor.

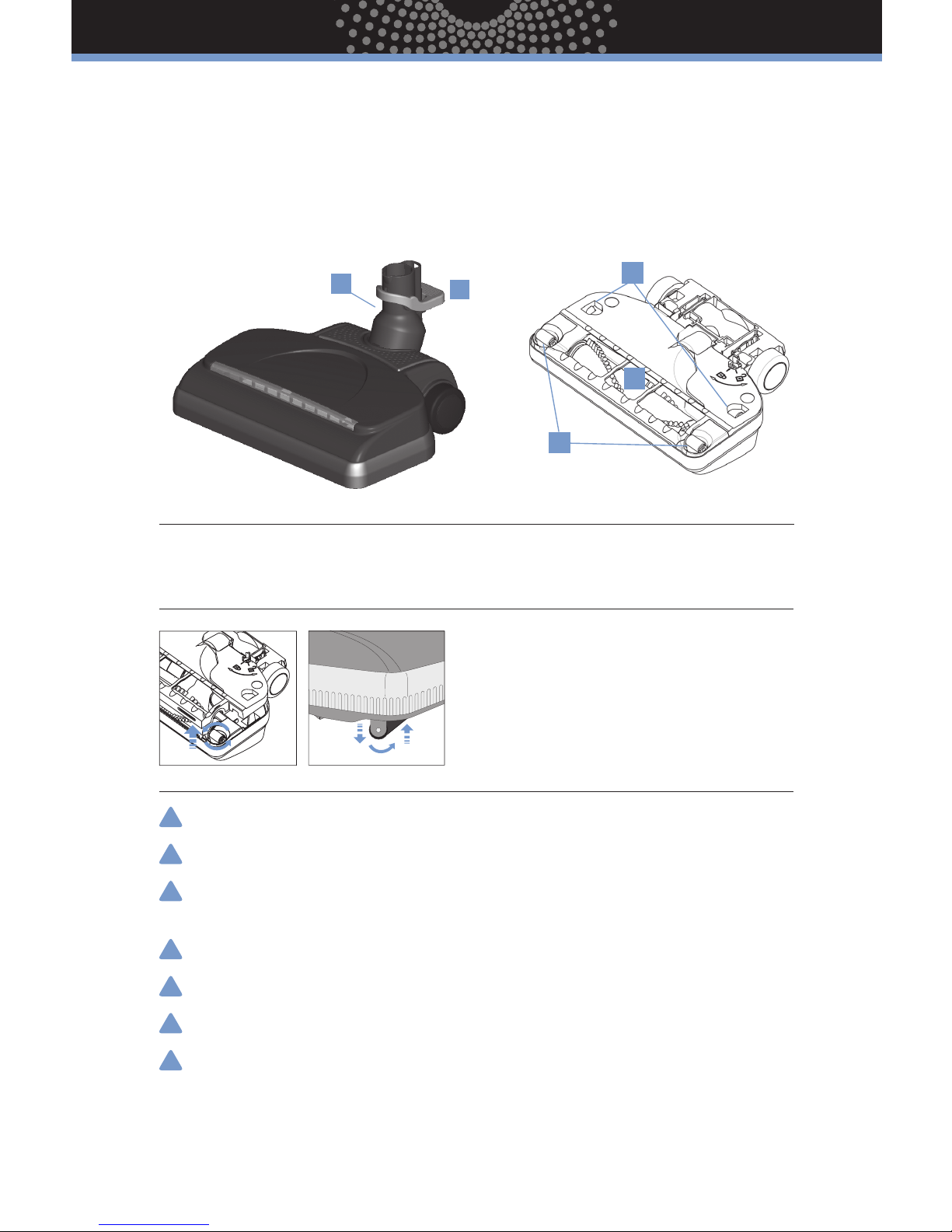

1. Foot Release
2. Pivot Arm
3. Adjustable Rollers
4. Brush Roll
5. Sole Plate ReleaseTabs
3
4
5

17
power nozzle™assembly & operation
Assembly
a. Prior to using the Power Nozzle, follow
the Quick Start Guide on pages 8-9 to
preparethe Rainbow.
b. Insert the bottom wand with male end
into the opening located on top of the
Power Nozzle. Press downward until
button lock clicks.
Operation
a. Plug in the Rainbow.
b. Turn the Rainbow power switch to
HIGH mode.
c. On the hose handle, turn the Airow
Control Vent to FULL POWER.
d. To disengage from the upright position,
place your left foot on top of the Power
Nozzle. Next, grasp the wand assembly
and pull backward.
e. Squeeze the trigger on pistol grip hose
handle to activate the Power Nozzle.
Release trigger to turn Power Nozzle o.
Optional: Use the trigger lock switch.
(See page 7.)
f. Guide Power Nozzle slowly back and
forth over carpet with free and easy
strokes. Let the Power Nozzle and
Rainbow do the work.
g. To lock Power Nozzle into the upright
position, place your left foot on top of
the Power Nozzle. Next, grasp the wand
assembly and push forward until wand
system is fully engaged in locking tabs.
h. To disconnect the Power Nozzle from the
wand, place your foot on the foot release
above the pivot arm.
1
3
5
7
2
4
6
8
9

18
replacing the power nozzle™belt
!WARNING: Always disconnect from
electrical supply when servicing.

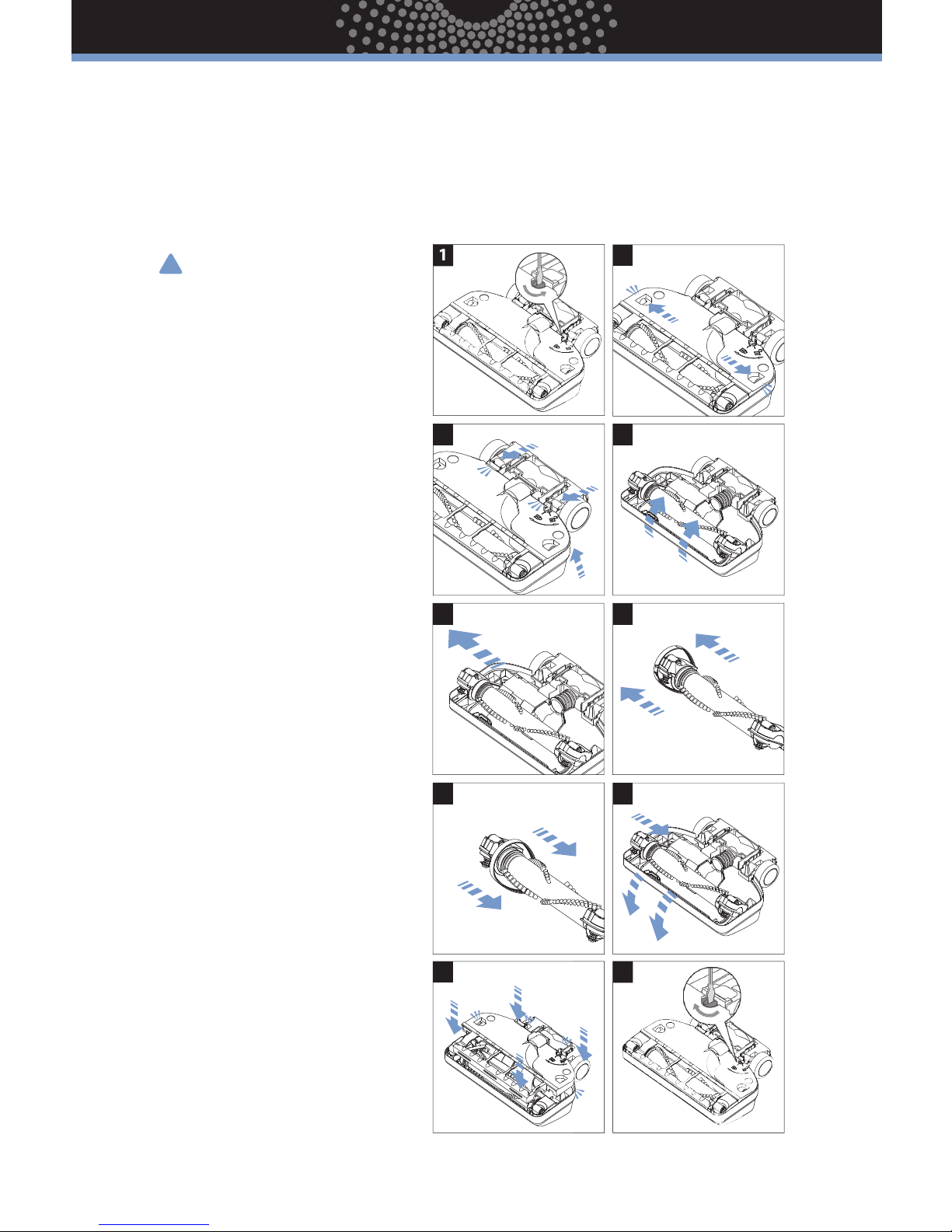

1. Turn the Power Nozzle upside down. Using
a at-bladed screwdriver or coin, turn
the fastener a quarter-turn to the left
(counterclockwise).
2. Using both thumbs, push tabs on both sides
of sole plate outward while lifting to unlock.
3. Next, insert index ngers into two side
openings near wheels. Pull side tabs up
while pushing in to lift o sole plate.
4. Rotate brush roll assembly forward (note
that rollers are upside down) and remove.
5. a) Slide worn or broken belt o motor
shaft with nger; b) Lift brush roll out and
remove worn belt.
6. Place new belt over the end of brush roll
assembly. Position new belt around the
pulley.
7. a) Place brush roll upside down with rollers
centered on top of two side tabs. Slide belt
over end of motor shaft; b) Rotate brush roll
assembly forward until rollers are face up.
Spin brush roll toward you to position the
belt on the center of the pulley.
8. Position sole plate over top of Power Nozzle
cover. Press down until front, two side tabs
and back tabs snap and lock in.
9. Using a at-bladed screwdriver or coin,
turn the fastener a quarter-turn to the right
(clockwise) to lock sole plate. Assembly is
complete.
For best performance, we recommend you replace your Rainbow Power Nozzle belt every 12 to 18 months, or when
you notice decreased cleaning performance.Your Power Nozzle comes with one replacement belt, and can be easily
changed in just a few minutes.This replacement belt is located in the spare belt pocket under the sole plate. For
additional replacement belts, contact an Authorized Rainbow Distributor.
12
34
67
89
5a 5b
9
1

19
INDICATOR
LIGHT CODE POTENTIAL CAUSE CORRECTIVE ACTION
Continuous
Light Unit is turned on while hose handle trigger is in
“locked-on”position (Power
Nozzle will emit pulsing sound).
Release hose handle trigger lock for
3 seconds.
Resume normal use.
Blinks 2 Times,
Repeats Power Nozzle brush roll is obstructed.
Turn unit o / unplug unit.
Remove debris from Power Nozzle
brush roll.
Resume normal operation.
Electrical connections are wet. Turn unit o / unplug unit.
Dry electrical connections.
Resume normal operation.
If the corrective action does not
x the problem:
Contact an Authorized
Distributor or Service Center.
Blinks 4 Times,
Repeats Electrical connections are wet. Turn unit o / unplug unit.
Dry electrical connections.
Resume normal operation.
If the corrective action does not
x the problem:
Contact an Authorized
Distributor or Service Center.
Blinks 6 Times,
Repeats Electrical hose or wand connection problem.
Contact an Authorized
Distributor or Service Center.
user troubleshooting guide
Your Rainbow® is equipped with a feature that disconnects the power to the accessory hose under certain
abnormal conditions.
