RAK RAK8213 User manual

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
1
RAK8213 With Mini PCIe EVB
User Manual
Shenzhen Rakwireless Technology Co., Ltd
www.rakwireless.com
[email protected]
© 2018 Rakwireless all rights reserved .
Mentioned in this document , the actual company and product
names, trademarks are their respective owners.
After update the new version, this document without prior notice.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
2
Contents
1. Required materials(hardware,tools)......................................................................................................................... 3
2. Introduction.............................................................................................................................................................. 4
3. Use USB Control RAK8213.................................................................................................................................... 5
4. Use UART Control RAK8213................................................................................................................................. 7
5. Use Hologram SIM Card to Connect Network........................................................................................................ 9
5.1 Register Hologram......................................................................................................................................... 9
5.2 Activate SIM card........................................................................................................................................ 10
5.3 Send Data..................................................................................................................................................... 12
5.4 Receive Data................................................................................................................................................ 14
6. Contact information................................................................................................................................................16
7. Change Note........................................................................................................................................................... 17

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
3
1. Required materials(hardware,tools)
RAK8213 x1
Mini PCIe EVB x1
PC x1

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
4
2. Introduction
This document mainly describes how to use the Mini PCIe EVB to test the RAK8213. This document
may involve some information about the BG96 module. Please check the BG96 related documentation
for this information.
The main contents of this document include:
1. How to use the USB interface to send commands to the BG96 module?
2. How to use the UART serial port to send commands to the BG96 module?
3. How to use the Hologram SIM card to connect to the network?

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
5
3. Use USB Control RAK8213

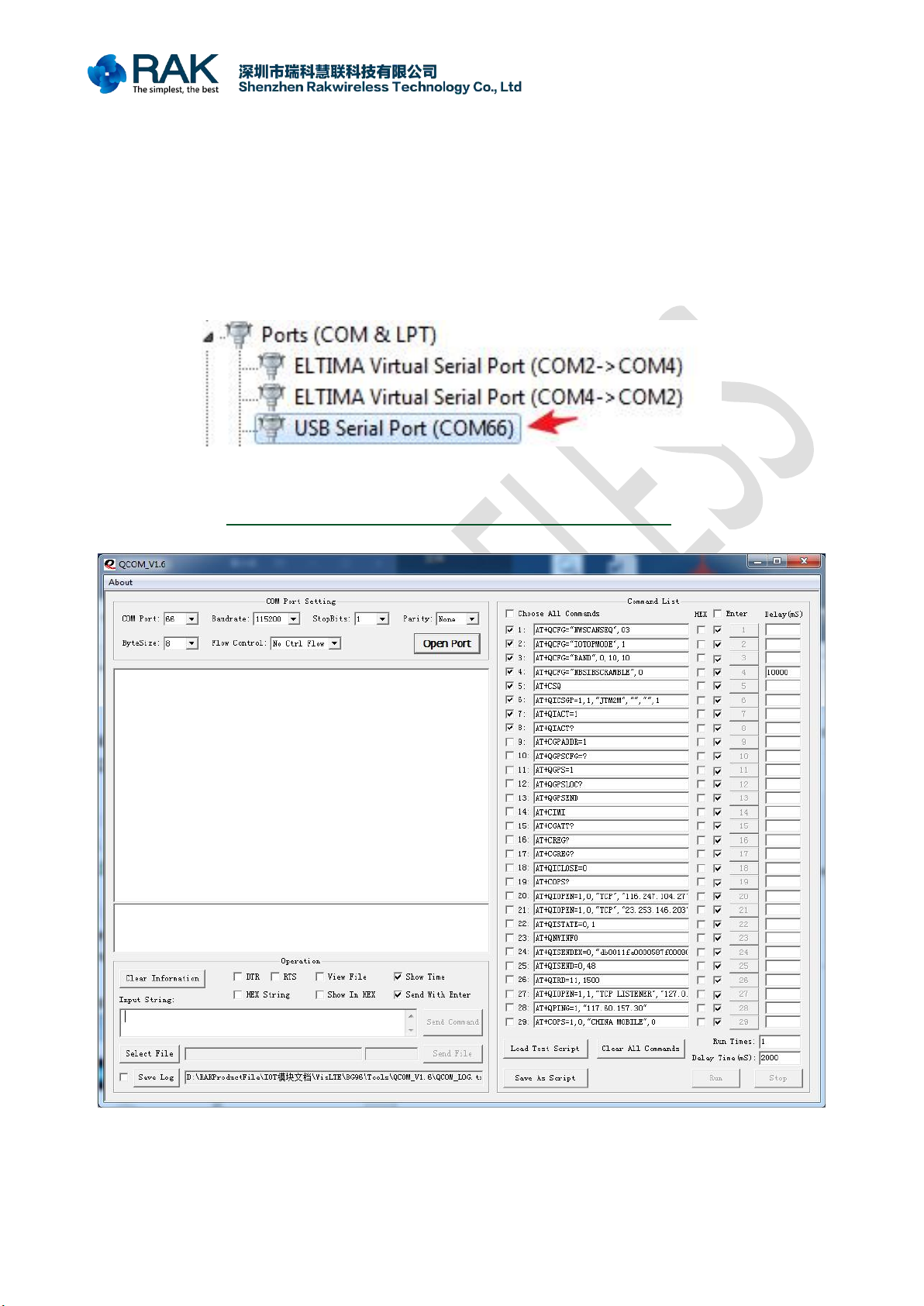

Plug the RAK8213 into the corresponding interface of the Mini PCIe EVB. Then use a Micro USB
cable to connect the EVB to your computer. (Currently only supports Windows), Then, in your computer
device management you can see the device shown below.
If your computer does not have this device, you may need to install the BG96 USB driver. Driver
download address see official website:
http://docs.rakwireless.com/en/WisLTE/Tools/Quectel_BG96_Windows_USB_Driver_V1.0.zip
Open the serial port tool and select the serial port number of AT Port. This tool can be downloaded
here: http://docs.rakwireless.com/en/WisLTE/Tools/QCOM_V1.6.zip

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
6

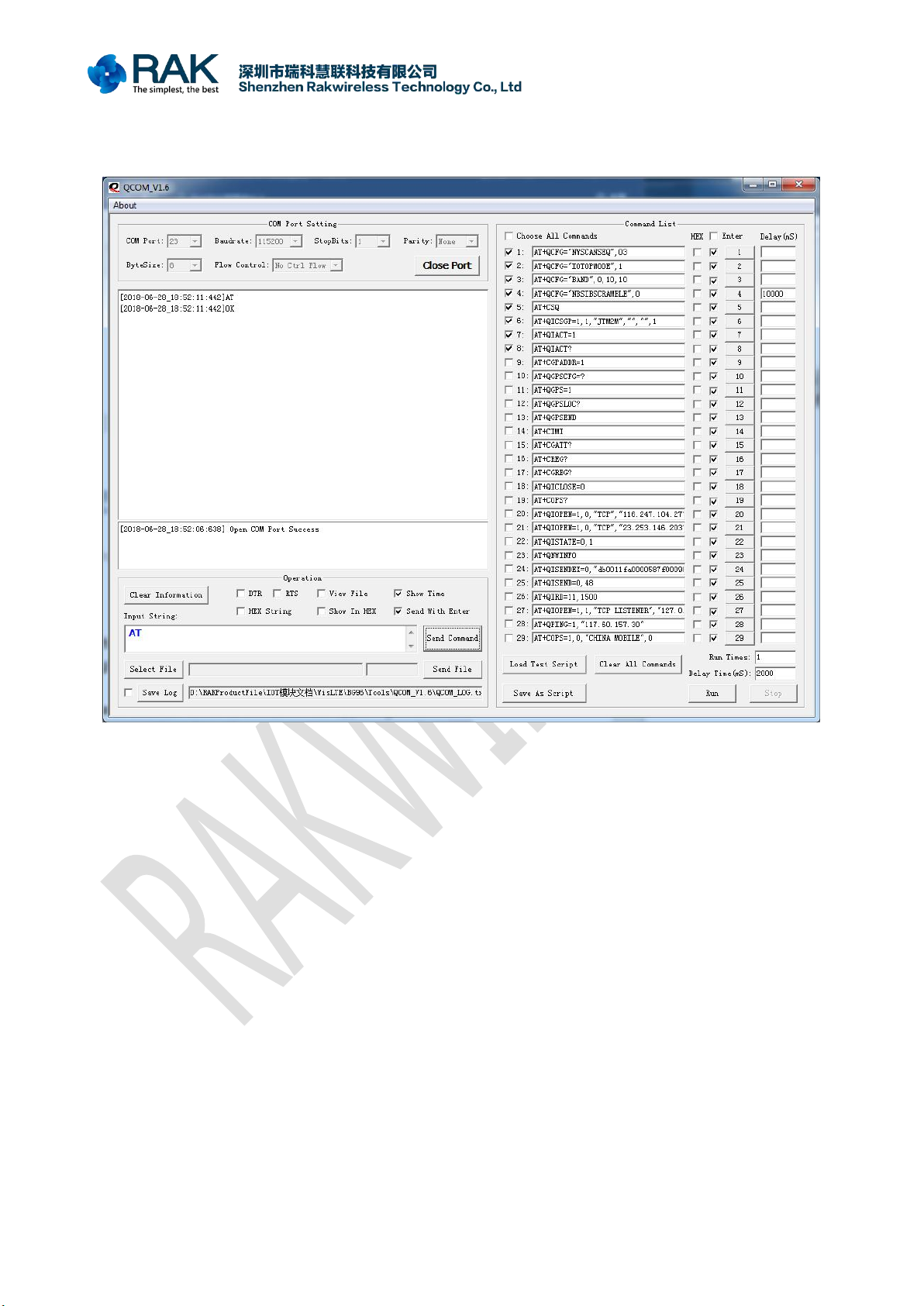

Send AT, the device returns OK to prove that the device is normal, detailed AT commands refer to
BG96's AT manual.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
7
4. Use UART Control RAK8213
Use a USB to RS232 serial cable to connect the Mini PCIe EVB to your computer.( Computer
supports Windows and MAC, Linux)
This device will appear in your computer's device management interface at this time.( Different
computers, different serial line drivers may not be the same, this time the user needs to follow Google's
own environment to search for the corresponding driver installation)
After your computer recognizes the serial port, open the serial port tool. The serial port tool can be
downloaded here: http://docs.rakwireless.com/en/WisLTE/Tools/QCOM_V1.6.zip. This tool is limited to
Windows, MAC users recommend CoolTerm.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
8
Serial port settings see below ,Send AT, the device returns OK to prove that the device is normal,
detailed AT commands refer to BG96's AT manual.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
9
5. Use Hologram SIM Card to Connect Network
5.1 Register Hologram
Hologram is the Connectivity Platform for the Internet of Things. You can connect devices, capture
data, and manage your fleet through their complete IoT platform. Here is their official website:
https://hologram.io/

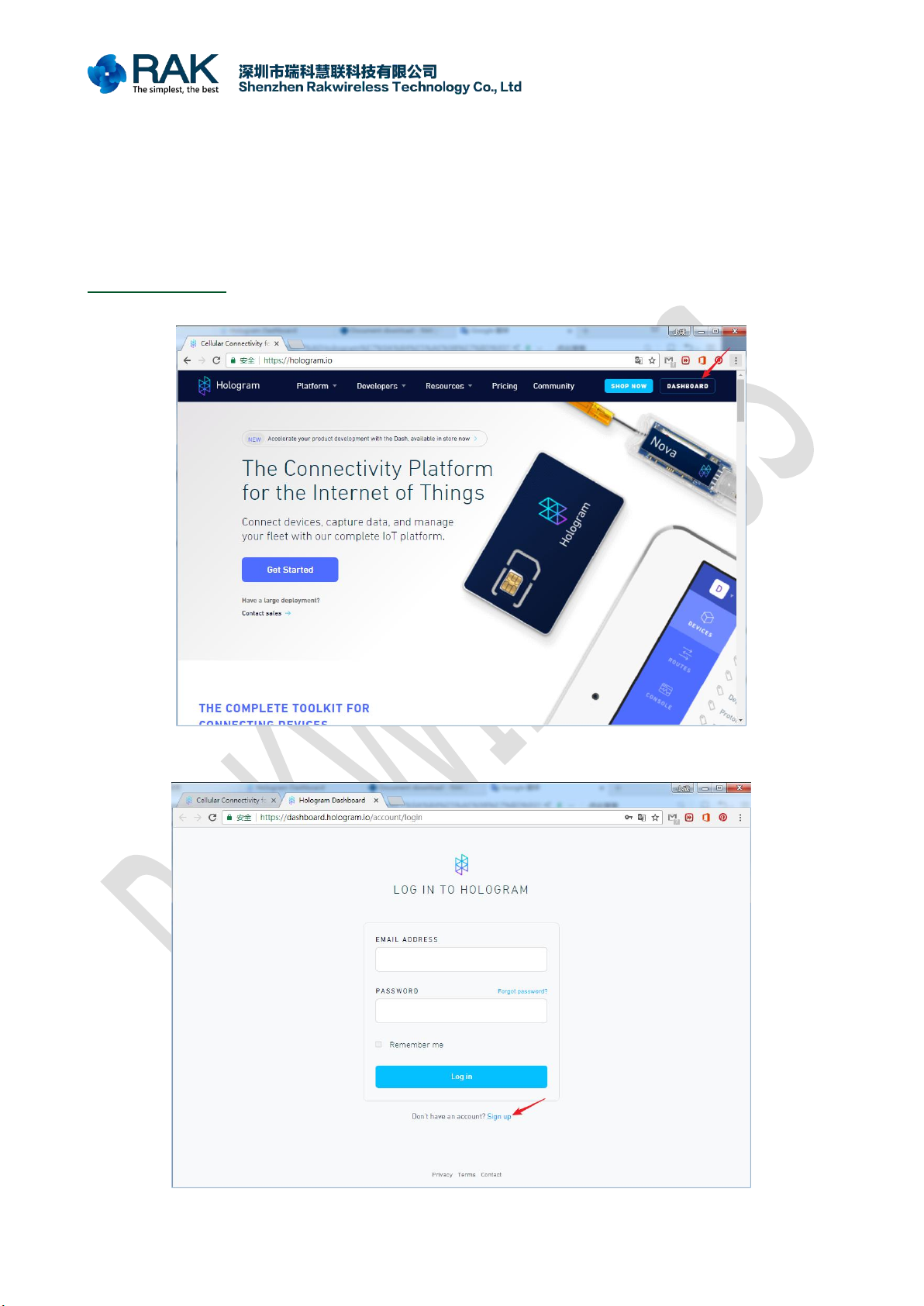

Visit the official website of Hologram. Click on "DASHBOARD" in the upper right corner.
Then click on "sign up" at the bottom of the page. Enter the registration interface. Follow the
prompts to fill in the information to register.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
10

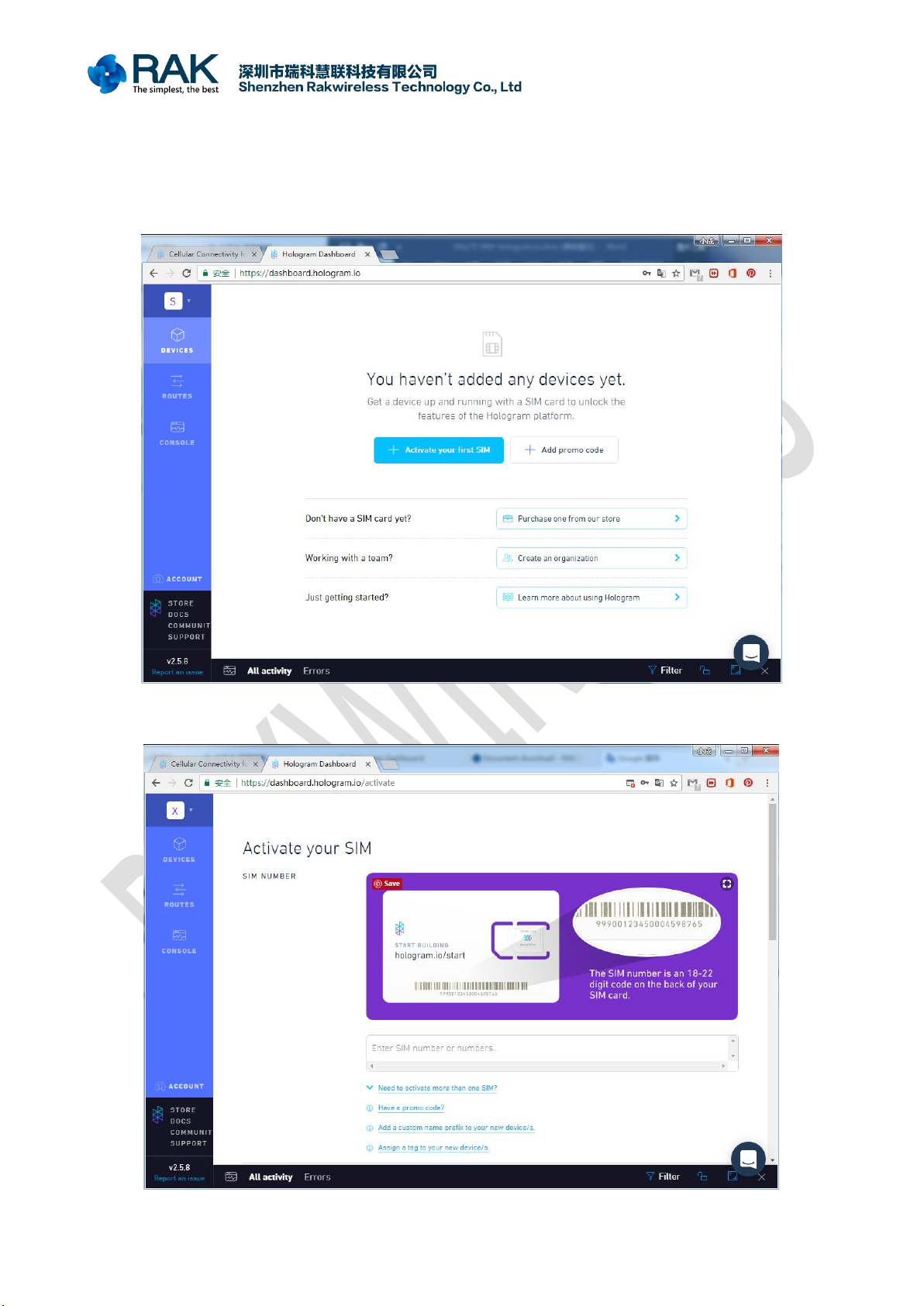

5.2 Activate SIM card
After successful registration, log into your Hologram account and enter your Dashboard interface.
Next you need to activate your purchased Hologram SIM card. Click on "Activate you first SIM" in the
upper right.
Enter the activation interface, according to the given prompts, fill in the information, you can
complete the activation of the SIM card.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
11
After successful registration, enter the SIM card information interface. After waiting for a period of
time, you will see the “Live” status.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
12
5.3 Send Data
Insert the card into the RAK8213's SIM card slot. Note that the default SIM card connection is the
RAN8213's own card slot.

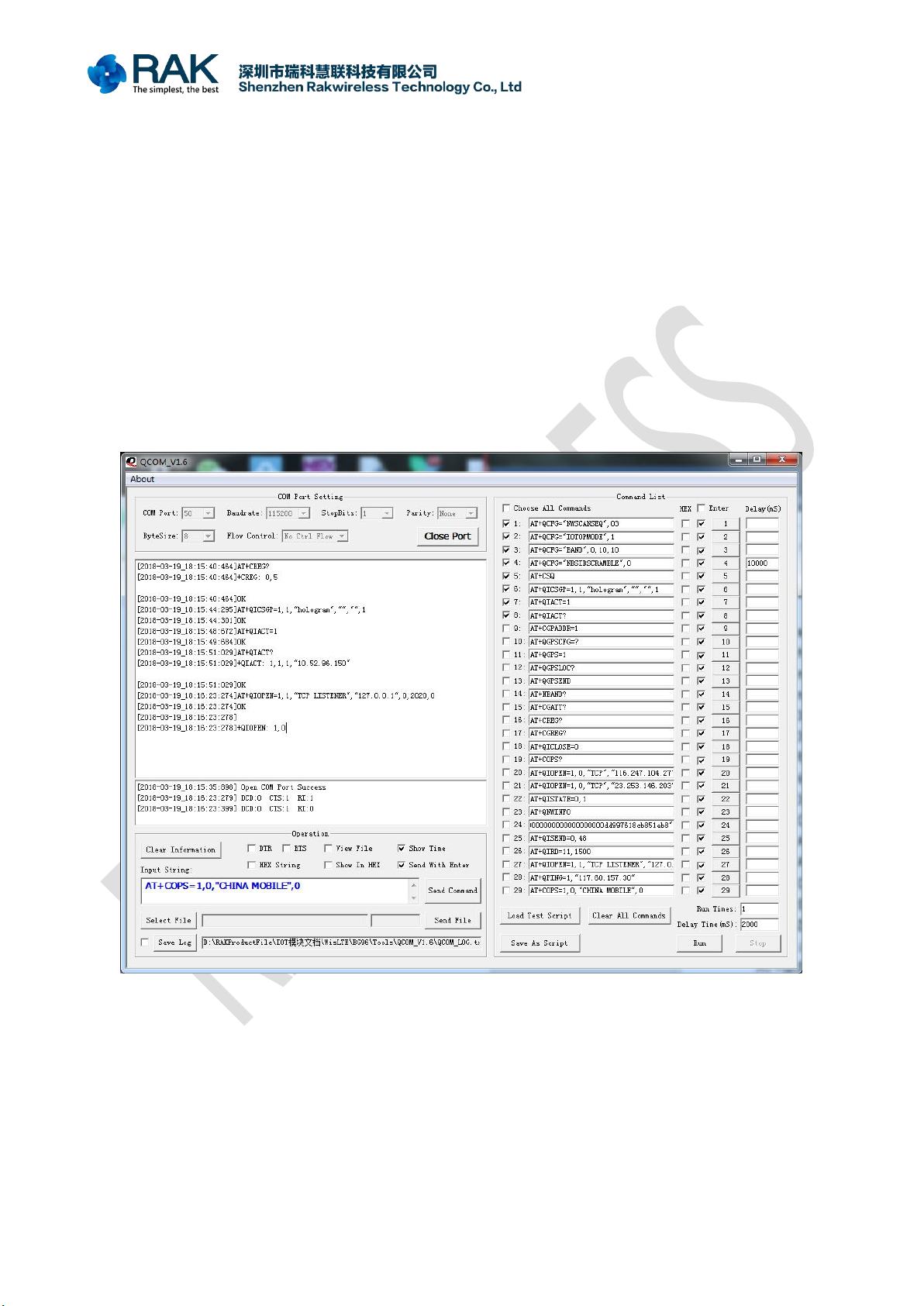

Find the port number of the AT Port and use the QCOM serial port tool to connect. Then send the
following AT command.( For AT command details, see the AT command manual)
AT+COPS=? // Find nearby network information
AT+COPS=1,0,”CHINA MOBILE”,0 // Manually set up a connected network
AT+CREG? // Check whether the device is registered on the network
AT+QNWINFO // Query connected network information
AT+COPS? // Query the connected web server information
AT+QICSGP=1,1,"hologram","","",1 // Set APN network to hologram
AT+QIACT=1 // Activate the APN network
AT+QIACT? // Query the APN assigned IP address
AT+QIOPEN=1,0,"TCP","23.253.146.203",9999,0,1 // Create a TCP, connection hologram test server
AT+QISEND=0,48 // Send data, send data length is 48
{"k":"bZmmdbAg","d":"Hello,World!","t":"TOPIC1"} //Send Packets.The data format is a hologram-defined
format.( For details, please see: https://hologram.io/docs/reference/cloud/embedded/ )
AT+QISEND=0,0 // Query data is sent successfully

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
13
After the device is sent successfully, you can see the sent information on your interface of the
Hologram Dashboard

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
14
5.4 Receive Data
Receiving data is similar to sending data, except that the established socket is different. The
receiving data is established as a TCP server. The AT commands sent are shown below:
AT+COPS=? // Find nearby network information
AT+COPS=1,0,”CHINA MOBILE”,0 // Manually set up a connected network
AT+CREG? // Check whether the device is registered on the network
AT+QNWINFO // Query connected network information
AT+COPS? // Query the connected web server information
AT+QICSGP=1,1,"hologram","","",1 // Set APN network to hologram
AT+QIACT=1 // Activate the APN network
AT+QIACT? // Query the APN assigned IP address
AT+QIOPEN=1,1,"TCP LISTENER","127.0.0.1",0,2020,0 // Create a TCP server, use local IP, port 2020
AT+QIRD=11,1500 // Read the received data, 11 is the returned Socket identifier
After creating a successful TCP server, the user needs to return to the Hologram Dashboard
interface, click on the "send to device" button, and then fill in the data to be sent. PORT is the TCP server
port of the device. Fill in and click "Send data message".

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
15
After the Hologram Dashboard is sent, the device will receive a message of “recv, 11” indicating that
the device received the data. At this time, the AT+QIRD=11,1500 command is sent to obtain the received
data.

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
16
6. Contact information
Shenzhen Business
E-Mail: [e-mail]
Address: Room 506, Bldg. 3, Minqi Technology Park, No.65 Taoyuan Road,
Xili Block, Nanshan District, Shenzhen
Shenzhen Technical
E-Mail: [e-mail]
Tel : [phone]
Address: Room 506, Bldg. 3, Minqi Technology Park, No.65 Taoyuan Road,
Xili Block, Nanshan District, Shenzhen

RAK8213 With Mini PCIe EVB
Copyright © Shenzhen Rakwireless Technology Co., Ltd
17
7. Change Note
Version
Author
Date
Modify content
V1.0
Chace
2018/06/25
Create Document
