READ AND FOLLOW INSTRUCTION MANUAL BEFORE USE.
BEFORE YOU CALL FOR SERVICE
Before calling for service, be sure you read the following to avoid
an unnecessary service call.
TROUBLE CAUSE REMEDY
※ Consult your gas stove supplier or qualified technical personnel if you may not solve
problem.Be sure to turn off the main cock.
After the ignition knob is
released, the flames are
extinguished.
Although there are ignitions,
the burners do not light on.
Abnormal sounds during
combustion.
Smell of gas.
The ignition knob is not turned
on properly.
Air is entrapped in the rubber
gas hose.
The ignition spark device is
dirty or wet.
The rubber hose is bent.
Short of gas supply
The burner caps are not
mounted properly.
Gas leakage from cracks of
rubber hose.
Loose connection of rubber hose.
Turn it counter clockwise.
Open the main valve.
Repeat turning it on
several times.
Replace gas vase.
Mount them in place.
Replace it.
Secure the rubber hose
with the hose clamp.
The power is disconnected.
Connect the power.
Clean or dry up.
Install it properly or replace it
7
FINALLY
BRAND ARINA
INSTRUCTION MANUL
GC4-50N

1.Be sure to install the unit in a room where no strong air currents flow.
2.Allow at least 15cm of space from kitchen walls,100cm from the ceiling
and 40cm below the hood bottom.
3.Drilling a hole on the cupboard for holding the built-in gas stove according
to the size of bottom base. We have a cardboard to show the hole size,
and the cardboard is packed with the gas stove.
If the kitchen walls and cabinet are made of wood or any combustible material and the spaces
as specified cannot be maintained, you must install a heat-proof panel on the kitchen walls so
as to prevent possible fire hazard.
The installation, the adjustments, conversions and maintenance listed in this part
must only be carried out by qualified technician only, The manufacturer can not
be held responsible for any damage to persons or deriving from an incorrect
installation of the appliance.
1.Bottom Base
2.Cooker Top
3.Ignition Knob
1
Perform the following maintenance periodically.
Do not use the unit if it is damaged or if you find any problemas.
Refer to the trouble shooting table on page 6 before calling service. Consult your
gas stove supplier or service agent if you cannot solve the problem. Do not make
repairs on the unit by yourself.
Before the maintenance, make sure the power is off, the unit is cool and the
main cock is off.
MAINTENANCE
Prior to any maintenance work or before changing parts, disconnect the appliance from
the gas and electricity power sources.
UNIT PARTS MAINTENANCE
Gas burner
Ignition needle(S)
& safety device(T)
Cook top and
Control panel
Rubber hose
Cook top
Make sure they are clean all the time.
When they get dirty, use a soft cloth damped with a mild detergent
solution to wipe off dirt. Do not use either thinner or benzine for
cleaning. This may damage plastic parts.
Make sure the rubber hose is tightly secured over gas supply outlet and
secure it with the rubber hose.
If there are cracks in the hose, replace it.
When they get dirty, use a soft cloth to wipe off dirt.
Make sure to wipe off dirt every-time when they get dirty, if they
are kept dirty for a long time (more than one week), they will
become stained or it will become a cause of the stripping of the
coating material.
If the dirt is difficult to wipe off, use a soft cloth damped with a
neutral detergent solution or water.
The coating material is weak against a physical shock or high
temperatures. The following must be kept in mind.
1. Do not use a swab. A polishing powder, a cleanser, a knife,
an alkaline detergent or a bleaching solution to wipe off dirt.
2.Do not give a physical shock to the unit.
3.Do not give excessive heat to the unit by covering the burner
with a large iron plate or a large pot.
It is expected that the section right below the grill support will be
scratched and a white surface comes out. This will not cause
any problems in your daily use.
The surface of the burner caps (C) and burner
heads(F) need to be cleaned after each time they
are used with warm soapy water, rinsed and then
dried well to keep them in good condition.
Never clean when the top and components are still
warm. Do not use metal or abrasive pads, powders
or corrosive spray products. Never leave vinegar,
coffee, milk, salty water, lemon or tomato juice
for any length of time on the surface.
6
Figure #9
4.triple flame wok burner
5.Pan Support
2
4
5
3
1
2
1
3
4
5
2
5
3
1
4
BRAND ARINA

‘
Don
t open cupboard door frequently when you are using
the gas hob and provide excess opening.
Fit the rubber hose tightly over end of gas supply line
and secure it with a hose clamp. (Figure #3)
CAUTION
CAUTION
DO NOT bent, twist or stretch the hose.
Hose clip
Gas supply line
Figure #3
1.Lay the gas hob in the cupboard, put on the pan support and post stand, and make sure all
the parts correct position.
2.Install the rubber hose and connect to the supply line. Make sure only a rubber hose of app-
roved type and a length of no more than 2m used. Don't put the gas vase near the gas hob.
3.Before connecting power, please check the rated voltage of the hob(see rating abel affixed
on the bottom of the appliance ) match with the local power supply voltage or not. The power
supply should be able to bear the hob rated voltage.
4.Power cable can not be connected with more than 75 ℃above items;
5.After the hob installation, please make sure the power switch or power plug is placed on a
reaching position.
6.After the power supply connected, make sure not to use multiple electrical transformers or
a combination socket, otherwise it may cause fire due to be overheated.
CORRECT SETTING OF THE BURNERS（Figure #2）
Be careful as to position burner caps and rings correctly. The burner ribs must
be placed into their housing as shown by the arrows. The triple ring burner,
when correctly positioned, must not rotate.
A wrong positioning will cause uneven flame and a consequent damage to the burner.
2
WARNING:
In case of gas leaks, DO NOT turn fans or other electrical appliances on or off. DO NOT
light a match or use a lighter.
CAUTION WHEN USING
1.USE THE UNIT FOR COOKING PURPOSES ONLY TO PREVENT FIRE HAZARD
Do not use the unit for purposes other than cooking e.g. To burn charcoal, briquette.
Do not hang up clothes, towels, etc. To dry over the unit.
2. DO NOT USE OVERSIZED HOT PLATE WHICH TOTALLY COVERS THE
BURNER SURFACE
As air supply may be restricted, it will result in poor combustion. Also the pan supports,
cook top and unit base may be heated abnormally.
3.USE AN APPROPRIATELY SIZED PAN AND WITH FLAT BOTTOM FOR EACH BURNER.
4. IN CASE OF TROUBLE
If there are any signs of abnormal combustion, including strange sounds when the burners are
lit, disconnect the power, turn off the burners and the main cock lit, turn off the burners and the
main cock immediately and contact your qualified technical personnel.
5.WHEN THE UNIT WILL NOT BE USED FOR LONG TIME
Make sure the main cock is turned off.
If you wish to replace the unit, you must ask your gas supplier or qualified technical personnel to
disconnect it for you, and to connect it when you wish to use it again.
5
Figure #8
triple flame
wok burner
3800W
rapid burner
3000W
130 100 75
semi-rapid
burner
1750W
50
auxiliary
burner
1000W
Burner
(mm)

Figure #7

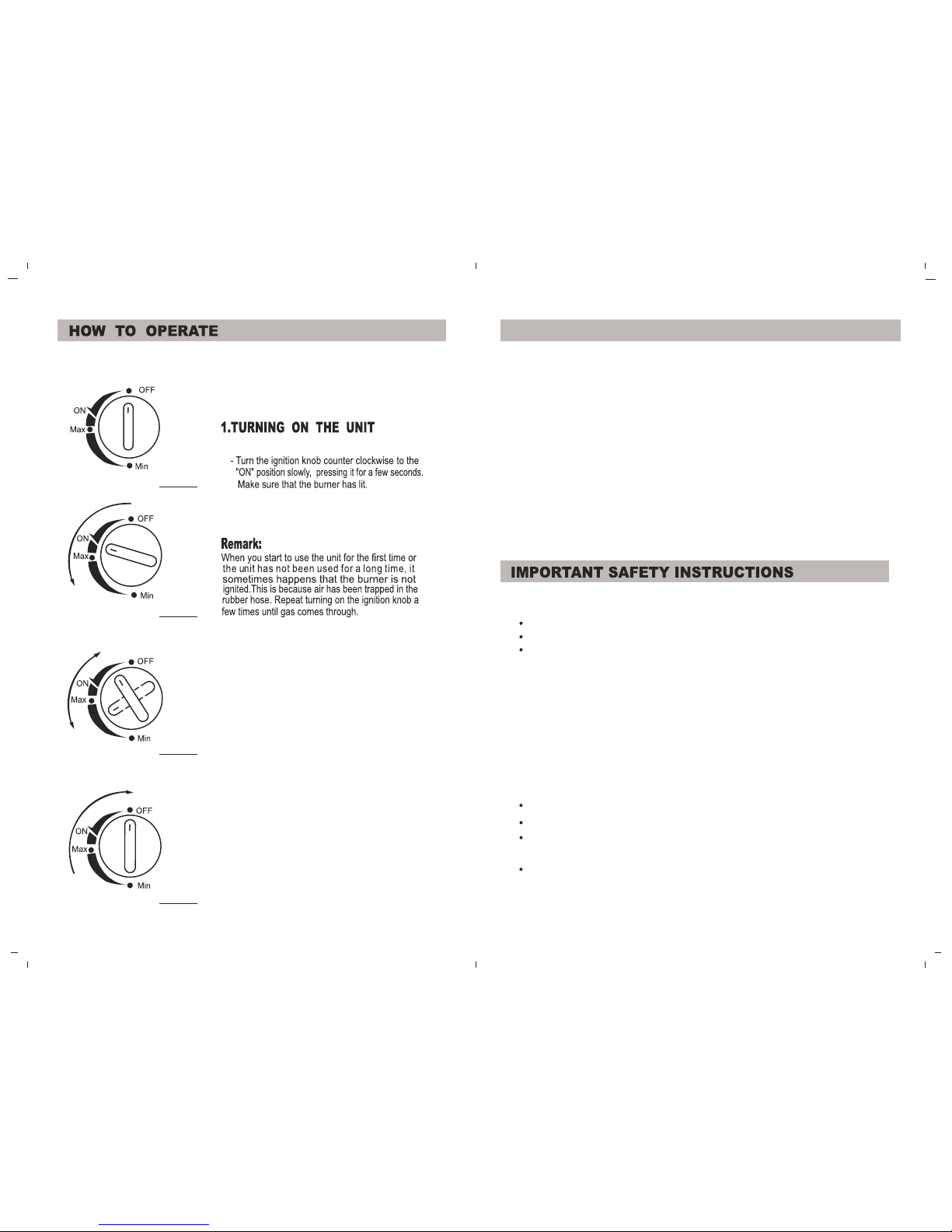

3.TURNING OFF UNIT
a- turn the ignition knob clockwise up to its original
position without pressing it.
b- after use. Make sure to turn off the main clock
and cut off power.
Remark:
When the burner is shut off, it may make a noise,
this normal.
Figure #4
Figure #5
Figure #6
2.FLAME CONTROLLER
a-Control the knob between Max and Min to regulate
the flame and cooking power output.
b- Turn the knob counter clockwise to the minimum
flame position to set for lowest cooking output level.
Remark:
When the flame is reduced suddenly it may happen
to turn off the burner. Make sure the burner is ignited.
Before using the unit, make sure the hob is power-on,
the ignition knob is in the "OFF" position and turn on
the main cock. After use, ensure to cut off the power,
turn off the burners and main cock.
a - The hob is power-on.
b
3
ENSURE FIRE SAFETY
USE THE UNIT IN A WELL VENTILATED ROOM
Ensure proper ventilation. If the unit is used in a poorly ventilated room the air will be vitiated
and may be harmful to health.
PREVENT GAS LEAKS
Do not place the unit near flammable materials. E.g. curtains, draperies, etc.
Be sure to turn off the burners and main cock if the unit is not in use.
Use a heat proof panel to protect walls where as required.
(For further information, refer to INSTALLATION INSTRUCTIONS on page 1)
Use a rubber gas hose of the approved type only. Do not use a vinyl hose as it
may not resist high temperatures and may be softened by heat.
While using the unit, occasionally check that the burners are lit .
After use, turn off the burners and stop gas flow. With the main cock. Especially make
sure the main cock is off before going to bed or a way from home.
In case of gas leaks, turn off the main cock and ventilate the room immediately
by opening windows and doors. Please contact your dealer of gas company.
For all the gas stoves with safety valve device, it can automatically stop the gas distribution on
purpose of protection in case the flame suddenly gets out.
Make sure to operate the unit carefully as below:
1.Push the gas control knob in and turn towards the MAX position (anti-clockwise) until the
burner has been lit and last about 5 seconds. Then release the gas control knob. If the burner is
off when you release the gas control knob, turn the knob back to OFF and try again until the
burner ignite.
2.When the spilling water, soup or wind cause the unit flameout, the safety valve device will
automatically close the gas distribution. For the sake of safety, to make sure turn the gas
control knob to OFF position immediately and to check if there is some dirt like soup, drip
etc on the surface of the flame-checking thermocouple. If so, keep it clean after the unit cool
down to avoid using difficultly next time.
3.Be careful not to impinge against the flame-checking thermocouple by the tough tools.
How to operate the unit with safety valve protection
4
