Custom SC Raised Coldwall Refrigerator models 51000PR
Description:
Self-contained refrigerator storage unit with mechanically cooled
raised rail. These units are offered in a variety of lengths to
meet your specific base storage or pan storage requirements.
The mechanically cooled pan opening uses Randell’s exclusive
design technologies, such as our Exclusive Refrigerated Raised
Rail Thermostat, allowing customers to make adjustments to the
rail temperatures (independent of the base). Automatic hot gas
evaporator is provided for eliminating the base coil’s condensation.
The rail is designed to be a manual defrost system and allows the
operator to shut the rail off while leaving the base operational.

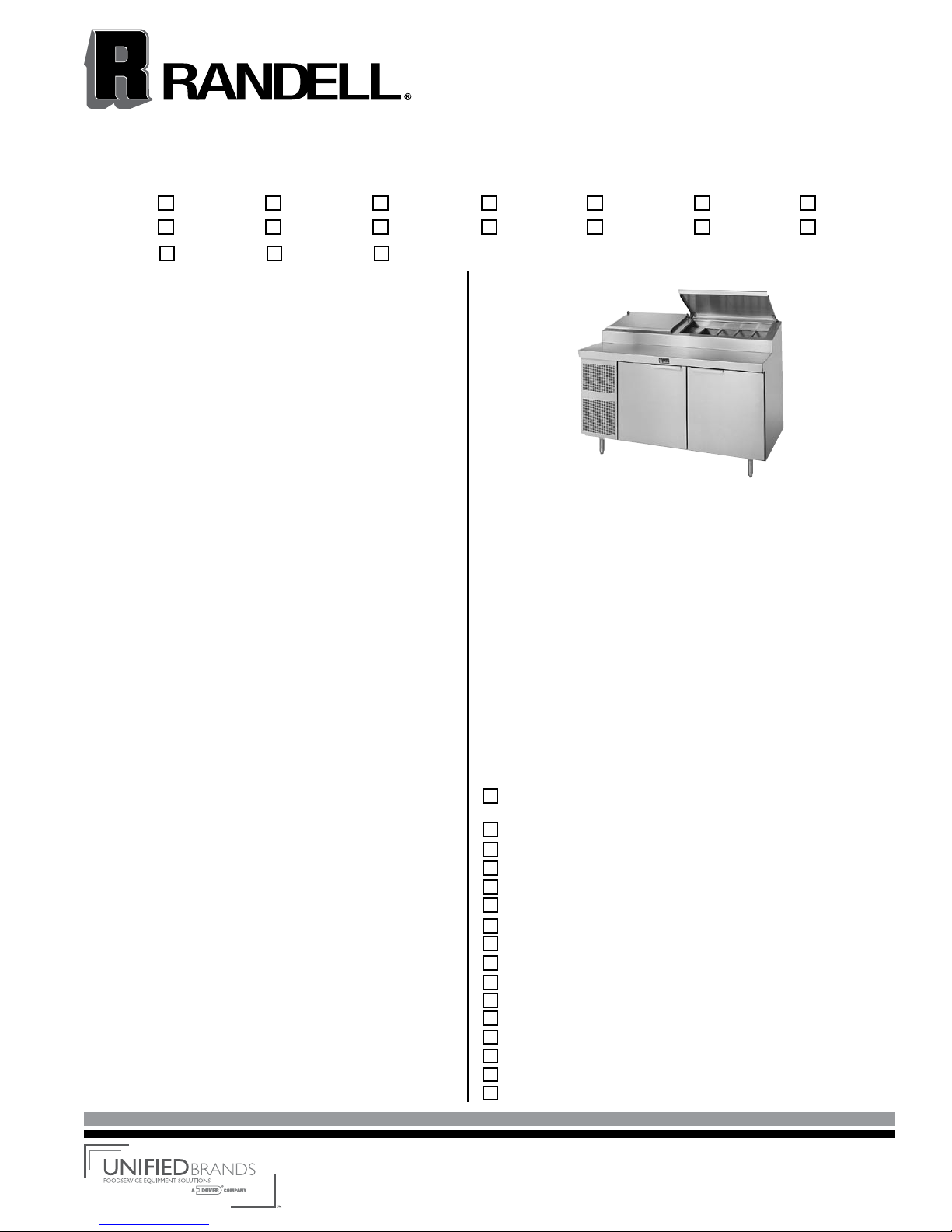

model 51362PR shown with
optional finished end
Specifications:
CABINET EXTERIOR: Top to be one piece of die-formed 16 gauge
stainless steel with 2 1/2" nosing. Ends at top fitted with recessed
heavy duty steel bars for field bolting units together, producing a
hairline seam. Hinged louver panel to be stainless steel. Exterior
body to be corrosion resistant steel. Door opening frames are ABS
and contain magnetic strip for positive seal of door gaskets. Work
surface to be at 36" work height. Legs to be 6" high stainless steel
with adjustable bullet foot. Legs mounted to full length channel
frame assembly which is integrally welded to bottom of body
assembly. Legs can be moved left to right to avoid floor obstacles
during installation.
CABINET INTERIOR:Base interior to beABS thermoplastic at ends only.
Stainless steel interior liner to be coved cornered to form bottom, back
and top. One baked enamel finished shelf provided behind each door.
Unit insulation to be CFC free foamed in place urethane.
DOORS: Door fronts to be 22-gauge stainless steel exterior front
with 16 gauge stainless steel door pulls/handles. The interior liner
is vacuumed formed ABS with integral gasket retainer for easy
cleaning and accepts Randell’s Exclusive Press Fit Gasket system.
Doors are mounted on concealed hinges. One removable wire shelf
is supplied behind each door.
REFRIGERATION: System is a balanced heavy duty R-404A
refrigerant system with an energy efficient hot gas automatic defrost
(for base evaporator coil). The base is cooled by an independent
blower coil operating on its own expansion valve and thermostat and
operates through a dedicated solenoid valve. The rail is provided
with a pressure control to operate the condensing unit on demand;
and a rail thermostat (located in the compressor housing) making it
easily adjustable for specific ambient conditions without effecting
the balance of the system. An on/off switch for the rail is located
behind the hinged louver panel.
Standard Features:
• Low profile 2” recess pan design provides easy reach and optimal pan
temperatures & reliability
• Balanced high capacity refrigeration system with expansion valve
metering-able to handle peak period demands
• Front breathing compressor housing with directed air flow
• Easy maintenance press-fit gaskets
• Raised rail thermostat
• Drain in rail for easy cleaning
• Hinged louver for easy access
• 6" high legs—adjustable and movable
• Foamed in place “CFC free” urethane insulation
• Hinged removable stainless steel covers
• Automatic base defrost with hot gas evaporator
• Available up to 16’ under one common assembly
• Adapter bars standard to accommodate a compliment of 1/6 size pans
• Front breathing louver design allows sealing to wall & curb
mounting without special requirements
Options & Accessories:
Patented Drawer Cartridge Systems - Exclusive
Randell Feature + 3 years parts & labor warranty!
Partial length rails
Flat-top rails (non-angled) for use in display type kitchens
Ambient fighting hood design with slide back cover
Hinged slide back removable cover
Lift-off (removable) night covers
Tray racks for sheet pans (33" dp., 24" doors only)
Cutting boards
Stainless Steel Ends
Stainless Steel Back
Laminate fronts, ends and back options
Casters in lieu of legs
Export voltages
Over-shelving storage options
Compressor on right option
Wide pan rail
Randell Custom, Page 17a
Revised 09/04
model 51338PR 51341PR 51344PR 51347PR 51356PR 51359PR 51362PR
51365PR 51368PR 51377PR 51380PR 51383PR 51386PR 51389PR
51395PR 513114PR 513126PR

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Length 77" 80" 83" 86" 89" 95" 114" 126"
Model 33" 51377PR 51380PR 51383PR 51386PR 51389PR 51395PR 513114PR 513126PR
# of doors (3) 21" (2) 21", (1)
24"
(2) 24", (1)
21"
(3) 24" (2) 24", (1)
27”
(3) 27" (4) 24" (4) 27"
Min. Compr. Hsg. 14" 14" 14" 14" 14" 14" 18" 18"
# Pans (10-18) 1/6 (10-18) 1/6 (10-20) 1/6 (10-20) 1/6 (10-22) 1/6 (12-20) 1/6 (14-26) 1/6 (14-30) 1/6
Min. Length of Rail 41” 41” 41” 41” 41” 48” 55” 55”
Storage Cu. Ft.
33"
15.91 16.78 17.65 18.52 19.39 21.12 25.46 27.78
Storage Cu. Ft.
29"
13.37 14.10 14.83 15.56 16.28 17.74 21.39 23.33
Work surface
Depth 33”
14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide
H.P./Refrigerant 1/2hp/404a 1/2hp/404a 1/2hp/404a 1/2hp/404a 1/2hp/404a 1/2hp/404a 5/8hp/404a 3/4hp/404a
Amps 12 12 12 12 12 12 12.8 12.8
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-20P 5-20P
Ship Wt. - lbs. 703 723 741 760 798 835 939 1014
BTU Design load 588/755 588/777 647/799 647/821 706/843 764/887 882/1095 1000/1184
BTU System Cap. 1866/3319 1866/3319 1966/3319 1966/3319 2061/3319 2151/3319 2735/3946 3330/6435
51000PR Series
NOTE:
Pan capacity reflected is the actual amount of pans that are clearly accessible by the operator. Units with multiple covers may actually have
additional pan capacity that is partially obstructed by the cover divider/mullion.
BTU load and capacity ratings based on 86F ambient.
51000PR SERIES (COMPRESSOR LEFT) SELF-CONTAINED REFRIGERATORS WITH STANDARD DEPTH RAISED RAIL
Length 38" 41" 44" 47” 56" 59" 62" 65" 68"
Model 33" 51338PR 51341PR 51344PR 51347PR 51356PR 51359PR 51362PR 51365PR 51368PR
# of doors (1) 24" (1) 21" +
6" coil hsg.
(1) 24" +
6" coil hsg.
(1) 27" +
6" coil hsg.
(2) 21" (1) 21", (1)
24"
(2) 24" (1) 24", (1)
27”
(2) 27"
Min. Compr. Hsg. 14" 14" 14" 14" 14" 14" 14" 14" 14"
# Pans (6-8) 1/6 (6-10) 1/6 (10) 1/6 (12) 1/6 (6-14) 1/6 (8-14) 1/6 (8-16) 1/6 (8-16) 1/6 (8-16) 1/6
Min. Length of Rail 27” 27” 27” 27” 27” 34” 34” 34” 34”
Storage Cu. Ft.
33”
4.63 5.50 6.37 7.23 9.84 10.71 11.57 12.44 13.31
Storage Cu. Ft.
29”
3.89 4.62 5.35 6.08 8.26 8.99 9.72 10.45 11.18
Work surface
Depth 33”
14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide 14.8” wide
H.P./Refrigerant 1/3hp/404a 1/3hp/404a 1/3hp/404a 1/3hp/404a 1/3hp/404a 1/3hp/404a 1/3hp/404a 1/3hp/404a 1/3hp/404a
Amps 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P
Ship Wt. - lbs. 456 475 494 513 563 581 600 619 638
BTU Design load 235/272 294/294 294/294 353/338 412/503 412/525 470/547 470/569 529/591
BTU System Cap. 1006/2090 1109/2040 1109/2141 1201/2141 1283/2141 1283/2141 1356/2141 1356/2141 1423/2141

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
51000PR Series
Randell Custom, Page 17b

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
51000PR Series
DOOR OPENING SIZES - INTERIOR DEPTHS
Clearances Through Door Interior Depth Behind Door
Door Width Lt. to Rt. Top to Bottom (unit depths in parentheses)
18 " 13 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
21 " 16 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
24 " 19 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
27 " 22 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
•Shelf depth is 25 1/4 " on 33 " deep equipment, 21 1/4 " on 29 " deep equipment,
and 14 1/2 " on 22" deep equipment.
