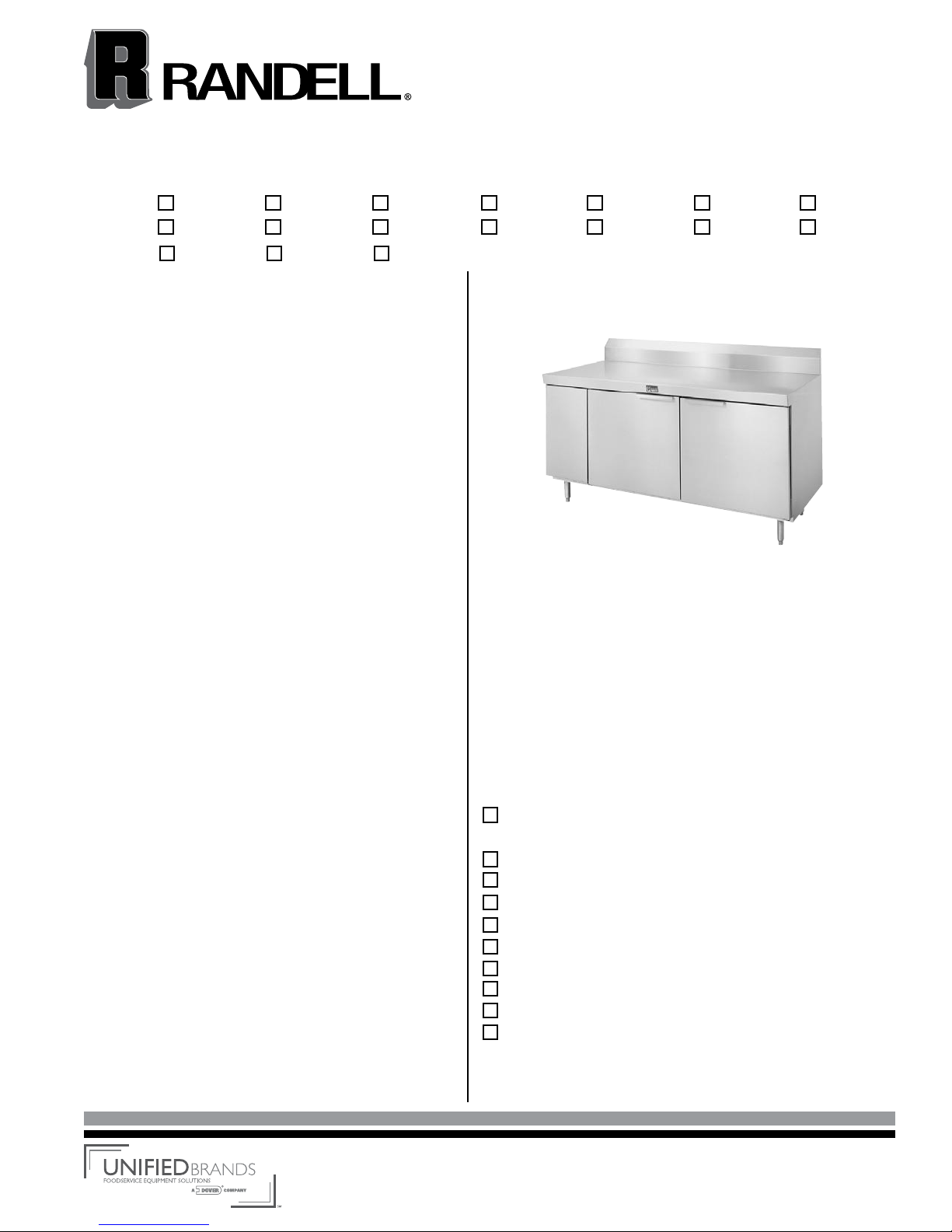

Custom Remote Worktop Refrigerator models 53000A
Description:
Remote refrigerated worktop unit with 16 gauge reinforced
stainless steel top, and integral backsplash with 45˚ return.
Stainless steel doors on concealed hinges. Condensing unit not
provided. Evaporator blower coil with expansion valve supplied
and installed. 6" high adjustable and movable legs.
model 53354A shown with
optional finished end
CABINET EXTERIOR: Top to be one piece of die-formed 16 gauge
stainless steel with 2 1/2" nosing. Backsplash to be coved
cornered, with 45˚ return at top and overall height of 6 3/4".
Ends at top fitted with recessed heavy duty steel bars for field
bolting units together, producing a hairline seam. Exterior body
to be corrosion resistant steel. Door opening frames are ABS and
contain magnetic strip for positive seal of door gaskets. Work
surface to be at 36" work height. Legs to be 6" high stainless
steel with adjustable bullet foot. Legs mounted to full length
channel frame assembly which is integrally welded to bottom
of body assembly. Legs can be moved left to right to avoid floor
obstacles during installation.
CABINET INTERIOR: Base interior to be ABS thermoplastic at
ends only. Stainless steel interior liner to be coved cornered to
form bottom, back and top. One baked enamel finished shelf
provided behind each door. Unit insulation to be CFC free foamed
in place urethane.
DOORS: Door fronts to be 22-gauge stainless steel exterior front
with 16 gauge stainless steel door pulls/handles. The interior
liner is vacuumed formed ABS with integral gasket retainer
for easy cleaning and accepts Randell’s Exclusive Press Fit
Gasket system. Doors are mounted on concealed hinges. One
removable wire shelf is supplied behind each door.
REFRIGERATION: Refrigerant to be specified by customer
(Specification based on R-134a refrigerant). Control and solenoid
provided standard. Interior fitted with Randell evaporator
blower coil for cooling base. Expansion valve and refrigeration
lines provided and installed for connection at unit rear. Units
totally prewired to junction box. Optional electric condensate
evaporator.
Standard Features:
• Available under one piece top with other modular equipment
up to 16' in length
• 6" high legs—adjustable and movable
• Foamed in place “CFC free” urethane insulation
• Evaporator blower coil with expansion valve and refrigeration
lines provided and installed
• 45˚ integral stainless backsplash is standard. 90˚ stainless
backsplash is optional.
• Filter dryer installed on liquid line
Specifications:
Options & Accessories:
Patented Drawer Cartridge Systems - Exclusive
Randell Feature + 3 years parts & labor warranty!
No Backsplash for dual sided / Cafeteria Operation
Tray racks for sheet pans (33" dp., 24" doors only)
Cutting boards
Stainless Steel Ends
Stainless Steel Back
Laminate fronts, ends and back options
Casters in lieu of legs
Export voltages
Over-shelving storage options
Randell Custom, Page 20a
Revised 09/04
model 53330A 53333A 53336A 53339A 53348A 53351A 53354A
53357A 53360A 53369A 53372A 53375A 53378A 53381A
53387A 533102A 533114A

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
53000 SERIES REMOTE REFRIGERATORS WITH STAINLESS STEEL TOPS
Length 30" 33" 36" 39" 48" 51" 54" 57" 60"
Model 33" deep 53330A 53333A 53336A 53339A 53348A 53351A 53354A 53357A 53360A
# of doors (1) 24" (1) 21" (1) 24" (1) 27" (2) 21" (1) 21" (2) 24" (1) 24" (2) 27"
+ 6" mech. + 6" mech. + 6" mech. + 6" mech. + 6" mech. (1) 24" + 6" mech. (1) 27" + 6" mech.
+ 6" coil hsg. + 6" coil hsg. + 6" coil hsg. + 6" mech. + 6" mech.
Storage Cu. Ft. 5.21 6.18 7.16 8.14 11.04 12.04 13.02 14 14.97
33" deep
Storage Cu. Ft. 4.38 5.20 6.02 6.84 9.30 10.12 10.94 11.76 12.58
29" deep
Recommended*
H.P./Refrigerant 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/3hp/134a 1/3hp/134a
Storage Cu. Ft. 2.8 3.5 4.2 4.9 7.1 7.8 8.5 9.3 10.
22" deep
Recommended*
H.P./Refrigerant 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Amps 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Ship Wt. - lbs. 305 320 335 350 380 395 410 435 450
BTU Design load* 486 523 561 598 895 933 970 1008 1045
Evap. BTU/°TD 90 90 120 120 120 120 120 120 120
53000 SERIES REMOTE REFRIGERATORS WITH STAINLESS STEEL TOPS
Length 69" 72" 75" 78" 81" 87" 102" 114"
Model 33" deep 53369A 53372A 53375A 53378A 53381A 53387A 533102A 533114A
# of doors (3) 21" (2) 21" (1) 21" (3) 24" (2) 24" (3) 27" (4) 24" (4) 27"
+ 6" mech. (1) 24" (2) 24" + 6" mech. (1) 27" + 6" mech. + 6" mech. + 6" mech.
+ 6" mech. + 6" mech. + 6" mech.
Storage Cu. Ft. 17.9 18.88 19.86 20.83 20.51 22.46 27.34 31.25
33" deep
Storage Cu. Ft. 15.04 15.86 16.68 17.50 17.23 18.87 22.97 26.25
29" deep
Recommended*
H.P./Refrigerant 1/4hp/134a 1/3hp/134a 1/3hp/134a 1/3hp/134a 1/2hp/134a 1/2hp/134a 1/2hp/134a 1/2hp/134a
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Amps 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Ship Wt. - lbs. 495 510 535 550 565 595 655 700
BTU Design load* 1342 1380 1417 1455 1492 1567 1939 2090
Evap. BTU/°TD 120 120 120 120 240 240 240 240
53000A Series
NOTE:
If drop-in lowerators are to be installed in this equipment, the overall length of the tube should be no more than 24".
*BTU design load based on 100F ambient plus 30% for use and product loading. Final system selection should consider
usage requirements and combined loads. Recommended HP reflects Randell HP applied to self-contained (single) unit of
equal storage capacity. Increased HP may be appropriate in some remote applications.
