Rankam GR2298901-GS-00 Quick reference guide

1 of 31 20190625-Ver.1.0
OUTDOOR GAS GRIDDLE
Model number: GR2298901-GS-00
ASSEMBLY & OPERATING INSTRUCTIONS
For Outdoor Use Only
lThis instruction manual contains important information necessary for the
proper assembly and safe use of the appliance.
lRead and follow all warnings and instructions before assembling/using the
appliance.
lFollow all warnings and instructions when using the appliance.
lFailure to follow these instructions and warnings could result in damage to the
product or injury to the user.
lKeep this manual for further reference.
lPatent Pending
Should you encounter any problem,
CALL US FIRST.
Do not return product to the store.
WE CAN HELP.
For assistance, contact customer service at customerserv[email protected]
or at 1-888-837-1380, Mon to Fri, 8:00am –5:00pm Pacific Standard time

2 of 31 20190625-Ver.1.0
WARNINGS
SAFETY LABELS
DANGER: Indicates an imminent hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call
your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion which
could cause property damage, personal injury or death.
WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.
DANGER
(a) Do not store a spare LP gas cylinder under or near this appliance;
(b) Never fill the cylinder beyond 80 percent full;
(c) If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.
PROP 65 WARNING
WARNING: This product can expose you to chemicals including benzene, which is
known to the State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.

3 of 31 20190625-Ver.1.0
WARNING
lThis outdoor cooking gas appliance shall be used only outdoors and shall not be used in a
building, garage or any other enclosed area.
lThis outdoor cooking gas appliance is not intended to be installed in or on boats. This
appliance is not intended to be installed in or on recreational vehicles.
lThis outdoor cooking gas appliance shall be used only on a level, stable non-combustible
surface like bricks, concrete or dirt. DO NOT use this appliance on any surface that will
burn or melt like wood, asphalt, vinyl, or plastic.
lUse your grill OUTDOORS in a well
ventilated space away from dwellings or
other buildings to prevent dangers
associated with gas accumulation and toxic
vapors. The grill should be situated at least
60 inches (152.4 cm) from buildings. Not
adhering to these clearances will prevent
proper ventilation and may increase the risk
of a fire and/or property damage, which
could also result in personal injury.
lMaintain a minimum clearance of 60 inches
(152.4 cm) between all sides of grill, deck
railings, walls or other combustible material.
DO NOT use grill under any overhead
combustible construction.
lDO NOT obstruct the flow of combustion/ventilation air.
lDO NOT leave the grill unattended while in use.
lDO NOT use while under the influence of drugs or alcohol.
lKeep the fuel supply hose away from heated surfaces.
lDO NOT put the grill in storage or move it after use. Allow the grill to be cool to the touch
before moving/storing. Failure to do so could result in a fire causing property damage,
personal injury or death.
lThe appliance is for household use only. DO NOT use this grill for other than its intended
purpose.
lNever use natural gas in a unit designed for liquid propane gas.
lNever use charcoal or wood briquettes in a gas grill. Flavoring chips must be contained in
a metal smoking box to contain ash and prevent fires.
lALeak Test must be conducted prior to each use.
lKeep a fire extinguisher on hand acceptable for use with gas products. Refer to your local
authority to determine proper size and type.
lGrill is hot when in use. To avoid burns:
lDO NOT attempt to move the grill.
lLock the wheels so the unit does not accidentally move.
lWear protective gloves or oven mitts.
lDO NOT touch any hot grill surfaces.
lDO NOT wear loose clothing or allow hair to come in contact with grill.
lAfter cooking, allow grill and grease cup to cool off completely before removing grease
cup.
Maintain a minimum clearance of
60
inches
from combustible material.

4 of 31 20190625-Ver.1.0
USE AND INSTALLATION OF LP GAS CYLINDER (PROPANE TANK)
BEFORE INSTALLING:
The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as
applicable.
BEFORE EVERY USE:
Be sure to inspect the hose for leaks, cuts, wear, abrasion, or damage of any sort before using
this appliance. If any damage is apparent, the hose must be replaced with a new hose specified
by the manufacturer before further use.
LP GAS CYLINDER
The LP (liquid propane) cylinder specifically designed to be used with this unit MUST have a 20
lb. (9.1kg) capacity with a Type 1 cylinder valve and an overfilling protection device (OPD). Only
use LP cylinders with this type of valve.
LP tank valve requirement:
lPurchase LP tanks only with these required measurements:
12”(30.5cm) (diameter) x 18”(45.7cm) (tall) with 20lb. (9kg)
capacity maximum.
lType 1 outlet compatible with regulator or appliance.
lSafety relief valve.
lUL-listed Overfill Protection Device
(OPD). This OPD safety feature is
identified by a unique triangular hand
wheel. Use only tanks equipped with
this type of valve.
lLP tank must be arranged for vapor
withdrawal.
The LP cylinder must be constructed
and marked in accordance with the
Specifications for LP-Gas Cylinders of
the U.S. Department of Transportation
(D.O.T.) or the National Standard of
Canada CAN/CSA –B339, Cylinder,
Spheres and Tubes for Transportation of Dangerous Goods; and Commission of
Dangerous Goods; and Commission, as applicable.
lThe LP cylinder must include a collar to protect the cylinder valve.
lIf the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply
cylinder(s).
lThe LP cylinder must be stored outdoors out of the reach of children and MUST NOT be
stored in a building, garage, shed, breezeway, or any other enclosed space.
lStorage of an outdoor cooking gas appliance indoors is permissible ONLY if the cylinder is
disconnected and removed from the outdoor cooking gas appliance.
lThe cylinder should ALWAYS be put in an upright position.

5 of 31 20190625-Ver.1.0
DANGER
lDO NOT connect this grill to an existing #510 POL cylinder valve with Left hand threads.
The Type 1 valve can be identified with the large external threads on the valve outlet.
lDO NOT connect to a propane cylinder exceeding its capacity.
lDO NOT connect to a cylinder that uses any other type of valve connection device.
lNever store a spare LP gas cylinder under or near your grill. This could cause pressure to
be expelled through the vapor relief valve resulting in fire, explosion, or severe personal
injury, including death.
lKeep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from
obstructions and debris.
lDO NOT insert any foreign objects into the valve outlet. Damage to the valve outlet could
result. A damaged valve outlet can cause a leak, possibly resulting in explosions, fire,
severe bodily harm, or death.
WARNING
FOR FILLING THE LP GAS CYLINDER
lAllow only qualified LP gas dealers to properly fill or repair your LP cylinder.
lDO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create a
dangerous condition. Over-filled tanks can build up pressure and cause the relief valve to
expel propane gas vapors. The vapor is combustible and if it comes in contact with a spark
source or flame an explosion causing severe burns, bodily harm, or death could occur.
lAlways use a safety cap when the grill is not connected to a cylinder.
lIf you exchange a cylinder with a qualified exchange program, be sure the cylinder has a
Type 1 valve and an over-fill prevention device (OPD).

6 of 31 20190625-Ver.1.0

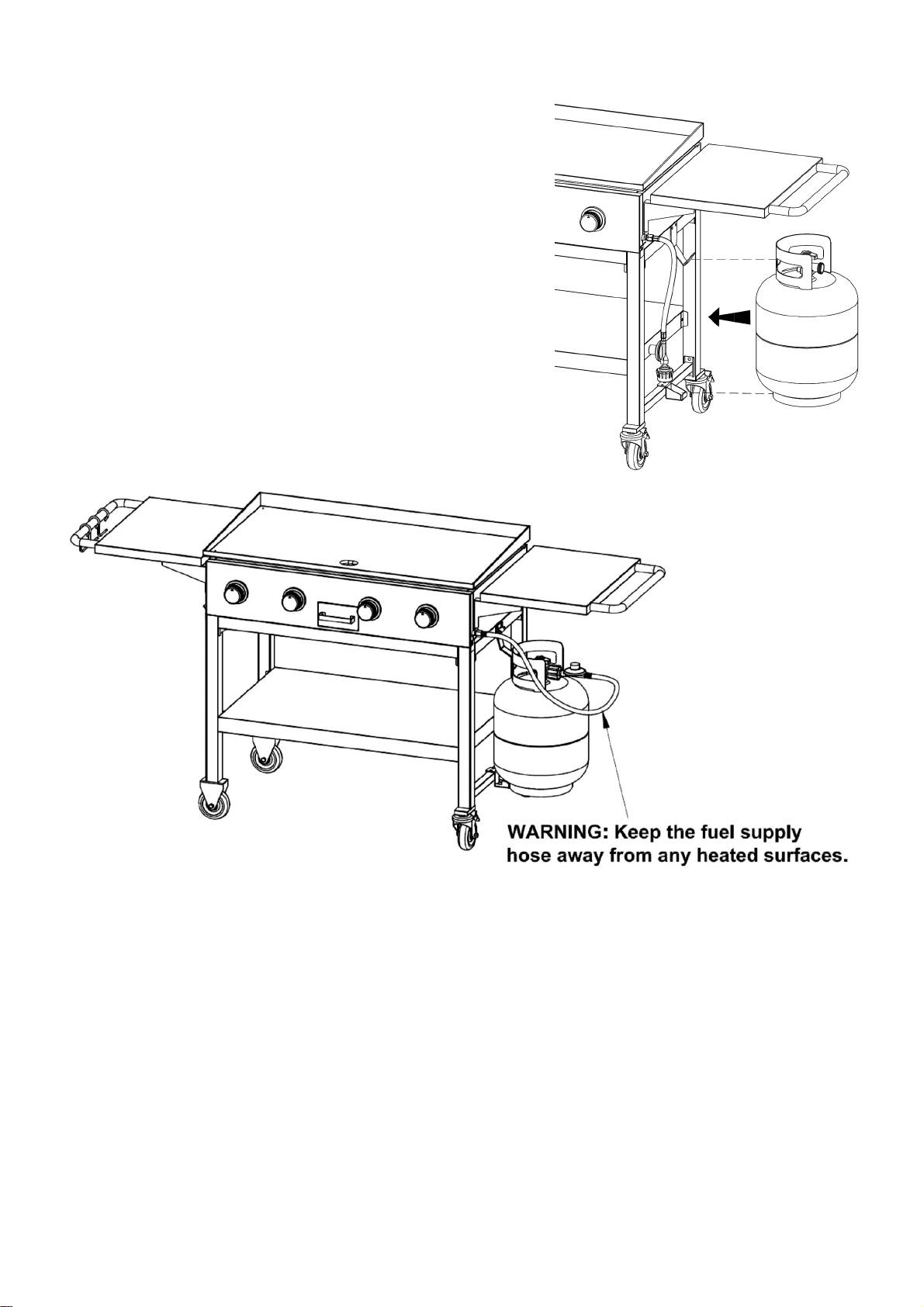

INSTALLING GAS CYLINDER
1. Check that the cylinder valve is closed by turning the
knob in clockwise.
2. Place cylinder into tank holder in bottom cabinet.
3. Place cylinder such that the valve opening faces the
right side table in such a way that the hose is not
kinked/damaged.
4. Attach or detach the regulator to the LP gas cylinder
only when the cylinder is placed on the cylinder
holder.

7 of 31 20190625-Ver.1.0
CONNECTION PROCEDURES
1. Make sure the tank valve is closed (turn valve
clockwise until tight).
2. Check the tank valve to insure it has the
proper external male threads.
3. Make sure all burner valves are turned OFF.
4. Inspect valve connections, port, and regulator
assembly. Look for any damage or debris.
Remove any debris. Inspect the hose for
damage. Never attempt to use damaged or
obstructed equipment. Contact your local LP
gas dealer for repair.
5. When connecting the regulator assembly to the valve, hand tighten the quick coupling nut
clockwise to a complete stop. Do not use a wrench to tighten. Use of a wrench may damage
the quick coupling nut and result in a hazardous condition.
6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all
connections for leaks (a Leak Test) before attempting to light the grill (see P.22). If a leak is
found, turn the tank valve off and do not use the grill until your LP gas dealer can make
repairs.
TO DISCONNECT LP CYLINDER:
1. Turn the burner valves off.
2. Turn the tank valve off fully (turn clockwise to stop).
3. Detach the regulator assembly from the tank valve by turning the quick coupling nut
counterclockwise.
CAUTION
lWhen installing LP cylinders, the pressure regulator and hose supplied by the
manufacturer MUST be used with the appropriate cylinder. Replacement regulators
and hoses need to be specified by the manufacturer of this appliance.
lPlace the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Only install the type of dust cap on the cylinder valve outlet that is provided with the
cylinder. Other types of caps or plugs may result in leakage of propane.

8 of 31 20190625-Ver.1.0
PRODUCT DIAGRAM

9 of 31 20190625-Ver.1.0

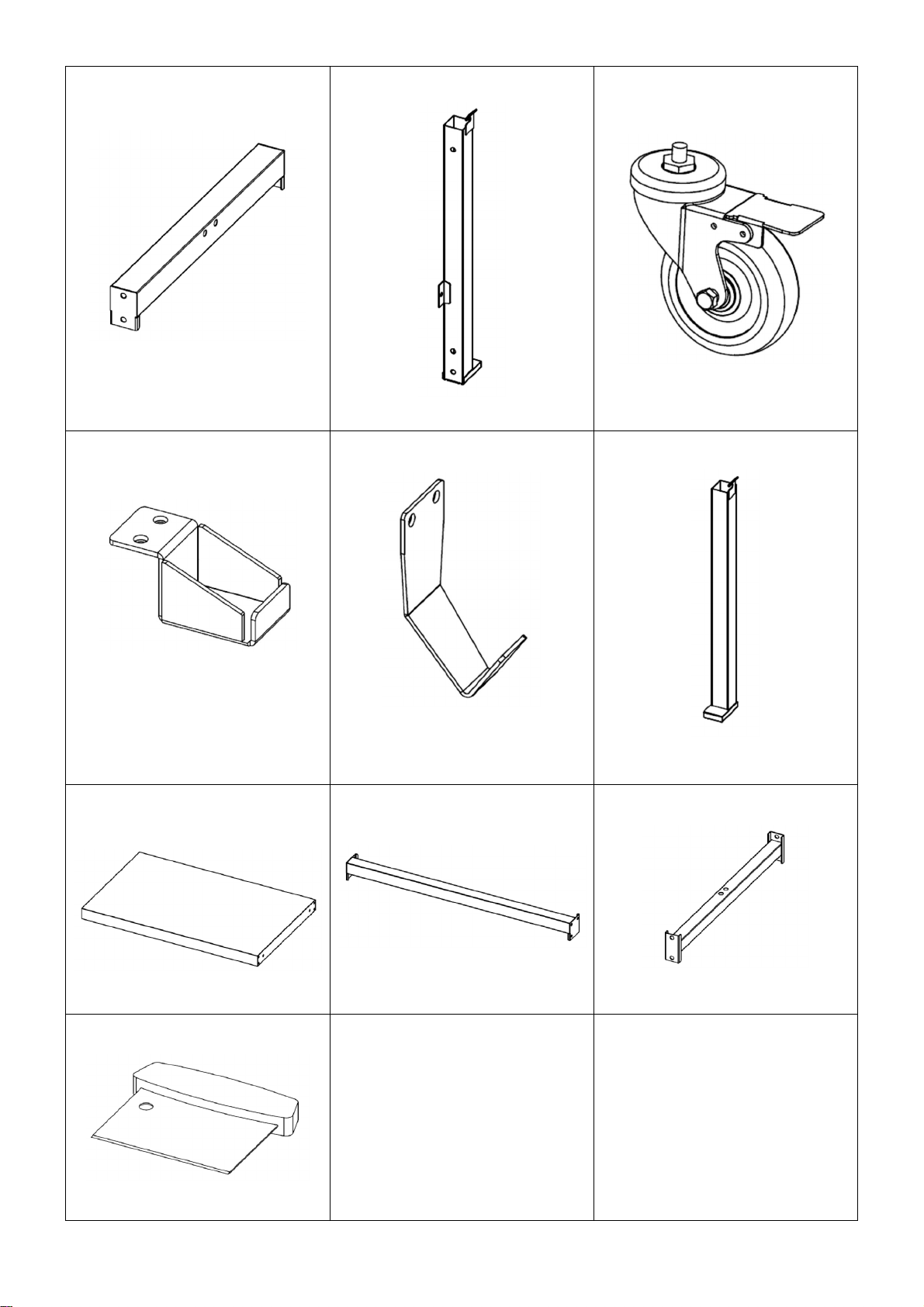

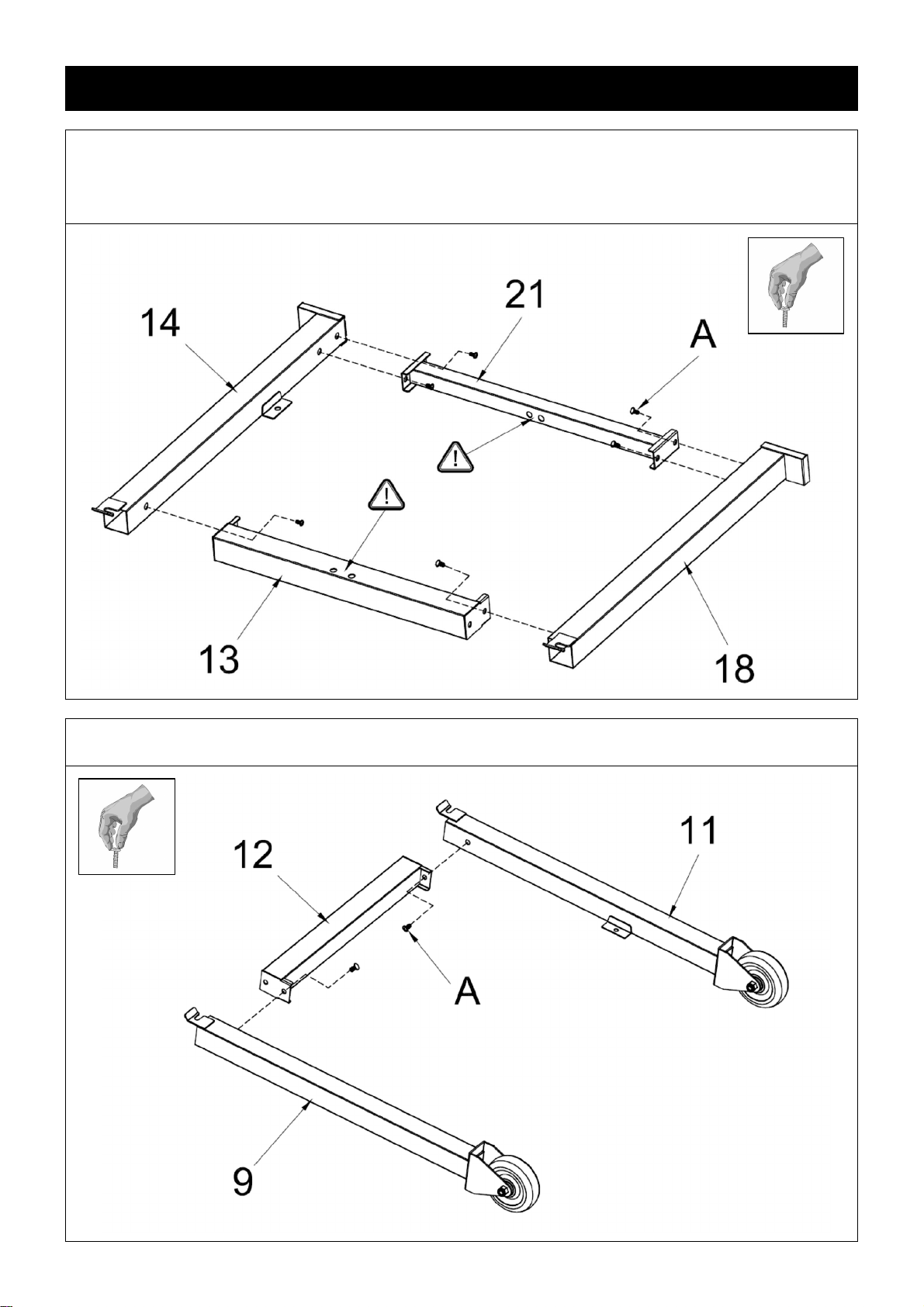

COMPONENT LIST
1. Hook 2. Side Table Handle 3. Griddle
3pcs 2pcs 1pc

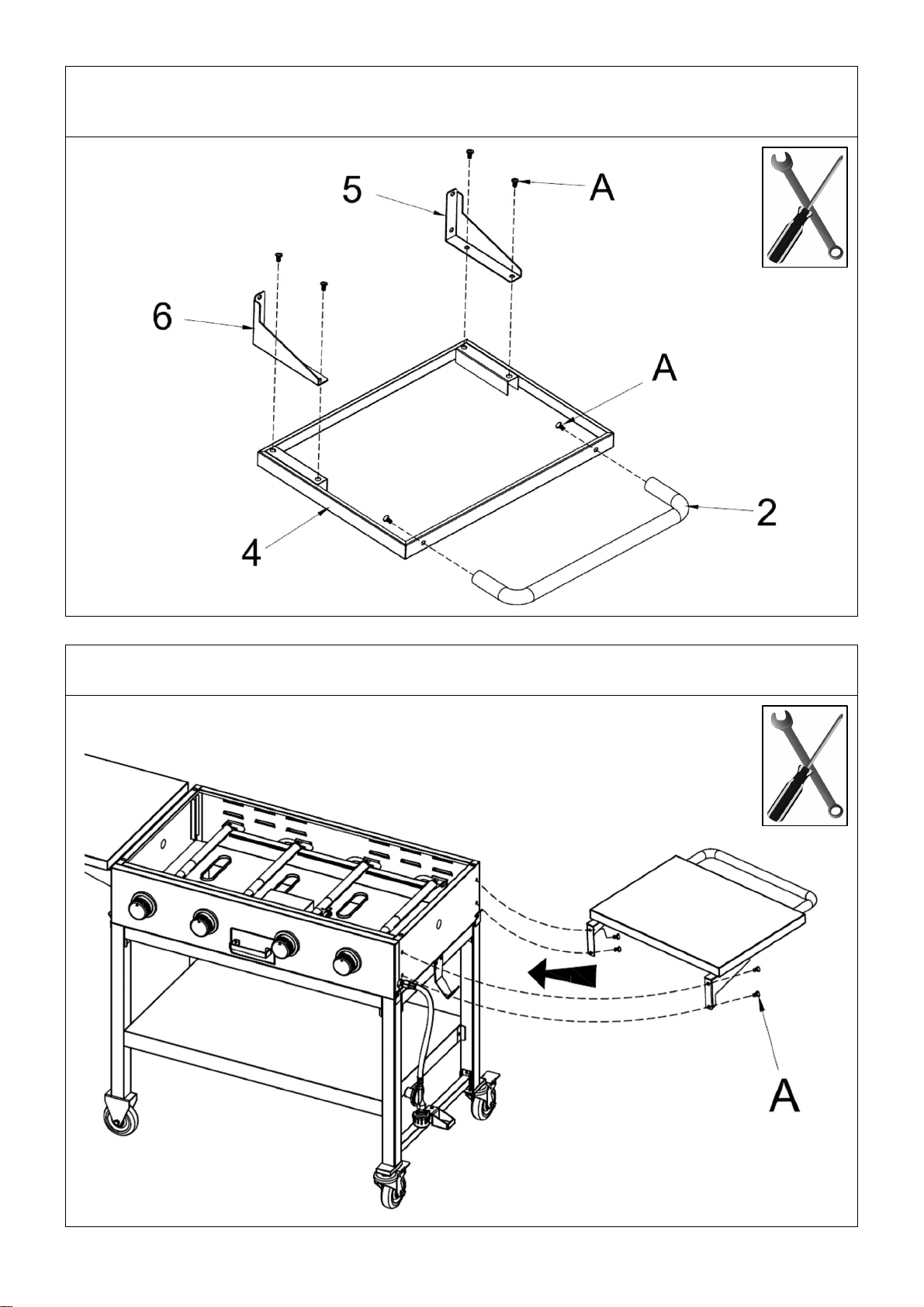

4. Side Table 5. Side Table Left Bracket 6. Side Table Right Bracket
2pcs 2pcs 2pcs

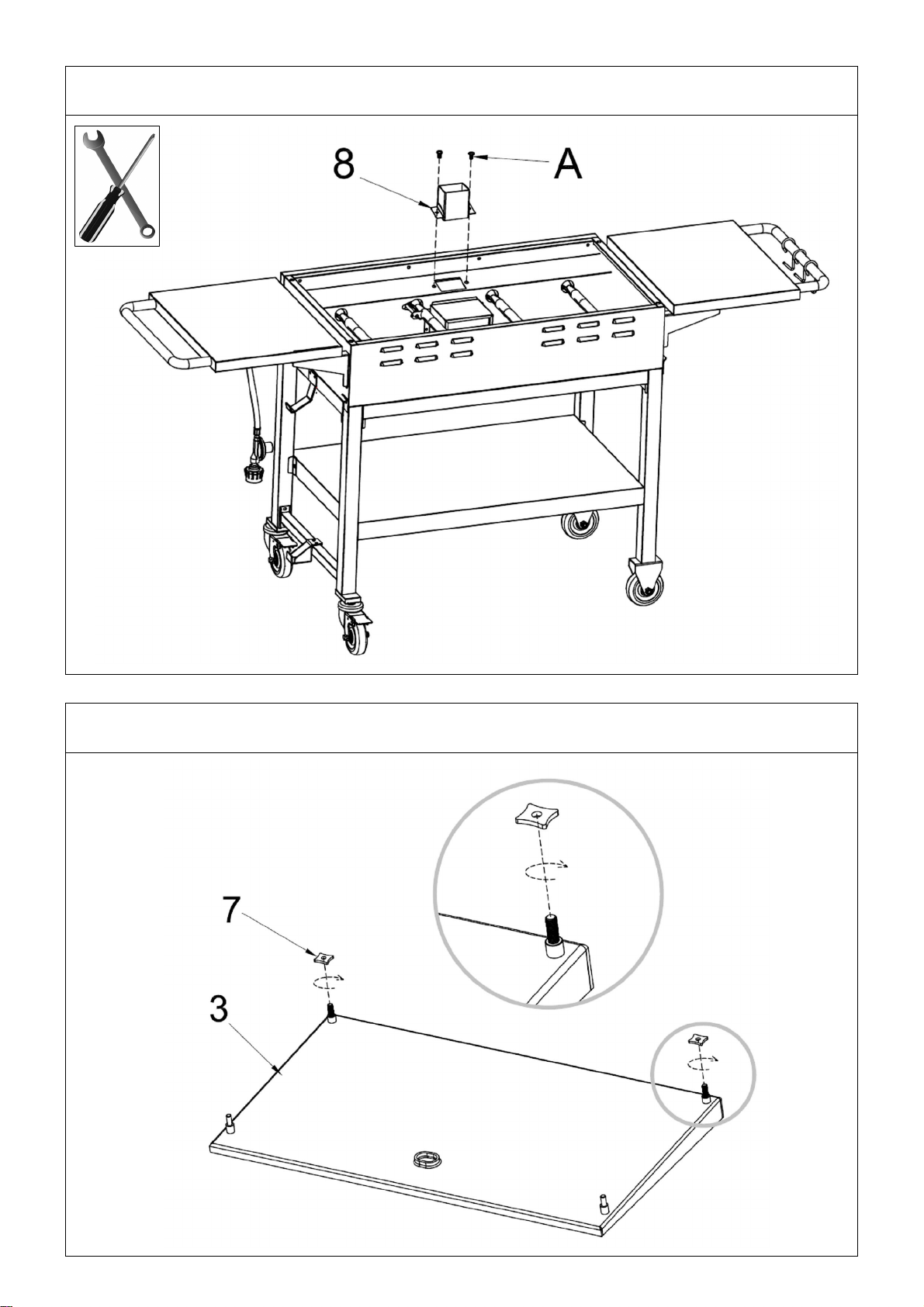

7. Griddle Adjustor 8. Grease Drip Tube 9. Left Rear Leg
2pcs 1pc 1pc
10. Grill Body Assembly 11. Left Front Leg 12. Left Cart Beam
1pc 1pc 1pc

10 of 31 20190625-Ver.1.0

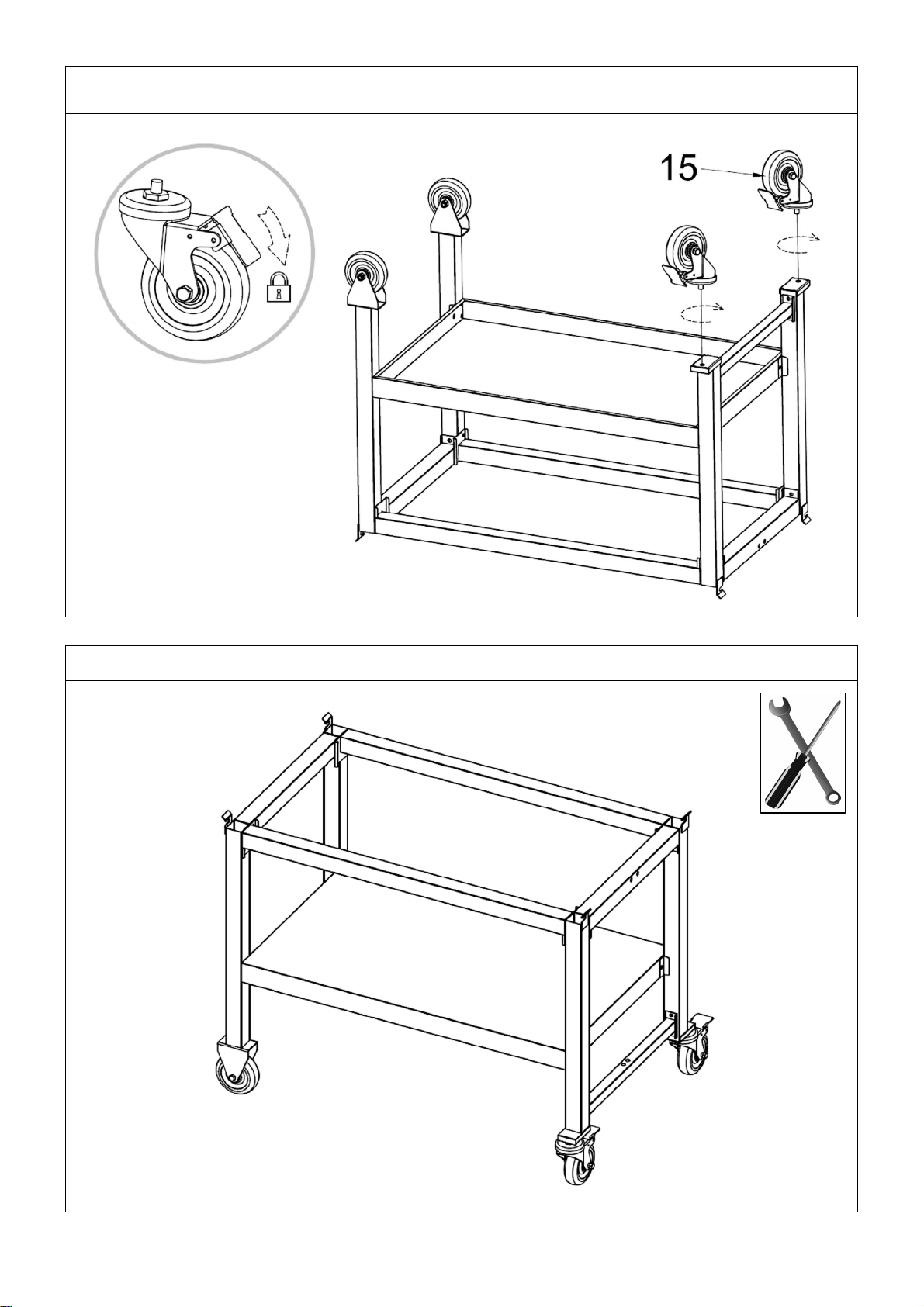

13. Right Cart Beam 14. Right Rear Leg 15. Locking Caster
1pc 1pc 2pcs

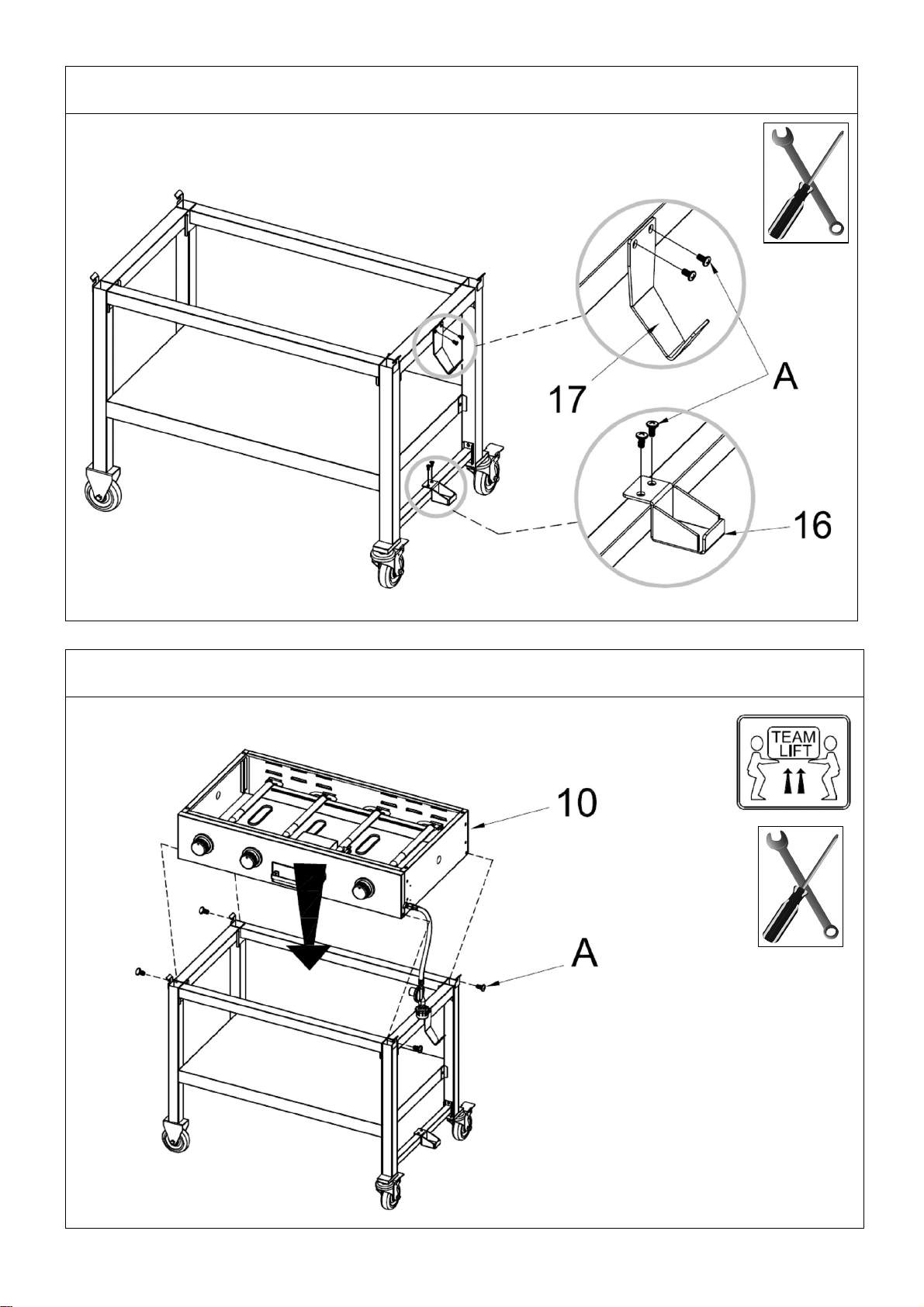

16. Tank Holder 17. Tank Hook 18. Right Front Leg
1pc 1pc 1pc
19. Cart Base 20. Front/Rear Cart Beam 21. Tank Holder Supporting Beam
1pc 2pcs 1pc
22. Scraper
1pc
