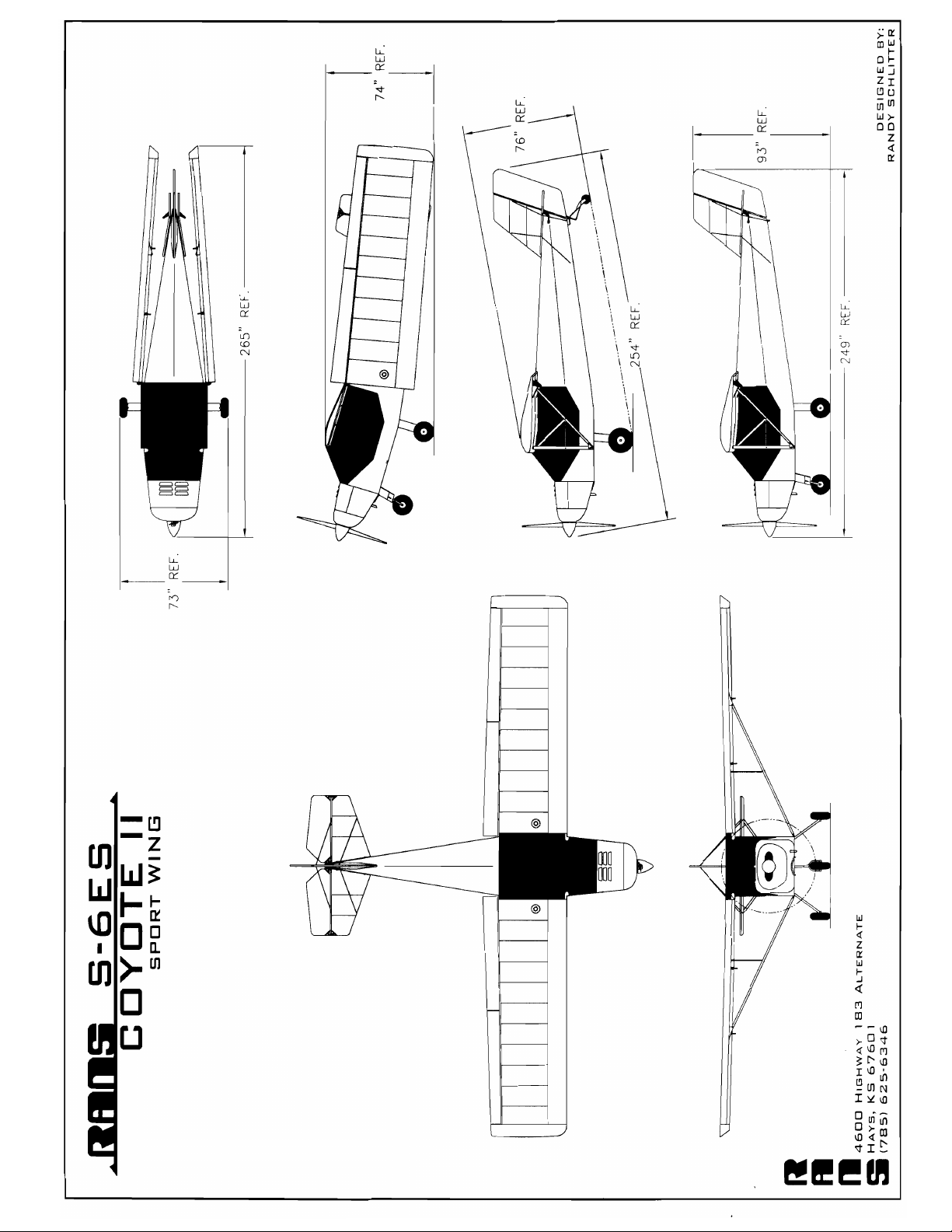

Rans COYOTE II S-6ES User manual

02x000gi msw 09/01/05
00-1
S-6ES COYOTE II
SPORT WING
TABLE OF CONTENTS
System Section
General Information 00
Fuselage 01
Main Gear 02
Nose Gear / Tail Wheel 03
Floorboard/Rudder Pedals/ 04
Control Stick 05
S-1 Firewall 06
Aileron/Flaps 07
Seat/Seat Belt 08
Tailcone 09
Doors 010
Tail 011
Brakes 012
Engine Mount 013
Engine 014
Instrument Panel/Electrical 016
Throttle 017
Fuel System 018
Windshield 019
Cowling 020
Rudder 021
Wings 022
Covering 023
CG/Operations 024
Options 025

02x000gi msw 09/01/05
00-2
RANS INC.
4600 Highway 183 Alternate
Hays, KS 67601
Technical Support
[phone]
[email protected]
Parts Department
[phone]
When calling Technical Support please have the following ready:
‘ Aircraft Model
‘ Serial Number
‘ Engine Model
‘ Your Aircraft Assembly Manual
Note: Please make your questions precise and to the point so that we may
assist as many customers as possible.

02x000gi msw 01/26/09
00-3
RANSAircraft
Tool List
This is a partial list of tools that would be helpful when assembling a RANS airplane.
Hand Tools
Pliers
Needle nose pliers
Side cutters
Aviation snips
Hammer
Rubber mallet*
Center punch
Drift pin and punch set
Several small clamps
Wrench set SAE and metric
Ruler and tape measure
Adjustable fly cutter*
1/2” Uni-Bit®Step Drill
Hack saw
Dimpling Tool – 1/8” Die
Safety wire pliers
Electrical wire stripers
Pop rivet tool
Click punch
Ball peen hammer
Scratch awl
Screwdriver set
Safety glasses
Socket set SAE and metric
2 or 4 ft. Level
Electronic Protractor*
Utility knife
Hole saw*
Files
1/8” Countersink
Power Tools
Electric hand drill
Dremel*
Soldering gun or Hot Knife
CD/MP3 Player*
Small electric grinder*
Acrylic Foam Tape (double sided)
Bench disk sander*
Heat gun*
Household Iron
90° Close Quarters Drill or adaptor
Lubricants, Sealants, Tapes and Glues
Small can lithium grease
Contact cement
Super glue
3M DP-460 Epoxy Adhesive
Acrylic Foam Tape (double sided)
Clear silicone
WD-40
Wheel Bearing Grease
3M DP-460 Epoxy Mixer Tips
Drill Bit Sizes
A full set of fractional drill bits ranging from 3/32" to 5/8" is strongly recommended. In addition the following number bits
will be required.
NUMBERED BITS & TAPS
#40
#30
#28
#21 & 10-32 TAP
#19
#11
5mm x .8 mm Tap
FRACTIONAL BITS
1/4”
5/16"
3/8"
1/2"
7/8"
* Not a necessary tool but helpful.

02x000gi msw 09/01/05
00-3A
RANSAircraft
RECOMMENDED AVIONICS LIST – S-6ES
Comm Radios
KING KLX-135A GPS/COM with moving map
ICOM IC-A200 Transceiver
Transponder
KING KT-76A Transponder
Encoder
Trans-Cal SSD-120-30 Altitude Encoder
Intercom
PS Engineering PM1000 II Intercom (RANS “pre-cut” panels are designed for this intercom)
ELT ACK Technologies ELT Model E-01
Push to Talk Switch
Radio Shack #275-644 Pushbutton Switch
Local Avionic shops can wire your avionic harnesses for you.
Wells Aircraft does the wiring harnesses for the RANS Fleet. Contact George at 620-663-1546 for details.
WELLS AIRCRAFT*
P.O. BOX 858
HUTCHINSON, KS 67504
*Authorized Bendix/King dealer
Switches, circuit breakers, and other electrical parts are also available for RANS aircraft panels.
Contact RANS Parts Department for pricing.
RED Illuminated Master Switch KSES0017
Non-illuminated Switch KSES0016
Panel Post Lights KSES0018
Electrical Buss Bar AMW 636
W58 Circuit Breakers
1 amp KSES0010
2 amp KSES0012
4 amp KSES0014
5 amp KSES0015
10 amp KSES0013
15 amp KSES0011

02x000gi msw 09/01/05
00-7
BEFORE BEGINNING: Please read the manual cover to cover. This will speed up your build time
considerable.
GET ORGANIZED: Prepare your workshop and be sure that what goes in the shop door will be able to come
out!
KEEP IT CLEAN!: The pre-sewn skins can soil easily. Wash your hands, tools and work tables. You will
notice many of the parts are marked with part numbers. These wipe off with a cloth dampened with acetoneor
lacquer thinner. CAUTION: Do not allow fuel, acetone, lacquer thinner or Loctite to come in contact
with the Lexan glazing. These and some other solvents will destroy the Lexan.
After drilling holes they will need to be deburred. This is an IMPORTANT step and must be performed.
Assembly of the parts with burrs can cause stress risers and eventual part failure. Various tools can be used.
An official deburring tool is nice, but a 1/2" drill bit can do a good job on most holes. Radius and smooth sharp
corners with files or fine grit sanders and grinders. Edges of certain parts also need deburring...a good file
works here.
A few special tools will be needed. A power drill, wrenches, and a pop riveter. “Clecos” make trial fitting and
assembly go smooth on assemblies such as windows, cowling and firewall.
FABRICATED PARTS: You will need to fabricate some parts out of the raw stock. These parts will be
identified in your assembly manuals.

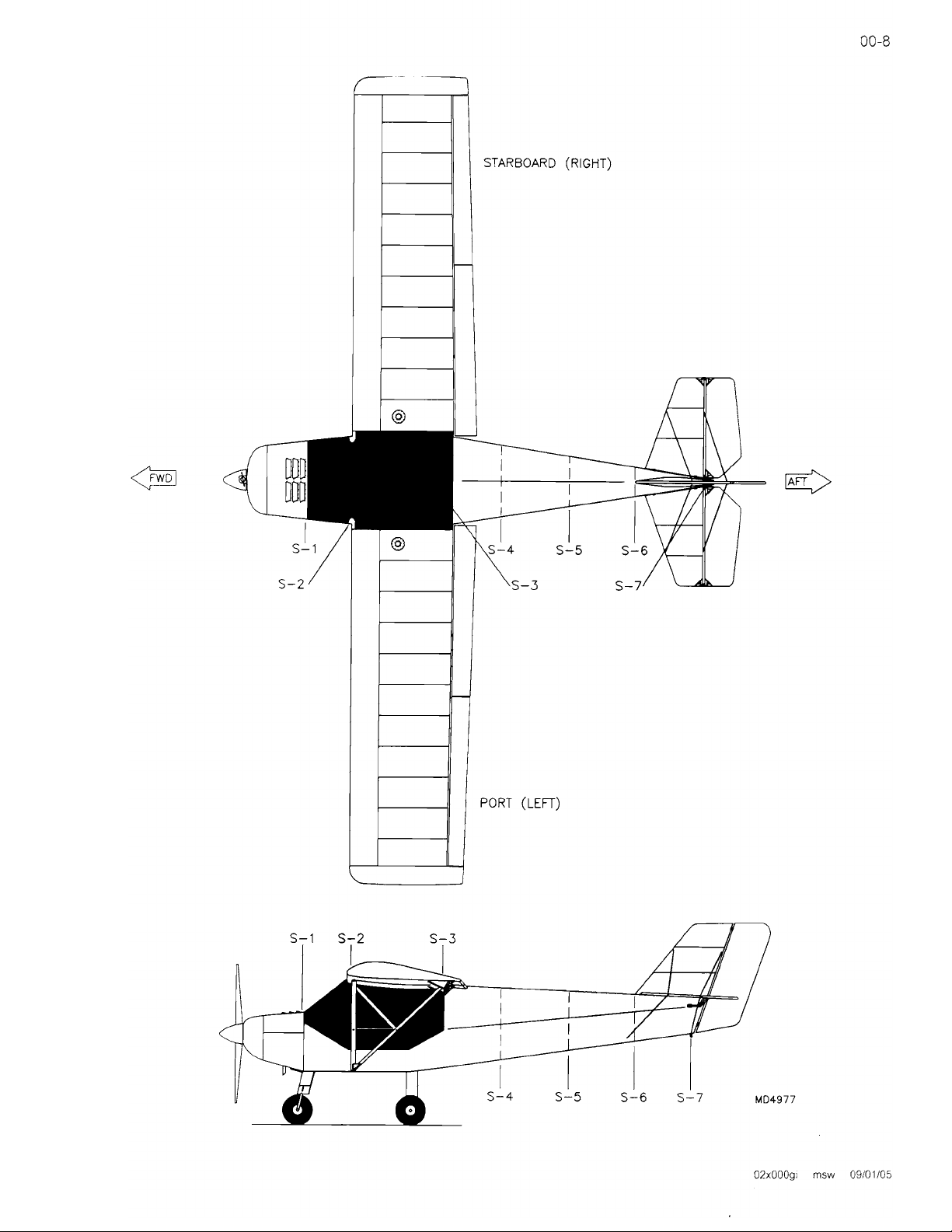

STRUCTURAL STATIONS: Throughout the manual references will be made to structural stations. These are
locations of formers or bulkheads from the nose to the tail of the aircraft. Observe the drawing in this section
for locations.
CLECOS: Included in your kit is a supply of clecos. These are temporary fasteners that will be used to hold
things together while fitting and drilling. A Cleco Plier is also included to install and remove the clecos. The
clecos are color coded as to hole size. Silver #40 Copper #30 Gold #11
To use, simply set the cleco in the special pliers,squeeze closed, insertinto the holeand release. (Reversefor
removal). You will find the clecos to be extremely useful throughout assembly.
RIVETS:Your kitissupplied withvarioussizes ofaluminumandstainless steel pop rivets. Even though we are
careful, there is always the chance of the packages being mis-labeled. So before riveting, be sure to double
check that you have the correct aluminum or stainless steel pop rivet for the particular section you are working
on.
PLACARDS & MARKINGS
Included in your S-6ES kit is a decal sheetand gauge markingdecal. Theseshouldprovideyou with just about
every label/placard the FAA requires. Apply the decals as per FAA recommendations. Affix the passenger
warning decal to the instrument panel. Not included inyour kit isthe data plateand aircraft identifierplate. The
data plate can be purchased from one of the aircraft supply houses such as Spruce & Specialty. The identifier
plate (which is a fairly new requirement) can be made from a small 1" x 1" 2" piece of aluminum. Hand stamp
or engrave the make, model and serial number and then rivet this to the side of the tail channel. The
Experimental decal is best applied along either door’s bottom edge.
For the “N” number, use 3" vinyl letters. Cole brand is available at most hardware stores. These just stick on
the Vertical Stabilizer. Local Vinyl Sign Shops can also make them in colors and sizes as desired. Make sure
the skin is clean before applying.
