Raptor C1p9s01 User manual

C1P9S01 Mainboard

User's Guide

For System Configuration

and Set Up

Table of Contents

SAFETY INFORMATION............................................................................................................6

Electrical Safety.................................................................................................................................................... 6

Operati nal Safety................................................................................................................................................ 6

NOTICES....................................................................................................................................7

Federal C mmunicati ns C mmissi n Statement............................................................................................7

Envir nmental Disp sal Statements................................................................................................................... 7

MAINBOARD SPECIFICATIONS...............................................................................................8

MAINBOARD OVERVIEW.......................................................................................................10

Design.................................................................................................................................................................. 10

Installati n........................................................................................................................................................... 11

Rem val............................................................................................................................................................... 11

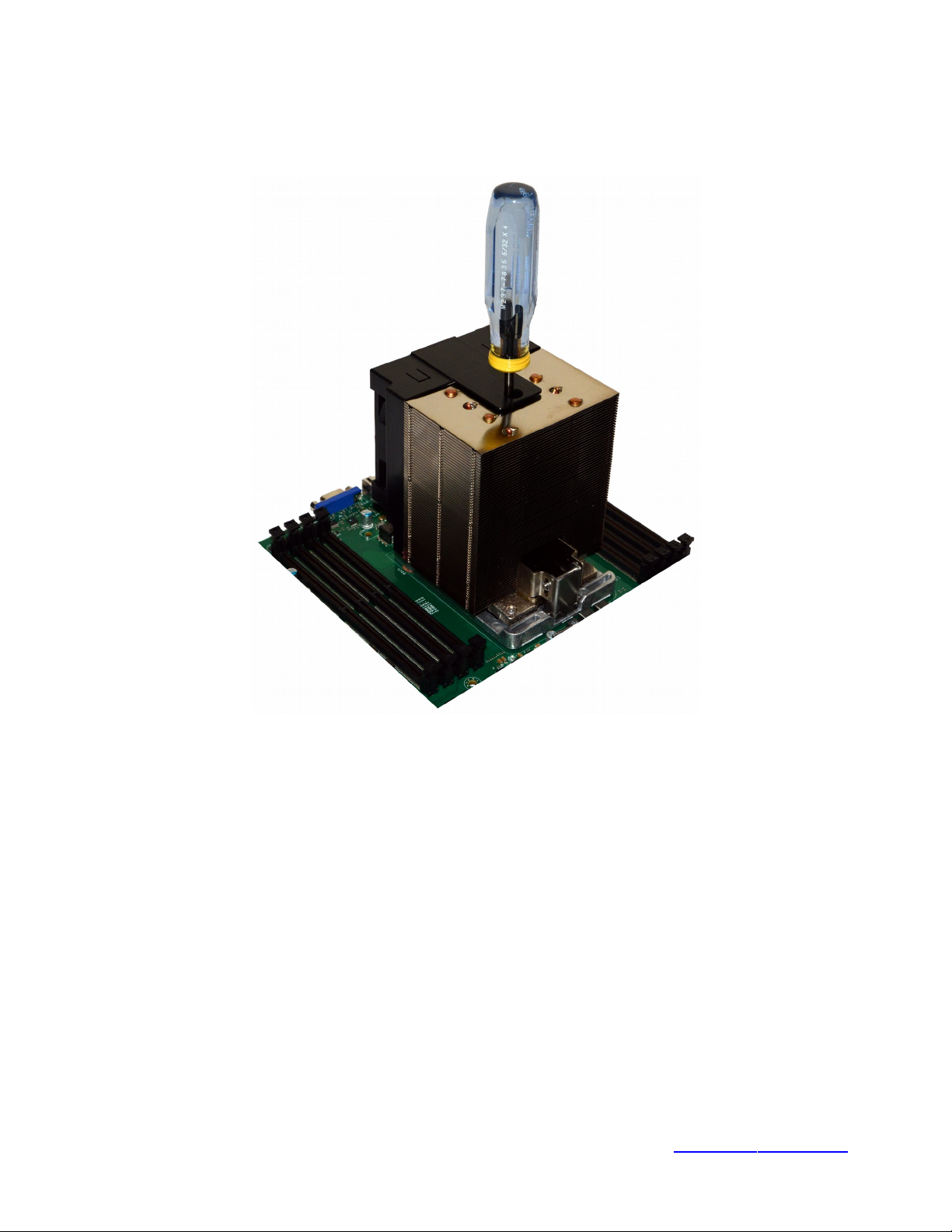

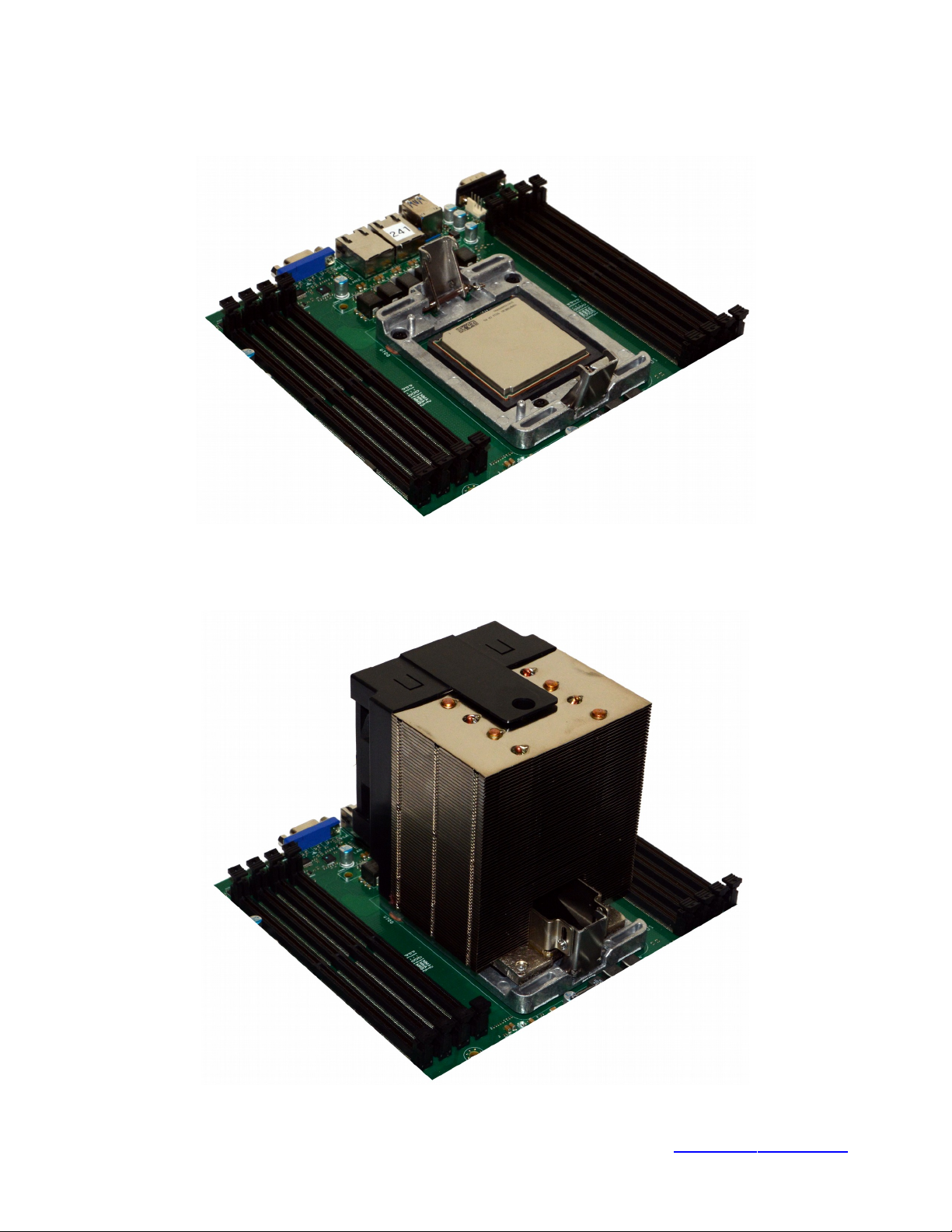

CPU INSTALLATION AND REMOVAL....................................................................................12

Backgr und......................................................................................................................................................... 12

Installati n........................................................................................................................................................... 13

Rem val............................................................................................................................................................... 15

RAM INSTALLATION AND REMOVAL...................................................................................16

P pulati n Tables............................................................................................................................................... 16

Installati n........................................................................................................................................................... 17

Rem val............................................................................................................................................................... 17

HEADERS AND CONNECTORS.............................................................................................18

Pin Numbering C nventi ns............................................................................................................................. 18

Fr nt Panel.......................................................................................................................................................... 19

BMC Serial C ns le............................................................................................................................................ 21

Trusted Platf rm M dule C nnect r................................................................................................................. 22

FlexVer™ C nnect r.......................................................................................................................................... 24

OCC M de........................................................................................................................................................... 26

BMC External Reset Header.............................................................................................................................. 27

BMC TTL Auxiliary Serial Header...................................................................................................................... 28

BMC Heartbeat Indicat r Header....................................................................................................................... 29

Internal USB 3.0 Header..................................................................................................................................... 30

BMC I2C P rt 5.................................................................................................................................................... 32

Planar VPD Pr gramming Header..................................................................................................................... 33

FPGA Pr gramming Header.............................................................................................................................. 34

FPGA M de Switch 1.......................................................................................................................................... 35

Chassis Intrusi n Detect.................................................................................................................................... 36

On-B ard VGA Disable Jumper......................................................................................................................... 37

Disk Drive Activity Indicat r.............................................................................................................................. 38

External Audi Header....................................................................................................................................... 39

CPU Secure M de Disable................................................................................................................................. 40

PMBus C nnect r............................................................................................................................................... 41

CPU ATX12V P wer C nnect r......................................................................................................................... 42

ATX P wer C nnect r........................................................................................................................................ 43

CPU PCI Express Sl ts...................................................................................................................................... 45

CPU Fan Header................................................................................................................................................. 49

Primary Chassis Fan Headers........................................................................................................................... 50

SATA C nnect rs................................................................................................................................................ 51

FAN ZONES..............................................................................................................................52

C nnecti ns........................................................................................................................................................ 52

Alg rithm Descripti n........................................................................................................................................ 52

USAGE......................................................................................................................................53

Initial P wer-On.................................................................................................................................................. 53

Selecting a B t Medium................................................................................................................................... 53

BMC Access........................................................................................................................................................ 54

H st Firmware Updates...................................................................................................................................... 54

BMC Firmware Updates..................................................................................................................................... 54

EARLY BOOT DEVICE FIRMWARE........................................................................................56

Intr ducti n......................................................................................................................................................... 56

Installati n........................................................................................................................................................... 56

Rem val............................................................................................................................................................... 56

SUPPORT.................................................................................................................................58

Getting Help........................................................................................................................................................ 58

ERRATA....................................................................................................................................59

PCB Versi n 1.00................................................................................................................................................ 59

Product warranty or service will not be extended if: (1) the product is damaged by the consumer in any

way, including any alterations that affect the operability of the feature or features being claimed under

warranty and/or product service; or (2) the serial number of the product is defaced or missing.

RAPTOR COMPUTING SYSTEMS, LLC PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT SHALL RAPTOR COMPUTING SYSTEMS, LLC, ITS DIRECTORS,

OFFICERS, MEMBERS, MANAGERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF

PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND

THE LIKE), EVEN IF RAPTOR COMPUTING SYSTEMS, LLC HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL

OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY RAPTOR COMPUTING SYSTEMS,

LLC. RAPTOR COMPUTING SYSTEMS, LLC ASSUMES NO RESPONSIBILITY OR LIABILITY FOR

ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE

PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identification or explanation and to the

owners’ benefit, without intent to infringe.

Safety Information

ELECTRICAL SAFETY

• To reduce the risk of electric shock, disconnect the power cable before relocating or servicing the

system.

• When adding or removing devices to or from the system, ensure that the power cables for the

devices are unplugged before the signal cables are connected. If possible, disconnect all power

cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all power cables are

unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices could

interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about

the voltage of the electrical outlet you are using, contact your local power company.

• If your power supply is not functioning, do not attempt to repair it. Contact a qualified service

technician or your retailer.

OPERATIONAL SAFETY

• Before installing the motherboard or connecting devices to it, carefully read any and all provided

manuals for the devices in question.

• Before using the product, make sure all cables are correctly connected and the power cables are

not damaged. If you find any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, staples, and other foreign metallic objects away

from connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not locate the product in any area where it may

become wet or damp.

• Place the product on a stable surface at all times.

• If you encounter technical problems with the product, contact a qualified service technician or your

retailer.

Notices

FEDERAL COMMUNICATIONS COMMISSION STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with manufacturer’s instructions, may

cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

ENVIRONMENTAL DISPOSAL STATEMENTS

DO NOT throw the motherboard in municipal waste. This product has been designed to

enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin

indicates that the product (electrical and electronic equipment) should not be placed in

municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury containing button cell battery in municipal waste. This

symbol of the crossed out wheeled bin indicates that the battery should not be

placed in municipal waste.

Mainboard Specifications

Pr cess r 1x IBM POWER9 “Sforza” Socket (LGA 2601)

4 8 core IBM POWER9 Processors

C re L gic Direct Attach PCIe

F rm Fact r μATX, 9.6” x 9.6”

System Features Fan C ntr l Y

N minal Fan Z nes 2

Fan C nnect rs 3

Fan C ntr l Driver AST2500

Rack Ready Y

Fr nt Panel Header SuperMicro Compatible

TPM Header LPC / I2C

SMBus Header Y

BMC Y

BMC Type OpenBMC Compatible (AST2500)

FlexVer™ Ready Y

Mem ry T tal Sl ts 2 (2 channels per CPU)

Capacity 256GB maximum

Mem ry Type DDR4 1600/1866/2133/2400/2666

Mem ry Features ECC

M dule Sizes 8GB, 16GB, 32GB, 64GB, 128GB (RDIMM)

Expansi n Sl ts T tal PCIe Sl ts 2

T tal µPCIe P rts 0

PCIe Generati n 1,2,3,4

CAPI 2 Capable Sl ts 1 x16 slots

St rage Marvell 88SE9235 4 SATA

Netw rking Br adc m BCM5719 3 host GbE

NCSI SI BMC link

Graphics AST2500 HDMI (up to 1920x1200)

USB TI TUSB7430 2x USB3.0 ports on rear panel

2x USB3.0 ports on internal header

Serial H st 1x RS232 port on rear panel

BMC 1x RS232 port on internal header

1x TTL port on internal header

Envir nmental Requirements Operation: 10°C 35°C

Storage: 40°C 70°C

Humidity: 20% 90%, non condensing

NOTE: Specifications are subject to change without notice.

Mainboard Overview

DESIGN

The C1P9S01 has been specifically designed for applications requiring high security, small form

factor, and low noise. PCIe slots and peripherals are directly connected to each CPU for maximum

bandwidth, therefore PCIe slots cannot be split without an external PCIe switch card.

Illustration 1: C1P9S01 Standard Edition Block Diagram

Table of contents

Other Raptor Motherboard manuals

Raptor

Raptor Captor 370 User manual

Raptor

Raptor T2P9D01 User manual

Popular Motherboard manuals by other brands

Gigabyte

Gigabyte MNJ190I-FH user manual

Biostar

Biostar HI-FI-Z87X-3D Setup manual

Atmel

Atmel SAM9753PIA-DK user guide

Coapt

Coapt GEN2 Handbook

Supero

Supero SUPER P4DL6 user manual

Cypress

Cypress CY3210-PSoCEVAL1 quick start guide

ASROCK

ASROCK B660M-HDV manual

Fujitsu

Fujitsu D2831 Short description

Industrial Computers

Industrial Computers ADE-6050 user manual

Asus

Asus TUF Z270 MARK 2 manual

DFI

DFI NB71-BC user manual

ASROCK

ASROCK H61 Pro BTC user manual

Norco

Norco POS-7893 user manual

Intel

Intel DG965MS specification

Asus

Asus B85M-VIEW PAKER user manual

Asus

Asus P5G41T-M LX V2 user manual

Gigabyte

Gigabyte GA-K8VT800-RH user manual

Gigabyte

Gigabyte Z790M AORUS ELITE user manual

Raptor C1P9S01 User manual

Popular Motherboard manuals by other brands
