Raptor HJ3010 User manual

1
ROBOTIC POOL CLEANER
Raptor HJ3010
USER MANUAL
Subject to update by manufacturer
without prior notice

2
Important Precautions
1. In order to prevent severe damage to the cleaner, never power on the unit when it
is outside of the swimming pool.
2. The power cord must be connected to an appropriate earthed socket.
3. Do not operate the cleaner when people are in the pool.
4. Hold the top handle when putting the cleaner into water or lifting out of the
water, do not pull the cable.
5. Before power on, make sure to empty the trapped air inside the cleaner (no more
air bubbles coming from the cleaner and the cleaner is fully submersed on the
pool bottom).
6. Before power on, make sure the filter be assembled in position and cable be
fully released to avoid any winding, which could affect the cleaner’s
performance or cause damage.
7. Remote control should be hold vertically for a maximum control distance.
8. Please clean and wash the filter bag every time after use.
9. The cleaner should be stored in a cool and ventilated place, away from direct
sunlight when not in use.
10. The power supply unit should be placed in a shaded area during working. In
order to avoid overheating and potential damage of components, never cover the
power supply unit.
11. Only authorized after sales service personnel should open the cleaner’s power
supply unit and motor assembly, otherwise the warranty will be invalidated.
12. In order to avoid any accident/damage, it is strongly recommended to connect
the caddy with a fixed holder beside the swimming pool by using the safety rope
(included in the package).
13. Do not use the cleaner beyond the working environment/conditions stated in this
manual.
14. After power off the machine, must wait until at least 30 seconds to restart it.
15. For different season different density of the filter net need to be chosen. More
detail please contacts your local distributor.
16. This machine is for clean the pool only not for other purpose.
17. It may cause minor pollution in case of the leaking from the oil seal.
Please read this instruction manual carefully before use and keep it for future
reference.

3
Contents
Ⅰ.Introduction····················································································P 4
II.Safety· ··················································································· ··P 5
III.Specifications·················································································P 5
.Ⅳ Components of Swimming Pool Cleaner·················································P 6
Ⅴ. Preparation Before Operating······························································P 9
Ⅵ. Instruction of Operating panel ··························································P 10
Ⅶ. After Use of Cleaner·····································································P16
Ⅷ. Caddy assembling···········································································P18
Ⅸ. Packing List················································································P19
Ⅹ. Warranty ·····················································································P20

4
Ⅰ.Introduction
The Raptor HJ3010 (Basic model) robotic pool cleaner is a new type of highly efficient
and energy-saving swimming pool cleaning robot. Through its advanced computer
controlled program, it can clean the pool walls and bottom automatically. At the same
time, it filters the pool water and gets rid of suspended particles without replace the pool
water. It’s total environmental-friendly.
For safe operation, the cleaner works on 24V direct current. Please read this user
manual carefully before use.
Features:
◆ 24V DC guarantees safety
◆ Smart program of cleaning route
◆ Manual/auto control to move forward/backward, turn left/right
◆ Control on smart phone apps through wifi (optional)
◆ Full coverage of pool floor, walls and waterline, multiple choice of pool floor
only, walls only, once for each of pool floor and walls, or even triple for pool floor
and once for pool walls
◆ Powerful vacuum filter system to catch leaves, hair, mud, dust, algae and other
fine particles on the floor.
◆ Light weight, detachable filter container
◆Filter bag full load alarm
◆Out of water sensor and alarm, cable defect alarm, motor defect alarm, switch
power defect alarm; all of these fault diagnosis shows on the display screen
◆Fit for all types of pool

5
Ⅱ. Safety
1, Power supply unit position：
Power supply unit need to be placed in proper position so as to reach the distal end of
pool for the cleaner, meanwhile as least 3.5m from pool edge.
2,important：
Before power on, make sure local voltage/frequency matches the rated
voltage/frequency of the cleaner
Rated input voltage：110VAC (120VAC) / 220VAC (230VAC)
Frequency：50Hz/60Hz
Ⅲ. Specifications
1．Rated input voltage： 220VAC (230VAC)/ 110VAC (120VAC)
2．Frequency：50Hz/60Hz
3．Output voltage：DC24V
4. Power：200W
6. Remote control frequency：433M
7．Cable length： 20m
8．Roller length：465mm
9．Max cleaning area：Appr. 270 ㎡
10．flow rate：20m³/h
11．Filter net density： 180um (250um optional)
12．Pool water temperature：10℃-32℃
14. Moving speed：MAX 12.5m/min
15. IP grade：Cleaner IPX8
Power supply unit IPX5
16. Cleaner weight：12.5kg (Without cable)

6
Ⅳ. Components
1. The cleaner consists of power supply unit, caddy, cleaner and remote control,
with Bluetooth control function.
Pic. 4-2 Caddy
图4-2 清洁机
Handle
Cable bracket
1
2
2
3
4
5
Nut
Whee
cover
Sleev
Axle
Chasi
ssis
Middle
part
Power unit
bracket
Pic.4-1 Power supply unit
Power line
Usb transmission interface Cable socket
Control board

7
Remote control
Pic. 4-3 Remote control
No. Symbol Description Function
1 Antenna
2 Indicator light
3 RUN
triple pool floor then
once
pool
wall,
working
time-2 hours
Press this button, robot runs
automatically as per preset programme
4
▶
Keep pressing Turn right
5 STOP Stop Robot stops
6 ▲ Press once or keep
pressing Move forward
7
◀
Keep pressing Turn left
8 ▼ Press once or keep
pressing Move backforward

8
Bluetooth control
item Function Detail
1 Connection status ●Disconnected: white
●Connected: Purple
2 Signal search Press to search blue signal
3 Forward Press to let the cleaner move forward
4 Backward Press to let the cleaner move
backward
5 Left Press to let the cleaner turn left
6 Right Press to let the cleaner turn right
7 Stop Stop
8 Cleaning mode
●Pool floor: only cleaner pool floor
●Pool wall: only cleaner pool walls
●One floor one wall: clean pool
floor and pool wall each for once,
●Three floor one wall: cleaner pool
floor for
9 Auto mode start/stop
●Auto Play: cleaner works in auto
mode
●STOP: Stop auto mode
Pic. 4-5 Overview
4
Pic.4-4 Bluetooth control
1
3
5
6
7
8
9
4
2
Pic 4-4 Bluetooth control

9
Ⅴ. Preparation before start
1、Hold the top handle and put the cleaner into the pool, Make sure to empty the trapped
air inside, then The cleaner can immerse into the pool floor.
2、Power Connection
Once the cleaner immersed into the pool floor, connect the cable with the power supply
unit, and fasten the nuts on both sides, then plug into your power socket; (make sure to
plug it in the correct direction and position), . The cleaner is ready to work
2
3
1
4

10
Ⅵ. Operation
1、Panel
2、Detail
2.1，Press button to power on
2.1.1 Press button machine will running as【DEFAULT】setting.（2 hours
working cycle, three times of bottom one time wall ）
Power
Parameter(for
maintains only)
Display
Back or delete
Setting buttons:
1. “up” / “down” for different
modes
2. “left”/ “right” for detail
parameter
3. “ok” for confirmation or
quick start button

11
2.1.2, Notice：when machine start to running as【DEFAULT】setting all button on the
right of the display will not able to work, to stop machine please press button.
2.2.1, Press button, choose【AUTO】into AUTO mode setting
AUTO AUTO mode setting
MANUAL Manual mode setting
AUTO START Auto start setting
DEFAULT Default mode (triple for pool floor then once for walls,working
2 hours)
2.2.2，Press button，into【AUTO】into sub-menu
POOL FLOOR Choose how many times to clean floor than clean other
part of pool, choose 0 means machine will clean wall
only.
POOL WALL Choose how many times to clean wall, choose 0 means
machine will clean floor only.
WORKING TIME Duration of working cycle, can choose from 1-12 hours.
After setting，press button to confirm, machine will start to work.

12

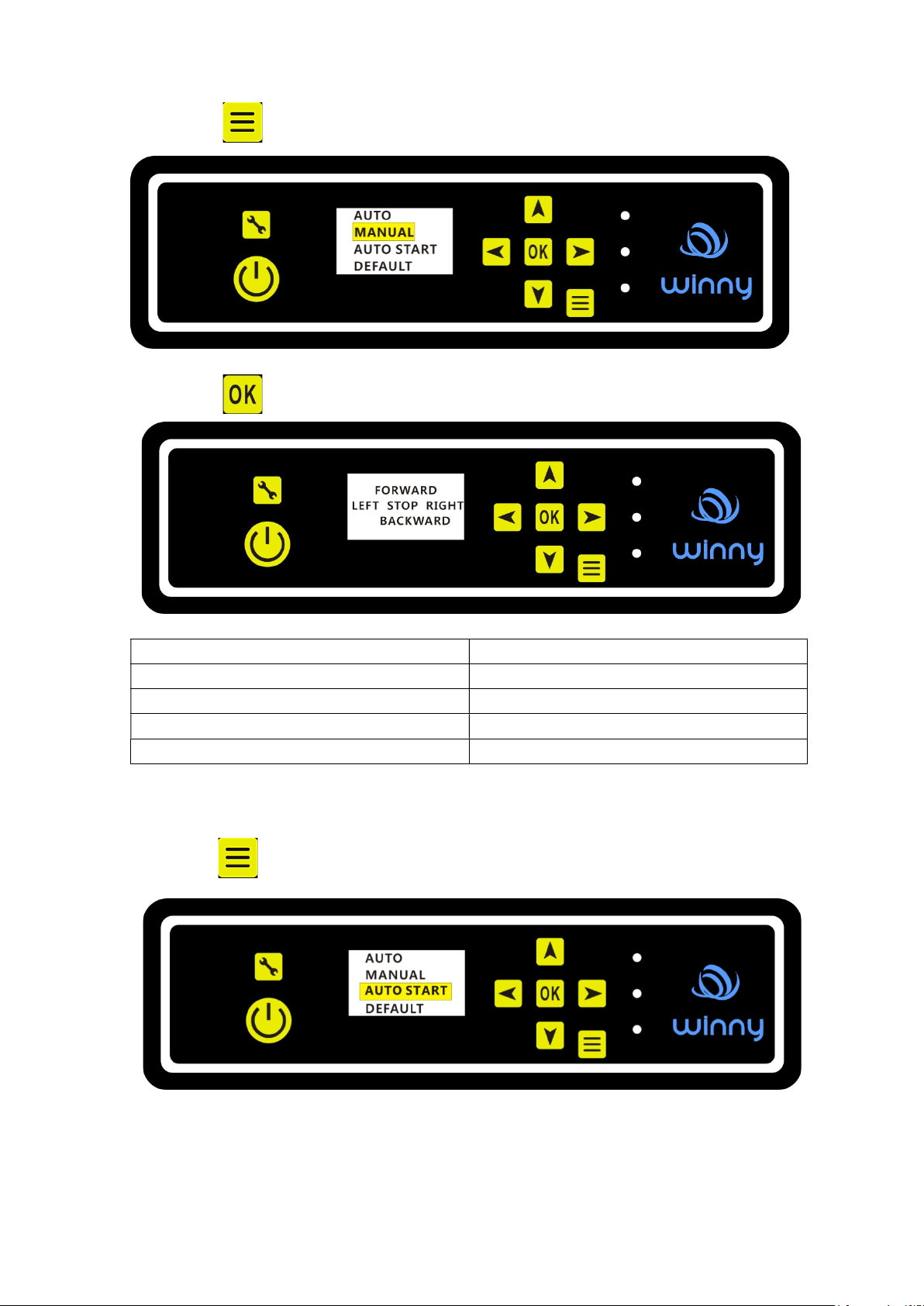

2.3, Press button，select【MANUAL】option.
2.3, Press button, into【MANUAL】sub-menu.
FORWARD Moving forward
BACKWARD Moving backward
LEFT Turn left
RIGHT Turn right
STOP Stop
Once choose MANUAL potion, keep pressing the direction button to control the
machine, release the button the machine will stop.
2.4 Press button，choose【AUTO START】option.

13
2.4.1, Press button, into【AUTO START】sub-menu
SINGLE TIME Auto start single time
MUTI TIMES Auto start more then once
WEEKLY Auto start weekly
RESET Cancel auto start

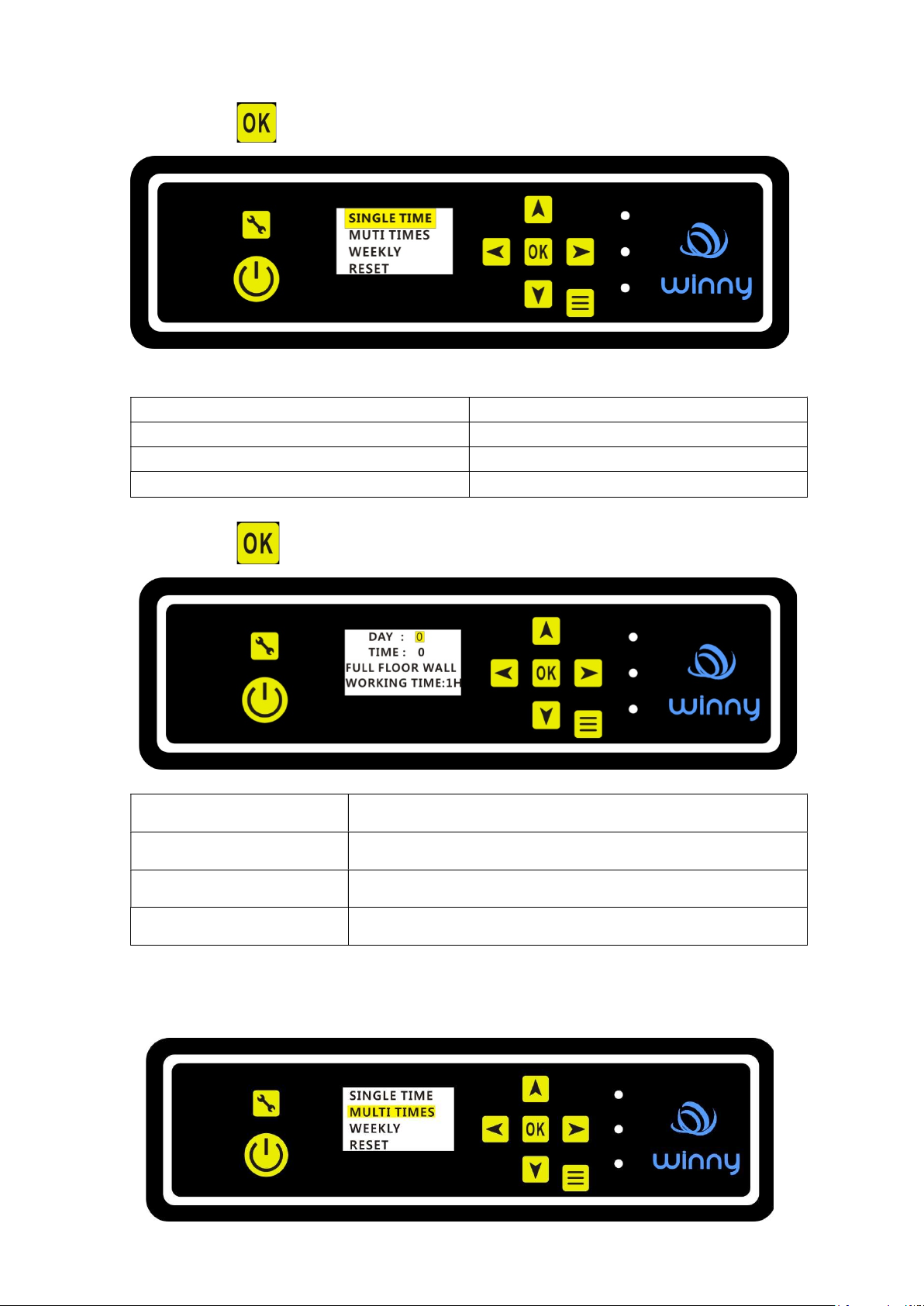

2.4.2, Press button，into【SINGLE TIME】sub-menu.
DAY Can choose any day from 1-28
TIME Choose start time
FULL FLOOR WALL Three working models, full; floor only; wall only.
WORKING TIME Duration of work cycle, from 1-12 hours
2.4.3 according to 2.4 menu，choose【MULTI TIMES】option，into 【MULTI TIMES】
sub-menu, all setting are same from SINGLE TIME setting.

14

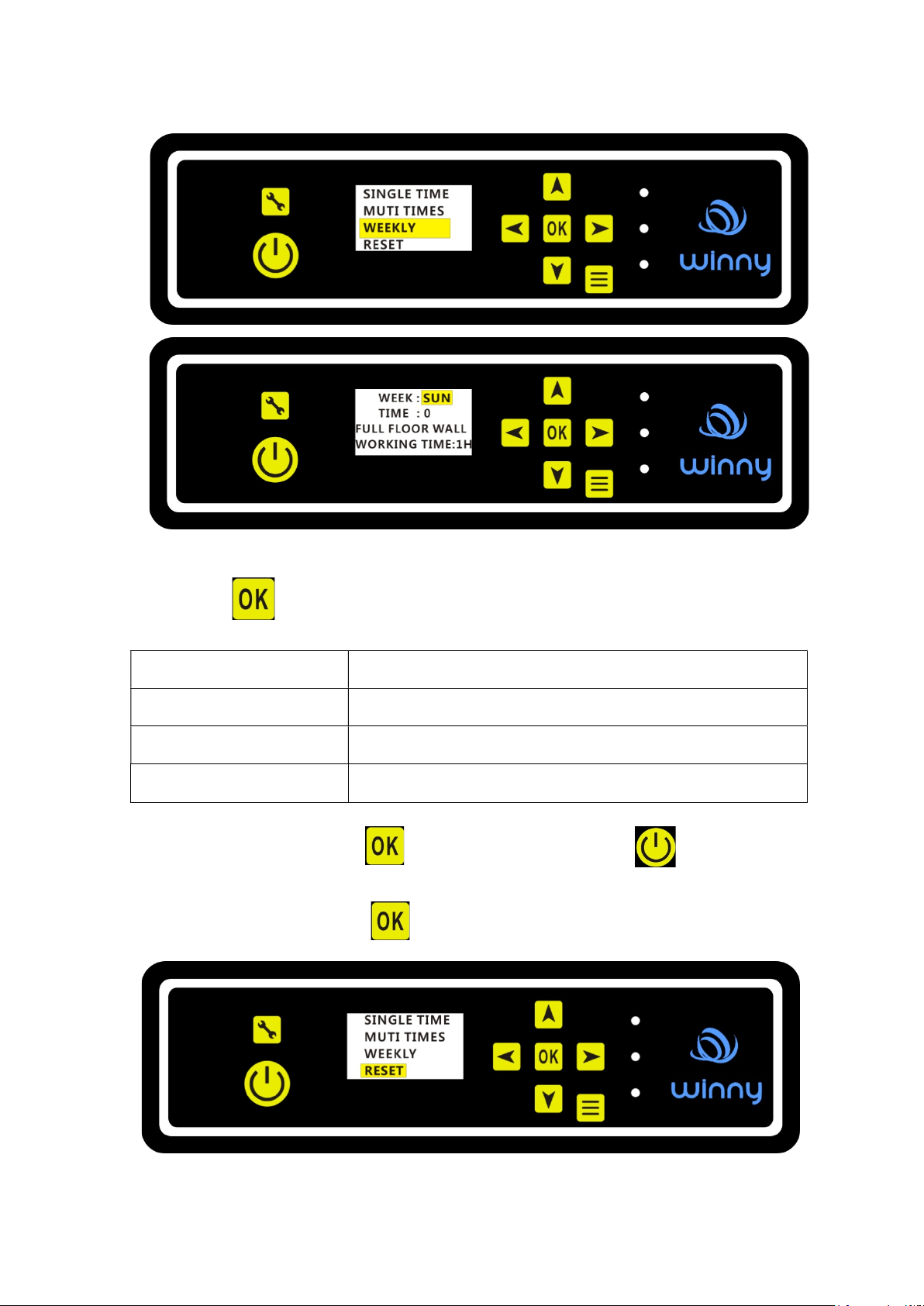

2.4.4according to 2.4 menu，choose【WEEKLY 】option，into【WEEKLY】sub-menu.
2.4.5.Press button，into【WEEKLY】sub-menu.
WEEK Choose a day to auto start
TIME Choose the time
FULL FLOOR WALL Three working models, full; floor only; wall only.
CLEAN TIME Duration of working cycle, from 1 to 12 hours
NOTICE：Make sure press to confirm all settings, press to switch off.
Do not disconnect the power plug of the power supply unit
2.4.5 Chose “Reset” and press to clear all auto-start settings

15

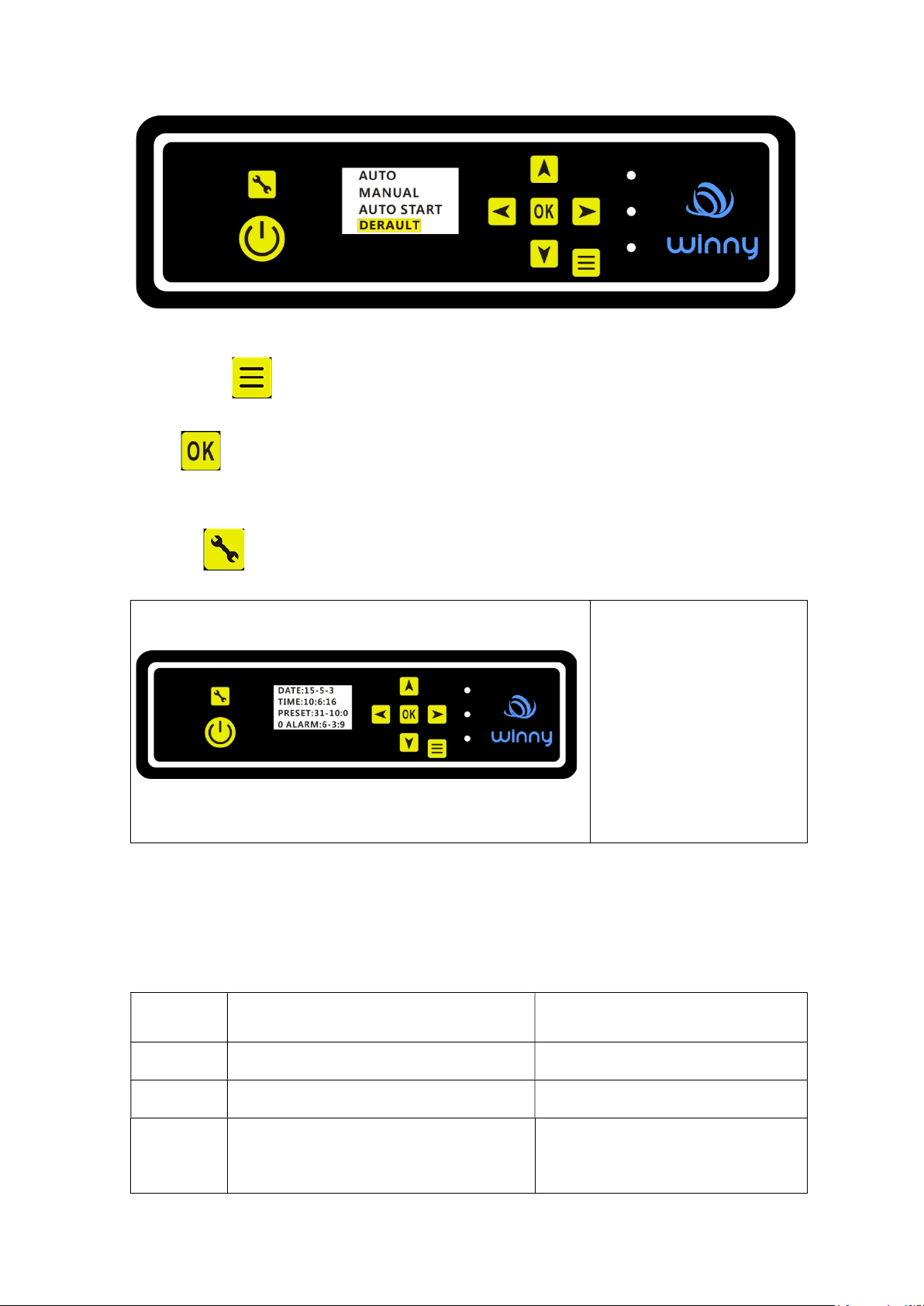

2.5, Press button, choose【DEFAULT】option.
Press button，machine will work follow the default setting. ( three times of pool
floor one time of pool wall)
3, Press button to see the working status
DATE: Current date
TIME: hour-min.-sec.
PRESET: appoint time
date-time
0 ALARM: 6-3:9: Fault
diagnose and date, time.
number”0”or other
number means fault code.
4, Fault diagnose (Alarm)
The indicator light will flash in case there is an alarm, and fault diagnosis will show on
display screen
Alarm
code Diagnose information meaning
1 Communication anomaly Electrical communication fault
2 Robot to leave pool! Cleaner out of water
3 Water inlet Check seal box Water gets into the sealed motor
tank

16
4 Pump over load! Check pump motor Pump motor over loaded
5 Motor over load Check 1_motor! Driving motor 1 over loaded
6 Motor over load Check 2_motor! Driving motor 2 over loaded
7 Voltage V Check power! Fault on power supply unit,
unusual voltage
8 Robot box full Check Robot box Filter tray over loaded
5. Time setting.
Press to power on, then press the two buttons and to set date and
time.
Press button and for position change, press and to reset
date, time and week day.
Ⅶ. After use
Lift the cleaner out of pool
The cleaner will powered off automatically
after one cleaning cycle. Unplug the power
cable, pull the cable line slightly and lift the
cleaner by carrying the top handle.
1
2

17
Note:
1) In order not to scratch the pool wall or damage the cleaner, avoid the cleaner
touching the pool wall during carrying out from pool.
2) Before lifting out from pool, suspend the cleaner above water for about 10-15
seconds to empty the inside water.
3) Please hold the top handle only, never pull the cable.
Wash and reassemble the filter as following steps:
2 ，
4. Move the filter panel outwards
about 2 cm
6. Rinse the filter
5 .Pull out the filter panel vertically
3. Push towards the middle to
open the filter tray
7. Slide the filter tray along the
groove
8. Filter tray match with cleaner
Two surfaces (filter
tray and cleaner)
match perfectly
1. Lift the handle 2. Lift the filter tray
9. Press the two ends of handle to
fix with robot
end
10. Two filter trays reassembled
groove

18

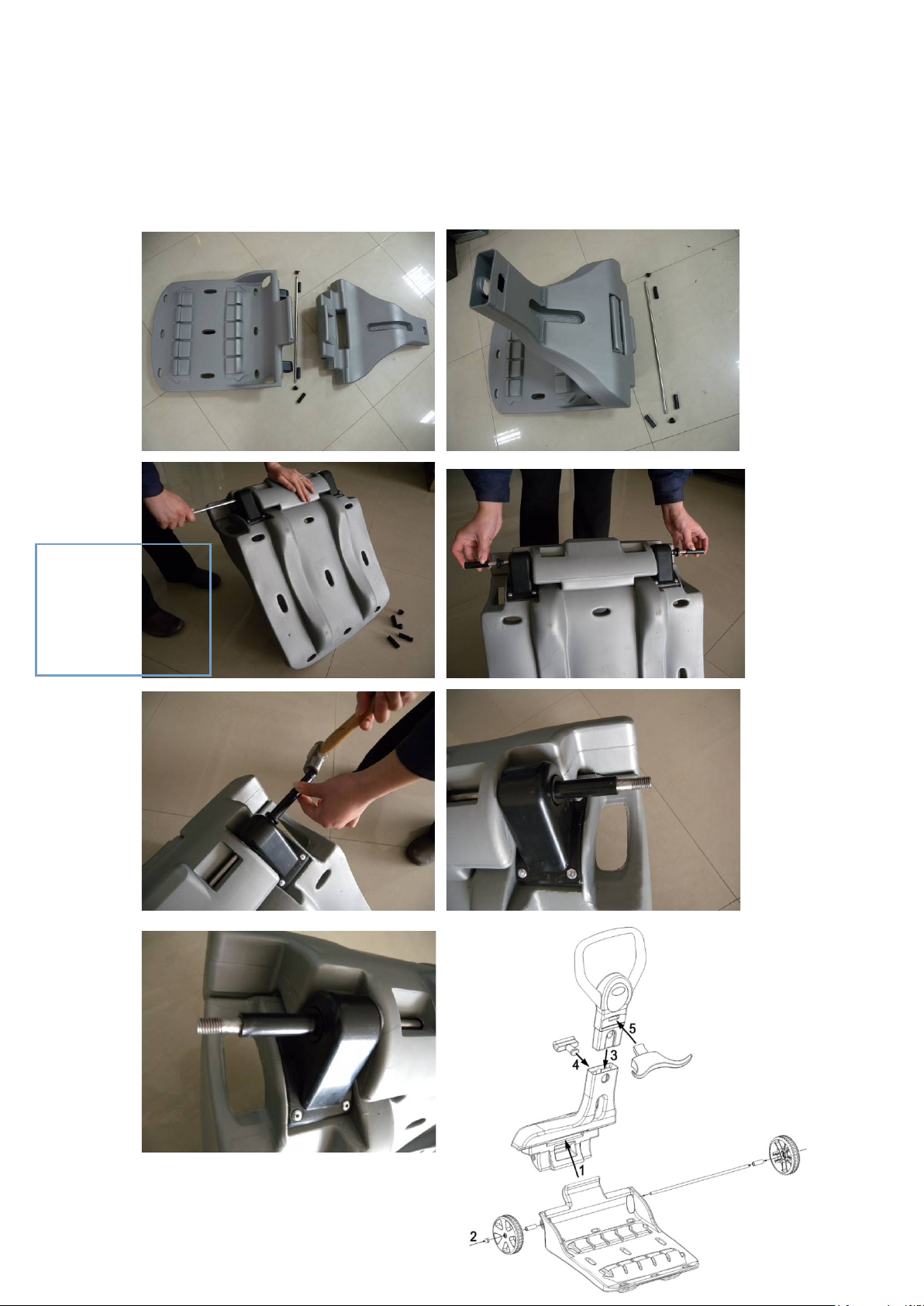

Ⅷ. Caddy assembling
Press the caddy
part to facilitate
the shaft to pass
through.

19
Ⅸ.Packing list (delivered package in
kind prevail)
Item Name Type QTY-p
c
Model Remark
1 Cleaner Cleaner body 1 In carton
2 Power supply
unit
1 HJ-3010
HJ-3011
In carton
3 User manual 1 Plastic bag
4 Filter 2 Plastic bag
5 Remote
battery
23A 1 Plastic bag
6 Antenna HJ-2028 1 HJ2028/HJ
-3010/HJ30
11
Plastic bag
7 Remote
control
HJ-2028 1 HJ2028/HJ
-3010/HJ30
11
Plastic bag
10 Caddy Top handle 1 In carton
11 Middle part 1 In carton
12 Chassis 1 In carton
13 Power unit
bracket
1 In carton
14 Cable bracket 1 In carton
15 Axle 1 In carton
16 Wheel 2
17 Nut M10 2 Plastic bag
18 Sleeve 2 Plastic bag
19 Cover 2 Plastic bag

20
Ⅹ. Warranty
Motor and electronic parts two years warranty.
