Raritan PX3-3000 series User manual
PX3-3000/4000/5000 Series
User Guide
Xerus™Firmware v3.4.0
Copyright © 2018 Raritan, Inc.
PX3-1C-v3.4.0-E
January 2018
255-80-0035-00
WARNING! Read and understand all sections in this guide before installing or operating this product.
WARNING! Connect this product to an AC power source whose voltage is within the range specified
on the product's nameplate. Operating this product outside the nameplate voltage range may result
in electric shock, fire, personal injury and death.
WARNING! Connect this product to an AC power source that is current limited by a suitably rated
fuse or circuit breaker in accordance with national and local electrical codes. Operating this product
without proper current limiting may result in electric shock, fire, personal injury and death.
WARNING! Connect this product to a protective earth ground. Never use a "ground lift adaptor"
between the product's plug and the wall receptacle. Failure to connect to a protective earth ground
may result in electric shock, fire, personal injury and death.
WARNING! This product contains no user serviceable parts. Do not open, alter or disassemble this
product. All servicing must be performed by qualified personnel. Disconnect power before servicing
this product. Failure to comply with this warning may result in electric shock, personal injury and
death.
WARNING! Use this product in a dry location. Failure to use this product in a dry location may result
in electric shock, personal injury and death.
WARNING! Do not rely on this product's receptacle lamps, receptacle relay switches or any other
receptacle power on/off indicator to determine whether power is being supplied to a receptacle.
Unplug a device connected to this product before performing repair, maintenance or service on the
device. Failure to unplug a device before servicing it may result in electric shock, fire, personal injury
and death.
WARNING! Only use this product to power information technology equipment that has a UL/IEC
60950-1 or equivalent rating. Attempting to power non-rated devices may result in electric shock, fire,
personal injury and death.
WARNING! Do not use a Raritan product containing outlet relays to power large inductive loads such
as motors or compressors. Attempting to power a large inductive load may result in damage to the
relay.
WARNING! Do not use this product to power critical patient care equipment, fire or smoke alarm
systems. Use of this product to power such equipment may result in personal injury and death.
WARNING! If this product is a model that requires assembly of its line cord or plug, all such
assembly must be performed by a licensed electrician and the line cord or plugs used must be
suitably rated based on the product's nameplate ratings and national and local electrical codes.
Assembly by unlicensed electricians or failure to use suitably rated line cords or plugs may result in
electric shock, fire, personal injury or death.
WARNING! This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm.
Safety Guidelines
1. Installation of this product should only be performed by a person who has knowledge and
experience with electric power.
2. Make sure the line cord is disconnected from power before physically mounting or moving the
location of this product.
3. This product is designed to be used within an electronic equipment rack. The metal case of this
product is electrically bonded to the line cord ground wire. A threaded grounding point on the
case may be used as an additional means of protectively grounding this product and the rack.
4. Examine the branch circuit receptacle that will supply electric power to this product. Make sure
the receptacle’s power lines, neutral and protective earth ground pins are wired correctly and
are the correct voltage and phase. Make sure the branch circuit receptacle is protected by a
suitably rated fuse or circuit breaker.
5. If the product is a model that contains receptacles that can be switched on/off, electric power
may still be present at a receptacle even when it is switched off.
Tip 1: The outlet (socket) shall be installed near the equipment and shall be easily accessible.
Tip 2: For detailed information on any Raritan PDU's overcurrent protectors' design, refer to that
model's product specification on Raritan website's
PDU Product Selector page
https://www.raritan.com/product-selector
.
Safety Instructions
This document contains proprietary information that is protected by copyright. All rights reserved. No
part of this document may be photocopied, reproduced, or translated into another language without
express prior written consent of Raritan, Inc.
© Copyright 2018 Raritan, Inc. All third-party software and hardware mentioned in this document are
registered trademarks or trademarks of and are the property of their respective holders.
FreeType Project Copyright Notice
Portions of this software are copyright © 2015 The FreeType Project (www.freetype.org). All rights
reserved.

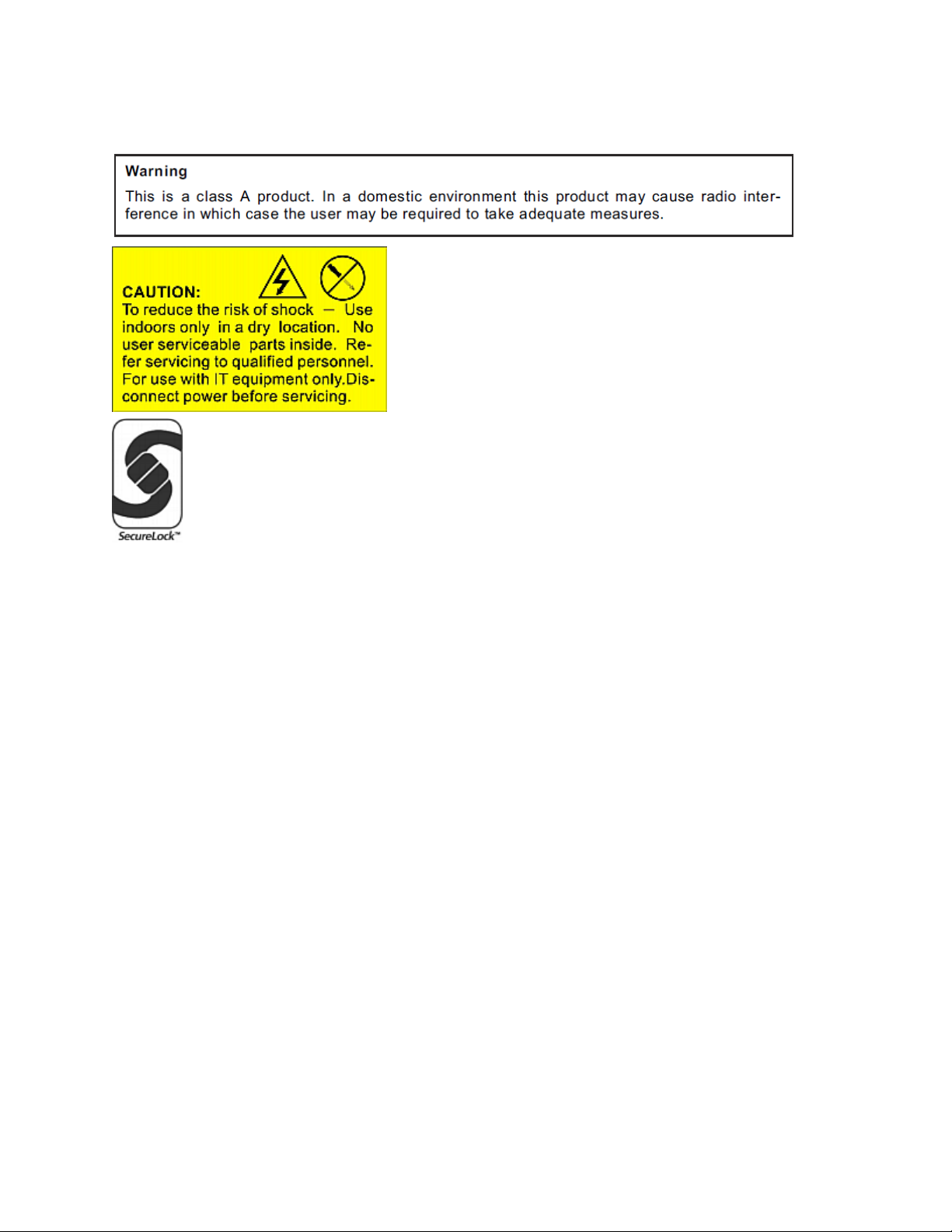

FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a commercial installation. This equipment generates, uses, and can
radiate radio frequency energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. Operation of this equipment in a residential
environment may cause harmful interference.

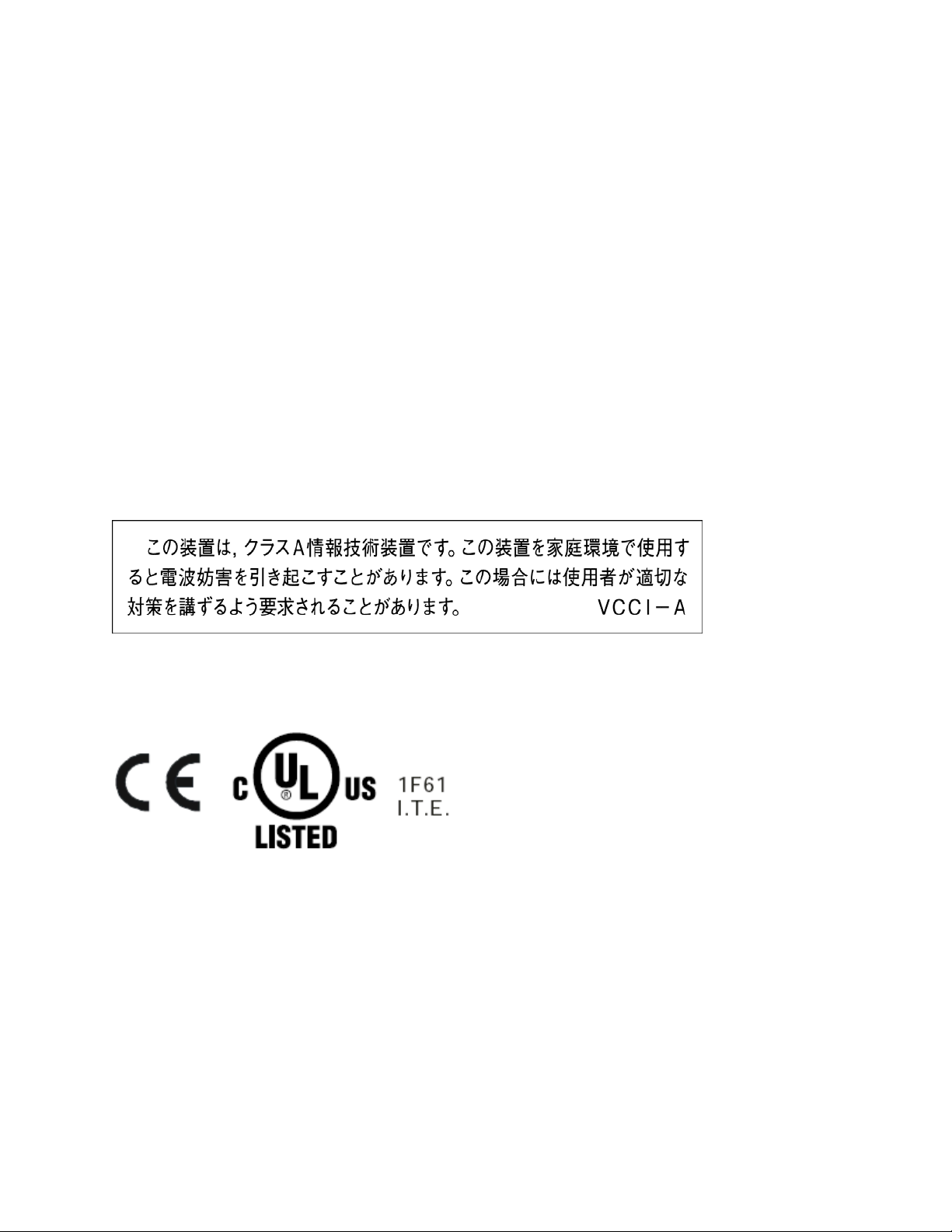

VCCI Information (Japan)
Raritan is not responsible for damage to this product resulting from accident, disaster, misuse,
abuse, non-Raritan modification of the product, or other events outside of Raritan's reasonable
control or not arising under normal operating conditions.
If a power cable is included with this product, it must be used exclusively for this product.
vi
Contents
Safety Guidelines ii
Safety Instructions iii
Applicable Models xix
What's New in the PX3 User Guide xxi
Chapter 1 Introduction 1
Product Models................................................................................................................................. 1
Package Contents............................................................................................................................. 1
Zero U Products ..................................................................................................................... 2
1U Products............................................................................................................................ 2
2U Products............................................................................................................................ 2
APIPA and Link-Local Addressing ................................................................................................... 3
Before You Begin.............................................................................................................................. 4
Unpacking the Product and Components.............................................................................. 4
Preparing the Installation Site............................................................................................... 4
Checking the Branch Circuit Rating ...................................................................................... 4
Filling Out the Equipment Setup Worksheet......................................................................... 5
Chapter 2 Rackmount, Inlet and Outlet Connections 6
Circuit Breaker Orientation Limitation ............................................................................................ 6
Rack-Mounting the PDU................................................................................................................... 6
Rackmount Safety Guidelines................................................................................................ 6
Mounting Zero U Models Using L-Brackets.......................................................................... 7
Mounting Zero U Models Using Button Mount ...................................................................... 9
Mounting Zero U Models Using Claw-Foot Brackets.......................................................... 10
Mounting Zero U Models Using Two Rear Buttons ............................................................. 12
Mounting 1U or 2U Models .................................................................................................. 13
Connecting a Locking Line Cord .................................................................................................... 15
Disconnecting a Locking Line Cord ..................................................................................... 16
Installing Cable Retention Clips on the Inlet (Optional) ................................................................ 17
Installing Cable Retention Clips on Outlets (Optional) .................................................................. 18
Locking Outlets and Cords............................................................................................................. 19
SecureLock™ Outlets and Cords......................................................................................... 20
Contents
vii
Button-Type Locking Outlets............................................................................................... 21
Chapter 3 Initial Installation and Configuration 22
Connecting the PDU to a Power Source ........................................................................................ 22
Connecting the PX3 to Your Network............................................................................................. 23
USB Wireless LAN Adapters................................................................................................ 24
Supported Wireless LAN Configuration .............................................................................. 25
Dual Ethernet Connection (for iX7™ Only)........................................................................... 26
Configuring the PX3........................................................................................................................ 27
Connecting a Mobile Device to PX3 ..................................................................................... 28
Connecting the PX3 to a Computer...................................................................................... 32
Bulk Configuration Methods .......................................................................................................... 35
Cascading Multiple PX3 Devices for Sharing Ethernet Connectivity............................................. 35
Cascading PX3 via USB ........................................................................................................ 38
Extended Cascading with PX3-iX7 Models .......................................................................... 41
Unsupported Cascading Connections for Port Forwarding................................................ 45
Power-Sharing Restrictions and Connection (for iX7™ Only) ....................................................... 47
Making a Power-Sharing Connection.................................................................................. 48
Power-Sharing Configurations and Restrictions ................................................................ 49
Supported Sensor Configurations for Power Sharing......................................................... 50
Chapter 4 Connecting External Equipment (Optional) 52
Connecting Environmental Sensor Packages................................................................................ 52
Identifying the Sensor Port.................................................................................................. 53
DPX Sensor Packages.......................................................................................................... 53
DPX2 Sensor Packages........................................................................................................ 58
DPX3 Sensor Packages........................................................................................................ 60
DX or DX2 Sensor Packages ................................................................................................ 62
Using an Optional DPX3-ENVHUB4 Sensor Hub................................................................. 65
Mixing Diverse Sensor Types............................................................................................... 67
Connecting Asset Management Strips........................................................................................... 71
Combining Regular Asset Strips ......................................................................................... 71
Introduction to Asset Tags................................................................................................... 73
Connecting Regular Asset Strips to PX3 ............................................................................. 73
Connecting Blade Extension Strips ..................................................................................... 75
Connecting Composite Asset Strips (AMS-Mx-Z)................................................................ 78
Contents
viii
Connecting a Logitech Webcam..................................................................................................... 81
Connecting a GSM Modem ............................................................................................................. 81
Connecting an Analog Modem ....................................................................................................... 82
Connecting an External Beeper ..................................................................................................... 83
Connecting a Schroff LHX/SHX Heat Exchanger ........................................................................... 83
Chapter 5 Introduction to PDU Components 84
Panel Components ......................................................................................................................... 84
Inlet ...................................................................................................................................... 85
Outlets.................................................................................................................................. 86
Connection Ports.................................................................................................................. 87
Dot-Matrix LCD Display ....................................................................................................... 91
Reset Button ...................................................................................................................... 122
Circuit Breakers ........................................................................................................................... 123
Resetting the Button-Type Circuit Breaker....................................................................... 123
Resetting the Handle-Type Circuit Breaker...................................................................... 124
Fuse .............................................................................................................................................. 125
Fuse Replacement on Zero U Models ............................................................................... 125
Fuse Replacement on 1U Models...................................................................................... 126
Beeper .......................................................................................................................................... 128
Replaceable Controller ................................................................................................................ 129
Chapter 6 Using the Web Interface 131
Supported Web Browsers ............................................................................................................ 131
Login, Logout and Password Change........................................................................................... 132
Login................................................................................................................................... 132
Changing Your Password................................................................................................... 134
Remembering User Names and Passwords ..................................................................... 135
Logout ................................................................................................................................ 135
Web Interface Overview................................................................................................................ 136
Menu................................................................................................................................... 139
Quick Access to a Specific Page ........................................................................................ 142
Sorting a List...................................................................................................................... 142
Dashboard .................................................................................................................................... 144
Dashboard - Inlet I1 ........................................................................................................... 146
Dashboard - OCP ............................................................................................................... 148
Dashboard - Alerted Sensors ............................................................................................ 150
Dashboard - Inlet History .................................................................................................. 152
Dashboard - Alarms........................................................................................................... 155
PDU............................................................................................................................................... 157
Internal Beeper State ........................................................................................................ 161
PX3 Latching Relay Behavior............................................................................................. 162
Options for Outlet State on Startup ................................................................................... 162
Initialization Delay Use Cases............................................................................................ 163
Contents
ix
Inrush Current and Inrush Guard Delay............................................................................ 163
Z Coordinate Format.......................................................................................................... 164
How the Automatic Management Function Works............................................................ 164
Time Units .......................................................................................................................... 165
Setting Thresholds for Total Active Energy or Power....................................................... 165
+12V Power Supply Sensor (for iX7™ Only) ....................................................................... 167
Inlet............................................................................................................................................... 168
Configuring a Multi-Inlet Model......................................................................................... 171
Outlets .......................................................................................................................................... 173
Available Data of the Outlets Overview Page .................................................................... 176
Bulk Configuration for Outlet Thresholds......................................................................... 177
Setting Outlet Power-On Sequence and Delay.................................................................. 179
Setting Non-Critical Outlets .............................................................................................. 180
Load Shedding Mode.......................................................................................................... 181
Individual Outlet Pages ...................................................................................................... 183
OCPs ............................................................................................................................................. 191
Individual OCP Pages......................................................................................................... 193
Possible OCP-Tripped Root Cause .................................................................................... 198
Peripherals ................................................................................................................................... 200
Yellow- or Red-Highlighted Sensors................................................................................. 206
Managed vs Unmanaged Sensors/Actuators .................................................................... 207
Sensor/Actuator States...................................................................................................... 208
Finding the Sensor's Serial Number................................................................................. 210
Identifying the Sensor Position and Channel .................................................................... 211
Managing One Sensor or Actuator .................................................................................... 212
Individual Sensor/Actuator Pages ..................................................................................... 214
Sensor/Actuator Location Example................................................................................... 219
Feature Port ................................................................................................................................. 219
Asset Strip.......................................................................................................................... 221
External Beeper .................................................................................................................230
Schroff LHX/SHX ................................................................................................................ 231
Power CIM.......................................................................................................................... 236
User Management ........................................................................................................................ 237
Creating Users ................................................................................................................... 238
Editing or Deleting Users................................................................................................... 242
Creating Roles.................................................................................................................... 244
Editing or Deleting Roles ................................................................................................... 245
Setting Your Preferred Measurement Units ..................................................................... 247
Setting Default Measurement Units.................................................................................. 248
Device Settings ............................................................................................................................. 249
Configuring Network Settings ........................................................................................... 251
Configuring Network Services........................................................................................... 274
Configuring Security Settings............................................................................................ 283
Setting the Date and Time ................................................................................................. 308
Event Rules and Actions .................................................................................................... 312
Setting Data Logging.......................................................................................................... 368
Contents
x
Configuring Data Push Settings ........................................................................................ 369
Monitoring Server Accessibility......................................................................................... 371
Front Panel Settings .......................................................................................................... 375
Configuring the Serial Port................................................................................................ 376
Lua Scripts ......................................................................................................................... 378
Miscellaneous .................................................................................................................... 384
Maintenance ................................................................................................................................. 386
Device Information............................................................................................................. 388
Viewing Connected Users .................................................................................................. 393
Viewing or Clearing the Local Event Log........................................................................... 395
Updating the PX3 Firmware............................................................................................... 396
Viewing Firmware Update History..................................................................................... 400
Bulk Configuration ............................................................................................................. 401
Backup and Restore of Device Settings............................................................................. 408
Network Diagnostics.......................................................................................................... 409
Downloading Diagnostic Information ................................................................................ 410
Rebooting the PX3 Device .................................................................................................. 411
Resetting All Settings to Factory Defaults ........................................................................ 411
Retrieving Software Packages Information....................................................................... 412
Webcam Management.................................................................................................................. 413
Configuring Webcams and Viewing Live Images............................................................... 415
Sending Links to Snapshots or Videos .............................................................................. 418
Viewing and Managing Locally-Saved Snapshots ............................................................. 420
Changing Storage Settings ................................................................................................ 423
SmartLock and Card Reader........................................................................................................ 427
SmartLock.......................................................................................................................... 428
Card Readers ..................................................................................................................... 432
Chapter 7 Using SNMP 434
Enabling and Configuring SNMP.................................................................................................. 434
SNMPv2c Notifications....................................................................................................... 435
SNMPv3 Notifications ........................................................................................................ 436
Downloading SNMP MIB .............................................................................................................. 439
SNMP Gets and Sets..................................................................................................................... 440
The PX3 MIB ....................................................................................................................... 440
Retrieving Energy Usage ................................................................................................... 443
A Note about Enabling Thresholds.................................................................................... 443
Chapter 8 Using the Command Line Interface 444
About the Interface....................................................................................................................... 444
Logging in to CLI........................................................................................................................... 445
With HyperTerminal........................................................................................................... 445
With SSH or Telnet............................................................................................................. 446
With an Analog Modem...................................................................................................... 447
Contents
xi
Different CLI Modes and Prompts ..................................................................................... 447
Closing a Local Connection ............................................................................................... 448
The ? Command for Showing Available Commands.................................................................... 448
Querying Available Parameters for a Command......................................................................... 449
Showing Information .................................................................................................................... 450
Network Configuration....................................................................................................... 450
PDU Configuration ............................................................................................................. 455
Outlet Information..............................................................................................................455
Inlet Information ................................................................................................................ 456
Overcurrent Protector Information ................................................................................... 457
Date and Time Settings...................................................................................................... 458
Default Measurement Units............................................................................................... 458
Environmental Sensor Information ................................................................................... 459
Environmental Sensor Package Information .................................................................... 460
Actuator Information.......................................................................................................... 461
Outlet Sensor Threshold Information................................................................................ 462
Outlet Pole Sensor Threshold Information ....................................................................... 463
Inlet Sensor Threshold Information .................................................................................. 464
Inlet Pole Sensor Threshold Information.......................................................................... 465
Overcurrent Protector Sensor Threshold Information ..................................................... 466
Environmental Sensor Threshold Information.................................................................. 468
Environmental Sensor Default Thresholds ....................................................................... 469
Security Settings ................................................................................................................ 470
Authentication Settings...................................................................................................... 471
Existing User Profiles ........................................................................................................ 472
Existing Roles..................................................................................................................... 473
Load Shedding Settings ..................................................................................................... 473
Serial Port Settings............................................................................................................474
EnergyWise Settings .......................................................................................................... 474
Asset Strip Settings ........................................................................................................... 474
Rack Unit Settings of an Asset Strip.................................................................................. 475
Blade Extension Strip Settings .......................................................................................... 476
Event Log............................................................................................................................ 477
Wireless LAN Diagnostic Log ............................................................................................ 478
Server Reachability Information........................................................................................ 478
Command History .............................................................................................................. 480
Reliability Data ................................................................................................................... 480
Reliability Error Log...........................................................................................................480
Examples............................................................................................................................ 480
Clearing Information .................................................................................................................... 482
Clearing Event Log............................................................................................................. 483
Clearing WLAN Log............................................................................................................ 483
Configuring the PX3 Device and Network.................................................................................... 483
Entering Configuration Mode............................................................................................. 484
Quitting Configuration Mode.............................................................................................. 484
PDU Configuration Commands.......................................................................................... 485
Contents
xii
Network Configuration Commands................................................................................... 493
Time Configuration Commands......................................................................................... 522
Checking the Accessibility of NTP Servers ....................................................................... 527
Security Configuration Commands.................................................................................... 527
Outlet Configuration Commands....................................................................................... 548
Inlet Configuration Commands.......................................................................................... 550
Overcurrent Protector Configuration Commands............................................................. 552
User Configuration Commands ......................................................................................... 552
Role Configuration Commands.......................................................................................... 566
Authentication Commands ................................................................................................ 571
Environmental Sensor Configuration Commands ............................................................ 583
Configuring Environmental Sensors' Default Thresholds ................................................ 588
Sensor Threshold Configuration Commands.................................................................... 590
Actuator Configuration Commands................................................................................... 601
Server Reachability Configuration Commands ................................................................. 602
EnergyWise Configuration Commands.............................................................................. 606
Asset Management Commands......................................................................................... 608
Serial Port Configuration Commands ............................................................................... 615
Multi-Command Syntax ..................................................................................................... 617
Load Shedding Configuration Commands ................................................................................... 618
Enabling or Disabling Load Shedding................................................................................ 619
Power Control Operations............................................................................................................ 620
Turning On the Outlet(s) .................................................................................................... 620
Turning Off the Outlet(s) .................................................................................................... 621
Power Cycling the Outlet(s) ............................................................................................... 622
Canceling the Power-On Process...................................................................................... 623
Example - Power Cycling Specific Outlets ........................................................................ 623
Actuator Control Operations ........................................................................................................ 623
Switching On an Actuator................................................................................................... 624
Switching Off an Actuator .................................................................................................. 624
Example - Turning On a Specific Actuator ........................................................................ 625
Unblocking a User ........................................................................................................................ 625
Resetting the PX3 ......................................................................................................................... 625
Restarting the PDU ............................................................................................................ 626
Resetting Active Energy Readings..................................................................................... 626
Resetting to Factory Defaults ............................................................................................ 627
Network Troubleshooting............................................................................................................. 627
Entering Diagnostic Mode.................................................................................................. 627
Quitting Diagnostic Mode................................................................................................... 628
Diagnostic Commands....................................................................................................... 628
Contents
xiii
Retrieving Previous Commands................................................................................................... 630
Automatically Completing a Command ....................................................................................... 630
Logging out of CLI......................................................................................................................... 631
Chapter 9 Using SCP Commands 632
Firmware Update via SCP ............................................................................................................ 632
Bulk Configuration via SCP .......................................................................................................... 633
Backup and Restore via SCP........................................................................................................ 634
Downloading Diagnostic Data via SCP ......................................................................................... 635
Chapter 10 In-Line Monitors 638
Overview........................................................................................................................................ 638
Safety Instructions........................................................................................................................ 638
Flexible Cord Installation Instructions ........................................................................................ 639
Flexible Cord Selection...................................................................................................... 640
Plug Selection .................................................................................................................... 640
Receptacle Selection ......................................................................................................... 640
Derating a Raritan Product................................................................................................ 641
Wiring of 3-Phase In-Line Monitors .................................................................................. 642
In-Line Monitor Unused Channels..................................................................................... 642
Step by Step Flexible Cord Installation ............................................................................. 642
In-Line Monitor's Web Interface .................................................................................................. 648
Dashboard Page................................................................................................................. 649
Inlets/Outlets Page ............................................................................................................ 654
Contents
xiv
Appendix A Specifications 656
Maximum Ambient Operating Temperature................................................................................ 656
Serial RS-232 "DB9" Port Pinouts ............................................................................................... 656
Serial RS-232 "RJ-45" Port Pinouts (for iX7™ Only).................................................................... 657
Sensor RJ-45 Port Pinouts........................................................................................................... 657
Feature RJ-45 Port Pinouts ......................................................................................................... 658
Expansion RJ-45 Port Pinouts (for iX7™ Only)............................................................................. 658
Appendix B Equipment Setup Worksheet 660
Appendix C Configuration or Firmware Upgrade with a USB Drive 664
Device Configuration/Upgrade Procedure................................................................................... 664
System and USB Requirements................................................................................................... 665
Configuration Files ....................................................................................................................... 666
fwupdate.cfg....................................................................................................................... 667
config.txt............................................................................................................................. 671
devices.csv ......................................................................................................................... 673
Creating Configuration Files via Mass Deployment Utility ............................................... 674
Data Encryption in 'config.txt'............................................................................................ 675
Contents
xv
Firmware Upgrade via USB.......................................................................................................... 676
Appendix D Bulk Configuration or Firmware Upgrade via DHCP/TFTP 678
Bulk Configuration/Upgrade Procedure...................................................................................... 678
TFTP Requirements...................................................................................................................... 679
DHCP IPv4 Configuration in Windows.......................................................................................... 680
DHCP IPv6 Configuration in Windows.......................................................................................... 690
DHCP IPv4 Configuration in Linux................................................................................................697
DHCP IPv6 Configuration in Linux................................................................................................699
Appendix E Resetting to Factory Defaults 701
Using the Reset Button ................................................................................................................ 701
Using the CLI Command .............................................................................................................. 702
Appendix F PX3 Models with Residual Current Monitoring 704
RCM Current Sensor .................................................................................................................... 704
RCM State Sensor......................................................................................................................... 705
Compliance with IEC 62020.......................................................................................................... 706
RCM Self-Test............................................................................................................................... 707
Web Interface Operations for RCM .............................................................................................. 708
Checking RCM State and Current...................................................................................... 708
Setting RCM Current Thresholds ...................................................................................... 710
Scheduling RCM Self-Test................................................................................................. 710
Disabling or Enabling Front Panel RCM Self-Test............................................................ 711
Front Panel Operations for RCM..................................................................................................711
LCD Message for RCM Critical State................................................................................. 711
Checking RCM States and Current.................................................................................... 712
Running RCM Self-Test ..................................................................................................... 713
RCM SNMP Operations ................................................................................................................ 715
RCM Trap............................................................................................................................ 715
RCM Residual Current and State Objects ......................................................................... 715
Setting RCM Thresholds .................................................................................................... 715
Running RCM Self-Test ..................................................................................................... 715
CLI Operations for RCM................................................................................................................ 716
Showing Residual Current Monitor Information ............................................................... 716
Setting RCM Current Thresholds ...................................................................................... 716
Setting Front Panel RCM Self-Test ................................................................................... 718
Running RCM Self-Test ..................................................................................................... 718
Degaussing RCM Type B Sensors...................................................................................... 718
Contents
xvi
Appendix G Old PX3 Character LCD Display 719
Overview of the LCD Display ........................................................................................................ 720
Control Buttons ............................................................................................................................ 721
Operating the LCD Display ........................................................................................................... 721
Outlet Information..............................................................................................................721
Inlet Information ................................................................................................................ 723
Overcurrent Protector Information ................................................................................... 724
IPv4 Address ...................................................................................................................... 726
MAC Address...................................................................................................................... 727
Outlet Switching................................................................................................................. 728
Environmental Sensor Information ................................................................................... 730
Asset Strip Information...................................................................................................... 732
USB-Cascaded Device's Position ...................................................................................... 734
RCM Information................................................................................................................ 736
Appendix H LDAP Configuration Illustration 739
Step A. Determine User Accounts and Roles .............................................................................. 739
Step B. Configure User Groups on the AD Server ....................................................................... 740
Step C. Configure LDAP Authentication on the PX3 Device......................................................... 741
Step D. Configure Roles on the PX3 Device ................................................................................. 742
Appendix I Updating the LDAP Schema 745
Returning User Group Information.............................................................................................. 745
From LDAP/LDAPS ............................................................................................................ 745
From Microsoft Active Directory........................................................................................ 745
Setting the Registry to Permit Write Operations to the Schema................................................. 746
Creating a New Attribute.............................................................................................................. 746
Adding Attributes to the Class ..................................................................................................... 747
Updating the Schema Cache ........................................................................................................ 749
Editing rciusergroup Attributes for User Members .................................................................... 749
Appendix J RADIUS Configuration Illustration 752
Standard Attributes ...................................................................................................................... 752
NPS Standard Attribute Illustration .................................................................................. 752
FreeRADIUS Standard Attribute Illustration..................................................................... 770
Vendor-Specific Attributes ........................................................................................................... 771
NPS VSA Illustration .......................................................................................................... 771
FreeRADIUS VSA Illustration............................................................................................. 783
Contents
xvii
AD-Related Configuration ............................................................................................................ 784
Appendix K Additional PX3 Information 788
RJ45-to-DB9 Cable Requirements for Modem Connections (for iX7™ Only) ............................. 788
Reserving IP Addresses in DHCP Servers ................................................................................... 789
Reserving IP in Windows.................................................................................................... 790
Reserving IP in Linux ......................................................................................................... 791
Sensor Threshold Settings........................................................................................................... 793
Thresholds and Sensor States........................................................................................... 793
"To Assert" and Assertion Timeout ................................................................................... 796
"To De-assert" and Deassertion Hysteresis ..................................................................... 798
Default Voltage and Current Thresholds ..................................................................................... 801
Altitude Correction Factors.......................................................................................................... 803
Unbalanced Current Calculation..................................................................................................804
Data for BTU Calculation.............................................................................................................. 805
Ways to Probe Existing User Profiles .......................................................................................... 806
Raritan Training Website.............................................................................................................. 806
Role of a DNS Server.................................................................................................................... 806
Cascading Troubleshooting.......................................................................................................... 807
Possible Root Causes ........................................................................................................ 807
Slave Device Events in the Log .......................................................................................... 809
The Ping Tool...................................................................................................................... 810
Installing the USB-to-Serial Driver (Optional)............................................................................. 811
Initial Network Configuration via CLI...........................................................................................812
Device-Specific Settings............................................................................................................... 817
TLS Certificate Chain.................................................................................................................... 817
What is a Certificate Chain ................................................................................................ 818
Illustration - GMAIL SMTP Certificate Chain..................................................................... 821
Browsing through the Online Help............................................................................................... 824
Appendix L Integration 826
Dominion KX II / III Configuration................................................................................................. 826
Configuring Rack PDU Targets.......................................................................................... 827
Turning Outlets On/Off and Cycling Power........................................................................ 830
Dominion KSX II, SX or SX II Configuration .................................................................................. 831
Dominion KSX II.................................................................................................................. 831
Dominion SX and SX II........................................................................................................ 833
Power IQ Configuration ................................................................................................................ 836
dcTrack ......................................................................................................................................... 837
dcTrack Overview............................................................................................................... 838
Asset Management Strips and dcTrack............................................................................. 839
xix
This User Guide is applicable to all the following PDU Generations.
PX3 PDU Generation (3000/4000/5000 series)
PX3 with iX7™PDU Generation (3000/4000/5000 series)
Any PX Generations can be associated with existing metering families
called “Series”, from 1000 series to 5000 series.
For example, PX2-4000, PX3-4000 series and PX3-iX7-4000 series are all
inlet metered and outlet metered PDUs, but have different controller
generations.
Note: For information on other PX2, PX3 or PX3-iX7 models, see their
respective Online Help or User Guide on the Raritan website's
Support
page
(
http://www.raritan.com/support/
).
PX models comparison in brief:
Features Inlet power
measurement
Outlet power
measurement
Outlet
switching Load shedding
1000 Series
2000 Series
3000 Series
(Inline meters)
4000 Series
5000 Series
Note: PDUs with similar model names but of different product models
may vary in their designs. For example, PX2-5660V and PX3-5660V do
NOT share the same outlet sequence and technical designs. For details
on a model's technical design, refer to their product specifications on
Raritan website's
PDU Product Selector page
https://www.raritan.com/product-selector
.
Applicable Models
Chapter 1: Applicable Models
xx
Comparison between PX2, PX3 and PX3-iX7:
Product models PX2 Series PX3 Series PX3 with iX7™
Controller
Front panel display LED display Dot-matrix LCD
display
Dot-matrix LCD
display
Outlet latching relays * *
Number of LAN ports 1 2 2
Replaceable controller ** **
Number of USB-A ports 1 2 2
Maximum USB rate 12 Mbps 12 Mbps 480 Mbps
RS-232 port
(CONSOLE/MODEM)
Male DB9
Connector
Male DB9
Connector RJ-45 Connector
Expansion ports ***
SENSOR port type RJ-12 RJ-45 RJ-45
* Only PX3 models with outlet switching have outlet latching relays.
** Only PX3 "Zero U" (both PX3 and PX3-iX7) have the replaceable
controller.
*** The Expansion port is used for power sharing of controllers.
This manual suits for next models
2
Table of contents
