Ratio CC Transmitter User manual

CC Transmitter
User Manual
Ratio® Color-Coded Wireless
Transmitter for iDive and iX3M
“Transmitter Ready”
Attention: requires OS 4.x.x
and a compatible iDive or iX3M.
ver. 1.3

2
Think Green
If possible do not print this manual.
Use your tablet or your PC to consult it .

3
Warning!
This is NOT the user manual of the
iDive/iX3M dive computer.
You can download the user manual of your
RATIO® dive computer from:
www.ratio-computers.com
(“support” area)

4
In order to pair the CC Transmitter to your iDive or iX3M the OS 4.x.x of higher have to be installed in your
“Transmitter Ready” unit. You can update the OS installed in your iDive or iX3M “Transmitter Read” using the
DiveLogger.
All the iDive and iX3M that can be paired with the CC Transmitter have a “Transmitter Ready”label on the box.
If you have not the original box, check this clues in order to understand if your iDive/iX3M can be paired with
the Ratio® CC Transmitter:
All* the iDive Sport Edition can be paired with the Ratio® CC
Transmitter.
*No “iDive Free”model can paired with the Ratio® CC Transmitter.

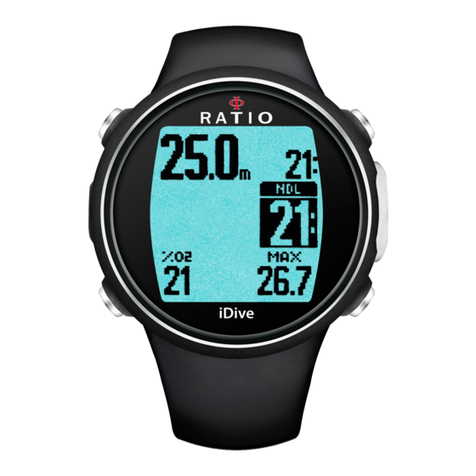

iDive Avantgarde edition units that has
“iDive” on the top glass can be paired with
the Ratio® CC Transmitter.
iDive Avantgarde edition units that has
“iDive MODEL NAME” (e.g. iDive Free,
iDive Deep, iDive Tech ...) on the top glass
can NOT be paired with the Ratio® CC
Transmitter.
*No “iDive Free”model can paired with the CC Transmitter.
iX3M units that has “iX3M” only label on the
top face can NOT be paired with the Ratio®
CC Transmitter.
iX3M units that has “iX3M GPS” or
“iX3M PRO” label on the top face can be
paired with the Ratio® CC Transmitter.
COMPATIBLE NOT COMPATIBLE
NOT COMPATIBLE
COMPATIBLE
COMPATIBLE

5
INDEX
Introduction
Important Warnings
7 General Warnings about the CC Transmitter
8 Danger Warnings about the CC Transmitter
9 Care and Maintenance
How to recharge the battery
Prepare the CC Transmitter for the dive
12 Install the CC Transmitter on the first stage
13 Turn on the CC Transmitter and check the
battery
14 Pair the CC Transmitter to your iDive
15 Pair the CC Transmitter to your iX3M
16 Change the TX ID of the CC Transmitter
The CC Transmitter during the dive
17 BAR / Psi:
18 RBT and TANK RESERVE:
18 RBT in no-deco dives
19 RBT in Deco-stops dives
20 The Color-Code during the dive:
The CC Transmitter after the dive

6
Introduction
Thank you for having purchased the RATIO® CC Transmitter.
RATIO®, with the quality of its products, always stands by you to guarantee comfort, leisure and safety when diving.
Check periodically the presence of possible updates of this manual on web site www.ratio-computers.com
The manual version (e.g. 4.0) is shown on its cover.

7
Important Warnings
General Warnings about the CC Transmitter
It is necessary to read this manual carefully before using the computer RATIO®. A wrong use of this computer or its accessories will
nullify the warranty and could cause permanent damages to the device and/or its accessories.
• The diving computer DOES NOT replace an adequate diving training and should be used only by those divers who have been
opportunely trained.
• The Ratio® CC Transmitter DOES NOT replace the PRESSURE GAUGE, so it is compulsory having always a working pressure gauge
for each tank. Even if the CC Transmitter is working properly it is always suggested to check from time to time the pressure gauge.
• The RATIO® computer and the CC Transmitter are auxiliary instruments to the dive, so it is compulsory having always an
appropriate diving chart and a pressure gauge for each tank in order to carry out the decompression phase in case the devices are
malfunctioning.
• Diving has some intrinsic risks which cannot never be completely eliminated.
No computer or diving chart can guarantee that the risk of Decompression Disease (DD) or Oxygen toxicity to the central nervous
system don’t exist, even if the diver follows meticulously and accurately the indications given by the computer or the diving chart.
• The Wireless communication between the dive computer and the Transmitter can stop working, both inside and outside the
water.
• Use the Transmitter far away from any electromagnetic source
• Is possible that the Transmitter can not work properly if electromagnetic interferences are present in the same signal range used
by the Transmitter.
IMPORTANT WARINIG: THIS IS NOT THE MANUAL OF THE DIVE COMPUTER, this is the manual of the Ratio® CC Transmitter (an
accessory of the dive computer). It is mandatory to read the“Warnings” of the manual of the Ratio® dive computer before to dive! The
User manual of your Ratio® dive computer is available on: www.ratio-computers.com/support

8
Danger Warnings about the CC Transmitter
WARNING: DO NOT EXPOSE THE CC TRANSMITTER TO PRESSURE HIGHER OF 300 BAR (4351 Psi)
Max readable pressure: 250 BAR (3625 Psi)
Max supportable pressure: 300 BAR (4351 Psi)
The Ratio® CC Transmitter IS NOT meant for a PROFESSIONAL use.
The Ratio® CC Transmitter is meant exclusively for a sport use (recreational or technical).
- Maximum depth: 220mt / 721ft
- Maximum altitude: 5000mt / 16404 ft
- Recharge the CC Transmitter using a PS1 category (EN 62368) (not included)
- Supply voltage: 5V c.c. +/-0.2V 500mAh
• A use which is not compliant to what has been said above, could expose the diver to an increasing risk of incurring in the
Decompression Sickness (DCS). For this reason we discourage its use in case of professional or commercial dives, unless it is
used as an operator’s further support device.
• Before dive it is necessary to check the battery autonomy. It is suggested not to dive if the battery level is at 30% (red light)
or at lower percentages; (it is mandatory to have a pressure gauge of each tank used)
• Before the dive check the inegrity of the CC Transmitter. The CC Transmitter have not to have rifts, cracks, damages or similar,
that the seals on the screws are present and that the CC Transmisitter has not been altered in any way. If the CC Transitter has
been damaged in any way do not use the CC transmitter.
• Never lift or carry your tank by holding the CC Transmitter. This may damage the CC Transmistter!
WARNING: DO NOT USE the CC Transmitter that has been damaged !
Using a CC Transitter that has been damaged in any way is dangerous! Do not assembly the CC Trasnsmitter to your first
stage if the CC Transmitter or the first stage are damaged. Always refer to the safety check of the pressure gauge and HP
hoses as you have been trained during your diving certification training. If you have not received a proper dive training or if

9
you do not know and accept that kind of risk, do not use the Ratio® CC Transmitter.
Refer to your instructor or to your diving certification agency to get instructions about how to manage High pressure ports.
IMPORTANT WARINIG: THIS IS NOT THE MANUAL OF THE DIVE COMPUTER, this is the manual of the Ratio® CC Transmitter
(an accessory of the dive computer). It is mandatory to read the“Warnings”of the manual of the Ratio® dive computer before
to dive! The User manual of your Ratio® dive computer is available on: www.ratio-computers.com/support
Care and Maintenance
• Keep the CC Transmitter clean and dry. DO NOT expose the CC Transmitter to chemical agents, alcohol included.
To clean the CC Transmitter use exclusively fresh water, removing all salt sediments. Leave the CC Transmitter dry naturally,
without using cold or warm air jets.
WARNING: Clean the CC Transmistter when plugged to the first stage. The pressure hole of the CC Transmitter have to be
protected from the water. Washing the CC Transmitter unplugged from the first stage can cause flooding.
If not assembled to the first stage always place the protection cap to the CC Transmitter.
• Do not expose the CC Transmitter to the sun directly or to heat sources higher than 50°C. Store the CC Transmitter in a fresh
(5°C-25°C) and dry place.
• Do not attempt to open, modify or repair the CC Transmitter by yourself. You must always address to a RATIO service center.
• The warranty is void if the seals of the CC Transmitter are broken.
• Do not put the CC Transmitter inside a hyperbaric chamber.
• The RATIO iDive computer is designed to be waterproof in sea water but, at the end of every dive, it must be well rinsed in
fresh water and it must not be dried exposing it at the direct sun light or at heat sources.
• Make sure that there is no humidity signs inside unit
WARINING: Do not try to open the CC Transmitter for any reason.
Any problem, turn to a RATIO® authorised center or to RATIO® Computers support.

10
How to recharge the battery
The Ratio® CC Transmitter has a rechargeable Li-Ion battery without memory effect, the given autonomy data may change
of +/-15% depending on the environment temperature.
ATTENTION: Charge the CC Transmitter completely before using it for the first time.
Recharge the CC Transmitter using a USB wall charger (not inclued) and the“Blue-dot” USB cable of your iDive or iX3M (a
spare USB cable is not included with the CC Transmitter).The USB cable that can be used to recharge the CC Transmitter
have a blue dot on the connector. Do not use “red-dot” USB cable to recharge the CC Trasnmitter, it can damage the
connector of the CC Transmitter. During the recharge the CC Transmitter lights up in blue. The recharge is compleated
when the CC Transmitter turns off.
We recommend to use an USB wall charger (as the one of your mobile phone/tablet) to recharge the CC Transmitter.
In case of use of a PC/Mac USB charger (not recommended), make sure that the PC/Mac doesn’t interrupt the electricity supply when
in stand-by. Recharge the CC Transmitter with a PC/Mac is however not recommended because there is the risk to carry out only a
partial recharge cycle.
The CC Transmitter has 100 diving hr of autonomy with a single charge (this data may change of +/-15% depending on the
environment temperature) or 2 years of stock (if the CC Transmitter was fully charged before the stock)
Even if the CC Transmitter new generation Li-Ion battery hasn’t the memory effect, it is however recommended to recharge it
completely. The average recharge time is 3-5 hours, depending on the battery residual charge level.
1
1
22
NO
X

11
Once the battery is completely charged, even if the device remains connected to electricity, the CC Transmitter interrupts
the electricity feeding automatically. Anyway is suggested not to charge the CC Transmitter over 8 hr.
Attention: Do not leave the RATIO® CC Transmitter completely discharged for a long period (for ex. 1-2 months).
This may damage the battery. The Ratio® CC Transmitter registers an alarm if left without charge for long time.
This event is not covered by warranty. In case of long term stock recharge the CC Transmitter and remember to
recharge it from time to time.

12
Prepare the CC Transmitter for the dive
Install the CC Transmitter on the first stage
The CC Transmitter have to be installed on an HP (High pressure) port of your first stage.
Refer to the user manual of your regulator in order to find the right port on your first stage.
Install the CC Transmitter with the same technique, care and attention used to install the HP hose of your gauge.
Take care that the CC Transmitter does not mess with the other hoses of your first stage.
WARNING: Use a wrench (size 19) to tight the CC Transmitter! Grabbing the CC Transmitter from its body to tight it by hand can
seriously damage the CC Transmitter!
Always double-check that the O-ring at the end of the CC Transmitter thread is on its place, clean, not damaged and
greased. If not, change the O-ring (O-Ring HP: 8,73x1,78 NBR 70)
WARNING: If you do not know how to install an accessory to the HP port on your rst stage ask your instructor !
If the CC Transmitter is damaged do not install it!
This is just an example.
Your first stage can be different.
+
+
(19) =
=

13
{
Turn on the CC Transmitter and check the battery
CC Transmitter automatically powers up as soon as the tank pressure is detected.
In order to turn on the transmitter, it is necessary to connect it to a tank and then open the tank valve. It is always advisable
to open the tank gradually, and in case gas loss from any of the tools applied to the tank is perceived, close the tank.
WARNING: If you do not know how to safely open a tank, refer to your instructor!
During the boot phase, the transmitter carries out a checking of the leds by powering them up in string (Blue -> Red
-> Yellow ->Green), and after that it indicates the battery level by powering up one of the three leds for three seconds,
according to the battery status (see below chart). Finally, it confirms the end of the boot phase with a blue flash.
Once the boot phase is concluded, the CC Transmitter starts to show the tank pressure throught the Colour Code system.
Led Control
Battery<30% Battery<50% Battery>50% See chapter “Colour Code
during diving“
Battery status
(3 sec.)
{

14
Pair the CC Transmitter to your iDive
After powering up the CC transmitter, go on TRANSMIT menu on your iDive (by pressing the bottom-left button on the
watch screen and swipping the menu entries).
Place the iDive about 20-30cm from the CC Transmitter (Attention: If you place the
CC Transmitter to close to the iDive the pairing procedure may not work properly).
Press B to start the search of the CC Transmitter (SRC).
As soon as the Pair is done, the TX ID of the CC Transmitter will be displayed.
(Each CC Trasnmitter has 31 TD ID channels, the TX ID is randomly assigned in order to avoid interferences with
other CC Transmitters. To change the TX ID of your CC Transmitter see the dedicated chapter on this manual).
In order to check the correct pair of the CC Trasnsmitter activate the dive mode in
your iDive. Within about 30 sec. the tank pressure will be displayed in the bottom-
right corner of the display (BAR)
(RBT will be displayed only during the dive. See dedicated chapter on this manual)
After the first pair your iDive and your CC Transmitter will connect automatically
(the iDive have to be in dive mode).
Attention: Using the CC Transmitter will reduce the autonomy of your iDive at about
20 diving hours. Set the TX ID on “OFF” in you are not using a CC Transmitter.
SRC
-Next
entry
iDive
TX ID:
TANK RES:
B
CD
OFF
30
EXIT
RESET
iDive
0.0 0:00
21 --- ---
OC
MIX RBT BAR
20-30cm

15
Pair the CC Transmitter to your iX3M
After powering up the CC transmitter, go on TRANSMIT menu on your iX3M (by pressing the first button from the left from
the watch mode and wipping the menu entries).
Place the iX3M about 20-30cm from the CC Transmitter (Attention: If you place the
CC Transmitter to close to the iX3M the pairing procedure may not work properly).
Press C to start the search of the CC Transmitter (SRC).
As soon as the Pair is done, the TX ID of the CC Transmitter will be displayed.
(Each CC Trasnmitter has 31 TX ID channels, the TX ID is randomly assigned in order to avoid interferences with
other CC Transmitters. To change the TX ID of your CC Transmitter see the dedicated chapter on this manual).
In order to check the correct pair of the CC Trasnsmitter activate the dive mode in
your iDive. Within about 30 sec. the tank pressure will be displayed in the bottom-
right corner of the display (BAR)
(RBT will be displayed only during the dive. See dedicated chapter on this manual)
After the first pair your iX3M and your CC Transmitter will connect automatically
(the iX3M have to be in dive mode).
Attention: Using the CC Transmitter will reduce the autonomy of your iX3M of about
-15%. Set the TX ID on “OFF” in you are not using a CC Transmitter.
20-30cm
TRANSMITTER
TX TANK ID:
TANK RESERVE:
B
ACD
EXIT NEXT
ENTRY SRC
OFF
30
RESET
0.0m00:00
21% ------
MIX
OC
BuL
BARRBT

16
Change the TX ID of the CC Transmitter
In case you experice interferences with other CC Transmitters you have to change the transmittion channel (TX ID) of your
CC transmitter.
Each CC Trasnmitter has 31 TX ID channels, the TX ID is randomly assigned, and it is saved in the memory of CC Trasnmitter.
It can be changed with a compleate discharge of the battery (not suggested) or following this procedure:
Install the CC Transmitter of
the first stage (on a tank)
open the tank
valve
close the tank
valve
On your second stage press the purge
button (usually on the front of the
second stage) and compleately purge
the pressure in the regulator before the
boot phase of the tank is finished.
Whait 30 seconds and power up the CC
Transmitter.
After a TX ID reset i a new pair with your iDive or iX3M is needed
Select RESET on your iDive or iX3M (TX ID will be set as OFF) and perform a new pairing (see dedicated chapter on this
manual)

17
The CC Transmitter during the dive
BAR / Psi:
The BAR value (Psi if the imperial unit system is set) is displayed in the bottom-right part of the screen of your iDive or iX3M.
The BAr/Psi value shows how many Bar/Psi of gas are left in your tank.
The BAR/Psi value is shown 30 seconds after the connection between the iDive/iX3M and the CC Transmitter. The BAR/Psi value is
updated every 5 seconds during the dive.
In case the connection between the CC Transmitter and the iDive/iX3M would be instable or jammed for more than 1 minute the
BAR/Psi value will be hidden (“---”). The BAR/Psi value will be ripristinated as soon as the comunication is stable for more than 1
minute.
0.0m00:00
21% ------
MIX
OC
BuL
BARRBT
iDive
0.0 0:00
21 --- ---
OC
MIX RBT BAR

18
RBT and TANK RESERVE:
The RBT (Remaining Bottom Time) is shown in the bottom-center part of the screen of your iDive/iX3M
The RBT is calculated according to your current breath rate. It may take up to 2-5 minutes in order to let the iDive/iX3M collects
enought data to calculate your breath rate. The RBT is hidden (“---”) if not enought data have been collected from the iDive/iX3M.
The RBT value is personal and can be different from person to person (even at same depth and same tank pressure)
RBT in no-deco dives
If no mandatory deco stops are required for your dive (safety stop and deep stop are not considered mandatory deco
stops) the RBT value is the time (in minutes) that you can stay at the current depth with your current breath rate before
your tank pressure reaches the TANK RES (tank reserve) set in the TRANSMITTER menu.
E.g. (If TANK RES. = 30 in TRANSMITTER menu)
If no mandatory deco stop are required, your RBT will be “0”when there will be 30 BAR of pressure left in your tank.
You can set the TANK RES value (from 10 Bar to 50 Bar) from the TRANSMITTER menu in your iDive/iX3M
WARNING: The RBT is a pure statistic value! The iDive/iX3M can not predict behaviours that can alterate your breath
rate like anxiety, stress or similar.
It can be used just as a mere statistic information. The RBT can never replace a correct scheduling of the dive and
the knowledge of your phisical or mental status.
NEVER use the RBT to extend your dive over the scheduled time.
If you do not know how to schedule a dive, ask your diving instructor!

19
RBT in Deco-stops dives
If your dive requires deco stops (safety stop and deep stop are not considered mandatory deco stops) the RBT is the time
(in minutes) that you can stay at your current depth with your current breath rate, before, considered the time that you will
need to perform the required deco-stops your tank pressure reaches the TANK RES (tank reserve).
E.g. (If TANK RES. = 30 in TRANSMITTER menu and the dive requires mandatory deco stops)
The RBT will be “0”when in your tank there will be enough Bar/psi to let you ascent (with standard speed) and perform the
mandatory deco-stop (deep stops are not considered mandatory deco stops) in order to let you have 30 Bar left in your tank after
the end of your last deco stop.
You can set the TANK RES value (from 10 Bar to 50 Bar) from the TRANSMITTER menu in your iDive/iX3M
WARNING: The RBT is a pure statistic value! The iDive/iX3M can not predict behaviors that can alter your breath rate
like anxiety, stress or similar.
It can be used just as a mere statistic information. The RBT can never replace a correct scheduling of the dive and
the knowledge of your physical or mental status.
NEVER use the RBT to extend your dive over the scheduled time.
If you do not know how to schedule a dive, ask your diving instructor!

20
The Color-Code during the dive:
The Ratio® CC Transmitter will let your buddy or your diving instructor know the status of your tank even from distance.
If you need to hide the status of your tank (eg. a diving instructor when teaching) the dedicated“black-out” cap is available.
Do not applies paint, solvents or similar to the CC Transmitter. That may damage the CC Transmitter and void any warranty.
During the dive the CC Transmitter will flash up in green, yellow or red, according to the pressure left in your tank
3 GREEN flashes:
pressure between
200 and 250 Bar
1 YELLOW flash:
pressure between
100 and 50 Bar
1 RED flash:
pressure between
50 and 1 Bar
2 GREEN flashes:
pressure between
150 and 200 Bar
1 GREEN flash:
pressure between
150 and 100 Bar
