ratiotherm WP Grid-HiQ CF06 Technical manual

Technical Document
state 11/05/2020
WP Grid-HiQ CF06

2
CONTENTS
1. Functional description 3
2. Notes on the documentation 4
2.1 Fundamental safety instructions 5
2.2 Used symbols 6
2.3 Intended use 7
2.4 General safety instructions 8
2.5 Installation and adjustments 9
2.6 Guidlines, norms and laws 10
2.7 Qualification of personnel 11
2.8 Responsibility of personnel 12
3. Technical data 13
3.1 Types, powers, dimensions, weight 13
3.2 Performance curve 15
4. Mechanical installation 16
4.1 Inner part with heat storage (left or right) 16
5. Hydraulic installation 17
5.1 Connection sizes and dimension: heat storage 200 litres 17
5.2 Connection sizes and dimension: heat storage 400 litres 18
5.3 Scheme 19
5.4 Installation guide 20
5.5 Pressure loss diagram grid connection 24
5.6 Requirements for the quality of the heating water 25
6. Electrical installation 26
6.1 Notes 26
6.2 Terminal scheme and description 26
6.3 Electrical installed power 27
7. Refrigeration installation 28
7.1 Refrigeration scheme 28
8. Structure and function 29
8.1 Assembly and spare parts 29
8.2 Control logic and activation 31
8.3 Options 33
9. Operation notes 35
9.1 Controller operation 35
9.2 Interfaces 36
9.3 Overview of the menu structure 38
9.4 Settings/fixed values 43
10. Debugging 44
11. Maintenance 46
11.1 Cleaning 46
11.2 Maintenance 46
11.3 Tightness check 47
11.4 Plate heat exchanger: cleaning/water values 47
12. Decommissioning and disposal 49
13. Annex 50
13.1 Electrical plan 50
13.2 Pump Wilo-Para StG 58
13.3 Error messages frequency inverter Bonfiglioli Agile 62
13.4 Technical data RSM610 65
13.5 Refrigerant R134A 67
13.6 Heating rod 71
13.7 Compressor oil 72
13.8 Finder active energy meter 76
13.9 Label 78
13.10 EC declaration of conformity 79

3
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
1. FUNCTIONAL DESCRIPTION
The high-temperature heat pump WP Grid-HiQ CF06 is suitable for use in district heating networks with
varying temperatures in the range of 10 to 55 °C.
This flexibility is achieved by a patented process that enables the system to always reach the optimum
operating point despite a changing source temperature.
The maximum flow temperature is 72 °C.
The Grid-HiQ CF06 comprises an integrated 200 or 400 litre buffer storage tank including an expansion
tank and heating circuit, as well as a fresh water station together with a home controller. This means that a
complete heating room can be accommodated in one unit, allowing a quick and uncomplicated installation.
Supplemented by the optional integrated district heating transfer, it enables a variety of network strategies.
The Grid-HiQ is extended by numerous options and thus represents a complete package for district heating
technology.
BENEFITS
• usage of varying source temperatures from 10 to 55
°C possible
• highest flexibility thanks to speed-controlled inverter
operation
• passive and active cooling possible
• integrated district heating direct exchanger
• flow temperatures up to 72 °C possible
• integrated energy management (Smart-Grid capable)
• numerous network strategies possible
• easy installation thanks to complete pre-assembly in
the factory, no refrigeration certificate required
• with ratiotherm components a completely
coordinated, future-proof system

4
The following indications are a guide through the whole documentation.
Further documents besides this operating and installation instruction are valid.
The operating and installation guide for technical staff is a part of the ratiotherm heat pump WP Grid-HiQ
CF06.
The ratiotherm heat pump WP Grid-HiQ CF06 can not be used without this instruction.
The instruction needs to be available to the technical staff at any time.
In case of selling the ratiotherm heat pump WP Grid-HiQ CF06 the instruction has to be attached.
No liability is assumed for damages caused by non-consideration of this instruction.
2. NOTES ONTHE DOCUMENTATION
TARGET GROUP
The instruction is addressed to
• the operator and
• the technical staff of the heat pump.
STORAGE OF THE DOCUMENTS
Store this instruction and all other valid documents in a way that they
are available, when required.
In case of moving or selling hand the documents over to the
successor.

5
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
2. NOTES ONTHE DOCUMENTATION
2.1 FUNDAMENTAL SAFETY INSTRUCTIONS
DANGER!
WARNING!
NOTE!
ATTENTION!
Imminent danger
which causes grievous bodily harm or leads to death.
Potentially dangerous situation,
which could cause grievous bodily harm or lead to death.
Potentially dangerous situation,
which could cause bodily harm.
Potentially dangerous situation,
which could cause bodily harm or could damage components of the heat
pump or things in the surrounding area.
Application notes
and other useful information, which facilitate the intended use of the
machine.

6
2. NOTES ONTHE DOCUMENTATION
2.2 USED SYMBOLS
danger zone danger through electric current
warning of hot surfaces and fluids STOP
unlock before working
read the instruction
note: damage
mandatory signs for wearing protective gear

7
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
2. NOTES ONTHE DODUMENTATION
2.3 INTENDED USE
The ratiotherm heat pump WP Grid-HiQ CF06 is constructed according to the state of the art and the
certified safety regulations.
The heat pump is only intended for the preparation of hot water and the generation of heat and cold in
residential and / or non-residential buildings.
Incorrect or non-intended use could result in danger to life of the operator or a third party.
In addition impairments of the devices and other material assets can arise.
The ratiotherm heat pump WP Grid-HiQ CF06 is not intended for being used by individuals
(including children) with restricted physical, sensory or mental abilities.
The heat pump also can not be operated by individuals with a lack of experience and/or
knowledge.
• Unless they are supervised by an individual responsible for their safety or they received
instructions on how to use the device.
The ratiotherm heat pump WP Grid-HiQ CF06 is exclusively intended for the preparation of
hot water (process water) and the generation of heat and cold.
Any other or futher use is considered improper. The manufacturer/supplier is not liable for
damage caused by improper use.
The operator is responsible for the risks.
Proper use also includes observing the operating and installation instruction as well as all
other valid documents and the conditions for inspection and maintenance.

8
2. NOTES ONTHE DOCUMENTATION
2.4 GENERAL SAFETY INSTRUCTIONS
WARNING! DAMAGES POSSIBLE
• Operation of the heat pump only by qualified individuals.
• Only for intended use.
• Any other usage is a misuse.
ATTENTION! RISK OF SCALDING
• The outflow temperatures at the hot water extraction points might be
up to 60 °C.
• Carefully check the water temperature at the hot water extraction
points before placing your hands under the water jet.
NOTE! DAMAGES POSSIBLE
Damages of the heat pump and components possible.
• Read and follow the instructions.
• To avoid accidents and material damage observe the safety
instructions.
• Observe the national rules of the country in which the ratiotherm heat
pump WP Grid-HiQ CF06 is used.
WARNING! DAMAGES POSSIBLE
Do not make any changes:
• to the heat pump;
• to the water pipes and the power lines;
• to the safety valve;
• to structural conditions, which could influence the operational safety of
the device;
• to structural conditions near the device, insofar as they could influence
its operational safety.

9
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
2. NOTES ONTHE DOCUMENTATION
2.5 INSTALLATION AND ADJUSTMENTS
The installation, commissioning or dismantling of the device is only
allowed to be done by technicians with specific knowledge.
Applicable rules, requirements and guidelines as well as local
installation specifications must be observed.
ATTENTION!
Safety valve and air outlet pipe
During the heating process water volume increases. Therefore never
close the air outlet pipe of the safety valve.
Hot water may leak out of the air outlet pipe!
Leakage
Turn off the heat pump in case of any leakages in its area and
disconnect it from the rest of the heating system.The leakage should
be fixed immediately.
NOTE!
Corrosion damages
Don‘t use sprays, solvents, chlorinated detergents, colours, glues etc.
in the environment of the heat pump to avoid corrosion.
Spare and wear parts
Components, which weren‘t tested in conjunction with the heat pump,
could cause damages at the device or affect its functions. Install
original spare and original wear parts exclusively!
LEAKAGE

10
2. NOTES ONTHE DOCUMENTATION
2.6 GUIDLINES, NORMS AND LAWS
When installing the heat pump, the following requirements, rules and guidelines have to be
observed:
IN GERMANY:
• VDE- as well as EVU rules and requirements (especially VDE 0100);
• Rules and requirements of the local utilities;
• DVGW worksheet W 382
„Installation and operation of pressure reducers in drinking water consumption
systems“;
• DIN 1988 – TRWI technical rules for drinking water installation;
• DIN 4753 – Water heating systems for drinking and operating water;
• DIN 8947 – Ready for connection heat pumps for hot water preparation with
electrically driven compressors;
• Accident prevention regulations VGB 20 „refrigeration plants“ with
operational instructions;
• Energy saving regulations EnEV – Requirement for energy-efficient thermal
insulation and systems in buildings from 2009
Furthermore, local requirements and rules are valid. For example: local building
regulations.
In general, you have to observe the rules of the respective country!

11
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
2. NOTES ONTHE DOCUMENTATION
2.7 QUALIFICATION OF PERSONNEL
Specific knowledge is neccessary for the installation, the commissioning and
the dismantling of the device and it has to be performed by skilled workers.
By personnel we mean all individuals who work with the ratiotherm heat
pump WP Grid-HiQ CF06. With this in mind, trainees are not qualified
personnel.
We require that:
• the operating personnel undergoes specific training in how to handle the
ratiotherm heat pump WP Grid-HiQ CF06;
• the maintenance staff will adjust, test and repair the ratiotherm heat
pump WP Grid-HiQ CF06 in a way that no personal and material risks
arise.

12
2. NOTES ON DOCUMENTATION
2.8 RESPONSIBILITY OF PERSONNEL
ATTENTION!
To avoid injuries of any type under any circumstances you have to comply
with the general accident prevention regulations and have to use protective
equipment.
To guarantee a safe installation, the responsible technician has to ensure
that:
• the personnel has the neccessary qualifications and training courses;
• the personnel has read and understood the instructions;
• the personnel is able to read the instructions at any time;
• the local accident prevention regulations as well as the environmental
regulations are complied;
• the personnel was instructed by a supervisor and that unauthorised
individuals are kept away from the ratiotherm heat pump WP Grid-HiQ
CF06;
• the ratiotherm heat pump WP Grid-HiQ CF06 is handed over and
operated in a safe and working condition and that damages to the heat
pump are removed immediatly or that the damaged heat pump gets shut
down right away.
Technical changes
Technical changes to the machine are prohibited.
The subsequent installation of safety devices as well as welding at
supporting parts is also prohibited.
Safety devices are not to be disabled. In general, it is only allowed to use
original spare and component parts from the manufacturer.

13
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
3.TECHNICAL DATA
3.1TYPES, POWERS, DIMENSIONS, WEIGHT
Grid-HiQ CF06
power data heat mode
W20/W55
heat output 3.06 to 8.7 kW
power consumption 0.66 to 2.2 kW
coefficient of performance 4.91
compressor
type fully hermetic, rotary piston, inverter
speed 1000 to 7200 n/min
maximum operating current 15 A
stalling current LRA 32 A
amount of oil 0.63 L
evaporator
type copper soldered plate heat exchanger
material stainless steel / copper
volume flow brine 0.4 to 1 m3/h
pressure loss 0.2 bar
temperature difference 3 K
test pressure 65 bar
application area -196 to 200 °C
connection dimension 1“, AG
capacitor
type copper soldered plate heat exchanger
material stainless steel / copper
volume flow water 0.8 to 2.2 m3/h
pressure loss 0.2 bar
temperature difference 5 to 10 K
test pressure 65 bar
application area -196 to 200 °C
connection dimension 1“, AG
refrigeration cycle
working substance R134 A
filling quantity 1. 4 kg
max. operating pressure 26 bar
electricity
grid connection 230 V / 1~ / 50 Hz
protection 25 A
max. operating pressure compressor 15 A

14
device data
sound pressure level
inner part at a distance of 1 m 38 dB(A)
dimensions inner part 930 x 1950 x 730 (1102 x 1950 x 903) wxhxd (mm)
weight 280 (130+150) kg
max. operating pressure water 10 bar
max. flow temperature 72 °C
buffer storage
capacity 200 (400) L
max. operating pressure buffer 3 bar
dimensions buffer + insulation or
TWK 500 x 1950 x 500 wxhxd (mm)
weight buffer or TWK ca. 100 kg
max. operating temperature 90 °C
fresh water station
max. tapping volume (10>50 °C) 25 L/min
pressure loss secondary at 25 L/min 800 mbar
temperature heating circuit primary 55 °C
temperature hot water secondary 50 °C
volume primary 1500 L/h
pressure loss primary 425 mbar
max. operating pressure 10 bar
direct transmission
type copper soldered plate heat exchanger
material stainless steel / copper
volume flow water 0.2 to 1.7 m3/h
max. pressure loss 220 mbar
temperature difference 5 to 10 K
test pressure 30 bar
connection dimension DN 20, AG
max. transmission capacity 20 kW at sec. 50 °C / prim. 55 °C
heating circuit
pump Wilo Para 1-7
mixer three-way with 3-point drive
voltage pump + actuator 230 V 50 Hz
free pump pressure 5.5 m WS
temperature difference 5 to 10 K
max. operating pressure 3 bar
connection dimension DN 25 flange with nut
expansion tank secondary 24 litre + 15 litre
3.TECHNICAL DATA
3.1TYPES, POWERS, DIMENSIONS, WEIGHT

15
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
3.TECHNICAL DATA
3.2 PERFORMANCE CURVE
Coefficient of performance, heat output and power consumption at varying speeds:
Coefficient of performance at Heat output in kW at Power consumption in kW at
100 %
75 % 50 % 25 % 100 % 75 % 50 % 25 % 100 % 75 % 50 % 25 %
W10/W35 4.41 4.59 5.25 6.05 8.30 7.30 4.20 2.60 1.88 1.59 0.80 0.43
W10/W55 3.08 3.05 3.52 3.44 7. 0 0 6.10 3.80 2.10 2.27 2.00 1.08 0.61
W20/W35 5.52 5.98 7.47 9.21 10.70 9.80 5.90 3.50 1.94 1.64 0.79 0.38
W20/W55 3.73 3.79 4.57 4.53 9.30 8.30 5.30 2.90 2.49 2.19 1. 16 0.64
W30/W35 6.37 6.75 11. 0 0 14.84 12.80 11.20 7.70 4.60 2.01 1.66 0.70 0.31
W30/W55 4.65 4.71 5.75 6.00 12.00 11.20 6.90 3.90 2.58 2.38 1.20 0.65
0
2
4
6
8
10
12
14
16
W10/W35 W10/W55 W20/W35 W20/W55 W30/W35 W30/W55
Coefficient of performance
Coefficient of performance at 100 % Coefficient of performance at 75 %
Coefficient of performance at 50 % Coefficient of performance at 25 %
0
2
4
6
8
10
12
14
W10/W35 W10/W55 W20/W35 W20/W55 W30/W35 W30/W55
Heat output
Heat output in kW at 100 % Heat output in kW at 75 %
Heat output in kW at 50 % Heat output in kW at 25 %
0
0,5
1
1,5
2
2,5
3
W10/W35 W10/W55 W20/W35 W20/W55 W30/W35 W30/W55
Power consumption
Power consumption in kW at 100 % Power consumption in kW at 75 %
Power consumption in kW at 50 % Power consumption in kW at 25 %

16
50
50
500
600
Datum:
Name:
Änderung:
Dateipfad:

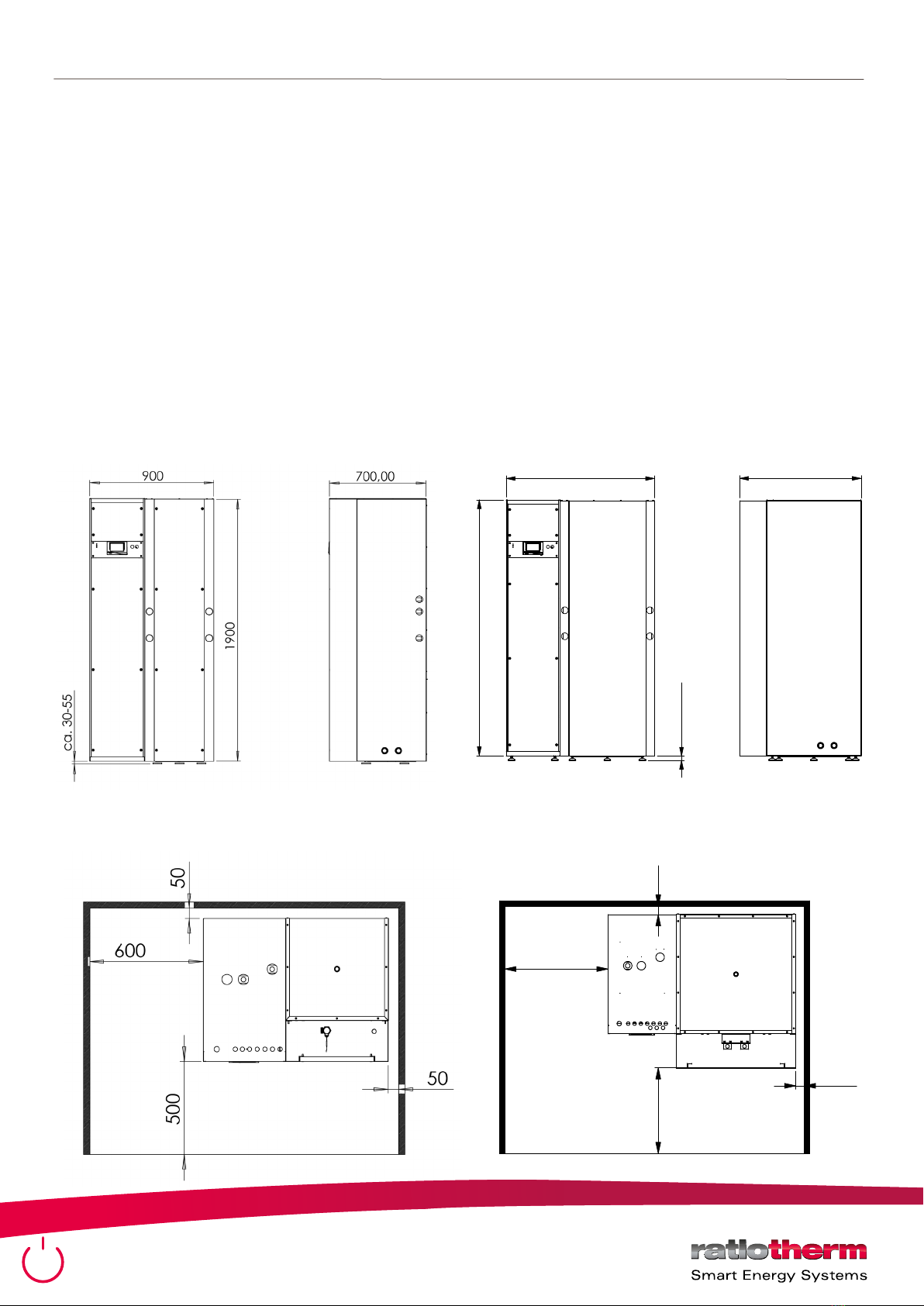

Storage conditions:
• Care must be taken to ensure frost-free storage.
Installation conditions:
• A floor drain must be provided as protection against water damage.
• The ratiotherm heat pump WP Grid-HiQ CF06 has to be installed at a clean, ventilated and dry location.
The ambient temperature must be > 10 °C and < 35 °C year round.
• The specified minimum distances must be observed for maintenance purposes.
• Depending on the installation site a soundproof base is recommended.
1900
1102
ca. 30-55
Datum:
Name:
Änderung:
Dateipfad:
903
Dimensions:
200 litres 400 litres
Distance dimensions:
200 litres 400 litres
4. MECHANICAL INSTALLATION
4.1 INNER PART WITH HEAT STORAGE (LEFT OR RIGHT)

17
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
• Barriers, ventilations, sludge separators and magnetite separators are intended on site.
• The capacitor/sink pump is integrated in the device; a grid pump can be integrated optionally.
• Fill the installation by the return flow.
• A drain valve is installed in the machine.
• Please hold the connections while tightening!
Heat storage - left:
Heat storage - right:
5. HYDRAULIC INSTALLATION

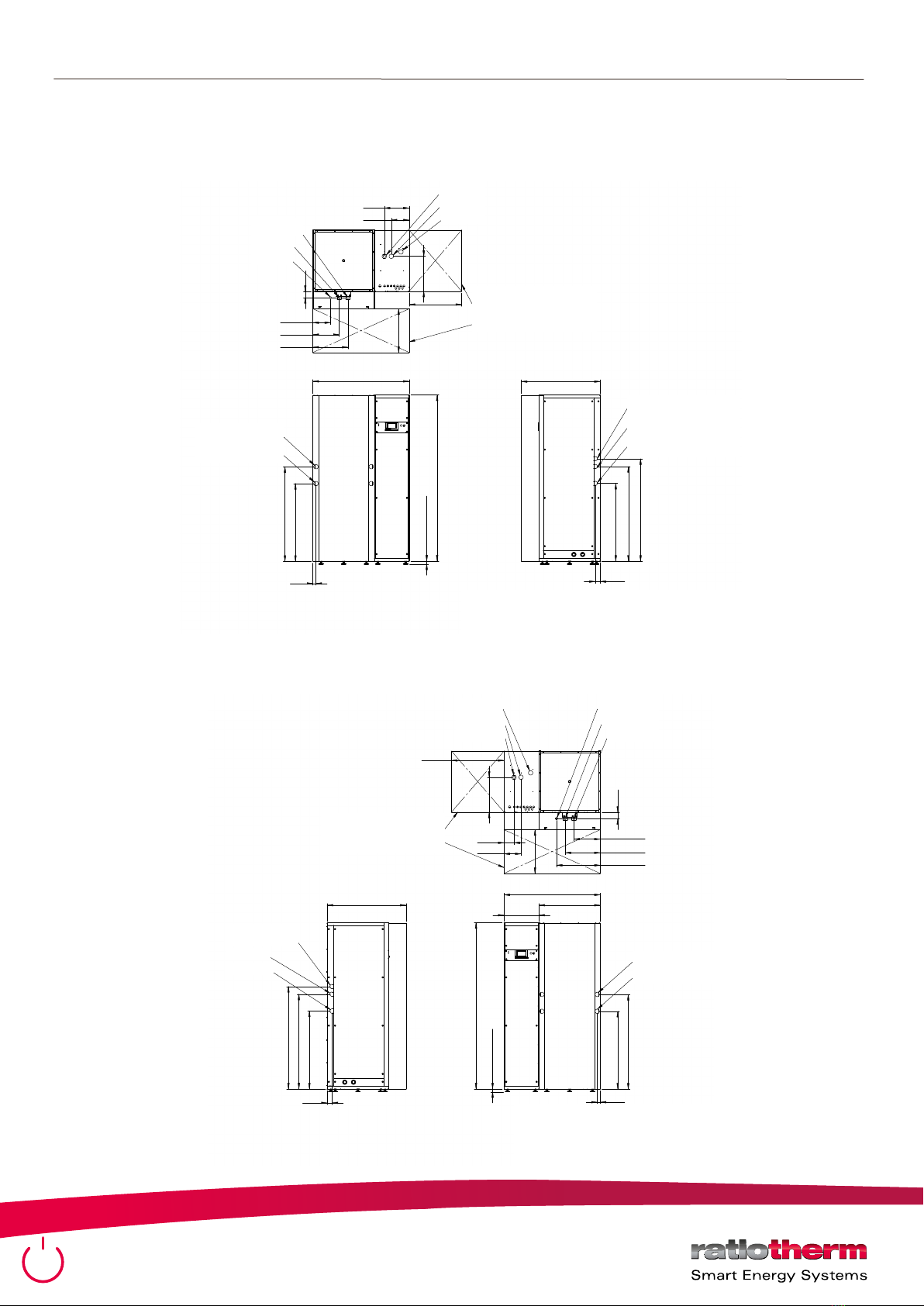

5.1 CONNECTION SIZES AND DIMENSION: HEAT STORAGE 200 LITRES
1900
ca. 30 bis 50
30
889
1082
945
Netz Eintritt (Option)
Netz Austritt (Option)
120
121
221
321
205
285
400
500
600
Zirkulation
Kaltwasser
Warmwasser
Heizkreis VL
Heizkreis RL
Entlüftung
Wartungsraum seitlich 600x700
Wartungsraum vorne 500x945
889
1082 1170
57
700
Anschluss Sicherheitsgruppe
Netz Eintritt
Netz Austritt
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Datum: Name: Änderung: Dateipfad:
Datum: Name:
Gezeichnet:
Geprüft:
Genehmigt:
Maßstab: Blatt: Format:
Projekt: Bezeichnung:
ratio therm Heizung + Solartechnik GmbH & Co. KG
D- 91795 Wellheimer Str. 34
Tel. [phone] / 9977 - 0
Fax. [phone] / 9977 - 30
[email protected] | www.ratiotherm.de
21.03.2019 J.Kruck
Ab- und
Anschlussmaße
WP Grid-HiQ CF06
Speicher links
hot water
cold water
circulation
heating circuit flow
ventilation
heating circuit return flow
lateral maintenance room 600x700
front maintenance room 500x945
grid outlet
grid entry
connection safety group
grid entry (optional)
grid outlet (optional)
1900
945
889
1082
30
ca. 30 bis 50
400 545
Netz Eintritt (Option)
Netz Austritt (Option)
115
195
80
185
256
400
120
500
600
Entlüftung
Heizkreis VL
Heizkreis RL Kaltwasser
Warmwasser
Zirkulation
Wartungsraum seitlich 600x700
Wartungsraum vorne 500x945
700
57
889
1082 1170
Anschluss
Sicherheitsgruppe
Netz Eintritt
Netz Austritt
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Datum: Name: Änderung: Dateipfad:
Datum: Name:
Gezeichnet:
Geprüft:
Genehmigt:
Maßstab: Blatt: Format:
Projekt: Bezeichnung:
ratio therm Heizung + Solartechnik GmbH & Co. KG
D- 91795 Wellheimer Str. 34
Tel. [phone] / 9977 - 0
Fax. [phone] / 9977 - 30
[email protected] | www.ratiotherm.de
20.03.2019 J.Kruck
Ab- und
Anschlussmaße
WP Grid-HiQ CF06
Speicher rechts
grid entry (optional)
grid outlet (optional)
hot water
cold water
circulation
ventilation
heating circuit return flow
heating circuit flow
lateral maintenance room 600x700
front maintenance room 500x945
grid outlet
grid entry
connection safety group

18
Heat storage - left:
Heat storage - right:
5. HYDRAULIC INSTALLATION

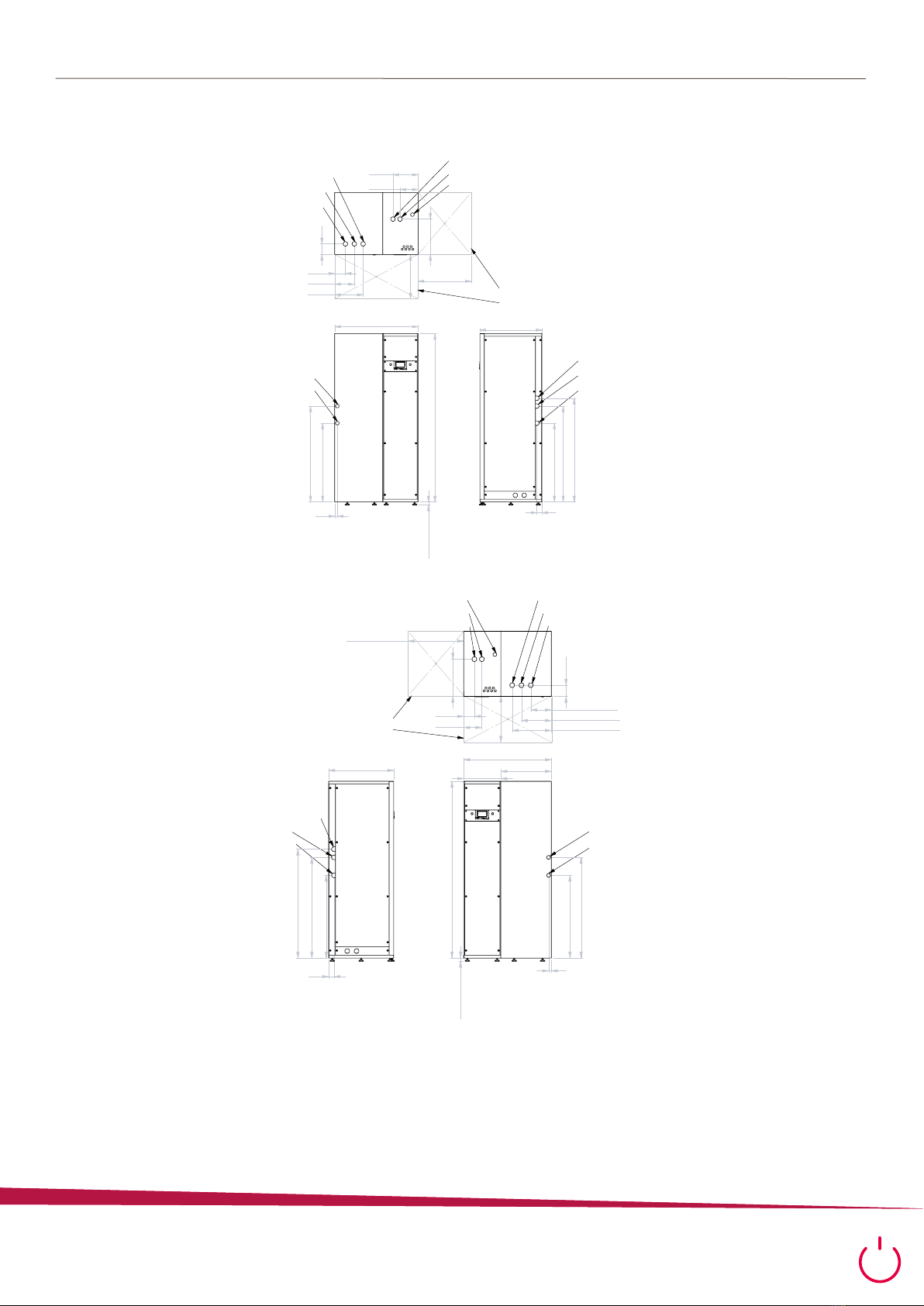

5.2 CONNECTION SIZES AND DIMENSION: HEAT STORAGE 400 LITRES
600
500
205
285
301
201
ratiotherm
Anschlussmaße
Speicher 400L links
Bezeichnung:
Projekt:
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Datum: Name: Änderung: Dateipfad:
Datum: Name:
Gezeichnet:
Geprüft:
Genehmigt:
Maßstab: Blatt:
Ab- und
06.09.2019 Habermeyer
Fax. [phone] / 9977 - 30
WP Grid-HiQ CF06
D- 91795 Wellheimer Str. 34
Heizung + Solartechnik GmbH & Co. KG
[e-mail] | www.ratiotherm.de
Format:
Tel. [phone] / 9977 - 0
Netz Eintritt
Anschluss Sicherheitsgruppe
Netz Austritt
890
1083 1171
903
58
Wartungsraum vorne 500x1102
Entlüftung
Heizkreis RL
Zirkulation
Kaltwasser
Warmwasser
Wartungsraum seitlich 600x700
Heizkreis VL
400
72
401
Netz Austritt Option
Netz Eintritt (Option)
890
1102
ca. 30 bis 50
1900
35
1083
hot water
cold water
circulation
heating circuit flow
ventilation
heating circuit return flow
lateral maintenance room 600x700
front maintenance room 500x1102
grid outlet
grid entry
connection safety group
grid entry (optional)
grid outlet (optional)
501
600
500
72
ratiotherm
AnschlussmaßeSpeicher 400L rechts
Bezeichnung:Projekt:
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Datum: Name: Änderung: Dateipfad:
Datum: Name:
Gezeichnet:
Geprüft:
Genehmigt:
Maßstab: Blatt:
Ab- und
06.09.2019 Habermeyer
Fax. [phone] / 9977 - 30
WP Grid-HiQ CF06
D- 91795 Wellheimer Str. 34
Heizung + Solartechnik GmbH & Co. KG
[e-mail] | www.ratiotherm.de
Format:
Tel. [phone] / 9977 - 0
Sicherheitsgruppe
Netz Eintritt
Anschluss
Netz Austritt
890
1083
903
58
1171
Zirkulation
Kaltwasser
Entlüftung
Heizkreis RL
Heizkreis VL
Wartungsraum seitlich 600x700
Wartungsraum vorne 500x1102
Warmwasser
195
400
301
115
401
Netz Eintritt (Option)
Netz Austritt (Option)
ca. 30 bis 50
890
1083
1900
400
1102
702
35
grid entry (optional)
grid outlet (optional)
circulation
hot water
cold water
heating circuit flow
ventilation
heating circuit return flow
lateral maintenance room 600x700
front maintenance room 500x1102
connection safety group
grid outlet
grid entry

19
TU_GB_WP_Grid-HiQ_CF06_2020/05-bi - Errors and changes of all information, pictures and drawings remain reserved.
Compliance with the generally valid and recognized rules of technology must be strictly adhered to!
ATTENTION! Installation and wiring only by authorized specialists.
5. HYDRAULIC INSTALLATION

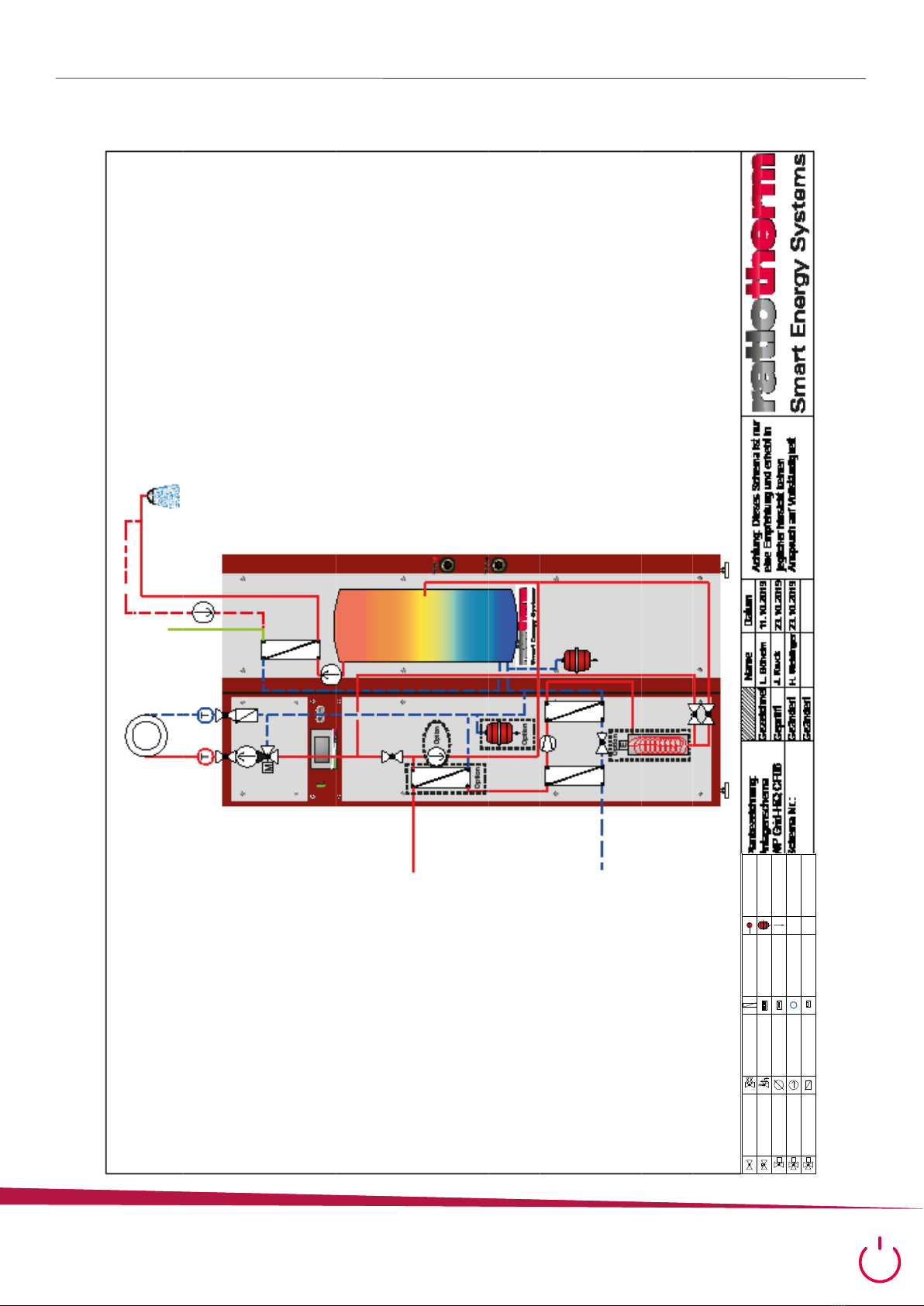

5.3 SCHEME
20.04.2018
A. Weidinger
M M
T
S16
000
∑
m
³
shut off shut off
with security flap
engine valve
Spouting device with emptying
F
3-way-mixer with locking valve
safety valve
pressure indicator
pump in the direction of flow
setback flap
plate heat exchanger
flow rate adjustment valve
flow switch
thermometer
heat meters
Sensor
conservator
drainage
S
3-way-mixer with servomotor
name date NOTE: This pattern is just a
recommendation and raise no requirement on completeness, in any regard!
pojectname:
rZR 16x2 Standard 2 Heizkreise, SmE inspecting
draftsman
schematic-no.: changed
changed
S 1
S 2
S 3
S 11
110 3 2 8 96
47 5
T T
M
S 13
A 8/9
A 3
F
A 6
OSKAR°
external sensor
S4
TT
F
S 6
KW
S 7
S 15
A 16 / PWM
A 1
WW
S 8
S 5
heat generator 2
low temperature
heat circuit
drinking water
station
rZR 16x2
heat generator 1
IO II
IO II
A 13
0- 10V
Auto- O - Hand
I
O
230V
Hand- O - Auto
Netz
T
M
TT
S 14
A 4
A 10/11
high temperature
heat circuit
A 7
PV System
WR
A 5
T
T
P1/230V PWM 1
Smart Energy K11
Grid Sensor
EVU
hot water
circulation
cold water
heating circuit
district heating flow
district heating return flow

20
5. HYDRAULIC INSTALLATION

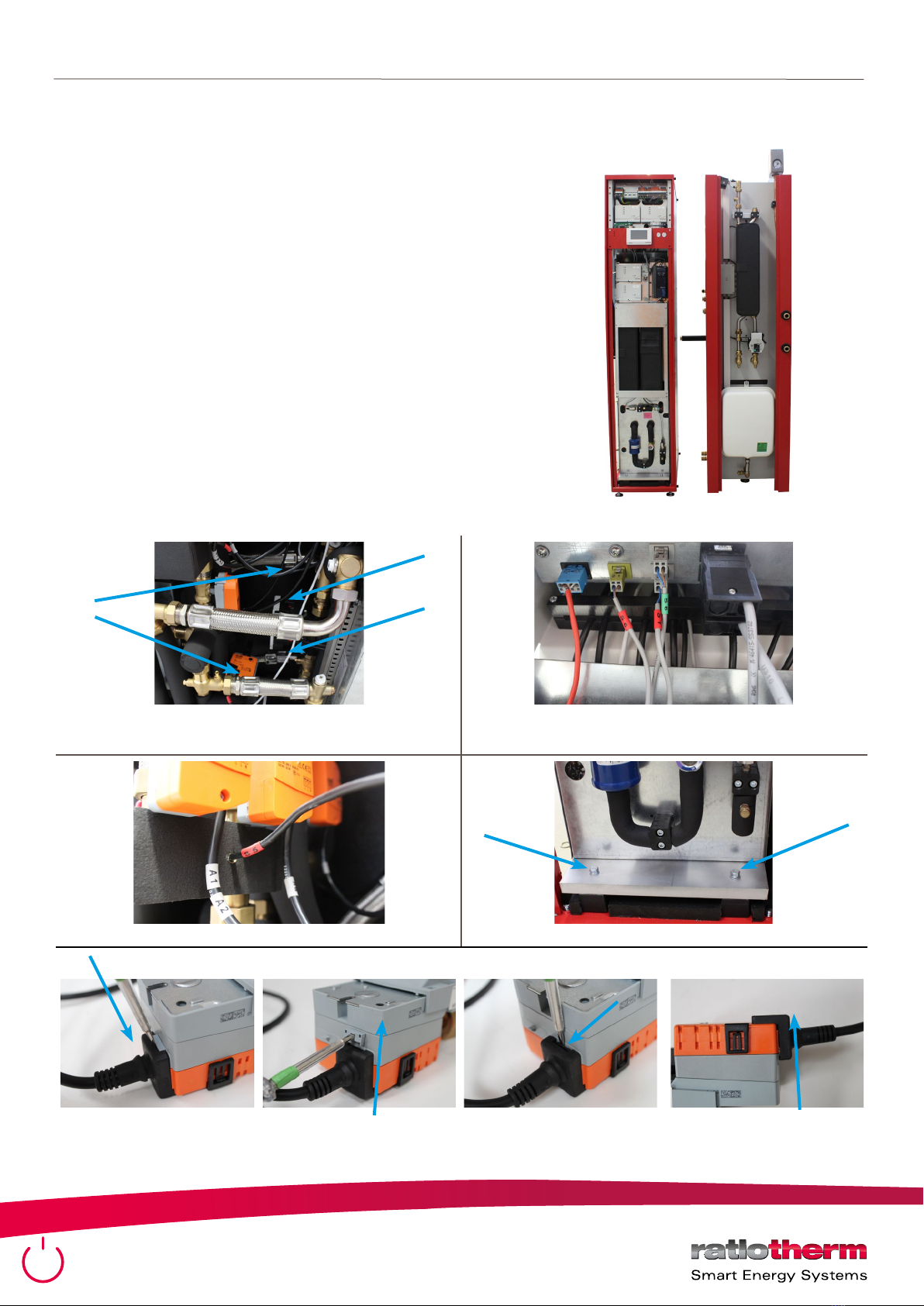

5.4 INSTALLATION GUIDE
For this purpose please disconnect the:
• 4 hose connections (barriers are provided in
each case),
• electrical connections to the housing (6 plug
connections),
• sensor S5, • 2 screw connections in the base plate,
• electrical connection to the district heating valve (watch out for the detent of the plug).
The machine is delivered on a pallet in two parts:
• storage module (200 litres of buffer storage including
FriWa and 24 litres MAG)
• hydraulic module + cooling unit
For easier transport, the refrigeration unit (approx. 80 kg) can
be removed from the hydraulic module.
