Rato RBSL40 User manual

RATO LITHIUM-ION CORDLESS BLOWER
RBSL40
Owner’s Manual
Read all safety rules and instructions carefully before operating this tool

Original instructions
CONTENTS
Contents…………………………………………………………………………………………………….……………….…………….…….………..….……..2
Symbols……………………………………………………………………………………………………….………………….…..…………..……….…………3
Know your 40V cordless blower…………………………………………………………………….….…………….………………..………..……….4
Technical data…………………………………………………………………………………………………………….…………………….…………….…..5
Original instruction………………………………………………………………………………………..…………….……………………………...………6
Assembly……………………………………………………………………………………………………………………….……………………..…..…………12
Operation……………………………………………………………………………………………………………….………….…………….……….…...…..14
Transporting and storing………………………………………………………………..………………………………….…………….………..………..15
Maintenance and repairs …………………………………..………………………………………………………………….……..………….….….….16
Troubleshooting……………………………………………………………………………………………..…………………………..………………...……16
EC- Declaration of Conformity………………………………………………………………………………………………………….…….…….……..17
2-English

Original instructions
SYMBOLS
•Dispose of properly.
Read instruction handbook
Wear eye protection
Wear ear protection
Do not use in the rain or leave outdoors while it is raining
Keep bystanders away
The distance between the machine and bystanders shall be least 5m
Switch off and remove battery before adjusting and cleaning.
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Symbols on the battery and/or on the battery
This product must be deposited at an appropriate recycling
facility (applies to Europe only)
Li-ion
Fail-safe transformer
Use and store battery charger only indoors.
Double insulation
3-English

Original instructions

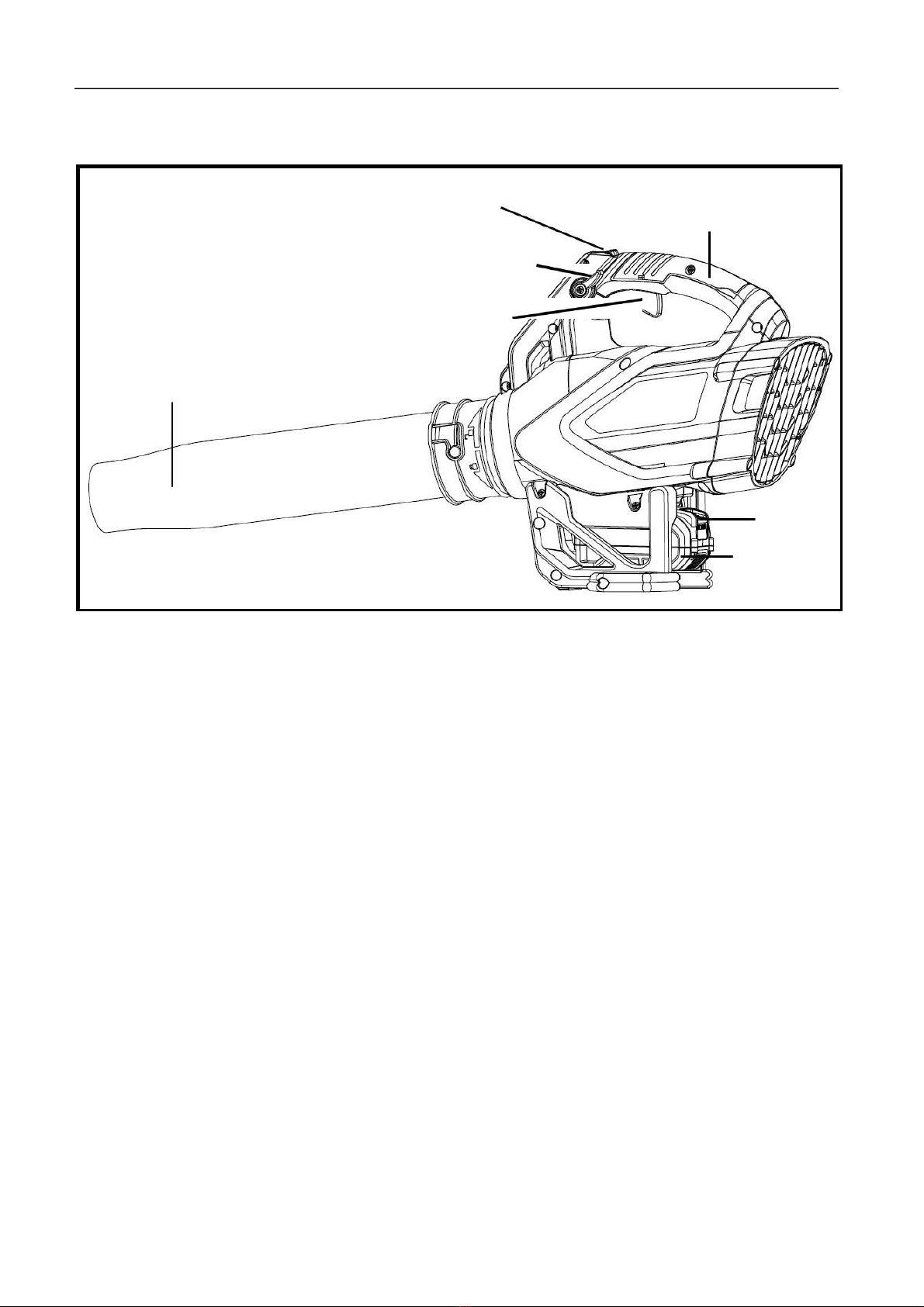

KNOW YOUR 40V CORDLESS BLOWER
TURBO BUTTON
CONTROL HANDLE
SPEED LOCK LEVER
TRIGGER SWITCH
BLOWER TUBE
RELEASE
BUTTON
BATTERY PACK
Fig.1
KNOW YOUR 40V CORDLESS BLOWER (See Fig.1)
The safe use of this product requires an understanding of the information on the product and in this operator’s
manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize
yourself with all operating features and safety rules.
TURBO BUTTON:
A function of increase in airflow “turbo”, is used only on occasions when leaves and trash is stuck or when the
normal airflow is not sufficient. In most cases, normal airflow is sufficient. An increase in airflow is used mainly
for brief measures.
SPEED LOCK LEVER:
A part of can keep the switch at turn on position .The speed lock lever can also be pulled back to start the blower
without needing to first depress the trigger switch.
4-English

Original instructions
TECHNICAL DATA
Type
RBSL40
Voltage
40V Max* Lithium ion
No load speed
21000rpm
Blow speed
53m/s
Air capacity
12.7m³/min
Machine weight
2.3KG (without battery)
*Voltage measured without workload. Initial battery voltage reaches maximum of 40 volts.
Nominal voltage is 36 volts.
ACCESSORIES
RBSL40
Battery
1(RBEI40)
Charger
1(RBAT40)
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according to the work you
intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer
advice.
NOISE/VIBRATION INFORMATION
Sound power level ,measured according to ISO22868 , dB(A):
96.9,K=3
Sound pressure level ,measured according to EN50636-2-100 ,dB(A):
84.8 ,K=3
Vibration levels
Vibration levels at handles, measured according to ISO 22867, m/s2;
2.32,K=1,5
Warning! The vibration emission value during actual use of the power tool can differ from the declared
value depending on the ways in which the tool is used attendant on the following examples and other
variations on how the tool is used:
How the tool is used and the materials is cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition
The tightness of the grip on the handles and any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
Warning! To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is
running idle but not actually doing the job. This may significantly reduce the exposure level over the
total working period.
5-English

Original instructions
ORIGINAL INSTRUCTION
Intended Use
The RATO RBSL40 blower is designed for blow-sweeping leaves, grass, paper and similar matter.
The RATO RBEI40 battery supplies power to the blower.
The RATO RBAT40 charger recharges the RATO RBEI40 battery.
WARNING
Batteries and chargers not explicitly approved for the blower by RATO may cause a fire or explosion. This can
result in serious or fatal injuries and damage to property. •Use the blower with a RATO RBEI40 battery.
•Recharge the RATO RBEI40 battery with a RATO RBAT40 charger.
•Using the blower, battery or the charger for purposes for which they were not designed may result in serious
or fatal injuries and damage to property may occur.
•Use the blower, battery and charger as described in this instruction manual.
The Operator
•Users without adequate training or instruction cannot recognize or assess the risks involved in using the
blower, battery and charger. The operator or other persons may sustain serious or fatal injuries. •Read,
understand and save the instruction manual.
•If you pass the blower, battery or the charger on to another person: Always give them the instruction manual.
•Make sure the user meets the following requirements:
-The user must be in good physical condition and mental health to operate and work with the blower, battery and
charger. If the user’s physical, sensory or mental ability is restricted, he or she may work only under the
supervision of or as instructed by a responsible person.
-The user must be legally recognized as an adult.
-The user has received instruction from a RATO servicing dealer or other experienced user before working with -
the blower for the first time.
-The user must not be under the influence of alcohol, medication or drugs.
-If you have any queries: Contact your RATO servicing dealer.
Clothing and Equipment
WARNING
•Long hair can be sucked into the blower during operation. This can result in serious injuries.
•Tie up and confine long hair so that it cannot be sucked into the blower.
•Objects can be thrown at high speed during operation. This can result in personal injury.
•Wear safety glasses. Suitable glasses that have been tested and labeled in accordance with EN 166 or national
standards are available from retailers.
•Wear long trousers.
•Dust can be whipped up when working in a dusty work area. Whipped up dust can damage the
respiratory passages and cause allergic reactions.
•Wear a respirator.
•Unsuitable clothing can snag on wood, brush or the blower. Not wearing personal
protective equipment may result in serious injury.
•Wear snug-fitting clothing.
•Do not wear a scarf or jewelry.
•Dust can be whipped up when working in a dusty work area. The dust generated may cause the blower to be
electrostatically charged. If the blower is touched, there may be a static electricity discharge which can produce
a mild electric shock. This can result in personal injury.
6-English

Original instructions
ORIGINAL INSTRUCTION
•Wear work gloves made of durable material.
•Wearing unsuitable footwear may cause you to slip or stumble. This can result in personal injury.
•Wear sturdy footwear with non-slip soles.
Work Area and Surroundings
WARNING
Bystanders, children and animals are not aware of the dangers of the blower or flying debris. Innocent
bystanders, children and animals may be seriously injured and damage to property may occur. •Do not allow
bystanders, children or animals within 5 meters of the work area.
•Maintain a clearance of 5 meters from objects.
•The blower is not waterproof. Working in the rain or a damp location may result in an electric shock. This
can result in injuries to the user and may damage the blower. •Do not work in the rain or a damp location.
•The blower’s electric motor may produce sparks. Sparks may cause a fire or an explosion in an easily
combustible or explosive environment. This can result in serious or fatal injuries and damage to property. •Do not
work in an easily combustible or explosive environment.
Battery
WARNING
•Children are not aware of and cannot assess the dangers of the battery and can be seriously injured.
•Keep children away.
•The battery is not protected against all ambient conditions. If the battery is exposed to certain ambient
conditions, it may catch fire or explode. This can result in serious injuries and damage to property. •Protect battery
from heat and fire.
•Do not throw the battery into a fire.
•Use and store your battery at temperatures between -10°C and +50°C.
•Protect the battery from rain and damp –do not immerse it in fluids.
•Keep battery away from metallic objects.
•Do not expose battery to high pressure.
•Do not expose battery to microwaves.
•Protect battery from chemicals and salts.
Charger
WARNING
•Children are not aware of and cannot assess the dangers of a charger or electric current. Children may
sustain serious or fatal injuries.
•Keep children away from the work area.
•The charger is not waterproof. Working in the rain or a damp location may result in an electric shock. This
can result in injuries to the user and may damage the charger. •Do not operate it in the rain or a damp
location.
•The charger is not protected against all ambient conditions. If the charger is exposed to certain ambient conditions,
it may catch fire or explode. This can result in serious injuries and damage to property. •Operate the charger in a dry
place, indoors only.
•Do not operate the charger in an easily combustible or explosive environment.
•Do not operate the charger on an easily combustible surface.
•Use and store the charger at a temperature between +5°C and +40°C.
•Persons may trip over the connecting cable. This can result in injuries and may damage the charger.
7-English

Original instructions
ORIGINAL INSTRUCTION
•Lay the connecting cable flat on the floor.
Safe Condition
The charger is in a safe condition if the following points are observed:
-Blower is undamaged.
-Blower is clean and dry.
-The controls function properly and have not been modified.
-Only original TOPSUN accessories are fitted.
-Accessories are properly mounted.
WARNING
•If the product does not comply with safety requirements, components will no longer function properly or
safety devices may be rendered inoperative. This can result in serious or fatal injuries. •Work only with an
undamaged blower.
•If the blower is dirty or wet: Clean the blower and allow it to dry.
•Never modify your blower. Exception: Mounting a nozzle approved for this blower model.
•If the controls do not function properly: Do not work with the blower.
•Only fit original RATO accessories designed for this blower model.
•Mount accessories as described in this instruction manual or the instruction manual supplied with the accessory.
•Never insert objects in the blower’s openings.
Battery
The battery is in a safe condition if the following points are observed:
-Battery is undamaged.
-Battery is clean and dry.
-Battery functions properly and has not been modified.
WARNING
•A battery that is not in a safe condition cannot operate safely. This can result in serious injuries.
•Never work with a damaged battery.
•Never attempt to charge a damaged or defective battery.
•If the battery is dirty or wet: Clean the battery and allow it to dry.
•Never attempt to modify the battery.
•Never insert objects in the battery’s openings.
•Never bridge the battery's contacts with metallic objects (short circuit).
•Do not open the battery.
•Fluid may escape from a damaged battery. The fluid can cause irritation if it contacts the skin or eyes.
•Avoid contact with the fluid.
•In case of contact with the skin: Wash affected areas with plenty of water and soap.
•In case of contact with the eyes: Rinse eyes with plenty of water for at least 15 minutes and seek medical advice.
•A damaged or defective battery may smell unusual, emit smoke or burn. This can result in serious or fatal
injuries and damage to property.
•If the battery smells unusual or emits smoke: Do not use the battery and keep it away from
combustible substances.
•If the battery catches fire: Extinguish battery with a fire extinguisher or water.
Charger
The charger is in a safe condition if the following points are observed:
-Charger is undamaged.
8-English

Original instructions
ORIGINAL INSTRUCTION
-Charger is clean and dry.
WARNING
•If the product does not comply with safety requirements, components will no longer function properly or
safety devices may be rendered inoperative. This can result in serious or fatal injuries. •Do not use a damaged
charger.
•If the charger is dirty or wet: Clean the charger and allow it to dry.
•Never attempt to modify the charger.
•Never insert objects in the charger’s openings.
•Never bridge the charger's contacts with metallic objects (short circuit).
•Do not open the charger.
Operation
WARNING
•The user cannot concentrate on the work in certain situations. The user may trip, fall and be seriously injured.
•Work calmly and carefully.
•If light and visibility are poor:
-Do not work with the blower.
-Operate the blower alone.
-Do not work above shoulder height.
-Watch out for obstacles.
-Stand on the ground while working and keep a good balance. If it is necessary to work at heights: Use a lift
bucket or a safe platform.
•Blow sweep with the wind.
•Objects can be thrown at high speed during operation. Bystanders and animals may be injured and damage
to property may occur.
•Do not direct the air blast towards bystanders, animals or objects.
•If the behavior of the blower changes during operation or feels unusual, it may no longer be in a safe condition.
This can result in serious injuries and damage to property.
•Stop work, remove the battery and contact your TOPSUN servicing dealer.
•Blower vibrations may occur during operation.
•Wear gloves.
•Take regular breaks.
•If signs of circulation problems occur: Seek medical advice.
Charging
WARNING
Contact with live parts can occur for the following reasons:
•The connecting cord is damaged.
•The mains plug is damaged.
•The socket is not properly installed.
•Contact with live parts can result in electric shock. The user may be seriously injured or killed.
•Make sure that the connecting cord and mains plug are undamaged.
•Plug the mains plug into a correctly installed socket.
•During charging, an incorrect mains voltage or incorrect mains frequency may result in an overvoltage in
the charger. The charger may be damaged.
•Make sure that the mains voltage and the mains frequency of the power supply match the data on the rating plate
9-English

Original instructions
ORIGINAL INSTRUCTION
of the charger.
•During charging, a damaged or defective charger may give off an unusual smell or smoke. This can result in
injuries and damage to property.
•Disconnect the mains plug from the mains power supply.
•Insufficient heat dissipation may cause the charger to overheat and a fire to break out. This can result in serious
injuries or death and damage to property.
•Do not cover the charger.
•Wiring may be overloaded during charging if more than one charger is connected to the same socket. The
wiring may heat up and a fire may break out. This can result in serious injuries or death and damage to property.
•Only ever connect one charger to one socket.
•Do not connect chargers to multiple sockets.
•If wiring and pipes are laid in the wall, they may be damaged if the charger is mounted on the wall. Contact
with wiring can result in electric shock. This can result in serious injuries and damage to property. •Make sure
there is no wiring or pipes in the wall at the proposed mounting site.
•If the charger is not mounted on the wall as described in this Instruction Manual, the charger or the battery may
fall or the charger may overheat. This can result in injuries and damage to property. •Mount the charger on a
wall as described in this Instruction Manual.
•If the charger is mounted on a wall with the battery inserted, the battery may fall out of the charger. This
can result in injuries and damage to property.
•Mount the charger on the wall first before inserting the
Transporting
Blower
WARNING
The blower can turn over or move while being transported. This may result in personal injuries and damage
to property.
Secure the blower to prevent turnover and movement.
Battery
WARNING
The battery is not protected against all ambient conditions. The battery may be damaged if it is exposed to certain
ambient conditions and damage to property may occur.
Never transport a damaged battery.
Store the battery in non-conductive packaging.
The battery may turn over or shift during transport. This may result in personal injuries and damage to property.
Pack the battery in packaging in such a way that it cannot move.
Secure the packaging so that it cannot move.
Storing
Blower
WARNING
Children are not aware of and cannot assess the dangers of a blower and can be seriously injured.
Remove the battery.
Store the blower out of the reach of children.
The electrical contacts on the blower can corrode if they are damp. The blower may be damaged.
Store the blower in a clean and dry condition.
10-English

Original instructions
ORIGINAL INSTRUCTION
Battery
WARNING
Children are not aware of and cannot assess the dangers of the battery and can be seriously injured.
Store the battery out of the reach of children.
The battery is not protected against all ambient conditions. The battery may be damaged if it is exposed to certain
ambient conditions.
Store the battery in a clean and dry condition.
Store the battery in a confined space.
Store the battery separately from the blower and charger.
Store the battery in non-conductive packaging.
Use and store the battery at temperatures between -10°C and +50°C.
Charger
WARNING
•Children are not aware of and cannot assess the dangers of a charger. Children may sustain serious or
fatal injuries.
•Remove the battery.
•Store the charger out of the reach of children.
•The charger is not protected against all ambient conditions. The charger may be damaged if it is exposed to certain
ambient conditions.
•Remove the battery.
•If the charger is hot: Allow charger to cool down.
•Store the charger in a clean and dry condition.
•Store the charger in a confined space.
•Store the charger at a temperature between +5°C and +40°C.
•The connecting cable must not be used for carrying or hanging up the charger. The connecting cable and the
charger may be damaged.
•Hold the charger by the housing. A recessed handle is provided on the back of the charger.
•Hang the charger on the wall bracket.
Cleaning, Maintenance and Repairs
WARNING
•The blower may start unintentionally if the battery is left in place during cleaning, maintenance or
repair operations. This can result in serious injuries and damage to property.
•Aggressive cleaning agents, high pressure cleaners or pointed objects can damage the blower, battery and charger.
If the blower, battery or charger are not cleaned as described in this instruction manual, components may no longer
function properly or safety devices may be rendered inoperative. This can result in serious injuries. Clean the blower,
battery and charger as described in this instruction manual.
•If the blower, battery or charge are not serviced or repaired correctly, components may no longer
function properly or safety devices may be rendered inoperative. This can result in serious or fatal injuries.
Do not attempt to service or repair the blower, battery or charger. If the blower, battery or the charger
require servicing or repairs: Contact your RATO servicing dealer.
11-English

Original instructions
ASSEMBLING
ASSEMBLING THE BLOWER TUBE (See Fig. 2-3)
ALWAYS REMOVE THE BATTERY PACK BEFORE ASSEMBLING THE BLOWER TUBE
Fig.2
Fig.3
Fit the Blower Tube to the motor housing as shown in Fig. 2. Check the Blower Tube is firmly secured.
Note: Before disassembling the Blower Tube, be sure the variable speed trigger is on off position. Press the Release
Button , so that you can separate the tube (See Fig. 3). Do not try to separate the tubes by force or by using tools.
ASSEMBLING THE BATTERY CARTRIDGE (see Fig.4-7)
BATTERY
CARTRIDGE
BATTERY CARTRIDGE
Fig.4
Fig.5
12-English

Original instructions
ASSEMBLING
ASSEMBLING THE BATTERY CARTRIDGE
SCREW
SCREW
Fig.6
Fig.7
1.Place battery cartridge on to the applicable position of housing (Fig.4,Fig.5)
2.Tighten four screws so that the cartridge assembly cannot move.(Fig.6,Fig.7)
13-English

Original instructions
OPERATION
TO REMOVE OR INSTA LL BATT ERY PACK (Fig.8)
Fig.8
Depress the Battery Release Button to release battery pack from your tool. After recharging, insert the battery
pack into tool’s battery port. A simple push and slight pressure will be sufficient.(Fig.8)
Switching the Blower On/Off(Fig.9)
.
Fig.9
OPERATION
Switching On
•Hold the blower with one hand on the control handle - wrap your thumb around the handle.
Pull the trigger with your index finger and hold it there. The blower accelerates and air flows from the nozzle.
•The blower runs at higher speeds as the lever is moved further. The speed lock lever can also be pulled back
to start the blower without needing to first depress the trigger switch.
Switching Off
To switch off, release the variable speed trigger ,and turn the speed lock lever back if it is moved. No air flows
from the nozzle
Using the Blower
Holding and Controlling the Blower
Hold and control the blower with one hand on the control handle - wrap your thumb around the handle.
Point the nozzle at the ground, walk slowly and steadily forwards.
14-English

Original instructions
TRANSPORTING AND STORING
Transporting the Blower
Switch off the blower and remove the battery. carry the blower by the control handle. Transporting the blower in a
vehicle: Secure the blower to prevent it turning over or shifting.
Transporting the Battery
Switch off the blower and remove the battery. make sure the battery is in a safe condition. Observe the following
points when packing the battery: The packaging must be non-conductive. Make sure the battery cannot shift inside
the packaging. Secure the packaging so that it cannot move.
Storing
Storing the Blower
Switch off the blower and remove the battery. Observe the following points when storing the blower:
•Blower is out of the reach of children.
•Blower is clean and dry.
Storing the Battery
TOPSUN recommends that you store the battery with a charge between 40% and 60% (2 LEDs glow green).
•Observe the following points when storing the battery:
•Battery is out of the reach of children.
•Battery is clean and dry.
•Battery is in an enclosed space.
•Battery is stored separately, away from the blower and charger.
•Battery is in non-conductive packaging.
•Battery is in a temperature range between -10°C and +50°C.
Cleaning
Cleaning the Blower
•Switch off the blower and remove the battery.
•Clean the blower with a damp cloth.
•Clean the intake screen with a soft brush.
•Remove foreign matter from the battery compartment and clean the battery compartment with a damp cloth.
•Clean electrical contacts in the battery compartment with a soft brush.
Cleaning the Battery
•Clean the battery with a damp cloth.
Cleaning the Charger
•Disconnect the plug from the wall outlet.
•Clean the charger with a damp cloth.
•Clean the charger’s electrical contacts with a soft brush
15-English

Original instructions
MAINTENANCE AND REPAIRE
Servicing and Repairing the Blower
•The blower cannot be serviced or repaired by the user.
–If your blower has a malfunction or is damaged or requires servicing: Contact your RATO servicing dealer.
•Servicing and Repairing the Battery. The battery requires no servicing and cannot be repaired.
–If the battery has a malfunction or is damaged: Replace the battery.
•Servicing and Repairing the Charger
•The charger requires no servicing and cannot be repaired.
–If the charger has a malfunction or is damaged: Replace the charger.
–If the connecting cable has a malfunction or is damaged:
•Do not use the charger and have connecting cable replaced by a TOPSUN servicing dealer.
TROUBLESHOOTING
Troubleshooting the battery charger during charging.
Battery charger
LED display
Possible faults
Possible action
Temperature deviation
Use the battery charger only when
Red LED flashing.
the surrounding temperature is
between 5°C and 40°C
Red LED lit.
Contact your service agent.
Blower
Troubleshooting the Blower during running.
Condition
Possible faults
Possible action
Blower runtime is too
Battery not fully charged
Fully charge the battery.
short
16-English

Original instructions
EC- Declaration of Conformity
Here with we, Zhejiang Zhongjian Technology Co., Ltd.
No.10 Mingyuan South AVE, Economic Development Zone, Yongkang, Zhejiang 321300, China
declare that the following Appliance complies with the appropriate basic safety and health requirements of the EC
Directives based on its design and type, as brought into circulation by us
This declaration relates exclusively to the machinery in the state in which it was placed on the market, and excludes
components which are added and/or operations carried out subsequently by the final user.
Category: Cordless Blower
Model: BBL236JH
Serial number: YYMM000001-999999
Applicable EC Directives: - Machinery Directive 2006/42/EC
The following standard have been applied:
EN55014-1,EN55014-2 ,EN60335-1,EN50636-2-100, EN 62233
Additional used EC Directives: - EMC Directive 2014/30/EU
-RoHS Directive 2011/65/EC
- Outdoor- Noise- Directive 2000/14/EC and 2005/88/EC
Measured sound power level 96.9 dB(A)
Guaranteed sound power level 100 dB(A)
Conformity assessment method to Annex V/ Directive 2000/14/EC and 2005/88/EC
8.10.2016
Yongkang/Yanghaiyue
Chief Engineer
17-English
