Rato RTAXQ1-190 User manual

RTAXQ1-190 RTAXQ1-190D RTAXQ1-190-2
Owner’s Manual

· 1 ·
PREFACE
Thank you for purchasing our welder.
This manual contains the information on how to do that. Be sure to read
it carefully before operation. Operate it safely and correctly, you can get
the best results.
All information and diagrams in this publication is based on the latest
products information available at the publishing time. The contents in
this manual may be different from the actual parts due to revision and
other changes. Our company reserves the right to make changes at any
time without notice and without incurring any obligation. No part of
this publication may be reproduced without our Company’s written
permission.
This manual should be considered a permanent part of the welder and
should remain with the welder if resold.

· 2 ·
SAFETY MESSAGES
Your safety and the safety of others are very important. We have provided
important safety messages in this manual and on the welder. Please read
these messages carefully.
A safety message alerts you to potential hazards that could hurt you or
others. Each safety message is preceded by a safety alert symbol and
one of three words: DANGER, WARNING, or CAUTION. These mean:
You WILL be KILLED or SERIOUSLY HURT if you
don’t follow instructions.
You CAN be HURT if you don’t follow instructions.
Your gasoline engine or other property could be
damaged if you don’t follow instructions.
Your welder or other property could be damaged if you
don’t follow instructions.

· 3 ·
CONTENTS
PREFACE …………………………………………………………… 1
SAFETY MESSAGES ……………………………………………… 2
CONTENTS ………………………………………………………… 3
I. SAFETY MESSAGE ……………………………………………… 4
II. COMPONENT IDENTIFICATION ……………………………… 5
III. CONTROL ………………………………………………………… 8
IV. WELDER OPERATION ……………………………………… 12
V. CHECK BEFORE OPERATION ……………………………… 14
VI. STARTING THE WELDER …………………………………… 17
VII. STOPPING THE WELDER ………………………………… 19
VIII. MAINTENANCE …………………………………………… 20
IX. STORAGE …………………………………………………… 25
X. TROUBLESHOOTING ………………………………………… 27
XI. WIRING DIAGRAM ………………………………………… 32
XII. SPECIFICATIONS …………………………………………… 35
XIII. WHEEL (OPTION) ………………………………………… 36
CONTENTS

· 4 ·
I. SAFETY MESSAGE
Read and understand this owner’s manual and acquaint the welder’s safe
operating procedures before operating your welder. That can help you
avoid accidents.
1. Keep the welder far away from the inflammable and explosive
material in operating.
2. Don’t operate the welder in the closed area or in the poor ventilated
places in order to avoid carbon monoxide poisoning!
3. Do not touch the high voltage power supply in using it.
4. The muffler and engine are very hot during running the welder.
Never touch them, or you may get burns.
5. Stop the engine and keep the re source far away when refueling.
6. Don’t cover the welder with objects and left around at least 1 meter
distance in order to facilitate the cooling unit.
7. Pay attention to the safety while operate welder in the rainy and
snowy days. Do not touch motor and distribution lines with wet
hands in order to avoid an electric shock accident.
8. Cooling air temperature does not exceed 45 ℃.
9. Air relative humidity is not more than 80%;
10. Use welder in the absence of conductive dust and corrosive gases.
11. The environmental temperature change will affect the action of
circuit breaker. Please replace the circuit breaker which is suitable to
the local temperature.
SAFETY PRECAUTIONS

· 5 ·
II. COMPONENT IDENTIFICATION
1. Feature
RTAXQ1-190/RTAXQ1-190D
COMPONENT IDENTIFICATION

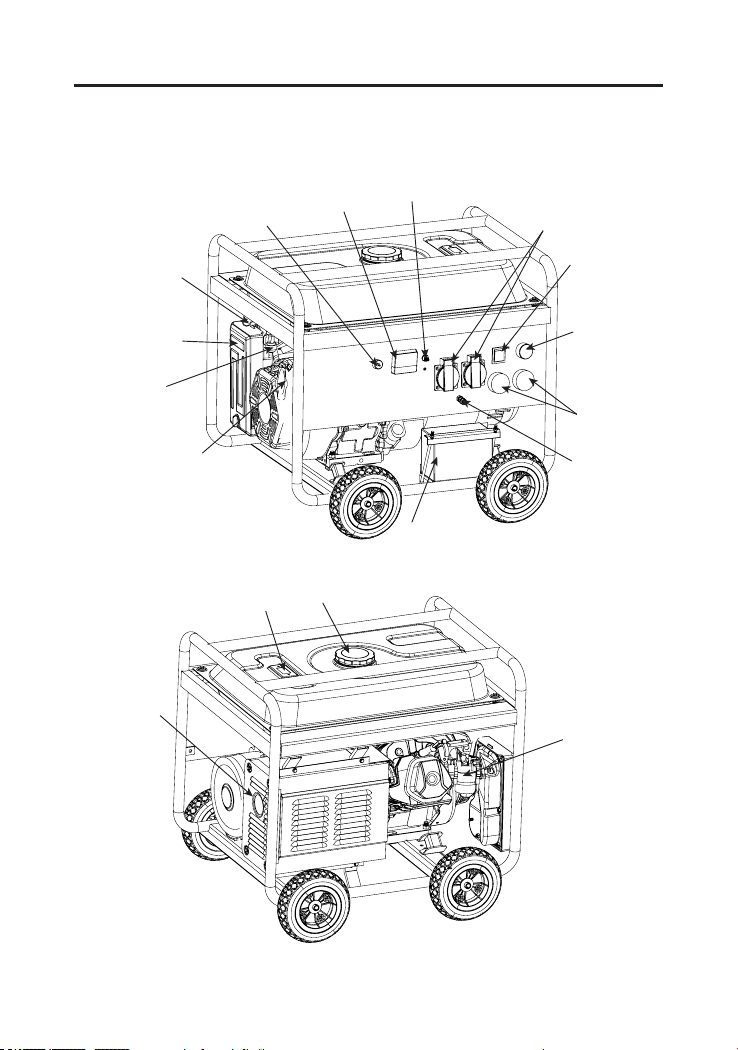

ENGINE SWITCH
CURRENT ADJUSTER
CURRENT EXCHANGE SWITCH
AMMETER
VOLTMETER
DC 220V
RECEPTACLE
(P28J1A)
WELDING
FAST CONNECTOR
(RECEPTACLE) RED
(WELDING OUTPUT＋)
WELDING
OUTPUT－(BLACK)
RECOIL STARTER
GRIP
AIR CLEANER
FUEL TANK CAP
FUEL TANK
CARBURETOR
WHEEL ASSY.
MUFFLER
BATTERY

· 6 ·
COMPONENT IDENTIFICATION
RTAXQ1-190-2
VOLTMETER
BATTERY
RECOIL
STARTER GRIP
FUEL METER FUEL TANK CAP
CARBURETOR
MUFFLER
FUEL VALVE
AIR CLEANER
CHOKE LEVER
ENGINE SWITCH
CIRCUIT BREAKER
RECEPTACLE
AUTO
THROTTLE
CURRENT
ADJUSTER
WELDER
TERMINAL
GROUND
TERMINAL

· 7 ·
2. Model No.
COMPONENT IDENTIFICATION
MODEL NO. FINISHED
PRODUCT NO.
SER. NO.

· 8 ·
III. CONTROL
1. Engine Switch

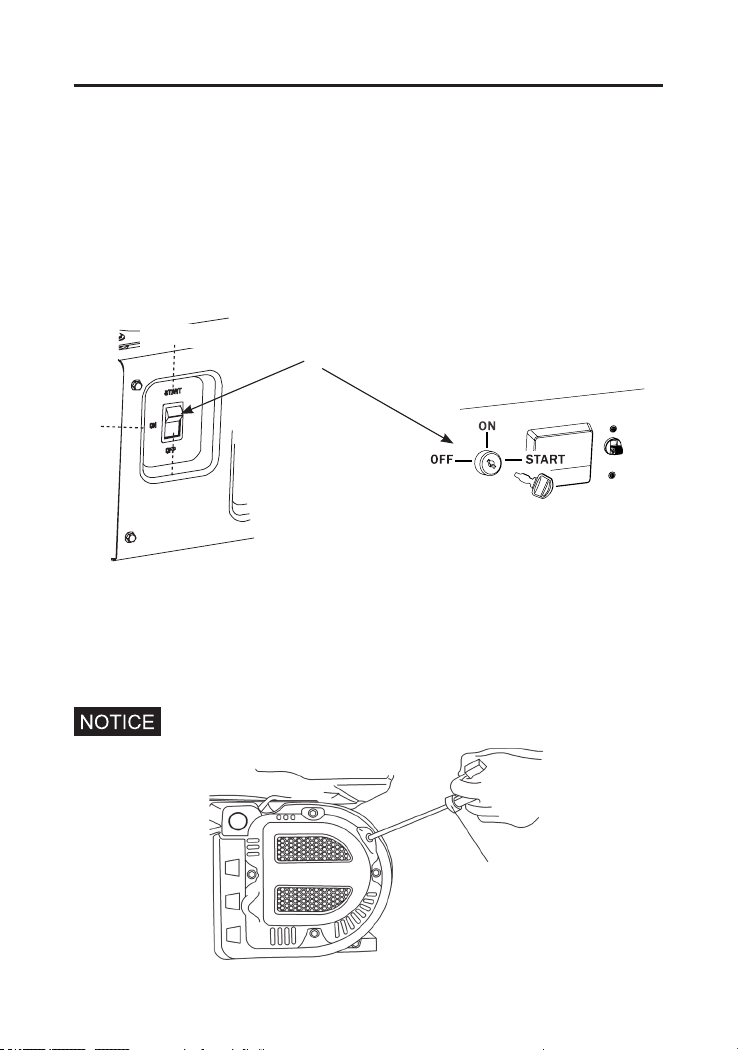

Engine switch: press the button up to " START" position. the engine
will start .After starting engine, immediatelly release engine switch and
engine switch can automatically return to "ON" position; press the button
down to "OFF" position, the engine will stop running.
2. Recoil Starter
Starter grip: To start the engine, pull the starter grip lightly until
resistance is felt, then pull out abruptly, repeat to start the engine.
Do not allow the starter to snap back. Return it gently.
CONTROL
ENGINE SWITCH
START
ON
OFF
STARTER GRIP

· 9 ·
3. Fuel Valve
Fuel valve: fuel flows from the fuel tank to carburetor when the fuel
valve is in "ON" position and in " OFF" position will cut off fuel owing
to carburetor.
4. Choke Lever
Chock lever: in "CLOSE" position, carburetor provides an enriched fuel
mixture; in "OPEN" position, carburetor provides a natural working
mixture.
5. Circuit Breaker
Troubled load or incorrect connection will result in circuit overload.
At this time the circuit breaker knob projects in "OFF" position, which
will automatically cut off standby power to protect. After malfunction
exclusive, press the circuit breaker knob to "ON" position.
CONTROL
FUEL VALVE
ON
OFF
CLOSE
CHOKE LEVER
OPEN

· 10 ·
6. Ground Terminal
This ground terminal is specially used to connect the welder to the
ground.
7. Current Adjuster
Adjust the current according to welding requirement.
ON
OFF
GROUND TERMINAL
CONTROL

· 11 ·
CONTROL
8. Auto Throttle
The solenoid valve will operate and engine keep idele speed when the
switch turn ON and electric welder set is no load.For engine operating,
switch ON the load and solenoid valve disconnect.
9. Oil Alert System
The oil alert system is especially designed to prevent welder from
damaging caused by an insufficient amount of oil in the crankcase.
When the oil level in the crankcase fall down below a safe limit, the
oil alert system will automatically shut down the welder (though the
welder switch still remains in “ON” position), so that the welder can’t be
damaged resulting from the insufcient amount of the oil.

· 12 ·
IV. WELDER OPERATION
1. Welder Operation Environment:
1) Height above sea level: Do not exceed 1000 ml.
2) Operation environment temperature.
welding:-10～+40℃;
transportation and storage: -25～+55℃.
3) Air relative humidity: Don’t exceed 50% at 40℃; and don’t exceed
90% at 20℃.
4) The air dist, acid, corrosive gases around place will be less than
normal content, except these substances from welding process.
5) Place it at dry and ventilated area, and avoid to expose in the sunshine
and rain.
6) Place this serial products at area which the gradient is less than 15℃,
When placing the welder at tilted plane, be careful not turnover.
Welder placing requirement:
If a carburetor suited a high altitude is equipped with engine suited a
lower altitude, the lean air fuel mixture will make engine output power
decline, over-heat and seriously damage.
2. Welder Grounding
To prevent electrical shock from the poor quality electrical appliance
or misuse, we suggest that connect the welder to ground with insulated
leathern ne quality leads.
WELDER OPERATION

· 13 ·
3. Auxiliary Power Supply
1.This series welder is with auxiliary DC output. The voltage is 220V,
which can be used for the electrical tools below 3KW with carbon brush.
2.This series welder is with auxiliary AC output. The voltage is 230V,
which can be used for the electrical tools below 3.5KW with carbon
brush.
• Don’t connect to household electrical appliance directly.
• Don’t use the auxiliary power supply at one time when welding.
WELDER OPERATION
GROUND TERMINAL
AC RECEPTACLE

· 14 ·
V. CHECK BEFORE OPERATION
1. Engine Oil
Before operation, please stop the
welder and put on the at surface to
check the oil level.
Engine oil is a major factor affecting
engine performance and service life.
Non-detergent and 2-stroke engine
oils will damage the engine and are not recommended.
Recommended oil
4-stroke gasoline oil
API service Classication’s SF
or SAE10W-30 of equivalent
SG class.
Method of check oil level:
Remove the oil filler cap and
wipe the dipstick clean.
Check the oil level by inserting the dipstick into the ller neck without
screwing it in.
If the level is too low, add the recommended oil to the upper mark on the
dipstick.
After adding, don’t forget reinstall and tighten the oil dipstick.
CHECK BEFORE OPERATION

· 15 ·
2. Fuel
1) Check the fuel level gauge,
2) Refill the tank if the fuel level is too low. Do not fill above the
shoulder of the fuel strainer.
3) Reinstall and tighten the fuel tank cap after refueling.
• Refuel in a well-ventilated area with the engine stopped. Do not
smoke or allow ames or sparks in the area where the engine is
refueled.
• Do not overow the fuel from the fuel tank.
• Avoid repeated or prolonged contact the fuel with skin or
breathing of vapor.
• Keep out of reach of children.
• Don’t use the oil and gasoline mixture or gasoline with impurity.
Use gasoline with octane rating ≥90 higher.
We recommend unleaded gasoline because it produces fewer deposits of
engine and spark plug and extends exhaust system life.
CHECK BEFORE OPERATION
FUEL STRAINER
FUEL TANK CAP
OPEN CLOSE
FULL EMPTY
FUEL LEVEL
GAUGE
FUEL MAXIMUM UPPER LEVEL

· 16 ·
Never use stale or contaminated gasoline or oil/gasoline mixture. Avoid
dirt or water entering into the fuel tank.
3. Battery

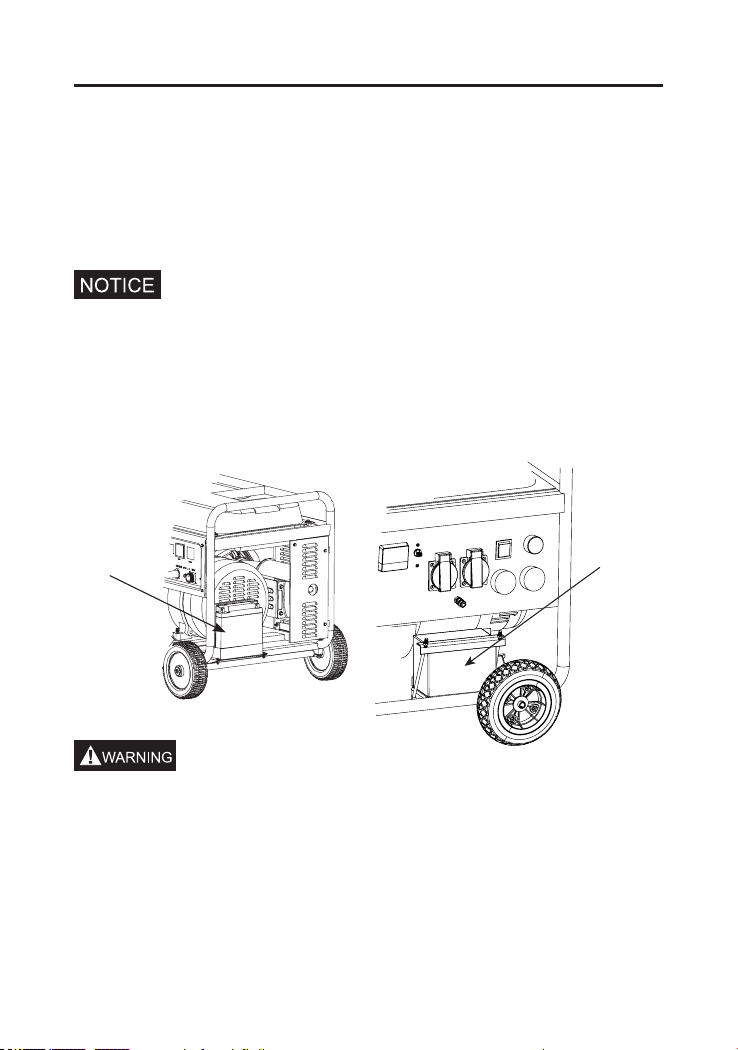

Please use battery with voltage 12V.
Don’t connect the battery positive and negative poles in reverse (Pay
attention to leads mark), when connecting, first connect positive
poles, then negative poles, when disassembling, first negative pole,
then positive pole , if not, can seriously damage the welder and
battery.
• If improper operation, the battery may be explosive and
potentially hurt others nearby. Keep the fire and inflammable
materials far away from the welder.
• The battery will release the explosive gas, please keep the re far
away from. Keep the air ventilating when battery is charging and
using.
CHECK BEFORE OPERATION
BATTERY
(17AH)
BATTERY
(11AH)

· 17 ·
VI. STARTING THE WELDER
1. Recoil Starter
1) Remove all the loads out of the output terminal.
2) Turn the fuel valve to “ON” position.
3) Turn the choke lever to “CLOSE” position.
Don’t’ close the choke lever when starting the engine in warm state.
4) Turn the engine switch to “ON” position.
5) Pull the starter grip until resistance is felt, then pull out rapidly.
6) Turn the choke lever to “OPEN” position after the engine is warm.
2. Electric Starting
1) Remove all the loads out of the output terminal.
2) Turn the fuel valve to the “ON” position.
3) Turn the choke lever to “CLOSE” position.
Don’t close the choke when starting the engine in warm state.
4) Turn the engine switch to electric starting position to start.
5) Unclinch the engine switch after starting the engine, the engine switch
will turn back to “OPEN” position automatically.
6) Turn the choke lever to “OPEN” position after the engine is warm.
Turn the engine switch to electric position for less than 5 seconds or
STARTING THE WELDER

· 18 ·
can damage the starting motor. If failing to start, release the switch
and wait 10 seconds before operating it again.
If the speed of the starting motor drops fast after a period of time, it
means that the battery should be recharged.
STARTING THE WELDER
