Raymarine CP100 User manual

CP100
Installation instructions
English
Date: 07-2013
Document number: 87194-1-EN
© 2013 Raymarine UK Limited
CP100

Trademarkandpatentsnotice
Autohelm,hsb2,RayTechNavigator,SailPilot,SeaT alk,SeaT alkNG,SeaTalkHSandSportpilotareregisteredtrademarksof
RaymarineUKLimited.RayTalk,Seahawk,Smartpilot,PathnderandRaymarineareregisteredtrademarksofRaymarine
HoldingsLimited.
FLIRisaregisteredtrademarkofFLIRSystems,Inc.and/oritssubsidiaries.
Allothertrademarks,tradenames,orcompanynamesreferencedhereinareusedforidenticationonlyandaretheproperty
oftheirrespectiveowners.
Thisproductisprotectedbypatents,designpatents,patentspending,ordesignpatentspending.
FairUseStatement
Youmayprintnomorethanthreecopiesofthismanualforyourownuse.Youmaynotmakeanyfurthercopiesordistributeoruse
themanualinanyotherwayincludingwithoutlimitationexploitingthemanualcommerciallyorgivingorsellingcopiestothirdparties.
Softwareupdates
Checkthewebsitewww.raymarine.comforthelatestsoftwarereleasesforyourproduct.
Producthandbooks
ThelatestversionsofallEnglishandtranslatedhandbooksareavailabletodownloadinPDFformatfromthewebsitewww.raymarine.com.
Pleasecheckthewebsitetoensureyouhavethelatesthandbooks.
Copyright©2013RaymarineUKLtd.Allrightsreserved.
ENGLISH
Documentnumber:87194-1
Date:07-2013

Contents
Chapter1Importantinformation........................7
Safetynotices............................................................7
GeneralInformation...................................................7
Chapter2Handbookandproduct
information...........................................................9
2.1Handbookinformation..........................................10
2.2Productoverview.................................................10
2.3CHIRPSonaroverview.........................................11
2.4CHIRPDownVisionoverview................................11
Chapter3Planningtheinstallation...................13
3.1Installationchecklist.............................................14
3.2Partssupplied......................................................14
3.3Requiredadditionalcomponents...........................15
3.4Compatiblemultifunctiondisplays.........................15
3.5Compatibletransducers........................................16
3.6Typicalsystems...................................................16
3.7T ools...................................................................17
Chapter4Cablesandconnections....................19
4.1Generalcablingguidance.....................................20
4.2Connectionsoverview..........................................20
4.3Powerconnection................................................21
4.4Transducerconnection.........................................22
4.5Networkconnection..............................................23
Chapter5Locationandmounting.....................25
5.1Selectingalocation..............................................26
5.2Productdimensions..............................................26
5.3Mounting.............................................................27
Chapter6Systemchecksand
troubleshooting...................................................29
6.1Initialpowerontest..............................................30
6.2Softwareupdates.................................................30
6.3Troubleshooting...................................................31
6.4Sonartroubleshooting..........................................32
6.5LEDindications....................................................33
6.6Resettingthesonarmodule..................................34
Chapter7Maintenance.......................................35
7.1Routinechecks....................................................36
7.2Unitcleaninginstructions......................................36
7.3Transducercareandcleaning...............................37
Chapter8Technicalsupport..............................39
8.1Raymarinecustomersupport................................40
8.2Viewingproductinformation..................................40
Chapter9Technicalspecication......................41
9.1T echnicalspecication..........................................42
Chapter10Optionsandaccessories................43
10.1Sparesandaccessories......................................44
10.2Networkhardware..............................................44
10.3Networkcableconnectortypes............................45
10.4Networkcables..................................................45
10.5SeaT alkngcablesandaccessories.......................46
5

6CP100

Chapter1:Importantinformation
Safetynotices
Warning:Productinstallationand
operation
Thisproductmustbeinstalledandoperatedin
accordancewiththeinstructionsprovided.Failure
todosocouldresultinpersonalinjury,damageto
yourvesseland/orpoorproductperformance.
Warning:Potentialignitionsource
ThisproductisNOTapprovedforusein
hazardous/ammableatmospheres.DoNOTinstall
inahazardous/ammableatmosphere(suchasin
anengineroomornearfueltanks).
Warning:Highvoltage
Thisproductcontainshighvoltage.Adjustments
requirespecializedserviceproceduresandtools
onlyavailabletoqualiedservicetechnicians.
Therearenouserserviceablepartsoradjustments.
Theoperatorshouldneverremovethecoveror
attempttoservicetheproduct.
Warning:Productgrounding
Beforeapplyingpowertothisproduct,ensureithas
beencorrectlygrounded,inaccordancewiththe
instructionsinthisguide.
Warning:Positivegroundsystems
Donotconnectthisunittoasystemwhichhas
positivegrounding.
Warning:Switchoffpowersupply
Ensurethevessel’spowersupplyisswitchedOFF
beforestartingtoinstallthisproduct.DoNOT
connectordisconnectequipmentwiththepower
switchedon,unlessinstructedinthisdocument.
Warning:Sonaroperation
•NEVERoperatethesonarwiththevesseloutof
thewater.
•NEVERtouchthetransducerfacewhenthe
sonarispoweredon.
•SWITCHOFFthesonarifdiversarelikelytobe
within7.6m(25ft)ofthetransducer.
Warning:Transducercables
Donotremovethetransducercablewhilstthe
productispoweredon,doingsocancausesparks.
Ifthetransducercableisaccidentlyremovedwhilst
theproductispoweredon,switchtheproduct's
poweroff,replacethecableandthenswitchthe
powerbackon.
Caution:Powersupplyprotection
Wheninstallingthisproductensurethepower
sourceisadequatelyprotectedbymeansofa
suitably-ratedfuseorautomaticcircuitbreaker.
Caution:Donotcuttransducer
cables
•Cuttingthetransducercableseverelyreduces
sonarperformance.Ifthecableiscut,itmustbe
replaced,itcannotberepaired.
•Cuttingthetransducercablewillvoidthe
warrantyandinvalidatetheEuropeanCEmark.
Caution:Serviceandmaintenance
Thisproductcontainsnouserserviceable
components.Pleasereferallmaintenance
andrepairtoauthorizedRaymarinedealers.
Unauthorizedrepairmayaffectyourwarranty.
GeneralInformation
Wateringress
Wateringressdisclaimer
Althoughthewaterproofratingcapacityofthisproductmeets
theIPX6&IPX7standard,waterintrusionandsubsequent
equipmentfailuremayoccuriftheproductissubjectedto
commercialhigh-pressurewashing.Raymarinewillnotwarrant
productssubjectedtohigh-pressurewashing.
EMCinstallationguidelines
Raymarineequipmentandaccessoriesconformtothe
appropriateElectromagneticCompatibility(EMC)regulations,
tominimizeelectromagneticinterferencebetweenequipment
andminimizetheeffectsuchinterferencecouldhaveonthe
performanceofyoursystem
CorrectinstallationisrequiredtoensurethatEMCperformance
isnotcompromised.
ForoptimumEMCperformancewerecommendthatwherever
possible:
•Raymarineequipmentandcablesconnectedtoitare:
–Atleast1m(3ft)fromanyequipmenttransmittingor
cablescarryingradiosignalse.g.VHFradios,cablesand
antennas.InthecaseofSSBradios,thedistanceshould
beincreasedto7ft(2m).
–Morethan2m(7ft)fromthepathofaradarbeam.A
radarbeamcannormallybeassumedtospread20degrees
aboveandbelowtheradiatingelement.
•Theproductissuppliedfromaseparatebatteryfromthatused
forenginestart.Thisisimportanttopreventerraticbehavior
anddatalosswhichcanoccuriftheenginestartdoesnot
haveaseparatebattery.
•Raymarinespeciedcablesareused.
•Cablesarenotcutorextended,unlessdoingsoisdetailedin
theinstallationmanual.
Note:Whereconstraintsontheinstallationprevent
anyoftheaboverecommendations,alwaysensurethe
maximumpossibleseparationbetweendifferentitemsof
electricalequipment,toprovidethebestconditionsforEMC
performancethroughouttheinstallation
Suppressionferrites
Raymarinecablesmaybettedwithsuppressionferrites.These
areimportantforcorrectEMCperformance.Ifaferritehastobe
removedforanypurpose(e.g.installationormaintenance),it
mustbereplacedintheoriginalpositionbeforetheproductis
used.
Useonlyferritesofthecorrecttype,suppliedbyRaymarine
authorizeddealers.
Importantinformation7

Connectionstootherequipment
Requirementforferritesonnon-Raymarinecables
IfyourRaymarineequipmentistobeconnectedtoother
equipmentusingacablenotsuppliedbyRaymarine,a
suppressionferriteMUSTalwaysbeattachedtothecablenear
theRaymarineunit.
Declarationofconformity
RaymarineUKLtd.declaresthatthisproductiscompliantwith
theessentialrequirementsofEMCdirective2004/108/EC.
TheoriginalDeclarationofConformitycerticatemaybeviewed
ontherelevantproductpageatwww.raymarine.com.
Productdisposal
DisposeofthisproductinaccordancewiththeWEEEDirective.
TheWasteElectricalandElectronicEquipment(WEEE)
Directiverequirestherecyclingofwasteelectricalandelectronic
equipment.WhilsttheWEEEDirectivedoesnotapplytosome
Raymarineproducts,wesupportitspolicyandaskyoutobe
awareofhowtodisposeofthisproduct.
Warrantyregistration
ToregisteryourRaymarineproductownership,pleasevisit
www.raymarine.comandregisteronline.
Itisimportantthatyouregisteryourproducttoreceivefull
warrantybenets.Yourunitpackageincludesabarcodelabel
indicatingtheserialnumberoftheunit.Youwillneedthisserial
numberwhenregisteringyourproductonline.Youshouldretain
thelabelforfuturereference.
IMOandSOLAS
Theequipmentdescribedwithinthisdocumentisintendedfor
useonleisuremarineboatsandworkboatsnotcoveredby
InternationalMaritimeOrganization(IMO)andSafetyofLifeat
Sea(SOLAS)CarriageRegulations.
Technicalaccuracy
Tothebestofourknowledge,theinformationinthisdocument
wascorrectatthetimeitwasproduced.However,Raymarine
cannotacceptliabilityforanyinaccuraciesoromissionsit
maycontain.Inaddition,ourpolicyofcontinuousproduct
improvementmaychangespecicationswithoutnotice.Asa
result,Raymarinecannotacceptliabilityforanydifferences
betweentheproductandthisdocument.Pleasecheckthe
Raymarinewebsite(www.raymarine.com)toensureyouhave
themostup-to-dateversion(s)ofthedocumentationforyour
product.
8CP100

Chapter2:Handbookandproductinformation
Chaptercontents
•2.1Handbookinformationonpage10
•2.2Productoverviewonpage10
•2.3CHIRPSonaroverviewonpage11
•2.4CHIRPDownVisionoverviewonpage11
Handbookandproductinformation9

2.1Handbookinformation
Thishandbookcontainsimportantinformationrelatedtothe
installationoftheCP100sonarmodule.
Thehandbookincludesinformationtohelpyou:
•planyourinstallationandensureyouhaveallthenecessary
equipment;
•installandconnecttheCP100aspartofawidersystemof
connectedmarineelectronics;
•troubleshootproblemsandobtaintechnicalsupportifrequired.
ThisandotherRaymarineproductdocumentsareavailableto
downloadinPDFformatfromwww.raymarine.com.
Relatedproducts
Thisdocumentisapplicabletothefollowingproduct:
PartnumberNameDescription
E70204CP1002–channel
CHIRP/
DownVision
sonarmodule
E70205CP100and
CPT-100
2–channel
CHIRP/
DownVision
sonarmodule
andDownVision
transom
transducer.
Productdocumentation
Thefollowingdocumentationisapplicabletoyourproduct:
DescriptionPartnumber
CP100Installationinstructions
InstallationofaCP100unitandconnectiontoawider
systemofmarineelectronics.
87194/88022
CP100Mountingtemplate
MountingdiagramforsurfacemountingaCP100unit.
87193
CPT–100TransomtransducerInstallation
instructions
InstallationofaDownVisiontransom-mounttransducer.
87197/88024
CPT–110/CPT-120Through-hulltransducer
Installationinstructions
InstallationofaDownVisionthrough-hulltransducer.
87201/88025
NewaSeries,cSeries,eSeriesInstallationand
operationinstructions
Detailstheoperationoftheshnderapplication
(includingDownVisionoperation)forNewaSeries,c
Series,eSeriesmultifunctiondisplays.
81337
Furtherinformation
Fordetailedoperatinginstructions,refertothehandbookthat
accompaniesyourmultifunctiondisplay.
Transducerinstallationinstructions
Thisdocumentincludesinstallationinstructionsforthesonar
moduleonly.Forinstallationinstructionsforaconnected
transducer,pleaserefertothedocumentationthataccompanies
thetransducer.
2.2Productoverview
TheCP100isaCHIRPsonarmodulewithDownVision
capabilities.Inconjunctionwithacompatiblemultifunction
display,theCP100providesadetailedviewofthewater’s
bottomstructure,enablingyoutoidentifyshandotherobjects
inthewaterunderneathyourvessel.
D12932-1
TheCP100hasthefollowingfeatures:
•Dual-beamsonar(conicalbeamandfanbeam).
•Typicaldepthperformanceof600ft.
•Watertemperaturesensing.
•Supportfortransomorthrough-hullDownVisiontransducers.
•Lowpowerconsumption.
•12Vor24Voperation.
•WaterprooftoIPX6andIPX7.
•Robustandwaterproofhigh-speednetworkconnection.
10CP100

2.3CHIRPSonaroverview
Sonarinterpretssignalsfromthetransducerandbuildsupa
detailedunderwaterview.Thetransducersendspulsesof
soundwavesintothewaterandmeasuresthetimeittakesfor
thesoundwavetotraveltothebottomandback.Thereturning
echoesareaffectedbybottomstructureandbyanyotherobjects
intheirpath,forexamplereefs,wrecks,shoalsorsh.

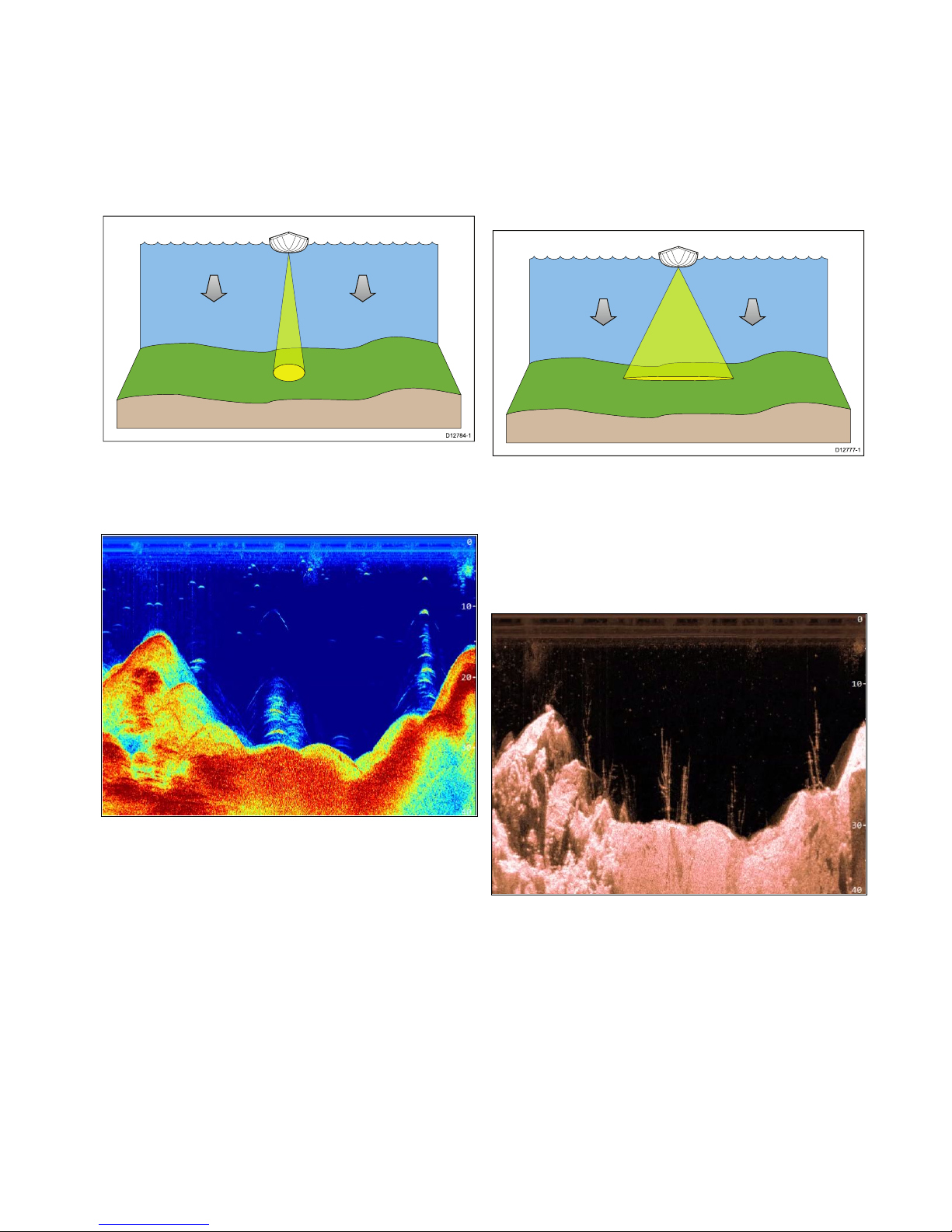

Sonarproducesa25°conicalshapedbeam,thecoverageofthe
conicalbeamisthewatercolumndirectlybeneaththevessel.
Conicalbeam
D12784-1
Sonariseffectiveatarangeofspeeds.Indeeperwatersthe
CHIRPbandwidthisautomaticallyrestrictedtoimprovebottom
lockandthedetectionofmovingobjects(e.g.sh)inthewider
watercolumn.
CHIRPsonarscreenexample
2.4CHIRPDownVisionoverview
DownVisioninterpretssignalsfromthetransducerandbuildsup
adetailedunderwaterview.Thetransducersendspulsesof
soundwavesintothewaterandmeasuresthetimeittakesfor
thesoundwavetotraveltothebottomandback.Thereturning
echoesareaffectedbybottomstructureandbyanyotherobjects
intheirpath,forexamplereefs,wrecks,shoalsorsh.
DownVisionproducesawide–angleside-to-sidebeamanda
thinfore-to-aftbeam.ThecoverageoftheDownVisionbeamis
awatercolumndirectlybeneathandtothesidesofthevessel.
DownVisionbeam
D12777-1
DownVisioniseffectiveatlowervesselspeeds.Indeeper
waterstheCHIRPbandwidthisautomaticallyrestrictedto
improvebottomlockandthedetectionofmovingobjects(e.g.
sh)inthewiderwatercolumn.
Thewide,thinbeamproducescleartargetreturns.Theuseof
CHIRPprocessingandahigheroperatingfrequencyprovide
amoredetailedimage,makingiteasiertoidentifybottom
structuresaroundwhichshmayreside.
CHIRPDownVisionscreenexample
Handbookandproductinformation11

12CP100

Chapter3:Planningtheinstallation
Chaptercontents
•3.1Installationchecklistonpage14
•3.2Partssuppliedonpage14
•3.3Requiredadditionalcomponentsonpage15
•3.4Compatiblemultifunctiondisplaysonpage15
•3.5Compatibletransducersonpage16
•3.6Typicalsystemsonpage16
•3.7T oolsonpage17
Planningtheinstallation13

3.1Installationchecklist
Installationincludesthefollowingactivities:
InstallationTask
1Planyoursystem.
2Obtainallrequiredequipmentandtools.
3Siteallequipment.
4Routeallcables.
5Drillcableandmountingholes.
6Makeallconnectionsintoequipment.
7Secureallequipmentinplace.
8Poweronandtestthesystem.
Schematicdiagram
Aschematicdiagramisanessentialpartofplanningany
installation.Itisalsousefulforanyfutureadditionsor
maintenanceofthesystem.Thediagramshouldinclude:
•Locationofallcomponents.
•Connectors,cabletypes,routesandlengths.
3.2Partssupplied
13
4
2
D12934-1
ItemDescriptionQuantity
1Sonarmodule.1
2Documentationpack.1
3Screw.4
4Powercable1m(3.28ft).1
14CP100

3.3Requiredadditionalcomponents
Thisproductformspartofasystemofelectronicsandrequires
thefollowingadditionalcomponentsforfulloperation.
•CompatibleDownVisiontransducer;transomorthrough-hull
mount.Referto3.5Compatibletransducersforalistof
compatibleproducts.
•CompatibleRaymarinemultifunctiondisplay.Referto3.4
Compatiblemultifunctiondisplaysforalistofcompatible
products.
•Datacables.RefertoChapter4Cablesandconnections
forsuitablecables.Someinstallationsmayalsorequire
extensionstodata,powerortransducercables.Refertothe
Chapter4CablesandconnectionsandChapter10Options
andaccessoriessectionsformoreinformation.
3.4Compatiblemultifunctiondisplays
ThisproductiscompatiblewiththefollowingRaymarine
multifunctiondisplays.
•NewaSeries,NewcSeries,NeweSeries.
•gSSeries.
Planningtheinstallation15

3.5Compatibletransducers
ThisproductiscompatiblewiththefollowingRaymarine
transducers.
Part
numberDescription
Mounting
Type
Construc-
tion
A80270CPT-100
DownVision
transducer
TransomPlastic
A80277CPT-110
DownVision
transducer
Through-
hull
Plastic
A80271CPT-120
DownVision
transducer
Through-
hull
Bronze
3.6Typicalsystems
Example:basicsonarsystemfeaturingmultifunction
display
D12937-1
1
4
2
3
ItemDescriptionPartnumber
1MultifunctiondisplayRefertoyourdealerforall
compatiblevariants.
2SonarmoduleRefertoRelatedproducts.
3RayNetcableReferto10.4Network
cablesforRayNetcables.
4DownVisiontransducerReferto3.5Compatible
transducers.
Example:expandedsonarsystemfeaturingautopilot
systemandmultifunctiondisplay
00
SeaTalkng
D12938-1
SeaTalkng
RayNet
1
3
4
5
67
910
22
8
RayNet
16CP100

ItemDescriptionPartnumber
1SonarmoduleRefertoRelatedproducts.
2RayNetcablesReferto10.4Network
cablesforRayNetcables.
3RayNetnetworkswitchA80007
4RadarscannerRefertoyourdealerforall
applicablepartnumbers.
5MultifunctiondisplayRefertoyourdealerforall
applicablepartnumbers.
6DownVisiontransducerReferto3.5Compatible
transducers.
7EvolutionACURefertoyourdealerforall
applicablepartnumbers.
8SeaTalkngspurcableReferto10.5SeaTalkng
cablesandaccessories.
9EvolutionEVRefertoyourdealerforall
applicablepartnumbers.
10PilotheadcontrollerRefertoyourdealerforall
applicablepartnumbers.
3.7Tools
Installationoftheunitrequiresthefollowingtools:
1
2
34
D12 22 8-2
ItemDescription
1Drill
2Pozidrivescrewdriver
3Drillbitofappropriatesize*
4Adhesivetape
Note:*Drillbitsizeisdependentonthethicknessandtypeof
materialthattheunitistobemountedon.
Planningtheinstallation17

18CP100

Chapter4:Cablesandconnections
Chaptercontents
•4.1Generalcablingguidanceonpage20
•4.2Connectionsoverviewonpage20
•4.3Powerconnectiononpage21
•4.4Transducerconnectiononpage22
•4.5Networkconnectiononpage23
Cablesandconnections19

4.1Generalcablingguidance
Cabletypesandlength
Itisimportanttousecablesoftheappropriatetypeandlength
•Unlessotherwisestateduseonlystandardcablesofthe
correcttype,suppliedbyRaymarine.
•Ensurethatanynon-Raymarinecablesareofthecorrect
qualityandgauge.Forexample,longerpowercablerunsmay
requirelargerwiregaugestominimizevoltagedropalongthe
run.
Routingcables
Cablesmustberoutedcorrectly,tomaximizeperformanceand
prolongcablelife.

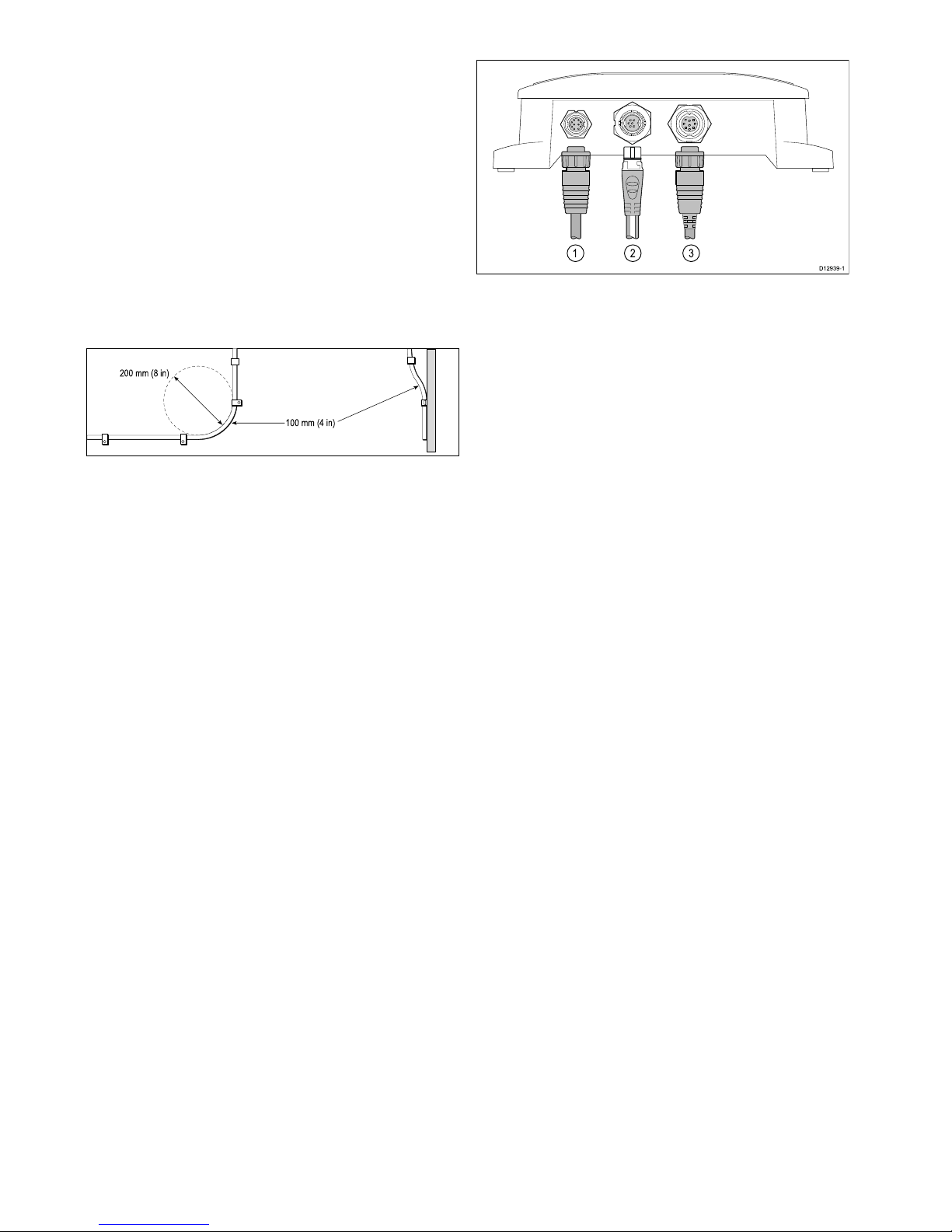

•DoNOTbendcablesexcessively.Whereverpossible,ensure
aminimumbenddiameterof200mm(8in)/minimumbend
radiusof100mm(4in).
100 mm (4 in)
200 mm (8 in)
•Protectallcablesfromphysicaldamageandexposuretoheat.
Usetrunkingorconduitwherepossible.DoNOTruncables
throughbilgesordoorways,orclosetomovingorhotobjects.
•Securecablesinplaceusingtie-wrapsorlacingtwine.Coil
anyextracableandtieitoutoftheway.
•Whereacablepassesthroughanexposedbulkheador
deckhead,useasuitablewatertightfeed-through.
•DoNOTruncablesneartoenginesoruorescentlights.
Alwaysroutedatacablesasfarawayaspossiblefrom:
•otherequipmentandcables,
•highcurrentcarryingacanddcpowerlines,
•antennae.
Strainrelief
Ensureadequatestrainreliefisprovided.Protectconnectors
fromstrainandensuretheywillnotpulloutunderextremesea
conditions.
Circuitisolation
Appropriatecircuitisolationisrequiredforinstallationsusing
bothACandDCcurrent:
•Alwaysuseisolatingtransformersoraseparatepower-inverter
torunPC’s,processors,displaysandothersensitiveelectronic
instrumentsordevices.
•AlwaysuseanisolatingtransformerwithWeatherFAXaudio
cables.
•Alwaysuseanisolatedpowersupplywhenusinga3rdparty
audioamplier.
•AlwaysuseanRS232/NMEAconverterwithopticalisolation
onthesignallines.
•AlwaysmakesurethatPC’sorothersensitiveelectronic
deviceshaveadedicatedpowercircuit.
Cableshielding
Ensurethatalldatacablesareproperlyshieldedthatthe
cableshieldingisintact(e.g.hasn’tbeenscrapedoffbybeing
squeezedthroughatightarea).
4.2Connectionsoverview
D12939-1
123
1.Network.
2.Power(12V/24Vdc).
3.Transducer.
Makingconnections
Followthestepsbelowtoconnectnetwork,transducerand
powercablestoyourunit.
1.Ensurethatthevessel'spowersupplyisswitchedoff.
2.Ensurethatthedevicebeingconnectedtotheunithas
beeninstalledinaccordancewiththeinstallationinstructions
suppliedwiththatdevice.
3.Ensuringcorrectorientationpushthecableconnectorfully
ontothecorrespondingconnectorontheunit.
4.Turnthelockingcollarclockwisetosecurethecables.
20CP100
