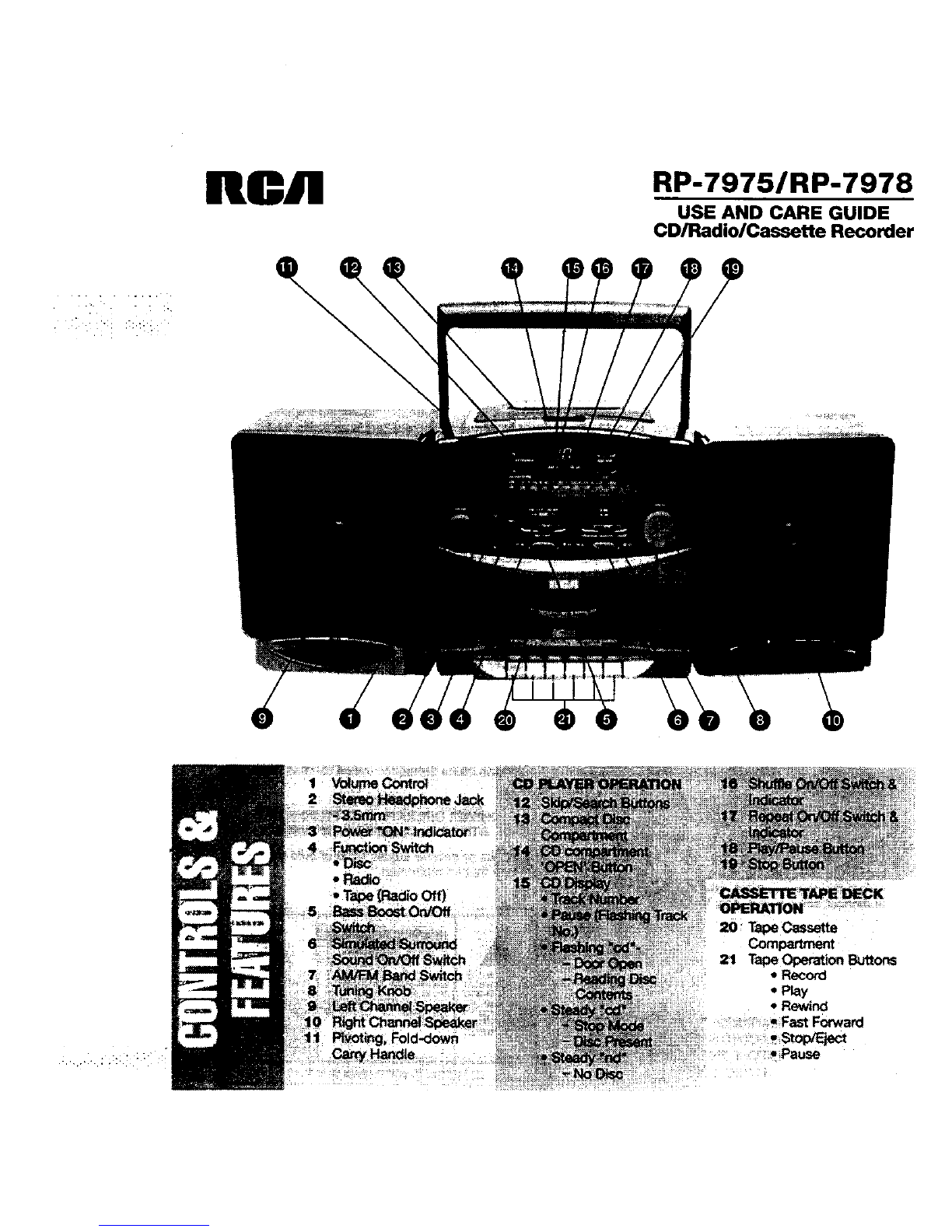

ncA RP-7975/RP-7978
USE AND CARE GUIDE
CD/Radio/Cassette Recorder
20 Tape Cassette
Compartment
21 TapeOperation
+Play
•Rewind
;. Fast Forward
_ StoWEtect
; ;-Pause

IMPORTANT INFORMATION
IMPORTANT INFORMATION REQUIRED BY FEDERAL COMMUNICATIONS COMMISSION
CONCERNING RADIO FREQUENCY INTERFERENCE
Thisdevice generatesand uses radiofrequency(RF)energyand ifnot installed and usedproperlythis equipment
may cause interferenceto radio and televisionreception.
Thisequipment hasbeen type tested and found to comply withthe limitsforaClass BComputing Device in
accordance with the specificationsinSubpart J of Part 15 of FCC Rules.These rulesare designed to provide
reasonable protection against radio and televisioninterferencein a residentialinstallation.However,there is
no guaranteethat interferencewill notoccur inaparticularinstallation.
Ifthis equipment doescause interferenceto radio or televisionreception(which you can determine by turning
the equipment off and on),try to correct the interferenceby one or mornof the followingmeesums:
•Reorientthe receivingantenna (that is, the antenna forthe radio or televisionthat is "receiving"the
interference).
•Change the positionofthe unitwith respectto the radio or televisionequipment that is receivinginter-
ferance.
• Move the unitaway from the equipment that is raceiving interference.
•Plug the unit intoa differentwall outlet so thatthe unitand the equipment receivinginterferenceare on
differentbranchcircuits.
if these measuresdo not eliminatethe interference,please c_,nsuityour dealer oran experiencedradio/television
technicianfor additionalsuggestions.Also, the Federal CommunicationsCommission has prepareda helpful
booklet,"How ToIdentifyand ResolveRadio TV InterferenceProblems."This booklet is availablefi'omthe U.S.
Govemmant PrintingOffice, Washington,DC 20402. Please specify stock number 004-000-00345-4 when
orderingcopies.
PRECAUTIONS
• De Not Open the Cahlnot
If the cabinet is opened, you may be exposed to
dangerouslyhigh voltages. Never open the cabinet
under any circumstances.
•Do Not Tou©h the Pickup Lens
The pickup- the heartofthe DiscPlayer- islocated
inside of the disc tray opening. To avoid dust
collectingon the pickup, do not leave the trayopen
for long periods.
Ifthe lens becomesdirty,cleanitwith a soft brushor
usean airblowerbrush designedforcernera lenses.
• Do Not Touch the Player with Wet Hands
Do not handle the player or power cord when your
handsare wet or damp, If water or anyother liquid
enters the player cabinet, take the player to an
authorizedservice center for inspection.
WARNING: TO PREVENTFIRE OR
ELEC'[RICSHOCK HAT-N:_, DO NOT
EXPOSETHIS PRODUCT TO RAIN
OR MOISTURE.
•Laser Product Safety
The Compact Disc Player uses a laser to *mad' the
music onthe disc.The lasermechanismcorresponds
to the cartridge and stylus of a traditional record
player. Although this product is completely safe
when operated aCcordingto directions, you should
understandthat lasers canam'ithazardous radiation
andcan cause damage toeyesit handledimpmperty.
- WARNING ~
NEVER OPERATE THIS PRODUCT
WITH THE CABINET REMOVED.
Any repairs or internal adjustments should be made
only by a trained repairman.
A
TIlELIGHTNIN_FLASH
AND ARROWHEAG
WIrR,N THETRIANGLE
tS A WARNING SIGN
ALERT NG YGU GF
!"I_NG_US V_JA_E'
INSIC_ THEPt_ODLiCT
CAU110_ TO&._DQCEI_KO_ THE EXCI,kMATION
aEC_SHOCI_OONOTfl_ POINT WITHIN THE
CGVER IOR BACK}. NG USER- !TRIANGLE IS A
SERVI_ FANT__ ER_ WARNING SIGN
ALERTtNG YGU 00
SERVICINGPERSONNEL TO QUALIFIEO IU P G RT A N T
; NSTRUCT GNS
ACCOM?ANYINGTHE
PROOUCT
SEE MARKING ON BQTrOM/iM_CK OF PRODUCT
2

Thisunitoparateson120VAChouseholdpower
or6"D'-size batteries. Batteriesare not included.
AC POWER OPERATION
Plugone endof the AC licecordintothe AC Input
Jackon theleftsideofthecabinet,and theoppoelte
end into 120-vott AC householdoutlet. Plugging
the AC lice cord intothe set automaticallydiscon-
nects the batteries.
The polarized AC lineplug (one blade is wider) is
a safetyfeature. The plug fds intothe power outlet
only one way. Ifthe plug doesn't go intothe outlet
completely, tum theplugover and putit intheother
way.If itstilldoesn'tfit, contact a qualifiedeleclzJcian
to change the outlet. Do not defeat the safety
purpose of the polarized plug.
NOTE: Disconnectthe AC line cord from the unit
for batteWoperation.
BATTERY INSTALLATION
• Unlatch and remove the compartment door
located on the cabinet back.
•Insert6 "D'-size betteriesintobattery compart-
ment Besurethe (+)or cap and ofeach bettery
is installed as shown on the battery diagram.
•Replace battery compartment door.
NOTE: This unitwill not operate on battery power
unlessAC lice cordis disconnectedas wellas from
the AC outlet.
CD operation requiresmore power than Tape
operationand Tape operationrequiresmorepower
than Radio operation;therefore,you may continue
to use the same batteries for awhile longerby
switchingto a functionrequiringlesspower.
The POWER INDICATORwilllightindicatingPower
"ON" when the FUNCTION switch isin the RADIO
or the DISC position.If the FUNCTION switch is in
TAPE position, the INDICATOR will light when a
TAPE operationbutton isactivated.
When operatingthe uniton battery power, the
brightnesslevelofthe INDICATORindicatesbattery
level.Ifthe INDICATOR isdim (or does not light)
the batteriesare weak and need replacing.
The Speakers can be used attached to the unitor,
to enhance the stereo effect, separated from the
center section.
To Connect the Speaker Cords:
Connect the right speaker wires to the red and
black speakerterminals(on the back ofthe center
section)markedR (right),and the leftspeakerwires
to the terminalsmarked L (left).(The red wiregoes
to the red terminal.)
To Detach the Speakers:
1. Disconnectthe speaker cords from the center
section's speaker terminals.
2. Pushinwardon theReleasesatthe bottomside
edges at the back ofthe canter section.
To facilitatespeaker removal:
• Push inwardon the Releaseand simulta-
neously liftthe speaker slightlyto clear
the catch.
3. Then, slidethe speakers up and offthe center
section.
4. Placespeakers in desired location, unwrap
required cordlength from cordwraps and re-
connect speaker cords as indicated above.
To Re-Attach Speakers:
1. Alignthepast on thesideofthespeakercabinets
with the channels on the sides of the center
section and slidethe speakersdown untilthey
lock in place.
2. Wrap any excess speaker cord onto the cord
wrap on the back of each speaker.
NOTE: For good sound reproduction, place the
speakers at ear level,at leastsevenfeet apart and
facingyou. Placingthe speakersclose to walls will
accentuatethebassresponse.Toeliminatethiseffect,
keepthe speakerstwo orthreefeet fromwallareas.

1. Slide FUNCTION switchto RADIO.
•The Power "ON" indicatorwill light.
2. Set BAND Switch todesired broadcast band -
AM or FM.
3. UseTUNING knobto select a station.
4. Adjust VOLUME controlto your listening
preference.
5. To tum the radiooff, slideFUNCTION switchto
TAPE(Radio Off).
When tunedto FM, stationsbroadcastinginstereo
will be heard in stereo and those broadcasting in
mona willbe heardin mona.
AM Antenna -The AM antenna, built intothe unit,
issomewhat directional. On weak station•, it may
be necessaryto rotate the unitfor best reception.
(Thewhip antenna isnot used for AM reception.)
FM Antenna -Liftand extendthetelescopingwhip
antenna. It may be necessaryto adjust the length.
and directionof the antenna for best FM reception.
NOTE: Toavoiddamagingthe whipantenna,always
lower the antenna one section at a time, starting
withthelargestdiametersection.Do notpushdown
fromthetopoftheantennasincebucklingorbending
is possible.
The Automatic Frequency Control works only on
FM. Ithelpsto keepthe radiolockedon the station
to which it istuned.
When tuningin stations,you may noticethat often
the FM stationyou desire can be heard on two or
three nearbypointson thedial.Alwaystunecarefully
to the loudest and clearest point.
The Headphone Jack on the front of the unitis for
optional stereo headphones, such as Cat. No. 3-
5750. Use of the headphone• permit• private
listening(monitoring)of material during PLAYand
RECORD operations.
Toorder the above headphone, usethe Accessory
Order Formincluded inthis Guide.
The stereo soundofa radioprogram,tape cassette
or compact disc can be made to expand spatially
so that it takes on the feel of a live performance.
PresstheSURROUND buttonto switchSURROUND
"ON'.
PressSURROUND buttonagainto retumto ordinary
sound.
NOTES :
•Surroundsoundisnoteffectiveduringmonaural
play.
*The "Surround"sot_ndeffectcannotbe recorded.
When operating your unit at a low-volume level,
scme ofthe bc_sfrequencies maynotbe discernible.
To give a boost to these frequencies and enhance
yourlow volumelisteningenjoyment, bassamplifier
circuit has been added to your unit.
When listening to music or whenever maximum
audio fidelity is desired, press the BASS BOOST
button to switch BASS BOOST "ON" to bringout
the bass frequencies.
INSERTING A DISC
1. Slide FUNCTION switch to DISC position.
•POWER INDICATOR lights.
2. PRESS the "OPEN" button to open the Disc
CompartmenL
•A flashing "cd" will appear in the DISPLAY.
3. Withouttouching the disc surface, place the
disc in the compartment wIth the labelfacing
up.
4. Toclose the Disc Compartment door,press
down on door untildoor latches.
CAUTION: To avoid damage to the disc or disc
mechanism, be sure disc is properlyseated in the
disc tray before closing disc door.
NOTE: Both3" and 5" discswith the identification
logoshown below can be played inthis player.
DIGITAL AUDIO
4

DISC PLAY
1. After the disc isinstalledand the compartment
door closed, the disc will begin to spin and
the player will scanthe table of contentsen-
coded inthe lead-in portionof the disc.
•Duringthis time, *cd" willflash inthe display.
2. After the table of contentsareread, thedisc will
stop spinning.
•"cd" will remain in the DISPLAY but will
stop fleshing.
3. Pressthe PLAY/PAUSEloutton.Thefirstselection
(track) on the disc will begin to play.
4. At the beginningof disc play,adjustVOLUME
to suit your listening preference.
5. Switch BASS BOOST and SURROUND "ON" if
desired.
6. At the end of disc play:
+The player willstop automatically.
• The dash willbe displayed.
7. Open the DiscCompartment, removethe disc,
close the Compartment door,and slide
FUNCTION switchto TAPE power Off).
To terminatedisc play beforethe end of the disc is
reached, pressthe STOP button.
PAUSE FUNCTION
Youcantemporarilystop disc p_ayduringoperation
bypressingthe PLAY/PAUSEbutto_ asecondtime.
•When PAUSE is activated, the Tracknumber
in play willflesh.
To resume play, pressPLAY/PAUSE again.
SKIP/SEARCH BUTI'ONS
During disc PLAYand STOP modes, you can skip
forward or backward to the beginning of any
selection on the disc by usingthe SKIP buttons.
FORWARD SKIP (IH_)
Momentarily press the FORWARD SKIP/SEARCH
button to instantly moveto the beginningof the
next selection on the disc. To "skip"to a selection
further down the disc,repeatedlypressand releese
the button untilthe desiredTrack Number appears
in the DISPLAY.Whenthe lastselection on the disc
is reached, skip willreturnto the beginningof the
first Track on the disc.
FORWARD SEARCH (IH_)
DuringDisc PLAY,pressingand holdingthe FOR-
WARD SKIP/SEARCH button enables youto speed
up disc play(fast forward).The disc materialwillbe
audible,allowing youto scanfora favoritesegment
or skipa segment. Release the button and normal
PLAYresumes.
REVERSE SKIP (_)
Momentarily press the REVERSE SKIP/SEARCH
button to instantly move to the beginning of the
Trackbeingplayed.To "skip"backwardto a selection
further up the disc, repeatedly press and release
the button untilthe desiredTrack Number appears
inthe Display.
When the beginningofthe firstTrackon the disc is
reached, skip will go back to the beginningof the
lest Trackon the disc.
REVERSE SEARCH ( <k< )
During Disc PLAY, pressing and holding the
REVERSE SKIP/SEARCH button enables you to
move quickly backward. The disc material will be
heard in reverse play, enabling you to select a
segmentto be listened to again. Releasethe button
and normal PLAYwillresume.
You can also use SKIP when disc play is in the
PAUSEmode. UponcompletionofSKIP,the player
will returnto the PAUSE mode.
REPEAT BUTTON
Press the REPEATbutton for repeated play of all
Tracks on the disc.
•The REPEATINDICATORwill lightwhen
REPEATmode is activated.
PressingREPEATbutton againcancelsRepeat play
and normal play resumesfrom the Track currently
in play.
SHUFFLE BUTTON
Press the SHUFFLE button and then the PLAY
button for automatic random play of allthe Tracks
on the disc.
•The SHUFFLE INDICATOR willlightwhen
SHUFFLE mode isactivated.
•Random segments ofthe DISPLAYwillflesh
whileSHUFFLE selects the trackfor play.
PressingSHUFFLE againcancels Shuffleplay and
normal play resumes from the Track currently in
play.
5

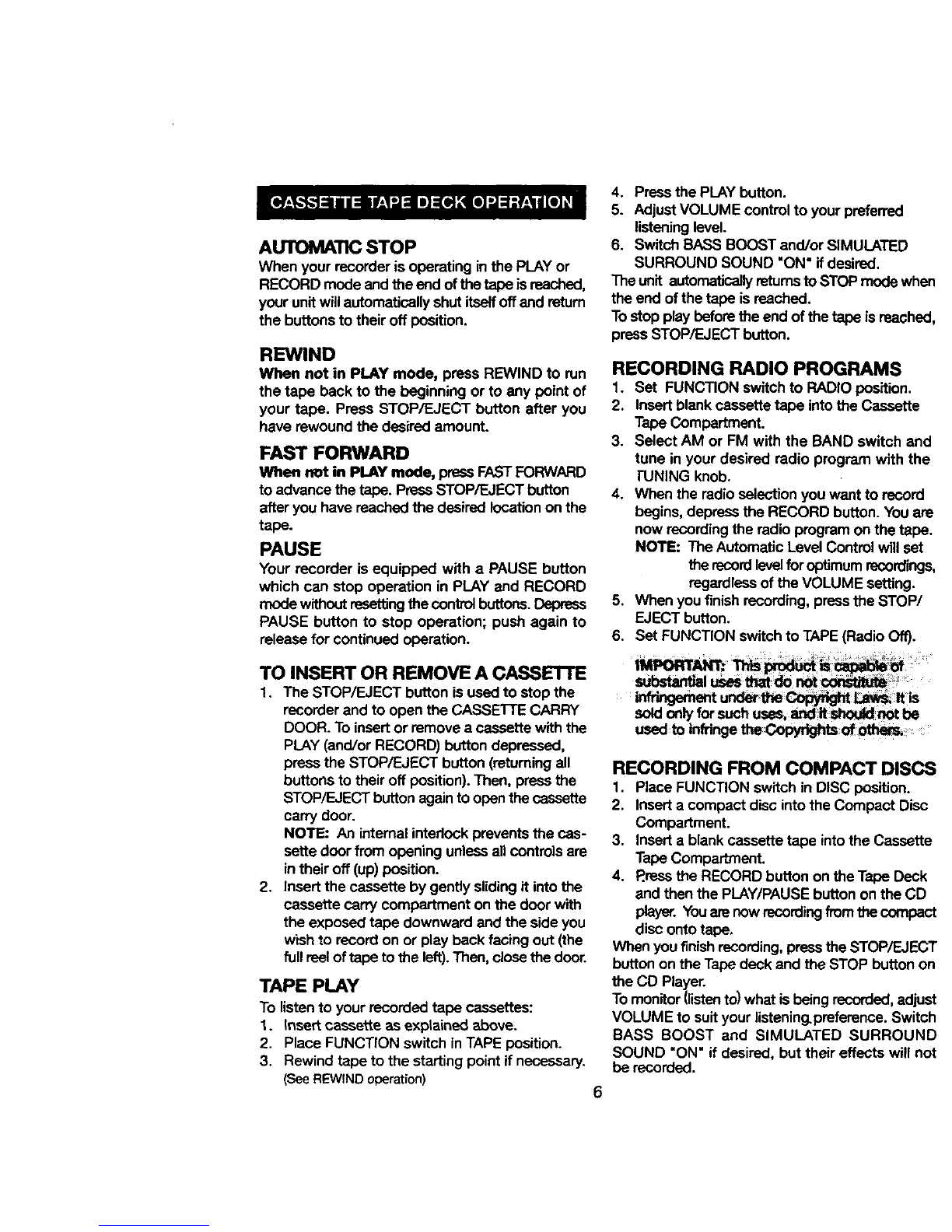

AUTOMATIC STOP
When your recorderisoperating inthe PLAYor
RECORD mode endthe end ofthe tape isreached,
yOurunitwillautomaticallyshut itselfoffand return
the buttons to theiroff position.
REWIND
When not in PLAY mode, press REWIND to run
the tape back to the beginning or to any point of
your tape. Press STOP/EJECT button after you
have rewound the desired amount.
FAST FORWARD
When not in PLAY mode, press FASTFORWARD
toadvance thetape. PressSTOP/EJECT button
afteryou havereachedthe desired locationon the
tape.
PAUSE
Your recorder is equipped with a PAUSE button
which can stop operation in PLAY and RECORD
mode withoutresettingthe controlbuttons.Depress
PAUSE button to stop operation; push again to
release for continued operation.
4. Pressthe PLAY button.
5. Adjust VOLUME controlto your preferred
listeninglevel.
6. Switch BASS BOOST end/or SIMULATED
SURROUND SOUND "ON" ifdesired.
The unit automaticallyreturnstoSTOP mode when
the end of the tape isreached.
To stop play beforethe end ofthe tape is reached,
press STOP/EJECT button.
RECORDING RADIO PROGRAMS
1. Set FUNCTION switch to RADIO position.
2. Insertblank cassette tape intothe Cassette
Tape Compartment.
3. Select AM or FM with the BAND switch and
tune in your desired radio program with the
I'UNING knob.
4. When the radioselection you want to record
begins,depress the RECORD button.You are
now recordingthe radio programon the tape.
NOTE: The Automatic Level Control willset
the recordlevelfor optimumrecordings,
regardlessof theVOLUME setting.
5. When you finishrecording,press the STOP/
EJECT button.
6. Set FUNCTION switch to TAPE(Radio Off).
TO INSERT OR REMOVE A CASSE'n'E
1. The STOP/EJECT button is used to stop the
recorder and to open the CASSETTE CARRY
DOOR. To insertor remove a cassette with the
PLAY(and/or RECORD) button depressed,
press the STOP/EJECT button (returningall
buttons to their off position). Then, pressthe
STOP/EJECT button againto openthe cassette
carry door.
NOTE: An internalintedock preventsthe cas-
sette door from opening unlessallcontrolsare
intheir off(up) position.
2. insert the cassette by gentlyslidingit intothe
cassette carry compartment on the door with
the exposed tape downward and the side you
wish to record on or play back facingout (the
fullreelof tape to the left).Then, close the door.
TAPE PLAY
To listen to your recorded tape cassettes:
1. insert cassette as expiained above.
2. Place FUNCTION switch in TAPE position.
3. Rewind tape to the starting point if necessary.
(See REWIND operation) 6
u___ ttls
soldonlyforsuchuses.a_it _notbe
usedto tn_ngetheCopyrtghts of_:
RECORDING FROM COMPACT DISCS
I. PlaceFUNCTION switch in DISC position.
2. Inserta compact disc intothe Compact Disc
Compartment.
3. Insert ablank cassette tape into the Cassette
Tape Compartment.
4. P.ressthe RECORD button on the Tape Deck
and then the PLAY/PAUSEbutton on the CD
Youarenowrecordingfromthecompact
disc onto tape.
When youfinishrecording,pressthe STOP/EJECT
button on theTape deck and the STOP button on
the CD Player.
To monitor(listento)what is beingrecorded,adjust
VOLUME to suit yourlistening.preference.Switch
BASS BOOST and SIMULATED SURROUND
SOUND "ON" if desired, but their effects willnot
be recorded.

SELECTED RECORDING
Ifyou wish torecorda particularselectiononlyfrom
the compact disc, follow steps I through 3 above
and:
1. Pressthe PLAY/PAUSEbuttononthe CD Play_,
then, press the PLAY/PAUSEbutton againto
place the CD Playerin the PAUSEmode.
2. PressSKIP FORWARD/REVERSE button until
the Track number for the desired selection
appears inthe display.
3. Pressthe RECORDbuttonontheTapeRecorder,
and then the PLAY/PAUSEbutton on the CD
player.Youare now recordingfrom the compact
disc onto the tape.
Whenrecordingiscomplete,presstheSTOP/EJECT
button onthe Tapedeck and then theSTOP button
on the CD player.
TAPE ERASE
To erase what you have alreadyrecorded, record
againover the unwanted material.
PREVENT ACCIDENTAL ERASURE
Whenever you make a recording, any previous
recording on the tape is automat=cally erased.
When you have a recordingyou wantto keep
permanently, break out the rear lefttab ofthe side
you want to save as shownin illustration.
When a cassette withthe tab brokenout isinserted
in the tape unit,accidental erasureisprevented by
a lever in the mechanismthat keeps the RECORD
button from depressing.Cellophane tape can be
placedoverthe openingifyoudecide latertorecord
overthe odginairecording.Similarly,you canrecord
over purchased recordedcassettes.
PLEASE NOTE: Yourmachine isequipped with a
cassette sensing mechanism. This mechanism
prevents RECORD button from being depressed
when cassette isnot in unit.
POINTS TO REMEMBER
• Ifthe playerisbroughtfrom a cold environment
to a warm one or was in a cold roomthat has
been quickly heated, condensationforms on
the pickup preventing properoperation.To
removethe condensation, remove the disc and
leavethe power ON for about one hour.
•Always close the disc L'ompartment when not
usingthe playertopreventdustreachingdelicate
internal parts.
•Do notplace objectsontop of Playerand,when
transportingthe player,be careful notto bump
it intowails or other objects.
•Do not use the player in a slanted or perpendi-
cular position. It should only be operated in a
horizontal position.
•Toclean,wipe the cabinet witha soft,dry cloth.
Dampentheclothwithwatertoremovestubborn
stains. Never use benzine, thinners,alcoholor
otherchemical solventssincetheymay discolor
the cabinet and remove lettering. Protect the
cabinetfrom insecticides,hairsprays,paintand
other substancesthat cause stains.
• Place the unit in a well-ventilated location. DO
not expose to direct sunlight or heating units
as the player's internaltemperature may rise
and shorten the lifeof the pickup.
WHEN HANDLING COMPACT DISCS
In order to enjoy your music under the best
conditions, alwayskeep your discsclean and note
the following:
•DOnot touchthesurfaceof eitherside ofthe
disc. Hold bythe edges or one edge and the
center hole.
• Do not leave the discs in places with high
temperatures or high humiditywhere they
may become warped.
• Always returneach discto itscase when not
in use. Do not leaveon CD playertumtable.
•Do not put tape or any other adhesiveson
the label surfaces. Alsodo not scratch or
damage the labelside.
•Before playingback a disc, wipe any dust
or fingerprintsfrom unlabeledsurface with
asoft cloth. Moisten the cloth with water if
necessary and wipe dry before playing.

•Do not use cleanersor antistaticsprayson
discs, such as those used on conventional
analog phonographrecords.
•Discsrotateat highspeeds insidetheplaye_.
Do not usedamaged (c_or warped)
discs.

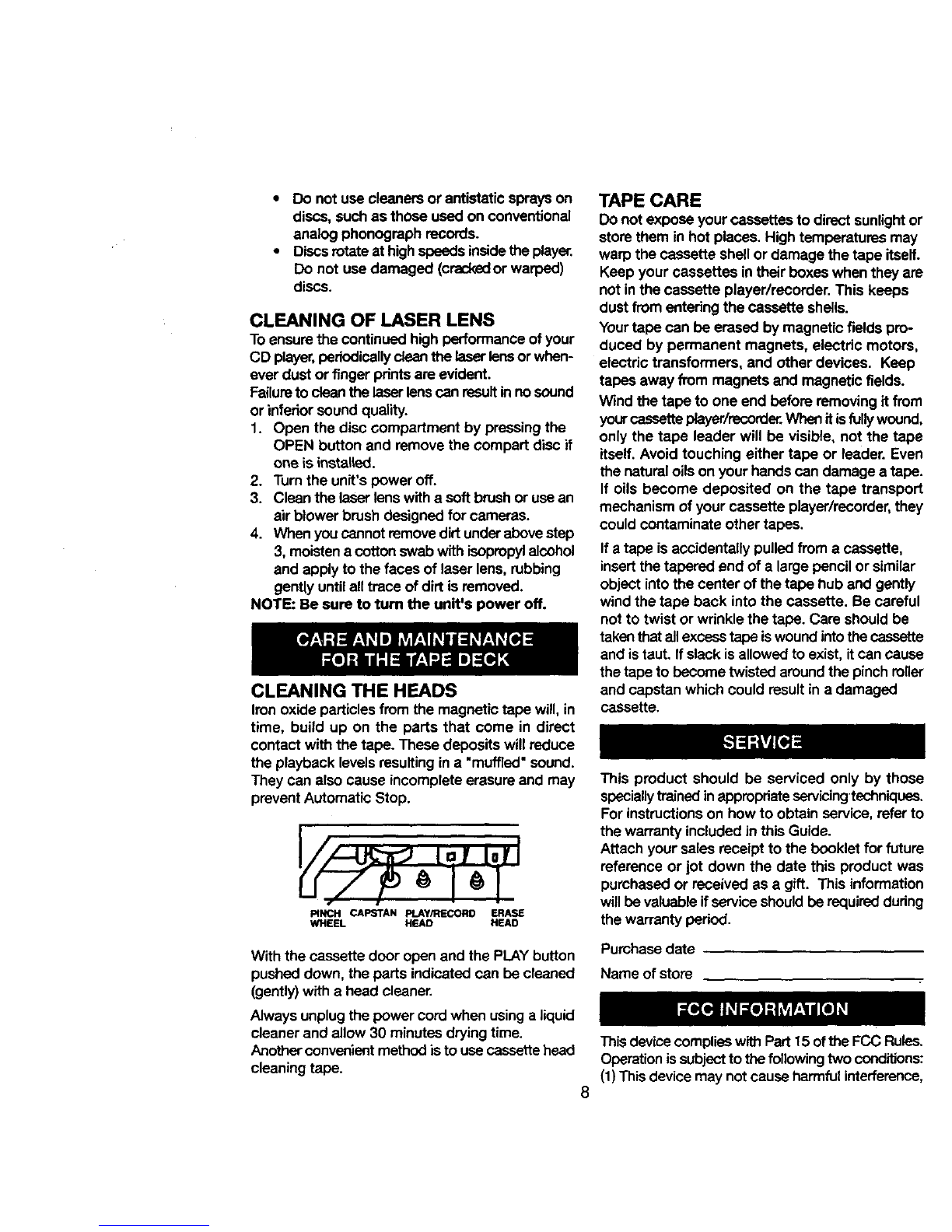

CLEANING OF LASER LENS
To ensurethe continuedhigh performanceofyour
CD player, periodicallyclean thelaserlensor when-
ever dust or finger prints are evident.
Failureto cleanthe laserlenscan resultinnosound
or inferiorsound quality.
1. Open the disc compartment by pressingthe
OPEN button and remove the oompart disc if
one is instat_:L
2. Turnthe unit's power off.
3. Cleanthe laserlens witha soft brushor usean
air blower brush designedfor cameras.
4. Whenyoucannotremovedirtunderabovestep
3, moistena cottonswabwith isopropylalcohol
and apply to the faces of laser lens,rubbing
gentlyuntil alltrace ofdirt is removed.
NOTE: Be sure to turn the unit's power off.
CLEANING THE HEADS
Ironoxide particlesfrom the magnetic tape will, in
time, build up on the parts that come in direct
contact with the tape. These deposits willreduce
the playback levelsresultingina "muffled"sound.
They can also cause incompleteerasureand may
preventAutomatic Stop.
PINCH CAPSTAN PLAY/RECORD ERASE
WHEEL HEAD HEAD
With the cassette door open and the PLAYbutton
pushed down, the parts indicatedcan be cleaned
(gently)with ahead cleaner.
Alwaysunplugthe power cordwhen usinga liquid
cleanerand allow 30 minutes dryingtime.
Anotherconven'aentmethodis to usecassettehead
cleaningtape. 8
TAPE CARE
Do not expose yourcassettes to directsunlightor
store them in hot places. High temperatures may
warp the cassette shellor damage the tape itself.
Keep your cassettes intheirboxes when they are
not inthe cassette player/recorder. This keeps
dustfrom entering the cassette shells.
Yourtape can be erased by magnetic fieldspro-
duced by permanent magnets, electric motors,
electric transformers, and other devices. Keep
tapes away from magnets and magneticfields.
Wind the tape to one end before removingitfrom
yourcessette player/recorder. When it isfully wound,
only the tape leader will be visible, not the tape
itself. Avoid touching either tape or leader. Even
the naturaloilson your handscan damage a tape.
If oils become deposited on the tape transport
mechanismof your cassette player/reoorder,they
could contaminate othertapes.
If a tape isaccidentally pulledfrom a cassette,
insertthetapered end of a largepencil or similar
object intothe center of thetape hub and gently
windthe tape back into the cassette. Be careful
not to twist or wrinklethe tape. Care shouldbe
takenthatallexcesstape iswoundintothe cassette
and istaut. If slack isallowedto exist, itcan cause
thetape to become twisted aroundthepinch roller
and capstan which could resultin a damaged
cassette.
This product should be serviced only by those
speciallytrainedinappropriate servicingtechniques.
Forinstructionson how to obtain sen_ice,refer to
the warrantyincluded in this Guide.
Attach yoursales receipt to the booklet for future
reference or jot down the date this product was
purchesed or received as a gift. This information
will be valuable ifserviceshouldbe required during
the warranty period.
Purchase date
Name ofstore
Thisdevice complieswith Part15 ofthe FCC Rules.
Operation issubjectto thefollowing twoconditions:
(1)Thisdevice may notcause harmfulinterference,

and(2)Thisdevicemustacceptanyinterference
received,includinginterferencethatmay cause
undesired operation.
In accordance with FCC requirements,changes or
modificationsnot expresslyapproved by Thomson
ConsumerElectronics couldvoid_useCsauthority
to operate this product.
According to some State laws, and in the event
service should be required, you may need both
Model and SerialNumbers. Pleaserecordthe Serial
Number inthe space below:
SERIAL NO.
If a problem arises, these simple checks are recommended. Sometimes you can correct
the problem yourself.
SYSTEM does not turn "ON'. No AC Power
•Weak or*dead" batteries
Make sure the power cord.isfirmly
seated in the power outlet
Make sure the receptacle isopera-
tio_I by pluggingscme oth_ deviea
intothe same socket for a test
Replace batleries
The sound skipsin PLAY mode
Poor FM or AM reception
•Disc has been damaged
Disc isdirty or dusty
Externalvibration
•The dlsc's _abelside was
damaged by a solidobject
such as e ballpoint pen
FM Antenna improperly
extended or adjusted
•Unit oriented improperly for best
AM reception.
• Electrical interference
Insert enew disc
Clean the disc with a soft. dry
cotton cloth
Avoid external vibration orshock
Insert a new disc (the thin mem-
brane between the label end the pit
surface may be damaged)
Make sure the FM antenna is pro*
pedy oriented
Rotate set to achieve best AM
reception
Electricalinterference inyour home
may be abnormally high. Tryturning
off electrical eppliansesnear your
system, especiallythose with
motors (suchas hairdryers or
vacuum cleaners) ortransformers
(suchas flourescent lamps).
9

Some of the followingitems may be availableat yourdealer or you may order by usingthe Accesssory
Order Form.
_TEREO HEADPHONE
Lightweight Stereo Headphone with 3.5ram
stereo plug
No. 3-5750 $17.95
FOR HEADPHONE VERSATILITY,
the following adaptersincludedat no
extra charge.
1/4" adapter-Use lightweight headphone with
other stereo productshaving1/4" headphone
jack.
3.5mm stereo to 3.5mm mono adapter- Permits
headphone use with mono productshaving
3.5mm earphonejacks.
REPLACEMENT PADS
for Model 3-5750 STEREO HEADPHONE
No. 5-1870 $4.95
10

• (. •
ACCESSORY ORDER FORM
:,O ON ......... . CAT.NO PR,CS" ,,,,,,,,
Lightweight Stereo Headphone includes:
1/4" adapter and 3.5mm stereo to 3-5750 $17.95
3.5mm mono adapter
Stereo Headphone Pads (3 perJpk.) 5-1870 4.95 ea.
For credit card purchases
Yourcomplete charge card number, itsexpirationdate
and your signatureare necessaryto processallcharge
card orders
Copy your complete account number from your VISA
card.
I-I-I-I-1FI-AII I lllll
My card expires:
Copy your complete account number from your
IVlasterCard.
I-A-A -A-1FA-11-[-
Copy the number above your
name on the MasterCard
My card expires:
Authorized Signature
"Pricesaresubject to change without notice.
TotalMerchandise...................... $
SalesTax............................. $ _
We m required by law to €)lbct the _
sales tax for each ledlividual state, €_lnt_ an
Ioca,ty to whk:h the _Is being sent.
Shipping, Handling, and Insurance ..... $5.00
Total Amount Enclosed .................. $
Use VISA or MasterCard preferably.
Money ocder or check must be in
U.S. outTency only. No COD or CASH.
I_ me subject to availability.
Where applicable, we will ship • su_m:edleg
mode.
Mal order form and money order or c_ck (inU.S. currency)
made payable to Thomson Consumer Electronics, Inc. to:
Consumer Electronics
Mail Order Department
P.O. Box 8419
Ronks, PA 17573-8419
This is your retum label. Please print cleady.
To:
Name
Address Apt.
City State ZIP.
Please make sure that this form has been filled out
completely.

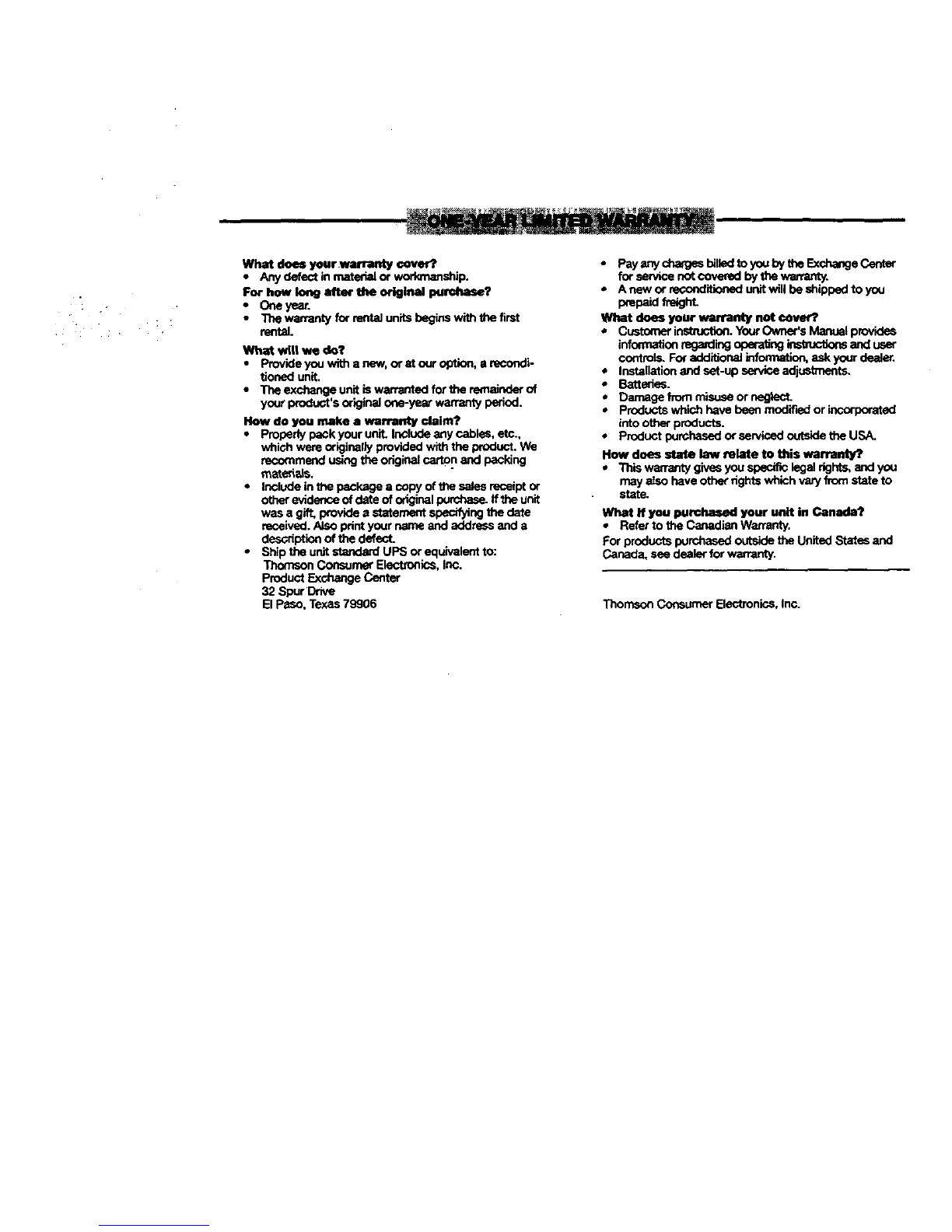

What does yourwarrant,/
• Anydefectinmatedalorworkmanship.
For how longafter the original purchase?
•Oneyear.
• Thewarrantyfo¢rentaJunitsbeginswiththefirst
r_mtal.
What wilt we do?
• Provide you with a new, or at our option, a recondi-
tioned unit.
• "n_ exchange unit is warranted for the remainder of
your pmdu_'s originalone-year warranty period.
How do you make a warranty €laim?
• Propedy pack your unit. Include any cables, etc.,
which were cciginanyprovided with the product. We
recommend usir_j the original carton and packing
materkds.
• Include in the package a copy of "d_esales receipt or
other evidence of date of cxiginalp_lse. If the unit
was a gift, p(ovide a statement specifying the date
received. Also print your name and address and a
desGdptionof the defect.
• Ship the unitstandard UPS o_equivalent to:
Thomson Consumer ElecUonics, Inc.
Product Ex_ Center
32 Spur Drive
Elpaso, Texas 79906
• Pay any charges billed to you by the Exchange Center
for sen,ice not covered by the _.
• A new or reconditiot_d unRwill be shipped to you
p_epa_fre_ht
What does your warranty not cover?
• Customer instruction. YourOwner's Manual provides
controls. For additional information, ask your dealer.
,Installation and set-up service adju_tment_
•Battedes.
•Damage from misuse or negtect.
. Products which have been modif'_i or incorporated
into other products.
Product purchased or serviced outside the USA.
How does state law relate to this warranty?
• This warranty gives you specific legal right_ and you
may atso have other"fights which vary from state to
state.
What If yOU purchased your unit in Canada?
. Refer to the Canadian Warranty,
For products purchased outside the United States and
Canada, see dealer for wan_,
Thomson Consumer Electronics, Inc.

2

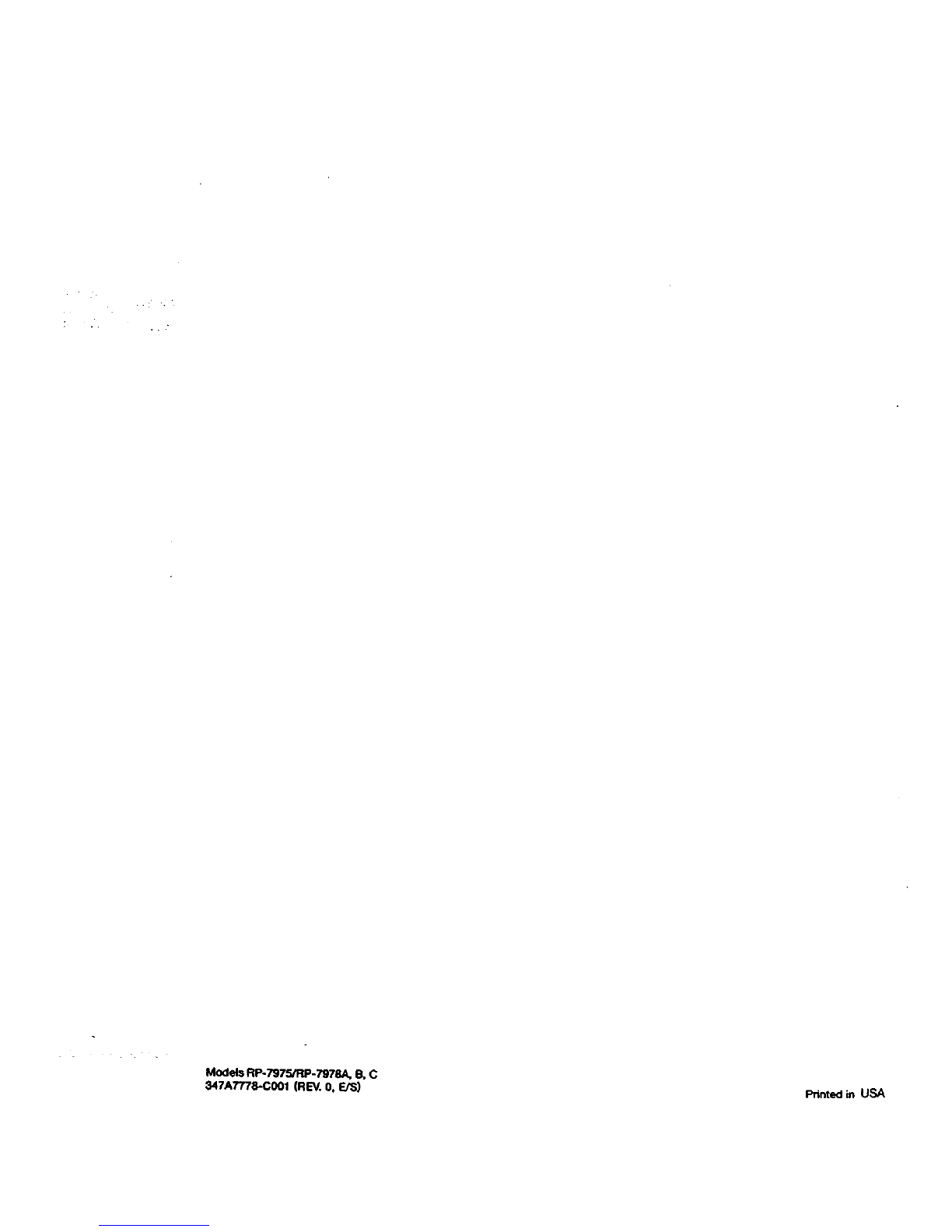

Models RPo7975/RP-7978A, B, C
347A7"778-.C001 (REV, 0, F/S) Primed in USA
