RCA DETE185R User manual

TABLE OF CONTENTS
Safety Information.................................................................................................................2
Preparations Guide
Important Safety Instructions..................................................................................................3
Install And Connect TV
TV Bracket assemble.............................................................................................................4
TV Buttons and Terminal Interface........................................................................................ 5
External Device Connection Diagram................................................................. 6
Install and Connect TV...........................................................................................................7

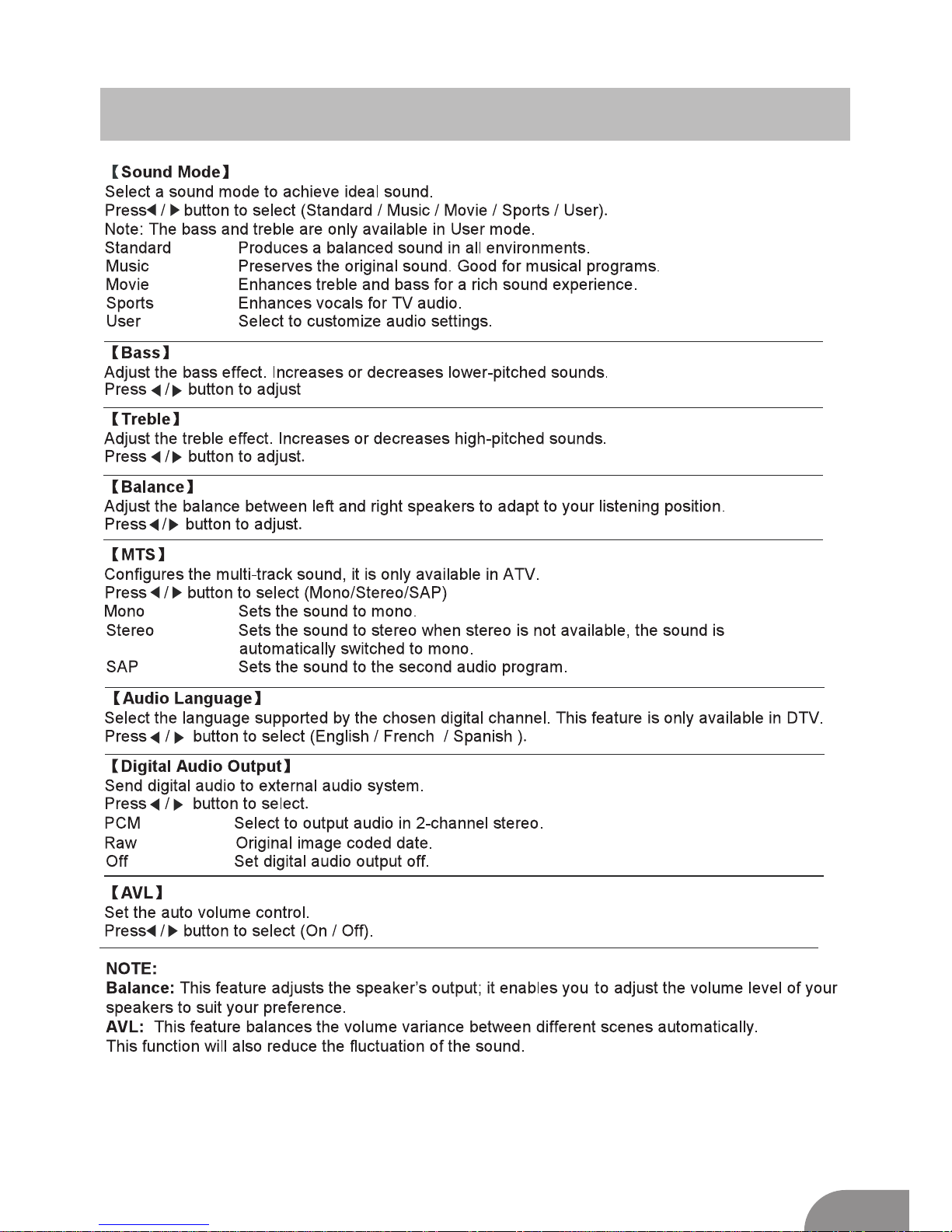

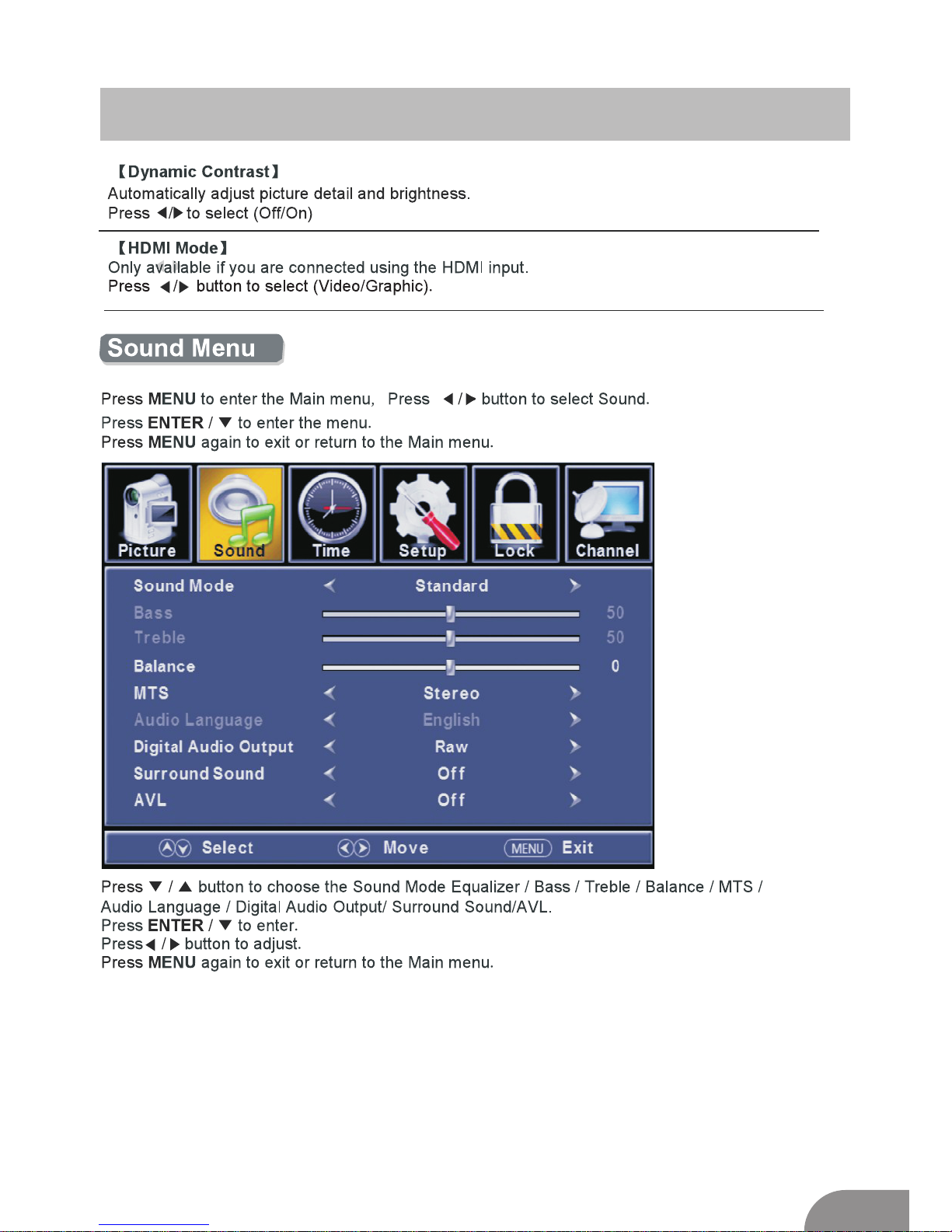

Sound Menu.........................................................................................................14
Mai n Men u Operation................................................................................................12
Time Menu.....................................................................................................16
Setup Wizard ...............................................................................................................9
Setup Wizard
Select Input Source.........................................................................................................................11
PC
Setup Menu........................................................................................................................17
Canada Rating...........................................................................................................................24
1
PC Menu......................................................................................................................................27
TV Stand Installation Instructions.......................................................................7

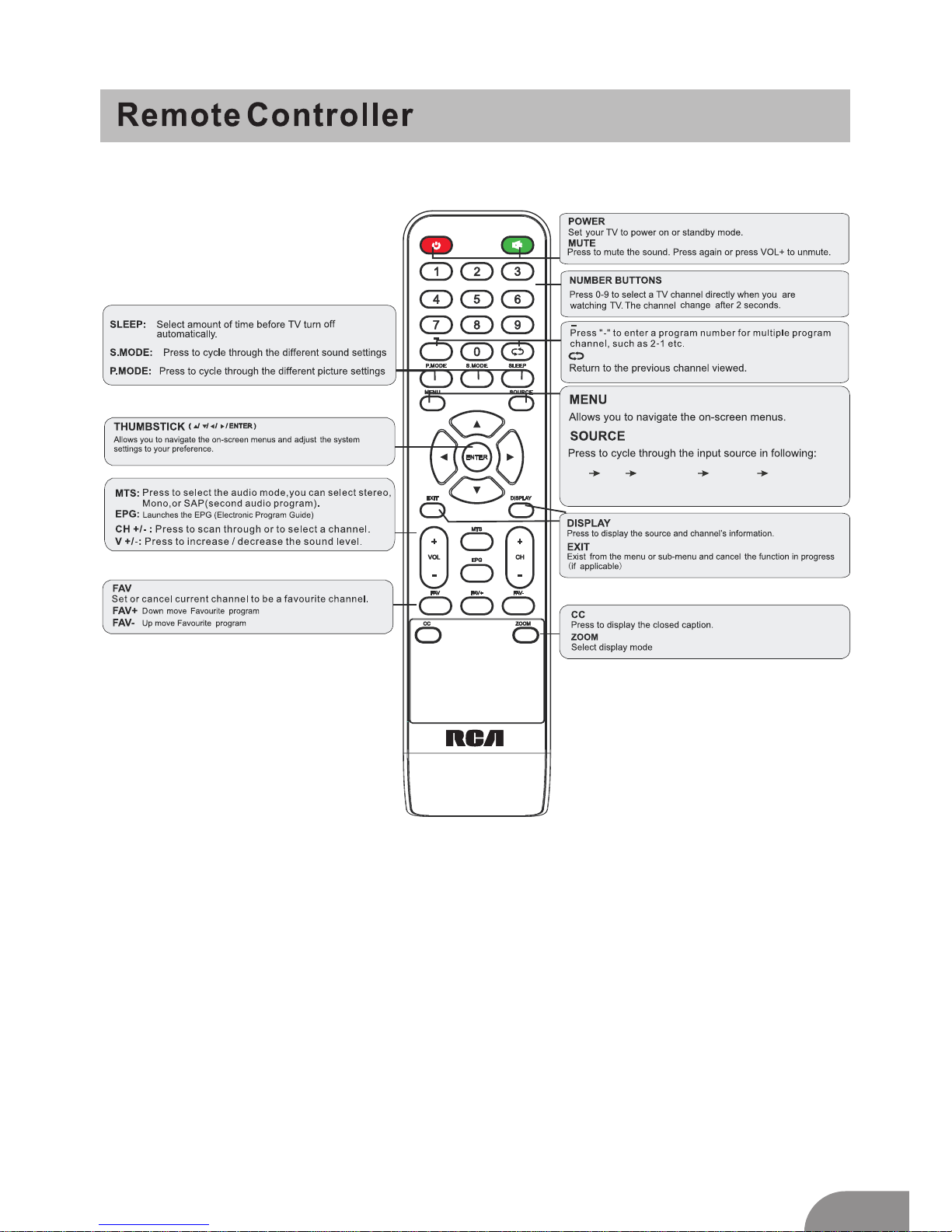

Remote Controller.............................................................................................8
This user manual is for reference only
Select Input Source
TV
Close Caption........................................................................................................................18
Lock Caption........................................................................................................................21
US Rating........................................................................................................................23
TV ........................................................................................................................23
MPAA ........................................................................................................................24
Channel Menu.........................................................................................................................25
Other Information
Help......................................................................................................................................29
Specifications.......................................................................................................................30

Safety Information
2

3
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and third grounding prong. The wide blade or third prong is
provided for your safety. When the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods
of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15.Warning to reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall be disconnected from the mains by placing
the power/standby switch in the standby position and unplugging the power cord of
the apparatus from the AC mains receptacle.
16. The socket-out shall be installed near the equipment and shall be easily accessible.
17. This product should never be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the manufacturer's instructions have
been adhered to.
18. Apparatus shall not be exposed to dripping or splashing.
19. Do not place any sources of danger on the apparatus (e.g. liquid filled objects,
lighted candles).
20. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near naked flames or other
heat sources, including direct sunlight. To prevent the spread of fire, keep
candles or other flames away from the TV, remote control and batteries at
all times.
22. The USB terminal should be loaded with 0.5 A under normal operation.

4

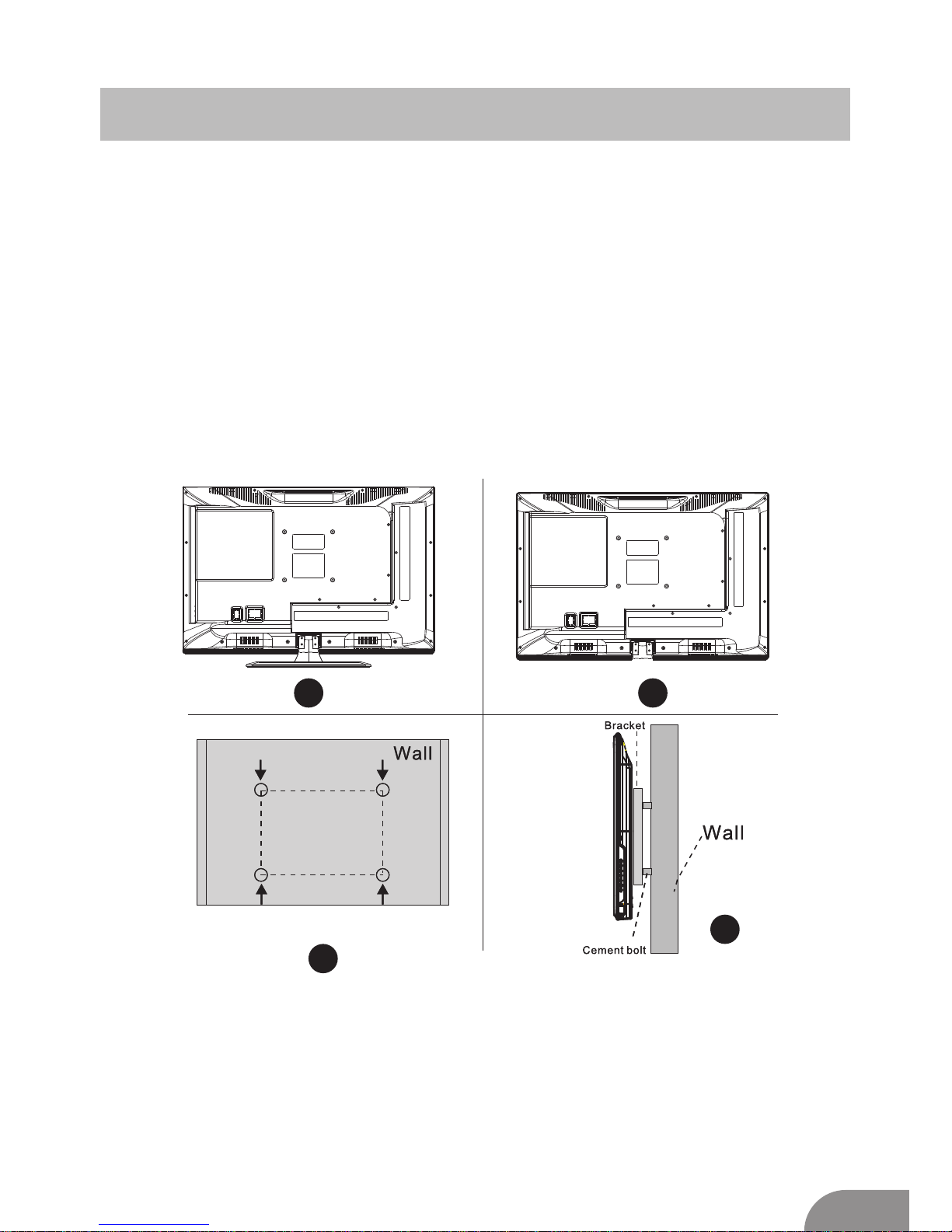

TV Bracket assemble
SOURCEMENUCH+ -
CH
-
VOLVOL+
Fix the TV on the wall
1.First,put the TV on the table smoothly and put some soft cloth on the table to avoid
getting scratched the screen.
2.Use a screw driver to take off the screws which are fixed on the bottom stand
(the direction of the arrow, refer to the photo1).please be careful when tating off the
bottom stand).
3.Make one bracket which can fix on the wall according to the size of arrow direction
of photo2 and photo3.
4.Drill four holes properly on the wall (the size only for reference) and put into four
screws.(optional parts)
5.according to the step 4,use the screwdriver to lock the screw on the back of the TV.
then hang the TV on the wall.
1 2
3
4
Note:
1.The bracket fixed on the wall is optional part.
2.when you assemble the TV, there should be no other articles on the around and front
and please keep the distance from other articles.
3.When assemble the TV, please ask the professional worker to fix in order to avoid
the danger.
4.The fixing picture is only for reference.
5.Please follow the user’s manual about bracket assemble to fix the TV.
6.Attach the mounting bracket with the VESA compatible wall mounting kit.

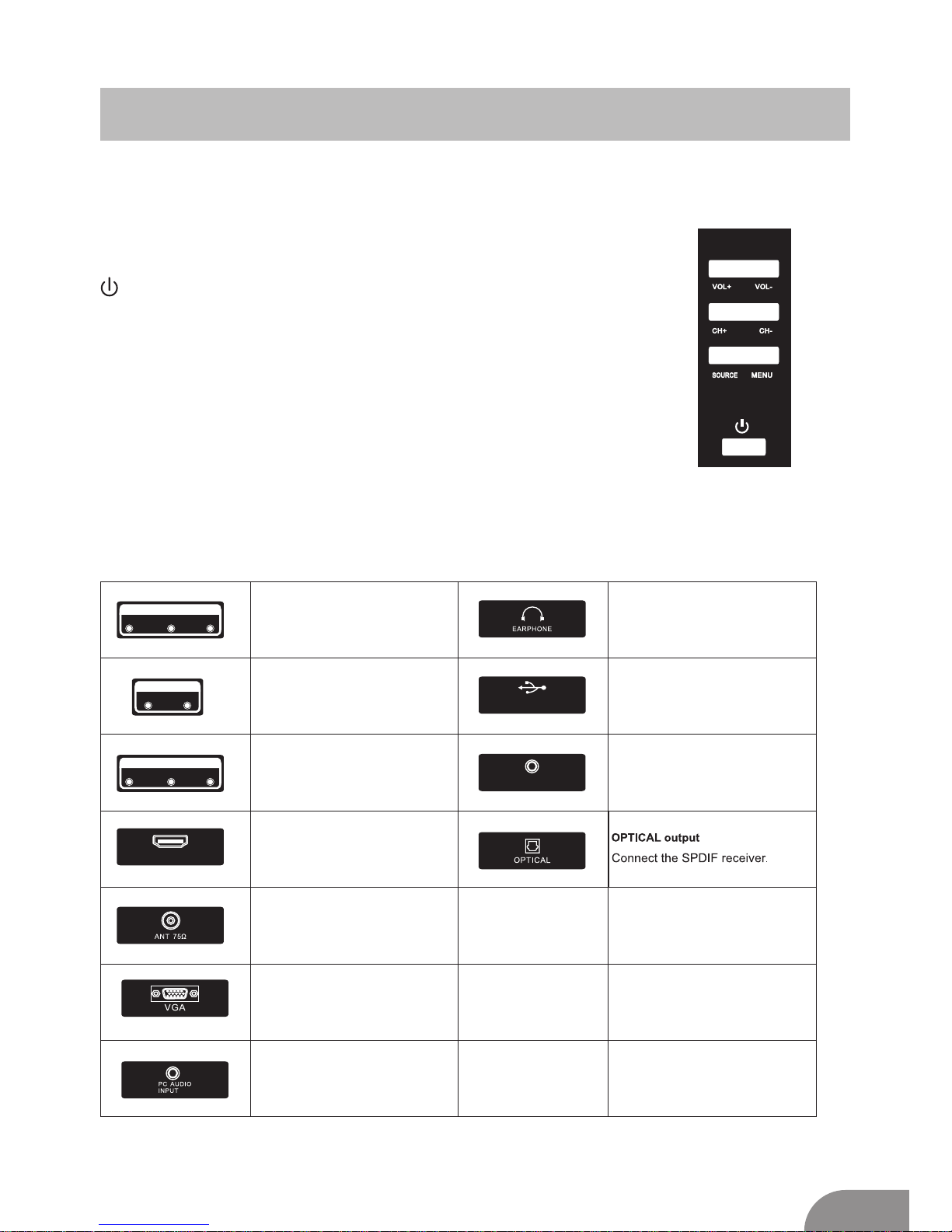

TV Buttons and Terminal Interface
TV Buttons
:Turn ON/OFF Power.
SOURCE:External Signal Input Selection.
MENU:Display Main MENU And Confirm MENU Item Selection.
CH+/-:Select Channel.
VOL+/-:Adjust Volume.
Note: The following is only functional schematic. The actual position and
arrangement of the buttons may differ by model.
Terminal Interface
Note: The following are the various terminal interface, the actual position and
arrangement, the number of different models may be different.
VIDEO R L
INPUT
Y Pb Pr
INPUT
HDMI
AV input
External AV Signal Input and
Relevant Right/Left Sound Channel
AV output
TV AV Signal output and
Relevant Right/Left Sound Channel
(Some models without this interface)
Y Pb Pr input
Connect to the composite terminal of
your DVD/VCR
(Some models without this interface)
HDMI input
Digital signal input from HDMI video
connector.
ANT 75
Connect the antennal/cadle tv input
(75/VHF/UHF)
VGA input
PC analog signal input
PC AUDIO INPUT
VGA input and audio input when VGA
input
EARPHONE output
When earphones are plugged in,
speakers are disabled
USB input
5
R L
OUTPUT
COAXIAL
COAXIAL
Connect the SPDIF receiver.
USB
(update only）

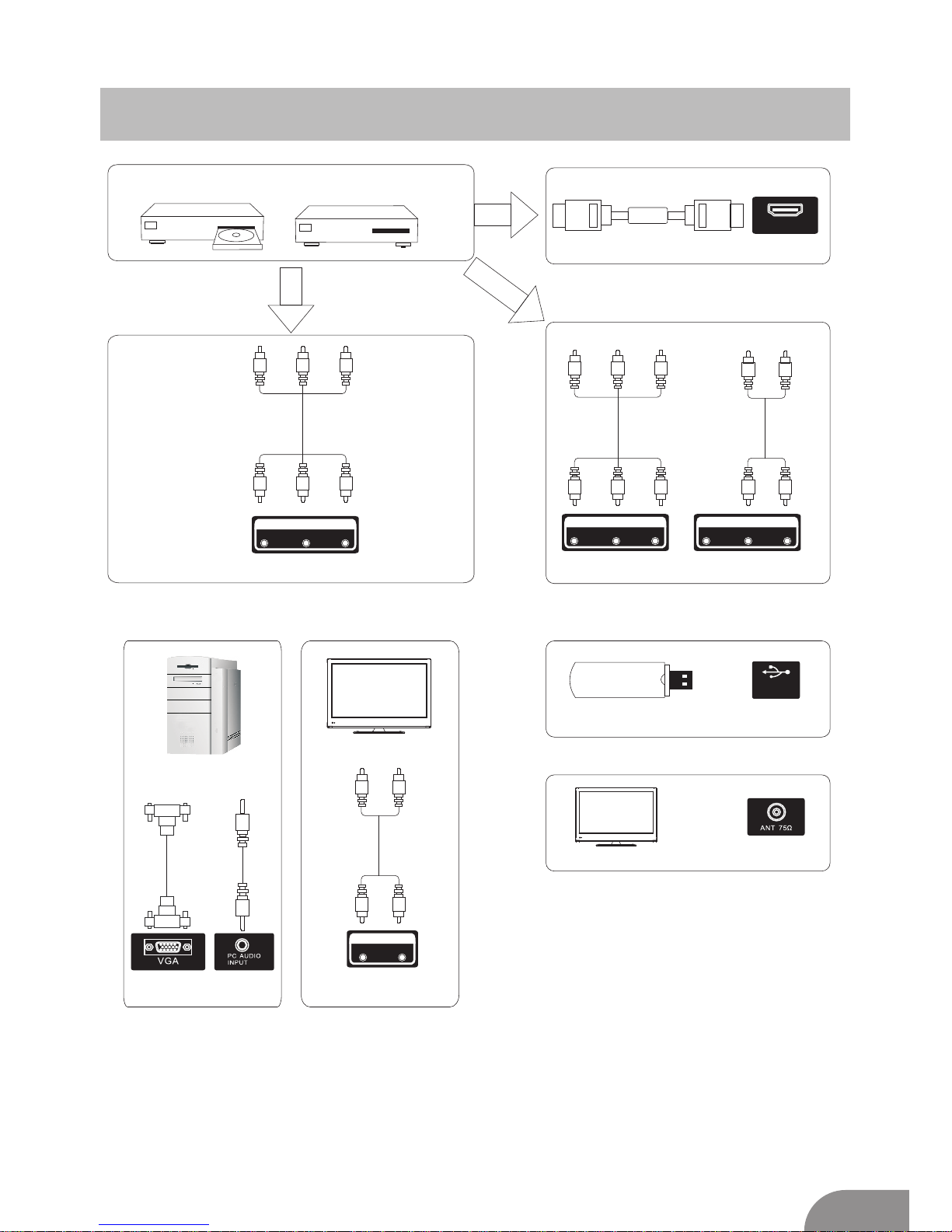

External device connection diagram
DVD Set-top boxes
HDMI
HDMI
HDMI input connection
VIDEO R L
INPUT
AV input connection
AV output connection
VIDEO R L
INPUT
Y Pb Pr
INPUT
Y Pb Pr input connection
USB connection
TV connection
6
AV input connection
VGA input connection
R L
OUTPUT
USB
(update only）

Install and Connect TV
7
TV AN T
FM AN T
TV signal output
Set your TV
1.Put your TV in a place that can bear the
weight of the TV.
To avoid danger, please do not assemble
the TV near water or extreme heat(such
as a furnace, light source,or candle.)
Do not block the ventilation on the back
of the TV.
Connect antenna and power
2.Connect the antenna cable to the RF
connection on the back of the TV.
Plug the TV into the wall power outlet.
1
3
Turn on the TV
3.While in standby mode the power indication
light will be red.Press the power button on
the TV or remote control.The light will change
to green.
Note:
Picture for reference purposes only.
2
TV Stand Installation Instructions
TV Stand Installation Instructions
1、turn over the TV, and the LED side
should be on the smooth plane. Be
sure no foreign matter on the plane.
2、take out all the screws and base.
3、fix base with 3pcs screws(BB4*10)
BB4*10
（3 pcs)

TV AV YPBPR HDMI PC
8

9
Setup Wizard
Select Language
Press </ > button to select the language to be used for menus and message.
Press ▼ / ▲ button to select go to next step and press ENTER/ button to go.
Select Time
Press ▼ / ▲ button to select the time zone, daylight saving time and time format you prefer.
Press </ > button on the remote control to adjust.
Press ▼ / ▲ button on the remote control to select go to next step and press ENTER/ button
to go.

10
Auto Scan
Press </ > button to select the antenna type.
Press ▼ / ▲ button to select go to next step and press ENTER/> button to start auto scan.
Setup Wizard

11
Select Input Source
Source Select
TV
AV
Component
HDMI
PC

12
TV

13

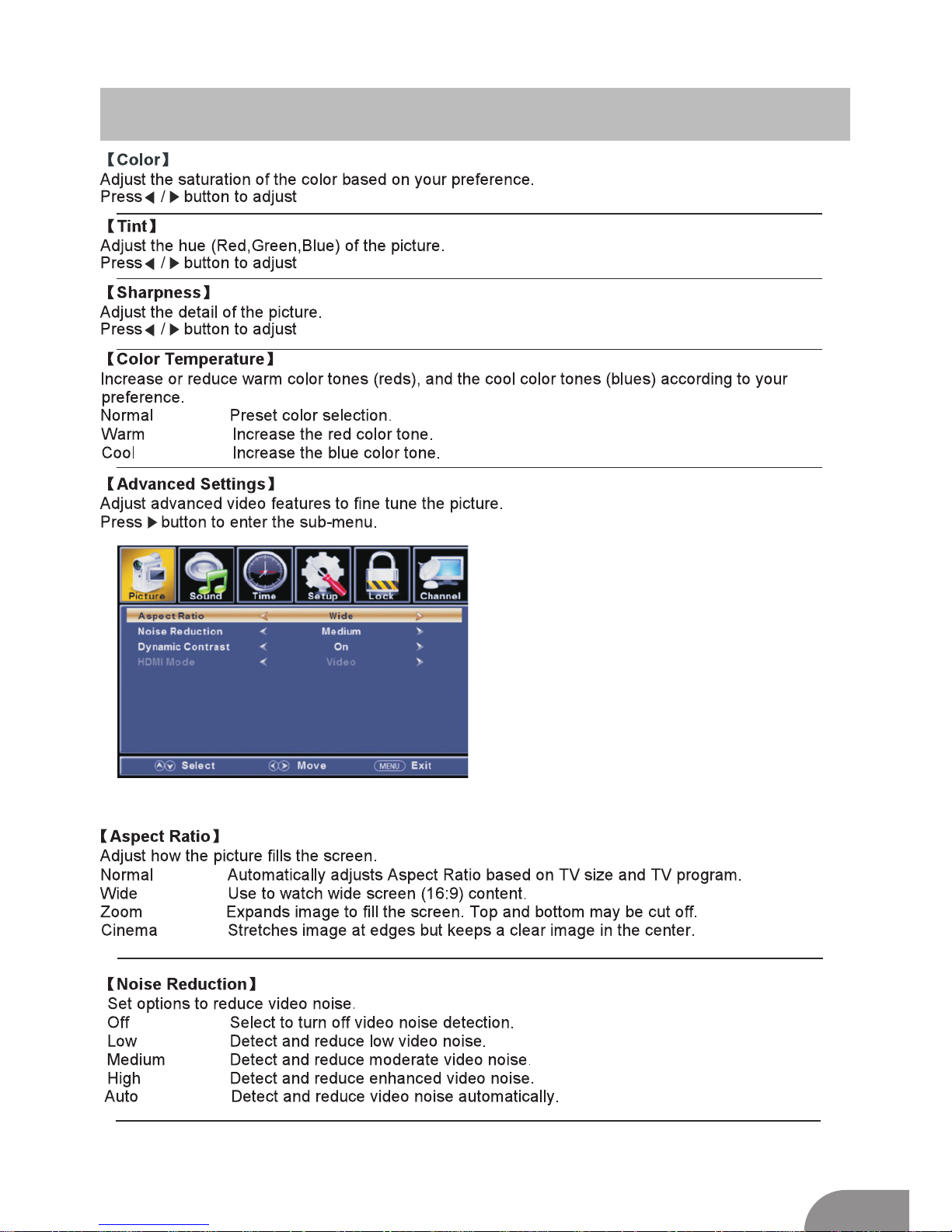

TV

14
TV

15
TV

16
TV

17

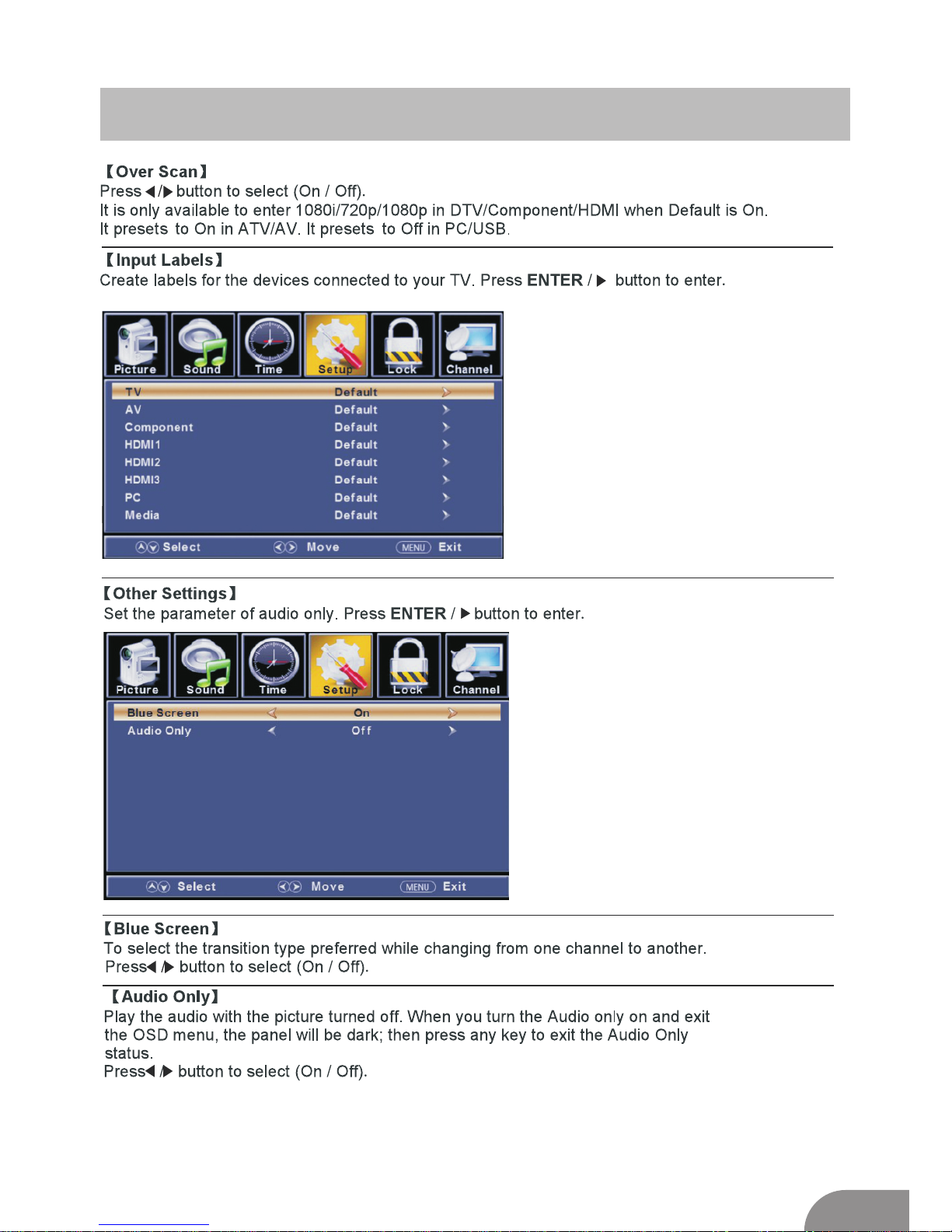

TV
the default

18
CC Mode
Analo g CC
Dig ita l CC
O
Mode
Font Sty le
Font Siz e
Font Edge Style
Font Edge Colo r
FG Colo r
Colo r
FG Opacity
Opacity
【 】
Turn Closed Capti oning on/off.
Pre ss butt on to select(C C Off / CC On / CC On/M ute ).
【 】
Set Closed Capti oning fo r sta ndard(analog) pro gra m.
Pre ss butt on to select(C C1 / CC2 / CC3 / CC4 / TEXT1 / TEXT2 / TEXT3 / TEXT4).
【 】
Set Closed Capti oning fo r digital pro gram.
Pre ss butt on to select(O ff / Serv ice1 / Serv ice2 / Service3 / Serv ice4 / Serv ice5 / Serv ice6).
【 ptio n】
Adjust th e digital Closed Capti oning sett ing.
Pre ss butt on to ente r.
【 】
Set th e look of digita l Closed Captioning. Auto mati c uses bro adcaste r’s style.
Pre ss butt on to select(D efa ult / Custo m).
【 】
Select fro m 8 font styles.
Pre ss butt on to select(D efa ult / Font 0 / Font 1 / Font 2 / Font 3 / Font 4 / Font 5 / Font 6 / Font 7).
【 】
Adjust th e size of the digita l Closed Capti oning fo nt.
Pre ssvbutt on to select(D efa ult /Norm al / Large / Small).
【 】
Adjust th e edge of the digita l Closed Capti oning box.
Pre ss butt on to select(D efa ult / None / Raised / Depre ssed / Uniform / Left Shadow / Right Shadow).
【 】
Adjust th e color of th e digita l Closed Captioning box.
Pre ss butt on to select(D efa ult/ Black / White / Red / Gre en / Blue / Yellow / Magenta / Cyan).
【 】
Adjust th e color of th e digita l Closed Captioning fo nt.
Pre ss butt on to select(D efa ult/ Black / White / Red / Gre en / Blue / Yellow / Magenta / Cyan).
【BG 】
Adjust th e digital Closed Capti oning backgro und color.
Pre ss butt on to select(D efa ult/ Black / White / Red / Gre en / Blue / Yellow / Magenta / Cyan).
【 】
Adjust th e tra nsparency of th e digital Closed Capti oning fo nt.
Pre ss butt on to select(D efa ult / Solid / Flashing / Tra nslucent) .
【BG 】
Adjust th e digital Closed Capti oning backgro und tra nspare ncy.
Pre ss butt on to select(D efa ult / Solid / Flashing / Tra nslucent) .
</ >
</ >
</ >
>
</ >
</ >
</ >
</ >
</ >
</ >
</ >
</ >
Close Caption
TV

19
TV
