RCA RFR115-F-BLACK User manual

USERMANUAL
For service assistance and product information, please call: 1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3 www.curtisint.com
RFR115-F-BLACK/RFR335/RFR322-C/RFR453
This product has been manufactured and sold under the responsibility of Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of Technicolor (S.A.) or
its affiliates and are used under license by Curtis International Ltd.
Any other product, service, company, trade or product name and logo referenced herein are neither endorsed nor sponsored by
Technicolor (S.A.) or its Affiliates.
RFR320-D-BLACK/RFR320-D-BLUE/RFR320-D-PURPLE/RFR320-C-LIME

SAFETY PRECAUTIONS
WARNING: Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
NOTE: If the refrigerator/freezer has been placed in a horizontal or
tilted position for any period of time wait 24 hours before
plugging the unit in.
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator/freezer must be properly installed in accordance with
the installation instructions before it is used. See grounding instructions
in the installation section.
3) This refrigerator/freezer should not be recessed or built-in an enclosed
cabinet. It is designed for freestanding installation only.
4) Never unplug your refrigerator/freezer by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
5) DANGER - Risk of Fire or Explosion. Flammable refrigerant used. Do
not use Mechanical devices to defrost refrigerator. Do not puncture
refrigerant tubing.
6) If your old refrigerator/freezer is not being used, we recommend that
you remove the doors. This will reduce the possibility of danger to
children.
7)
WARNING:
After your refrigerator/freezer is in operation, do not
touch the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
8) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below 40°F".
"…Thawed ground meats, poultry, or fish that have any off-odor or
offcolor should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
1
English

"…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of they’re
eating quality as you can."
9) Do not use any electrical device or any sharp instrument in defrosting
your refrigerator.
10) Unplug your refrigerator/freezer before cleaning or before making any
repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician perform service.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
CAUTION - Risk of Fire or
Explosion
Dispose of property in accordance with Federal or Local
Regulations. Flammable refrigerant used.
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
English
Staple your receipt to your manual.
You will need it to obtain warranty service.
Thank you for purchasing our
product. This easy-to-use manual
will guide you in getting the best
use of your appliance.
Remember to record the model and
serial number. They are on a label
in back of the appliances.
Model number
Serial number
Date of purchase
2

English
TABLE OF CONTENTS
1
3
6
Unpacking Your Refrigerator ............................................................... 6
Leveling Your Refrigerator ................................................................... 6
Proper Air Circulation......................................................................... 6
Electrical Requirements ....................................................................... 6
Door Alignment ................................................................................. 7
..............................................................8
General Features ............................................................................... 8
Refrigerator Interior Shelves................................................................. 8
Using Dispense-A-Can ..................................................................... 8
Defrosting Your Refrigerator ................................................................ 9
Food Storage Information ................................................................... 10
Normal Operating Sounds.................................................................. 11
Cleaning and Maintenance................................................................. 11
Light Bulb Replacement
.....................................................................
12
Power Interruptions
...........................................................................
Vacations and Moving Care
..............................................................
12
...............................................................................
13
11
Precautions
.................................................
S afety
...............................................................................
Parts And Festures
...............................................................................
Installation Instructions.........................................................................
Refrigerator Features and Use
Proper Refrigerator Care and Cleaning
T roubleshooting
11
...............................................................................
14
........................................................................................
15
W arranty
T echnique Index

3
English
Parts And Features
1. Built-in freezer
2. Drip tray
3. Removable shelf
4. Temperature control knob
(Turn to right to raise; turn to left to lower)
5. Defrost button
6. Door seal (gasket)
7. Bottle rack
1
2
3
4 65
7
RFR115-F-BLACK

English
Parts And Features

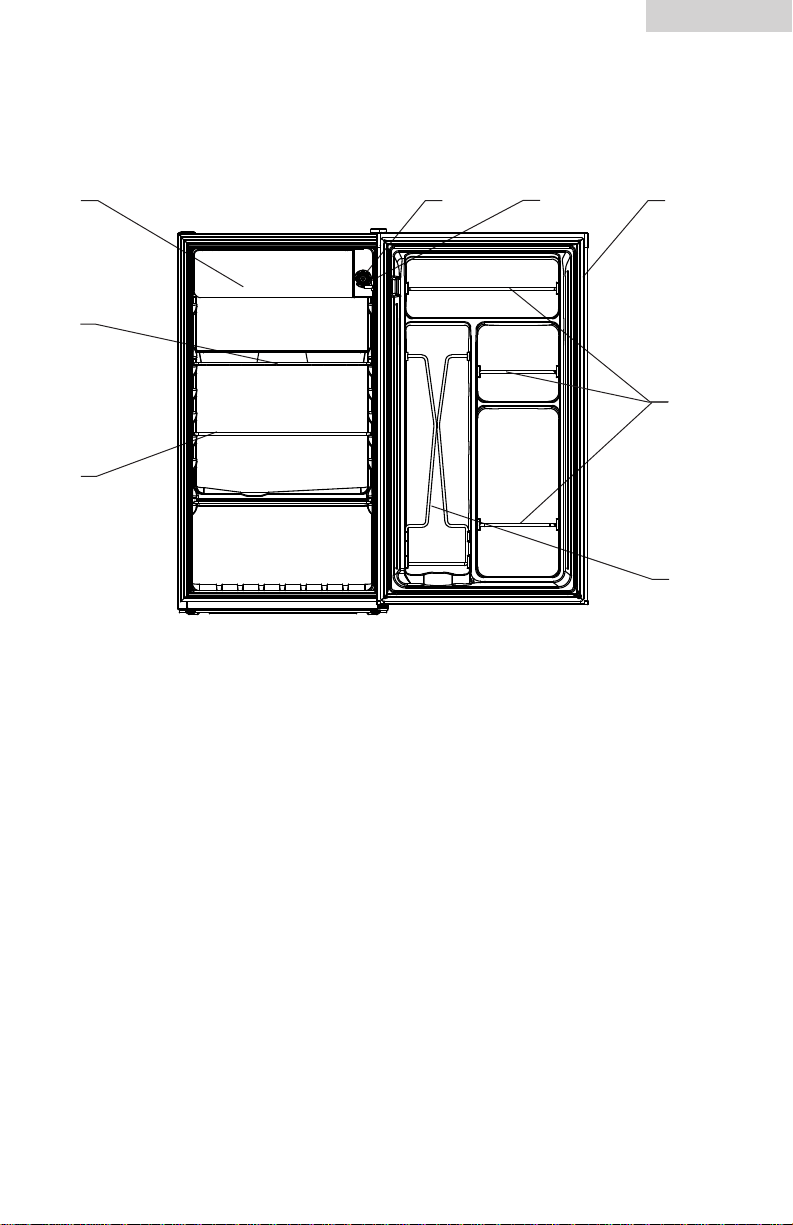

RFR335/RFR332-C/RFR320-C-LIME
2
1
3
45 6
7
8
1. Built-in freezer
2. Drip tray
3. Removable shelf
4. Temperature control knob
(Turn to right to raise; turn to left to lower)
5. Defrost button
6. Door seal (gasket)
7. Bottle rack
8. Tall bottle storage
4
RFR320-D-BLACK/RFR320-D-BLUE/RFR320-D-PURPLE

English
Parts And Features

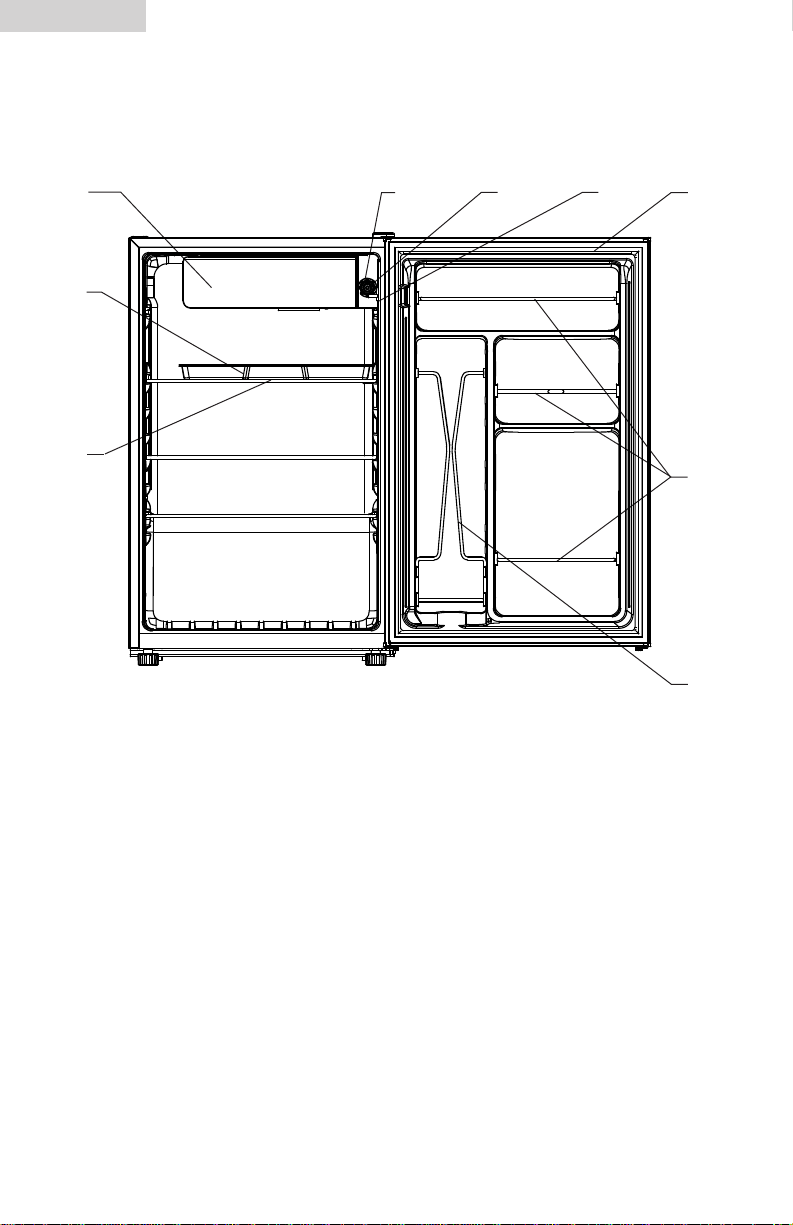

RFR453
1. Built-in freezer
2. Drip tray
3. Removable shelf
4. Temperature control knob
(Turn to right to raise; turn to left to lower)
5. Defrost button
6. Door seal (gasket)
7. Can holders
8. Tall bottle storage
9. Lamp Switch
1
2
3
4 5 9 6
7
8
5

Installing Your Refrigerator
Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before
powering on the refrigerator.
CAUTION
Risk of Fire or Explosion due to puncture of refrigerant tubing. Flammable
refrigerant used. Handle with care when moving refrigerator to avoid either
damaging the refrigerant tubing or increasing the risk of a leak.
Leveling Your Refrigerator
• Your refrigerator has two leveling legs which are located in the front bottom
corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them counterclockwise to raise your
refrigerator or by turning them clockwise to lower your refrigerator. The
refrigerator door will close easier when the leveling legs are extended.
Proper Air Circulation
• To ensure your refrigerator works at the maximum efficiency it was designed for,
you should install it in a location where there is proper air circulation, plumbing
and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm)
Top....................2" (50mm)
Back..................2" (50mm)
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
Electrical Requirement
• Make sure there is a suitable power outlet (120 volts, 15 amps outlet) with proper
grounding to power the refrigerator.
• Avoid the use of three prong adapters or cutting off the third grounding prong
in order to accommodate a two prong outlet. This is a dangerous practice since
it provides no effective grounding for the refrigerator and may result in shock
hazard.
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY
HAZARD
6
English

Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance. DO NOT USE
EXTENSION CORD LONGER THAN 12 FT.
Installation Limitations
• Do not install your refrigerator in any location not properly insulated or heated,
e.g. garage, etc. Your refrigerator was not designed to operate in temperature
settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface away
from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking
appliances, etc. Any floor unevenness should be corrected with the leveling legs
located on the front bottom corners of the refrigerator.

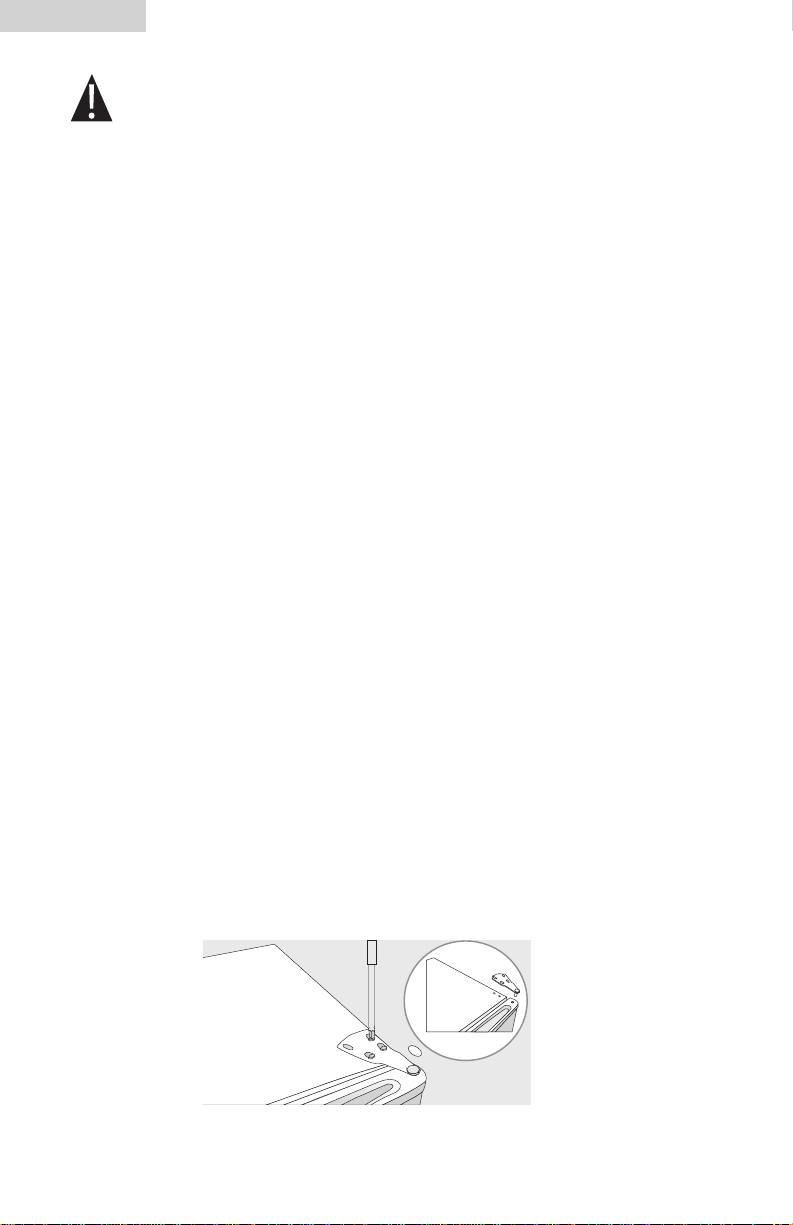

Door Alignment
Freezer Door: (see fig. #1)
1. Remove the top hinge cover.
2. Loosen the top hinge screws using a phillips head screwdriver.
3. Adjust the door or put a spacer in between and then tighten the screws.
4. Replace the top hinge cover.
7
English
1
0
2
3
4
5
6
7
fig. # 1
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY
HAZARD

8
English
Refrigerator Features And Use
General Features

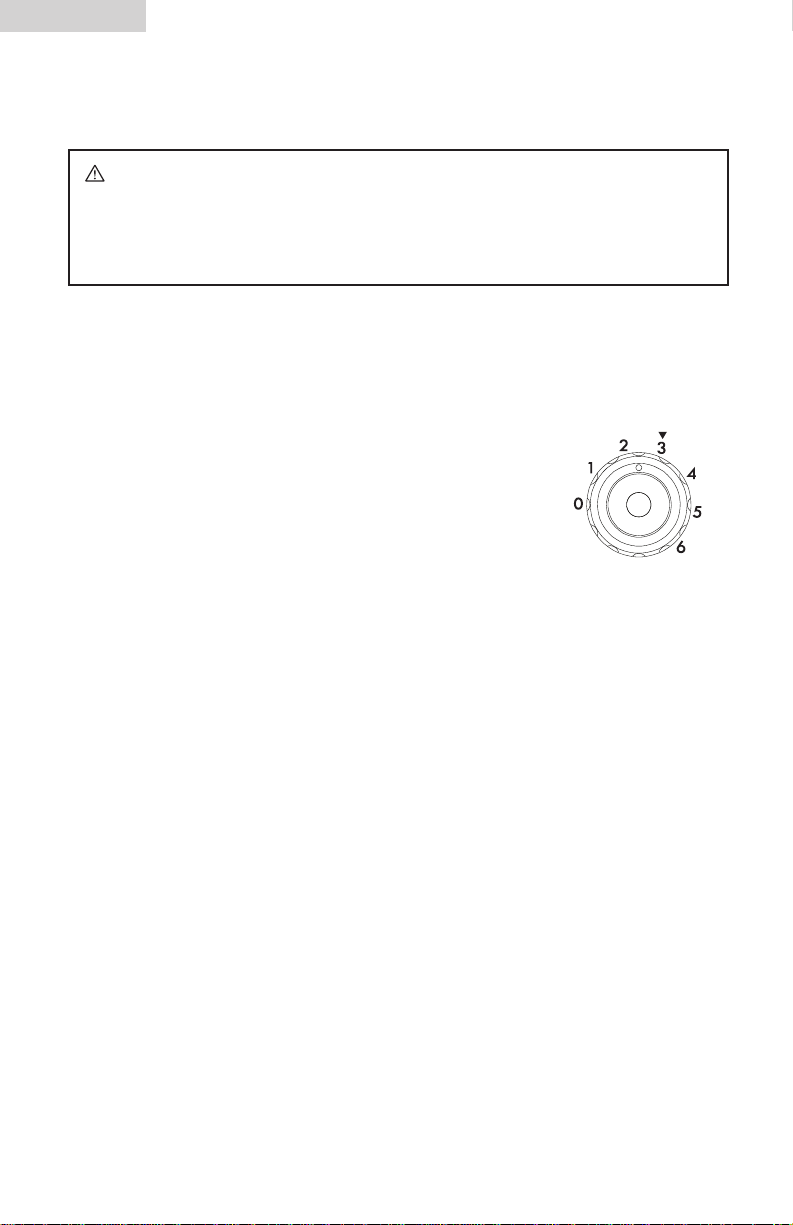

Adjustable temperature dial:
Your refrigerator will automatically maintain the temperature level you select.
The temperature control dial has 6 settings plus 0. 1 is the warmest. 6 is the
coldest. Turning the dial to 0 Stops cooling in both the refrigeration and freezer
sections. At first, set the dial to 4 and allow 24 hours to pass before adjusting the
temperature to your needs.
(Note: If the refrigerator has been placed in a horizontal or tilted position for
any period of time wait 24 hours before plugging the unit in.)
Refrigerator Interior Shelves

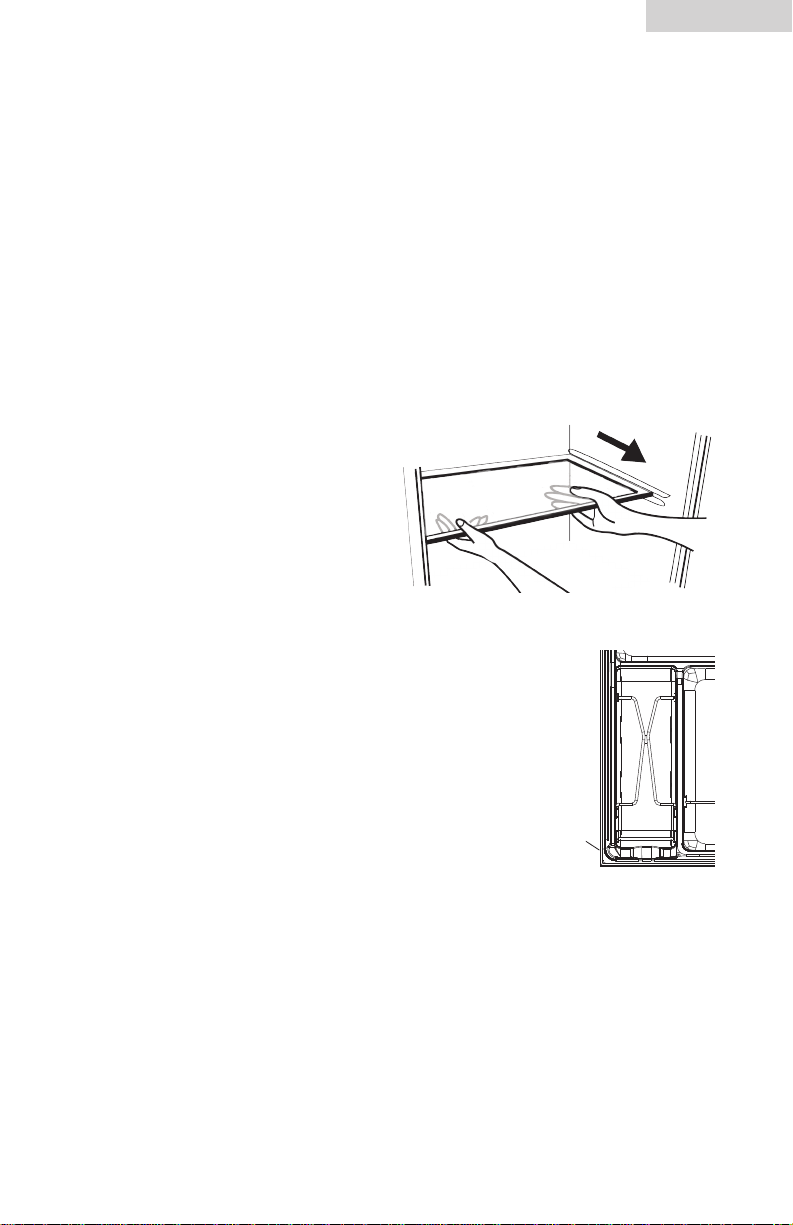

To remove or replace a full-width
slide-out shelf:
(see fig. # 2)
1. Gently tilt the shelf up and slide
forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the
shelf back.
Using the Dispense-A-Can
• Your refrigerator is equipped with the convenient “Dispense-
A-Can” compartment. Each compartment will hold up to six
cans. Simply load the cans from the top. To dispense a can,
simply draw one out from the bottom. It is that easy.
fig. # 2
fig. # 3

9
English
Defrosting Your Refrigerator
Maintenance
Risk of Fire or Explosion. Flammable refrigerant used. Do not puncture of
refrigerant tubing. To be repaired only by trained authorized service personnel.
Consult Repair Manual before attempting to service this product. All Safety
Precautions Must be followed. Component parts shall be replaced with like
components to minimize the risk of possible ignition due to incorrect parts or
improper service.
- When being defrosted the appliance must be unplugged to avoid the risk of electrical shock.
- DO NOT use a sharp or metallic instrument to remove frost from the refrigerator interior, as
damage to refrigerant tubing may occur. Tubing damage may allow flammable refrigerant gas
leakage, which can result in injury to persons.
Defrosting is needed when the frost layer on the evaporator reaches 3 - 4mm. Press the
defrost button in the middle of temperature control knob, the refrigerator will begin to
defrost. When the defrosting has ended, the thermostat will switch on automatically,
and the refrigerator will start working again.
CAUTION: DO NOT use boiling water to melt frost accumulation on freezer walls, as it
may damage plastic parts.
WARNING

English
10
Fresh Food:
• When storing fresh food that is not prepackaged, be sure to wrap or store food
in airtight and moisture proof material unless otherwise noted. This will ensure
proper shelf life and prevent the transfer of odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried, then stored in sealed plastic bags before
storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers.
• Leafy vegetables should be washed and drained and then stored in plastic
bags or containers.
• Hot food should be allowed to cool before storing in the refrigeration. This will
prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for safe
storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
For detailed storage chart visit FDA website:
www.cfsan.fda.gov/~dms/fttstore.html
Food Storage Information

11
English
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
Proper Refrigerator Care and Cleaning
Cleaning and Maintenance
WARNING: To avoid electric shock, always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
CAUTION: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General: Prepare a cleaning solution of 3-4 tablespoons of baking soda
mixed with warm water. Use sponge or soft cloth, dampened
with the cleaning solution, to wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine
bleach, concentrated detergents, solvents or metal scouring
pads. Some of these chemicals may dissolve, damage and/or
discolor your refrigerator.
Door Gaskets: Clean door gaskets every three months according to general
instructions. Gaskets must be kept clean and pliable to assure a
proper seal
• Petroleum jelly applied lightly on the hinge side of gaskets will
keep the gasket pliable and ensure a good seal.
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power outage
occurs. When power has been restored, replug power cord to AC outlet.
If outage is for a prolonged period, inspect and discard spoiled or thawed
food in freezer and refrigerator. Clean refrigerator before reusing.
WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD, INSPECT
AND DISCARD SPOILED OR THAWED FOOD IN
FREEZER AND REFRIGERATOR. CLEAN REFRIGERATOR
BEFORE REUSING.

12
English
Interior light bulb replacement
If the interior 15 watt appliance light bulb burns out, remove the light bulb cover
and replace bulb as follows:
1. Unplug refrigerator from power outlet.
2. Loosen and remove the bulb from its socket by rotating counterclockwise.
3. Insert new bulb and screw into socket.
4. Plug refrigerator back into power outlet.
Vacation and Moving Care
• For long vacations or absences, empty food from refrigerator and freezer,
move the temperature DIAL to the OFF position and clean the refrigerator and
door gaskets according to "General cleaning" section. Prop doors open, so air
can circulate inside.When moving always move the refrigerator vertically. Do
not move with the unit lying down. Possible damage to the sealed system could
occur.

Refrigerator does not operate:
• Check if thermostat control is not in the “0” position.
• Check if refrigerator is plugged in.
• Check if there is power at the AC outlet, by checking the circuit breaker.
Food temperature appears too warm:
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold:
• If temperature control setting is too cold, adjust to a warmer setting and allow
several hours for temperature to adjust.
Refrigerator runs too frequently:
• This may be normal to maintain constant temperature during high temperature
and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
13
English
Troubleshooting
Refrigerator door does not shut properly:
•Level the refrigerator.
•Re-align refrigerator door.
• Check for blockages, e.g. food containers, crisper cover,shelves, bins, etc.

14
English
Popping or cracking sound when the compressor comes on:
•Check to ensure the refrigerator is level.
• The floor may be uneven or weak. The refrigerator rocks on the floor when it is
moved slightly. Be sure the floor can adequately support the refrigerator. Level the
refrigerator by putting wood or metal shims under part of the refrigerator.
• The refrigerator is touching the wall. re-level the refrigerator and move it from the
wall. See the “Installing Your Refrigerator” section.
Refrigerator light does not work
•Check power supply.
•Tighen bulb in socket.
• Replace burned out bulb.
MODEL
CAPACITY OF FRIDGE IN CU FT
SHELF MATERIAL
TEMPERATURE CONTROL TYPE
DEPTH(EXCLUDING HANDLES)(IN.)
DEPTH(LESS DOOR)(IN.)
DEPTH WITH DOOR OPEN 90 DEGREES(IN.)
HEIGHT TO TOP OF DOOR HINGE(IN.)
HEIGHT TO TOP OF REFRIGERATOR(IN.)
PRODUCT DEPTH(IN.)
PRODUCT HEIGHT(IN.)
PRODUCT WIDTH(IN.)
REFRIGERATOR WIDTH(IN.)
1.6
wire
mechanical
18.03
15.55
34.35
19.44
4.5
glass
mechanical
21.23
16.93
40.89
32.12
18.03 22.13
19.8 32.48
17.83 20.59
17.72 20.47
3.2
glass
mechanical
18.03
15.55
34.35
32.14
18.03
32.5
17.83
17.72
RFR115-F-BLACK RFR453
Technique Index
19.8 32.4832.5
RFR335/RFR322-C
RFR320-D-BLACK
RFR320-D-PURPLE
RFR320-D-BLUE
RFR320-C-LIME

English
To make a warranty claim, do not return this product to the store. Please email
[email protected] or call 1-800-968-9853.
1 Year Warranty
This product is warranted to be free from defects in material and workmanship for
a period of one (1) year from the date of original purchase. During this period,
your exclusive remedy is repair or replacement of this product or component
found to be defective, at our option; however, you are responsible for all costs
associated with returning the product to us. If the product or component is no
longer available, we will replace with a similar one of equal or greater value. Prior
to a replacement being sent, the product must be rendered inoperable or returned
to us.
This warranty does cover glass, filters, wear from normal use, use not in
conformity with the printed directions., or damage to the product resulting from
accident, alteration, abuse, or misuse. This warranty extends only to the original
consumer purchaser or gift recipient. Keep the original sales receipt, as proof of
purchase is required to make a warranty claim. This warranty is void if the product
is used for other than single-family household use or subjected to any voltage and
waveform other than as on the specified rating on the label (e.g., 120V~60Hz).
We exclude all claims for special, incidental, and consequential damages caused
by breach of express or implied warranty. All liability is limited to the amount of
the purchase price. Every implied warranty, including any statutory warranty or
condition of merchantability or fitness for a particular purpose, is disclaimed
except to the extent prohibited by law, in which case such warranty or condition is
limited to the duration of this written warranty. This warranty gives you specific
legal rights. You may have other legal rights that vary depending on where you
live. Some states or provinces do not allow limitations on implied warranties or
special, incidental, or consequential damages, so the foregoing limitations may
not apply to you.
For faster service, locate the model, type, and serial numbers on your appliance.
not
15

Manuel de l'utilisateur
Pour obtenir assistance et information appelez: 1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3 www.curtisint.com
'Ce produit a été fabriqué et vendu sous la responsabilité de Curtis International Ltd. RCA, le logo RCA, le logo des deux chiens (Nipper et Chipper),
sont des marques déposées ou des marques commerciales de Technicolor (S.A.) ou de ses affiliés et sont utilisés sous licence par Curtis International
Ltd. Tout autre produit, service, société, nom commercial ou produit et logo référencés ici ne sont ni approuvés ni sponsorisés par Technicolor (S.A.)
ou ses affiliés. '
RFR115-F-BLACK/RFR335/RFR322-C/RFR453
RFR320-D-BLACK/RFR320-D-BLUE/RFR320-D-PURPLE/RFR320-C-LIME

1
Français
CONSIGNES GÉNÉRALES DE SECURITÉ
ATTENTION: Lire l’ensemble des instructions avant d’utiliser
l’appareil. Lors de l’utilisation de cet appareil,
prendre toutes les mesures de sécurité de base, y
compris les suivantes:
REMARQUE: Si le réfrigérateur a été placé en position horizontale ou
en position inclinée, que ce soit pour longtemps ou non,
attendez 24 heures avant de brancher l’appareil.
1) N’utiliser cet appareil que pour l’usage prévu, tel que décrit dans ce
guide d’utilisation et d’entretien.
2) Ce réfrigérateur doit être correctement installé, conformément aux
instructions d’installation avant d’être utilisé. Voir les instructions de
mise à la terre dans la section Installation.
3) Ce réfrigérateur ne doit être ni encastré, ni enclos dans un placard. Il
est uniquement conçu pour être installé tel qu’il se présente.
4) Ne jamais tirer sur le cordon d’alimentation pour débrancher le réfri-
gérateur. Toujours saisir fermement la fiche et la tirer tout droit hors de
la prise.
5)
DANGER: Risque d'incendie ou d'explosion due à la tuyauterie de
réfrigérant de piqûre. Réfrigérant inflammable utilisé. N'utilisez pas les
instruments en métal pour dégivrer le réfrigérateur. Ne perforez pas la
tuyauterie réfrigérante.
6) Si un ancien réfrigérateur n’est pas utilisé, nous recommandons d’en
retirer les portes afin de réduire le danger qu’il peut représenter pour
les enfants.
7) ATTENTION:
Une fois le réfrigérateur en fonctionnement, ne pas
toucher les surfaces froides du congélateur,
particulièrement avec des mains mouillées ou humides.
La peau peut adhérer à ces surfaces extrêmement froi-
des.
8) Ne pas recongeler les aliments qui ont été complètement décongelés.
Le bulletin maisons et jardins du ministère de l’agriculture des États-
Unis no. 69 stipule : « ..Les aliments congelés peuvent être recongelés
en toute sécurité s’ils contiennent toujours des cristaux de glace ou si
leur température est toujours inférieure à 4,5 °C (40 °F) ».
« …Les viandes hachées, la volaille et le poison présentant une odeur
ou une couleur suspecte ne doivent être ni recongelés, ni mangés.
La crème glacée dégelée doit être jetée. Tout aliment présentant une
odeur ou couleur douteuse doit être jeté cas son ingestion pourrait être
dangereuse.»

« …La décongélation ou la recongélation, même partielle réduit la quali
é gustative des aliments, en particulier des fruits, légumes et plats
préparés. La qualité gustative des viandes rouge est beaucoup moins
affectée que celle de nombreux autres aliments. Utiliser les aliments recon-
gelés dès que possible, afin de conserver un maximum de leur qualité
gustative. »
9) Ne pas utiliser d’appareils électriques ou d’objets acérés pour dégivrer le
réfrigérateur.
10) Débrancher le réfrigérateur avant de le nettoyer ou d’effectuer toute
réparation. Remarque: si, pour une raison quelconque, ce produit devait
être dépanné, nous recommandons vivement de confier le travail à un
technicien certifié.
11) Ne pas utiliser le réfrigérateur en présence d’émanations explosives.
VEUILLEZ CONSERVER CES
INSTRUCTIONS
ATTENTION -
Risque d'incendie ou d'explosion
Ayez la propriété selon des règlements fédéraux ou locaux.
Réfrigérant inflammable utilisé.
Français
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout
service après-vente sous garantie.
2
DANGER
Les enfants pourraient se retrouver coincés dans votre
réfrigérateur ou congélateur usagé avant que vous ne
puissiez vous en débarrasser. Retirer les portes. Laisser les
étagères en place de manière à ce que les enfants ne
puissent pas grimper facilement à l’intérieur.
