USER’S MANUAL
65” ANDROID TV
RTAU6504
'This product has been manufactured and sold under the responsibility of Curtis
International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks
or trademarks of Technicolor (S.A.) or its affiliates and are used under license by Curtis
International Ltd.
Any other product, service, company, trade or product name and logo referenced
herein are neither endorsed nor sponsored by Technicolor (S.A.) or its Affiliates.'

PRECAUTIONS AND REMINDERS

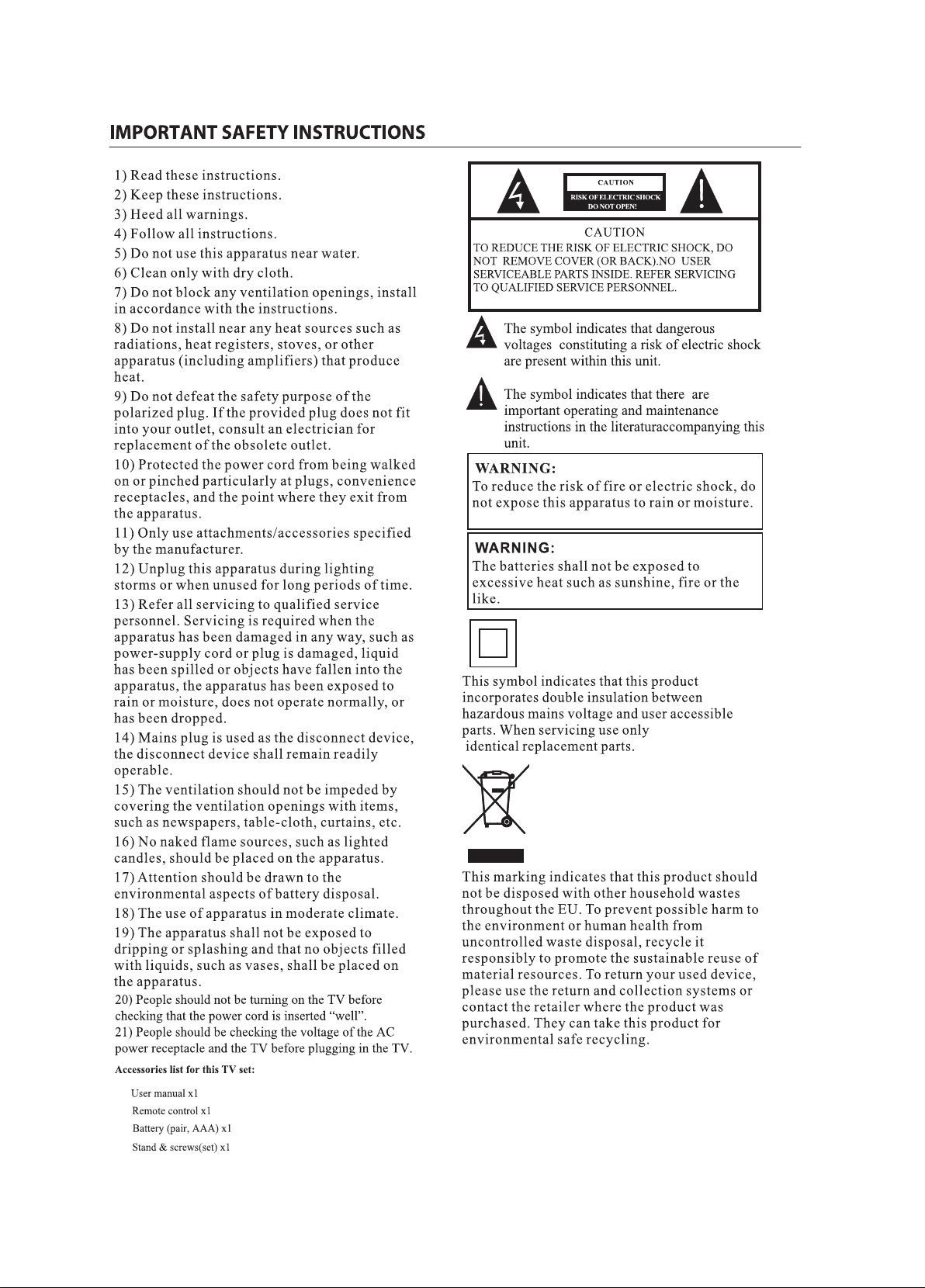

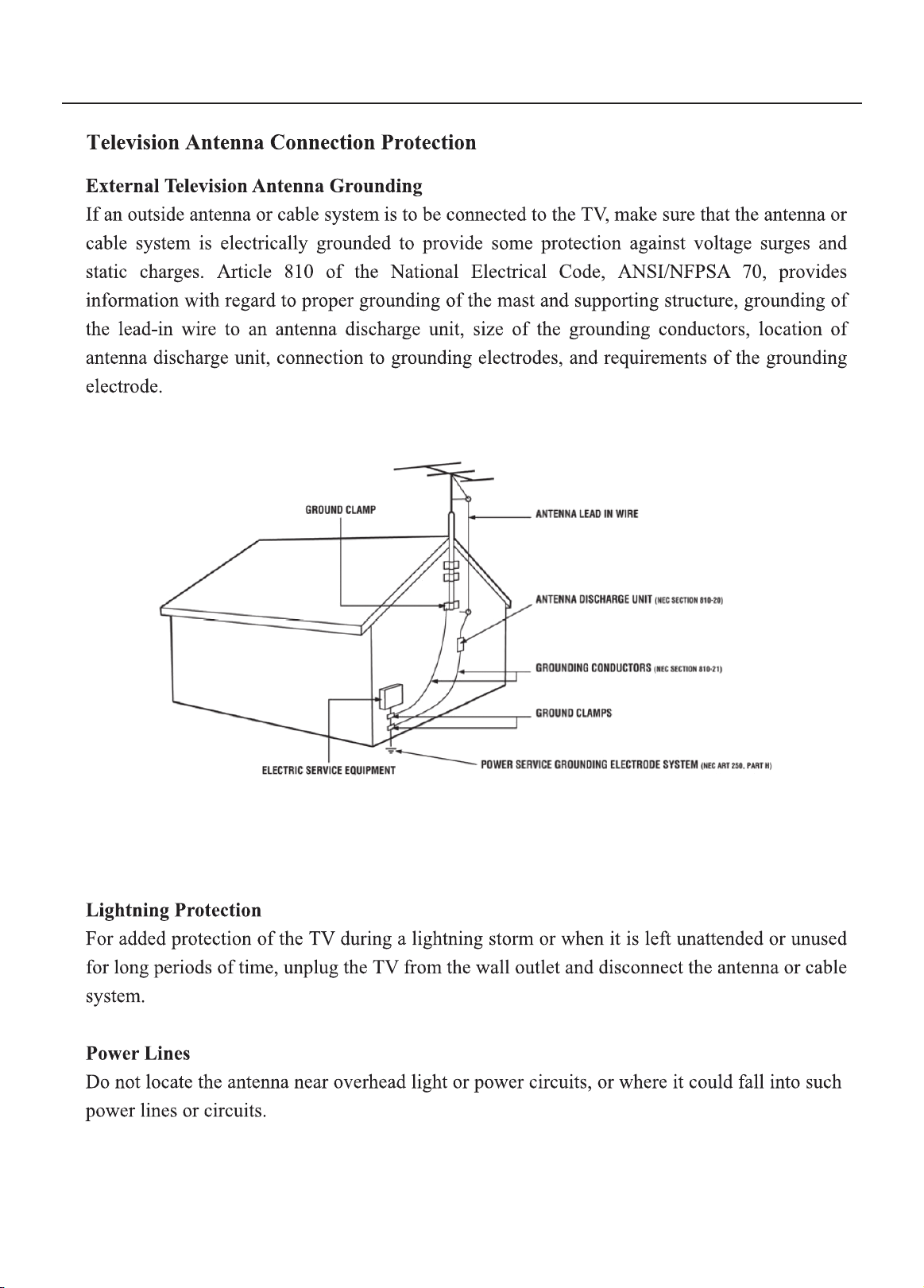

IMPORTANT SAFETY INSTRUCTIONS
BUTTON CONTROL AND PERIPHERAL CONNECTION
OPERATING INSTRUCTIONS
SPECIFICATIONS
TROUBLESHOOTIN
WARRANTY CARD
G
TABLE OF CONTENTS

1

PRECAUTIONS AND REMINDERS
If you are going to clean the product,Unplug the TV
,use
soft fabric,no water,never chemicals.

IMPORTANT INFORMATION

ATTACTHING OR REMOVING THE STAND

400mm x 200mm
IDENTIFYING FRONT AND REAR PANEL

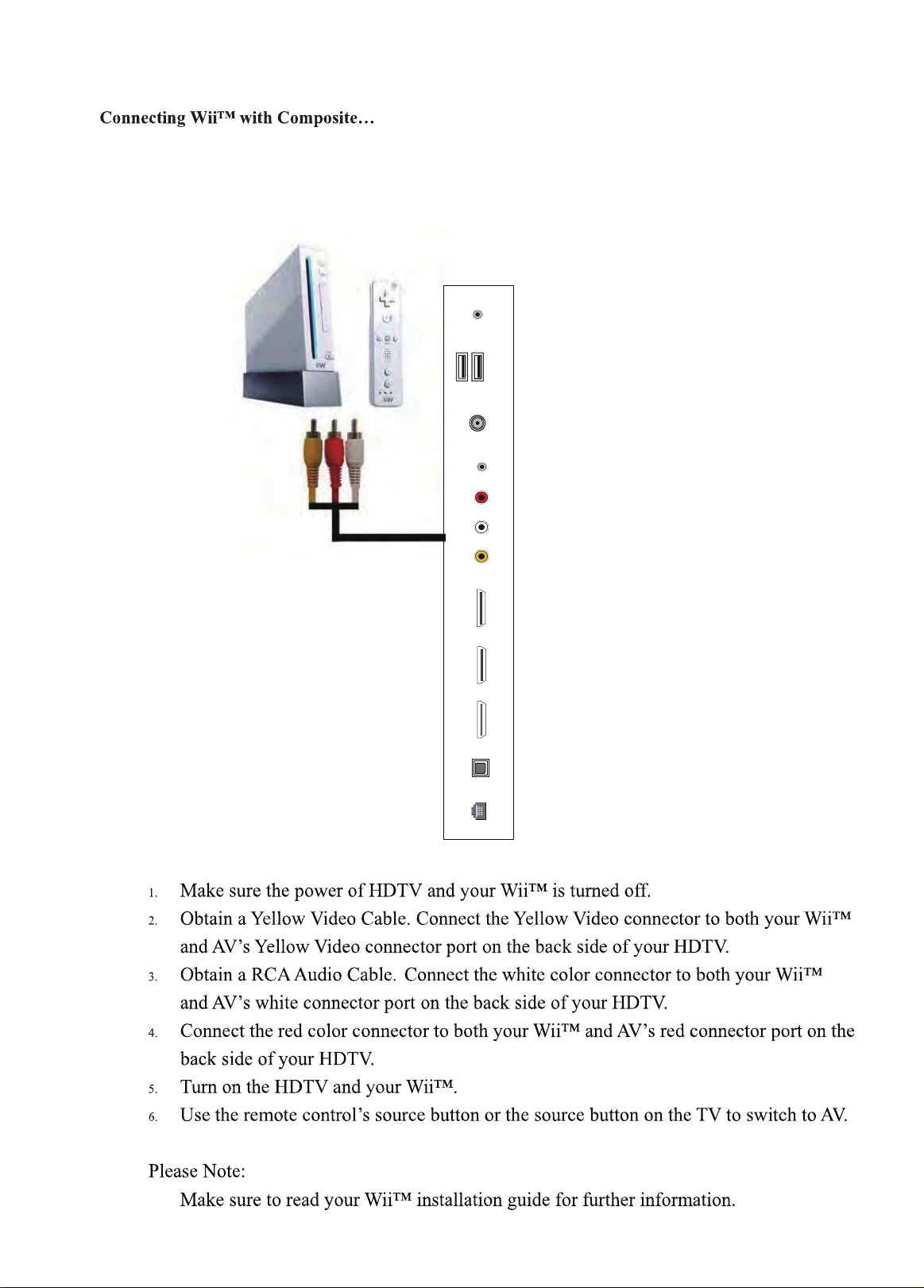

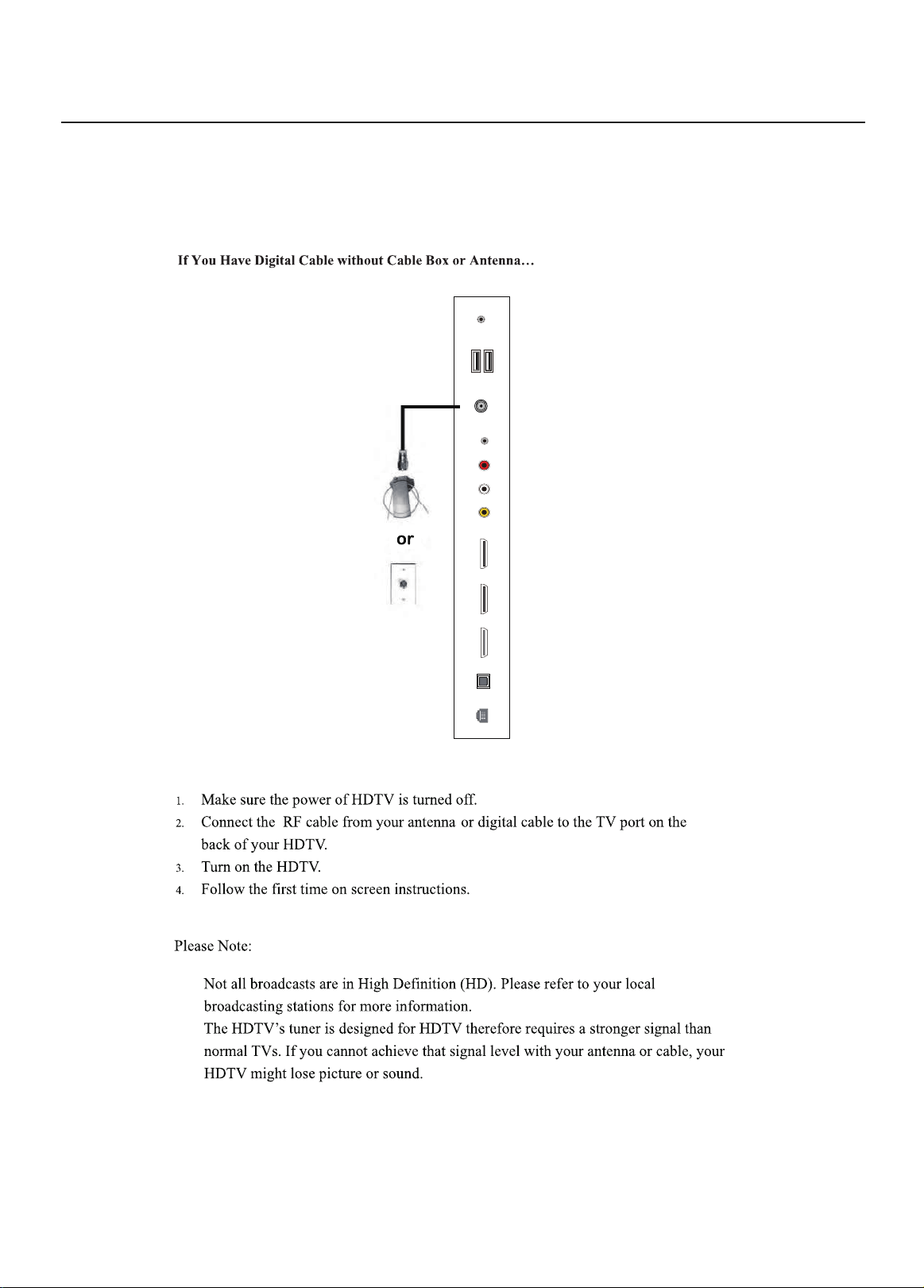

CONNECTION SUGGESTIONS

OPTICAL
OPTICAL
Optical...
OPTICAL
OPTICAL
OPTICAL

BUTTON CONTROL AND PERIPHERAL CONNECTION
PERIPHERAL CONNECTION
BUTTON CONTR LO
VOL+/VOL-
CH+/CH-
In the non-menu page,Under the menu page, press the left and
right keys to adjust the volume addition and subtraction.
In the non-menu page, you can adjust the TV channel under the
program addition and subtraction;
Under the menu page, you can move the cursor up and down.
3. HDMI1input terminal.
2. Optical out terminal.
1. RJ45
7. Earphone terminal.
5. HDMI3(ARC) input terminal.
4. HDMI2 input terminal.
8. RF antenna.
6. Audio&Video input terminal.
2 3 4 5 61 7 8 9 10
10. YPbPr(MINI) input terminal.
to access media function of TV. (Support format: TXT for Text. MP3 for music.
JPG, JPEG, BMP and PNG for photo. MP4, 3GPP, AVI, MKV and ASF for movie.)
OK/
In the standby mode, press to turn on the TV.
In the boot state, long press to shut down.
Under the menu page , function equivalent to the OK key.

OPERATING INSTRUCTIONS

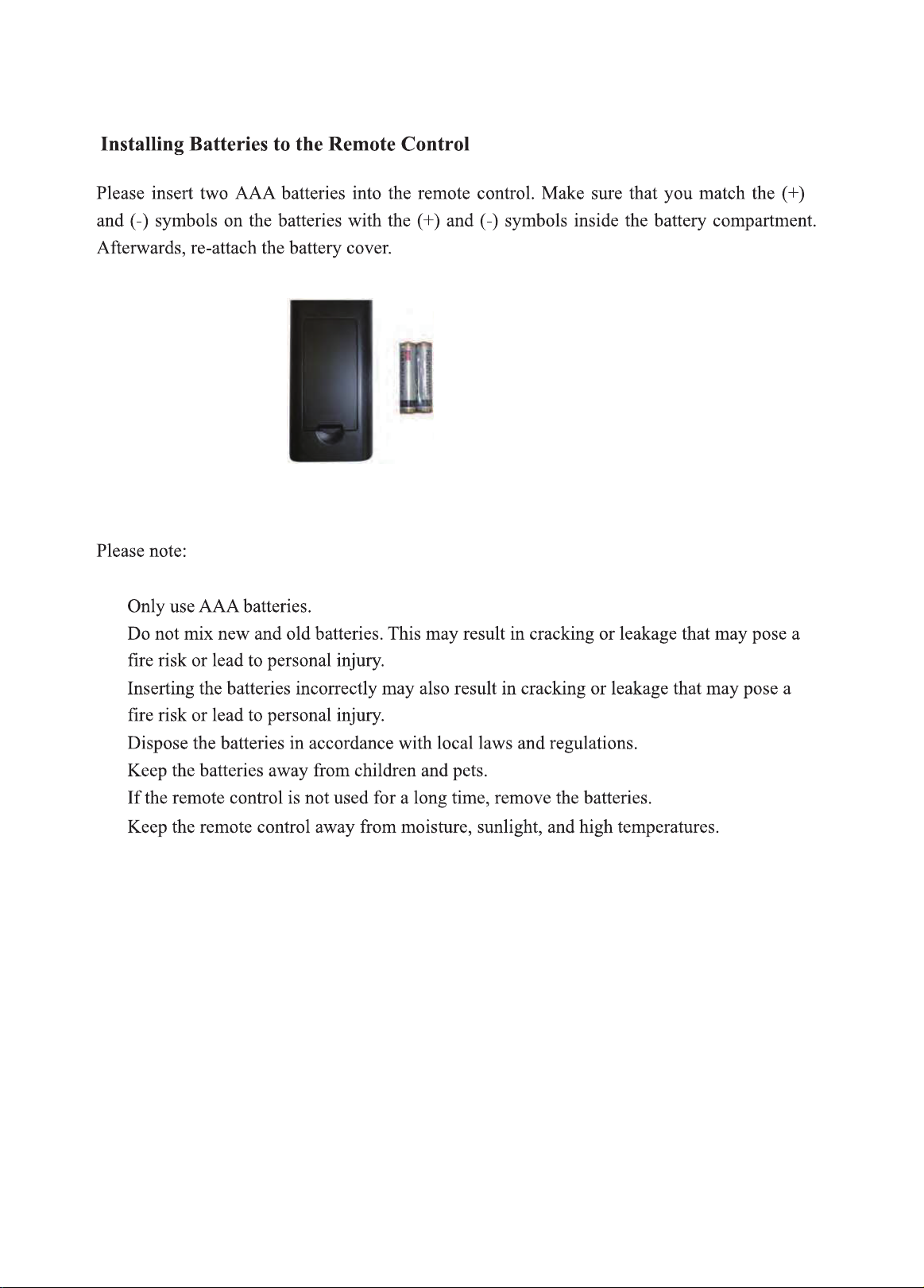

USING THE REMOTE CONTROL
52
111000
13 14 15
17 18 19
48
30 31
34
0F 4E
0A
4D
47
4A49 4B
06
03 53
40
41
5C
12 45 51
0B 08 5B
42 1D 1F
5D 5E 5F
02
09
35
1 B 07
Format: NEC
Hex coding: 20DF
Hex coding info:
1.,@2abc def
jkl
tuv
ghi
pqrs
mno
wxyz
3
4 5 6
7 8
OK
9
INFO
CC
MTS
MENUHOME
SOURCE
P.MODE S.MODE
BACK
VOL CH
EXIT
0
VUDU

Item Descriptions
Power
Google
Assistant
VUDU
0~9 number Press to enter a TV channel number
Enter multiple program channel number
such as 2-1.
Press to turn on or close the menu on screen.
Press to navigate the on-screen menu.
CH+/CH - Press CH+ or CH- to change TV channels.
VOL+/VOL- Press VOL+ or VOL- to adjust volume level.
MENU
OK
BACK Return to the previous menu.
EXIT It depends on the actual function
disconnect power, unplug the power cord.
MUTE
(reverse) Press to reverse playback in multimedia &
Timeshift mode.
Press to play in multimedia mode &Timeshift
mode.
(play)
Press to fast forward in multimedia &Timeshift
mode.
(forward)
Press to pause in multimedia mode&Timeshift
mode.
(Pause)
Press to stop multimedia playback, REC&
Timeshift mode.
(stop)
SOURCE Press to open the input source list.
NETFLIX
YouTube
Press to enter the NETFLIX
Press to enter the YouTube.
Press to enter the VUDU.
Google Play Press to enter the Google Play.
Press to enter the google assistant or start a
voice search.
HOME
INFO Press to display the channel information.
Press to enter the Home Page.
Enter the selected option or perform the
selected operation.
MTS STEREO/MONO/SAP.
CC Closed Caption selection: ON/OFF/CC On Mute.
P.MODE Select picture mode: User/Standard/Vivid/Sport/
Movice/Game/Energy Saving.
S.MODE Select sound mode: standard/music/movie/user.
COLOR
BUTTONS
Press to access directly to the corresponding
function in APP service.

INITIAL SETUP
Please according to the Text Tip to First Time
Setup.This function is used for the remote control
pair code. After the code is successful, you can use
the Bluetooth remote control to operate the TV.
Press and hold "HOME" button and" Left" button
simultaneously for 5 seconds. Then press "OK"
button when the "TV_BLE_Remote" displays in the
upper right corner of the screen.
INPUT SOURCE
1. In the HOME interface, press to select
the “Inputs” icon, press OK to open the input source
list, then press up to highlight an input and press
OK to switch.
2. Under live TV, press the SOURCE button to display
the list of input sources. You can select the desired
source.
Open the google assistant or start a voice search.
Among the applications installed on the TV, the
icons for the favourite applications are shown inside
here. (Favourite applications can be added / deleted /
changed its order by users.)
Apps: Click to jump to Apps screen where all the
installed applications are listed.
Inputs: Icon to select an input source.
Network&Interent:
Settings:
For details on the settings, see the next explanation.
HOME SCREEN
During initial setup, press EXIT to exit the initial setup, and
enter the HOME screen. NAVIGATING THE ON-SCREEN MENU
1. There are two ways to enter. First, in live TV, press
the menu button to display TV options, press
to select the settings menu and press
OK to
key to select the icon of the circular settings
menu, press OK
2.Press button to select what you want set.

1. Press / button to select what you want set .
2. Press OK button to adjust.
OK button to
save and return to the previous menu.
3.Press OK to enter setting.
Press BACK to return to the previous menu. If the main
menu is displayed, pressing BACK will close the
onscreen menu.
Network
Channel
1. Press
CHANNEL menu.
2. Press Enter button to adjust.
3. Enter
/
/
/
/
/
/
/
/
/
/
Channel Sources：
Press ▼/▲button to select
Channel Sources ,then press Enter/►button to enter.
Customize Channel List : Press
Customize Channel List,then press Enter
button to enter .
Channel Installation Mode : Press
Channel Installation Mode ,then press
Enter button to enter . (Optional:Antenna/Cable)
Multi Audio:Press button to select
, then press Enter button to enter .
(Optional:English/Espanol/Francais)
Parental Controls: Press
Enter
Channels Blocked: Press
Program Restrictions: Press
button to enter ON
Rating Systems: Press
ENTER button to enter.
Ratings: Press
Inputs Blocked: Press button to select Inputs
(Optional: TV/Composite/Component/HDMI1/
Blocked.
HDMI2/HDMI3)

In this menu, you can set the APP permissions, and read
the app lists
1. Press / button to select what you want set .
2. Press OK button to adjust.
return to the previous menu.
ACCOUNTS & SIGN IN
APPS
In this menu, you can read the information and settings
of TV.
1. Press / button to select what you want set .
2. Press OK button to adjust.
return to the previous menu.
DATE&TIME
DEVICE PREFERENCES
ABOUT
option then press OK button to choose ON/OFF.
– Press button to select the
Use 24-hour format
Manually adjusting date & time settings will automaticall
change the Automatic date & time to OFF .
NOTE
option then press OK button to enter the sub-menu.
– Press button to select the
Automatic date & time
then press OK button to enter the sub-menu.
– Press button to select the option
Set date
then press OK button to enter the sub-menu.
– Press button to select the option
Set time
then press OK button to enter the sub-menu.
– Press button to select the option
Set time zone
TIMER
Press / button to select the
option then press OK button to choose ON/OFF/ONCE.
Power On Timer Type –
Press / button to select the
option then press OK button to enter the sub-menu.
Power On Timer –
Press / button to select the
option then press OK button to enter the sub-menu.
P
Press / button to select
the option then press OK button to choose ON/OFF/
ONCE.
P
LANGUAGE
.
then press OK button to enter the select language.
– Press / button to select the option
Language
Change PIN:Press button to select
/
Change PIN.(Initial PIN:1234)

KEYBOARD
Press / button to select the
option then press OK button to enter the sub-menu.
Current keyboard –
Press / button to select the
option then press OK button to enter the sub-menu.
Gboard Settings –
Press / button to select the
option then press OK button to enter the sub-menu.
Manage keyboards –
INPUTS
Press / button to select the option then
press OK button to enter the sub-menu.
Inputs –
Press / button to select the
Press / button to select
option then press OK button to choose ON/OFF.
HDMI control –
the option then press OK button to choose ON/OFF.
Press / button to select the
option then press OK button to choose ON/OFF.
TV auto power on –
Press / button to select the
option then press OK button to enter the sub-menu.
CEC Device List –
show EDID version.
HDMI EDID Version –
POWER
Sleep Timer
40 minutes, 50 minutes, 60 minutes, 90 minutes,
120 minutes ).
option then press OK button to choose ON/OFF.
– Press button to select the
option then press OK button to enter the sub-menu.
– Press button to select the
120 minutes, 150 minutes, 180 minutes, 210 minutes,
Press / button to
select the option then press OK button to enter the
15 minutes, 30 minutes, 60 minutes ).
240 minutes )
option then press OK button to enter the sub-menu.
– Press button to select the
button to enter the sub-menu. (Optional: user,Standard,
Press / button to select the option
Picture Mode –
Vivid, Sport, Movie, Game, Energy saving).
Sharpness –
Backlight/Brightness/Contrast/Saturation/HUE/
Press / button to select the option.
Press to decrease the parameter. Press t o increase
the parameter.
Press / button to select the option the press
OK
HDR –
Color Temperature – Press / button to select the
Gamma – Press / button to select the option then
press OK button to enter the sub-menu.(Optional: Dark,
middle,Bright).
option then press OK button to enter the sub-menu.
English
Reset to Default – Reset all settings to the factory
defaults.
Advanced Video – Press / button to select the
option then press OK button to enter the sub-menu.

SOUND
Speakers – Press / button to select the option
then press OK button to enter the sub-menu.
(Optional:TV Speaker,External Audio System).
Digital Output – Press / button to select the
option then press OK button to enter the sub-menu.
(Optional:Auto,Bypass,PCM ,Dolby Digital Plus,Dolby
Digital).
SPDIF Delay – Press / button to select the
option. Press to decrease the parameter.
Press to increase the parameter.
)
Balance/ Bass/ Treble – Press / button to select
the option. Press to decrease the parameter.
Press to increase the parameter.
Sound Surround – Press / button to select the
option then press OK button to choose ON/OFF.
Equalizer Detail – Press / button to select the
option then press OK button to enter the sub-menu.
Sound style – Press / button to select the
option then press OK button to enter the sub-menu.
(Optional: user,Standard,Vivid,Sports,M ovie,M usic,
News .
Auto Volume Control – Press / button to select
the option then press OK button to choose ON/OFF.
Downmix Mode– Press / button to select the
option then press OK button to enter the sub-menu.
(Optional:Stereo,Surround).
Reset to Default –Reset all settings to t he factory
default
s.
STORAGE
Removable Storage –Press / button to
select the option then press OK button to enter
the sub-menu.( Note:Show external devices if
available)
select the option then press OK button to enter the
sub-menu.
– Press button to
Internal shared storage
HOME SCREEN
3. After nishing your adjustment, Press BACK
button return to the previous menu.
In this menu, you can set channels, apps, open
source licenses.
1. Press / button to select what you want set.
2. Press OK button to adjust.
STORE MODE
option then press OK button to choose ON/OFF.
– Press button to select the
Store mode
Store Mode
Store Mode
