RcJoyCon CarPC JoyCon Exr User manual

CarPC JoyCon Exr RcJoyCon.Com 1
1. Feature of CarPC JoyCon Exr
Hardware feature
- Converts resistive and digital steering wheel remote controls into USB HID keyboard
and HID remote controller
- Resistance range adjustable
- Works same as standard USB HID keyboard and HID remote controller by hardware
- 24V tolerant 4 channel resistive(voltage) input
- Supports 28 physical buttons, 52 programmable logical buttons
- Long and Short button for one physical button, up to 5 simultaneous key strokes by one button.
- 2 programmable LED port
- Remote wake-up(resume PC from sleep with steering wheel remote controls)
- Channel Master/Slave selectable
- Temperature range : -40 ~ +85°C
JoyCon Explorer feature(for Windows PC)
- Preset switching by buttons.
- Application Launcher(application launches and pops up with preset switching).
- Voice and OSD by button and preset switching.
- User denable button voice and OSD.
- Rearview by reversing light
- Online rmware update.
- No external power or driver installation needs.
- Available OS : Windows 8, Windows 7, Vista, XP, 2003
JoyCon Explorer supports Windows XP and the later version.
JoyCon Explorer does not support Linux, Mac. But CarPC JoyCon Exr works on Linux and Mac after it
is congured at Windows.
JoyCon Explorer does not support Android devices. But CarPC JoyCon Exr works on Android devices
(from Android version 3.1) after it is congured at Windows.
2. Contents
CarPC JoyCon Exr Manual
JoyCon Exr - Steering wheel controls USB interface
OCT. 23th. 2016
RcJoyCon.com
Heat shrinkable tube x2
Short Manual
(USB A-mini B 5P cable and JoyCon Explorer
CD is optional. You can download JoyCon
Explorer at www.rcjoycon.com)
Input Cable x4 LED Cable x2
JoyCon Exr

CarPC JoyCon Exr RcJoyCon.Com 2
1. GND : Ground
2. CH A : Input channel A for resistive steering wheel controls
UPDATE
Short-circuit and connect USB
to enter rmware update mode
RESET
Short-circuit and connect USB
for factory reset
USB
Onboard LED
Adjustment B
Tunes the resistance range
of input channel B
Adjustment A
Tunes the resistance range
of input channel A
Black
External LED port, 5V
1. GND : Ground
2. LED1
External LED port, 5V
1. GND : Ground
2. LED2
White
Black
Gray
1. GND : Ground
2. CH B : Input channel B for resistive steering wheel controls
1. GND : Ground
2. CH C : Input channel C for resistive steering wheel controls
1. GND : Ground
2. CH D : Input channel D for resistive steering wheel controls
Black
White
Black
White
Black
White
JoyCon Exr Black
Gray
3. Board Layout

CarPC JoyCon Exr RcJoyCon.Com 3
4. Wiring
Connect CarPC JoyCon Exr’s input channel(CH A, CH B, CH C, CH D)wire to the remote control’s
resistive signal wire.
Data
GND(Black)
Remote Controls
CarPC JoyCon Exr
Warning!! Do not connect signal and GND wire reversely.
If the buttons in JoyCon Explorer are too close each other, tune the Adjustment A/B.
5. LED
For external LED, a current limit resistor(usually 330ohm) must be connected in series. Without the
current limit resistor, LED burns out. (Black wire is Ground.) LED output is 5V.
6. Factory Reset
1. Short-circuit two reset points.
2. Connect USB.
7. Operational test
To check if CarPC JoyCon Exr works properly, short-circuit the two wires of a input channel without
connecting remote controls. The red indicator must goes to the left most side by short-circuit, and
returns to the right by open-circuit.
If the red indicator does not move, the CarPC JoyCon Exr is out of order.
Goes to the left most side.
Returns to the right side.
Short Circuit
Open Circuit
Adjustment B
Adjustment A
Default position of Adjustment A/B is center.

CarPC JoyCon Exr RcJoyCon.Com 4
Basic Setting
1. Setup of steering wheel control buttons
Check Setting and click Auto Detect. After auto-detection starts, press steering wheel control but-
tons one by one. After all the buttons are detected, click Auto Detect again to nish auto-detection.
Clear button clears all the buttons detected. You can tune the Resistor Range and Position manually
by putting the values in the edit boxes. Click Save/Apply after you change the values.
If the button bars are too close each other, tune the Adjustment A/B on the Board.
(Resistor range and position of the buttons are stored in the onboard memory of CarPC JoyCon Exr.)
Button bar turns to green when the controller button
is pressed.
2. Connect function
Drag-drop Button Bar to the keyboard keys(or HID remote controller buttons). Up to 5 keyboard
keys(or HID remote controller buttons) can be connected to one button.
Drag-drop sequence is same with the keyboard key stroke sequence.
For example, if you want a button to generate hotkey CTRL+ALT+DEL, drag-drop the Button on the
CTRL rst, ALT and DEL last.
Drag-Drop

CarPC JoyCon Exr RcJoyCon.Com 5

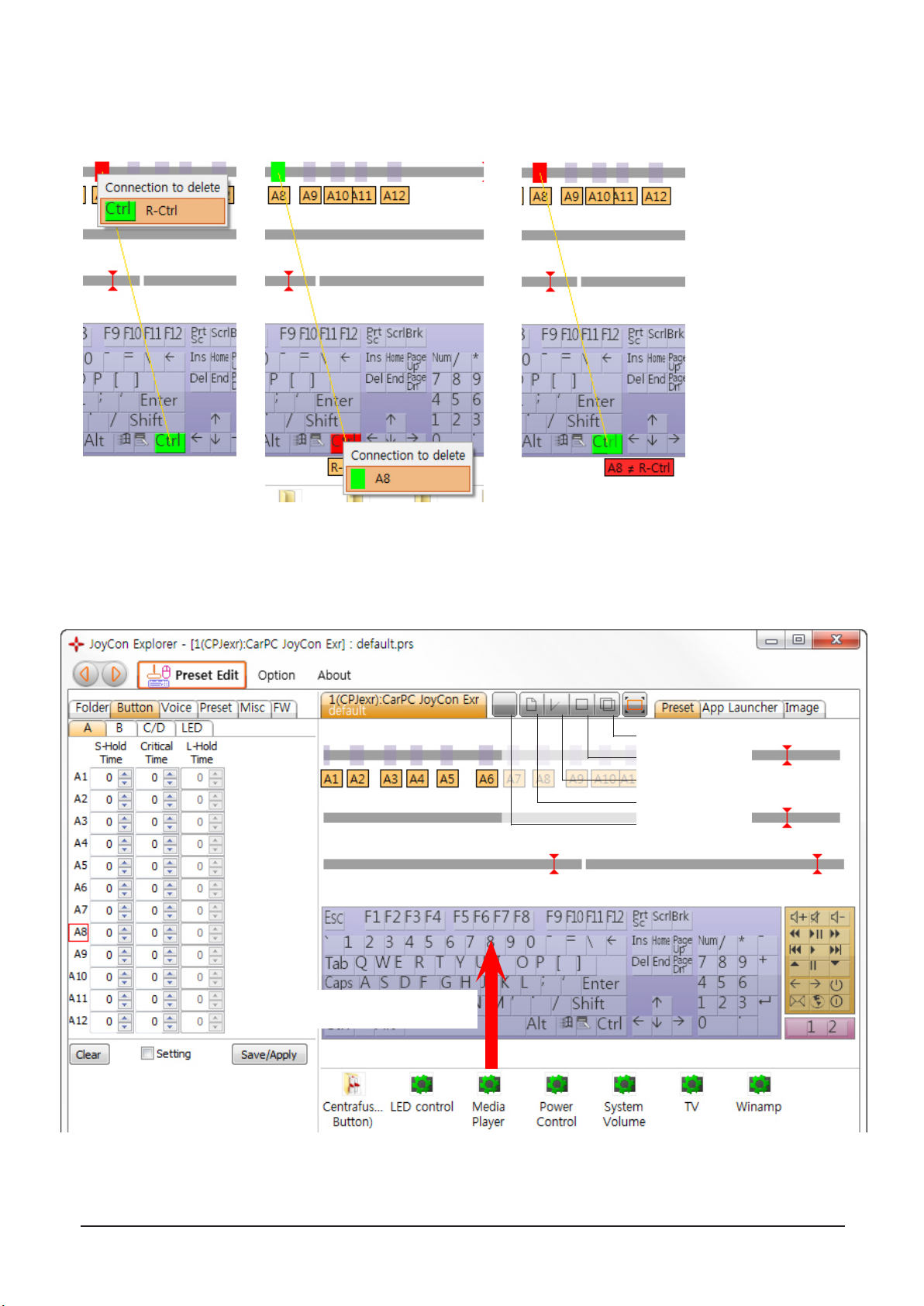

3. Disconnect function
Right-click the Button Bar or keyboard key(or HID remote controller button) and click an item in the
drop down menu. Or drag-drop the Button Bar to the connected keyboard key(or HID remote con-
troller button) again.
4. Save / Restore Preset
The function and conguration can be saved as a preset le(.prs) by clicking save button and re-
stored by double-click or drag-drop a preset le(.prs).
(Resistor range and position of the buttons are stored in the onboard memory of CarPC JoyCon Exr.)
Save As
Save
Open Preset
New Preset
Clear
Drag-Drop

CarPC JoyCon Exr RcJoyCon.Com 6
Extended Button Setting
1. Short Button and Long Button
CarPC JoyCon Exr supports two separated functions for one steering wheel remote control button.
The two functions are Short Button and Long Button.
Short Button is generated when the remote control button is released before Critical Time.
Long Button is generated when the remote control button is pressed longer than Critical Time.
To use Long Button, set the Critical Time over than 0, then Long Button Bar will appear above the
Short Button bar.
Long Button
Short Button
2. Separate Long and Short button
The Short Button is kept pressed while S-Hold Time.
The Long Button is kept pressed while L-Hold Time.
To Short Button and Long Button, put 1~254 in S-Hold Time or L-Hold Time.
Put 0 in S-Hold Time or L-Hold Time to disable Short Button or Long Button.
If Short Button or Long Button is disabled, Short Button or Long button is kept pressed while the
steering wheel button is pressed. This is useful when you need to keep a key pressed in volume con-
trol. (C, D channel support only Short Button and S-Hold Time. Hold Time value 1 is about 10ms.)
3. Toggle Button
If the Hold Time of a button is 255, the button is toggled.
This is useful when a keyboard key need to be stroked while SHIFT, CTRL, or ALT keys are kept
pressed. (For example, ALT+TAB or Window+TAB)
Long Button
Short Button

CarPC JoyCon Exr RcJoyCon.Com 7
4. Programmable LED control
CarPC JoyCon Exr can control one onboard LED and two external LEDs.
If you want to control LED with a preset, check Control. If Control is not checked, this preset doesn’t
control LED and LED keeps previous conguration.
If Reverse is checked, On O is reversed.
If Turn O on Sleep is checked, LED is turned o when the PC goes into sleep mode.
LED control has 8 modes.
0. Always On : LED is turned on always
1. Always O : LED is turned o always
2. On by a button : LED is turned on while a button is pressed.
3. Blink by a button : LED blinks periodically while a button is
pressed.
4. Toggle by a button : LED is turned on by pressing a button,
and is turned o by another pressing the button.
5. Toggle blink by a button : LED blinks periodically by press-
ing a button, and is turned o by another pressing a button.
6. On by a button, o after a period : LED is turned on by
pressing a button, and is turned o after a period automatically.
7. On by any button, o after a period : LED is turned on by pressing any button, and is turned o
after a period automatically.
Unit of Period is millisecond. In the blink mode(3, 5), turning on is one period and turning o is an-
other period. For example, if the Period is 500(ms), LED is turned on every 1 second(1000ms).
To assign a button to LED, drag-drop a button to a LED.
Drag-Drop

CarPC JoyCon Exr RcJoyCon.Com 8
Preset Switching
Preset can be downloaded to CarPC JoyCon Exr by Preset Button automatically, it is useful when you
need to change steering wheel remote control’s conguration while driving.

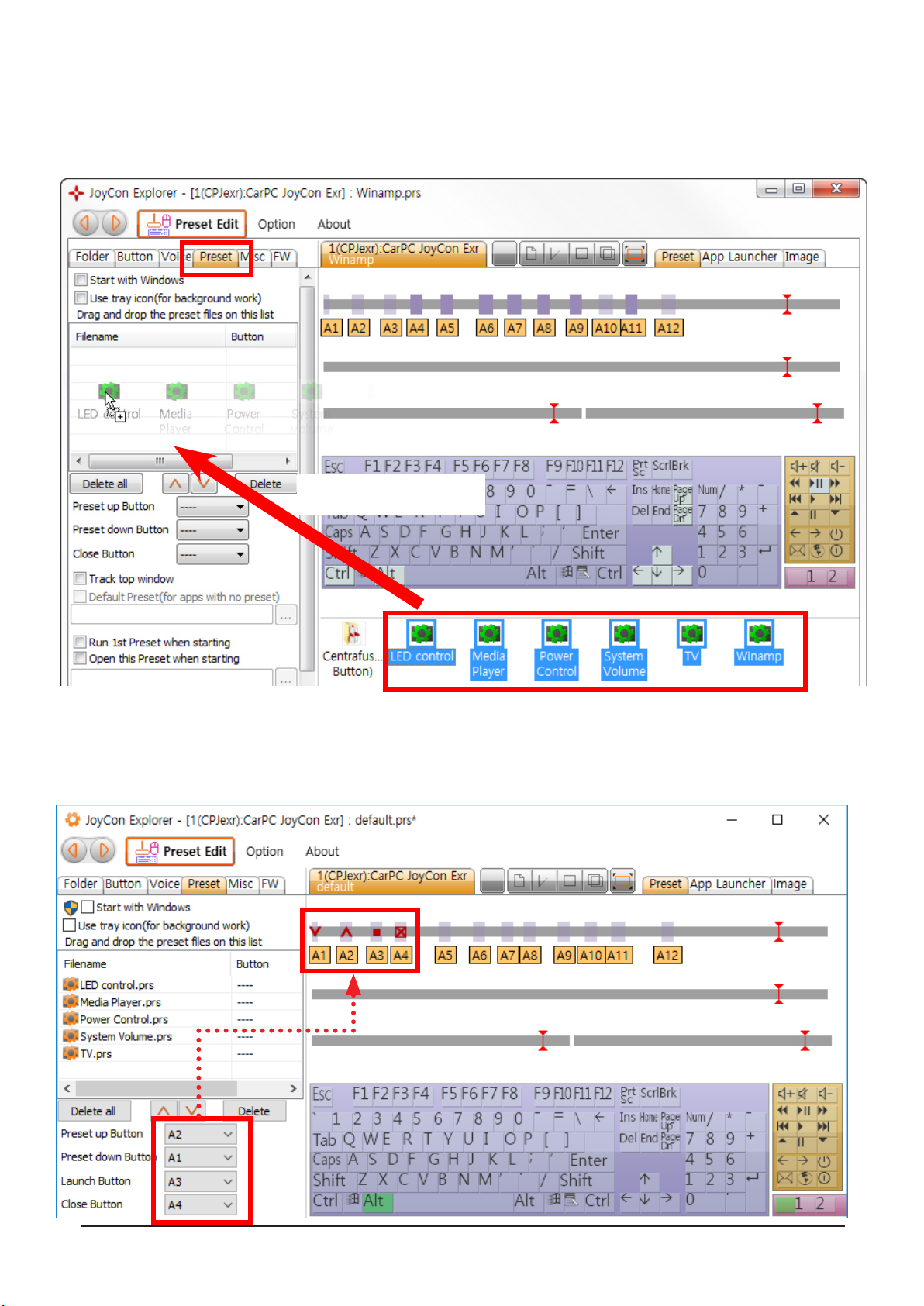

1. Preset List
Drag Drop preset les on the list of Preset tab. Preset is switched with the sequence of this list.
Drag-Drop
2. Preset Button
The presets are switched in sequence by Preset Up/Down Button. An application which is associ-
ated with the current preset in Application Launcher is closed by Close Button, Launched by Launch
Button. Congure the Preset Button of every preset le in the preset list in the same way(S-Hold
Time, L-Hold Time and Critical Time).

CarPC JoyCon Exr RcJoyCon.Com 9
There is another way to switch the presets. You can switch a preset and launch an application directly
not in sequence with Preset Button in the preset list. The application which is associated with the
preset is closed by Close Button in the Preset List. Congure the Preset Button of every preset le in
the preset list in the same way(S-Hold Time, L-Hold Time and Critical Time).
To use Close Button or Launch Button, check Use Launch Button or Use Close Button at Appli-
cation Launcher for each preset le.

CarPC JoyCon Exr RcJoyCon.Com 10

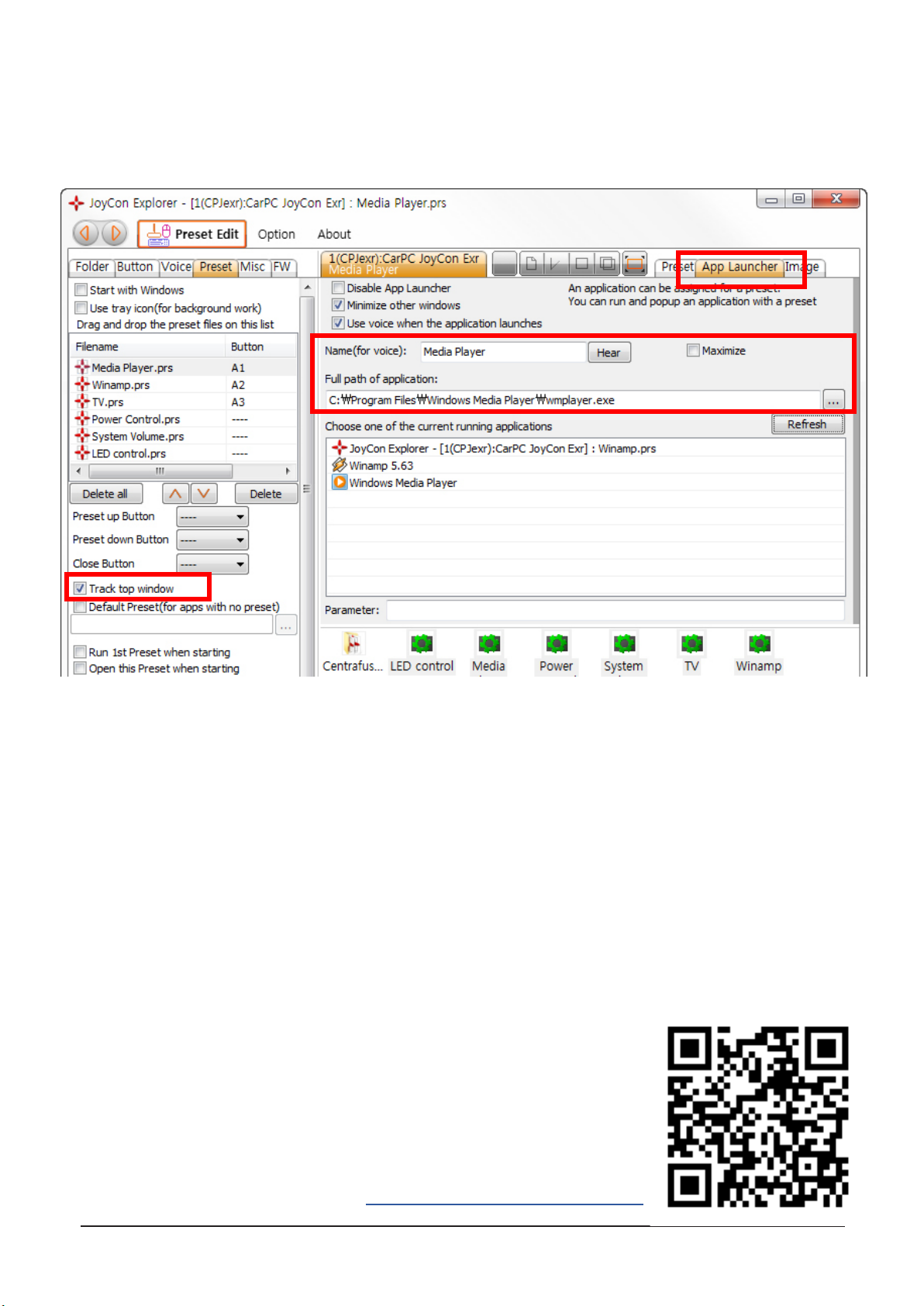

3. Application Launcher
Application can be launched and popped up when Preset is switched. Drag-drop (.exe) le(or short-
cut le) or double-click current running application in the list box. Name is spoken when the ap-
plication is launching. If the application is not running, the application is launched. If the application
is already running, the application pops up. If Track top window is checked, Preset is automatically
switched by the top window.
4. Start option
Check Start with Windows to run JoyCon Explorer when Windows starts.
Check Run 1st Preset when Starting to run the rst preset in the preset list when the JoyCon Ex-
plorer starts. “Run Preset” means to launch or pop up the application by preset switching(or open-
ing).
Check Open this Preset when Starting and drag-drop a preset on the edit box, to open the preset
when JoyCon Explorer starts.
The latest manual is at
http://www.rcjoycon.com/mn/cpjexr
