RDI Technology M702 User manual

DIGITAL WIRELESS 7” LCD
MONITORING SYSTEM
WITH SD CARD RECORDING
MODEL:CM642702

Feature list:
850nm IR Led visible distance up to 10m
7” TFT Lcd Digital panel (800 RGB x 480)
Two way audio
Scan function
PIR trigger or Video motion detect recording
Manual recording
Schedule recording separate settings from Monday to Sunday
SD Card capacity up to 64GB
One Lcd monitor can pair four cameras
Frame rate: Cam x 2 : 720p x1 @ 15 fps or Cam x 2 : VGA x2 @ 30 fps or Cam x 4 : or VGA x 4 @ 15 fps
Individual recording files
5 Seconds pre-recording
Lcd : 5v DC 2A Power adaptor (+/-5%)
Camera: 9v DC 600mA (+/-5%)
RF range: 150 meter (Line of sight)
Quad view
PIR trigger and Video motion detect alert
Remote view and playback by Android or iOS smart phone

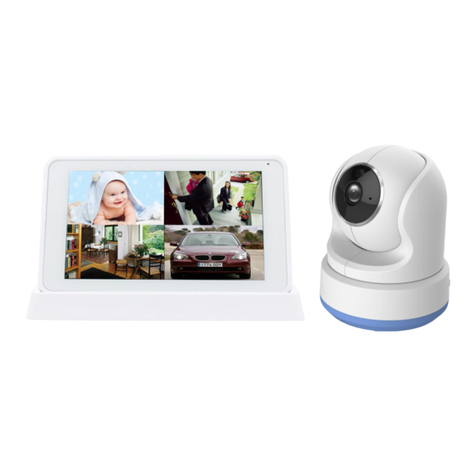

The system includes the following components:

Wireless Receiver
Front Controls
1. Cam--- Press the button to view cameras in
automatic switching mode.
2. Quad---- Press Quad button to view the images
in quad mode. Press Quad buttons to exit from quad
mode to automatic switching mode
3. Scan--- Press the button to switch the receiver to
scan mode. When there’s motion detected by
cameras, the LCD will lighten up and show the live
video from the camera.
4. Zoom---- In “×1” mode, press to enter “×2”
mode, shows on the screen; In “×2” mode, press it again to enter “×1” mode, doesn’t
show on the screen.
5. Delete---- Press it to delete the video.
6. Menu---Press Menu button to access the receiver menu. Press the key again to exit.
7. Joystick---
A. Navigation button (▲▼◄► arrows): servicing button
B. Enter button: Push to enter Playback mode.
8. LCD Screen--- Displays video from the camera(s) or displays system operations.
Top Controls
9. Motion--- Press this button to enter auto
recording mode. Receiver starts to record
when there is motion detection in camera
side.
10.Rec---Press this button and receiver starts
to record manually.
11. Power---Press this button to power on/off the receiver.
12. Vol/Adj---- Press the left part to decrease the volume and press the right part to increase the volume.

Side Controls
13. SD card slot---- Insert SD card to this SD card slot for both video
and audio recording.
14. Service--- Used for service purposes only.
15. Talk----Press this button to talk back to the camera and the icon is
displayed on the screen.
Back Controls
16. Ethernet Port (RJ45)--- Connect the
receiver to your router using the included
Ethernet cable to enable smartphone /
tablet connectivity.
17. DC 5V Power Input –-- Connect the
included DC 5V/2A power adaptor to
power the receiver.
18. Antenna---- Position the antennas as
needed for best reception.
19. Stratus UID Number / QR Code---
Unique ID number for connection to the
system on a smartphone / tablet.
20. Speaker –---Produces the sound transmitted from the camera(s).
22.Monitor stand

Wireless Receiver Installation
1. Before receiver installation, choose one installation method from below 2 methods:
1). Desktop or table stand.
For this method, you only need to place the receiver on a desktop.
2). Wall mounting
Decide where to mount the receiver first. Make sure the range between the position and the nearest
power output port is no more than 5 feet. Also, the range between the position and TV or VCR/DVR
should be no more than 5 feet.
Drill two holes on the wall where you decide to install the receiver. Insert a plastic anchor to each hole
and fix a screw into the plastic anchor. Insert the screws into the two holes located on the bottom of
receiver and then push down the receiver.
Adjust the receiver for best viewing angle.
2. After the receiver is well positioned, plug the AC adaptor power output cable into the 5V POWER input
of the receiver, and plug the power plug into a wall outlet or surge protector.
3. If you wish to view the receiver images on a larger screen, connect one end of the included AV cable
to the AV output of receiver, and connect the other end to the Video IN (Yellow) and Audio IN (White)
ports on the TV, VCR or other viewing/recording devices.
Note: When outputting Audio/Video to TV, etc, press the AV button on the remote control to output audio
and video to TV.
The receiver installation is now completed.

Wireless Camera
1. Camera Antenna
–Receives & Sends signals to or
from the
Receiver.
2. Lens – Catches the video in front of the lens and transmits video
from camera to receiver.
3. IR LED
–Infrared LEDs provide viewing
in no/low light
conditions.
4. PIR sensor – Detects motion in front of the lens and emits
detection signal to transmitter.
5. Thumbscrew -Rotates the thumbscrew to adjust the angle of the
camera until the desired view is set
6. Speaker- Produces the sound transmitted from the monitor.
7. Bracket – Use the bracket to mount the camera on a wall or other
flat surfaces.
8. Pairing Button –The pairing button is located on
the back of the camera behind by the stand mount.
9. Power Jack –Connect the DC 5V Power Adaptor to the Camera.
Note: This camera includes an Auto Mechanical IR Cut Filter. When
the camera changes between day mode and night vision mode, an
audible clicking noise may be heard coming from the camera. This
clicking is normal, and indicates that the camera filter is working.
Camera Installation
Before you install the camera, carefully plan where and how it will be positioned, and where you will
route the cable that connects the camera to the power adaptor.
Before starting permanent installation, verify its performance by observing the image on the receiver
when camera is positioned in the same location/position where it will be permanently installed and the
receiver is placed in the location where it will be used most of the time
Installation Warnings:
Aim the Camera(s) to best optimize the viewing area: Select a location for the camera that provides a
clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a strong
light source or direct sunlight.
Avoid installing the cameras where there are thick walls, or obstructions between the Cameras and the
Receiver.

Night Vision
This camera has built-in IR LEDs, which provides the camera with the ability to view images in no/low
light conditions. It is important to use the provided power adaptor when using the camera for prolonged
periods in low light conditions, as the built-in IR LEDs will drain power more quickly than regular
daytime use.
Night vision will be automatically switched on in low illumination condition.
1. Carefully
unpack the Camera.
NOTE: If you are installing Cameras that did not come with the system, please see the Pairing Camera
section
of this manual for details on installation.
2.
Mount the camera to the wall:
Mark the position of the screw holes on the wall, drill holes and insert the supplied 3 plastic anchors, then
firmly fix the camera bracket to the plastic anchors with supplied screws.
NOTE: The camera can also be placed on a flat surface, such as a Table or Shelf, and no mounting
hardware is required.
3.
Adjust the Viewing angle of the Camera.
You can adjust the viewing angle to monitor desired area by rotating the camera bracket. Here are some
templates:
Connecting Camera Power
After the camera is installed, plug the AC adaptor power output cable into
the 9V POWER jack of the camera, and plug the power plug into a wall
outlet or surge protector.
NOTE: You can install additional cameras (maximum of 4 cameras). When adding cameras that were
not included in the original box, you will need to pair the cameras with the receiver. Refer to the camera
pairing section of this manual.
Make sure is the DC 9V for camera, and DC 5V for Receiver
Make sure the power adaptor is placed into a grounded outlet or surge bar to protect the camera from
power fluctuations.

1 Using the system
By default, the camera(s) included with your system are automatically paired to the receiver. The
camera(s) and receiver will communicate with each other once they are powered on.
Note: It is recommended to power on the cameras before powering on the receiver.
1.1 Understanding the On-screen Display
With camera 1 properly connected and powered on, the system displays a full-screen live view of the
camera.
With more than one camera properly connected and powered on, the system displays up to 4 channels
in split screen with the live view of each camera. The figure below shows the display configuration for 2
cameras connected.

1 Signal Indicator –The signal indicator shows the strength of the signal being received from the
camera. The number of bars in the Signal Indicator shows the strength of the signal. One, or no bars
indicates the signal is poor, and 4 bars indicate a very strong signal.
Note
•If the signal is low (e.g.,1 or 2 bars) adjust the antennas, or reposition the cameras or receiver for
best performance.
•The signal indicator is not shown during Quad mode.
Signal Indicators:
OUT OF RANGE Warning
When the receiver can’t get signal from cameras, warning message will be displayed. Reposition the
camera, or check the camera power connection.
2 Channel Indicator–Displays the current channel number you are presently viewing. If viewing
multiple cameras at once, the camera indicator will appear above each video display. Press Cam to
switch between available cameras.
Note: In auto switch mode, press Quad to enter quad mode.
3 SD Card Indicator – When a SD card is inserted into the SD card slot, the indicator will be shown on
the LCD screen. A white icon shows that a SD card with available recording space is inserted in the
receiver. A red icon indicates the SD card is full.

4 Network status Indicator –A red icon shows that the connection has failed or the system is
not connected to a network.A green icon shows that the system is connected to the Internet and
tell you the monitor connect with internet mode. A yellow icon shows that the system is connected
to the intranet and tell you the monitor connect with intranet mode.
Remote connection Indication- When a smartphone / tablet is accessing the system remotely, the
network status indicator changes to a remote connection icon .
5 Talk back Indicator- Press Talk button on the monitor then talk back to the camera, the indicator .
will be shown on the LCD screen.
6 Recording Indicator–"REC" appears when recording is in progress. If viewing and recording video
from multiple cameras at once, the recording indicator will appear above each video display where
recording is enabled
7 Zoom Indicator-Press the Zoom button on the front panel of monitor to enter “×2” mode, the
indicator will be shown on the LCD screen. shows on the screen ,you can use the joystick button
(▲▼◄► arrows)to navigate to parts of the video that are outside the range of screen. Press zoom
again to exit zoom mode.
8 Overwrite Indicator –Indicates Overwrite mode is on, which means the system will overwrite the
oldest recordings when the memory card is full. When you choose the overwrite function, the indicator
will be shown on the LCD screen
9 New Record Indicator- Indicates that there are new recordings saved to the SD card.
10 Time stamp-The current date and time on the system
11 Motion recording indicator- Indicates that motion recording is turned on.
12 Volume indicator-Shows the current volume of the receiver. You must be in single channel
viewing mode to change volume, indicate the volume 0.
13 New download icon- appears on the screen if new firmware is available
