STICK-ON®SERIES

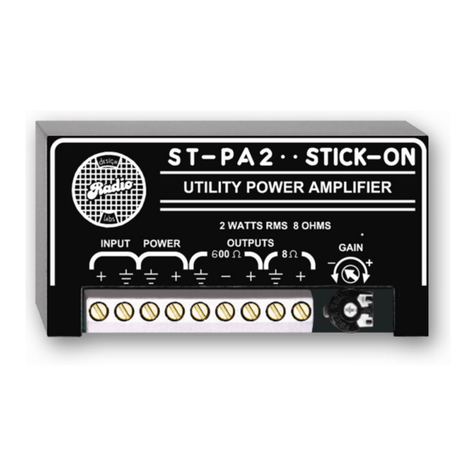

Model ST-PA2
Utility Power Amplifier
ANYWHERE YOU NEED...
•Up to 2 Watts RMS into 8 Ω
•Up to +12 dBu into 600 Ω
•Quality Utility Amplifier
•Intercom Driver
•Music-On-Hold Driver
You Need The ST-PA2!
The ST-PA2 is a utility power amplifier in the convenient line of STICK-ON products from Radio Design
Labs. The durable bottom adhesive permits quick, permanent or removable mounting nearly anywhere or
it may be used with RDL’s racking accessories. The ST-PA2 gives you the advantages of a utility
amplifier with the added convenience of STICK-ONs!
APPLICATION: The ST-PA2 represents the second-generation in RDL’s breakthrough in the traditional
power vs. size ratio. Present technology permits features and performance at the most economical cost
ever. The ST-PA2 offers 2 Watts of power, twice the power of most utility amplifiers, for a price you would
expect to pay for 1 Watt!
The ST-PA2 features a single, unbalanced audio input, a gain control, and two outputs. The first output is
designed to deliver a clean 2 Watts RMS into an 8 Ωspeaker. The second output is intended to drive
600 Ωtransformers, typically on equipment inputs. This makes the ST-PA2 uniquely suited applications
such as music-on-hold inputs on telephone systems, which may have either 8 Ωor 600-Ωinputs.
If desired, both outputs may be used at the same time.
The convenience and low cost of the ST-PA2 make it the ultimate choice as a building block in many
systems, from simple to complex. It may be used in combination with other STICK-ONs to form custom
intercoms or talk-back systems, or can be used by itself to drive a single speaker with music or voice.
For either straightforward or creative applications requiring a utility power amplifier, the ST-PA2 is the
optimum choice!
Note: The ST-PA2 is not intended to drive long 600 Ωaudio lines or multiple equipment inputs. For these
applications, see the STA-1 (stereo), the STA-1M (mono), or the ST-DA3 (distributed). If balanced audio
input is required, see the ST-PA6 audio power amplifier.
Wherever an audio amplifier is needed, the ST-PA2 is the ideal choice. Use the ST-PA2 combined with
other RDL RACK-UP®, STICK-ON, TX™, or FLAT-PAK™ series products as part of a complete
audio/video system.
RDL •659 N. 6th St. •Prescott, AZ., USA 86301 •[phone] •FAX [phone] •www.rdlnet.com

STICK-ON®SERIES
Model ST-PA2
Utility Power Amplifier
TYPICAL PERFORMANCE
Input Configuration: Unbalanced 10 kΩ
Input Level: -15 dBV minimum (for rated power output)
-20 dBV minimum (for 1 watt RMS into 8 Ω)
Frequency Response: 35 Hz to 30 kHz (8 Ω+/- 1.5 dB)
20 Hz to 30 kHz (600 Ω+/- 0.5 dB)
THD+N: < 0.75% (0.5 % typical)
Noise: < -80 dB (8 Ω@ 2 W RMS)
< -70 dB (600 Ω, referred to +4 dBu)
Outputs (2): 1 @ 8 Ω, 2 watts RMS maximum
1 @ 600 Ω, +12 dBu maximum
Power: 24 to 33 Vdc @ 150 mA, Ground-referenced
Installation/Operation
EN55103-1 E1-E5; EN55103-2 E1-E4
Typical Performance reflects product at publication time
exclusive of EMC data, if any, supplied with product.
Specifications are subject to change without notice.
891-0006J
