Reanin K2000 User manual

Shandong Reanin Machinery Co.,Ltd

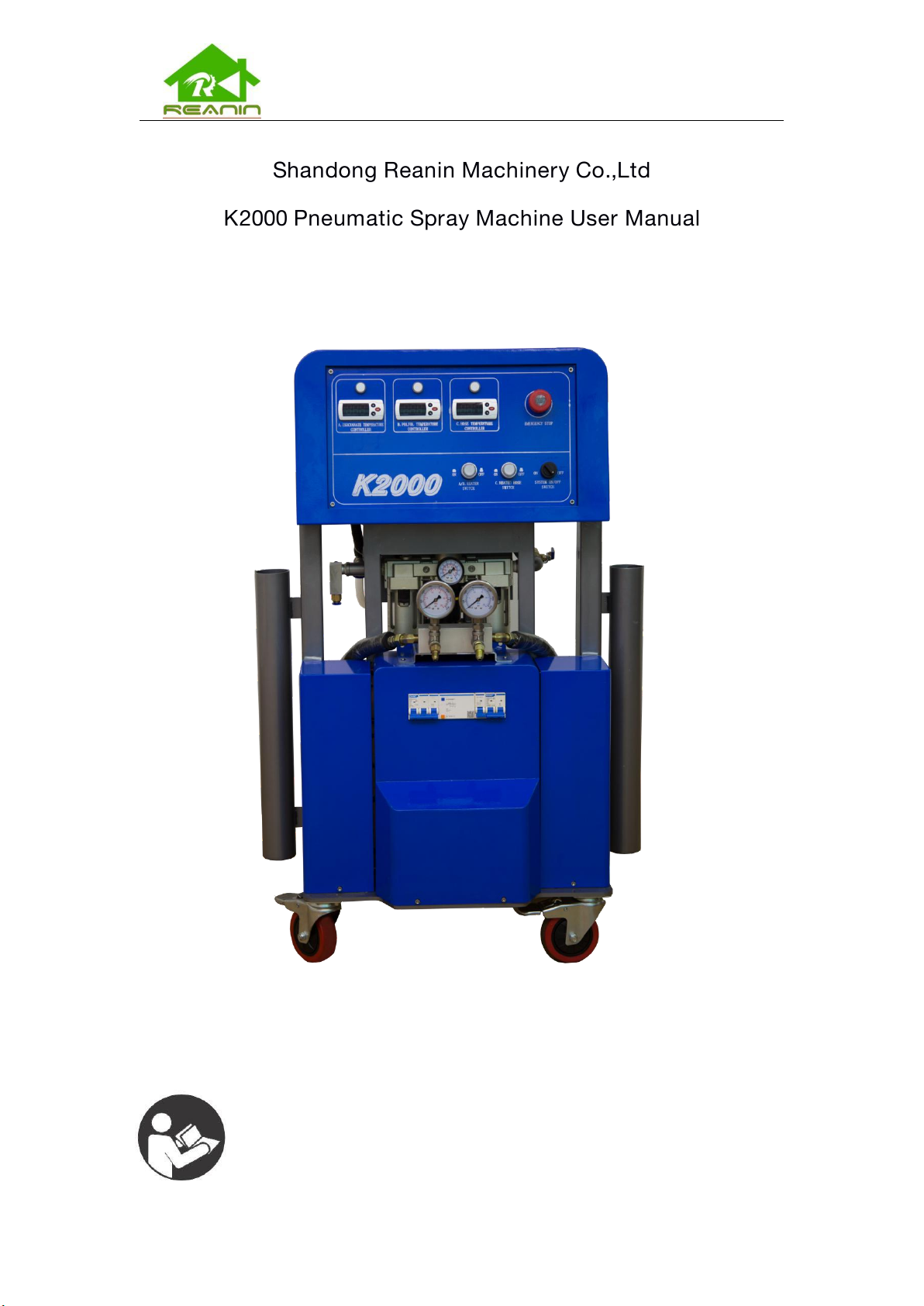

K2000 Pneumatic Spray Machine User Manual
1
Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
2
Standard Technical Parameters,
Model: REANIN-K2000 pneumatic spray machine
The ratio of raw material: 1:1
Max working pressure: 15MPa
Max fluid temperature: 80℃
Max output: 10kg/min
Max heated hose length: 45m
Heated hose power: 2000W
Heater power: 3000WX2
Drive model: pneumatic
Whole power: 9kw
Voltage (Optional): Single phase 220V 50Hz or Three phase 380V 50Hz
Standard configuration of K2000 pneumatic spray machine,
Proportion fixed mainframe 1 set
Spray gun 1 set
Transfer pump 2 sets
Heated hose 15m
Transfer pump hose 2pcs
Whip hose 2 pcs
Air pipe 1 set
Tools and spare parts 1 set
English user manual 1 set
READ ME FRIST, IT IS VERY IMPORTANT,
Never try to exchange A and B transfer pumps and hoses

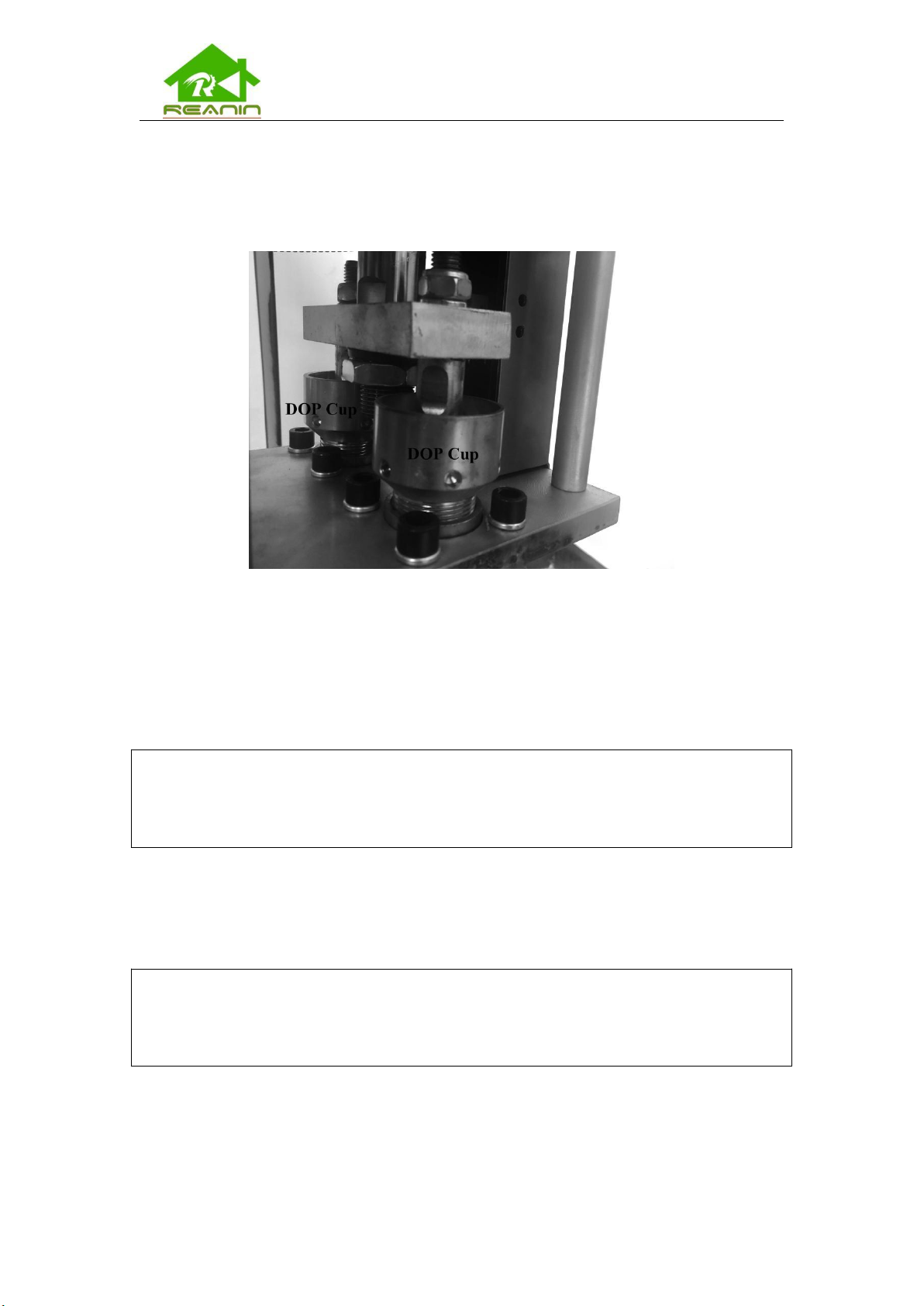

Add DOP into DOP cup before use, can not run the machine without DOP
After one days work, take apart the gun block and mixing chamber, clean and put them into
the gun cleaning liquid
CIRCULATE A-SIDE (ISO) WEEKLY
Any questions, contact with us
Shandong Reanin Machinery Co.,Ltd
Tel./Fax.: [phone]
Mob.: [phone]
E-mail: [e-mail]
www.reaninmachinery.com

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
3
Contents
1. Warning..................................................................................................4
2. Important Two-Component Material Information.................................7
3. Flow Charts of the Raw Material...........................................................9
4. System Installation.................................................................................10

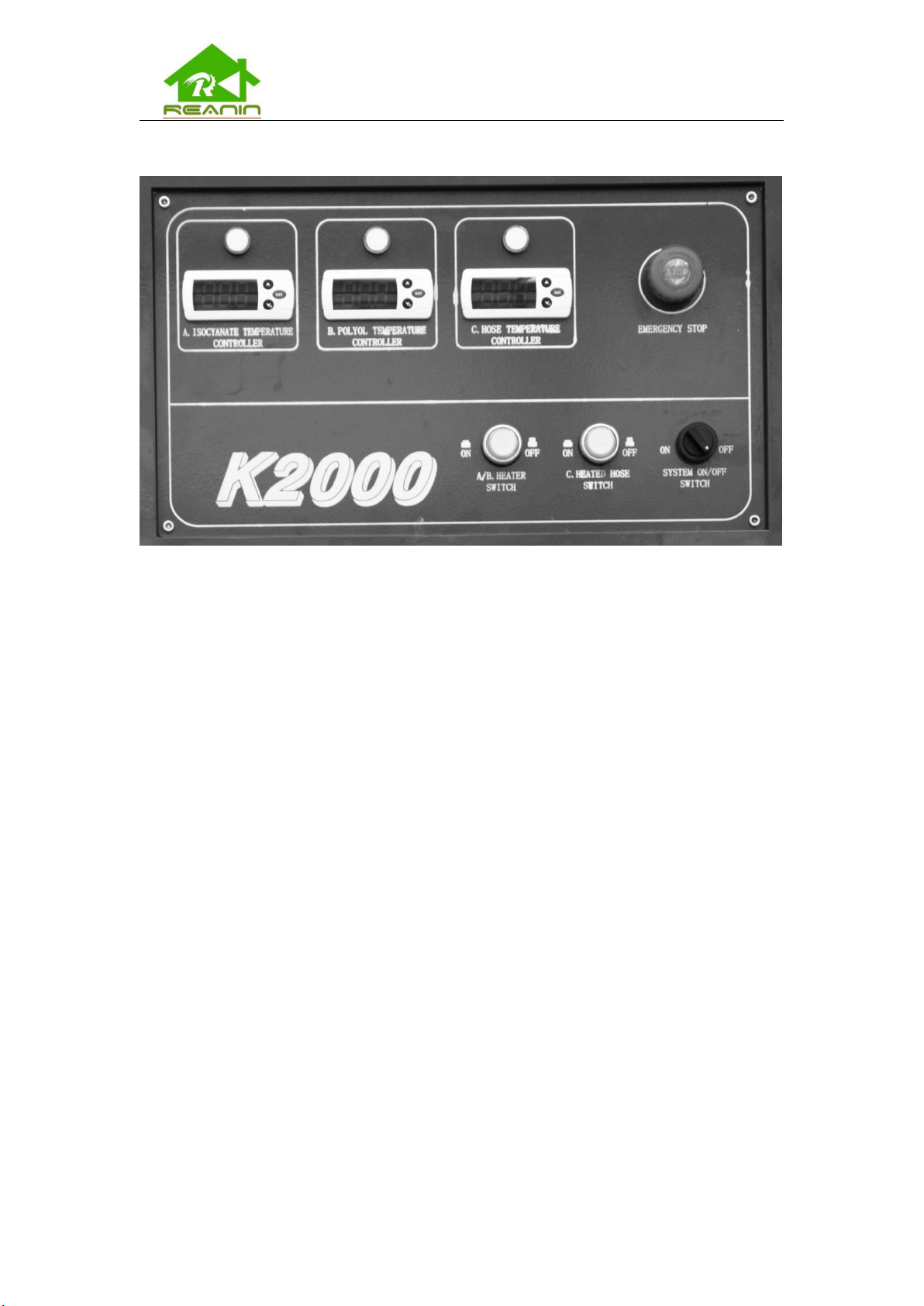

5. Control Panel..........................................................................................14
6. System Operation...................................................................................16
7. Check for Fluid Flow System and Equipment Problem........................20
8. Equipment Warranty..............................................................................22

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
4
1. Warnings
The following warnings are for setup, use, grounding, maintenance, and repair of this equipment.
The exclamation point symbol alerts you to a general warning and the hazard symbol refers to
procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may
be found throughout the body of this manual where applicable.
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be ground. Improper grounding, setup, or usage of the
system can cause electric shock.
•Turn off and disconnect power at main switch before disconnecting any
cables and before servicing equipment.
•Connect only to grounded power source.
•All electrical wiring must be done by a qualified electrician and comply
with all local codes and regulations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes
or on skin, inhaled, or swallowed.
•Read MSDS to know the specific hazards of the fluids you are using.
•Store hazardous fluid in approved containers, and dispose of it according
to applicable guidelines.
•Always wear chemically impermeable gloves when spraying, dispensing,
or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or
when in the operating area of the equipment to help protect you from serious
injury, including eye injury, inhalation of toxic fumes, burns, and hearing loss.
This equipment includes but not limited to:
•Protective eyewear
•Clothing and respirator as recommended by the fluid and solvent
manufacturer
•Gloves
•Hearing protection
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leak, or ruptured components will pierce
skin. This may look like just a cut, but it is a serious injury that can result in
amputation. Get immediate surgical treatment.
•Engage raw material valve lock when not spray.
•Do not point gun at anyone or at any part of the body.
•Do not put your hand over the spray tip.
•Do not stop or deflect leaks with your hand, body, glove, or rag.
•Turn off the machine when you stop spraying and before cleaning,

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
5
checking, or servicing equipment.
•Tighten all fluid connections before operating the equipment.
•Check hoses and couplings daily. Replace worn or damaged parts
immediately.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or
explode. To help prevent fire and explosion:
•Use equipment in well ventilated only.
•Eliminate all ignition sources; such as pilot lights, cigarettes; plastic drop
cloths, and portable electric lamps.
•Keep work area free of debris, including solvent, rags and gasoline.
•Do not plug or unplug power cords, or turn power or light switch on or off
when flammable fume are present.
•Ground all equipment in the work area.
•Hold gun firmly to side of grounded pail when triggering into pail.
•If there is a static sparking or you feel a shock, stop operation
immediately.
•Do not use equipment until you identify and correct the problem.
•Keep a working fire extinguisher in the work area.
THERMAL EXPANSION HAZARD
Fluid subjected to heat in confined spaces, including hoses, can creat a rapid
rise in pressure due to the thermal expansion. Over-pressurization can result in
equipment rupture and serious injury.
•Open a valve relieves the fluid expansion during heating.
•Replace hosed proactively at regular intervals based on your operation
conditions.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that incompatible with aluminum in pressurized equipment can
cause serious chemical reaction and equipment rupture. Failure to follow this
warning can result in death, serious injury, or property damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated
hydrocarbon solvents for fluids containing such solvents.
•Many other fluids may contain chemicals that can react with aluminum.
Contact your material supplier for compatibility.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•This equipment is for Professional use only.
•Do no leave the work area while the equipment is energized or under
pressure. Turn off all equipment when the equipment is not in use.
•Do not operate the unit when fatigued or under the influence of drugs or

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
6
alcohol.
•Do not exceed the maximum working pressure or temperature rating of the
lowest rated system component. See Technical Data in all equipment
manual.
•Use fluids and solvents that are compatible with equipment wetted parts.
See Technical Date in all equipment manuals. Read fluid and solvent
manufacturer’s warnings. For complete information about your material,
request MSDS forms from distributor or retailer.
•Check equipment daily. Repair or replace worn or damaged parts
immediately with genuine manufacturer’s replacement parts only.
•Do not alter or modify equipment.
•Use equipment only for its intended purpose. Call your distributor for
information.
•Route hoses and cables away from traffic areas, sharp edges, moving
parts, and hot surfaces.
•Do not kink or over bend hoses or use hoses to pull equipment.
•Keep children and animals away from work area.
•Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
•Keep clear of moving parts.
•Do not operate equipment with protective guards or covers removed.
•Pressurized equipment can start without warning. Before checking,
moving, or servicing equipment, follow the Pressure Relief Procedure in
this manual. Disconnect power or air supply.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during
operation. To avoid severe burns, do not touch hot fluid or equipment. Wait
until equipment/fluid has cooled completely.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
7
2. Important Two-Component Material Information
Isocyanate Conditions
•Spraying or dispensing materials containing isocyanates creates
potentially harmful mists, vapors, and atomized particulates.
•Read material manufacturer’s warnings and material MSDS to know
specific hazards and precautions related to isocyanates.
•Prevent inhalation of isocyanate mists, vapors, and atomized particulates
by providing sufficient ventilation in the work area. If sufficient ventilation
is not available, a supplied-air respirator is required for everyone in the
work area.
•To prevent contact with isocyanates, appropriate personal protective
equipment, including chemically impermeable gloves, boots, aprons, and
goggles, is also required for everyone in the work area.
Material Self-ignition
Some materials may become self-igniting if applied too thickly. Read material
manufacturer’s warnings and material MSDS.
Keep Components A and B Separate
Cross-contamination can result in cured material in fluid lines which could
cause serious injury or damage equipment. To prevent cross-contamination of
the equipment’s wetted parts, never interchange component A (isocyanate) and
component B (resin) parts.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
8
Moisture Sensitivity of Isocyanates
Isocyanates (ISO) are catalysts used in two component foam and polyurethane coatings. ISO will
react with moisture (such as humidity) to form small, hard, abrasive crystals, which become
suspended in the fluid. Eventually a film will form on the surface and the ISO will begin to gel,
increasing in viscosity. If used, this partially cured ISO will reduce performance and the life of all
wetted parts.
The amount of film formation and rate of crystallization varies depending on the blend of ISO, the
humidity, and the temperature.
To prevent exposing ISO to moisture:
•Always use a sealed container with a desiccant dryer in the vent, or a nitrogen atmosphere.
Never store ISO in an open container.
•Keep the ISO lube pump reservoir (if installed) filled with DOP. The lubricant creates a
barrier between the ISO and the atmosphere.
•Use moisture-proof hoses specifically designed for ISO, such as those supplied with your
system.
•Never use reclaimed solvents, which may contain moisture. Always keep solvent containers
loosed when not in use.
•Never use solvent on one side if it has been contaminated from the other side.
•Always lubricate threaded parts with ISO pump oil or grease when reassembling.
Changing Materials
•When changing materials, flush the equipment multiple times to ensure it is thoroughly clean.
•Always clean the fluid inlet strainers after flushing.
•Check with your material manufacturer for chemical compatibility.
•Most materials use ISO on the RED drum, and POLY on the BLUE drum.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
9

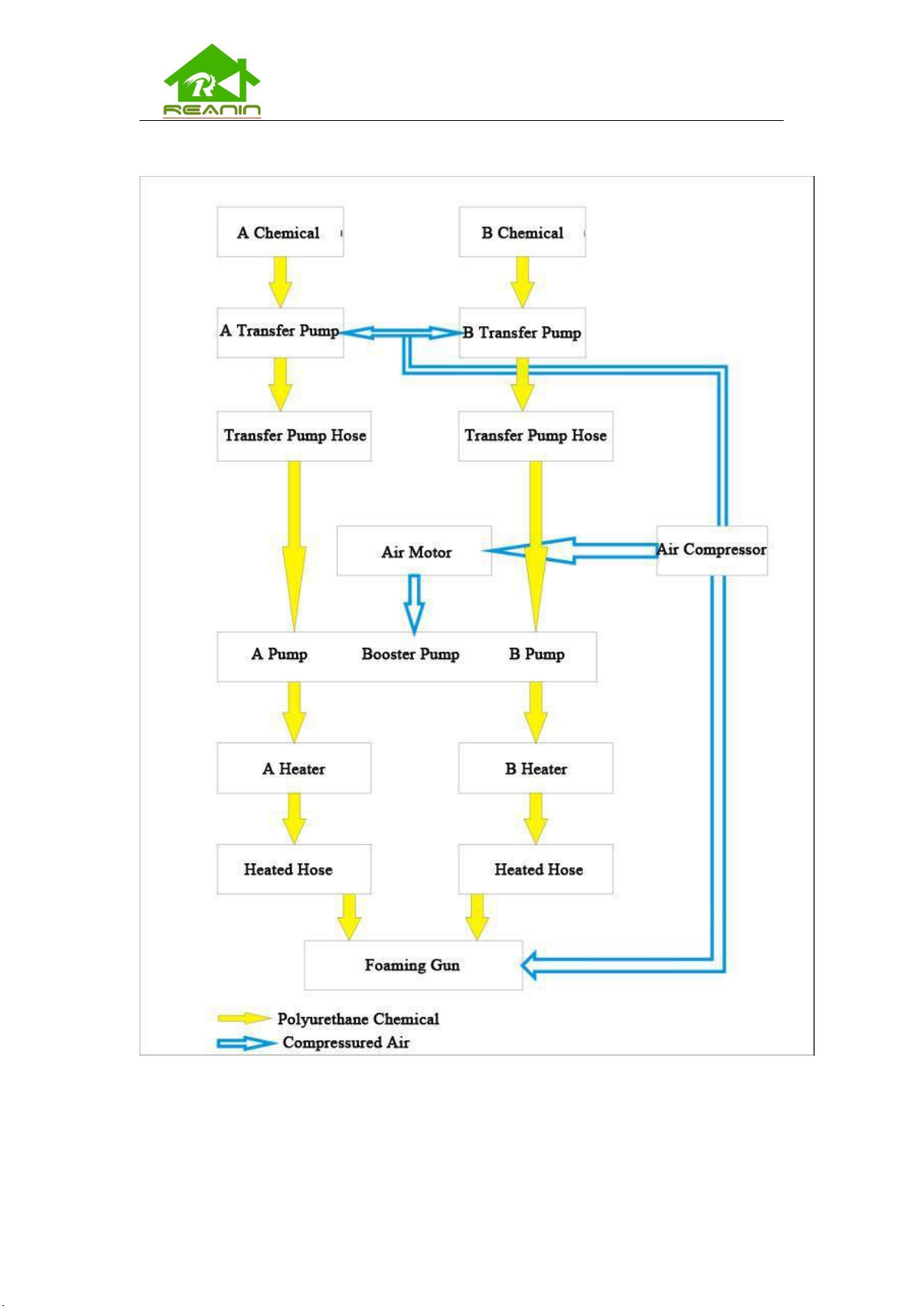

3. Flow Charts of the Raw Material
Figure 1

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
10
4. System Installation

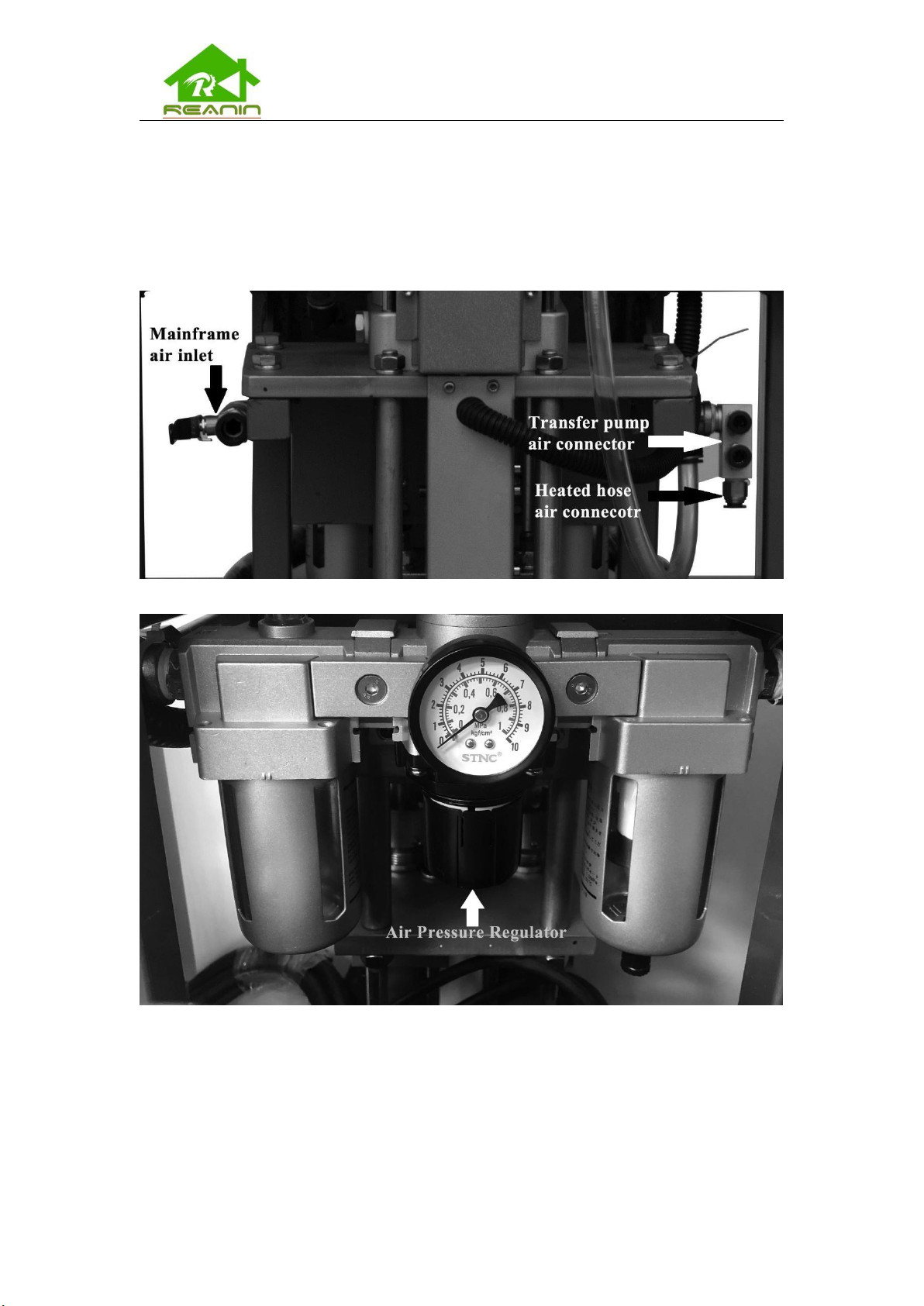

4.1 Installation of air supply system
1. Connect main air line from air compressor to the main air inlet,
2. Connect the air line in heated hose to mainframe,
3. Connect air lines from mainframe to transfer pumps.
See figure 2, figure 3.
Figure 2
Figure 3
Mainframe air inlet,
The total air supply inlet of the whole system. The compressed air from the air compressor enters
the system though this connector.
Air pressure regulator,

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
11
Used to adjust the whole system air pressure. Pull the knob out to unlock and adjust the air
pressure. Turn clockwise “＋” to increase the air pressure, turn counter-clockwise “－” to reduce
the air pressure, press the knob in to lock it.
Transfer pump air connector,
Connects air lines to A and B transfer pumps separately, to provide compressed air as power them.
Heated hose air connector,
This connector connects the air line in the heated hose, to provide compressed air as power to the
foam gun.
4.2 Installation of raw material hose system
WARNING
•Before installing the raw material lines, make sure the equipment is not electrified.
•Under ordinary pressure, the foaming agent will expand intensively when the temperature of
raw material is more than 23 ℃ .
Lead the POLY and ISO from material drum to the pump entrance of the mainframe, connect
hoses of chemical material and air to spray gun respectively as the following step.
Installation of material feeding system
1. Open the drum and slowly insert the transfer pump into drum until it reaches the bottom, as
figure 3.
Figure 3
2. Connect the transfer pump hose to discharge hole of transfer pump and booster pump entrance
of the mainframe respectively, as figure 5.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
12
Figure 5
Installation of heated hose
Connect the hose to the mainframe and spray gun respectively.
Connect the power cord of heated hose, to the transformer output one wire to 0 volt tip and
another wire that gives the heated hose different voltages. See voltage table and figure 6.
Heated hose length
15m
30m
45m
Transformer voltage
19V
38V
57V
Figure 6
4.3 The connection and requirement of power source
Machine power supply can choose Three phase or Single phase, please connect the corresponding
power according to your machine.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
13
Three phase 380V 50Hz or Three phase 240V 60Hz
Connect the power line from the mainframe to three phase 380V 50Hz (or three phase 240V 60Hz)
power which is equipped with a breaker.
The black line is ZERO wire, and The yellow/green line is a protective grounding wire.
Single phase 220V 50Hz
Connect the power line from mainframe to single phase 220V 50Hz power which is equipped with
a breaker.
The black line is ZERO wire, the yellow/green line is a protective grounding wire.
WARNING
Installing this equipment requires access to parts which may cause electric shock or other
serious injury if work is not performed properly. Be sure your installation complies with all
National, State and Local safety and fire codes.
The two wires of the instrument panel are charged when the main power turn on. So turn off
the main power when maintain the instrument.
Please select the corresponding voltage according to your machine, 240V and 380V are not
compatible.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
14
5. Control Panel
Figure 7
A/B/C temperature controller
A Isoyanate temperature controller for A side heater temperature display and set,
B Polyol temperature controller for B side heater temperature display and set,
C heated hose temperature controller for heated hose temperature display and set.
How to set temperature
1. Press “A/B heater switch” and “Heated hose switch” to “ON” position,
2. Press “SET” knob on the controller three times, the LED digital continuous flashing,
3. Press ▲ or ▼ to set the temperature,
4. Press “SET” one time finish the setting.
Emergency stop
Press the stop switch in an emergency situation, then the machine will stop working. But the
equipment system is still electrified. Be sure to cut off the main power when you want to maintain
the equipment. After finishing maintenance, turn the knob clockwise then it will reset when the
equipment recovers to working state.
A/B heater switch
This switch controls the heater power, press this button, A and B controller temperature will
display.
Heated hose switch
This switch controls the heated hose power, press this button, heated hose controller temperature
will display.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
15
System ON/OFF switch
This switch controls the booster pump movement. It has two positions, “ON” and “OFF”, on
“ON” position, the air motor drive the booster pump working, the chemical has high pressure
inside, on “OFF” position, the air motor stops working.
Figure 8
Main power switch
This switch controls whole machine power. Figure 8.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
16
6. System Operation
6.1 The check before operation
There are 4/5 DOP (Dioctyl Phthalate) in the DOP cup of mainframe or not. as figure 9.
Figure 9
Check all connectors are tightened.
Check the connection of power line is correct, and the protective grounding wire is safe and
reliable.
Check all switches on the control panel are in the OFF position.
Check all air supply regulators is in the OFF position.
WARNING
Do not put any parts of the body in the range of spray.
Do not let the gun point to someone.
Do not look into the hole of the gun mixing chamber.
Please use safety appliances like mask, gloves and protective clothing, for the objectionable
constituent in the raw material.
6.2 Initial start (The first use of the new machine)
NOTICE
Proper system setup, startup, and shutdown procedures are critical to electrical equipment
reliability. Failure to follow safety procedures will cause voltage fluctuations that can damage
electrical equipment and void the warranty.
Before operate the system you must make sure all fluid flow pipes, air supply pipes and power
cord are connected and correct. The operator must fully understand every part on the control
panel.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
17
Steps as follow,
1. Turn on the POWER switch, and adjust the pressure regulator of the main air supply knob to
0.2-0.4MPa, then the transfer pump will start to work. The whole system is filled by raw material.
Once filled up, the transfer pump will stop working automatically.
2. Remove the two transporting blocks besides the tip of the gun.
3. Place clean containers under two transporting block respectively. At the same time, turn on the
raw material valve of two transporting block slowly, let all air in the heated hose out, till raw
material smoothly. As figure 10.
Figure 10
4. Close two raw material valves at the same time, the pressure value shown on the pressure
gauge of raw material should be approximate equality. If one of them is higher, turn on the raw
material valve slightly on higher side, let raw material flow out, till the two pressures are
approximate equality.
5. Clean the trances of raw material on transporting blocks, coated with Vaseline, install the
transporting block to the gun again. Tighten the screw, let two transporting blocks closely contact
with the gun tip, make sure no air and material leakage and the gun tip in flexible motion.
6. Straighten the heated hose to avoid uneven heating and damage internal heated wire. Set to
make the heating temperature well. After temperature is up to the setting valve, then improve the
air supply pressure of the mainframe to the working pressure (0.6MPa-0.9MPa).
WARNING
Before spraying, do not set the air pressure at the value of working pressure to avoid
damaging pressure gauge for high pressure, and even explosion, because the raw material
will expand when heated.
Make sure turn on/off two valves of raw material at the same time, or maybe block the spray
gun.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
18
7. Turn on the inlet switch of the gun first, then the raw material valves on the two transporting
blocks.
8. At the moment, the whole system prepared, and it can spray as long as pull the spray gun
trigger.
NOTICE
Make sure turn off the raw material valves at the same time on the two transporting blocks when
you stop working to avoid spraying due to wrong operation.
6.3 Daily shutdown steps
NOTICE
Turn the system ON/OFF switch to “OFF” position every time when shutdown, let the booster
pump A-side shaft all in the DOP, avoid scratching the seal element in the pump again started.
1. Press the A/B heater switch and heated hose switch button, shut down the heated system,
2. Turn the system ON/OFF switch to “OFF” position to shut down the booster pump,
3. Turn off the main power switch of the equipment, shut down the whole system,
4. Pull the gun trigger to release the pressure in system,
5. Close two valves on the gun transporting blocks,
6. Pull the gun trigger several times to clean the gun,
7. Close the air supply of whole system,
8. Disconnect the power cord of whole system,
9. Clean up the site, confirm the daily shutdown steps is completed.
6.4 Daily maintains
Check the quantity and color of the DOP in DOP cup. Change the DOP which discolor and failure
seriously to avoid damage the A-side booster pump seal element. You can suck up the discolored
and failure DOP with a suction flask, and refill the cup to 4/5 with pure DOP
6.5 Long-time shutdown steps
This steps is for long-time shutdown or storage of machine, please follow steps to operate, (mainly
for isocyanate)
1. Close the air supply and the main power switch, take transfer pumps out from the raw material
drums, use the solvent to clean the outside of transfer pumps,
2. Place transfer pumps in a container with clean solvent, ISO and POLY transfer pumps should
be placed in separated containers,
3. Open the air pressure valve of the mainframe, then transfer pumps will start to work,
4. Turn on the main power switch,
5. Turn on the system ON/OFF switch to “ON” position,,
6. Make sure gun valves close, take off gun valves,
7. Open gun valves, spill the equipment chemical into suitable containers until a clean solvent

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
19
appears,
Above the procedures use solvent cleaning system.
8. Put the transfer pump into the container with DOP, repeat the above steps, until clean DOP
appears at outlet,
9. Follow daily shutdown steps, seal all inlet and outlet openings, put transfer pumps into
container with DOP.
NOTICE
Isocyanate and air is easy to crystallize, all inlet and outlet must be strictly sealed to prevent air
from entering.

Shandong Reanin Machinery Co.,Ltd
K2000 Pneumatic Spray Machine User Manual
20
7. Check for Fluid Flow System and Equipment Problems
You must know the following questions as a qualified operator,
What the normal raw material looks like?
How to work of the equipment?
What will be when machine in normal work?
How to move the raw material in the machine?
7.1 Checking when the raw material pressure gauges wrong display
Checking must from step one, then one by one. Determine by the pressure displayed on the raw
material pressure gauge.
1. Confirm which material in shortage and miss.
First, observe the material color spraying from the gun and foam state, stop spraying to check
when with problems. If the raw material pressure is lower, it means underfeeding of material
transfer pump system. Check if the material feeding system blocking or no material in drum.
2. If underfeeding, check and repair from the farthest end to the mainframe, and begin from the
most basic and easily be found aspect.
3. If the raw material pressure too low, check as follow,
If there are raw materials in the drum?
What’s the temperature of raw material?
A. High temperature will cause expand in advance of the foaming agent in the poly drum.
B. Low temperature of the drum bottom will cause raw material viscosity increases then block the
material transfer pump or raw material flow impeded can can’t enter the system.
Transfer pump does not work?
A. Running or not?
B. Turn on the air supply?
C. Air supply pressure in a proper value?
D. There is dirt on the shaft of transfer pump? (if yes, means it bot be wiped oil for protection in
advance, or the oil cup not tighten, cause to material overflow.)
E. Check the filter of transfer pump.
F. Confirm the material transfer pump body after sure there are no problem in other parts.
Filter. Install a filter on the transfer pump discharge? Or it blocks?
4. Check as follows if the raw material pressure too high
If the filtering net of the transporting block on gun blocks.
If there are curing and crystalline materials in the hose from raw material pressure gauge to
the gun, causes raw material flow impeded.
