Rear view safety RVS-7700 User manual

Reverse With Condence ™ 1
Backup Camera System
with GPS Natigation (3 Channel)
RVS-7700
Instruction Manual
Rear View Safety, Inc. © 2016

Rear View Safety
2
Introduction...............................03
SafetyInformation..........................04-06
Before Beginning Installation. . . . . . . . . . . . . . . . . . . . . . . 07
SafetyPrecautions................. . . . . . . 08
InTheBox...............................09
MonitorInformation.........................10-11
MenuIntroduction .........................13-17
Camera Specication........................18-19
Warranty&Disclaimer........................ 20-21
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects,
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemislimited. Itdoes notdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN

Rear View Safety
8
SAFETY PRECAUTIONS
Precautions For Use Of Monitor
I. The Monitor is made of glass and plastic. Do not subject it to
a mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling make sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.

Reverse With Condence ™ 9

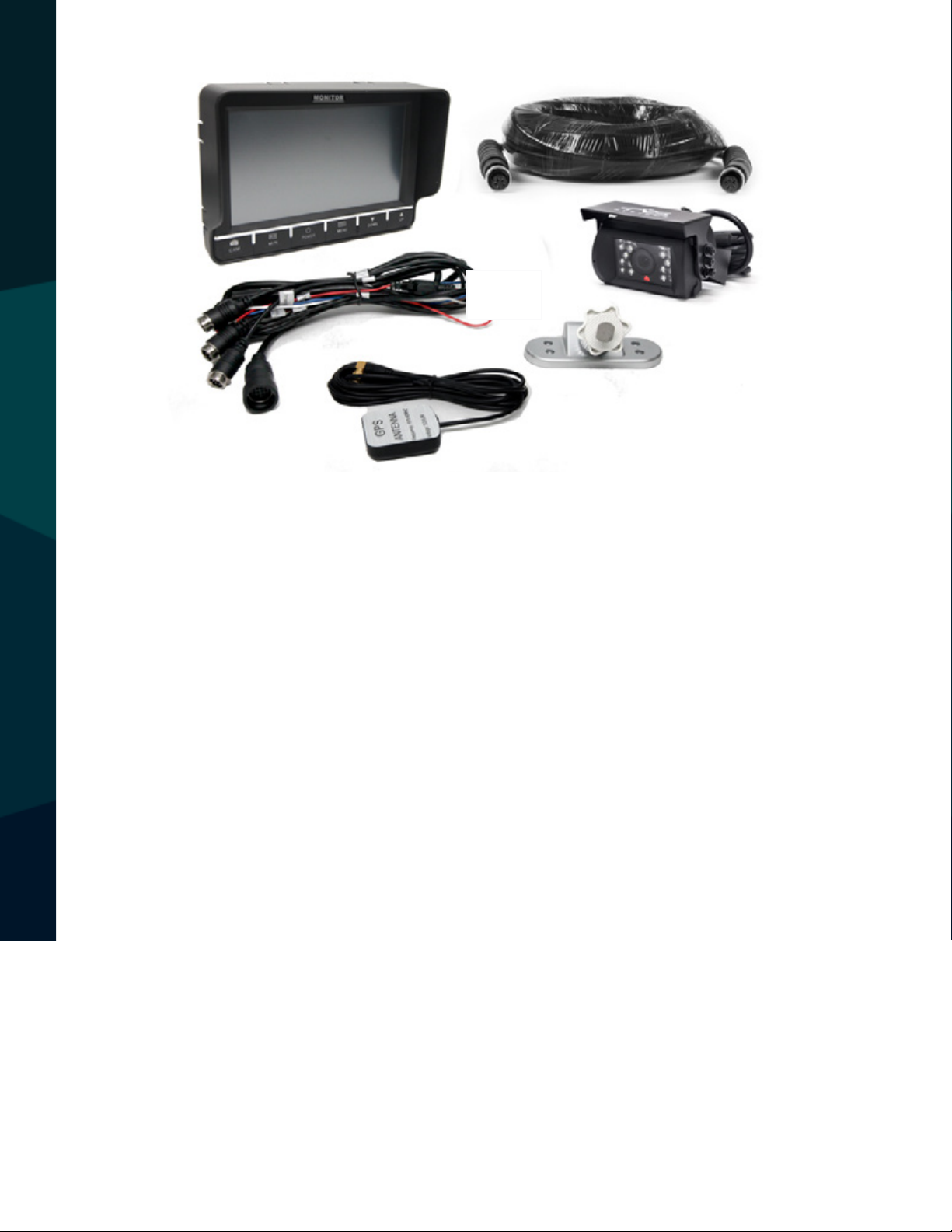

IN THE BOX

Rear View Safety
10

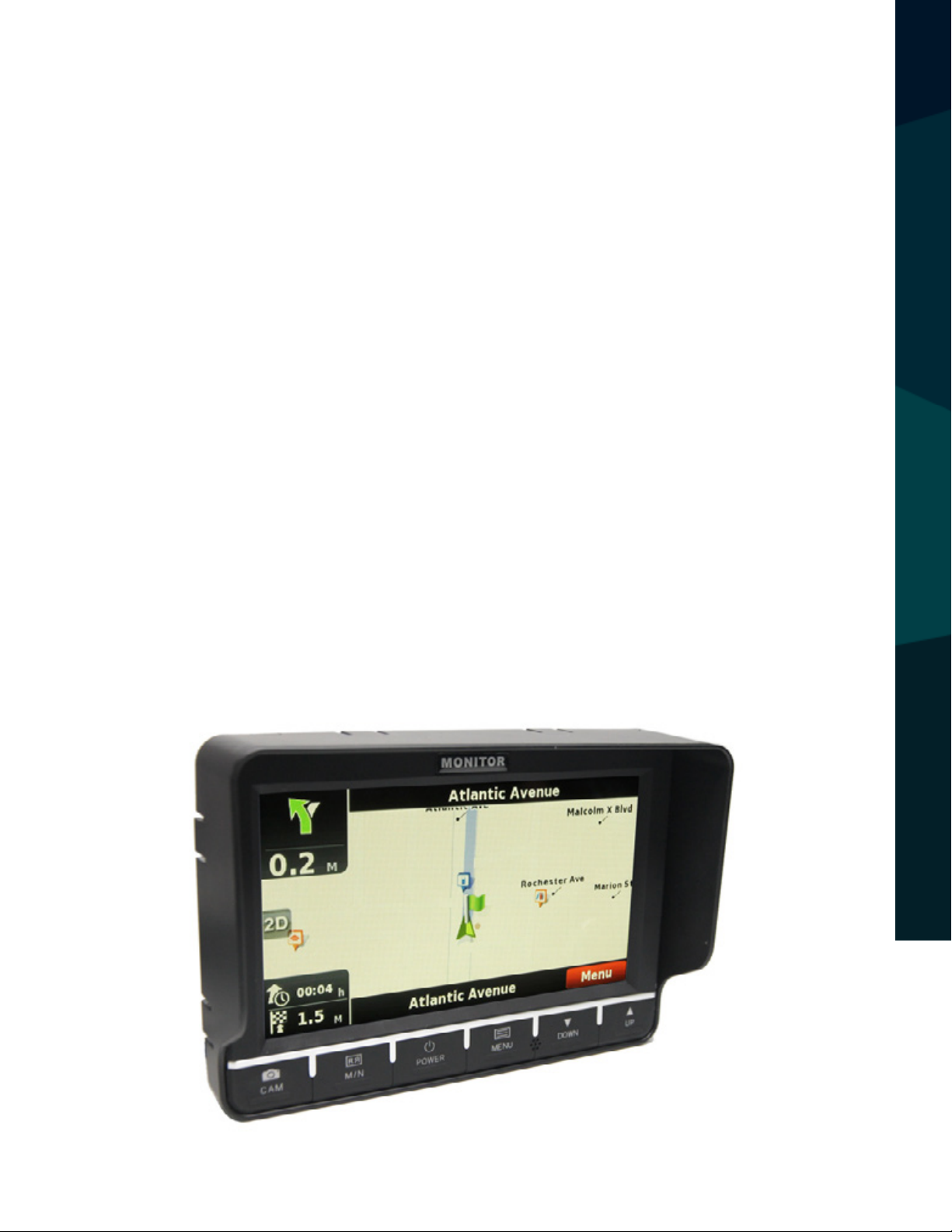

MONITOR INFORMATION
1. CAM - Channel Switch
2. M/N - Normal/Mirror, Day/Night Mode (Long Press)
3. Power - Turn Monitor On/O
4. Menu - Visit Menu
5. Down - Toggle Menu Function Down, Decrease Volume
6. Up - Toggle Menu Function Up, Increase Volume
• 7” TFT LCD Digital Color Touch Display
• GPS Navigation with Sygic Maps
• 3 Channel Power Harness - Supports 3 Cameras
• Built-in Speaker For Camera Mic
• Touch Screen - Monitor Functions Controlled Simply By Touch

Reverse With Condence ™ 11
MONITOR INFORMATION
Monitor Specications
Type: TFT LCD
Screen Size: 7”
Aspect Ratio: 16:9
Video Input: 3 Channel
Trigger Capacity: 3 Triggers
Video System: Auto PAL/NTSC
Resolution: 800 X RGB X 480
Brightness: 450cd/m2
Power Supply: 9-36V DC
Audio: Built-in Speaker
Operating Temperature: -20°C ~ +70°C RH 95% Max
Storage Temperature: -30°C ~ +80°C RH 95% Max

Rear View Safety
12

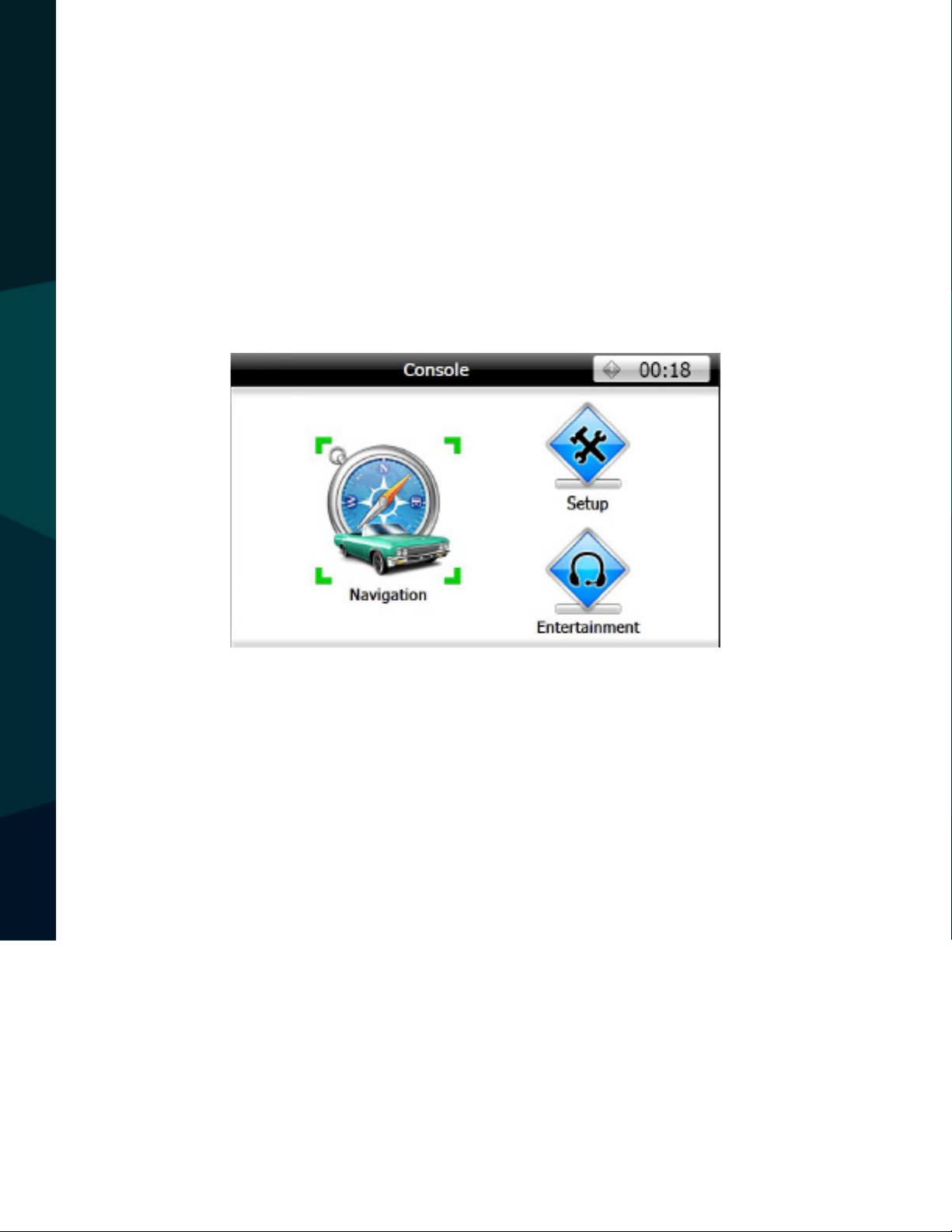

MENU INTRODUCTION
GPS Navigation
Press the Navigation icon on the interface or ‘SRC’, ‘GPS’ on the panel to
switch to navigation mode.

Reverse With Condence ™ 13
MENU INTRODUCTION

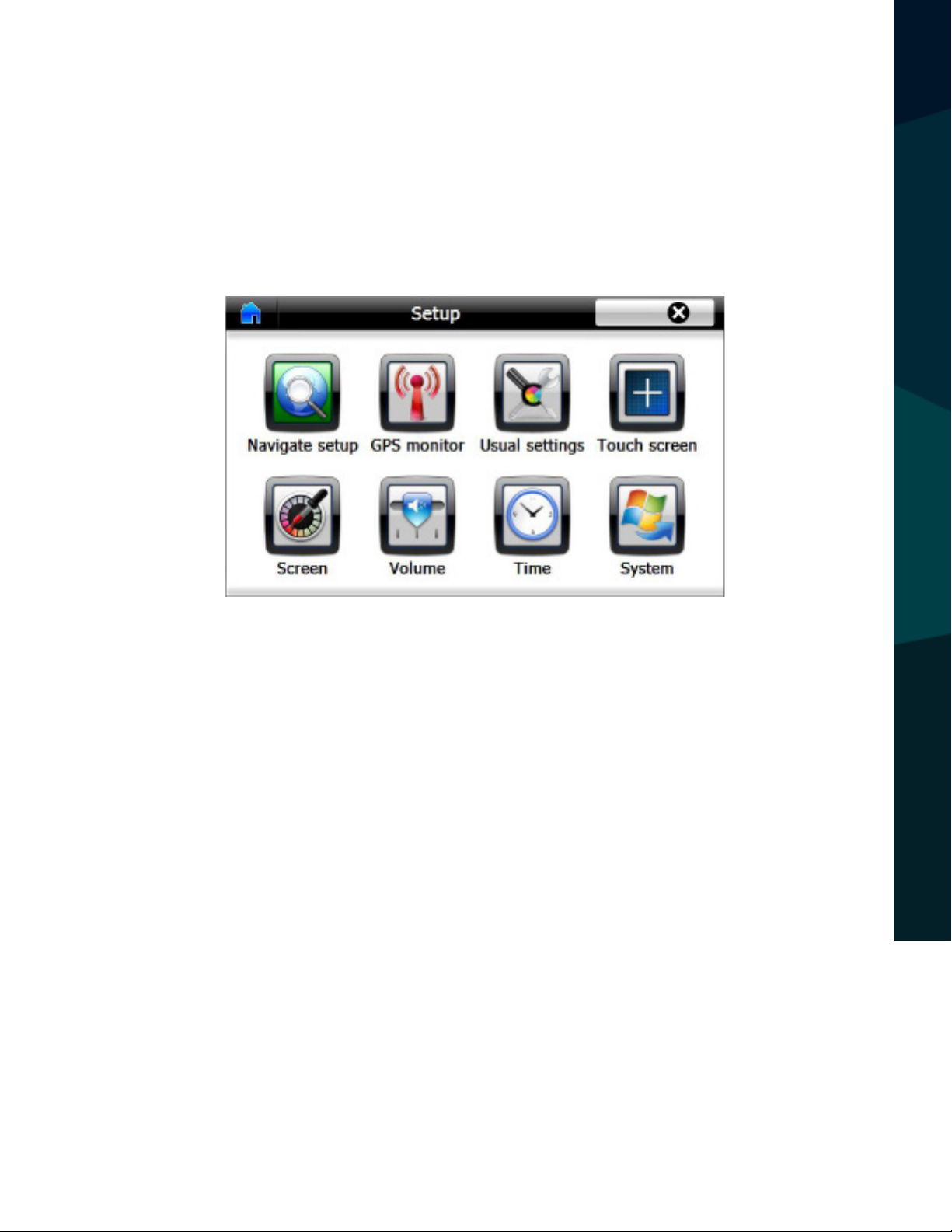

1. Setup - Press on the Setup icon to enter the setup interface. Select from
Navigate setup/GPS monitor/Usual Setting/Touch Screen/Volume/Time/
System.

Rear View Safety
14
MENU INTRODUCTION

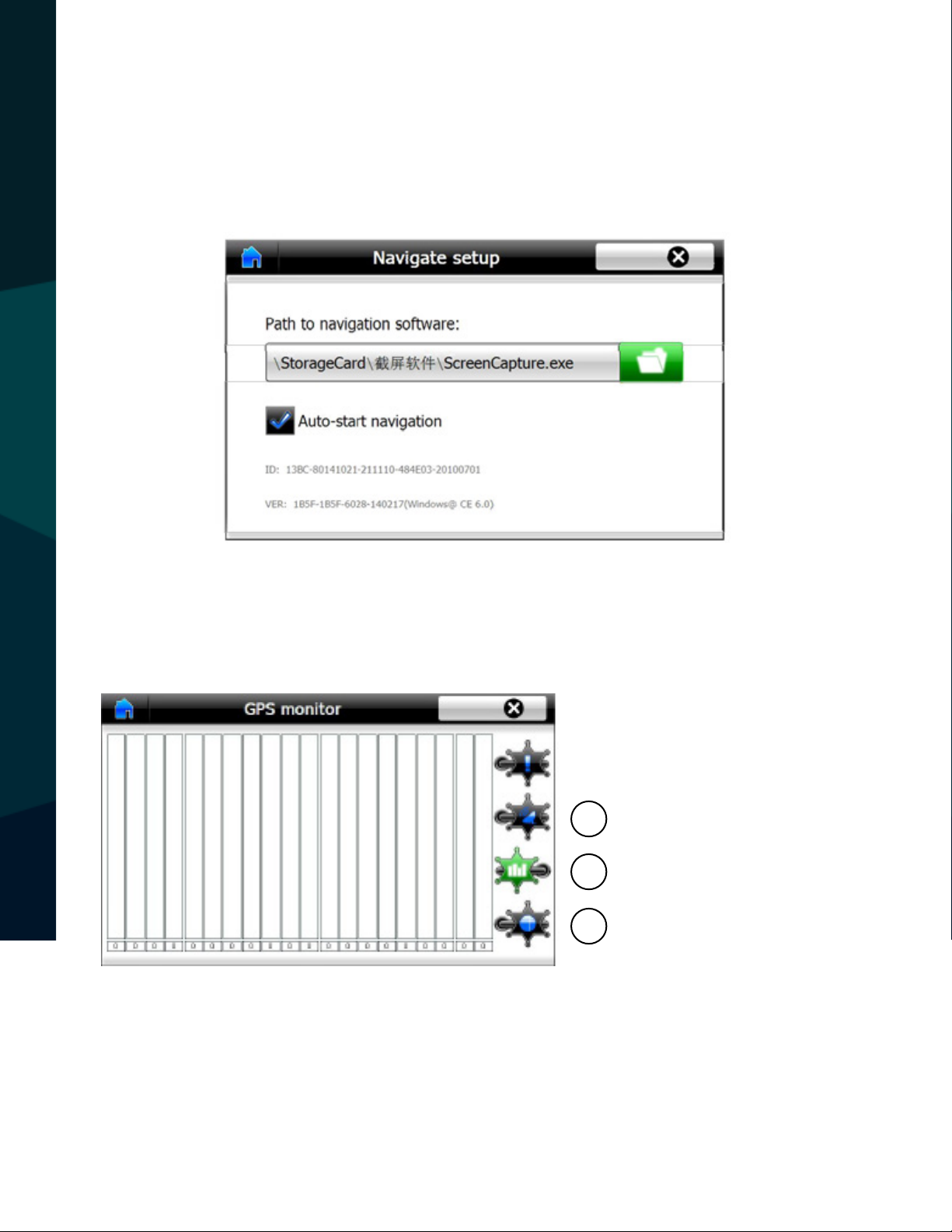

Navigation Setup
GPS Monitor
Click on the Navigate setup icon to enter the interface shown below.
Click on the Navigate setup icon to enter the interface shown below.
1. Satellite dataow
2. Satellite number & signal intensity
3. Longitude, latitude, time
1
2
3

Reverse With Condence ™ 15
MENU INTRODUCTION
Usual Setting
Press the Usual Setting icon to enter the interface shown below. Press
the arrow icons to change the settings.
Touch Screen
Press the Touch Screen icon to enter the calibration interface. Follow the
screen prompt, pressing the center of the cursor until it moves to the top
left, lower left, lower right and top right respectively.
Once the calibration is completed, you will return the calibration inter-
face. The monitor is now calibrated. It is not necessarily to calibrate be-
fore every use.

Rear View Safety
16
MENU INTRODUCTION

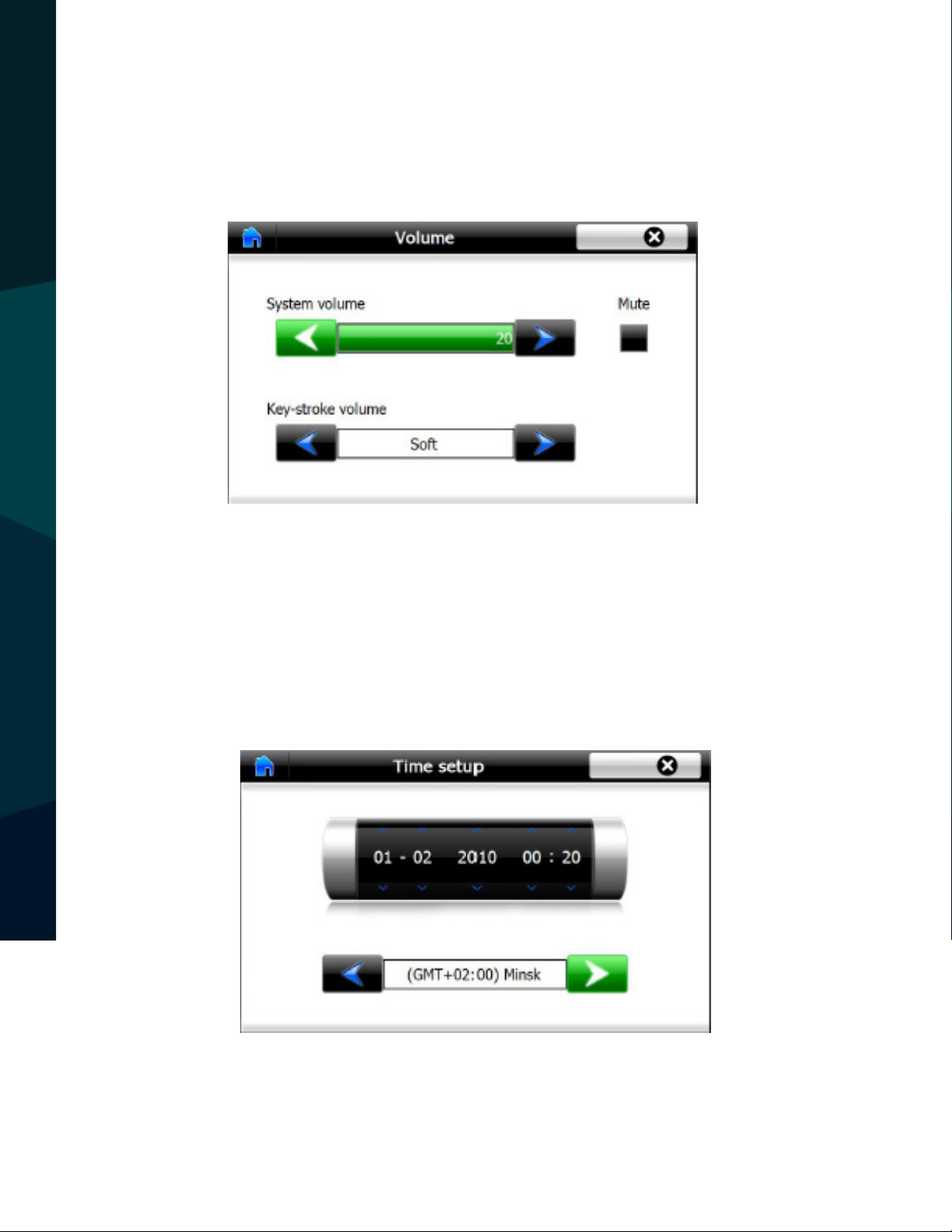

Volume
Click on the Volume icon to enter the interface shown below. Press the
arrows to change settings.
Time
Click on the Time icon to enter the interface shown below. Press the
arrows to change settings.

Reverse With Condence ™ 17
MENU INTRODUCTION
Press the System icon to enter the system interface. Choose from the
settings as shown below.
System Message
Entertainment
Click on the Entertainment icon to enter the interface shown below.
Choose from Music/Movie/E-Book/Picture.

Rear View Safety
18
CAMERA DIMENSIONS
Camera Dimensions
• 18 Infra-red illuminators (enables you to see in total darkness)
• 1/4 Sharp® color CCD, 250k pixels, 2.1 mm wide lens with 130° angle
• Shock resistant with a 20G Vibration and 100G impact rating
• Built-in high gain microphone

Reverse With Condence ™ 19
CAMERA SPECIFICATIONS
Camera Specications
SENSOR 1/4” SHARP® COLOR CCD
PICTURE ELEMENTS 250,000 PIXELS
GAMMA CORRECTION R=0.45 TO 1.0
IMAGE SENSOR 600 TV LINES, PAL: 500 H X 582 V
NTSC: 510 H X 492 V
LENS 2.1MM
VIEW ANGLE 130°
WATERPROOF RATING IP69K
SYNC SYSTEM INTERNAL SYNCHRONIZATION
INFRARED DISTANCE 50 FEET 18 INFRARED
USABLE ILLUMINATION 0 LUX IR ON
POWER SOURCE DC 12V24V +/ 10%
S/N RATIO MORE THAN 48DB
ELECTRONIC IRIS 1/50, 1601/100,000SEC
VIDEO OUTPUT 1VP  P, 75 
IR SWITCH CONTROL ACDS AUTOMATIC CONTROL
VIBRATION AND SHOCK RATING 20G / 100G
OPERATING TEMPERATURE 40°C ~ +80°C / RH 95% MAX
STORAGE TEMPERATURE 40°C ~ +60°C / RH 95% MAX
NET WEIGHT 22OZ

Rear View Safety
20
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVEWARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGEWILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL ORWRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADEWITH REGARDTOTHIS REARVIEW SAFETY, INC. REARVIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
WARRANTY
