HOUSING INSTALLATION - CONCRETE BLOCK
BRICK FACE
Saturna 5009 Series
Remove housing assembly from shipping container.
Cut opening in concrete block wall to suit housing size.
J-box should be below unit. Not on top or sides. Se-
cure to wall through (4) holes located in housing. Round
housing trim should extend 1” out from wall.
Install supply wiring per applicable code requirements.
Install trim adapter to existing trim on housing allowing
required brick thickness extension from wall. Seal trim
adapter to trim at housing with silicone.
Install brick face. Mortar between brick and adapter trim
to create at surface for splay trim to seal against.
Remove electrical tray assembly from shipping carton.
Remove internal j-box cover from housing and pull out supply
wires. Thread electrical white, black and ground leads from
ballast tray through j-box cover and connect to appropriate
supply leads.
Push all splices into j-box and re-attach cover plate.
Install ballast tray and secure with nuts provided.
Remove faceplate assembly from shipping carton. Install splay
trim with screws provided. Silicone seal may be required to
seal between brick face and splay trim.
Install electrical tray with screws provided and insert lamp as
required.
Install faceplate to splay trim with (4) screws provided.
Energize and test as required.
IMPORTANT
Disconnect power before installing xtures. Read instructions before
starting work. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
REV. 12/09/09
1
2
3
4
5
6
7
8

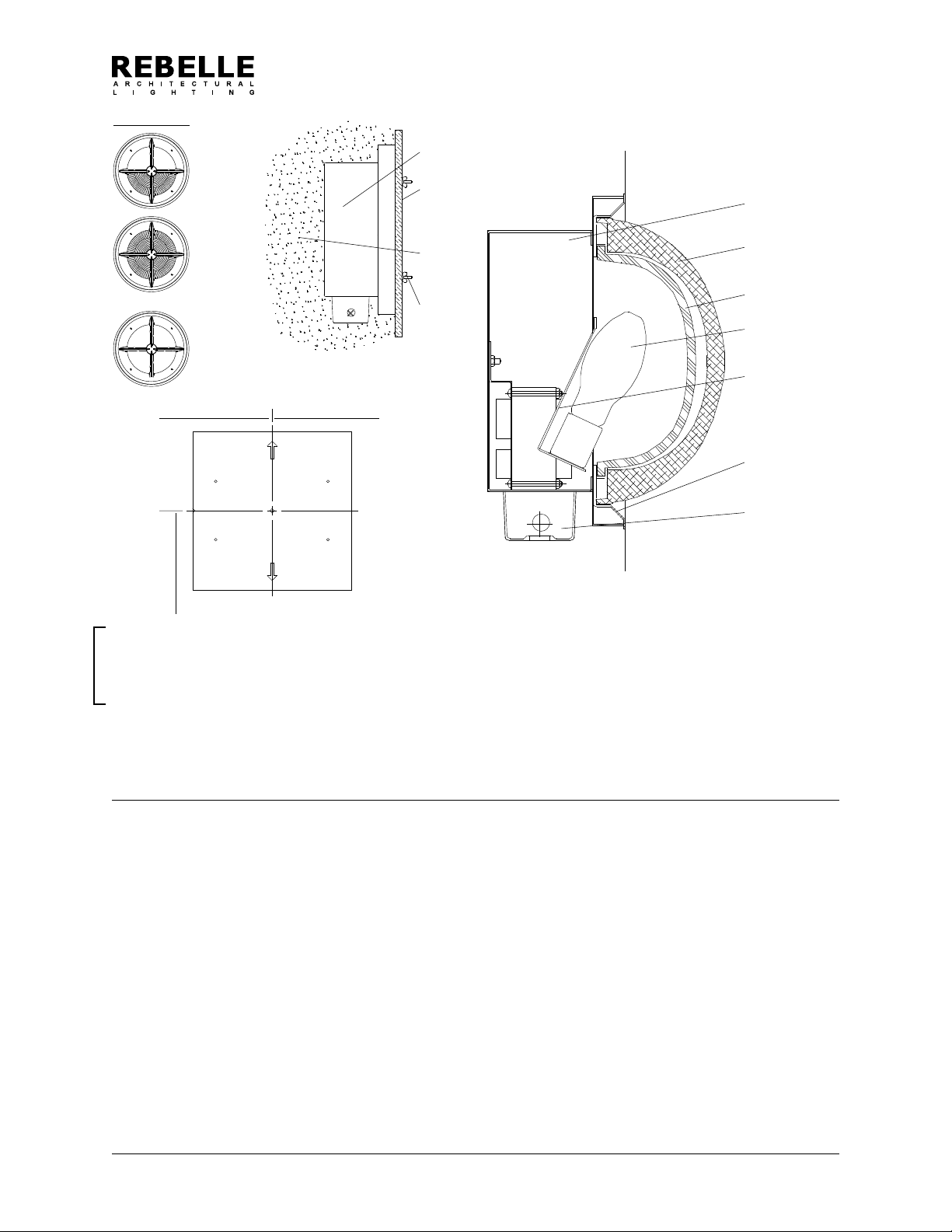

ELECTRICAL TRAY AND FACEPLATE INSTALLATION
13"
5009H
HOOD
Mortar
Silicone seal
Splay trim
Concrete
block
Housing
Lamp
(by others)
Electrical
tray
J-Box
Guard
Glass
Mounting
hardware
Trim
adapter
Brick
face
5009
GUARD
5009C
CUT OFF

www.rebellelighting.com
© 2010 REBELLE All rights reserved.
REBELLE ARCHITECTURAL LIGHTING 11475 - 201A Street, Maple Ridge, B.C. Canada V2X 0Y3
P604.465.5739 F 604.465.9801 E [email protected] Wrebellelighting.com
1
2
3
4
5
6
HOUSING INSTALLATION - CONCRETE POUR
Saturna 5009 Series
Remove housing from shipping carton. Lay out center
line of luminaire positions on concrete form. (Fig.1)
Position template (provided) over marked center line
luminaire spacings (make sure template is level and
arrows are in the up an down position). Drill 1/4” holes
through form. (Fig.1)
Install housing on concrete side of form using 3” long
studs and wing nuts (provided). Ensure that j-box is
properly oriented. J-box down or on back. (g.2) Check
that unit is level.
If tile or other surface treatment is used the housing
position must be adjusted to suit prior to pouring con-
crete.
Install conduit as required and pull supply circuit wires
per applicable electrical codes.
Remove wing nuts and studs after concrete is cured
and before forms are stripped.
Remove electrical tray from shipping carton.
Remove internal j-box cover from housing and pull out supply
wires. Thread electrical white, black and ground leads from
ballast tray thru j-box cover and connect to appropriate supply
leads.
Push all splices into j-box and re-attach cover plate.
Install ballast tray and secure with nuts provided.
Remove faceplate assembly from shipping carton. Install splay
trim with screws provided. Caulking may be required to seal
splay trim to mounting surface.
Install electrical tray/reector with screws provided and insert
lamp as required.
Coat screws with white grease and install faceplate to splay
trim with (4) screws provided.
Energize and test as required.
IMPORTANT
Disconnect power before installing xtures. Read instructions before
starting work. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
REV. 12/08/09
1
2
3
4
5
6
7
8
ELECTRICAL TRAY AND FACEPLATE INSTALLATION
13"
5009H
HOOD
5009
GUARD
5009C
CUT OFF
Spacing to
center line Spacing to center line
Housing
pour box
Housing
pour box
Faceplate and
mounting screws
Glass
Lamp
(by others)
Electrical
tray
Splay trim
J-Box
Concrete form
(by others)
Concrete
(by others)
Studs and
wing nuts
Figure 1
Figure 2
Height to
center line

www.rebellelighting.com
© 2010 REBELLE All rights reserved.
REBELLE ARCHITECTURAL LIGHTING 11475 - 201A Street, Maple Ridge, B.C. Canada V2X 0Y3
P604.465.5739 F 604.465.9801 E [email protected] Wrebellelighting.com
1
2
3
4
5
HOUSING INSTALLATION - HOLLOW WALL
Saturna 5009 Series
Remove housing assembly from shipping container.
Position housing in stud construction to keep at least
1/2” clearance around unit except at mounting points.
Make sure front edge of housing protrudes enough to
be ush with nishing wall plane.
J-box should be below unit. Not on top or sides.
Install supply wiring per applicable code require-
ments.
Notes:
These units are listed/certied as non-ic recessed
units. They are meant to be installed with 1/2” space
around the recessed housing, except at point of
mounting contact. Insulation must be kept away from
housing by a minumum of 3 inches. The ballasts are
thermally protected to guard against misuse.
Remove electrical tray assembly from shipping carton.
Remove internal j-box cover from housing and pull out supply
wires. Thread electrical white, black and ground leads from
ballast tray through j-box cover and connect to appropriate
supply leads.
Push all splices into j-box and re-attach cover plate.
Install ballast tray and secure with nuts provided.
Remove faceplate assembly from shipping carton. Install splay
trim with screws provided.
Install electrical tray with screws provided and insert lamp as
required.
Install faceplate to splay trim with (4) screws provided.
Energize and test as required.
IMPORTANT
Disconnect power before installing xtures. Read instructions before
starting work. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
REV. 12/08/09
1
2
3
4
5
6
7
8
ELECTRICAL TRAY AND FACEPLATE INSTALLATION
13" Housing
5009H
HOOD Stud construction
(by others)
Housing
Faceplate and
mounting screws
Glass
Lamp
(by others)
Electrical tray
Splay trim
Splay trim
Blocking
(by others)
1/2" sheeting
(by others)
Wall board
thickness
Note #3
Housing
Stud construction
(by others)
Blocking
(by others)
Screws/nails as required
(by others)
5009
GUARD
5009C
CUT OFF
HOLLOW WALL INSTALLATION
FOR COMPACT FLUORESCENT
UNITS. HID UNITS MUST BE
ORDERED SPECIAL FOR
HOLLOW WALL CONSTRUCTION
