Rec-tek 1-1-28687 User manual

ASSEMBLY REQUIRED

4-in-1 FUN TIME

ELECTRONIC ROLLERBALL

Assembly Instructions

Model 1-1-28687

CONTACT INFO

Hours

Monday to Friday

(9am to 5pm EST)

Technical Support

Email us at: [email protected]

Visit us at: www.eastpointsports.com

Call: 973-585-4747

www.eastpointsports.com

PATENT - www.eastpointsports.com

Required

TOOLS

• Phillips Head Screwdriver

(Standard Size) – Not Included

How to use the PARTS IDENTIFIER

Before you begin assembly, please make sure that

you have all the parts listed and in the correct

quantities. This will ensure the quickest and most

organized assembly.

PARTS IDENTIFIER

STEP 1

Part Name

28000-01234 x2

Instructions Parts ID #

Part #

Part Name

Part Image

Part Quantity

Step

Used In

Pole - 19in

28683-01341

STEP 1

Pole - 18.25in

28683-02341

STEP 2, 13

Pole - 17in

28683-03341

STEP 3

Pole - 16.5in

28683-04341

STEP 8

Pole - 13in

28683-05341

STEP 5, 9

Pole - 12.25in

28683-06341

STEP 1, 2, 4, 9, 13

Pole - 7in

28683-07341

STEP 13

Pole - 3in

28683-08341

STEP 5

Pole - Curved

28683-09341

STEP 11

Connector - Corner

28683-10341

STEP 1, 2

Connector - Rotatable

28683-11341

STEP 1, 2

Connector - 3 way

28683-12341

STEP 4

Ball Return

28683-13341

STEP 4

Connector - Angle

28683-14341

STEP 5

Connector - 4 way - A

28683-15341

STEP 5

Connector - 4 way - B

28683-16341

STEP 5

Runway

28687-17341

STEP 8

Connector - Straight

28683-18341

STEP 8

Connector - Curved Corner

28683-19341

STEP 9

Pole Cap - Small

28683-20341

STEP 9

Pole Cap - Large

28683-21341

STEP 9

Pole Cap - Hook

28683-22341

STEP 11, 13

Connector - T

28683-23341

STEP 13

Scorer

28687-24341

STEP 18, 19

Target Housing

28687-25341

STEP 20

Peg - Scorer

28687-26341

STEP 19

ACCESSORIES

Game Board - Classic/Castle

28683-80341

STEP 22

Game Board - Dino/Space

28683-81341

STEP 22

Ball

28683-83341

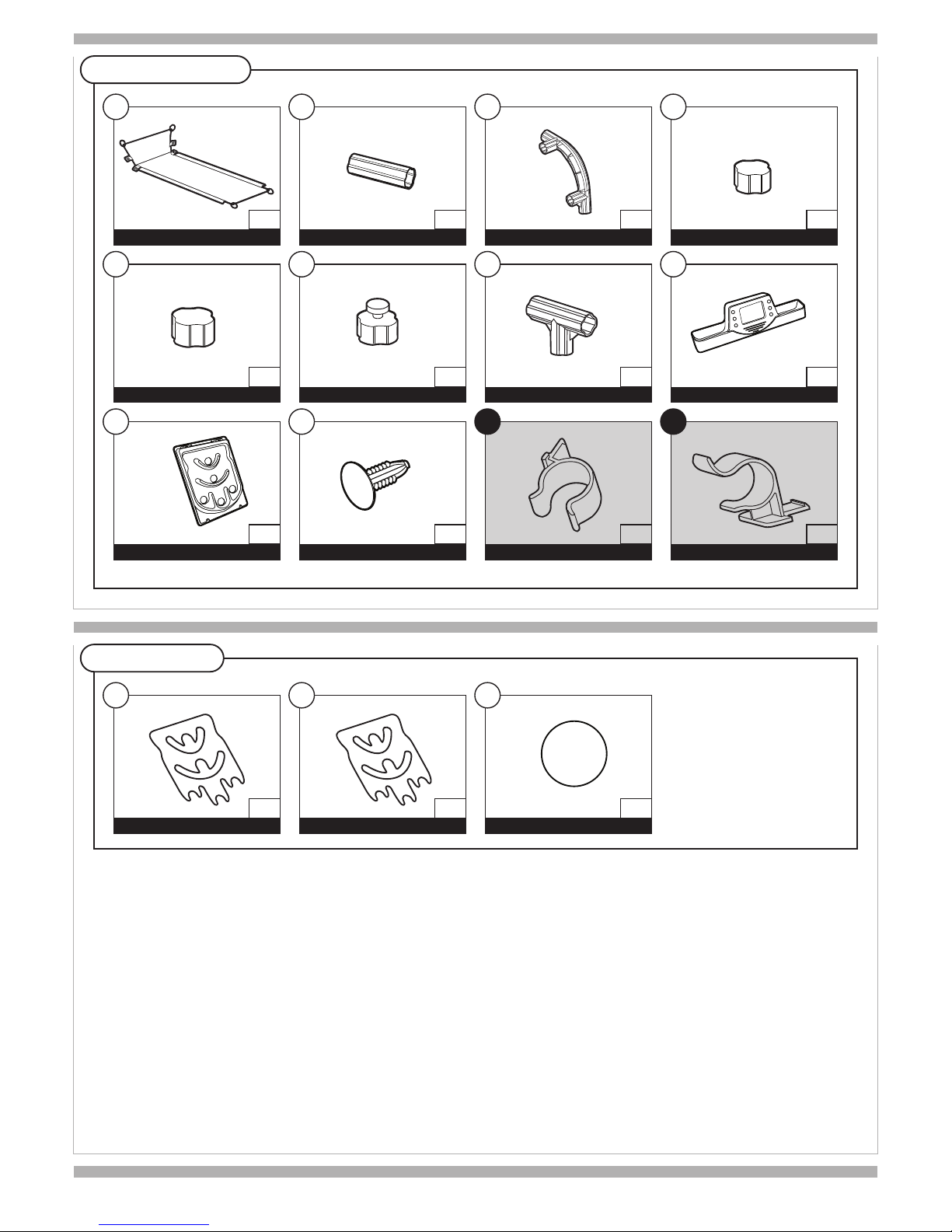

PARTS IDENTIFIER

Clip - A

28683-31341

PRE-INSTALLED

Clip - B

28683-32341

PRE-INSTALLED

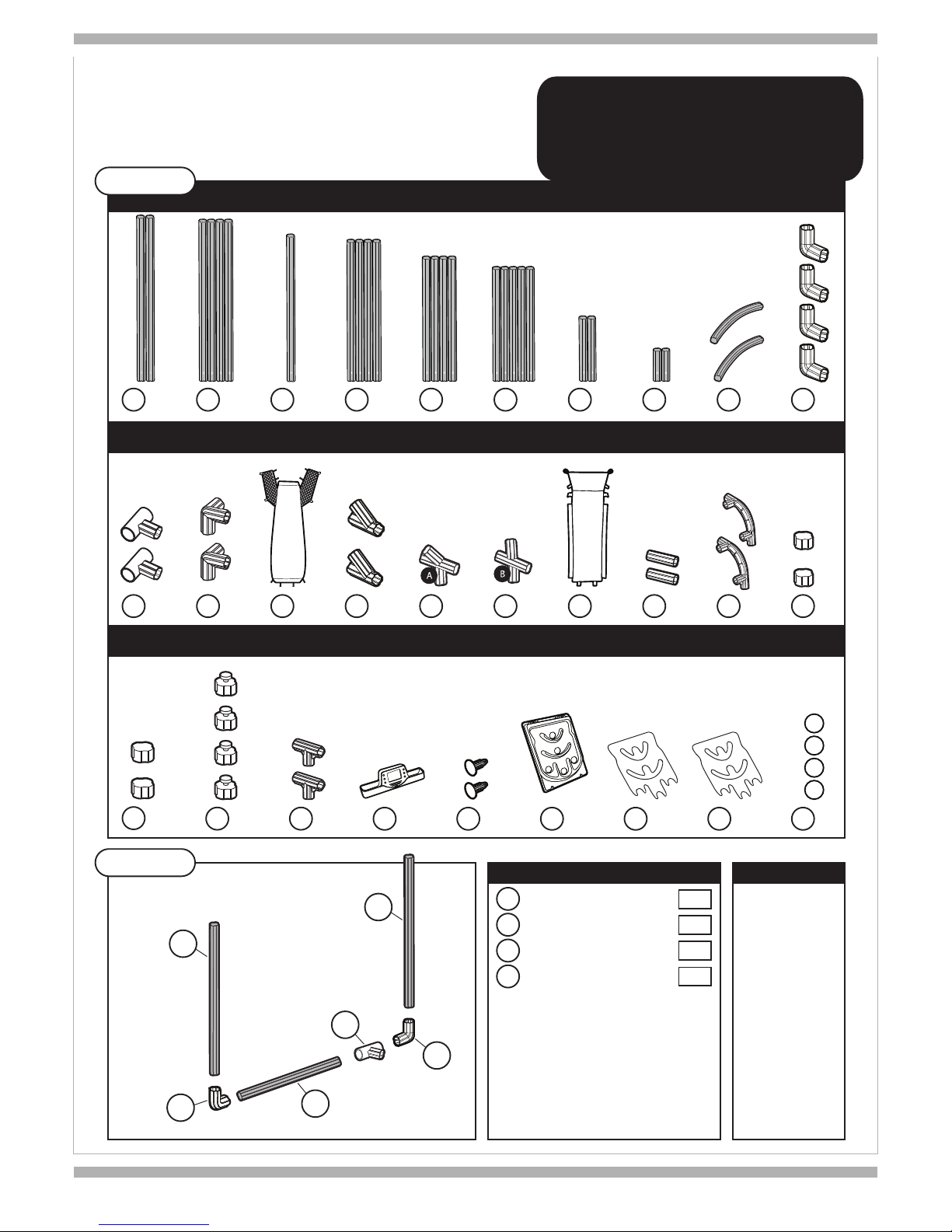

BEFORE BUILDING - Please inspect and layout all your PARTS

NOTE - All parts are NOT to scale with each other

START

Game Construction

ASSEMBLY INSTRUCTIONS

NOTE:

STEP 1 COMPONENTS QTY.

Pole - 19in

Pole - 12.25in

Connector - Corner

Connector - Rotatable

Helpful Hint!

Before building, lay out all the poles in numerical

order as shown below. This will help you find the

correct pole for each step and make assembly

much easier.

1x2 2x4 3x1 4x4 5x4 6x5 7x2 8x2 9x2 10 x4

11 x2 12 x2 13 x1 14 x2 15 x1 16 x1 17 x1 18 x2 19 x2 20 x2

21 x2 22 x4 23 x2 25 x2 26 x1

24 x1 81 x1

80 x1 83 x4

NOTE:

STEP 3 COMPONENTS QTY.

Step 1 Assembly

Step 2 Assembly

Pole - 17in

NOTE:

STEP 2 COMPONENTS QTY.

Pole - 18.25in

Pole - 12.25in

Connector - Corner

Connector - Rotatable

NOTE:

STEP 4 COMPONENTS QTY.

Pole - 12.25in

Connector - 3 way

Ball Return

Make sure the

Ball Return is

right side up.

The hook and

loop tabs at the

front of the Ball

Return should

be facing UP,

not down.

Step 2 Assembly

Step 1 Assembly

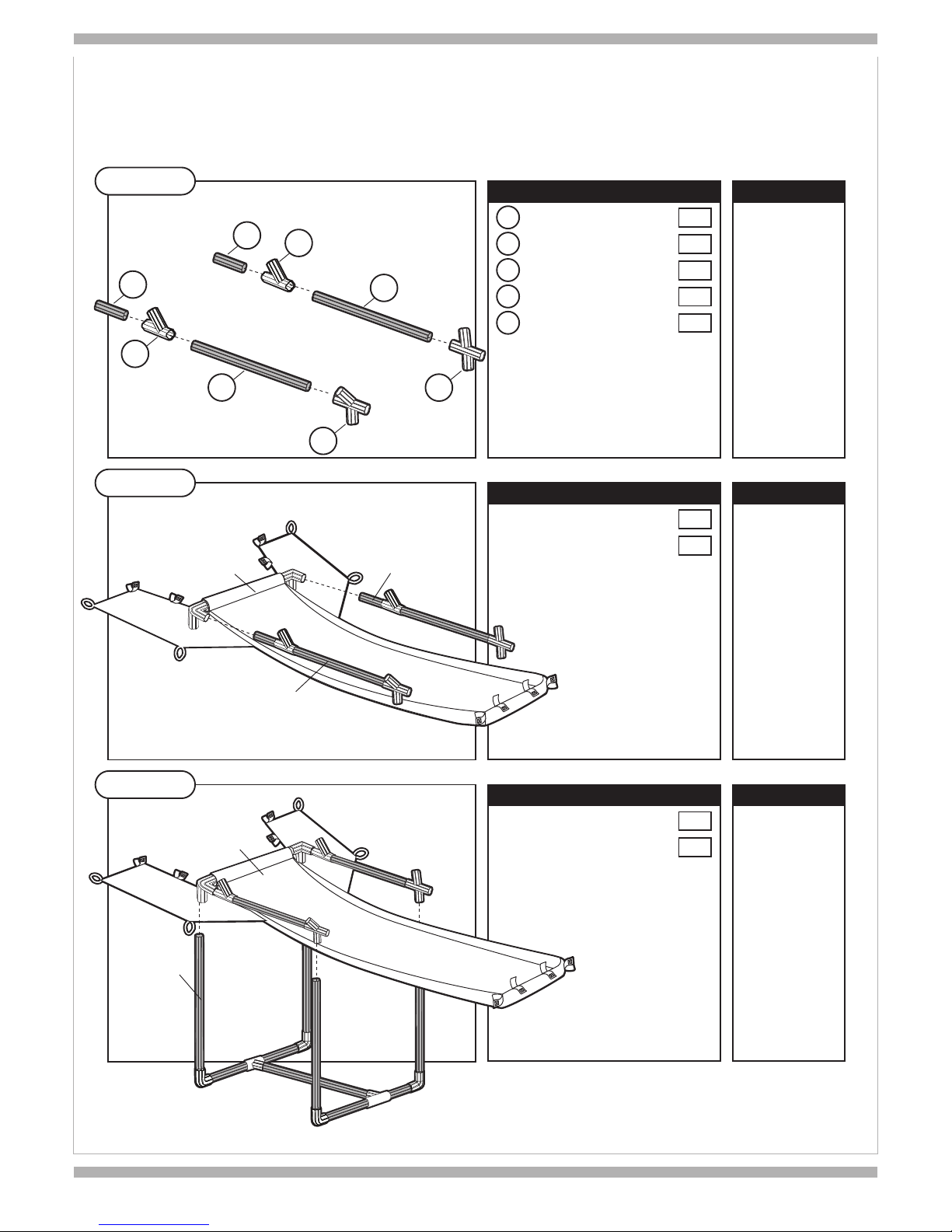

NOTE:

STEP 6 COMPONENTS QTY.

Step 4 Assembly

Step 5 Assembly

NOTE:

STEP 5 COMPONENTS QTY.

Pole - 13in

Pole - 3in

Connector - Angle

Connector - 4 way - A

Connector - 4 way - B

NOTE:

STEP 7 COMPONENTS QTY.

Step 3 Assembly

Step 6 Assembly

Step 4 Assembly Step 5 Assembly

Step 5 Assembly

Step 6 Assembly

Step 3 Assembly

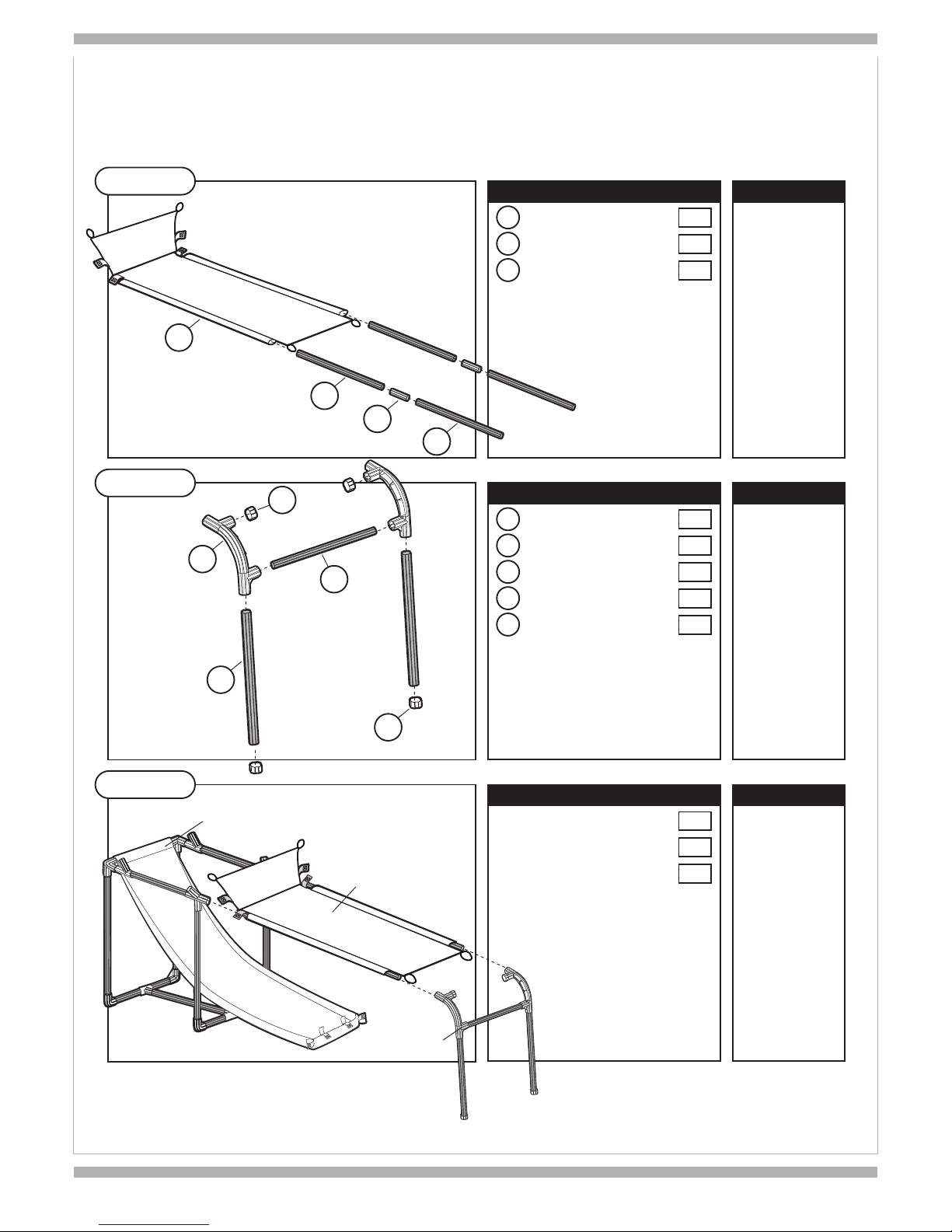

NOTE:

STEP 9 COMPONENTS QTY.

Pole - 13in

Pole - 12.25in

Connector - Curved Corner

Pole Cap - Small

Pole Cap - Large

NOTE:

STEP 8 COMPONENTS QTY.

Pole - 16.5in

Runway

Connector - Straight

NOTE:

STEP 10 COMPONENTS QTY.

Step 7 Assembly

Step 8 Assembly

Step 9 Assembly

Step 8 Assembly

Step 7 Assembly

Step 9 Assembly

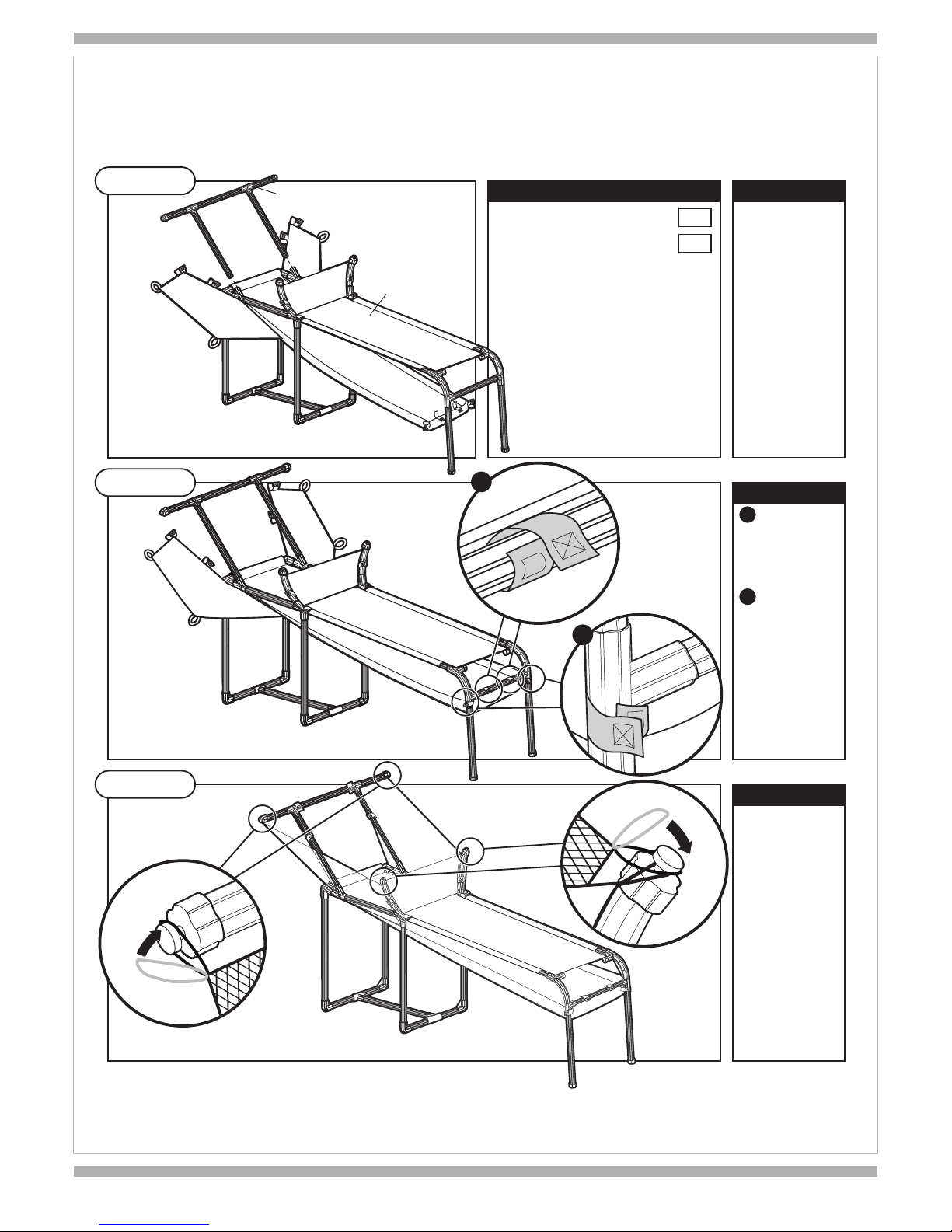

NOTE:

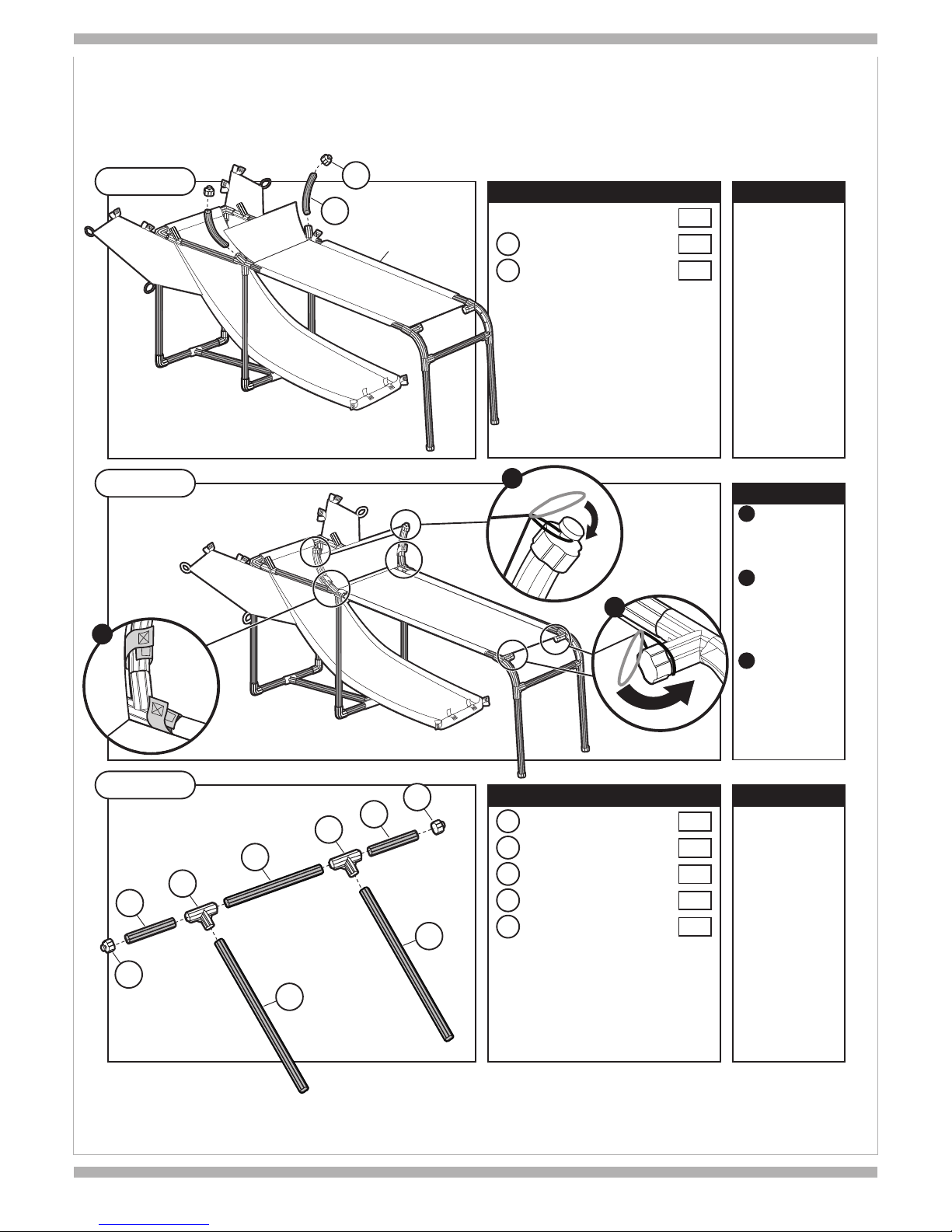

STEP 11 COMPONENTS QTY.

Step 10 Assembly

Pole - Curved

Pole Cap - Hook

STEP 12

Attach the

Hook and Loops

around the frame

as shown.

Loop the

Elastic Loops

around the

Hooks on the

Pole Caps

Loop the

Elastic Loops

around the Large

Pole Caps on the

Curved Corner

Connectors.

NOTE:

STEP 13 COMPONENTS QTY.

Pole - 18.25in

Pole - 12.25in

Pole - 7in

Pole Cap - Hook

Connector - T

Step 10 Assembly

23 7

Attach the

Hook and Loop

Straps to the

front cross Pole.

Attach the

Hook and loop

Straps to the

Curved Corner

Connectors.

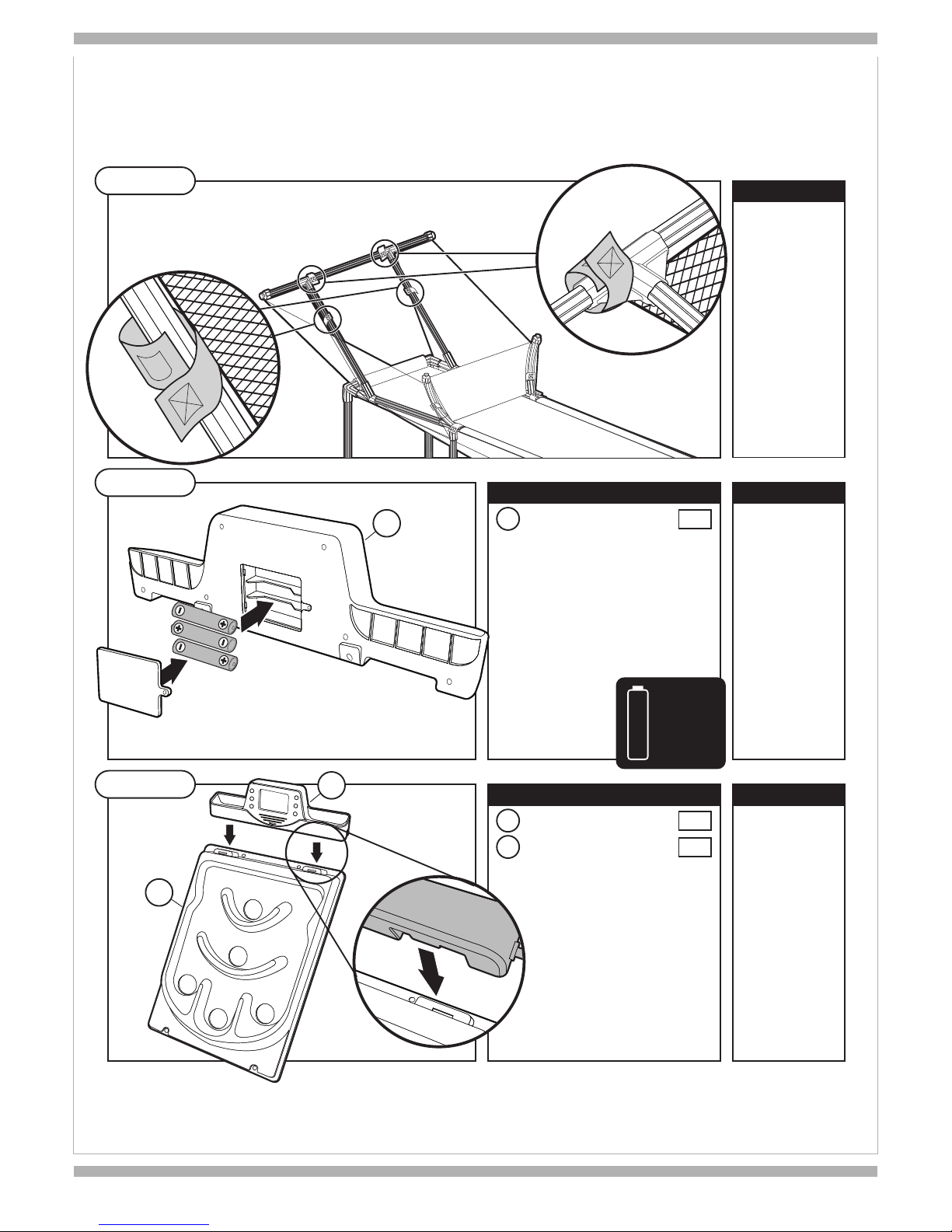

NOTE:

STEP 15

Hook the Elastic

Loops around

the Hooks on

the Pole Caps.

NOTE:

STEP 16

NOTE:

STEP 14 COMPONENTS QTY.

Step 12 Assembly

Step 13 Assembly

Connect Step

13 Assembly to

Step 12

Assembly.

Step 13 Assembly

Step 12 Assembly

Remove the

Battery Box

door.

Insert 3 AA

batteries (NOT

INCLUDED).

Close the

Battery Box

door.

NOTE:

STEP 18 COMPONENTS QTY.

Scorer

Attach the

Hook and Loop

Straps around

the Frame.

NOTE:

STEP 17

Align the Scorer

Tabs (under

side) with the

cutouts on the

Target Housing.

Then gently

slide the Scorer

into place.

NOTE:

STEP 19 COMPONENTS QTY.

Scorer

Target Housing

BATTERIES

NOT INCLUDED

1.5V

NOTE:

STEP 21 COMPONENTS QTY.

Step 17 Assembly

Step 20 Assembly

Insert the Pegs

through the

back of the

Target Housing

and into the

back of the

Scorer.

Then plug in

the Scorer Wire

into the bottom

of the Scorer.

NOTE:

STEP 20 COMPONENTS QTY.

Step 19 Assembly

Peg - Scorer

NOTE:

STEP 22 COMPONENTS QTY.

Step 21 Assembly

Game Board - Classic/Castle

Game Board - Dino/Space

80 81

BACK VIEW

CLIP CLIP

CLIP

Step 17 Assembly

Step 20 Assembly

Step 21 Assembly

Plug in Scorer

Wire.

Step 19 Assembly

Extra Game

Boards should

be hung on the

Storage Hook

on the back

side of the

Target Housing.

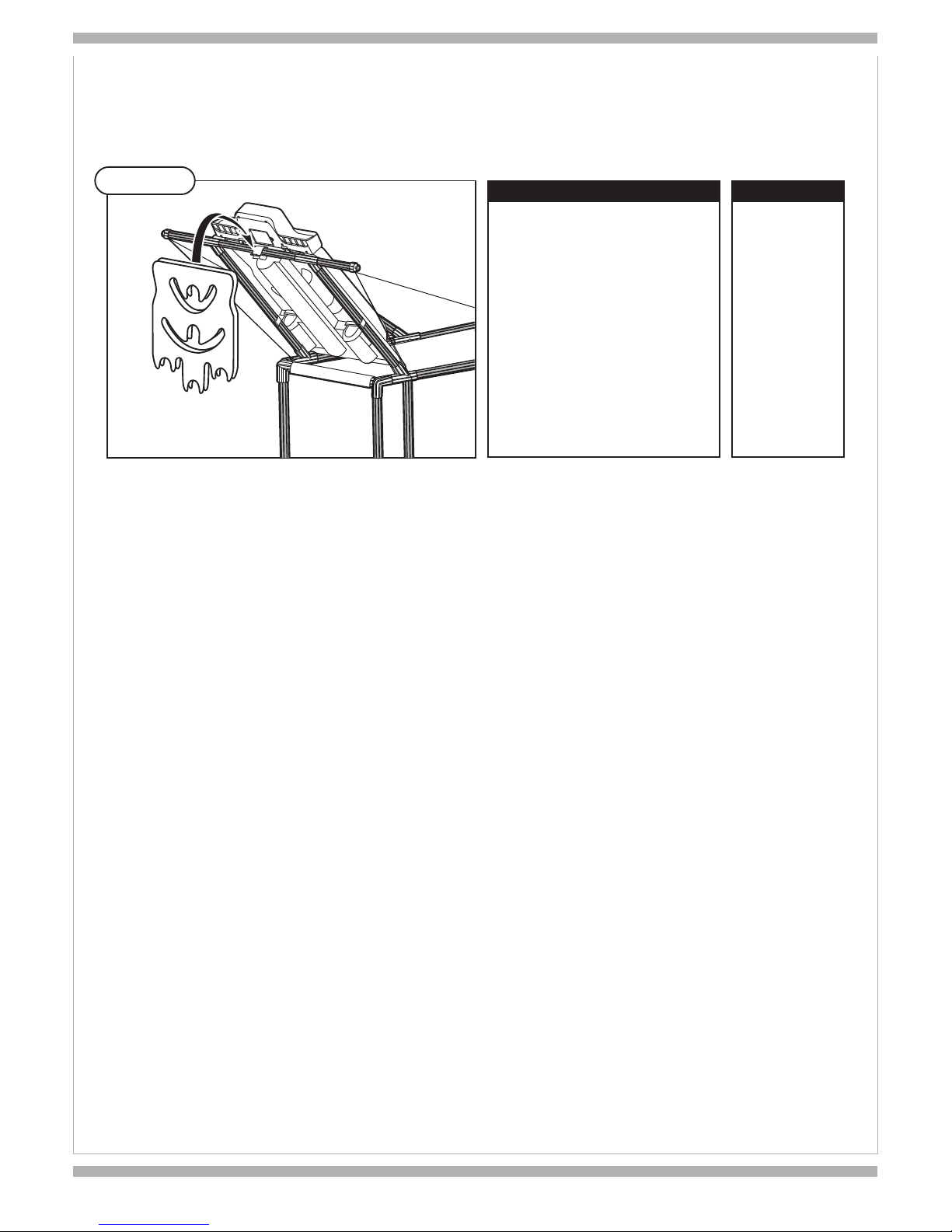

NOTE:

STEP 23 COMPONENTS QTY.

POWER

Press ON/OFF to turn the game ON.

Press and hold ON/OFF for 1 second to turn the game OFF.

SELECT GAME

Press the UP and DOWN arrows to scroll between game options.

Press ENTER/SELECT to select the desired game option.

SELECT PLAYERS

Press the UP and DOWN arrows to scroll through the number of players in your group.

Press ENTER/SELECT to select the desired number of players and begin.

SOUND

Press SOUND to turn the sound ON or OFF.

RESET

After each game, press ENTER/SELECT to replay the same game with the same number of players.

Press and hold RESET for 1 second to reset the scoreboard back to game selection.

CONTROL BOX OPERATION

CONTROL BOX ICONS

PLAYERS

• 1 to 4 Players

GAME PLAY

CLASSIC ROLLERBALL

• In this traditional version of Rollerball, players roll as many balls as they need to make 9 shots and rack up the points.

Holes have point values of 10, 25, 50, or 100. BONUS POINTS: Score three 100s in a row and receive an additional 33

bonus points. Make all 9 shots in the top hole to score a perfect game!

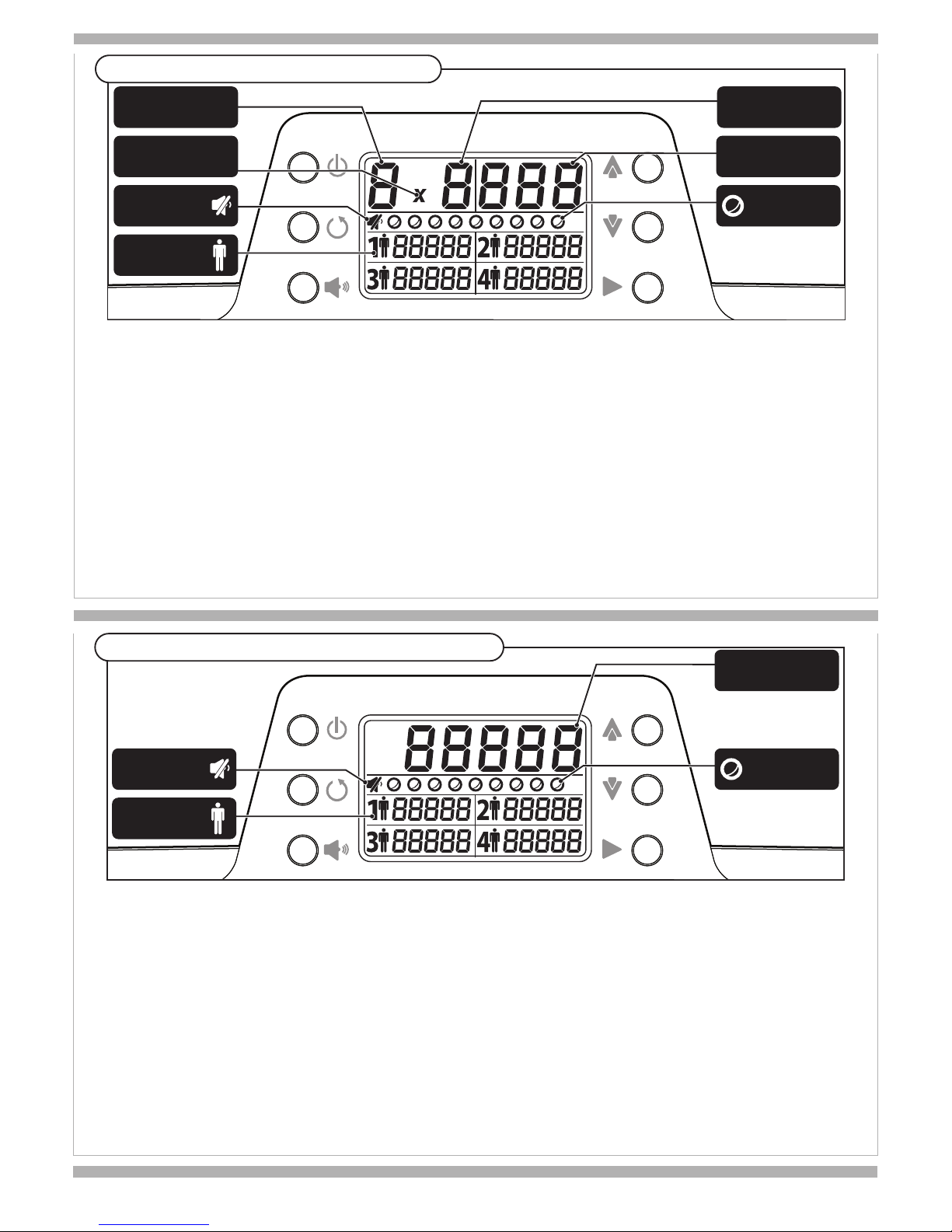

SCREEN ICONS - CLASSIC ROLLERBALL

ON/OFF

RESET

SOUND

DOWN

ENTER/

SELECT

BALLS ROLLED

NO SOUND

PLAYER

SCORE

BALL COUNT

SCREEN ICONS - DINO-ROLL, CASTLE-ROLL

SCREEN ICONS - INTERGALACTIC ROLL FOR POINTS

PLAYERS

• 1 to 4 Players

GAME PLAY

DINOROLL/CASTLEROLL

• Similar to Classic Rollerball, players get 9 made shots to score as many points as possible. But watch out for the

Dragon and the Tar Pit, points are lost if you end up in these holes. BONUS POINTS: Scoring in the top hole 3 times in

a row rewards the player with Double Points for the rest of the game. Score in the top hole 6 times in a row and

receive Triple Points for the rest of the game. The player with the highest score wins!

PLAYERS

• 1 to 4 Players

GAME PLAY

INTERGALACTIC ROLLFORPOINTS

• Make your way through the galaxy and watch your score climb, but avoid the Black Hole at all costs. Landing in the

Black Hole resets your score back to “0”. Same rules apply, you get 9 made shots to score as many points as possible

and the player with the highest score wins! BONUS POINTS: Score three 10,000s in a row and receive an additional

3,333 bonus points. Make all 9 shots in the top hole to score a perfect game!

BALLS ROLLED MULTIPLIED

POINT VALUE

MULTIPLIER

NO SOUND

PLAYER

SCORE

BALL COUNT

NO SOUND

PLAYER

SCORE

BALL COUNT

Limited Warranty

As described in and as limited by this LimitedWarranty, EastPoint Sports Ltd., LLC (the “Company”) warrants this Product to be free from defects in workmanship and materials for a period of 90

days from the date of original purchase. The term defects shall mean any imperfections that impair the use of the product. The Company reserves the right to request conrmation of Proof of

Purchase when requesting parts or service in order to conrm that this Product is within its warranty period and terms.

What is Covered: Except as provided herein, this Limited Warranty covers all defects in materials and workmanship. This Limited Warranty is void if the Product is:

• Damaged through improper usage or storage, negligence, misuse, abuse, transportation damage, acts of nature, or accident (including failure to follow the instructions

supplied with the product).

• Used in commercial applications, rentals or a commercial environment.

• Modied or repaired by anyone not authorized by the Company.

What is Not Covered:

The LimitedWarranty does not cover:

• Expendable items such as cosmetic parts, game playing accessories, and any other items that may show signs of wear due to normal usage.

• Any transportation/delivery/installation costs incurred by the Consumer (either home from the original place of purchase or back to the original place of purchase).

• Items not purchased from an authorized retailer (ie: this warranty does not apply to so-called“grey market”goods (those goods purchased from a third party)).

What the Company Will Pay For:

• If any part or component of the Product which is covered by this Limited Warranty is found by the Company to be defective, the Company will provide replacement parts without charge.

The Company’s obligation to repair or replace the Product or any portion of thereof, shall be limited to the original purchase price of the product.

• If during the Limited Warranty period, the product is found to be defective, the Company will, at the Company’s option, repair, replace or make remuneration for the Product (either the

same or equivalent value) without charge.

How to Obtain Warranty Service: In order to enforce your rights under this Limited Warranty, you must follow these procedures:

• You must return the ORIGINAL COPY OF YOUR SALES RECEIPT to the Company showing a purchase from an authorized retailer.

• You must call the Company’s Consumer Service Department at 1-973-585-4747 on Monday through Friday between the hours of 9:00 A.M. and 5:00 P.M. (EST) to notify the Company of the

nature of the problem. At the Company’s option, replacement parts or a new Product (either the same or equivalent value) will be sent to you at no charge.

• If you are instructed to return the Product to the Company for servicing, you are responsible for shipping the Product, at your expense, to the address designated by the Company in

packaging that will protect against further damage.

• You must also include your name, address, daytime telephone number, Product model number, and a description of the problem.

• The Company will pay for any shipping charges to return the repaired or replaced Product to you.

THIS LIMITED WARRANTY IS AVAILABLE ONLY TO THE ORIGINAL PURCHASER OF THE PRODUCT, PURCHASING FROM AN AUTHORIZED RETAILER, AND IS VALID ONLY IN THE UNITED

STATES AND CANADA. THE COMPANY’S LIABILITY IS LIMITED TO THE REPAIR, REPLACEMENT, OR REMUNERATION, AT ITS OPTION, OF ANY DEFECTIVE PRODUCT AND SHALL NOT

INCLUDE ANY LIABILITY FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR

PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR DO NOT ALLOW FOR EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES. TO THAT EXTENT, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

This LimitedWarranty gives you specic legal rights, but you may also have other rights that vary from state to state.

If you have questions regarding this Limited Warranty or the operation of the Product, you may call or write us.

ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY AN ORIGINAL COPY OF THE SALES RECEIPT/PROOF OF PURCHASE. REPORT ANY DEFECTS TO:

20 Commerce Boulevard Succasunna, NJ 07876 • 1-973-585-4747

FCC IDENTIFIER :

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any

interference received, including interference that may cause undesired operation.

Warning! Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
