Record Power CX2600 User guide

1
Original Instruction Manual
CX2600
Dust & Chip Extractor
Always wear safety glasses when
using woodworking equipment.
Always read the instructions
provided before using
woodworking equipment.
i
Kg
Version 3.0
January 2014
To register this product please visit
www.recordpower.info
It is important to register your product as soon as possible in order to receive efficient after sales
support and be entitled to the full 5 year guarantee. Your statutory rights are not affected.
Please see back cover for contact details.
Important
For your safety read instructions carefully
before assembling or using this product.
Save this manual for future reference.
i
Kg

2
Contents
1. Explanation of Symbols
2. General Health & Safety Guidance
3. Additional Health & Safety Guidance for Chip Extractors
4. Record Power Guarantee
5. Specifications
6. Getting to Know Your Machine
7. Contents of the Package
8. Assembly
9. Electrical Connection & Wiring Diagram
10. Operation
11. Maintenance

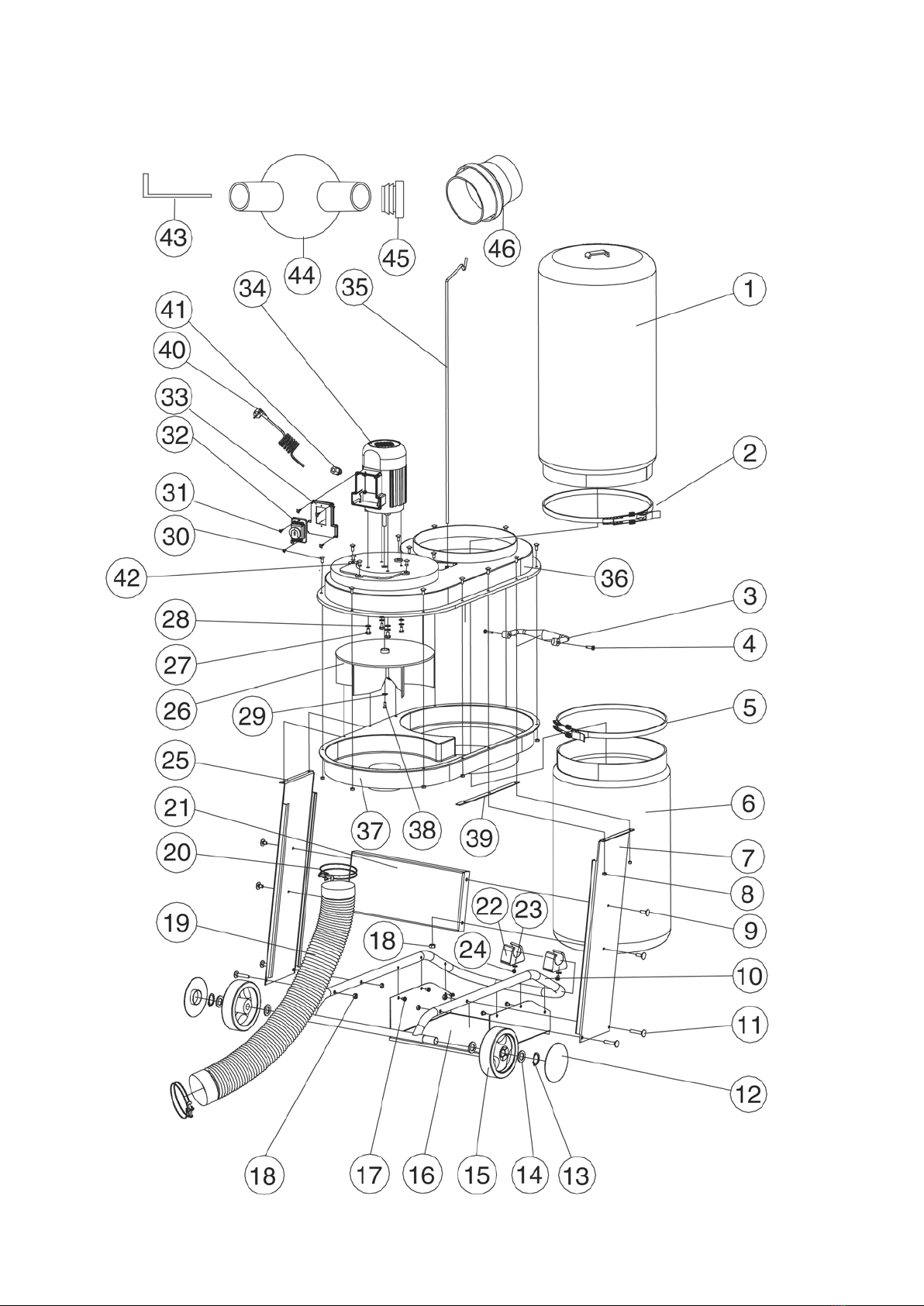

12. Parts Lists & Diagrams
EU Declaration Of Conformity
THE SYMBOLS AND THEIR MEANINGS SHOWN BELOW MAY BE USED THROUGHOUT THIS MANUAL.
PLEASE ENSURE THAT YOU TAKE THE APPROPRIATE ACTION WHEREVER THE WARNINGS ARE USED.
1. Explanation of Symbols
Mandatory Instructions
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
Read and fully understand the instruction manual
before attempting to use the machine.
Indicates an instruction that requires particular attention
Wear protective eyewear
Use respiratory protective equipment
Use suitable protective footwear
Use hearing protection
Use protective work gloves
Warning
i
Kg
Indicates a risk of severe personal injury or
damage to the machine
Indicates a risk of severe personal injury
from electrical shock
Risk of personal injury from lifting of heavy items
Indicates a risk of severe personal injury from
airborne objects
Risk of fire
i
Kg
i
Kg
i
Kg
i
Kg

3
2. General Health & Safety Guidance
Ensure that you carefully read and fully understand the
instructions in this manual before assembly, installation and
use of this product. Keep these instructions in a safe place for
future reference.
WARNING: for your own safety, do not attempt to operate this machine
until it is completely assembled and installed according to
these instructions.
WARNING: When using any machine, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and
personal injury.
Safe Operation
1. Use Personal Protective Equipment (PPE)
• The operation of any machine can result in foreign objects being thrown
into your eyes, which can result in severe eye damage. Protective
eyewear or other suitable eye protection or face shield should be used
at all times. Everyday spectacles only have impact resistant lenses. They
are not protective eyewear and do not give additional lateral protection.
• Use respiratory protective equipment (dust mask etc.) if the machining
operation creates dust. Exposure to high levels of dust created by
machining hardwoods, softwoods and man made composite boards can
result in serious health problems. Some imported hardwoods give off
highly irritating dust, which can cause a burning sensation. The use of
respiratory protective equipment should not be seen as an alternative to
controlling the risk of exposure at source by using adequate dust
extraction equipment.
• The use of ear plugs or ear defenders is recommended when the
machine is in use, particularly if the noise level exceeds 85 dB.
• Wear suitable protective gloves when handling cutting tools or blades.
Gloves should NOT be worn when using the machine as they can be
caught in moving parts of the machine.
• Non-slip safety footwear is recommended when using the machine and
handling large work pieces.
2. Dress appropriately
• Do not wear loose clothing, neckties or jewellery; they can be caught in
moving parts of the machine.
• Roll up long sleeves above the elbow.
• Wear protective hair covering to contain long hair.
3. Safety warnings
• Find and read any warning labels on the machine.
• It is important that any labels bearing health and safety warnings are
not removed, defaced or covered. Replacement labels can be obtained
by contacting our Customer Service Department.
4. Familiarise yourself with the machine
• If you are not thoroughly familiar with the operation of this machine,
obtain advice from your supervisor, instructor, or other qualified person
or contact your retailer for information on training courses. Do not use
this machine until adequate training has been undertaken.
5. Take care when moving or positioning the machine
• Some machines can be very heavy. Ensure the floor of the area in which
the machine is to be used is capable of supporting the machine.
• The machine and its various components can be heavy.
Always adopt a safe lifting technique and seek assistance when lifting
heavy components. In some cases it may be necessary to use mechanical
handling equipment to position the machine within the work area.
• Some machines have optional wheel kits available to allow them to be
manoeuvred around the workshop as required. Care should be taken to
install these according to the instructions provided.
• Due to the nature of the design of some machines the centre of gravity
will be high making them unstable when moved. Extreme care should
be taken when moving any machine.
• If transportation of the machine is required then all precautions relating
to the installation and handling of the machine apply. In addition, ensure
that any vehicles or manual handling equipment used for transportation
are of adequate specification.
6. The machine should be level and stable at all times
• When using a leg stand or cabinet base that is designed to be fitted to
the machine, always ensure that it is securely fastened to the machine
using the fixings provided.
• If the machine is suitable to be used on a workbench, ensure that the
workbench is well constructed and capable of withstanding the weight
of the machine. The machine should always be securely fastened to the
workbench with appropriate fixings.
• Where possible, floor standing machines should always be secured to
the floor with fixings appropriate to the structure of the floor.
• The floor surface should be sound and level. All of the feet of the
machine should make contact with the floor surface. If they do not,
either re-locate the machine to a more suitable position or use packing
shims between the feet and the floor surface to ensure the machine is
stable.
7. Remove adjusting keys and wrenches
• Ensure that all adjusting wrenches and keys are removed before
switching the machine ‘ON’. There is a risk of severe personal injury or
damage to the machine from airborne objects.
8. Before switching the machine ‘ON’
• Clear the machine table of all objects (tools, scrap pieces etc.)
• Make sure there is no debris between the work piece and the
table / work support.
• Ensure that the work piece is not pressed against, or touching the saw
blade or cutting tool.
• Check all clamps, work holding devices and fences to ensure that they
are secure and cannot move during machining operations.
• Plan the way that you will hold and feed the work piece for the entire
machining operation.
9. Whilst machining
• Before starting work, watch the machine while it runs. If it makes
an unfamiliar noise or vibrates excessively, switch the machine ‘OFF’
immediately and disconnect it from the power supply. Do not restart
until finding and correcting the source of the problem.
10. Keep the work area clear
• Working clearances can be thought of as the distances between
machines and obstacles that allow safe operation of every machine
without limitation. Consider existing and anticipated machine needs,
size of material to be processed through each machine and space for
auxiliary stands and/or work tables. Also consider the relative position of
each machine to one another for efficient material handling. Be sure to
allow yourself sufficient room to safely operate your machines in any
foreseeable operation.
• Cluttered work areas and benches create the risk of accidents. Keep
benches clear and tidy away tools that are not in use.
• Ensure that the floor area is kept clean and clear of any dust and debris
that may create trip or slip hazards.
11. Consider the work area environment
• Do not expose the machine to rain or damp conditions.
• Keep the work area well lit and ensure that there is artificial lighting
available when there is insufficient natural light to effectively light the
work area. Lighting should be bright enough to eliminate shadow and
prevent eye strain.
• Do not use the machine in explosive environments eg. in the presence
of flammable liquids, gases or dust.
• The presence of high levels of dust created by machining wood can
present a risk of fire or explosion. Always use dust extraction equipment
to minimise the risk.
12. Keep other persons away (and pets)
• The machine is designed to be used by one person only.
• Do not let persons, especially children, touch the machine or extension
cable (if used) and keep visitors away from the work area.
• Never leave the machine running unattended. Turn the power supply off
and do not leave the machine unattended until it comes to a

4
2. General Health & Safety Guidance cont.
complete stop.
• If the work area is to be left unattended, all machinery should be
switched ‘OFF’ and isolated from the mains power supply.
13. Store machines safely when not in use
• When not in use, machines should be stored in a dry place, out of reach
of children. Do not allow persons unfamiliar with these instructions or
with the machine to operate it.
14. Do not overreach
• Choose a working position that allows your body to remain balanced
and feed the work piece in to the machine without overreaching.
• Keep proper footing and balance at all times.
15. Electrical supply
• Electrical circuits should be dedicated to each machine or large enough
to handle combined motor amp loads. Power outlets should be located
near each machine so that power or extension cables are not obstructing
high-traffic areas. Observe local electrical guidelines for proper
installation of new lighting, power outlets, or circuits.
• The machine must be connected to an earthed power supply.
• The power supply must be equipped with a circuit breaker that provides
short circuit, overload and earth leakage protection.
• The voltage of the machine must correspond to the voltage of the mains
power supply.
• The mains plug fitted to the machine should always match the power
outlet. Do not modify the plug in any way. If a replacement plug is
required it should be fitted by a competent person and of the correct
type and rating for the machine.
• If you are unsure about any electrical connections always consult a
qualified electrician.
16. Avoid unintentional starting of the machine
• Most machines are fitted with a no-volt release (NVR) switch to prevent
unintentional starting. If in doubt always ensure the machine switch
is in the ‘OFF’ position before connecting it to the power supply. This
means the machine will not automatically start up after a power cut or
switching on of the power supply, unless you first reset the start switch.
17. Outdoor use
• Your machine should not be used outdoors.
18. Extension cables
• Whenever possible, the use of extension cables is not recommended.
If the use of an extension cable is unavoidable, then it should have
a minimum core cross section of 2.5 mm² and limited to a maximum
length of 3 metres.
• Extension cables should be routed away from the direct working area to
prevent a trip hazard.
19. Guard against electric shock
• Avoid body contact with earthed or grounded surfaces such as pipes
and radiators. There is an increased risk of electric shock if your body is
earthed or grounded.
20. Always work within the machine’s intended capacities
• Operator safety and machine performance are seriously adversely
affected if attempts to make the machine perform beyond its limits
are made.
21. Do not abuse the power cable
• Never pull the power cable to disconnect it from the power socket.
Always use the plug.
• Keep the power cable away from heat, oil and sharp edges.
• Do not use the power cable for carrying or moving the machine.
22. Secure the work piece
• Ensure that the work piece is securely held before starting to machine it.
• When working within 300 mm of the machining area, always use a
push stick to feed the work piece in to the blade or cutting tool. The
push stick should have a minimum length of 400 mm. If the push stick
becomes damaged, replace it immediately.
• Use extra supports (roller support stands etc.) for any work pieces large
enough to tip when not held down to the table top.
• Do not use another person as a substitute for a table extension, or as
additional support for a work piece that is longer or wider than the basic
table, or to help feed, support, or pull the work piece.
• Do not attempt to machine more than one work piece at a time.
• When feeding the work piece towards the blade or cutting tool never
position your hands in direct line of the cutting path. Avoid awkward
operations and hand positions where a sudden slip could cause your
hand or fingers to move into the machining area.
23. Stay alert
• Safety is a combination of operator common sense and alertness at all
times when the machine is being used.
• Use all machines with extreme care and do not use the machine when
you are tired or under the influence of drugs, alcohol or medication.
24. Use the correct tool for the job
• Do not use the machine for any purpose other than which it
was designed.
• When selecting replacement cutting tools and blades, always ensure that
they are designed to cut the material that you intend to use them for. If
in any doubt seek further advice from the manufacturer.
25. Connect dust extraction equipment
• Always use dust extraction equipment. The dust extractor should be of
suitable size and capacity for the machine that it is connected to and
have a filtration level appropriate to the type of waste being collected.
Refer to the relevant section of the manual for details of the specific
dust extraction requirements for this machine.
• The dust extractor should be switched ‘ON’ before starting the machine
that it is connected to. The dust extractor should be left running for 30
seconds after the last machining operation is complete in order to clear
any residual waste from the machine.
26. Ensure that the machine is correctly guarded
• Never use the machine if any of the standard safety guards and
equipment are removed or damaged.
• Some machines incorporate safety interlocks to prevent the machine
from being used without the guards in place. Never attempt to bypass
or modify the interlocks to allow the machine to be used without the
guards in place.
27. Maintain your machine with care
• This manual gives clear instructions on installation, set up and
operation of the machine and also details any routine and preventative
maintenance that should be performed periodically by the user.
• Remember always to switch off and unplug the machine from the power
supply before carrying out any setting up or maintenance operations.
• Follow any instructions for the maintenance of accessories
and consumables.
• Do not use compressed air to clean the machine. Always use a brush to
dislodge dust in places that are awkward to reach and a dust extractor
to collect the waste.
• Inspect electric cables periodically and, if damaged, have them replaced
by an authorised service facility or qualified electrician.
• Inspect extension cables (if used) periodically and replace if damaged.
28. Keep cutting tools sharp and clean
• Correctly maintained cutting tools are easier to control and less likely
to bind.
• Cutting tools and blades can become hot during use. Take extreme care
when handling them and always allow them to cool before changing,
adjusting or sharpening them.
29. Disconnect the machine from the power supply
• When not in use, before servicing, changing blades etc. always
disconnect the machine from the power supply.
30. Check for damaged parts
• Before each use of the machine, it should be carefully checked to
determine that it will operate properly and perform its
intended function.
• Check for alignment of moving parts, binding of moving parts, breakage

5
2. General Health & Safety Guidance cont.
of parts and any other conditions that may affect the operation of
the machine.
• A guard or other part that is damaged should be properly repaired
or replaced by a qualified person unless otherwise indicated in this
instruction manual.
• Do not use the machine if the switch does not turn the machine
‘ON’ and ‘OFF’.
• Have defective switches replaced by a qualified person.
31. Warning!
• The use of any accessory or attachment, other than those
recommended in this instruction manual, or recommended by our
Company may present a risk of personal injury or damage to the
machine and invalidation of the warranty.
32. Have your machine repaired by a qualified person
• This machine complies with the relevant safety rules and
standards appropriate to its type when used in accordance with
these instructions and with all of the standard safety guards and
equipment in place. Only qualified persons using original spare parts
should carry out repairs. Failure to do this may result in considerable
danger to the user and invalidation of warranty.
33. Caution! Motor may become hot during use
• It is normal for motors on some machines to become hot to the
touch during use. Avoid touching the motor directly when in use.

6
1. Safe Operation
• The chip extractor should be level and stable at all times
• Never attempt use the machine unless it is attached to the floor stand.
• Ensure that there is no debris between the base of the extractor and the
floor.
• Never place the dust extractor on a raised surface or workbench.
• In all cases, position the dust extractor as close as possible to the
application it is to be used for.
• Never over stretch the hose to make it reach.
2. Familiarise yourself with the machine
• If you are not thoroughly familiar with chip extractors, be aware of the
inherent risks due to the way in which these machines work. There are
moving parts inside the machine that can cause serious injury. Always
strictly follow any safety instructions detailed in the manual when using,
emptying or servicing the machine.
3. Before switching the machine ‘ON’:
• Ensure that the switch of the machine is in the ‘OFF’ position before
connecting or disconnecting the power supply.
• Ensure that the extraction hose is securely fitted to the outlet of the dust
extractor.
• Always ensure that the filter bag (or optional filter cartridge) and the
collection bag are securely and correctly positioned and not damaged.
Replace any damaged bags or filters immediately. Always ensure a good
seal between the filter and body of the machine.
4. Whilst using the chip extractor:
• Do not completely cover the end of the extraction hose as the machine
will not function correctly.
• Do not reduce the diameter of the extraction hose as this will affect the
performance of the machine.
• Do not attempt to remove the filter or collection bag whilst the machine
is running.
• Do not attempt to use the chip extractor without the extraction hose
fitted to the inlet on the body of the machine.
• This product is for dry use only and should not be used or stored outdoors
or in wet conditions.
• All Record Power chip extractors are designed solely for use with
wood dust and chippings. Do not use the machine to remove vapours,
fumes, gases or other materials such as plaster dust, as there is a risk
of combustion. Doing so will invalidate the warranty and may result in
damage to the machine or serious injury to the user.
• Do not use the machine to pick up hazardous dust.
• Do not pick up liquids and scrap metal (such as nails and filings) or any
combustible substance.
• If the hose becomes blocked, switch the machine ‘OFF’ immediately to
prevent any damage to the machine and disconnect from the power
supply before removing the blockage. Note that the impeller fan will
continue to rotate for several seconds after the machine has been
switched ‘OFF’.
• Never attempt to place your hand inside the hose or inlet of the dust
extractor whilst it is running.
• Ensure that the machine is used in a well ventilated area.
5. Avoiding fires:
• Wood dust is combustible and when suspended in the air, it may form a
cloud which can explode if the air concentration is higher than 40g/m_.
• Sparks can smolder in dust for a long time before fire or flame is
detected. If metal contacts metal during operation, immediately switch
the machine ‘OFF’, disconnect the power cable from the mains supply and
wait for the motor to come to a complete stop. Empty the dust into an
approved air tight metal container in case of spark. Remedy the metal to
metal contact problem before resuming operation.
• Do not operate the dust extractor in environments containing explosive
risks, such as pilot lights, open flames, vapours, gases or high levels of
airborne dust.
6. Maintenance:
• Always switch the machine ‘OFF’, disconnect from the power supply and
wait until the motor has completely stopped before carrying out any
routine maintenance such as emptying waste or replacing filters.
• When carrying out any routine maintenance, keep your hands away from
the fan blade within the body of the machine.
7. The elimination or control of risks from wood dust is required by the
‘Health & Safety at Work etc. Act 1974’, the ‘Provision & Use of Work
Equipment Regulations 1998’ and the ‘Control of Substances Hazardous
to Health (COSHH) Regulations 2002’. We recommend that you study and
follow these regulations.
Further guidance can be obtained from The Health & Safety Executive and
their website www.hse.gov.uk.
3. Additional Health & Safety Guidance for Chip Extractors

7
4. Record Power Guarantee
“Products” means the Products sold by Record Power subject to these
terms and conditions;
“Record Power” is Record Power Limited, whose company registration
number is 4804158 and registered office address is Centenary House,
11 Midland Way, Barlborough Links, Chesterfield, Derbyshire, S43 4XA
and sells through a network of Authorised Dealers;
“Authorised Distributor” is the nominated importer for your region
who will generally sell through a network of Authorised Dealers. Details of
Authorised Distributors for specific countries can be found in the Product
manual or at www.recordpower.info;
“Authorised Dealer” is a retailer or business authorised to sell Record
Power Products to end users.
1 Guarantee
1.1 Record Power guarantees that for a period of 5 years from the date
of purchase the components of qualifying Products (see clauses 1.2.1
to 1.2.9) will be free from defects caused by faulty construction
or manufacture.
1.2 During this period Record Power, its Authorised Distributor or
Authorised Dealer will repair or replace free of charge any parts
which are proved to be faulty in accordance with paragraphs 1.1
above provided that:
1.2.1 you follow the claims procedure set out in clause 2 below;
1.2.2 Record Power, our Authorised Distributor or Authorised Dealer are
given a reasonable opportunity after receiving notice of the claim to
examine the Product;
1.2.3 if asked to do so by Record Power, its Authorised Distributor or
Authorised Dealer, you return the Product, at your own cost, to
Record Power's premises or other approved premises such as those
of the Authorised Distributor or supplying Authorised Dealer, for the
examination to take place;
1.2.4 the fault in question is not caused by industrial use, accidental
damage, fair wear and tear, wilful damage, neglect, incorrect
electrical connection, abnormal working conditions, failure to follow
our instructions, misuse, or alteration or repair of the Product without
our approval;
1.2.5 the Product has been used in a domestic environment only;
1.2.6 the fault does not relate to consumable Products such as blades,
bearings, drive belts or other wearing parts which can reasonably
be expected to wear at different rates depending on usage (for full
details contact Record Power or your local Authorised Distributor);
1.2.7 the Product has not been used for hire purposes, by you or by a
previous owner;
1.2.8 the Product has been purchased by you as the guarantee is not
transferable from a private sale.
1.2.9 where the Product has been purchased from a retailer, the 5 year
guarantee is transferable and begins on the date of the first purchase
of the Product and in the event of a claim under this guarantee
proof of the original purchase date will be required to validate the
warranty period.
2 Claims Procedure
2.1 In the first instance please contact the Authorised Dealer who
supplied the Product to you. In our experience many initial problems
with machines that are thought to be due to faulty parts are actually
solved by correct setting up or adjustment of the machines. A good
Authorised Dealer should be able to resolve the majority of these
issues much more quickly than processing a claim under
the guarantee.
2.2 Any damage to the Product resulting in a potential claim under the
guarantee must be reported to the Authorised Dealer from which it
was purchased within 48 hours of receipt.
2.3 If the Authorised Dealer who supplied the Product to you has been
unable to satisfy your query, any claim made under this Guarantee
should be made directly to Record Power or its Authorised Distributor
(for details of the Authorised Distributor in your country please see
your Product manual or check www.recordpower.info for details).
The claim itself should be made in a letter setting out the date and
place of purchase, and giving a brief explanation of the problem
which has led to the claim. This letter should then be sent with
proof of the purchase date (preferably a receipt) to Record Power or
its Authorised Distributor. If you include a phone number or email
address this will help to speed up your claim.
2.4 Please note that it is essential that the letter of claim reaches Record
Power or its Authorised Distributor on the last day of this Guarantee
at the latest. Late claims will not be considered.
3 Limitation of Liability
3.1 We only supply Products for domestic and private use. You agree not
to use the Product for any commercial, business or re-sale purposes
and we have no liability to you for any loss of profit, loss of business,
business interruption or loss of business opportunity.
3.2 This Guarantee does not confer any rights other than those expressly
set out above and does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra benefit and does
not affect your statutory rights as a consumer.
4 Notice
This Guarantee applies to all Products purchased from an Authorised
Dealer of Record Power within the United Kingdom of Great
Britain and Northern Ireland. Terms of Guarantee may vary in other
countries – please check with the Authorised Distributor in your
country (details of the Authorised Distributor for your country can be
found in the manual or at www.recordpower.info).

8
5. Specifications
6. Getting to Know Your Machine
Air Flow: 1150 M3 / hour
Motor: 0.4 kW
Weight: 25 kg
Capacity: 80 litres
Bag diameter: 330 mm
Size: H1850 x W440 x L830 mm
Sound power level : 140 dB
Sound pressure level: 90 dB
A Motor Rating Plate
B Filter Bag
C Motor
D On/Off Switch
E Collection Bag
F Hose
G Optional Cartridge Filter
H Adaptor
A
C
D
E
F
H
G
B

9
7. Contents of the Package 1
2
3
5
4 6 8
7
9
10
11
12
13
14
15
16
17
18 19 20
21
22
23
24
25
26
1 Tightening Band - x2
2 M8 x 40mm Coach Screws - x4
3 M8 Nuts - x4
4 M8 x 10mm Coach Screws - x4
5 M8 Nuts - x4
6 M5 x 20mm Coach Screws - x6
7 M5 Nuts - x6
8 30mm Screws - x2
9 Cross Head Screws - x6
10 Rubber Feet - x2
11 M6 x 16mm Roundhead Screws - x2
12 Filter Bag Support
13 Adjustable Hose Clip - x2
14 Handle
15 Wheel base
16 Tray
17 Right Hand Side Panel
18 Left Hand Side Panel
19 Right Angled Bracket
20 Flat Bracket
21 Filter Bag
22 Plastic Collection Bag
23 Extraction Hose
24 Motor Housing Unit
25 Cross Brace Panel
26 Adaptor

10
8. Assembly
1. Attach the rubber feet to the wheel base using
the two M6 x 16mm screws provided as shown
in Fig 8.1. The two screw holes are located on
the underside of the wheelbase.
2. Attach the tray to the wheel base using the six
M5 x 16mm screws as shown in Fig 8.2, with
the Record Power logo facing the front of the
wheelbase, nearest to the rubber feet.
3. Using two of the M8 x 40mm screws, attach
the left hand panel to the left hand side of the
wheelbase as shown in Fig 8.3, ensuring the
panel is placed on top of the tubular frame of
the wheelbase. The top edge of the panel must
be closer to the front of the machine than the
bottom edge.
4. Using two more M8 x 40mm screws, attach
the right hand panel to the opposite side of
the frame as shown in Fig 8.4, again ensuring
the top of the panel is closer to the front of the
machine than the bottom.
5. Using the four M8 x 10mm screws attach
the cross brace panel to the left and right hand
panels with the open side of the panel facing the
front of the machine as in Fig 8.5.
6. Place the right angled bracket on top of the
right hand panel as shown in Fig 8.6, with
the short side facing the inside of the machine.
Ensure the bracket overhangs the front of the
panel as shown.
7. Carefully place the motor housing unit (with
the motor at the rear of the machine) onto the
bracket as shown in Fig 8.7 and secure with
three of the M5 x 20mm screws.
8. Place the flat bracket on top of the left hand
panel and attach the motor housing unit using
the remaining M5 x 20mm screws.
9. Using the two 30mm screws, attach the
handle to the underside of the front of the motor
housing unit as shown in Fig 8.8.
Fig. 8.1
Fig. 8.3
Fig. 8.7
Fig. 8.4
Fig. 8.6
Fig. 8.5
Fig. 8.8
Fig. 8.2
Back
Front

11
8. Assembly cont.
Fig. 8.9
Fig. 8.11
Fig. 8.13
Fig. 8.10
Fig. 8.12
Fig. 8.14
10. Attach the filter bag support to the motor
housing unit by placing into the hole located as
shown in Fig 8.9.
11. Thread one of the tightening bands through
the filter bag as shown in Fig. 8.10.
12. Place the filter bag over the upper opening
of the motor housing unit and tighten the band
as shown in Fig. 8.11.
13. Attach the plastic collection bag to the
opening on the underside of the motor housing
unit using the remaining tightening band as
shown in Fig. 8.12.
14. Place the adjustable hose clip onto the end
of the extraction hose as shown in Fig. 8.13.
Place the end of the hose onto the smaller
opening on the underside of the motor housing
unit and tighten until securely fastened using a
slot head screwdriver as shown in Fig 8.14.

12
9. Electrical Connection & Wiring Diagram
Machines supplied for use in the UK are fitted with a 3 pin plug conforming
to BS1363, fitted with a fuse conforming to BS1362 and appropriate to the
current rating of the machine.
Machines supplied for use in other countries within the European Union are
fitted with a 2 pin Schuko plug conforming to CEE 7/7.
Machines supplied for use in Australia & New Zealand are fitted with a 3 pin
plug conforming to AS/NZS3112.
In all cases, if the original plug or connector has to be replaced for any
reason, the wires within the mains power cable are colour coded as follows:
230 V (Single Phase)
Brown: Live (L)
Blue: Neutral (N)
Green and Yellow: Earth (E)
The wire coloured brown must always be connected to the terminal marked
‘L’ or coloured red.
The wire coloured blue must always be connected to the terminal marked ‘N’
or coloured black.
The wire coloured green and yellow must always be connected to the
terminal marked ‘E’ or with the earth symbol:
or coloured green / green and yellow.
It is important that the machine is effectively earthed. Some machines will be
clearly marked with the double insulated logo:
In this case there will not be an earth wire within the circuit.
In the case of the BS1363 plug for use in the UK, always ensure that it is
fitted with a fuse conforming to BS1362 appropriate to the rating of the
machine. If replacing the original fuse, always fit a fuse of equivalent rating
to the original. Never fit a fuse of a higher rating than the original. Never
modify the fuse or fuse holder to accept fuses of a different type or size.
Where the current rating of the machine exceeds 13 A at 230 V, or if the
machine is designated for use on a 400 V 3 phase supply a connector
conforming to BS4343 (CEE17 / IEC60309) will be used.
230 V machines will be fitted with a blue 3 pin connector. The wiring for this
type of this connector will be the same as shown above.
400 V, 3 phase machines will be fitted with a red 4 or 5 pin connector. The
wiring for this type of connector is as shown below:
400 V (3 phase)
Brown: Live (L1)
Black: Live (L2)
Grey: Live (L 3)
Blue: Neutral (N)
Green and Yellow: Earth (E)
The wire coloured brown must always be connected to the terminal
marked ‘L1’.
The wire coloured black must always be fitted to the terminal
marked ‘L2’.
The wire coloured grey must always be connected to the terminal
marked ‘L3’.
The wire coloured blue must always be connected to the terminal
marked ‘N’ or coloured black.
The wire coloured green and yellow must always be connected to the
terminal marked ‘E’ or with the earth symbol
If in doubt about the connection of the electrical supply, always consult a
qualified electrician.

13
10. Operation
11. Maintenance
Using the chip collector
1. Make sure that the hose is securely fitted around the extraction port on
the host machine.
2. Connect to the electricity supply and switch on the chip collector.
3. After turning off the host machine leave the extractor running for a short
while to ensure all waste is collected.
Collection bag
The collection bag must be replaced when the sawdust is within 10cm of
the housing collar. If the collection bag becomes torn or damaged then
replace as soon as possible.
Restarting
In the Event of a Blockage
If a blockage in the collection hose of the machine occurs, switch it off
immediately by pressing the stop button (Red button marked ‘O’) and wait
for the machine to come to a complete stop before proceeding further.
Unplug the machine from the power source and remove the blockage from
the collection hose. To re-start the machine press the green button marked
‘I’ on the switch.
In the Event of a Power Failure
The machine is fitted with a no volt release (NVR) switch to protect the user
against automatic starting of the machine when power is restored after a
power failure.
In the event of a power failure, first locate and rectify the source of the
failure. If the fault is within the power circuit of the workshop, there may be
an underlying cause (circuit overload etc.) that should be investigated by a
qualified electrician, before attempting to restore the power source.
Once the power is restored, the machine can be re-started by pressing the
green button marked ‘I’ on the switch.
Filter bag
It is advisable to shake out the filter bag periodically. Beating it with the
hand should be sufficient to remove any loose particles and keep the
machine running efficiently.
Always do this outdoors and wearing suitable PPE. If the filter bag
becomes torn or damaged then replace as soon as possible.

14
12. Parts List & Diagram

15
12. Parts List & Diagram Cont.
No. Part No. Part Name Quantity
001 RWL100T-11 Filtering Bag 1
002 RWL100T-13 Upper Clamping Band 1
003 RWL100T-15 Handgrip 1
004 GB848-85 Self Tapping Bolt St5.5_30 2
005 RWL100T-14 Lower Clamping Band 1
006 RWL100T-12 Collecting Bag 1
007 RWL100E-02 Left Side Panel 1
008 GB/T6170 Nut M5 20
009 RWL100D0105 Square Neck Bolt M8X12 4
010 RWL100E-01-03 Base Tube 1
011 RWL100D0107 Square Neck Bolt M8X40 4
012 RWL100T-01-02 Wheel Cover 1
013 GB/T894.1 Circlip 2
014 GB/T97.2 Washer_14 4
015 RWL100T-01-01 Wheel 1
016 RWL100E-01-04 Bottom Plate 1
017 GB/T818 Screw M5X6 6
018 GB/T6177.1 Nut M8 8
019 RDC100-17 Hose 1
020 RDC100-09 Clamping Band 2
021 RDC100T-04 Horizontal Plate 1
022 RDC100T-01-05 rubber foot 2
023 _6 washer
024 M6_16 screw
025 RDC100E-03 Right Side Panel 1
026 RDC100T-08 Turbo Fan 1
027 GB/T5781 Hexagon Bolt M8_12 4
028 GB/T826.1 Washer_8 4
029 GB/T97.1 Washer_6 1
030 GB/T14 Dome Head Squared Bolt_12 14
031 GB/T845 Pan Head Tapping Screw St4.8_15 6
032 KJD12 Magnetic Switch With Emergency 4
033 RDC100D-0201A Switch Box Cover 1
034 YYL7112 Motor 1
035 RDC-100T-10A Filter Bag Support 1
036 RDC1007-07 Upper Housing 1
037 RDC100T-06 Below Housing 1
038 GB/T70.1 Screw M6x16-left 1
039 RDC100E-04 Support Strap 2
040
041 DJ250A05007 Cable Gland 1
042 RDC100D-03 Rubber Grommit 4
043 S3 Hex wrench 1
044 RDC100-08-02B Adapter 1
045 RDC100-08-03.1 cap 1
046 RDC100T-18 Connector A 1

16
Cert No: EU / CX2600 / 1
Record Power Limited, Centenary House, 11 Midland Way, Barlborough
Links, Chesterfield, Derbyshire, S43 4XA
declares that the machinery described:-
1. Type: Chip Collector
2. Model No: CX2600
3. Serial No .........................................................................
Conforms with the following directives:-
MACHINERY DIRECTIVE 2006/42 EC
LOW VOLTAGE DIRECTIVE 2006/95 EC
ELECTROMAGNETIC
COMPATIBILITY DIRECTIVE 2004/108 EC
and conforms to the machinery example for which the EC Type-Examination
Certificate No. AM501964980001
has been issued by TUV RHEINLAND Product Service GmbH,
at: Tillystrasse 2, 90431 Nürnberg, Germany.
and complies with the relevant essential health and safety requirements.
Signed................................................ Dated: 01/01/2014
Andrew Greensted
Managing Director

17

18

19

Woodworking Machinery & Accessories
United Kingdom
Record Power Ltd
Centenary House, 11 Midland Way
Barlborough Links, Chesterfield
Derbyshire S43 4XA
Telephone: 01246 571 020
www.recordpower.co.uk
Eire
Record Power Ltd
Centenary House, 11 Midland Way
Barlborough Links, Chesterfield
Derbyshire S43 4XA
Telephone: 01246 571 020
www.recordpower.co.uk
Australia
Tools 4 Industry
Po Box 3844
Parramatta 2124
Tel: 1300 124 422
Fax: 1800 262 725
www.recordpower.com.au
New Zealand
Tools 4 Industry
Po Box 276079
Manukau City 2241
Tel: 0800 142 326
Fax: 09 2717 237
www.recordpower.co.nz
Made in China
Table of contents
Popular Ventilation Hood manuals by other brands

Electrolux
Electrolux EFP90540OX user manual

Franke
Franke ATMOS 604 Instructions for use and installation

Wolf
Wolf FWL-ABLV AG Installation and operating instructions

AEG
AEG DK 9160-9190 Operating and installation instructions

Blaupunkt
Blaupunkt 5DA36251 Instructions for installation and use

Faber
Faber AXIA ISOLA 630000815 Dimension Guide
