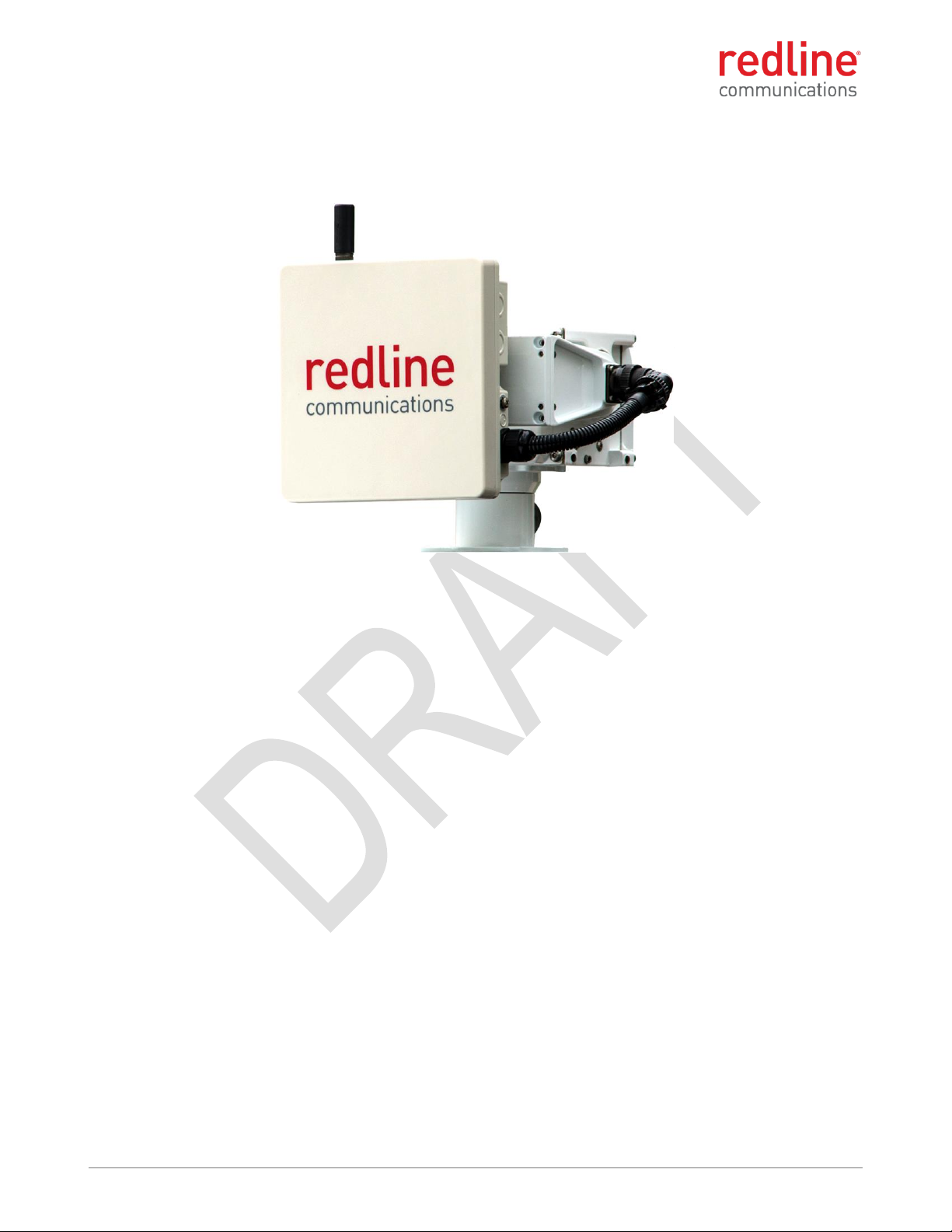

Redline Virtual Fiber RAS-Extend LV Instruction sheet

Virtual Fiber™
Outdoor Wireless TCP/IP Transport
70-00174-03-00 Proprietary Redline Communications © 2014 Page 1of 24 July 9, 1014
RAS-Extend LV
Auto-Acquire Wireless TCP/IP
Solution for Land Vehicles
Installation Guidelines
1Important Notices...................................................................6
2System Features...................................................................12
3Installation Procedures........................................................18

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 2of 24 July 9, 1014
Copyright Information
All rights reserved July 9, 1014. The information in this document is proprietary to
Redline Communications Inc. This document may not in whole or in part be copied,
reproduced, or reduced to any medium without prior consent, in writing, from Redline
Communications Incorporated.
Contact Information:
Redline Communications Inc.
302 Town Centre Blvd.
Markham, ON
Canada L3R 0E8
Tel: [phone] Toll Free in North America: +1.866.633.6669
Fax: [phone]
Web site:
www.rdlcom.com
Email:Inquiries: [email protected]
Support: [e-mail]
Training: [e-mail]
Document Control:
70-00174-03-00-RDL-3000-RAS-Extend_LV_Installation_Guide-
20140709a.doc
Disclaimer
The statements, configurations, technical data, and recommendations in this document
are believed to be accurate and reliable, but are presented without express or implied
warranty. Additionally, Redline makes no representations or warranties, either expressed
or implied, regarding the contents of this product. Redline Communications shall not be
liable for any misuse regarding this product. The information in this document is subject
to change without notice. No part of this document shall be deemed to be part of any
warranty or contract unless specifically referenced to be part of such warranty or
contract within this document.
Software Versions
This manual describes operation using the RAS-X LV software release v2.xx. This
document may include references to features that are different or unavailable in previous
software releases. Refer to the product Release Notes for information about specific
software releases.

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 3of 24 July 9, 1014
Revision Log
Date
Item
Description of Change(s)
20130719
All
First draft
20131121
5.2
Add detailed drawing for truck headache rack bracket.
20131125
General Updates
20140422
General Updates
20140709
All
Update format to remove configuration information

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 4of 24 July 9, 1014
TABLE OF CONTENTS
1Important Notices...................................................................6
1.1 Deployment Information....................................................................................6
1.2 Service & Safety.................................................................................................6
General Warnings..........................................................................................6
Safety Warnings.............................................................................................6
Warning Symbols...........................................................................................6
1.3 Installation Safety..............................................................................................7
Professional Installation / Installations Professionnel .....................................7
Safety Precautions.........................................................................................7
Electrocution Hazard / Risque D’électrocution................................................8
Radio Frequency Safety / Sécurité des Fréquences Radio ............................8
Personal Safety..............................................................................................8
Electrical Safety .............................................................................................8
Electrical Safety Compliance / Conformité à la Sécurité Electrique................9
UL Information ...............................................................................................9
Lightning Protection / Protection Contre la Foudre.........................................9
1.4 WEEE Product Return Process.......................................................................10
1.5 Service & Warranty Information......................................................................11
2System Features...................................................................12
2.1 Introduction to RAS Extend LV.......................................................................12
2.2 RAS Extend LV Features.................................................................................13
2.2.1 Interface Ports.................................................................................................13
Power & Control Cable.................................................................................13
GPS Antenna Port........................................................................................14
2.3 Data & Power Adapter Unit..............................................................................14
Power Input Port ..........................................................................................14
AC Connector Wiring ...................................................................................14
DC Connector Wiring ...................................................................................15
Ethernet Port................................................................................................16
Data & Power Cable.....................................................................................17
2.4 Grounding ........................................................................................................17
3Installation Procedures........................................................18
3.1 System Components .......................................................................................18
3.2 Customer Supplied Materials..........................................................................19
3.3 GPS Antenna Port............................................................................................20
3.4 Ethernet Surge Protection...............................................................................20
3.4.1 Pole Mount Bracket.........................................................................................21
3.4.2 Pole Cap Assembly.........................................................................................22

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 5of 24 July 9, 1014
LIST OF FIGURES
Figure 1: Notice - WEEE Logo.......................................................................................10
Figure 2: Planning: RAS Extend LV System Components.............................................12
Figure 3: Features - Data, Power & Positioner Control Cable........................................13
Figure 4: Features - GPS Port.......................................................................................13
Figure 5: Features - Data & Power Adapter AC Power Connector.................................14

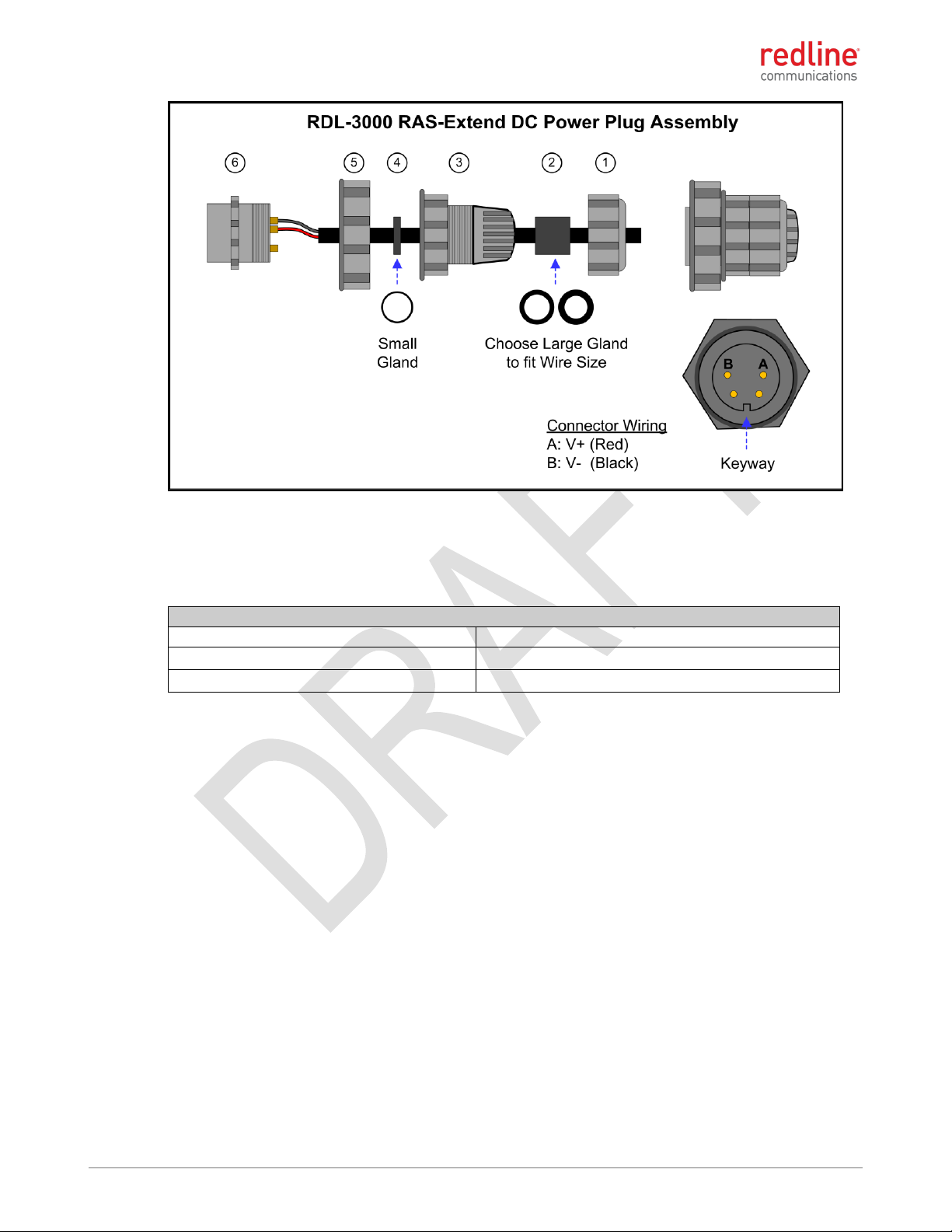

Figure 6: Features - Data & Power Adapter DC Power Connector.................................15

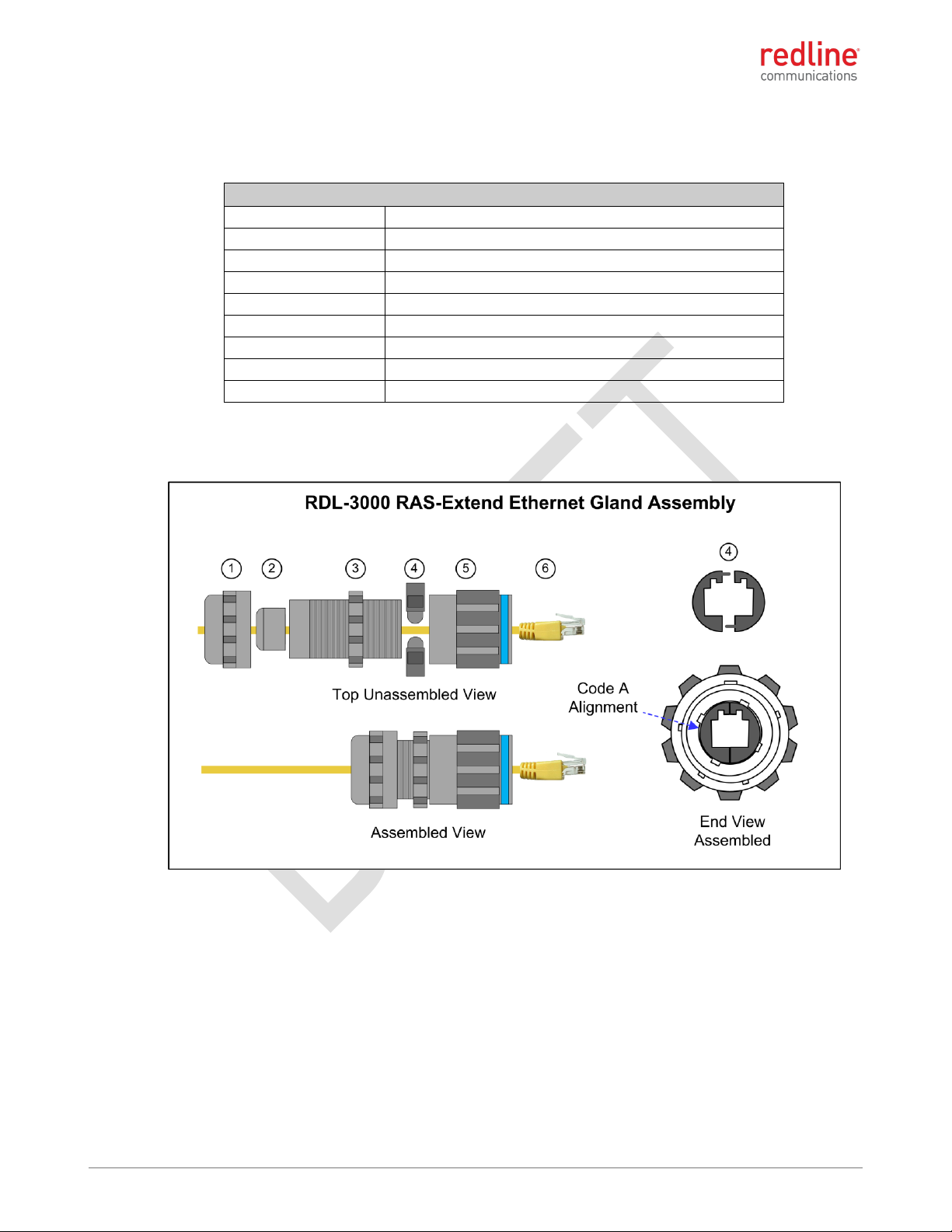

Figure 7: Features - Data & Power Adapter Ethernet Port Gland...................................16
Figure 8: Features - Data & Power Cable......................................................................17
Figure 9: Materials - Redline System Components........................................................18
Figure 10: Procedures - Ethernet Line Protection Devices.............................................20
Figure 11: Installation: Antenna Positioner Pole Mount Assembly .................................21
Figure 12: Mounting: Pole Cap Bracket Assembly Drawing...........................................22
LIST OF TABLES
Table 1: Notice - Electrical Safety Specifications.............................................................9
Table 2: Avis - Spécifications de sécurité électrique........................................................9
Table 3: AC: Power Plug ...............................................................................................14
Table 4: DC: Power Plug...............................................................................................15
Table 5: Features - Ethernet Port RJ-45 Pinout.............................................................16
Table 6: Materials - Customer-Supplied Items...............................................................19
Table 7: Mounting - Pole Mount Bracket Parts List........................................................21

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 6of 24 July 9, 1014
1 Important Notices
1.1 Deployment Information
IMPORTANT: Refer to the RDL-3000 Family User Manual for detailed regulatory
information. Refer to this document before deploying and powering RDL-3000 family
systems in the field.
1.2 Service & Safety
General Warnings
Redline recommendations for maximum safety include the following:
Do not operate microwave equipment without first having proper training or
knowledge of microwave radio operation.
Do not operate the microwave equipment without an appropriate antenna port
termination, or antenna.
Check to ensure that the area around the antenna is clear of personnel prior to
turning the transmitter on.
Do not look into or stand in front of an antenna.
Do not swing or aim an antenna at nearby persons while the equipment is operating.
Where a structure or rooftop has existing antennas installed, do not proceed with an
installation without first determining the RF/µW exposure risk. Where necessary
have the relevant transmitters turned off or wear a protective suit for the duration of
the installation.
Safety Warnings
Installation of the system must be contracted to a professional installer.
Read this manual and follow all operating and safety instructions.
Keep all product information for future reference.
The power requirements are indicated on the product-marking label. Do not exceed
the described limits.
The unit must not be located near power lines or other electrical power circuits.
Disconnect the power before cleaning, or when the unit is not be in-use for an
extended period.
The system must be properly grounded to protect against power surges and
accumulated static electricity. The user is responsible for installing this device in
accordance with the local electrical codes: correct installation procedures for
grounding the unit, mast, lead-in wire and discharge unit, location of discharge unit,
size of grounding conductors and connection requirements for grounding electrodes.
Warning Symbols
These symbols may be encountered during installation or troubleshooting. These
warning symbols mean danger. Bodily injury may result if you are not aware of the safety
hazards involved in working with electrical equipment and radio transmitters. Familiarize
yourself with standard safety practices before continuing.
Chapter 1

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 7of 24 July 9, 1014
WARNING
ELECTRO-MAGNETIC
RADIATION
WARNING
HIGH VOLTAGE
WARNING
HOT SURFACE
DO NOT TOUCH
1.3 Installation Safety
Professional Installation / Installations Professionnel
Redline RDL-3000 systems require professional installation. The user is responsible to
ensure all building and safety codes are met and the installation is complete and
secure.
The RDL-3000 system shall be installed according to local Electrical Safety Codes.
For Canadian installations, the entire equipment installation must comply with the
Canadian Electrical Code. For installations in the United States, the entire equipment
installation must be in accordance with Article 810 of the United States National
Electrical Code.
Les appareils RDL-3000 de Redline doivent être installés par un personnel
professionnel. Le personnel responsable doit s’assurer que l’installation est bien
achevée, et qu’elle répond aux exigences de tous les codes de sécurité.
Le RDL-3000 doit être installé conformément aux codes locaux de sécurité électrique.
Pour les installations Canadiennes, l'installation de l'équipement au complet doit se
conformer au Code Canadien de l'électricité. Pour les installations aux États-Unis,
l'installation de l'équipement au complet doit être en conformité avec l'article 810 du
Code des États-Unis National Electrical.
Safety Precautions
Installation and service must be done by personnel having technical training and
experience necessary to be aware of hazards during installation and/or service of
outdoors RF equipment. The installation and/or service must be done using procedures
designed to minimize any danger to technical personnel or any other person.
Use safety devices when working on or around the mast. Be aware of the risk of falling
objects. Use provided safety catches when hoisting antennas and radios.
Do not use any components (screws, nuts, etc.) other than those delivered together with
the Redline microwave radio equipment or those recommended by Redline.

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 8of 24 July 9, 1014
Electrocution Hazard / Risque D’électrocution
Warning to Service Personnel:48 VDC
This product is intended to be connected to a power source as per IEEE 802.3at (42.5
- 57.0 VDC), which must be electrically isolated from any AC sources and reliably
connected to Earth ground. Do not install Redline products near any type of power line.
Should the antenna or related hardware come in contact with power lines, severe bodily
harm or death could result!
Attention au personnel du service: 48V CD
Ce produit est destiné à être connecté à une source d'énergie selon la norme IEEE
802.3at (42,5 à 57,0 VDC), qui doit être isolé électriquement de toutes les sources de
courant alternatif et fiable relié à la masse de la Terre. Ne pas installer les produits
Redline près n'importe quel type de ligne électrique. Si votre antenne ou du matériel
connexe entrer en contact avec des lignes électriques, des blessures graves ou la mort
pourraient en résulter!
Radio Frequency Safety / Sécurité des Fréquences Radio
The installer of this radio equipment must ensure that the antenna is located or pointed
such that the antenna does not emit RF fields in excess of the general population limits
as defined by:
FCC CFR 47, Part 2.1091
http://www.gpo.gov/fdsys/pkg/CFR-2009-title47-vol1/pdf/CFR-2009-title47-vol1-sec2-
1091.pdf
FCC OET Bulletin 65, Radio frequency radiation exposure evaluation for fixed
devices
http://transition.fcc.gov/Bureaus/Engineering_Technology/Documents/bulletins/oet65
/oet65c.pdf
Health Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website:
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-eng.php
Santé Canada limite pour la population générale; consulter le Code de sécurité 6,
disponible sur le site Web de Santé Canada:
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-fra.php .
Personal Safety
WARNING: HOT SURFACE. DO NOT TOUCH.
The radio platform is rated for operation at extreme ambient temperatures. When
operating in high temperature conditions, the chassis surface area can be higher than
the ambient temperature and personal thermal protection should be employed for any
maintenance or inspection activity.
Electrical Safety
The equipment meets the requirements for class I EN 60950-1 (protection against
electric shock).
All external circuits are TNV-1 (as defined in EN 60950-1).

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 9of 24 July 9, 1014
All equipment must be grounded before the power cable is connected.
For electrical safety the DC power supply shall have reinforced insulation to the
mains supply.
Electrical Safety Compliance / Conformité à la Sécurité Electrique
The RDL-3000 system hardware has been tested for compliance to the electrical safety
specifications listed in the following table.
Table 1: Notice - Electrical Safety Specifications
Class I
EN 60950-1
All External Circuits
TNV-1 as defined in EN 60950-1
All equipment must be grounded
Le RDL-3000 du matériel a été testé pour la conformité aux normes de sécurité
électriques indiquées dans le tableau suivant:
Table 2: Avis - Spécifications de sécurité électrique
Classe I
EN 60950-1
Tous les circuits externes
TRT-1 tel que défini dans la norme EN
60950-1
Tous les équipements doivent être mis à la terre
UL Information
The suitability of the supplied Ethernet cable is subject to the approval of Authority
Having Jurisdiction and must comply with the local electrical code.
The equipment must be properly grounded according with NEC and other local
safety code and building code requirements.
Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC
which provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to
the point of cable entry as is practical.
RDL-3000 system must be installed in compliance with relevant articles in National
Electrical Code-NEC (and equivalent Canadian Code-CEC) including referenced
articles 725, 800 and 810 in NEC.
RF coaxial cable connecting an antenna to the RDL-3000 system must comply with
the local electrical code.
To meet the over-voltage safety requirements on the telecommunications cables, a
minimum 26 AWG telecommunication line cord must be used.
Pour être en conformance avec les exigences finies de sûreté de sur-tension sur les
câbles de télécommunications un fil de télécommunication ayant un calibre minimum
de 26 AWG doit être utilisé.
Lightning Protection / Protection Contre la Foudre
When installed, this equipment is to be connected to a Lightning/Surge Protection
Device that meets all applicable national safety requirements. Before Ethernet cables
enter buildings, voltages shall be clamped down to SELV by approved type primary
protectors.
WARNING: The information provide in this user manual consists of general
recommendations for installation the system equipment. The wireless equipment must
be installed by a qualified professional installer who is knowledgeable of the
requirements of installing outdoor radio equipment and follows local and national codes
for electrical grounding and safety. Failure to meet safety requirements and/or use of

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 10 of 24 July 9, 1014
non-standard practices and procedures may result in personal injury and/or damage to
equipment.
The system must be properly grounded to protect against power surges and
accumulated static electricity. The user is responsible to install this device in accordance
with the local electrical codes: correct installation procedures for grounding the unit,
mast, lead-in wire and discharge unit, location of discharge unit, size of grounding
conductors and connection requirements for grounding electrodes.
All outdoor wireless equipment is susceptible to surge damage from a direct hit or
current induced from a near strike. A direct lightning strike may cause serious damage
even if recommended guidelines are followed. Installing surge protection and following
grounding practices detailed in local and national electrical codes can minimize
equipment damage, service outages, and chance of serious injury.
The major reasons for surge damage can be summarized as:
Poorly grounded antenna sites
Improperly installed surge protection equipment
A lighting protection system provides a means by which the energy may enter earth
without passing through and causing damage to parts of a structure. A good grounding
system disperses most of the surge energy from a lightning strike away from the building
and equipment. Improperly grounded connections are a source of noise that can cause
malfunctions in sensitive equipment. The remaining energy on the Ethernet cable shield
and conductors can be directed safely to ground by installing a surge arrestor in series
with the cable. A surge protection system does not prevent lightning strikes, but protects
equipment by providing a low resistance path for the discharge of energy safely to
ground. If surge protection is required for the system, the following general industry
practices are provided as a guideline only:
The AC outlet ground for the indoor POE adapter should be connected to the
building grounding system.
Install a surge arrestor in series with the Ethernet cable at the point of entry to the
building. The grounding wire should be connected to the same termination point
used for the tower or mast.
Provide direct grounding connections from the RDL-3000 system, the mounting
bracket, and the antenna to the common building ground bus. Use the grounding
screws provided for terminating the ground wires.
L’installation exige aussi que l’appareil soit branché à un parafoudre qui répond à
toutes les normes nationales de sécurité.
1.4 WEEE Product Return Process
In accordance with the WEEE (Waste from Electrical and Electronic Equipment)
directive, 2002/96/EC, Redline Communications equipment is marked with the logo
shown below. The WEEE directive seeks to increase recycling and re-use of electrical
and electronic equipment. This symbol indicates that this product should not be disposed
of as part of the local municipal waste program. Contact the local sales representative
for additional information.
Figure 1: Notice - WEEE Logo

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 11 of 24 July 9, 1014
1.5 Service & Warranty Information
Refer all repairs to qualified Service personnel. Removing the cover panel or
modifying any part of this device will void the factory warranty.
Locate the serial numbers and record these for future reference. Use the space
below to affix serial number stickers. Also, record the MAC address identified on the
unit product label.
Redline does not endorse or support the use of outdoor cable assemblies: i) not
supplied by Redline, ii) third-party products that do not meet Redline's cable and
connector assembly specifications, or iii) cables not installed and weatherproofed as
specified in the RDL-3000 Installation Guidelines manual for each product model.
Refer to the Redline Limited Standard Warranty and RedCare Service agreements.
WEEE Product Return Process
In accordance with the WEEE (Waste from Electrical and Electronic Equipment)
directive, 2002/96/EC, Redline Communications equipment is marked with the logo
shown above. The WEEE directive seeks to increase recycling and re-use of
electrical and electronic equipment. This symbol indicates that this product should
not be disposed of as part of the local municipal waste program. Contact the local
sales representative for additional information.

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 12 of 24 July 9, 1014
2 System Features
2.1 Introduction to RAS Extend LV
Now you can easily deliver secure high-speed plug-ready network access to people and
equipment in land vehicles operating nomadically anywhere in the Redline wireless
coverage area. Designed to address specific needs of oil & gas, utilities and military users,
the RAS-X LV is the first high performance wireless networking system that mounts easily
on a vehicle and provides touchless antenna alignment and network connection.
Figure 2: Planning: RAS Extend LV System Components
The RAS-X LV has multiple options for quick and easy mounting. Connect power and the
RAS system automatically scans 360° and self-aligns its antenna to the best wireless signal.
Security and operational settings are negotiated automatically to bring the local Ethernet
plug live on the network at rates up to 100 Mbps. Continuous antenna adjustments keep you
connected even while the vehicle is in motion. The RAS-X LV includes a built-in GPS
antenna and receiver available for location services (option enabled by options key).
Chapter 2

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 13 of 24 July 9, 1014
The RAS has multiple options for quick and easy mounting. When activated, the RAS
system automatically scans (up to 360°) and self-aligns the antenna to the best wireless
signal. Security and operational settings are negotiated automatically to bring the local
TCP/IP Ethernet plug live on the network at rates up to 100 Mbps. Continuous antenna
adjustments keep the network connection active while the system is in motion.
2.2 RAS Extend LV Features
2.2.1 Interface Ports
This section describes the port allocation on the RAS-X LV wireless terminal.
Figure 3: Features - Data, Power & Positioner Control Cable
Power & Control Cable
The Power & control cable delivers DC power and position control signals to the
positioner unit. A pre-terminated cable is provided to connect the wireless terminal to the
positioner (43-pin connector).
Figure 4: Features - GPS Port

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 14 of 24 July 9, 1014
GPS Antenna Port
The GPS antenna port (TNC / F connector) conducts RF signals from an attached GPS
antenna. This is a passive GPS antenna type.
A factory-installed protective weatherproof plastic cap is installed on the GPS antenna
port. The port must be weatherproofed if this cap is removed.
Note: The GPS module does not set the internal date/time clock.
2.3 Data & Power Adapter Unit
End-user connections for power and network are made directly to the RAS-X LV Data &
Power Adapter Unit. AC and DC versions are available with unique power connectors.
Power Input Port
The RAS-X LV is available for AC or DC power sources. The system is supplied with a
non terminated weatherproof power connector. The installer must provide the power
cable and terminate the cable to the power plug in accordance with the following wiring
and assembly diagrams.
Figure 5: Features - Data & Power Adapter AC Power Connector
Table 3: AC: Power Plug
Position
Signal
A
Line (Black)
B
Neutral (White)
C
Ground (Green)
AC Connector Wiring

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 15 of 24 July 9, 1014
Figure 6: Features - Data & Power Adapter DC Power Connector
DC Connector Wiring
Table 4: DC: Power Plug
Position
Signal
A
V+ (Red)
B
V- (Black)

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 16 of 24 July 9, 1014
Ethernet Port
The Ethernet port (RJ-45 / F connector) provides Ethernet connectivity with the local
network.
Table 5: Features - Ethernet Port RJ-45 Pinout
RJ-45 Pin
Function
1
Data pair 1
2
Data pair 1
3
Data pair 2
4
NC
5
NC
6
Data pair 2
7
NC
8
NC
The Ethernet connection to the Data & Power Adapter Unit must be assembled by the
end-user.
Figure 7: Features - Data & Power Adapter Ethernet Port Gland

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 17 of 24 July 9, 1014
Data & Power Cable
A pre-terminated Data & Power cable is provided to connect the Data & Power Adapter
Unit to the RAS-X LV positioner unit.
Figure 8: Features - Data & Power Cable
2.4 Grounding
A ground-lug is provided on the RAS-X LV chassis. Use this connection to terminate
a grounding wire. All RAS-X LV systems must be properly grounded to protect against
power surges and accumulated static electricity.

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 18 of 24 July 9, 1014
3 Installation Procedures
This section describes recommendations for grounding and line protection equipment,
mounting the RAS-X LV, RF and Ethernet connections, basic wireless configuration, and
alignment of the antenna.
3.1 System Components
The RDL-3000 RAS-X LV is designed and manufactured by Redline Communications, a
world leader in design and production of outdoor wireless TCP/IP transport for mission
critical applications.
Figure 9: Materials - Redline System Components
Chapter 3

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 19 of 24 July 9, 1014
3.2 Customer Supplied Materials
Installation of the RAS-X LV equipment requires additional equipment and materials
supplied by the customer and/or installer. The following list is provided as a guideline
only, and additional materials may be required based on local conditions at each
installation site. This list is not comprehensive and is provided as a guide only.
Table 6: Materials - Customer-Supplied Items
1
Equipment
Rack
Mounting space allocated for the PoE power adapter. Must
accommodate 2 m (6') AC power cable and routing of Ethernet cable
from PoE to local Ethernet network access point.
2
120/240 VAC
or 48 VDC
Power
Reliable 120/240 VAC or 48 VDC (site specific) for site. Total power
requirements must be evaluated based on individual site configuration.
3
Cat-5 Ethernet
Cables
Connect from PoE power adapter to core network. The maximum total
length of the Ethernet cable is 91.5 m (300 ft). For example, 90 m (295
ft) from the RAS-X LV to the PoE and 1.5 m (5 ft) from the PoE to the
network interface port.
4
Cable
Installation
Materials
Materials for securing cables to mast, protecting cables from abrasion,
etc. including suggested weatherproofing materials:
Scotch 2200 series of vinyl mastic rolls
Scotch 130C linerless rubber splicing tape
3M Scotch super 88 electrical tape
Rubber mastic putty or duct sealing putty
5
Radio/Antenna
Mast
Mast or tower location as required by site survey. Equipment must be
rated for weight and wind loading of all installed RAS-X LV systems and
antennas.
6
Ground Block
Termination for grounding and shield of all conductive cables entering
the building.
7
Grounding
Wire
Master grounding system for all indoor and outdoor equipment, with #2
AWG through #6 AWG as required and eye-terminals for connection to
RAS-X LV chassis and mounting bracket.
8
Tools
i) Precision set of screwdrivers, cutter pliers, and other common
installation tools.
ii) Portable computer (Windows™) for RAS-X LV configuration, antenna
alignment, and troubleshooting as required..

RDL-3000 RAS-X LV SOLUTIONS GUIDE
70-00174-03-00 Proprietary Redline Communications © 2014 Page 20 of 24 July 9, 1014
3.3 GPS Antenna Port
Important: The N-type connectors on the RAS-X LV must be weatherproofed. This
section provides a pictorial primer on correct weatherproofing procedures.
The GPS antenna port provides the required GPS satellite signals to equipped RAS-X
LV systems. The antenna can be passive or active type (parameter setting). Ensure that
this port is adequately weatherproofed. Use the preceding section s an example of how
to weatherproof the GPS antenna port.
3.4 Ethernet Surge Protection
This section describes the steps required to install the Ethernet line protector at the
vehicle/building ingress. The primary unit should be mounted as close as possible to
where the Ethernet cable enters the building/shelter, on a plate or bulkhead panel that is
bonded to an earth-ground system.
Do not install line protection equipment during adverse weather
conditions when lightning strikes are possible.
Figure 10: Procedures - Ethernet Line Protection Devices
Installing the Ethernet Line Protector (LP) Unit
1. Ground the chassis of the line protector.
2. Connect the outdoor Ethernet cables to the correct ports.
Connect the LP unit according to the direction it is labeled:
SURGE: Connection to RAS-X LV
PROTECTED: Connection to PoE.
3. Re-assemble the LP weatherproofing seals and install extra weatherproofing as
required (outdoor installation).
For correct operation, it is very important that the line protection equipment is properly
connected to a low impedance (low R and low L) ground system.
