RedMax LRTZ2500 Owner's manual

OWNER/OPERATOR MANUAL
LONG REACH TRIMMER
T1503-93110(912)
LRTZ2500

The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING
Before using our trimmers, please
read this manual carefully to
understand the proper use of your
unit.
WARNING
DRIVE UNIT 000000 and up CUTTING UNIT 000000 and up ENGINE UNIT 000479 and up
APPLICABLE SERIAL NUMBERS :

INFORMATION
This machine is equipped with an Overload Cancellation
Mechanism.
When the cutting blades have got into metal wires or those
twigs difficult to cut, the mechanism acts as a shock
absorber, and protects the drive gears and the blades from
severe reaction which could give damage to those parts.
When the blades are frequently caught by twigs, please
check the following points:
1. Size of the twigs. NEVER TRY TO CUT TWIGS
THICKER THAN 3/16” (5mm).
2. Condition of the blade edges. REPLACE THE WORN
OUT BLADES.
For the detail of the mechanism, please see below.
Thank you for choosing our product.

SAFETY FIRST
Instructions contained in warnings within this
manual marked with a symbol concern
critical points which must be taken into
consideration to prevent possible serious
bodily injury, and for this reason you are
requested to read all such instructions
carefully and follow them without fail.
■WARNINGS IN THE MANUAL
This mark indicates instructions which must be
followed in order to prevent accidents which could
lead to serious bodily injury or death.
This mark indicates instructions which must be
followed, or it leads to mechanical failure,
breakdown, or damage.
This mark indicates hints or directions useful in the
use of the product.
NOTE
IMPORTANT
WARNING
CONTENTS
1. Parts location …………………………………4
2. Specifications …………………………………4
3. Warning labels on the machine ……………5
4. Symbols on the machine ……………………5
5. For safe operation ……………………………6
6. Set up…………………………………………12
7. Fuel……………………………………………14
8. Operation ……………………………………16
9. Maintenance …………………………………19
10. Storage ………………………………………23
11. Troubleshooting guide………………………24
12. Parts list………………………………………25

2. Specifications
■LRTZ2500
Overall size(LxWxH)························································ 90.1(2300)x9.8(250)x12.2(310) in(mm)
Dry weight w/o acc.···························································································· 13.4 (6.1) lbs(kg)
Engine Type ········································································· Air-cooled 2-stroke gasoline
Model ··························································································· Zenoah GZ25N
Displacement··········································································· 1.6cu-in (25.4cm3)
Max. output······················································· 1.2Hp (0.9kW)at 7500/min-1(rpm)
Idle speed ·············································································3000±200/min-1(rpm)
Fuel··········································································· Mixture(Gasoline 50 : Oil 1)
Carburetor······································································· Walbro Diaphragm type
Spark plug ························································································NGK CMR7A
Fuel tank capacity·······························································································22.0 fl.oz (0.65 )
Transmission··········································································· Centrifugal clutch, Rigid driveshaft
Reduction ratio ························································································································· 4.0
Durability period················································································································· 300 hrs
Cutting head Type···········································································Reciprocating Double blade
Tooth·········································································································28 teeth
Pitch···················································································································30
Effective cut width··························································································16 in
Angle adjust range··················90°(±45° from cutting head position aligned shaft)
Standard Accessories
Shoulder Strap······························································································ 1 pc.
Goggle··········································································································· 1 pc.
Tool Kit·········································································································· 1 pc.
Blade Cover ·································································································· 1 pc.
Specifications are subject to change without notice.
1. Parts location
1. Loop handle
2. Shoulder strap hanger
3. Ignition switch
4. Throttle cable
5. Throttle lever
6. Throttle set button
7. Drive shaft housing
8. Blade
❲ 4 ❳
9. Gear case
10. Spark arrester
11. Starter knob
12. Fuel tank
13. Primer pump
14. Choke lever
15. Air cleaner cover

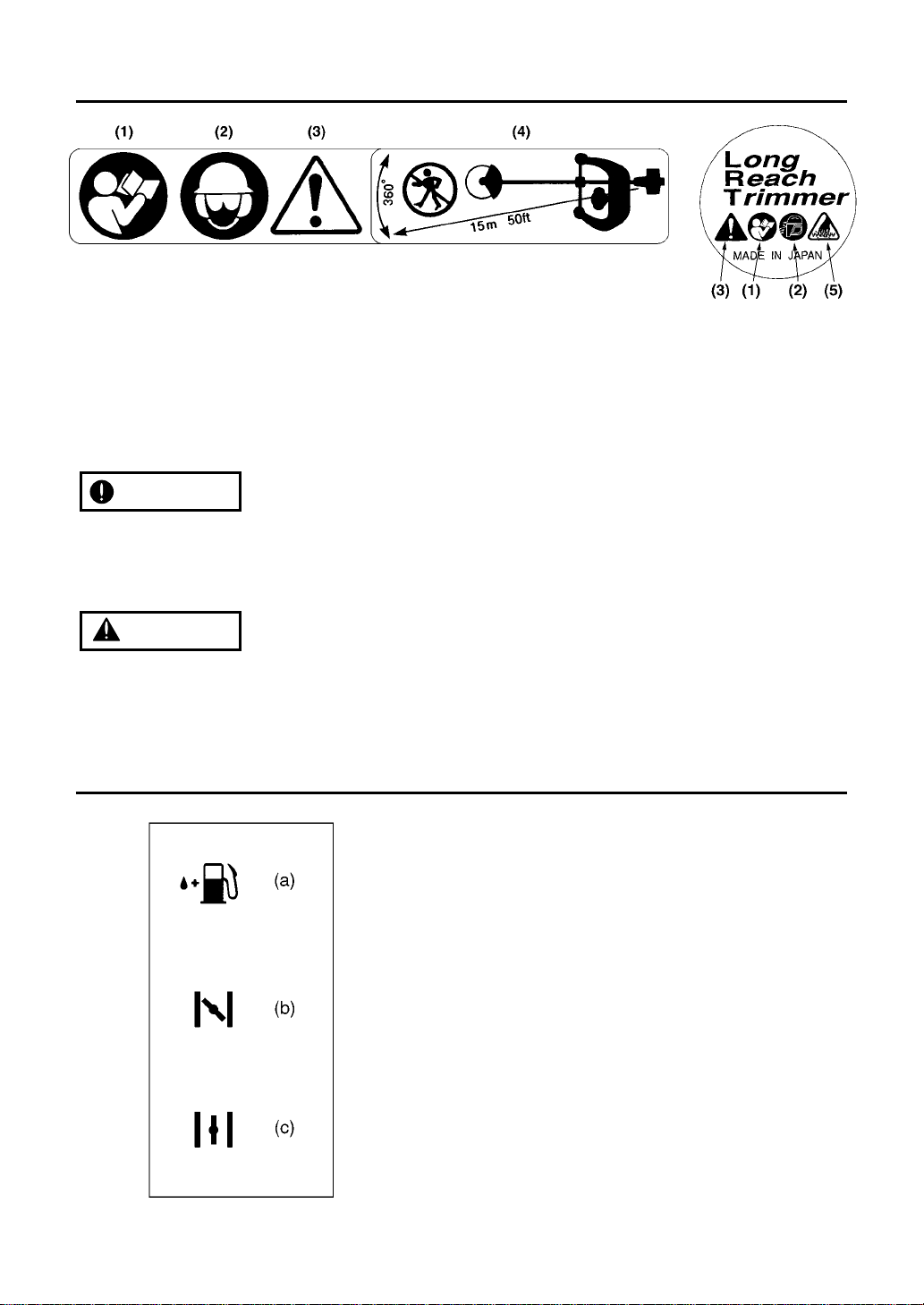

(1)Read owner's manual before operating this machine.
(2)Wear head, eye and ear protection.
(3)Handling this machine improperly could result in accidents causing serious injury or
death. Read this manual carefully and practice using the trimmer until you are fully
acquainted with all operations and have learned to use it correctly.
(4)Keep all children, bystanders and helpers 15 meters away from the brushcutter
(5)Keep hands away from cutting blades
If warning label peel off or become soiled and impossible to read, you should contact the dealer
from which you purchased the product to order new labels and affix them in the required
location(s).
Never modify your trimmer.
We won't warrant the machine, if you use the remodeled trimmer or you don't observe the
proper usage written in the manual.
WARNING
IMPORTANT
For safe operation and maintenance, symbols are
carved in relief on the machine. According to these
indications, please be careful not to take a mistake.
(a)The port to refuel the "MIX GASOLINE"
Position: FUEL TANK CAP
(b)The direction to close the choke
Position: AIR CLEANER COVER
(c) The direction to open the choke
Position: AIR CLEANER COVER
3. Warning labels on the machine
4. Symbols on the machine
❲ 5 ❳

❲ 6 ❳
5. For safe operation
1. Read this manual carefully until you
completely understand and follow all safety
and operating instructions.
2. Keep this manual handy so that you may refer
to it later whenever any questions arise. Also
note, if you have any questions which cannot
be answered herein, contact the dealer from
whom you purchased the product.
3. Always be sure to include this manual when
selling, lending, or otherwise transferring the
ownership of this product.
4. Never allow children or anyone unable to fully
understand the directions given in the manual
to use the machine.
■WORKING CONDITION

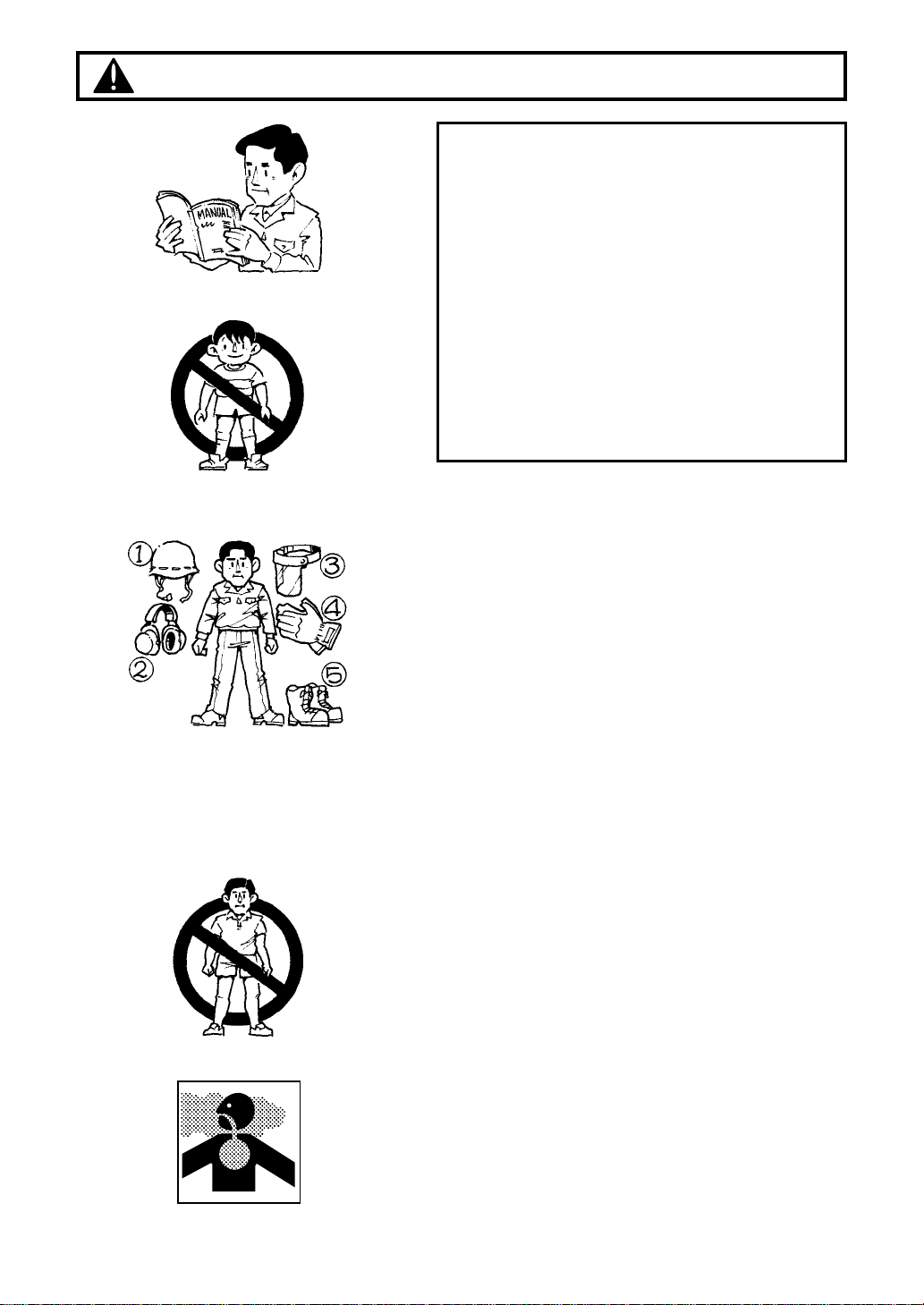

1. When using the product, you should wear proper
clothing and protective equipment.
(1)Helmet
(2)Ear protectors
(3)Protection goggles or face protector
(4)Thick work gloves
(5)Non-slip-sole work boots
2. And you should carry with you.
(1)Attached tools and files
(2)Properly reserved fuel
(3)Spare blade
(4)Things to notify your working area (rope,
warning signs)
(5)Whistle (for collaboration or emergency)
(6)Hatchet or saw (for removal of obstacles)
3. Do not wear loose clothing, jewelry, short
trousers, sandals, or go barefoot. Do not wear
anything which might be caught by a moving
part of the unit. Secure hair so it is above
shoulder length.
■WORKING CIRCUMSTANCE
1. Never start the engine inside a closed room or
building. Exhaust gases contain dangerous
carbon monoxide.
2. Never use the product,
a. when the ground is slippery or when you can’t
maintain a steady posture.

❲ 7 ❳
b. At night, at times of heavy fog, or at any other
times when your field of vision might be
limited and it would be difficult to gain a clear
view of the working area.
c. During rain storms, during lightning storms, at
times of strong or gale-force winds, or at any
other times when weather conditions might
make it unsafe to use the product.
■WORKING PLAN
1. You should never use the product when under
the influence of alcohol, when suffering from
exhaustion or lack of sleep, when suffering from
drowsiness as a result of having taken cold
medicine or at any other time when a possibility
exists that your judgment might be impaired or
that you might not be able to operate the product
properly and in a safe manner.
2. When planning your work schedule, allow plenty
of time to rest. Limit the amount of time over
which the product is to be used continuously to
somewhere around 30~40 minutes per session,
and take 10~20 minutes of rest between work
sessions. Also try to keep the total amount of
work performed in a single day under 2 hours or
less.
1. If you don’t observe the working time, or
working manner (See ■USING THE
PRODUCT), Repetitive Stress Injury(RSI)
could occur.
If you feel discomfort, redness and swelling
of your fingers or any other part of your
body, see a doctor before getting worse.
2. To avoid noise complaints, in general,
operate product between 8a.m. and 5p.m. on
weekdays and 9a.m. to 5p.m. weekends.
Check and follow the local regulations as to sound
level and hours of operations for the product.
NOTE
WARNING
5. For safe operation

❲ 8 ❳
■BEFORE STARTING THE ENGINE
1. The area within a perimeter of 50 feet (15m) of
the person using the product should be
considered a hazardous area into which no one
should enter. If necessary yellow warning rope,
warning signs should be placed around the
perimeter of the area. When work is to be
performed simultaneously by two or more
persons, care should also be taken to constantly
look around or otherwise check for the presence
and locations of other people working so as to
maintain a distance between each person
sufficient to ensure safety.
2. Check the condition of working area to avoid any
accident by hitting hidden obstacles such as
stumps, stones, cans, or broken grass.
Remove any obstacle before beginning work.
3. Inspect the entire unit for loose fasteners and
fuel leakage. Make sure that the cutting
attachment is properly installed and securely
fastened.
4. Always use the shoulder strap. Adjust the strap
for comfort before starting the engine. The strap
should be adjusted to fit your body according as
your working posture.
■STARTING THE ENGINE
1. Keep bystanders and animals at least 50feet
(15m) away from the operating point. If you are
approached, immediately stop the engine.
2. The product is equipped with a centrifugal clutch
mechanism, so the cutting attachment begins to
rotate as soon as the engine is started by putting
the throttle into the start position. When starting
the engine, place the product onto the ground in
a flat clear area and hold it firmly in place so as
to ensure that neither the cutting part nor the
throttle come into contact with any obstacle
when the engine starts.
IMPORTANT
5. For safe operation

❲ 9 ❳
Never place the throttle into the high speed
position when starting the engine.
3. After starting the engine, check to make sure
that the cutting attachment stops rotating when
the throttle is moved fully back to its original
position. If it continues to rotate even after the
throttle has been moved fully back, turn off the
engine and take the unit to your authorized Red
Max servicing dealer for repair.
■USING THE PRODUCT
Cut only materials recommended by the
manufacturer. And use only for tasks explained
in the manual.
1. Grip the handles firmly with both hands using
your whole hand. Place your feet slightly apart
(slightly further apart than the width of your
shoulders) so that your weight is distributed
evenly across both legs, and always be sure to
maintain a steady, even posture while working.
2. Keep cutting attachment below waist level.
3. Maintain the speed of the engine at the level
required to perform cutting work, and never raise
the speed of the engine above the level
necessary.
4. If the unit start to shake or vibrate, turn off the
engine and check the whole unit. Do not use it
until the trouble has been properly corrected.
5. Keep all parts of your body away from rotating
cutting attachment and hot surfaces.
6. Never touch the muffler, spark plug, or other
metallic parts of the engine while the engine is in
operation or immediately after shutting down the
engine. Doing so could result in serious burns or
electrical shock.
IMPORTANT
WARNING
5. For safe operation

❲ 10 ❳
• IF SOMEONE COMES
1. Guard against hazardous situations at all times.
Warn adults to keep pets and children away
from the area. Be careful if you are approached.
Injury may result from flying debris.
2. If someone calls out or otherwise interrupts you
while working, always be sure to turn off the
engine before turning around.
■MAINTENANCE
1. In order to maintain your product in proper
working order, perform the maintenance and
checking operations described in the manual at
regular intervals.
2. Always be sure to turn off the engine before
performing any maintenance or checking
procedures.
The metallic parts reach high temperatures
immediately after stopping the engine.
3. When replacing any part, or when replacing the
oil or any lubricant, always be sure to use only
RedMax products or products which have
been certified by RedMax for use with the
RedMax product.
4. In the event that any part must be replaced or
any maintenance or repair work not described in
this manual must be performed, please contact a
representative from the store nearest RedMax
authorized servicing dealer for assistance.
5. Do not use any accessory or attachment other
than those bearing the RedMax mark and
recommended for the unit.
6. Under no circumstances should you ever take
apart the product or alter it in any way. Doing so
might result in the product becoming damaged
during operation or the product becoming unable
to operate properly.
WARNING
5. For safe operation

❲ 11 ❳
5. For safe operation
■HANDLING FUEL
1. The engine of the RedMax product is designed
to run on a mixed fuel which contains highly
flammable gasoline. Never store cans of fuel or
refill the tank of the unit in any place where there
is a boiler, stove, wood fire, electrical sparks,
welding sparks, or any other source of heat or
fire which might ignite the fuel.
2. Never smoke while operating the unit or refilling
its fuel tank.
3. When refilling the tank, always turn off the
engine and allow it to cool down. Take a careful
look around to make sure that there are no
sparks or open flames anywhere nearby before
refueling.
4. Wipe spilled fuel completely using a dry rag if
any fuel spillage occurs during refueling.
5. After refueling, screw the fuel cap back tightly
onto the fuel tank and then carry the unit to a
spot 10 feet or more away from where it was
refueled before turning on the engine.
■TRANSPORTATION
1. When hand-carrying the product, cover over the
cutting part, lift up the product and carry it paying
attention to the blade.
2. Never transport the product over rough roads
over long distances by vehicle without removing
all fuel from the fuel tank. If doing so, fuel might
leak from the tank during transport.

■MOUNTING ENGINE (SE1)
1. Push the driveshaft housing toward the clutch
housing and rotate it by hand to check that the
driveshaft is engaged with the gears.
2. Insert the driveshaft housing into the clutch
housing until it bottoms, and align the positioning
holes on the clutch housing and the shaft tube
and install the screw. When difficult to engage,
twist the engine slightly.
3. Fasten the clamp securely with two screws.
Tighten the screws gradually by turns.

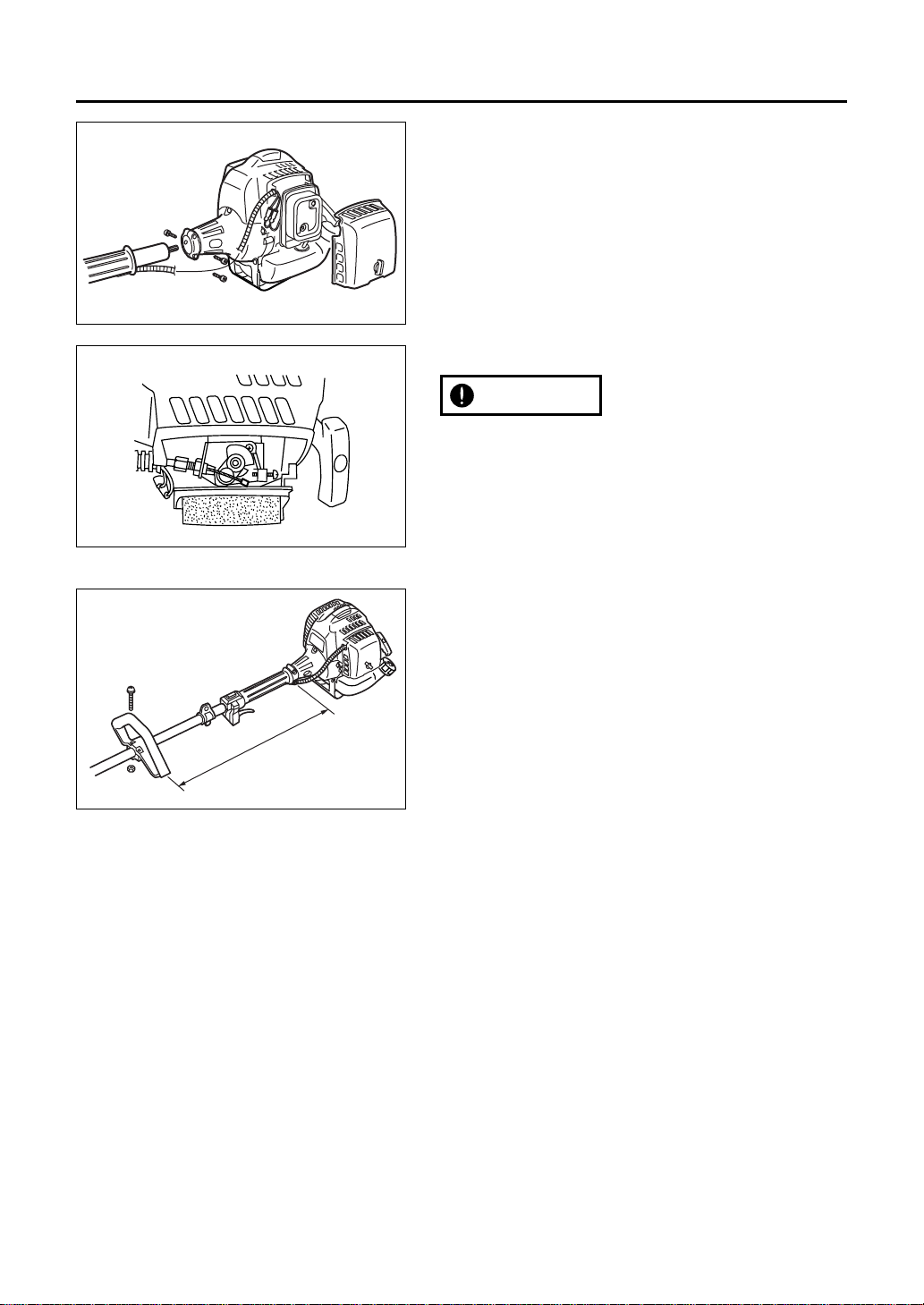

■CONNECTING THROTTLE WIRE
1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the joint
on the top of the carburetor. (SE2)
■CONNECTING SWITCH WIRES
• Connect the switch wires between the engine
and the main unit. Pair the wires of the same
color.
■INSTALLING HANDLE
• Mount the handle to the shaft tube and clamp it
at a location that is comfortable to you. (SE3)
(1)About 19 inches (48cm)
IMPORTANT
6. Set up
❲ 12 ❳
SE1
SE2
(1)
SE3

6. Set up
❲ 13 ❳
SE4
■ ATTACHING THE TRIMMING MECHANISM (SE4)
1. Remove the cap on the end of the main pipe.
2. Remove the screw screwed into the end of the
trimming mechanism.
3. Insert the end of the trimming mechanism into
the main pipe.
4. Line up the hole on the end of the trimming
mechanism into which the screw is to be
inserted with the hole on the main pipe, and
screw the screw firmly in.
5. Using a 10-mm wrench, screw in the hexagonal
bolt provided to fix the trimming mechanism into
place.
(1)Main pipe
(2)Trimming mechanism
(3)Screw hole
(4)Screw
(5)Fastening bolt
■BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Depending on the working posture, slide clamp
up or down until unit balances and the strap fits
your body.

• Gasoline is very flammable. Avoid smoking
or bringing any flame or sparks near fuel.
Make sure to stop the engine and allow it
cool before refueling the unit. Select outdoor
bare ground for fueling and move at least
3m(10ft) away from the fueling point before
starting the engine.
• The RedMax engines are lubricated by oil
specially formulated for air-cooled 2-cycle
gasoline engine use. If RedMax oil is not
available, use an anti-oxidant added quality oil
expressly labeled for air-cooled 2-cycle engine
use. (JASO FC GRADE OIL or ISO EGC
GRADE)
RECOMMENDED MIXING RATIO
GASOLINE 50:OIL 1
• Exhaust emission are controlled by the
fundamental engine parameters and
components(eq., carburation, ignition timing
and port timing) without addition of any
major hardware or the introduction of an
inert material during combustion.
• These engines are certified to operate on
unleaded gasoline.
• Make sure to use gasoline with a minimum
octane number of 90 ROZ(USA/Canada : pump
octane min.87)
• Unleaded gasoline is recommended to reduce
the contamination of the air for the sake of your
health and the environment.
• Poor quality gasolines or oils may damage
sealing rings, fuel lines or fuel tank of the
engine.
■HOW TO MIX FUEL
1. Measure out the quantities of gasoline and oil to
be mixed.
2. Put some of the gasoline into a clean, approved
fuel container.
3. Pour in all of the oil and agitate well.
4. Pour in the rest of gasoline and agitate again for
at least one minute.
5. Put a clear indication on the outside of the
WARNING
❲ 14 ❳
50:1 MIXING CHART
GASOLINE gal. 1 2 3 4 5
2-CYCLE OIL fl.oz 2.6 5.2 7.8 10.4 13
GASOLINE liter 1 2 3 4 5
2-CYCLE OIL ml 20 40 60 80 100
7. Fuel

container to avoid mixing up with gasoline or
other containers.
6. Indicate the contents on outside of container for
easy identification.
■FUELING THE UNIT
1. Untwist and remove the fuel cap. Rest the cap
on a dustless place.
2. Put fuel into the fuel tank to 80% of the full
capacity.
3. Fasten the fuel cap securely and wipe up any
fuel spillage around the unit.
1. Select bare ground for fueling.
2. Move at least 10 feet (3 meters) away from the
fueling point before starting the engine.
3. Stop the engine before refueling the unit.
FOR YOUR ENGINE LIFE, AVOID;
1. FUEL WITH NO OIL(RAW GASOLINE) – It will
cause severe damage to the internal engine
parts very quickly.
2. GASOHOL – It can cause deterioration of rubber
and/or plastic parts and disruption of engine
lubrication.
3. OIL FOR 4-CYCLE ENGINE USE or WATER
COOLED 2-CYCLE ENGINE USE – It can
cause spark plug fouling, exhaust port blocking,
or piston ring sticking.
4. Mixed fuels which have been left unused for
a period of one month or more may clog the
carburetor and result in the engine failing to
operate properly.
WARNING
7. Fuel
❲ 15 ❳

❲ 16 ❳

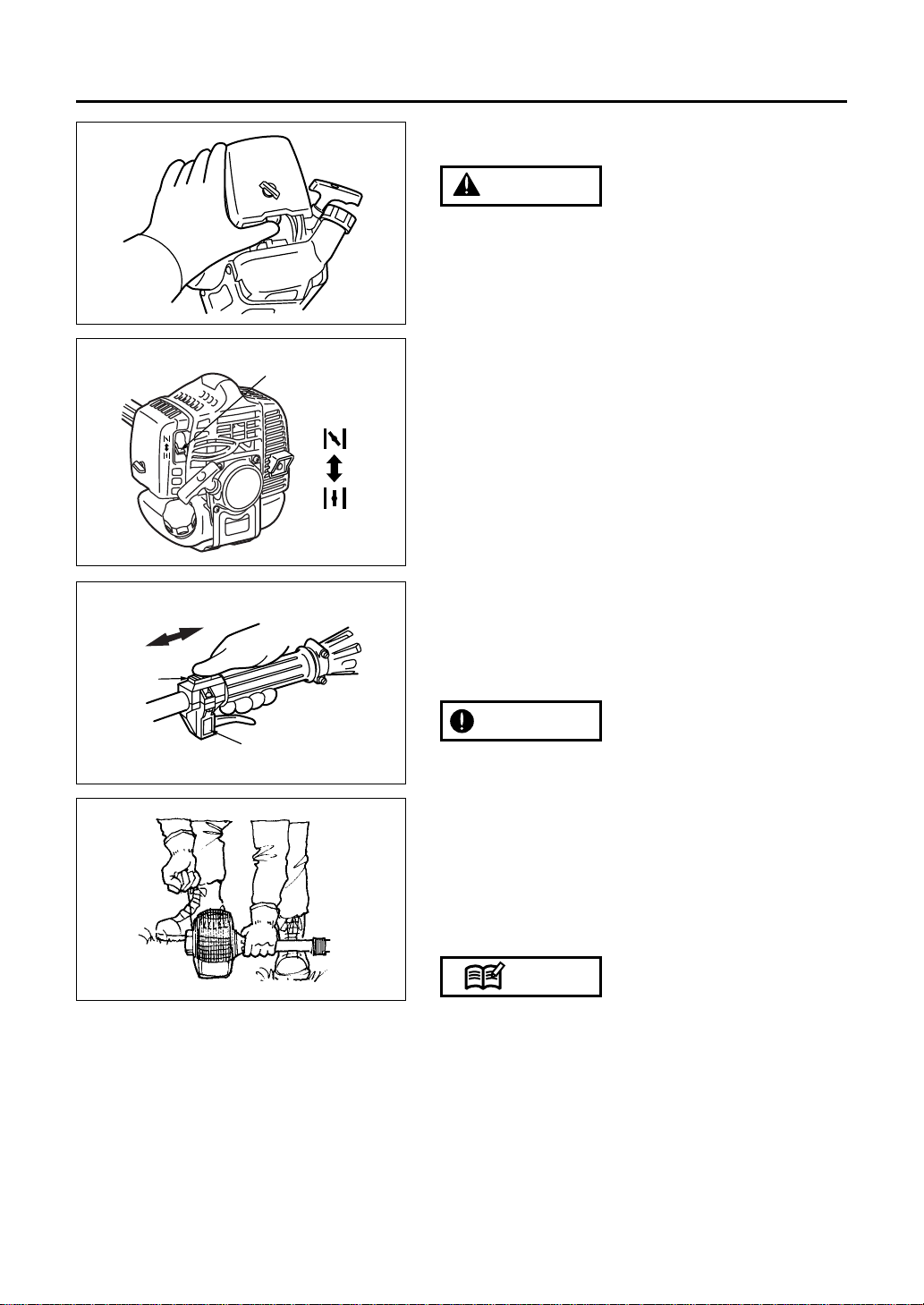

■STARTING ENGINE
The cutting head will start rotating upon the
engine starts.
1. Rest the unit on a flat, firm place. Keep the
cutting head off the ground and clear of
surrounding objects as it will start rotating upon
starting of the engine.
2. Push the primer pump several times until
overflown fuel flows out in the clear tube. (OP1)
3. Move the choke lever to the closed position.
(OP2)
4. Set the ignition switch to the “start” position.
While pulling the throttle lever, push the set
button, and release the throttle, then the throttle
lever is in to the “start” position. (OP3)
5. While holding the unit firmly, pull out the starter
rope quickly until engine fires. (OP4)
(1) choke lever (2) close (3) open
(4) ignition switch (5) start (6) stop
(7) throttle set button
• Avoid pulling the rope to its end or returning it by
releasing the knob. Such actions can cause
starter failures.
6. Move the choke lever downward to open the
choke. And restart engine. (OP2)
7. Allow the engine to warm up for a several
minutes before starting operation.
1. When restarting the engine immediately after
stopping it, leave the choke open.
2. Overchoking can make the engine hard to start
due to excess fuel. When the engine failed to
start after several attempts, open the choke and
repeat pulling the rope, or remove the spark plug
and dry it.
NOTE
IMPORTANT
WARNING
8. Operation
OP1
(1)
(2)
(3)
OP2
(4)
(7)
(5)
(6)
OP3
OP4

8. Operation
■STOPPING ENGINE (OP3)
1. Release the throttle lever and run the engine for
a half minute.
2. Shift the ignition switch to the STOP position.
• Except for an emergency, avoid stopping the
engine while pulling the throttle lever.
■ADJUSTING THROTTLE CABLE
• The normal play is 1 or 2mm when measured at
the carburetor side end. Readjust with the cable
adjuster as required. (OP5)
(1)cable adjuster
■ADJUSTING IDLING SPEED (OP6)
1. When the engine tends stop frequently at idling
mode, turn the adjusting screw clockwise.
2. When the cutting head keeps rotating after
releasing the trigger, turn the adjusting screw
counter-clockwise.
(1)idle adjusting screw
• Warm up the engine before adjusting the idling
speed.
This product is equipped with extremely sharp
blades, and when used improperly these blades
can be extremely dangerous, and improper
handling can cause accidents which may in
turn lead to serious injury or death. For this
reason, you should always be careful to follow
the following instructions when using your
trimmer.
• Never hold the trimmer in a way in which the
blades are pointed towards someone else.
• Never allow the blades to come into proximity
with your body while the engine of the trimmer
WARNING
NOTE
IMPORTANT
❲ 17 ❳
(1)
OP6
.04 in
(1~2mm) (1)
OP5

is in operation.
• Always be sure to turn off the engine before
changing the angle of the blades, removing
branches which have become stuck in the
blades, or at any other time when coming into
close proximity with the blades.
• Always wear work gloves made of leather or
some other sturdy material when using the
trimmer.
• Always place the blade cover provided with
the trimmer over the blades when not in use.
• Falling branches may fall onto the face or
into the eyes, resulting in injuries,
scratches, and cuts, and for this reason
you should always be sure to wear a
helmet and face protector when using your
trimmer.
The thickness of branches which may be cut
using this trimmer is limited to up to
approximately 3/16" (5mm). Never try to cut
branches thicker than this, as doing so may
result in damage to the trimmer.

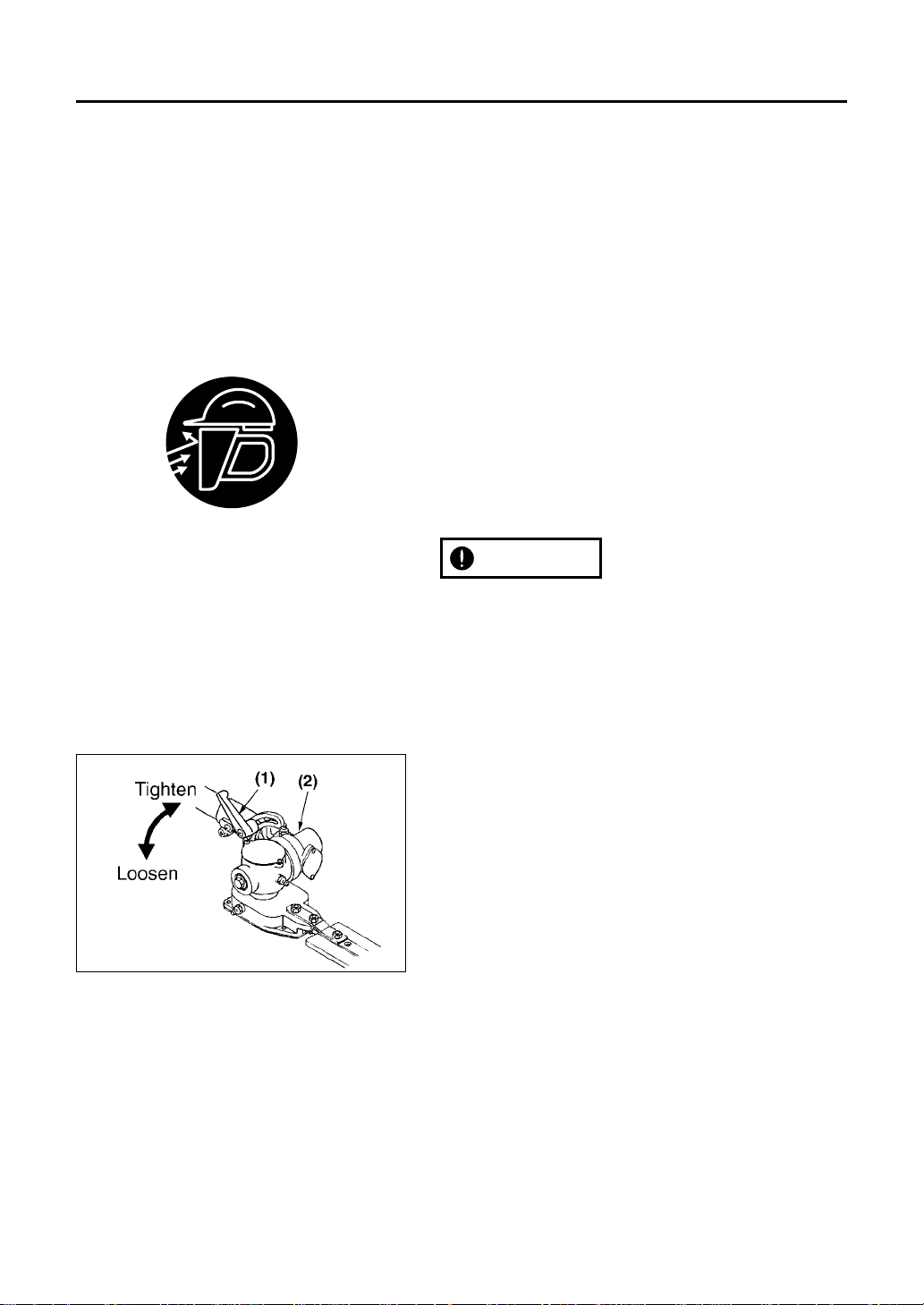

■ADJUSTING THE ANGLE OF THE CUTTING
BLADES (OP7)
1. Stop the engine.
2. Turn the bolt located on the top of the trimming
mechanism counter-clockwise to loosen it.
3. Adjust the angle of the blades to the desired
angle, and then fix the bolt firmly back into place.
(1)Clamp lever
(2)Trimming mechanism
IMPORTANT
8. Operation
❲ 18 ❳
OP7

❲ 19 ❳
9. Maintenance

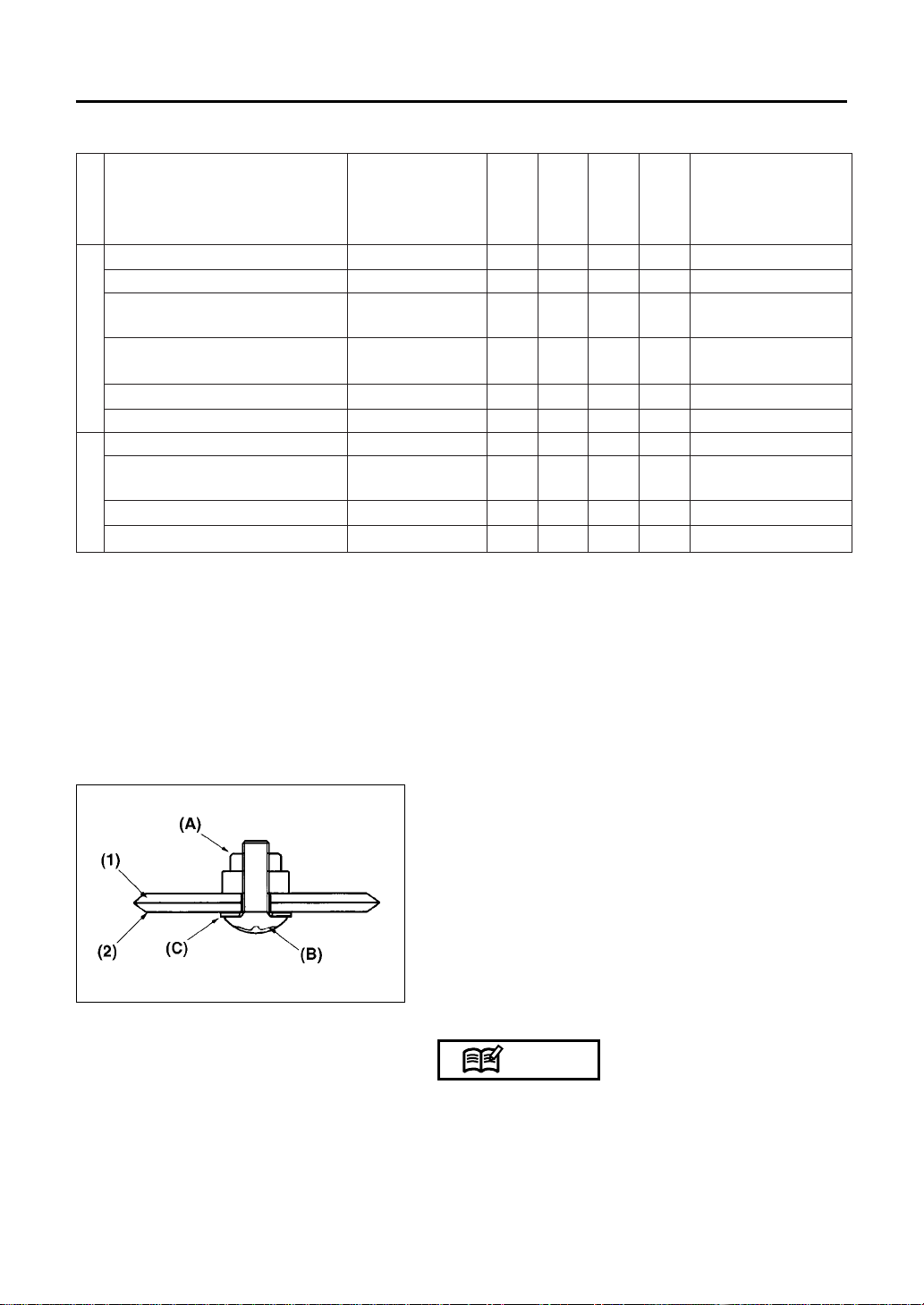

■BLADES (MA1)
• When refilling the tank or resting, it is often a
good idea to use the time to oil the cutting
blades.
• If a gap exists between the upper and lower
blades, follow the procedure below to adjust
them so that they fit more closely together.
1. Loosen lock nut (A) as shown in the diagram.
2. Tighten screw (B) fully, and then turn one-third
to one-half of a rotation backward.
3. While holding onto the screw to keep it in
position, tighten the lock nut.
4. Check to make sure that the flat washer (C) is
loose enough so that it may be turned by
pressing on it with a finger.
(1)Upper blade
(2)Lower blade
Screwing in the screw too tightly may make it
impossible for the blades to move. Conversely, not
screwing in the screw tightly enough may make the
blades of the trimmer feel dull and cause leaves
and branches to become caught in the blades of
the trimmer.
NOTE
MA1
every every every
25 50 100
system/compornent procedure before hours hours hours note
use after after after
fuel leaks, fuel spillage wipe out ✔
fuel tank, air filter, fuel filter inspect/clean ✔✔ replace, if necessary
see ■ADJUSTING replace carburetor
idle adjusting screw ✔
IDLING SPEED (p.17) if necessary
clean and readjust GAP: .025in(0.6~0.7mm)
spark plug ✔
plug gap replace, if necessary
cylinder fins, intake air cooling vent clean ✔
muffler, spark arrester, cylinder exhaust port clean ✔
throttle lever, ignition switch check operation ✔
replace if
cutting parts ✔
something's wrong
gear case grease ✔
screws/nuts/bolts tighten/replace ✔✔not adjusting screws
ENGINESHAFT
■MAINTENANCE CHART

❲ 20 ❳
QUICK TIP
If the blades become so worn down that it is no
longer possible to eliminate the gap between them,
you should contact the authorized RedMax
servicing dealer from which you purchased your
RedMax® trimmer to have the blades resharpened
or replaced.
■GEAR CASE
The reduction gears are lubricated by
multipurpose, lithium-based grease in the
gearcase.
Supply new grease every 25 hours of use or more
often depending on the job condition.
When adding lubricant, use a grease gun to insert
lubricant into the three grease nipples located on
the gear case. (MA2)
(1)Grease fitting
• Make sure that the engine has stopped and is
cool before performing any service to the
machine. Contact with moving cutting head
or hot muffler may result in a personal injury.
■AIR FILTER
• The air filter, if clogged, will reduce the engine
performance. Check and clean the filter element
in warm, soapy water as required. Dry
completely before installing. If the element is
broken or shrunk, replace with a new one. (MA3)
(1)air filter
■FUEL FILTER
• When the engine runs short of fuel supply, check
the fuel cap and the fuel filter for blockage.
(MA4)
(1)fuel filter
WARNING
9. Maintenance
(1)
MA4
(1)
MA3
MA2
