RedWing RC ROCKY User manual

INSTALLATION AND OPERATION
INSTRUCTIONS
Please read this user’s manual carefully before operate the unit.
ROCKY HOT WATER HEAT PUMP

CONTENTS
A. IMPORTANT REMARKS AND INFORMATION --------------------------------------------------- 1-2
B. DESCRIPTION OF HOT WATER CYLINDER------------------------------------------------------- 3
C. INSTALLATION INSTRUCTION----------------------------------------------------------------------- 4-7

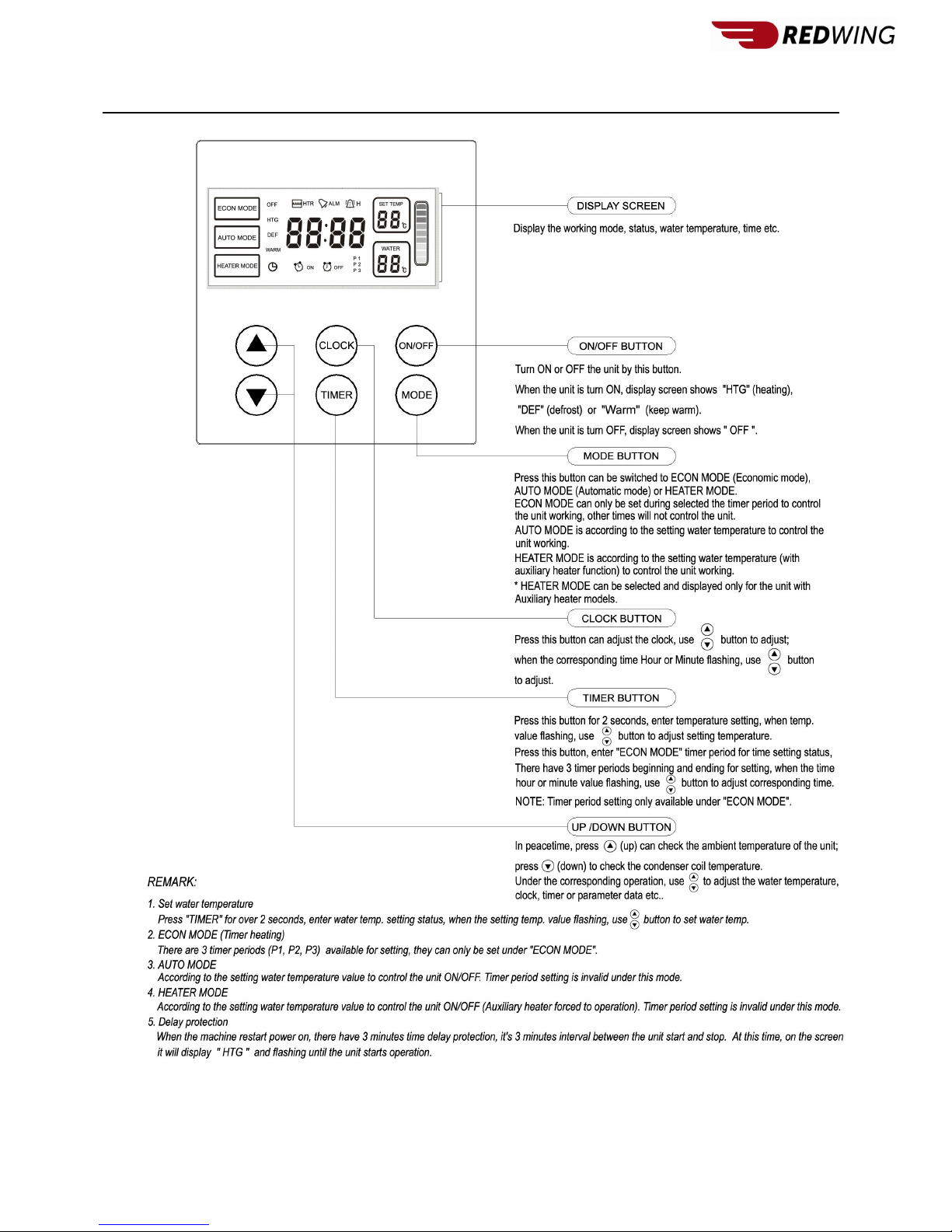

D. OPERATION PANEL INSTRUCTION-------------------------------------------------------------- 8-11
E. MAINTENANCE AND SERVICE------------------------------------------------------------------- 12-13
F. UNIT CIRCUIT DIAGRAM --------------------------------------------------------------------------- 14-15
G. SPECIFICATIONS AND DIMENSIONS --------------------------------------------------------- 16-18
H. WARRANTY ------------------------------------------------------------------------------------------------ 19
WARNING:
1. This unit must be installed by the professional person, dealer or authorized installation
company. Or otherwise, accidents maybe possibly caused and usage effectiveness maybe
affected.
2. Make sure that the unit is in the STOP operation when disconnecting the power supply to the
unit .Disconnect all electric power supplies before servicing.
3. This appliance is not intended for use by people (including children) with reduced physical, or
lack of experience and knowledge, unless they are been supervised or instruction concerning
use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid a hazard

Rocky Hot Water Heat Pump – Save Up to 75% on Heating Your Water!
The Rocky hot water cylinder is powered by a heat pump which is integral to the unit and is
located on top of the cylinder.
It works up to 30% more efficiently than Solar powered hot water panels and is significantly
cheaper to purchase and install. In the process of heating water, it will de-humidify your
bathroom, or kitchen.
The exhaust air which has a temperature of about 10 deg can be used to keep a pantry cool if
the distance is not too great from the cylinder, otherwise it should be exhausted to the outside.
The Cylinder is available in sizes from 80L, 150L, 190L, 260L and 300L.
Key Advantages
•On average its performance is up to 30% better than solar, with significantly reduced
installation and capital cost.
•The co efficiency of performance is 4:1 - this means that for every 1Kw of electricity input,
it gives 4Kw output.
•When you are using the ambient air from a bathroom or kitchen, you are also
de-humidifying the air from those rooms.
•The Exhaust air that is normally discarded, can provide cooling to a room.
•Stainless steel tank.
•18 month warranty.
How it works
The heat pump uses the ambient air from the building. This air can be taken from a bathroom,
kitchen or from the ceiling of a stairwell. A 150mm duct is used to bring the air to the cylinder
and likewise to exhaust the air away from the cylinder.
When the heat pump is switched on, it extracts air from the rooms mentioned above and further
compresses it to heat the water to 55deg by means of an internal coil down through the cylinder.
The exhaust air which is now approximately 10 degrees needs to be discarded; this air can be
exhausted through the roof, the wall, or can be directed to another room for cooling.

1
A. Important remarks and Information
Thank you for choosing our products. Before installation, it is strongly recommended to read
the instructions first. This manual includes the information of installation, debugging, running
and maintenance of the products.
Every unit of product has passed strict tests to ensure safe and high efficiency in operation.
The manufacturer of this product will not be held responsible if someone is injured or the unit
is damaged, as a result of improper installation, debugging, and unnecessary maintenance
which is not in line with this manual.
The installer should be an authorized technician, and install the system as per the diagrams
of the equipment.
Please notice the following information during installation:
1. In areas where there is hard water, it is recommended that a water softener be used.
2. Applied working temperature of heat pump: -7 ~ 43 degrees.
3. Check whether the power supply meets the required standard for the unit.
4. The appliance shall be installed in accordance with national wiring regulations.
5. When the system is connected to a fixed power supply, the fixed supply must 20A RCBO
(30mA).
6. Do not install the system in a warehouse where flammable gas may leak out.
7. Do not insert hands or object into the vent of the heat pump.
8. To make the system operate at maximum efficiency, please install the main unit in a place
with good ventilation.
9. Do not put (or install) the operating panel in a wet location.
10. When moving the cylinder, always keep up-right or no more than a 30 degree angle. Do not
drop or up-end the unit.
11. Maintain the system by an authorized technician, and disconnect all power when servicing.
12. All the models come with a sterilization function. It starts every 14 days which turns on the
electric element to heat the water to 70 degrees. If you want to turn off this function, you can
enter the parameter settings and set F17 from “1” to “0”.

2
A. Important remarks and Information
Examination before trial run
1. Check the water tank is filled with water, and open the water outlet tap till water flows out.
2. Check the water pressure is normal (1.5 - 7 bar).
3. Check the air inlet or outlet is well connected; and the air outlet pipe heat insulation is
completed.
4. Check the power supply voltage is normal, according with the nameplate requirement.
(Range + / - 10%).
5. Check whether the equipped parts are screwed /locked well.
6. Check whether the wirings is in line with the Circuit diagram, and the earth-wire is connected.
7. Check whether the wind inlet and outlet has been cleaned up and there are no obstacles.
8. Check whether the condensate drain pipe is connected and there are no blockages.
9. After power-ON, check the control panel display is normal.
Trial running
1. After the machine starts, determine whether the machine is working properly if there is an
abnormal sound during operation stop the unit immediately and check for problems until there
is no abnormal sound to continue operation.
2. For the first time power on, the compressor will have 3 minutes delay protection function.
3. For the first time discharge of hot water or the unit starts after a long period off, muddy water
may flow from the water tap of the outlet pipe, this is a normal phenomenon, continue to drain
for a period of time till it runs clearly.
4. After a long period of been off, there may have condensation water around the air outlet or
pipe (especial in humidity weather), this is a normal phenomenon, use a dry washcloth to
clean it or air dr

3
B. Description of water cylinder

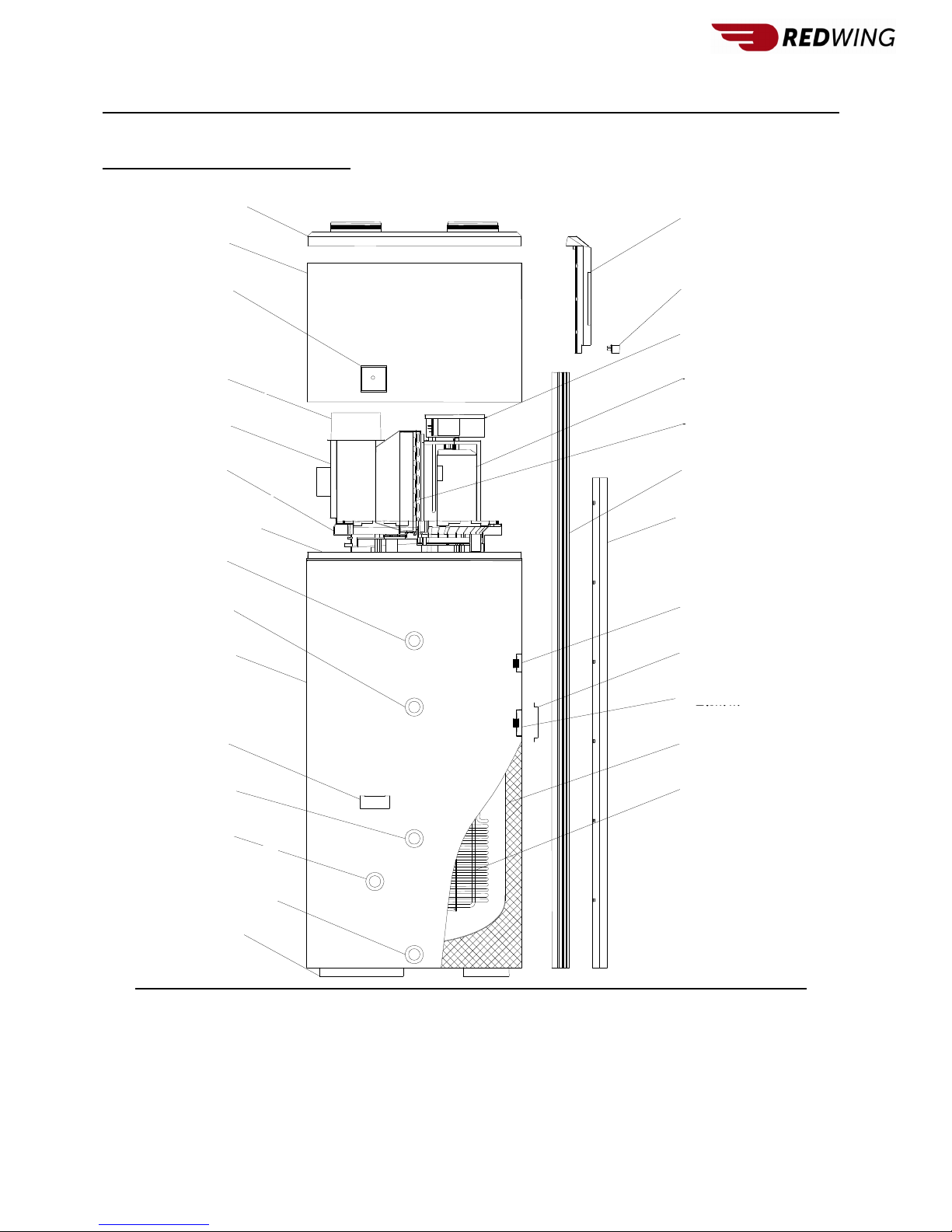

Unit constructions (outside):
Remarks:
1. The above drawing is for reference to identify the names of each part of the unit.
2. The drawing of the auxiliary heating coil is optional and is not available with all models.
3. The function of the magnesium rod is to prevent the outside steel shell from rusting and corroding it is
recommended to change this rod every 2-3 years.
装饰板
左右装饰条
顶盖
主机上壳
出风管
风机
主机底盘
底盘安装板
热水出口
循环水口
抽手
冷凝水口
底脚
进排水口
操作面板
蒸发器
镁棒口
电加热盖
电加热口
发泡层
盘管
流溢孔 装饰条
电器盒
压缩机
水箱外壳
循环水口
Decoration Bar
Top Cover
Air Inlet
/ Outlet
Screen
Panel
Condensate Overflow Hole
Condenser coil
Hot Water Outlet
Auxiliary Electric Heater
Cold Water Inlet /
Drainage Hole
Supporting frame
Hand Grip
Vent Pipe
Optional-Auxiliary
Heating Coil (Return)
Upper Cover
Ventilation Fan
Electric Board
Compressor
Polyurethane Layer
Electric Heater Cover
Magnesium Hole for Rod
Decoration Panel
Left/Right Decoration Bar
Evaporator
Tank Cover
Condensate Drain Hole
Host Chassis
Chassis Installation Board
Optional-Auxiliary
Heating Coil (Flow)

4
C. Installation instruction
How it’s works
The heat pump uses ambient air temperature from the building and this can be taken from a
bathroom or kitchen etc.
The pump takes the heat from the air, compresses it to a higher temperature and transfers
this heat directly into the water.
The exhaust air which is now approximately 10 degrees needs to be discarded; this air can
be exhausted through the roof or wall of the dwelling, or can provide cooling for another room
(e.g. pantry).
Installation notes:
1. The cylinder can be installed anywhere within the building provided the intake and exhaust
air ducts can be installed without having to run the pipes too far or having to fit too many
bends on the run.
2. The heat pump is best located with the air intake coming from an area with excess heat e.g.
a bathroom or kitchen (minimum of 120 cubic meters).
3. The air inlet and outlet are at the top of the cylinder.
4. The cylinder should not be placed in the open air.
5. Avoid debris entering the vents.
6. The air inlet and outlet ducts are 150mm dia.
Exhaust air to another room Exhaust air to another room
Ambient
air
from
another
room
Ambient air from the same room
(Fig.1) (Fig.2)
7. Fig 1 shows the inlet air coming from the same room (no need for duct to be used here). The
exhaust air is shown ducted into another room.
8. Fig 2 shows the inlet air duct taking air in from another room and the exhaust air is shown
ducted into another room.
MODETIMER
CLOCK ON/OFF
≥ 800mm
≥ 600mm
ON/OFFCLOCK
TIMER MODE
≥ 800mm
≥ 500mm
≥ 600mm

5
C. Installation instruction
(Fig. 3)
Option 1: Exhaust air to outside through the roof, ambient air from another room.
Option 2: Exhaust air to outside through the wall, ambient air from another room.
9. Fig 3 shows the inlet air duct taking air from another room and the exhaust air being dumped
outside either through the roof or external wall.
10. Because the air outlet comes with cooling air, the surface of the pipe may have condensation
water, it’s necessary to insulate the indoor outlet pipe to prevent water leakage.
11. Heat pump water heater unit must be placed upright, and installed on a solid surface that can
be able to withstand a weight of over 700kgs. Supporting surface should be level.
12. In operation the unit should be located in a well-ventilated location and with nothing blocking
the air vent, so that the machine can be able to inhale and exhaust enough air, to achieve hot
water supply function.
13. The appliance can work without an air duct.
14. There should be a drain around the system unit for drainage. And the surrounding area of
the tank should have enough space for maintenance. Because the top cover can be opened,
at the top side of the unit, there should be at least 800mm space for maintenance at the top.
15. Nearby the system unit, there should be a reserved water supply pipe and hot water pipe
interface equipped with valves, the water inlet pipe should have a filter (for cleaning).
16. For waterway connection of this integrated unit, please refer to the “Waterway installation
diagram” (Fig.4 pg7).
17. On the system unit, there should be a three-port valve, a safety valve and a filter installed.
Connect them to the water inlet and outlet of the unit.

6
C. Installation instruction
18. The working pressure of this water heater tank must be ≤7 bar. The water inlet must be
connected to the safety valve with an operating pressure of 7 bar.
19. Water inlet pressure should be greater than 1 bar, if the pressure is lower than this connect
the pressure pump on inlet pipe to get a higher water flow.
20. Ensure the water tank is fully filled with water before turning on the system: First, open
the valve on the water supply inlet, then switch on either valve of the water outlet, and then
you can pour water to the tank until the water overflow the water outlet valve. After which you
can turn off the water outlet valve and check for leaks. (Make sure there is no water leaking).
21. If the system is switched off for a long period through the winter, the water tank should be
drained to prevent frost damage.
22. If connecting to a pressurised system or mains water always use a pressure vessel for
expansion.
23. If the water heater is equipped with an optional auxiliary heating coil at the bottom of the tank.
This coil can be connected to solar panels, solid fuel back boilers, oil or gas boilers. This
option is generally only used as a backup system.
24. If the water heater is equipped with an optional coil at the top of the tank, this coil can be
used for heating a small underfloor area, a few radiators or a couple of towel rails which would
avoid having to turn on the main system in the Summer time to heat the bathroom.
25. There should always be enough space around the system for maintenance.

7
C. Installation instruction
Installation Diagram:
排污管
冷凝水排出
风管
出风
热循环出水
热循环进水
进风
球阀
( 用水端)
( 自来水端)
三通
安全阀过滤器
热水出
冷水进
MODETIMER
CLOCK ON/OFF
溢流水管
(Fig.4)
Remarks:
1 For, first time use, ensure the water tank have been filled with water before starting to prevent
burn out.
2 Before installation, it’s better to reserve a water supply pipe interface, hot water outlet pipe
interface and drainage pipe interface. Among them, the water supply pipe and hot water outlet
pipe should be used in line with standards for drinking water pipes. (E.g. PPR pipe or stainless
steel pipe, etc.), can’t use iron pipe or the rubber hose with odor for installation.
3 If using in a place below 0 degrees, make sure to insulate the water pipes to prevent freezing.
4 Air inlet /outlet can connect Φ150mm vent tube, but pipes shouldn’t be too long.
Safety Valve
Three
-
port Valve
Filter
Water Inlet
Water Supply
Ball Valve
Air Outlet
Drainage Pipe
Heat Circulation water outlet
Heat Circul
ation water inlet
Hot Water Outlet
(
Hot Water
use)
Vent Tube
Air Inlet
Condensate Overflow drain
Condensate
water
drainage

8
D. Operation (Panel Instruction 1)

9
2. Panel - Display:
工作模式指示
机器状态指示
调节时钟指示
当前时间显示
定时开显示
定时关显示
定时时段显示
辅电加热指示
机器报警指示
水温高温提示
设定水温显示
用水温度显示
水温渐变显示
注:当用水温度超过 55℃时,显示屏上"高温"
提示亮。
Set Temperature
High Temperature
Alarm
Auxiliary Heater
Status
HTG: Heating
DEF: Defrost
WARM: Keep warm
Working Mode
Time adjustment
Time
Timer On
Timer Off
Timer Period
Water Temperature
Temperature Gradient
Note: If the water temp exceeds 55 degrees, the indicator light will be shown on
the display.

10
D. Operation panel instruction
3. Parameter Setting:
Press “MODE” button for 5 seconds; enter the Parameter setting status, the main parameter code as
below sheet:
Type Code Parameter Name Setting Range Factory Setting Unit Remark
Temperature
Control
F11 Setting temperature 5-70 55 °C
F12 Difference in Temp. 1 - 30 5 °C
F13 Determine Heat pump stop
ambient temp. -10 – 5 -7 °C
F14 Highest temp. for heat pump 40 – 60 55 °C
F15 Turn on or off electric
heater mode 0 - 1 1 -
F16 Ambient temp. for start electric
heating -10 - 20 0 °C
F17 Turn on or off electric heater for
sterilization function 0-1 1
F18 Sterilization cycle 1-990 336 hour
F19 Water thermal sensor
temp. amendment -5 – 5 0 °C
Compressor F21 Compressor start delay 0 – 10 3 minute
Defrost
F31 Defrost start temp. -20 – 20 -2 °C
F32 Defrost finish temp. 0 – 50 25 °C
F33 Defrost start time 1 – 999 45 minute
F34 Max. defrost time Off, 1 – 99 10 minute
Alarm
F50 Low pressure alarm mode 0 - 2 2 -
F51 Auto resume times of low
pressure alarm 0 – 10 3 time
F52 Reset time of external alarm
auto resume times 0 – 999 60 minute
F54 Electric heater overheat
protection 0 - 2 2 -
F55 Overheat resume time 0-10 3 -
F56 Alarm resume time 0-999 60 °C
F57 Exhaust temp. protection mode 0 – 2 1 -
F58 Exhaust protect temp. 50 – 125 110 °C
F59 Exhaust temp. protection
Return difference 1 – 30 10 °C
Function
Setting
F61 Memory status when power off Yes/No Yes -
F69 Communication baud 24/48 24 -
System
Setting
F80 Password OFF
0001 -- 9999 4321 -
“OFF” means no
password.
Set “0000” to
clear password.
F85 Display sterilization total time - - hour
Testing F98 Force defrosting (refrigeration)
Control panel
display “AdF”
Start compressor, 4-way valve
and fan motor. Press any key
to exit or 20 minutes it will exit
automatic.
Remarks: When entering Parameter setting status, press “up” or “down” to choose parameter
code; after choose one, press “Timer” button to show this code’s setting value, and press “up”
or “down” can set the value; After finish setting, press “Timer” button to confirm and return to
Parameter code status.

11
D. Operation panel instruction
4. Error Handling:
ERROR CODE ERROR STATUS REASONS ERROR HANDLING
A1 Thermal sensor alarm Water temp. sensor open circuit
or short circuit.
1. Check the water temp. sensor
connection.
2. Change the water temp. sensor.
A2 Condenser coil sensor
alarm
Condenser coil temp. sensor
open circuit or short circuit.
1. Check the condenser coil temp.
sensor connection.
2. Change the coil sensor.
A3 Exhaust sensor alarm Exhaust temp. sensor open
circuit or short circuit.
1. Check the exhaust temp. sensor
connection.
2. Change the exhaust temp. sensor.
A4 Ambient temp. sensor
alarm
Ambient temp. sensor open
circuit or short circuit.
1. Check the Ambient temp. sensor
connection.
2. Change the ambient temp. sensor.
A5 Low /High pressure
alarm
1.1. High pressure protection
switch off.
1.2. Ambient temp. too high or
water heat exchanger dirty
block.
2.1. Low pressure protection
switch off.
2.2. Leakage of refrigerant.
1.1Check or change the high pressure
protector.
1.2. Check if the surround temp. is too
high, or clean the heat exchanger
of water tank.
2.1. Check or change the low pressure
protector.
2.2. Supply refrigerant and check if
there is any leakage.
A6
(Auxiliary) electric
heater protection
overheat alarm
1. Electric heater protection
switch off.
2. Tank water temp. too high.
1. Check if the water temp. is as LCD
display, or if water temp. is too high.
2. Change the Electric heater.
A7 Exhaust temperature
too high
1. Lack of refrigerant.
2. Mix with air in system.
3. Lack of lubricating oil.
1. Supply refrigerant.
2. Re-vacuumizing, and fill in
refrigerant.
3. Change the lubricating oil of
compressor.
- - Screen no display or
display insufficiency
1. No plug in power.
2. Mainboard and operation
panel communication break off.
1. Check the power line and voltage.
2. Reconnect the line of
the mainboard and operation panel.
3. Change the mainboard or operation
panel.
NOTE:
1. When the unit has an error, the buzzer of the operation panel will make an alarm sound, and
an “Alarm” will be shown on the screen panel.
2. Alternately an “ERROR CODE” will be shown on temperature display.
3. Part of the error alarm can be automatically restored (resumed). The appeared alarm can be
eliminated by an electronically controlled self-test.
4. An error alarm can be caused by a large fluctuation of external power, in this case, just power
off and restart the unit to clear the error.
5. When the machine has an error alarm and restarting the unit still can not eliminate the error,
please contact the after service as soon as possible for a solution.

12
E. Maintenance and service
Maintenance and service
1. For, first time installation or moving of installation, and connecting of water pipes and filling the
tank with water. The machine should be allowed to rest for 1-2 hours before starting trial run.
2. The water heater inlet filter needs to be cleaned every 3 months. At the same time, we
suggest draining all the storage water and repeatedly wash for 2-3 times to remove the dirt
and sediment.
3. To clean the fin heat exchanger, use a hard nylon brush to clean it or the dustproof filter-net.
Be careful not to damage the copper tube. If there is compressed air, use a high pressure air
tube to clean the fin heat exchanger. Every 2-3 months.
4. When cleaning the water tank or heat exchanger the machine and power supply must be
turned off.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified pers

13
E. Maintenance and service
Heat Pump main unit disassembly
To check and maintain the top main parts of the unit, to disassembly the cover of the unit follow
the steps below (Fig.5, 6)
Fig.5 Fig.6
1. Move up the Control panel along the slot until exposed control panel terminal docking
connector.
2. Loosen the cable terminal docking, may be continue to move up the control panel completely.
3. Unfasten the decorative plate screw, pull out a small angle (about 10°), then move up to take
the whole decorative plate out.
4. Take down the top section of a decorative fixed plate by loosing screws.
5. Loosen the bottom screws of the top cover.
6. Release the power line from the top cover of fixed terminal, to prevent the power line stuck
when move up the top cover.
7. Finally, remove the block objects (e.g. air ducts etc.) from the air inlet / outlet holding both
sides of the top cover and move it up.
4
5
7
6
3
2
1
MODETIMER
CLOCK ON/ OFF

14
F. Unit circuit diagram
The following is a unit circuit diagram (for user’s reference); the unit practical connection should
be as the circuit / wiring diagram on the machine.
1). Heat pump without auxiliary electric heater:

15
F. Unit circuit diagram
2). Heat pump WITH auxiliary electric heater:
开/ 关
ELECTRI C. HEATER
YELLOW/ GREEN
C
SR
COMPRESSOR
ELECTRI C HEATER PROTECTOR
4- WAY VALVE
FAN MOTOR
El ect Val ve Fan
Comp
1 2
L N
POWER SUPPLY
3
OPERATI ON PANEL
WATER TEMP. SENSOR 2
COI L TEMP. SENSOR
AMBI ENT TEMP. SENSOR
EXHAUST TEMP. SENSOR
PRESURE PROTECTOR
LN
YELLOW/ GREEN YELLOW/ GREEN
YELLOW/ GREEN
模式定时
时钟

16
G. Specification and Dimensions
Hot water cylinder (Air Ducts on Top)
Diameter 568mm
Model Rocky 80L-E-3.6
Rated Input Power 0.80 KW
Rated Heating
Capacity 3.6 KW
Heating ampere 4.0A
Power Supply 220V~50Hz
Outlet water
temperature 55 degrees
Water output
capacity 77L/H
Capacity of Water
Tank 80L
Heating cycle time 1H
Electric Heater
Power 2KW
Auxiliary heater
ampere 9.1A
Electricity Water
capacity 41L/H
Refrigerant R417A
Compressor Panasonic
Condenser Stainless steel coil
Evaporator High efficiency finned heat exchanger
(370mmX39mmX295mm)
Expansion valve Thermostatic expansion valve
Size(mm) 568X1270
Net Weight (Kg) 60
Noise (dB) 48
Water connection DN20
*Testing at 15 degrees, 60% relative humidity air, and water heated from 15 degrees to 55
degrees.
Feature: Safe, durable, convenient and energy saving. Easy to install and operate.
Test Conditions: Ambient temperature at 20 degrees Dry bulb and 15 degrees wet bulb, initial
water temperature 20 degrees, final water temperature 55 degrees.
Range of Operation: Ambient temperature at -10 degrees to 43 degrees.
Specifications are subject to changes due to any improvement of the product

17
G. Specification and Dimensions
Hot water cylinder (Air Ducts on Top)
Diameter 650mm
Model Rocky 150L-E-3.6 Rocky 190L-E-3.6
Rated Input Power 0.88KW 0.88KW
Rated Heating
Capacity 3.6KW 3.6KW
Heating ampere 4.0A 4.0A
Power Supply 220V-50Hz 220V-50Hz
Outlet water
temperature 55 degrees 55 degrees
Water output
capacity 77L/H 77L/H
Capacity of Water
Tank 150L 190L
Heating cycle time 1.9H 2.5H
Electric Heater
Power(EHP) 2KW 2KW
Auxiliary heater
ampere 9.1A 9.1A
Electricity Water
capacity 41L/H 41L/H
Refrigerant R417A R417A
Compressor Panasonic 2P17S225ANQ
Condenser Stainless steel coil
Evaporator High efficiency finned heat exchanger (370mmx39mmx379mm)
Expansion valve Electronic expansion valve
Size(mm) 650X1350 650X1485
Net Weight (Kg) 72 98
Noise (dB) 46 46
Water connection DN20 DN20
*Testing at 15 degrees, 60% relative humidity air, and water heated from 15 degrees to 55
degrees.
Feature: Safe, durable, convenient and energy saving. Easy to install and operate.
Test Conditions: Ambient temperature at 20 degrees Dry bulb and 15 degrees wet bulb, initial
water temperature 20 degrees, final water temperature 55 degrees.
Range of Operation: Ambient temperature at -10 degrees to 43 degrees.
Specifications are subject to changes due to any improvement of the product.
