Regal Century VLink User manual

VLink
A wireless adapter for use with
Century VGreen Variable Speed Motors
Installation and User Manual
Stock Number: VL100
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

Table of Contents
SAFETY................................................................................................................................ 3
1 INTRODUCTION......................................................................................................... 4
2 OVERVIEW ................................................................................................................. 4
2.1 VGreen System with VLink ................................................................................... 4
2.1.1 Bluetooth Pairing Button and Connection LED .................................................. 5
2.1.2 All Stop Button and LED .................................................................................... 5
2.1.3 Service Mode Button and LED .......................................................................... 5
2.1.4 Motor ON/OFF Button and LED......................................................................... 5
2.1.5 Smart Grid Connection LED............................................................................... 5
2.1.6 Power LED......................................................................................................... 5
2.1.7 Wireless Connection LED.................................................................................. 5
2.1.8 WPS Button ....................................................................................................... 6
2.1.9 DIP Switches ..................................................................................................... 6
2.1.10 System Reset Button ....................................................................................... 6
3 INSTALLATION GUIDE ............................................................................................... 6
3.1 Verify a Strong Backyard Wi-Fi Signal ................................................................... 6
3.2 Mounting.............................................................................................................. 6

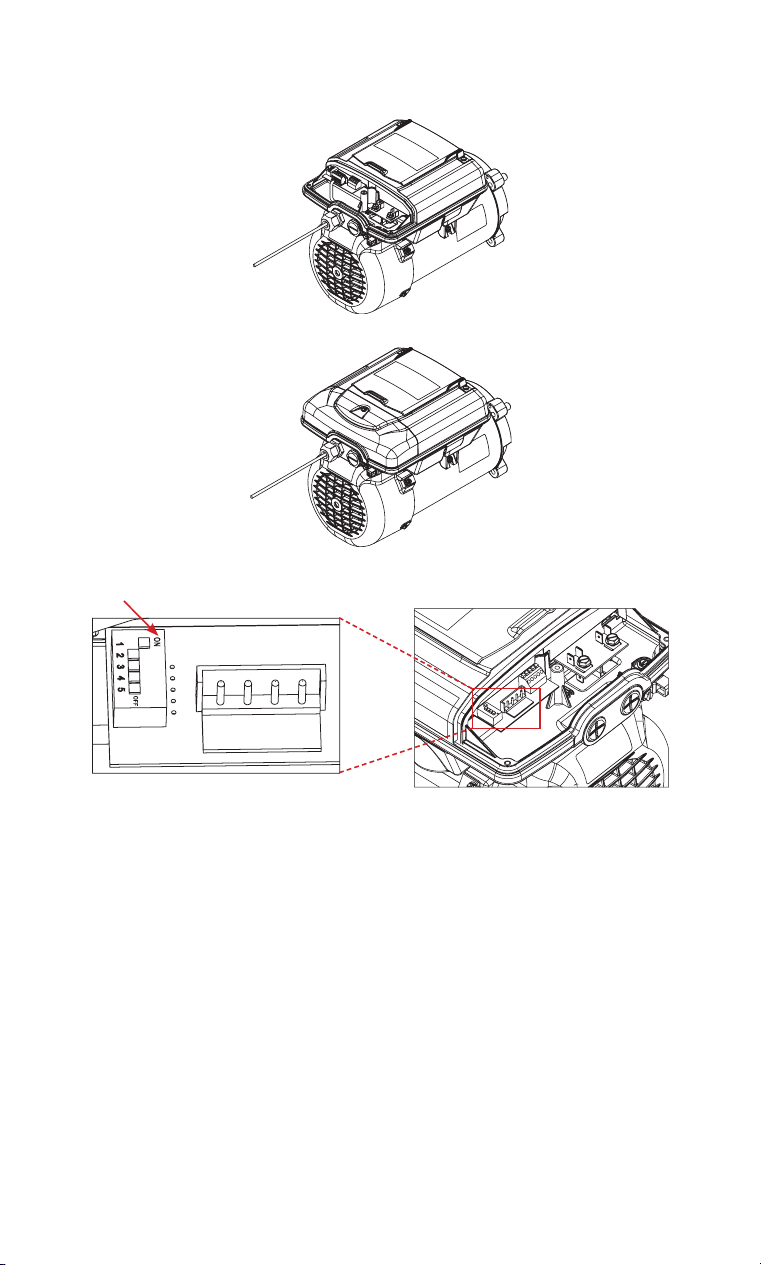

3.3 Connecting to a VGreen 270 Motor...................................................................... 7
3.4 Connecting to a VGreen 165 Motor ...................................................................... 10
3.5 Connecting to the Internet ................................................................................... 11

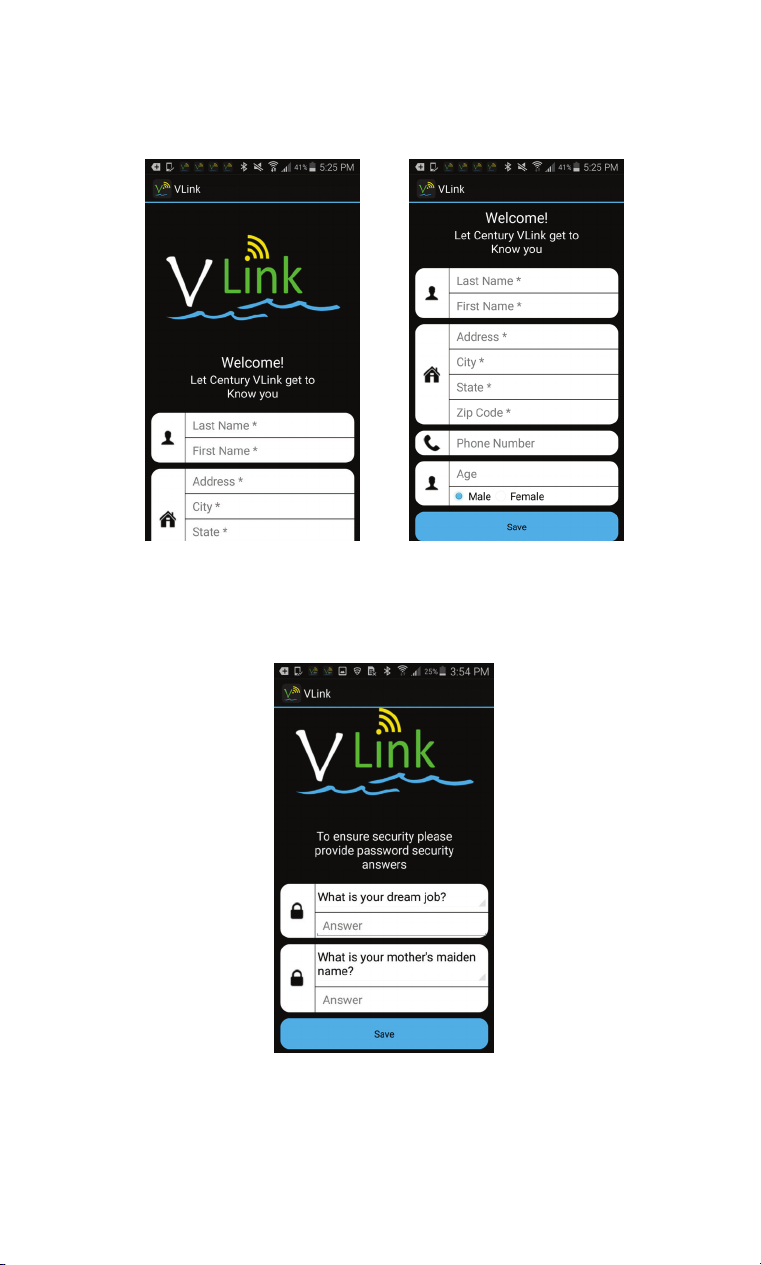

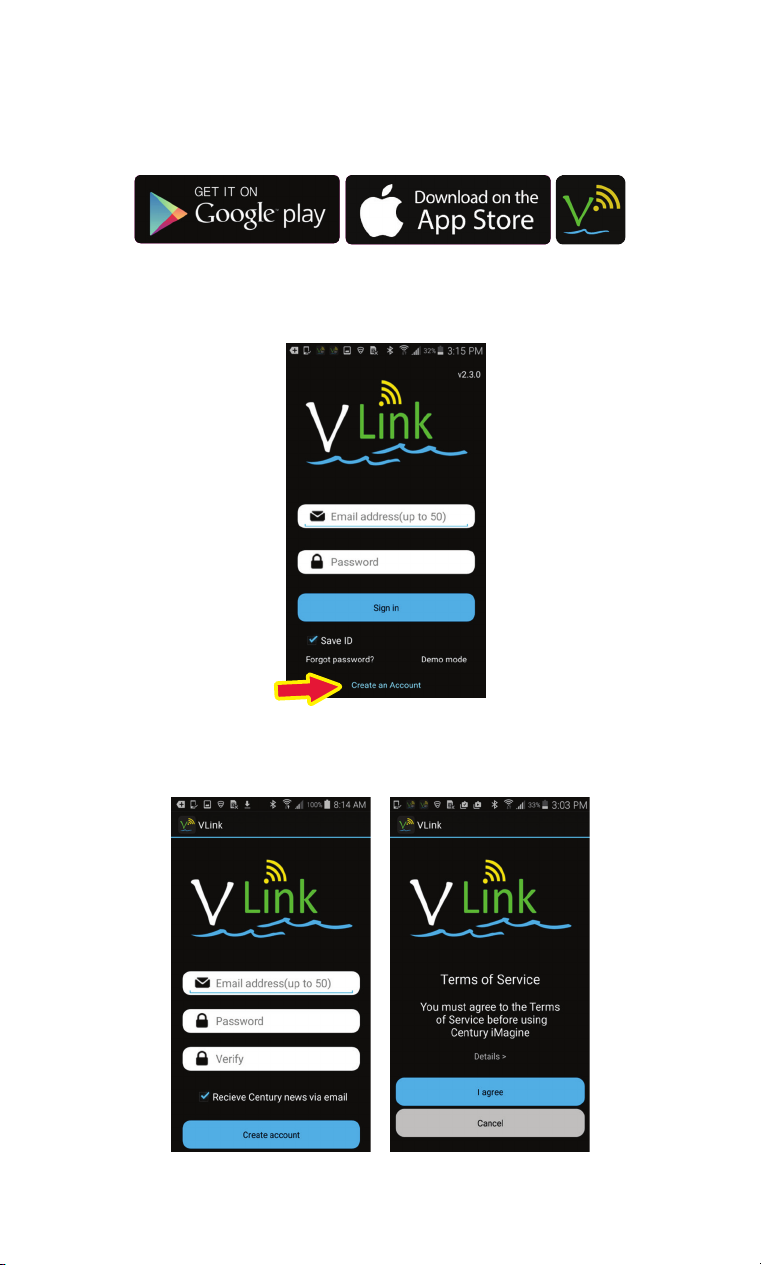

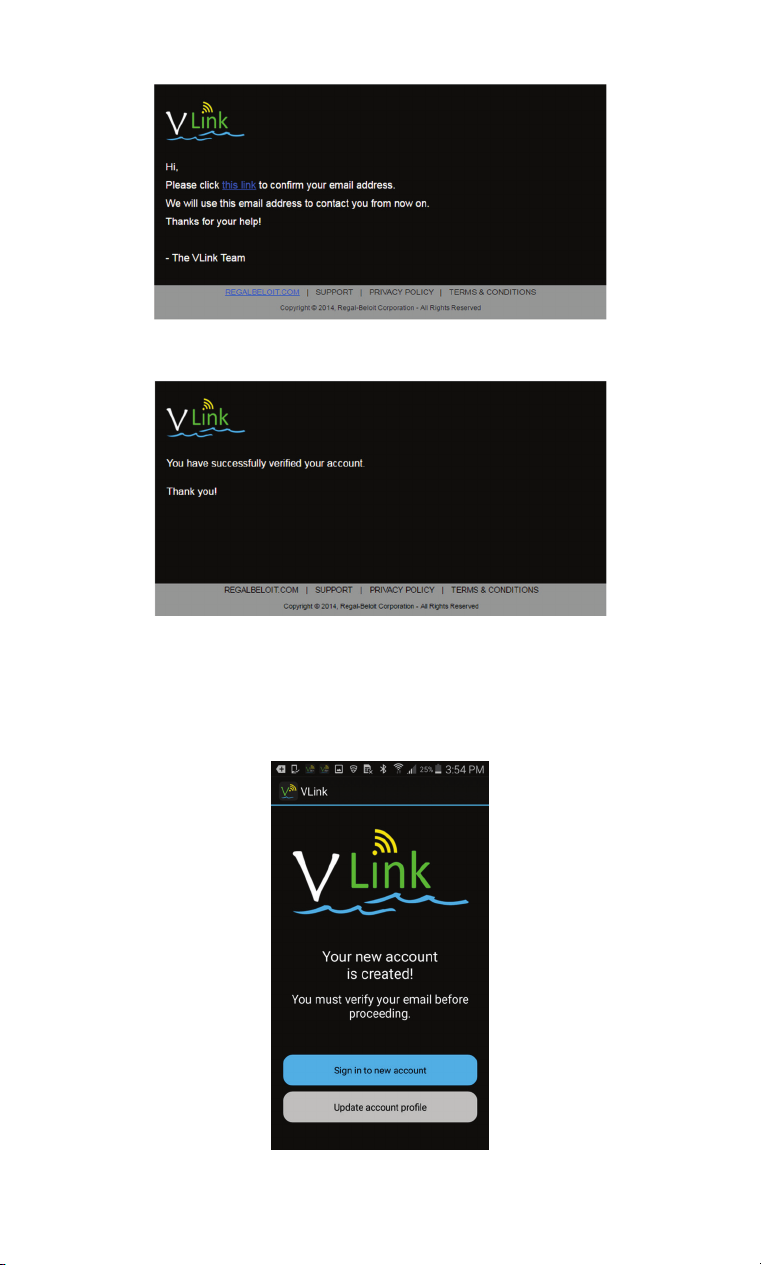

3.5.1 Create User Account ......................................................................................... 12
3.5.2 Connecting to a Home Wireless Network......................................................... 15

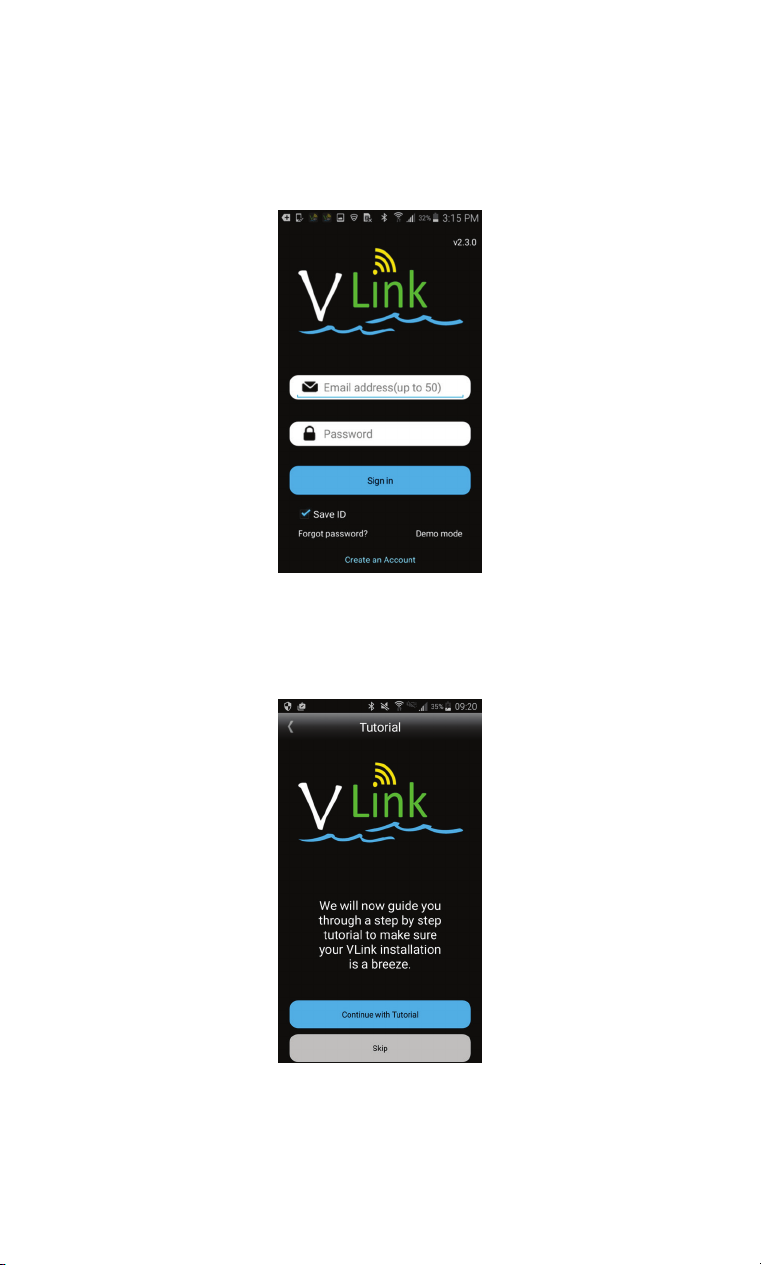

3.5.3 VLink Initial Setup .............................................................................................. 19
3.5.4 VLink Mobile App Operation.............................................................................. 19

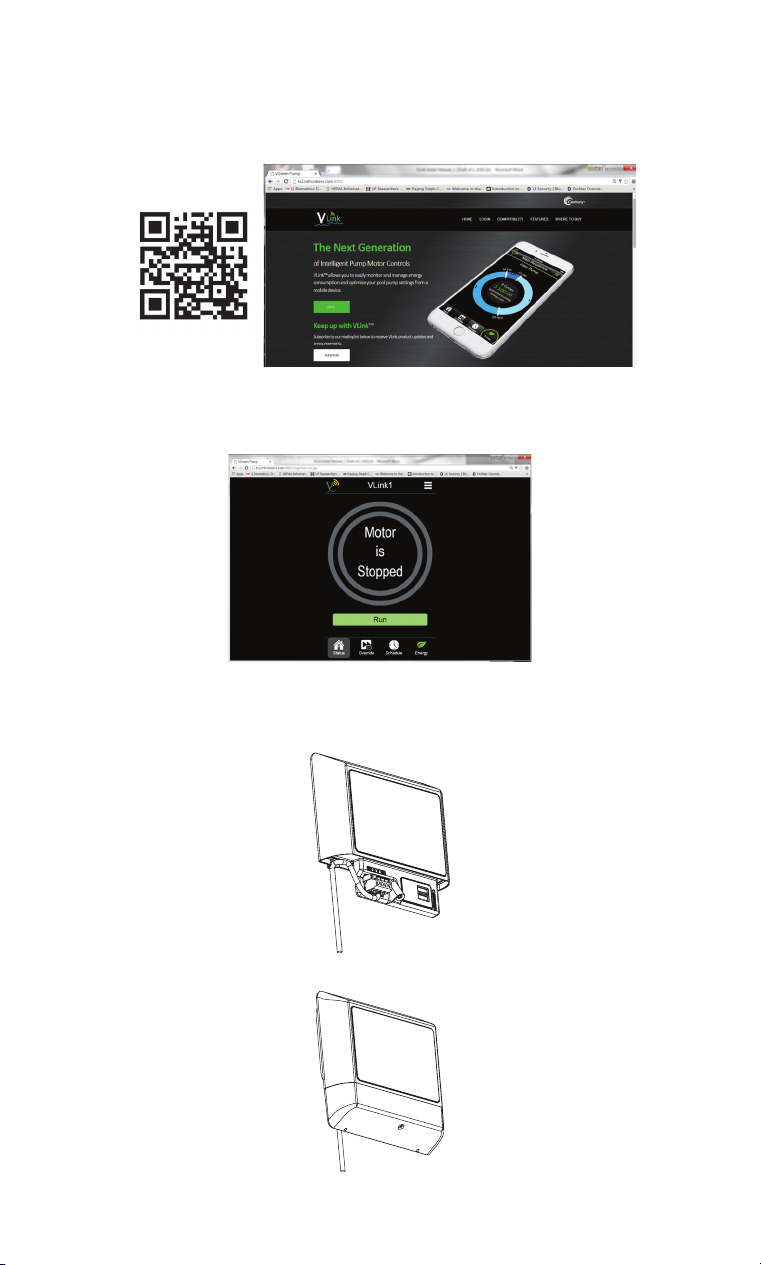

3.5.5 VLink Web App Operation ................................................................................. 20
3.6 VLink Final Mounting ............................................................................................ 20
4 USER GUIDE.............................................................................................................. 21
4.1 Manual Operation................................................................................................. 21
4.1.1 All Stop............................................................................................................... 21
4.1.2 Out-of-Box Operation......................................................................................... 21
4.1.3 Service Mode .................................................................................................... 22
4.2 App Operation ...................................................................................................... 22
4.2.1 Status Tab .......................................................................................................... 22
4.2.2 Override Tab....................................................................................................... 23
4.2.3 Schedule Tab...................................................................................................... 24
4.2.4 Energy Tab ......................................................................................................... 26
4.3 VLink Features ..................................................................................................... 27
4.3.1 App Menu.......................................................................................................... 27
4.3.2 Add 2nd VLink.................................................................................................... 28
4.3.3 Setup ................................................................................................................. 28
4.3.4 Motor Info ......................................................................................................... 37
4.3.5 Reminders ......................................................................................................... 39
4.3.6 Alerts & Emails.................................................................................................. 39
4.3.7 About................................................................................................................. 39
4.3.8 Software Update ............................................................................................... 40
2
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

4.3.9 Account ............................................................................................................. 41
4.3.10 Network........................................................................................................... 42
4.3.11 Help ................................................................................................................. 43
5 TROUBLESHOOTING GUIDE..................................................................................... 44
6 SOFTWARE LICENCING ............................................................................................ 46
6.1 Open Source Software Legal Notices .................................................................. 46
6.1.1 Publically Available Software.............................................................................. 46
7 VLINK SPECIFICATIONS ............................................................................................ 50
8 DISCLAIMER.............................................................................................................. 50
3
SAFETY
Safety is emphasized throughout the user manual. These are safety alert symbols and signal
words. They alert the user to potential personal injury hazards. Obey all safety messages to
avoid possible injury or death or damage to equipment and other property.
DANGER
DANGER indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation, which if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE identifies potential equipment damage or failure conditions. Also, alerts personnel
to potential dangerous situations.
WARNING
CAUTION
DANGER
NOTICE
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

2. OVERVIEW
2.1 VGreen System with VLink
Figure 2:VLink Overview
All Stop
Power
RS485
and Power
Connection
WPS (Wi-Fi Protected Setup)
DIP Switches
System Reset
Bluetooth
Pairing
Bluetooth
Connection
Smart Grid
Connection
Wireless
Connection
Motor
ON/OFF Service Mode
4
1. INTRODUCTION
VLink provides the ability to operate VGreen motors from virtually anywhere in the World.
This product gives advanced user controls and features that do not exist in VGreen motors
today. With VLink, users can now monitor monthly energy costs, set up to a five-cycle
schedule, create preset overrides, and monitor motor health.
VLink Wireless Adapter and accompanying mobile applications are not intended to be
used in an emergency or safety situation.
• Emergency situations require main power to motor shall be shut off / disconnected.
• Pressing “STOP” in mobile application, or pressing “ALL STOP” on VLink wireless
adapter may not stop motor if a digital input is active or becomes active at any time
(applicable to VGreen 165).
• “STOP” and “ALL STOP” commands are not intended to be used in an emergency
situation to stop the motor.
• When mobile device is used to operate motor remotely, hazardous conditions
cannot be identified.
F
ailure to comply with this may result in death, serious personal injury or property damage.
WARNING
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

The VLink manual buttons and LEDs are specified in the following sections:
2.1.1 Bluetooth Pairing Button and Connection LED
This button and corresponding LED are reserved for future use and will not be active
on the first generation of this product. Future over the air software updates may
activate this functionality.
2.1.2 All Stop Button and LED
When this button is pressed, the VGreen motor will stop and the corresponding LED next
to the button will illuminate. If connected to a VGreen 270 motor, the auxiliary (Aux) load
on the VGreen 270 will also turn off. To resume normal operation, the All Stop Button
is pressed again, turning off the LED. The All Stop LED will blink every ½ second for 5
seconds when the All Stop button is pressed to indicate the 5-second delay required
between button presses.
2.1.3 Service Mode Button and LED
This button provides service mode functionality allowing the VLink to be locked out from
external control while the pool is being serviced. The motor can only be operated via
the Motor ON/OFF Button while in Service Mode. To activate Service Mode, press the
Service Mode button on VLink. The Service Mode LED will illuminate solid. To deactivate
Service Mode, press the Service Mode button again. The Service Mode LED will turn off.
The Service Mode LED will blink every ½ second for 5 seconds when the Service Mode
button pressed to indicate the 5-second delay required between button presses.
2.1.4 Motor ON/OFF Button and LED
To start the motor while in Service Mode, press the Motor Button on VLink. The Motor
LED will illuminate solid. To stop the motor while in Service Mode, press the Motor
button again. The Motor LED will turn off. Successively pressing and holding the Motor
button for 5 seconds will cycle through motor speeds of 1800 RPM, 2200 RPM, 2600
RPM, and 3450 RPM.
The Motor ON/OFF LED will blink every ½ second for 5 seconds when the Motor button
is pressed to indicate the 5-second delay required between button presses.
2.1.5 Smart Grid Connection LED
This button and corresponding LED are reserved for future use and will not be active
on the first generation of this product. Future over the air software updates may
activate this functionality.
2.1.6 Power LED
This LED illuminates whenever power is supplied to the VLink via the RS-485
Power Connection.
2.1.7 Wireless Connection LED
When the home router connection and Internet access are present, the LED is
illuminated solid. When in Wi-Fi Connect mode, the LED will blink once per every two
seconds (ON one second, then OFF one second). When the WPS button is pressed,
the LED will blink once per every second (ON a 1/2 second, then OFF a 1/2 second).
5
VLink Wireless Adapter and accompanying mobile applications are not intended to be
used in an emergency or safety situation.
• Emergency situations require main power to motor shall be shut off / disconnected.
• Pressing “STOP” in mobile application, or pressing “ALL STOP” on VLink wireless
adapter may not stop motor if a digital input is active or becomes active at any time
(applicable to VGreen 165).
• “STOP” and “ALL STOP” commands are not intended to be used in an emergency
situation to stop the motor.
• When mobile device is used to operate motor remotely, hazardous conditions
cannot be identified.
F
ailure to comply with this may result in death, serious personal injury or property damage.
WARNING
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

When the home router connection is present, but there is no Internet access, the LED
will blink ON for 3 seconds, OFF for ½ second, ON for ½ second, OFF for ½ second, and
repeat. The LED behavior is summarized in Table 1 below.
2.1.8 WPS Button
To connect to the home wireless network, the WPS button can be used when connecting via
Wi-Fi Connect or WPS, this is specified in section 3.5.2. Pressing and holding the button for
greater than 8 seconds, will put the VLink back in Wi-Fi Connect Mode if the user needs to
restart the setup for some reason.
To connect to the home wireless network with the WPS method, the WPS button
is pressed for less than 5 seconds. The WPS button on the home wireless router is
then pressed to complete the pairing process. Once pairing is complete, the Wireless
Connection LED will illuminate. The home wireless router must be equipped with the
WPS feature in order to connect via this method.
2.1.9 DIP Switches
These dip switches are reserved for future use and will not be active on the first generation of
this product. Future over the air software updates may activate this functionality.
2.1.10 System Reset Button
The System Reset Button can be pressed to perform a manual system reset of the VLink.
The button can be accessed with a pen or other sufficiently pointed object.
3. INSTALLATION GUIDE
3.1 Verify a Strong Backyard Wi-Fi Signal
Verify Wi-Fi signal is present in your desired mounting location. To do this you can use your
mobile device. Make sure the mobile devices Wi-Fi is enabled, walk to the desired mounting
location and see if the home network is available. If it is available then this is a suitable
mounting location. Otherwise you will have to choose a new location or add a Wi-Fi range
extender to your home network.
NOTE: It is best to mount VLink away from metal objects, in a raised location and
away from as many obstacles as possible.
Once you verify your mounting location has a strong Wi-Fi signal, it is time to mount VLink.
3.2 Mounting
The VLink wireless adapter needs to be mounted to a vertical surface (wall, fence, post,
Etc …). To Mount VLink place the mounting bracket in the desired location and use it as a
template to mark the holes. If pre-drilling is required, pre-drill the holes and use the included
fasteners to secure the mounting plate. In some cases the included fasteners may not be
the correct style or type, you will have to source appropriate fasteners locally.
NOTE: It is recommended to wait until the installation is complete to snap the VLink
to the mounting bracket.
6
Wi-Fi LED
When router
connection and
internet access is
present
When in Wi-Fi
Connect Mode
When WPS
button is
pressed to
activate WPS
When the router connection
is present, but no internet
access
Illuminated Solid
Once per
every two
seconds (ON
one second,
then OFF one
second)
Once per
every second
(ON a 1/2
second, then
OFF a 1/2
second).
Goes ON for 3 seconds,
then blinks OFF, ON, OFF,
ON, OFF, repeat. (ON 3
seconds, OFF ½ second,
ON ½ second, OFF ½
second, ON ½ second, OFF
½ second, repeat.)
Table 1:Wireless Connection LED
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

3.3 Connecting to a VGreen 270 Motor
NOTE: Refer to manufacturer’s instructions for wiring on all other products other than VLink.
The following steps should be followed to connect VLink to a VGreen 270 motor.
1. Disconnect all power sources from the motor and wait five minutes.
2. Remove the terminal box cover from the controller (two screws).
3. Remove the plastic wiring cover inside the terminal box (one screw).
Figure 2:Terminal Box Cover Removed
7
• A licensed, qualified electrician should complete wiring for this product.
• Always disconnect main power from motor being serviced and wait 5 full minutes for
capacitor voltage discharge before servicing or installing unit.
F
ailure to comply with this may result in death, serious personal injury or property damage.
WARNING
Figure 3: Internal Plastic Cover Removed
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

4. Disconnect the 4-pin communication connector by pulling up on the connector.
5. Remove the User Interface from the controller (4 screws).
6. Once the existing User Interface has been removed, you are now ready to start the
installation
7. Start by assembling the RS-485 connector to the communication cable as follows:
8
Pin # Wire Color Description
1Red +10V
2 White RS485-A
3 Green RS485-B
4 Black Common
Figure 5: User Interface and Rubber Gasket Removed
Figure 4: Communication Connector Disconnected
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

8. Plug in the RS-485 cable into the RS-485 Socket.
9. On the VGreen® 270 motor, ensure dip switch #1 and #2 are in the ON position, all
others should be off. You can then apply power to the VGreen® motor. The power LED
should illuminate on the VLinkTM.
10. Route the RS-485 cable through the opening and replace the plastic cover inside the
terminal box (one screw). Ensure the rectangle gasket seated inside the terminal box
cover is still in position, if not reposition the gasket correctly and reassemble.
11. Assemble the metal terminal box cover (2 screws), routing the RS-485 cable
through the opening. Plug the four User Interface mounting holes with the plastic
plugs (PN: 2514059-001) included.
9
Figure 6: Cable Installed
Figure 7: Plastic Cover Installed in Terminal Box
Figure 8:Terminal Box Cover and Plugs Installed
FIGURE 7
Plastic Plugs (4x)
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

12. Connect the other end of the RS-485 cable into the VLink.
13. On the VGreen motor ensure dip switch #1 is in the ON position, all other dip
switches should be turned off.
14. Apply power to the VGreen motor. The power LED should illuminate on the VLink. If it
does NOT refer to section 6, TROUBLE SHOOTING GUIDE.
15. Upon applying power for the first time, All Stop is also enabled and indicated with the
All Stop LED illuminated solid.
16. Proceed to section 4.1.2, OUT OF BOX OPERATION to verify motor operation.
3.4 Connecting to a VGreen 165 Motor
NOTE: Refer to manufacturer’s instructions for wiring on all other products other than VLink.
The following steps should be followed to connect VLink to a VGreen 165 motor.
1. Disconnect all power sources from the motor and wait five minutes.
2. Remove the terminal box cover from the controller (one screw).
3. Assemble the RS-485 connector to the communication cable as follows:
4. Plug in the RS-485 cable into the RS-485 socket.
Pin # Wire Color Description
1Red +10V
2 White RS485-A
3 Green RS485-B
4 Black Common
• A licensed, qualified electrician should complete wiring for this product.
• Always disconnect main power from motor being serviced and wait 5 full minutes for
capacitor voltage discharge before servicing or installing unit.
F
ailure to comply with this may result in death, serious personal injury or property damage.
WARNING
10
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

5. Install the included Conduit Fitting and Route the RS-485 cable through the opening.
6. Assemble the metal terminal box cover (1 screw)
7. On the VGreen® 165 motor, ensure dip switch #1 is in the ON position, all others
should be off. You can then apply power to the VGreen® motor. The power LED
should illuminate on the VLinkTM.
8. Connect the other end of the RS-485 cable into the VLink.
9. On the VGreen motor ensure dip switch #1 is in the ON position, all other dip
switches should be turned off.
10. Apply power to the VGreen motor. The power LED should illuminate on the VLink. If
it does NOT refer to section 6 TROUBLE SHOOTING GUIDE.
11. Upon applying power for the first time, All Stop is also enabled and indicated with the
All Stop LED illuminated solid.
12. Proceed to section 4.1.2 “OUT OF BOX OPERATION” to verify motor operation.
3.5 Connecting to the Internet
NOTE:The VLink does not have to be immediately connected to the Internet. If you
are installing this and do not have access to the homeowners wireless network then
you can proceed to section 3.6 “VLink Final Mounting”. Refer to section 4.1 “Manual
Operation” for how to operate the VLink without connecting to a wireless network.
The VLink is connected to the Internet after creating a user account with the VLink Mobile
App. The Internet connection is enabled via the home wireless network. Once connected,
the VLink can be controlled by logging in with the User’s VLink Account from the Mobile App
or from the Web App at www.centuryvlink.com.
11
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

3.5.1 Create User Account
Before connecting the VLink to the home wireless network, a user account must be
created with the VLink Mobile App for Android or Apple. Download the Mobile App from
the appropriate app store and follow the instructions to create a new account.
3.5.1.1 Step 1: Click Create an Account
After installing the mobile app, click Create an Account at the bottom of
Figure 11: Initial Login Screen.
Figure 12: Create Account and Terms of Service Screens
3.5.1.2 Step 2: Enter Email and Password
Enter a valid Email Address and your desired Password and agree to the Terms of
Service shown in Figure 12 below.
12
Figure 11: Initial Login Screen
Search for “Century VLink”
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

Figure 13:Welcome Screen
3.5.1.3 Step 3: Enter User Information
Enter your user information, scroll down, and select Save as shown in Figure 13.
All fields marked with an “ * ” are required.
Figure 14: Security Screen
3.5.1.4 Step 4: Enter Security Questions
Enter the security questions in Figure 14. Upon selecting Save, an Email will be
sent from [e-mail] to verify your account as specified in
section 3.5.1.5 Step 5.
3.5.1.5 Step 5: Verify Your Account
Upon completing Step 4, an E-mail will be sent from [e-mail]
to the E-mail address provided in Step 2. You will need to verify your account by
clicking “this link” in the contents of the Email shown below in Figure 15.
13
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

Upon clicking “this link”, successful verification is indicated by Figure 16 below.
Figure 15:Verification Email
Figure 16: Successful Verification Response
3.5.1.6 Step 6: Sign-In toYour Account
Click Sign in to new account as shown in Figure 17 below. If you did not first verify
your account per the Verification Email instructions, specified in section 3.5.1.5
Step 5, do so now. Without first verifying your account, clicking Sign in to new
account, will not allow proceeding Step 7.
Figure 17: Account Created
1414
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

3.5.1.7 Step 7: Account Created! Sign-In
Login as shown in Figure 18 with your Email Address and previously specified
password. Logging in will transition the Mobile App to guide you through the steps
for Connecting to a Home Wireless Network.
NOTE:The email address is case sensitive.
Figure 18: Login Screen
3.5.2 Connecting to a Home Wireless Network
After creating a User Account, login and follow the optional Tutorial for installing the VLink,
shown in Figure 19. The Tutorial can be skipped if the VLink has been installed.
Figure 19: Mobile App Guide Screen
After the Tutorial or if Skip is selected, Connection Setup is provided for connecting the
VLink to the home wireless network with either the Wi-Fi or WPS methods as shown in
Figure 20.
15
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

3.5.2.1 Connecting with Wi-Fi
Before attempting to connect to your wireless network via the Wi-Fi method,
verify the VLink Wireless Connection LED is blinking once per second. This is the
Out-of-Box configuration for the LED after power is first applied to the VLink. If
the Wireless Connection LED is not blinking once per every two seconds (ON one
second, then OFF one second),, press and hold the WPS button for greater than
8 seconds.
Once the Wireless Connection LED is blinking once per two seconds,
then select Wi-Fi from the Connection Setup Screen shown in Figure 20 above. The
connection setup screen will then open as shown in figure 21 below.
Next, enter the VLink Access ID. The Access ID is obtained from the sticker on the
back panel of the VLink and can be entered manually or scanned in with the Mobile via
the QR code icon as shown in Figure 22 below. After entering the Access ID, select
Continue allowing the Mobile App to associate the Access ID and connect to the VLink
as shown in Figure 23.
Figure 22: Mobile QR Code Access ID Screens
16
Figure 20: Choose Connection Setup Screen
Figure 21: Connection Setup Screen
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

Figure 23: Access ID Associate, and Connect Screens
Next, enter or select the Home Router Name, and enter your router Password as
shown in Figure 24 below (also known as SSID & Password).
Figure 24: Home Router Name, Security, and Password Screens
3.5.2.2 Connecting with WPS (Wi-Fi Protected Setup)
NOTE:Your wireless router must be equipped with the WPS feature to connect
via this method.
Before connecting to your home wireless network via the WPS method, insure
the VLink Wireless Connection LED blinks ON once per every second (ON a 1/2
second, then OFF a 1/2 second) by pressing and holding the WPS button for less
than 5 seconds. Then, select WPS from the Connection Setup Screen, shown in
Figure 20 below. Next, enter the VLink Access ID. The Access ID is obtained from
the sticker on the back panel of the VLink and can be entered manually or scanned
in with the Mobile via the QR code icon as shown in Figure 25 below. After
entering the Access ID, select Continue allowing the App to associate the Access
ID as shown in Figure 26
Figure 25: Mobile QR Code and Access ID Screens
17
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

Follow the manufacturer specified WPS pairing process of your home wireless
router. When connecting with WPS, the Home Router Name and Password (also
known as SSID & Password) are obtained automatically by first pressing the WPS
button on your wireless router and then pressing the WPS button on VLink for less
than 5 seconds, as specified in Figure 27
Figure 27:WPS Connection Setup Screen
Once pairing is complete and the Wireless Connection LED is illuminated solid on
the VLink, press Continue on the screen as shown in Figure 27.
3.5.2.3 Home Wireless Network Connection Completed
If the Wi-Fi or WPS connection is not successful, the Mobile App times out
after 2 minutes. Pressing the OK button shown in Figure 28 navigates back the
“Connection Setup” screen. Upon returning to the “Connection Setup” Screen,
the connection can be reattempted with either the Wi-Fi or WPS methods.
Figure 28: Navigate back to the Choose Connection Setup Screen
The VLink Wireless Connection LED will blink a repeating pattern of ON 3 seconds,
OFF ½ second, ON ½ second, and OFF ½ second if connected to your Home
Wireless Network, but not connected to the Internet. If this LED blink pattern
occurs, verify your Home Router connection to the Internet and refer to section 5,
TROUBLESHOOTING GUIDE.
18
Figure 26: Associate Access ID Screens
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

Figure 29: Congratulations, Connected to the Home Network Screen
Figure 31: Mobile App Status Screen
3.5.3 VLink Initial Setup
Enter the appropriate information for the pool set up: size of the pool in Gallons, private
or commercial, the type of fitter. The kWh rate charged by the utility company, which is
used for energy calculations. Choose the time zone the pool is located in. You will also be
prompted to name your VLink wireless adapter per the screens is shown in Figure 30 below.
NOTE: When the VLink is connected to the Internet per section 3.5 “Connecting to
the Internet”, the SystemTime is automatically updated to the local current time
from the default power-up time of 12:12 PM CST, as specified in section 4.1.2 “Out-
of-Box Operation”. The local time zone and daylight saving time are set from the
App Menu as explained in section 4.3.9 “Account”.
3.5.4 VLink Mobile App Operation
After connecting the VLink to the internet and logging in with your VLink account, the VLink
Mobile App offers Status, Override, Schedule, and Energy tabs shown in Figure 31 below:
Figure 30:VLink Initial Setup Screen
When the VLink connects to your Home Wireless Network and the Internet, the
Wireless Connection LED will illuminate solid. The Home Wireless Network connection
setup is complete and the screen shown in Figure 29 below should appear.
19
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual

3.5.5 VLink Web App Operation
To connect to your VLink via a web browser, go to www.centuryvlink.com and login with
your user account. The link to the webpage and Login is shown in Figure 32 below:
Figure 32: Centuryvlink.com Login Screen
After logging in with your VLink account, the VLink Web App offers the same Status, Override,
Schedule, and Energy tabs as provided by the Mobile App, shown in Figure 33 below:
Figure 33:Web App Status Screen
3.6 VLink Final Mounting
1. Once you are done installing VLink, route the RS-485 cable through the notch
2. Attach the VLink terminal box cover. (1 Screw)
20
MCIM16001E 9975E Century VLink Installation Manual -- MCIM16001E 9975E Century VLink Installation Manual
