Regency Bellavista B36X Quick start guide

WARNING:
If the information in these instructions are not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-759
Regency Bellavista™B36X
Gas Fireplace
02/05/09
Owners &
Installation Manual
www.regency-fire.com
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODEL: B36X
Medium DV Gas Fireplace

2Regency Bellavista™ B36X Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The Bellavista™
B36X has been designed to provide you with all the warmth and charm of a wood fireplace
at the flick of a switch. The Bellavista™ B36X has been approved by Warnock Hersey for
both safety and efficiency. As it also bears our own mark, it promises to provide you with
economy, comfort and security for many trouble free years to follow. Please take a moment
now to acquaint yourself with these instructions and the many features of your Regency®
Fireplace.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88a-2007 / CSA 2.33a-2007 and GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDES CAN / CGA 2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard
in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable
to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not
prohibited by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with
other gases.
Ensure that structural members are not cut or weakened during installation.

3
Regency Bellavista™ B36X Gas Fireplace
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal.....................................................4
REQUIREMENTS
MA Code - CO Detector.................................................5
DIMENSIONS
Unit Dimensions ............................................................6
INSTALLATION
Important Message ......................................................7
Before You Start ............................................................7
General Safety Information............................................7
Installation Checklist.....................................................8

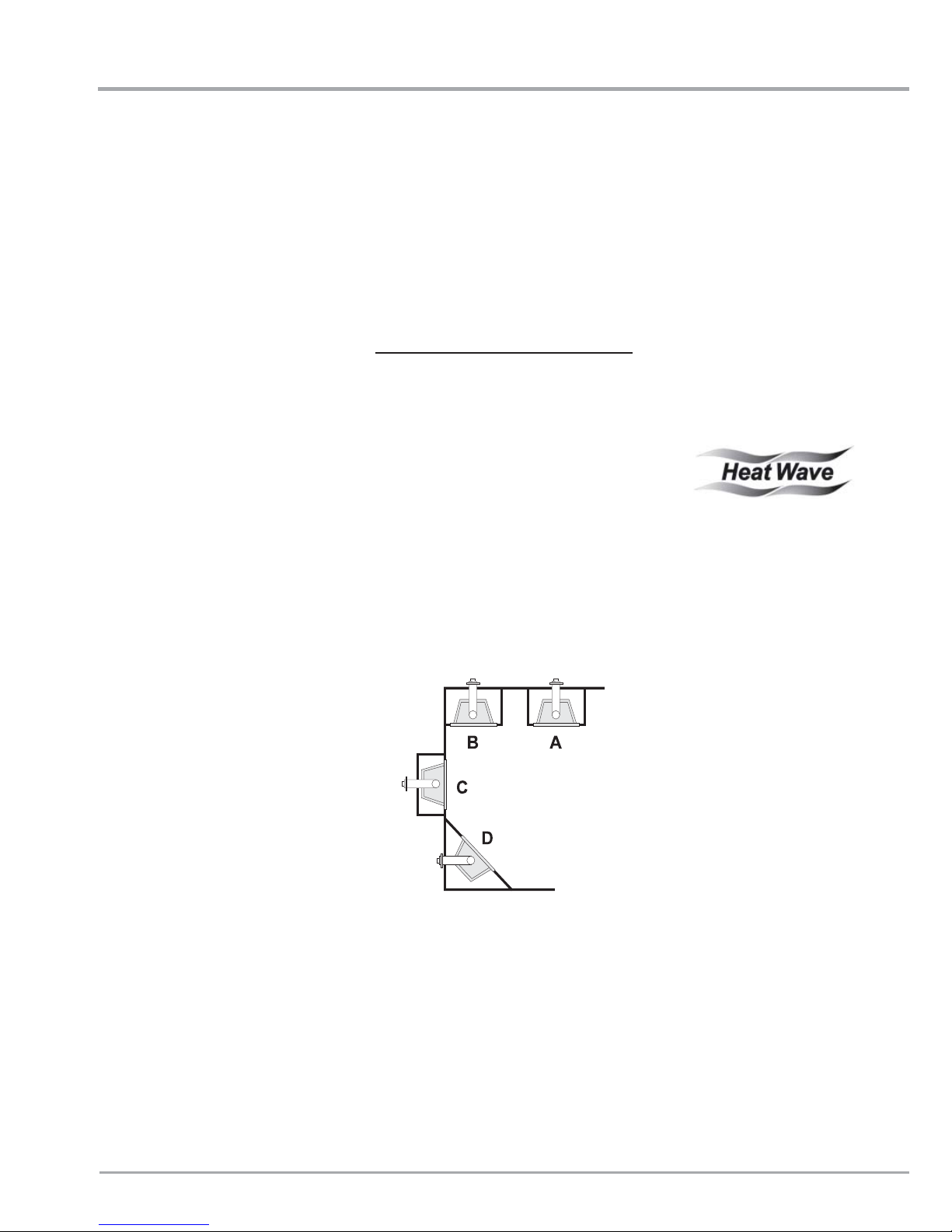

Locating Your Gas Fireplace .........................................8
Heatwave Duct System (Optional) ...............................8
Clearances ....................................................................9
Mantel Leg Clearances................................................10
Mantel Clearances.......................................................10

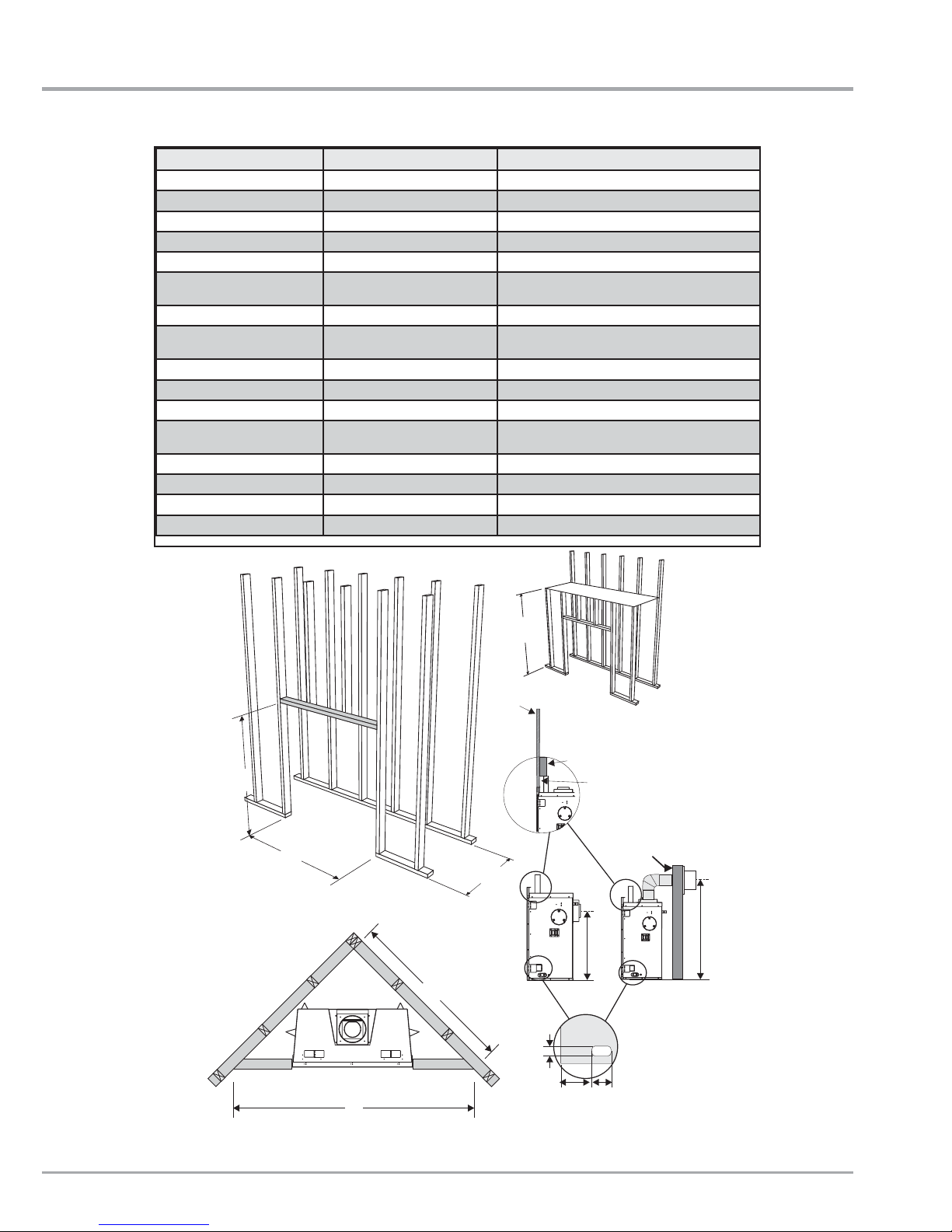

Framing ...................................................................... 11
Finishing ......................................................................12

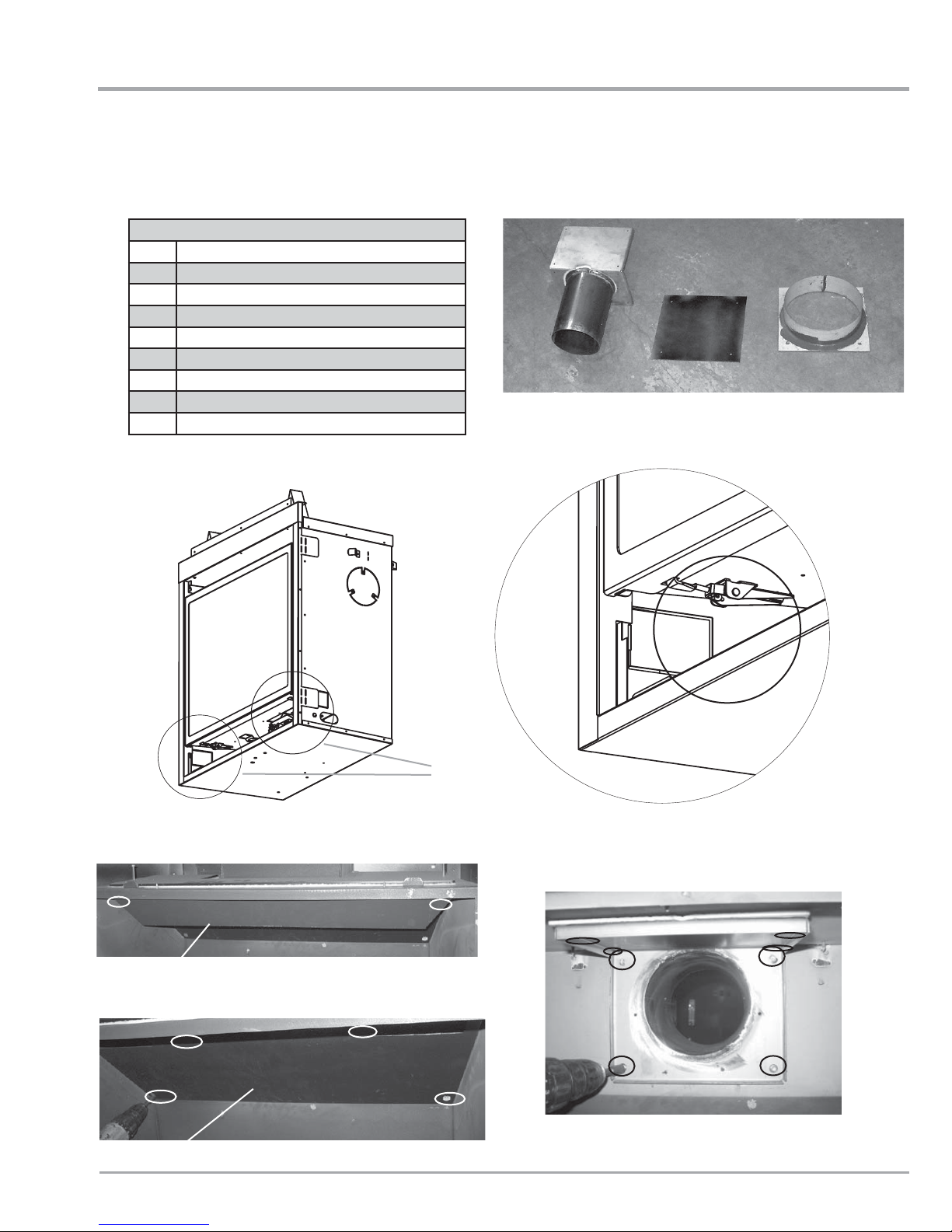

Unit Assembly Prior to Installation ...............................13
Top Standoff Assembly ........................................13
Top Facing Support..............................................13
Side Nailing Strips ...............................................13
Top Flue Collar Installation ..................................14
Venting Introduction.....................................................15

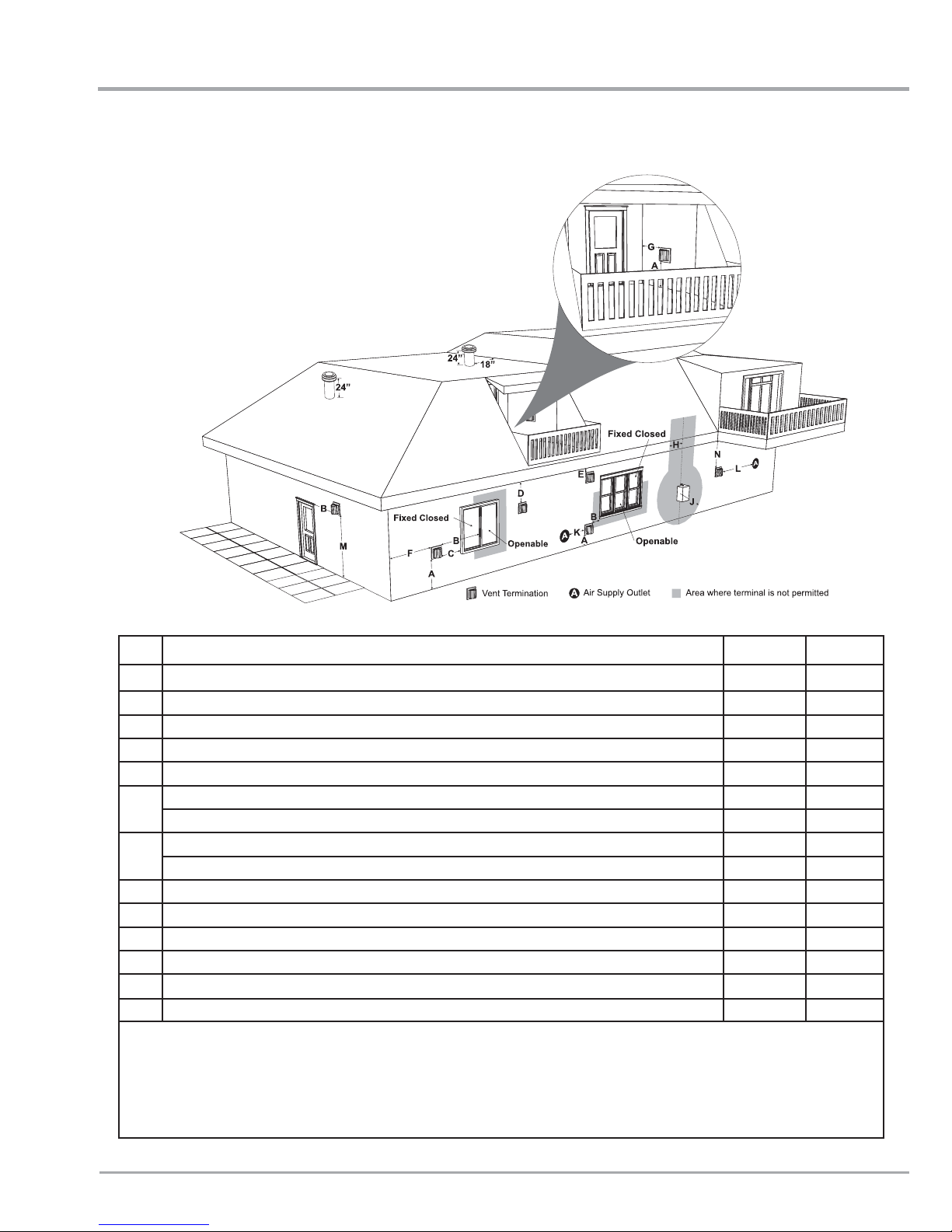

Exterior Vent Termination Requirements .....................16

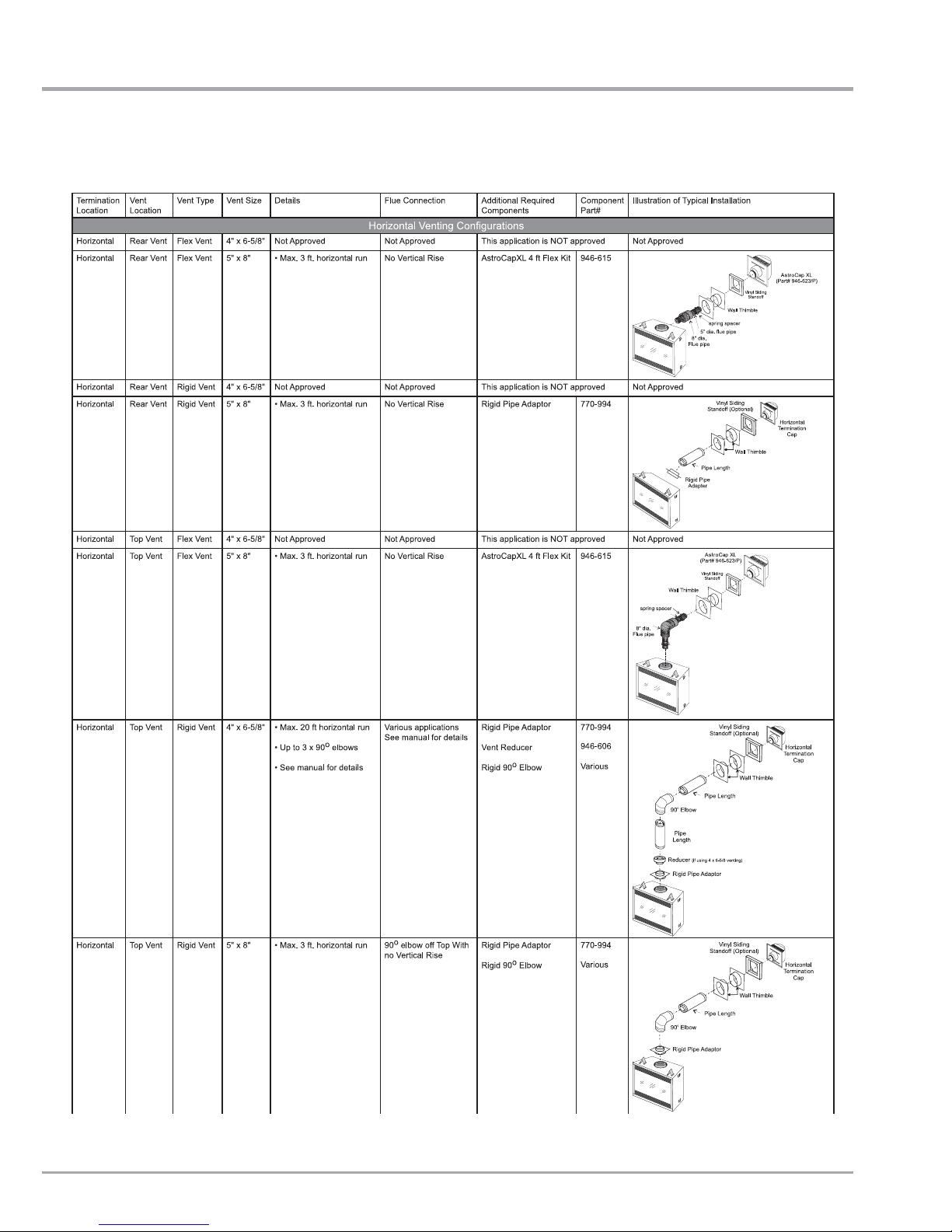

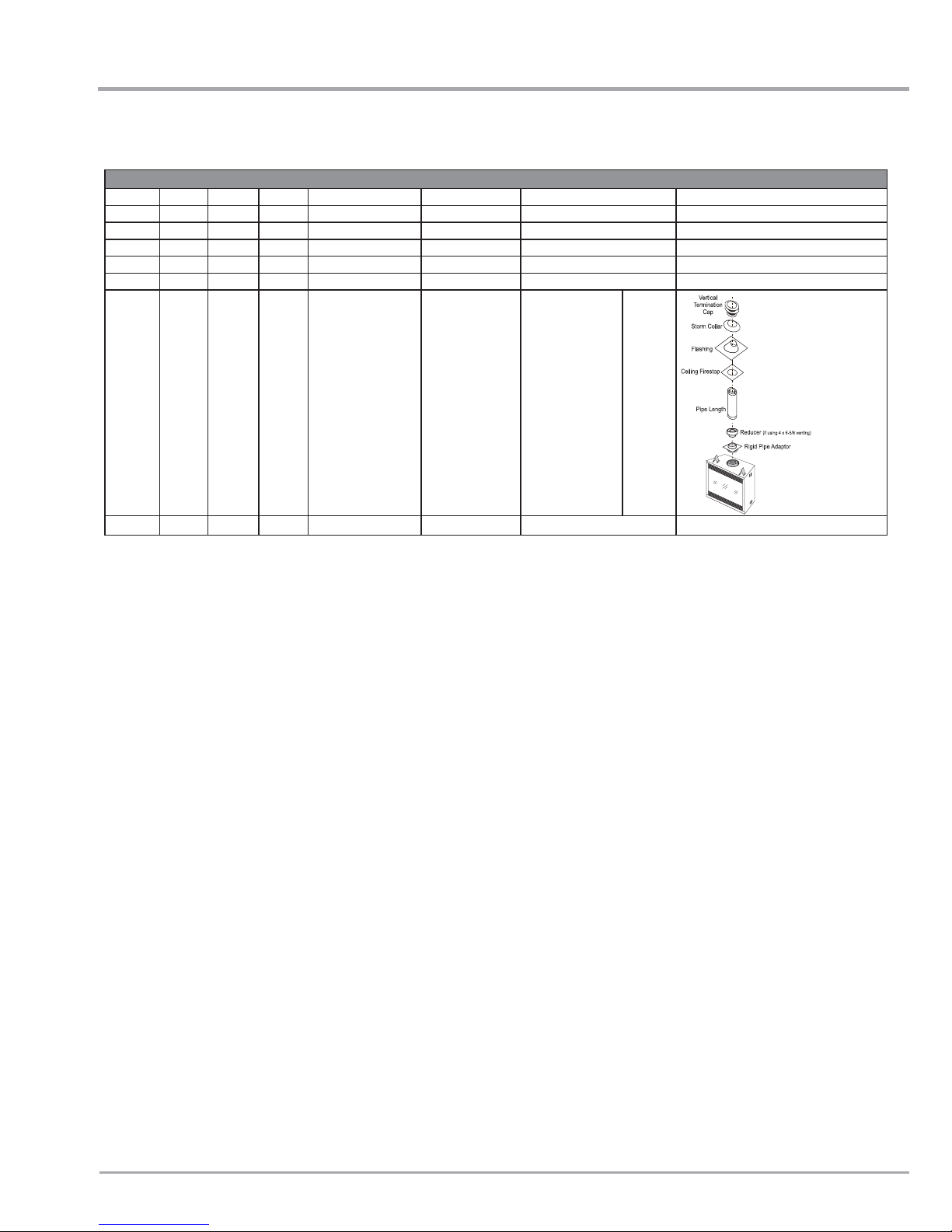

Approved Venting Configurations................................17

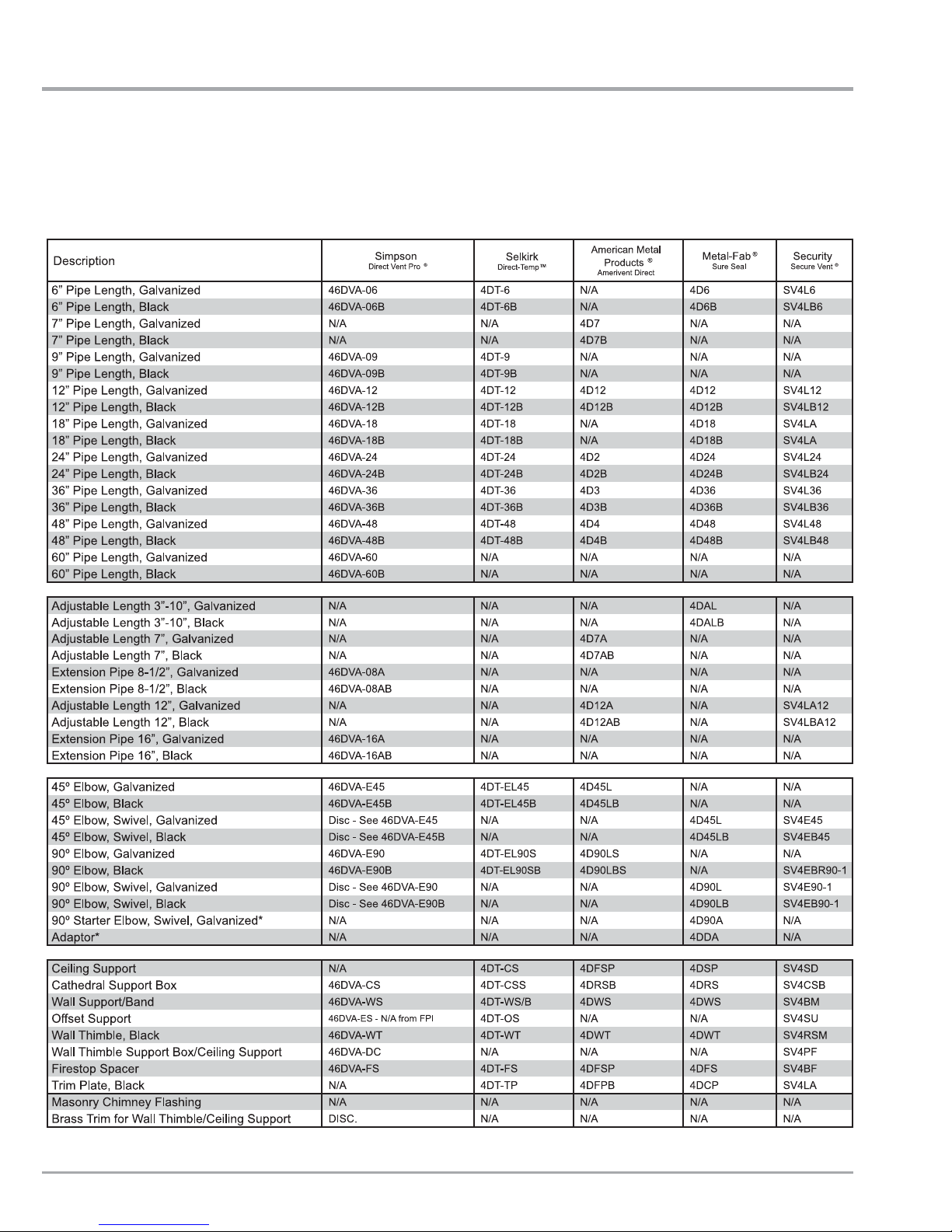

Rigid Pipe Cross Reference Chart ..............................19
4" X 6-5/8" ...........................................................19
5" X 8" ................................................................21
Horizontal Terminations ...............................................23
Regency®Direct Vent Flex System (5" x 8")........23
Rigid Pipe venting arrangements (5" x 8")...........24
Rigid Pipe Venting Systems.................................25
HORIZONTAL 5” x 8” rigid rear vent kit.......................26
for corner installations .................................................26
Venting Arrangements ................................................27
4" x 6 - 5/8" pipe venting arrangements...............27
Venting Arrangements Horizontal Termination ....28
Horizontal Venting with Two (2) 90oElbows ................28
Vertical Venting with Three (3) 90oElbows..................29
Vertical Termination With Co-linear Flex System.........30
Venting Arrangement - Vertical Terminations ..............31
Unit Installation with Horizontal Termination................33
Unit installation with Vertical Termination ....................34
Gas Line Installation....................................................34
Pilot Adjustment...........................................................35
High Elevation .............................................................35
Gas Pipe Pressure Testing..........................................35
S.I.T. Valve Description................................................35
Aeration Adjustment ....................................................36
Wiring Diagram............................................................36
Wiring diagram for GTMF remote................................37
Vent Restrictor, Baffle & Heat Deflector Installation ....38
Conversion from NG to LP ..........................................39
DC Sparker Installation................................................41
Brick panel installation.................................................42
Optional Stainless Steel / Black Enamel .....................43
Panel Installation .........................................................43
Log Set installation ......................................................45
Optional Wall Thermostat ...........................................48
Optional Remote Control.............................................48
Wall Switch (Included) .................................................48
Fan Installation ............................................................50
Flush glass door Installation........................................51
Optional Finishing Trim Installation..............................52
Flush Louvers and Flush Panel Installation.................52
Full Screen Arch Door and Frame Installation.............53
OPERATING INSTRUCTIONS
Operating Instructions .................................................54
First Fire ......................................................................54
Lighting Procedure ......................................................54
Shutdown Procedure...................................................54
Normal Operating Sounds Of Gas Appliances ............54
Copy of Lighting Plate Instructions..............................55
Maintenance Instructions.............................................56
Log Replacement ........................................................56
Thermopile / Thermocouple.........................................56
Door Glass...................................................................56
Removing Valve...........................................................57
Installing Valve.............................................................57
PARTS LIST
Main Assembly ............................................................58
Burner Assembly .........................................................60
WARRANTY
The Warranty: Limited Lifetime ...................................64

4Regency Bellavista™ B36X Gas Fireplace
SAFETY LABEL
This is a copy of the label that accompanies
each Bellavista™ B36X Direct Vent Gas
Fireplace. We have printed a copy of the
contents here for your review.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.
COPY OF SAFETY DECAL
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.

5
Regency Bellavista™ B36X Gas Fireplace
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

6Regency Bellavista™ B36X Gas Fireplace
DIMENSIONS
UNIT DIMENSIONS
37-1/2” (953mm)
21”(533mm)
33” (838mm)
36” (914mm)
35-1/4”
(895mm)
30-3/8” (762mm)
1”(25.4mm)
39-1/16”
(992mm)
35-1/4” (895mm)
26-1/2” (673mm)
20-1/4” (514mm)
17-5/16” (440mm)
33-1/16” (840mm)
19-5/16” (490mm)

7
Regency Bellavista™ B36X Gas Fireplace
11) Under no circumstances should this appliance
be modified. Parts that have to be removed
for servicing should be replaced prior to
operating this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service person.
Aprofessional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be
used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Bellavista™ B36X Gas Fireplace must be
installed in accordance with these instructions.
Carefully read all the instructions in this manual
first. Consult the "authority having jurisdiction" to
determine the need for a permit prior to starting
the installation. It is the responsibility of the
installer to ensure this fireplace is installed in
compliance with manufacturers instructions and
all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIALSHOULDNOTBEPLACED
ON OR NEAR THE APPLIANCE.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAYAWAYTOAVOID BURNS
OR CLOTHING IGNITION.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes, with the current Canadian or National
Gas Codes, CAN1-B149 or ANSI Z223.1
Installation Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes, or in the absence of local codes
with the current National Electrical Code,
ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code.
3) See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Venting terminals shall not be recessed into
a wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.

8Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your fireplace,
ensure that the clearances are met.
2) The appliance must be installed on a flat,
solid, continuous surface For example a
wood, metal or concrete floor or in a raised (on
the wall) application. The appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
3) The B36X Bellavista™ Gas Fireplace can
be installed in a recessed position or framed
out into the room as in A, B, C and D. See
Diagram 1.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Your
Gas fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) MantelClearances(Refer to"Combustible
Mantel Clearances" section)
d) Framing & Finishing Requirements(Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2) Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to
"Unit Assembly Prior to Installation" Section).
NOTE: Must be done before installing unit
into place.
3) Install vent (Refer to "Venting" sections).
4) Make gas and electrical connections. Test
the pilot. Must be as per diagram (Refer to
"Pilot Adjustment " section).
Convert to propane if desired (Refer to "Gas
Line Installation" and "Conversion Kit from
NG to LPG" sections).
5) Install standard and optional features. Refer
to the following sections:
a. LP Conversion Kit (Optional)
b. Brick Panels (Optional)
c. Log Set Installation
d. Standard Flush Door
e. Full Screen Door (Optional)
f. Flush Panel/Louver (Optional)
g. Remote control,Wall Switch or
Thermostat (Optional)
h. Fan Installation (Optional)
6) Final check.
4) This appliance is Listed for bedroom
installations using the standard Remote
(millivolt thermostat system). Some areas
may have further requirements, check local
codes before installation.
5) The B36X Gas Fireplace are approved for
alcove installations, see "Clearances" section
for details.
6) We recommend that you plan your installation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations refer to
"Exterior Vent Termination Locations"
section.
HEATWAVE
DUCT SYSTEM
(OPTIONAL)
#946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warm air from the fireplace to remote locations in
the same room or other rooms in your home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be
operated at one time. This includes the internal
blower option as well.

9
Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
B36X Clearance Requirements Minimum Vent Clearances
to Combustibles
Clearance: Dimension Measured From:
A: Mantel Height (min.) 6-1/2" (165mm) Top of Fireplace Opening
B: Sidewall 12" (304mm) on one side Side of Fireplace Opening
C: Ceiling 36-34" (933mm) Top of Fireplace Opening
D: Mantel Depth 12" (304mm) 14-1/2 " (368mm) from
Top of Fireplace Opening
E: Alcove Width 84" (2134mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
Notes: 0" No Hearth Required
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2 " (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)

10 Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
MANTEL CLEARANCES
Note: Ensure the paint that is used on the mantel
and the facing is "heat resistant" or the
paint may discolour.
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
Opening
12”
1"
7”
A
B
C
Top Header
14
To Floor
6
12
Inches
D
Side View
Standoff
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing
are shown in the diagram on the right.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-
combustible board.
Mantel Clearances
B36X
ABCD
From Top of Fireplace
Opening
32"
(813mm)
14-1/2"
(368mm)
11"
(279mm)
6-1/2"
(165mm)
MANTEL LEG CLEARANCES
12” Side Wall
(Measured from side of
Fireplace Opening)
5"
2"
Mantel leg
Mantel leg
Allowable mantel leg
projection.
3"
1-1/2"
Top View

11
Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
FRAMING
M
N
O
Q
P
R
U
V
T
Opening for gas
connection
11" (279mm)
dia. Hole through
wall Vent.
Top Header
Drywall
(or other
facing)
Combustible Facing
S
S
Framing Dimensions Description B36X
M Framing Width 36 - 1/4"(921mm)
N Framing Height 39 - 3/8" (1000mm)
O (Rear Vent) Framing Depth - Rear Vent 20 - 3/4" (527mm)
O (Top Vent) Framing Depth - Top Vent 19 - 1/2" (495mm)
P (Top Vent) Corner Facing Wall Depth 48 - 5/8" (1235mm)
P (Rear Vent) Corner Facing Wall Depth 53" (1346mm) AstroCapXL
61-1/2" (1562mm) - other approved caps
Q (Top Vent) Corner Facing Wall Width 68 - 3/4" (1746mm)
Q (Rear Vent) Corner Facing Wall Width 75" (1905mm) AstroCapXL
87" (2209mm) - other approved caps
R (Rear Vent) Framed Chase Ceiling - Rear 39 - 3/8" (1000mm)
R (Top Vent) Framed Chase Ceiling - Top 50-1/2" (1282mm)
S (Rear Vent) Vent Centerline Height - Rear 26-1/2" (673mm)
S (Top Vent) Vent Centerline Height - Top 44-1/4" (1123mm) Rigid
42-1/8" (1070mm) Flex
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 4-1/8" (105mm)
V Gas Connection Width 3-1/4" (82mm)
W Non-Combustible Top Height 0"
Note: If installing the unit into a corner and rear venting - use AstroCapXL 946-623/P to obtain closest clearance.

12 Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
FINISHING
Diagram 2
Diagram 1
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into final position - it is important to know the total
thickness / height of finished hearth (tile, carpet, etc.) The base of the
fireplace should be level or higher than the finished hearth height.
Diagram 3
Finishing material - thicker
than 1-1/4"
Diagram 4
Full Screen
Door
Important:
Finishing materials such as tile, river rock, etc, must not protrude
beyond the front facing flanges the sides and top of the firebox
opening.
Full Screen Doors Only:
If finishing with any material thicker than 1-1/4" - a 3/4" gap must
be maintained between the full screen doors and the finishing
material.
This gap is necessary to facilitate the installation and removal of
the full screen doors.
Note: All facing material should butt up cleanly to the flanges
around the firebox opening.
Rough edges will be visible from the front view with the flush
louvers or flush panels - if not using the finishing trim.
To maintain a clean finished edge - it is recommended to install
the drywall or other facing material with the finished edge against
the fireplace / nailing strips.
Alternatively, you can use J Style Trim or Metal Corner Bead
to cover cut edges of the facing material.
1"
Note: There is a 1" air space between the unit and full screen door
which must not be covered.
3/4"

13
Regency Bellavista™ B36X Gas Fireplace
BEFORE YOU START
The Top Facing Support, the Side Nailing Strips, the 2 Top Standoffs and the Flue Collar must be correctly positioned and attached before the fireplace
is moved into position.
TOP STANDOFF ASSEMBLY
The top standoffs are shipped in a flat position and must be folded into shape and
attached.
1) Remove the standoffs from the fireplace top.
2) Take each standoff and bend into the correct shape. Bend up at the bend lines until
the screw holes in the standoff and the pre-punched screw holes on the fireplace
top line up.
3) Attach the standoff securely to the top with 2 screws per standoff (on opposite
corners).
TOP FACING SUPPORT
Determine the total thickness of facing material (e.g. drywall or wood plus ceramic tiles) to
allow the finished surface to be flush with the front of the unit. Total facing thickness can vary
from 1/2" (13mm) to 1-1/4" (32mm) thick.
The Top Facing Support can be mounted in
3 different positions depending on the
thickness of the facing material.
1) Mount Top Facing Support using the 3 supplied screws into the three pre-punched
screw holes on the top front of the unit. Use hole positions A, B, or C depending on your
facing depth.
Screw Facing Material
Position Depth
A 1/2" / 13mm
B 7/8" / 22mm
C*1-1/4" / 32mm
*For "C" screw position the top facing
support is reversed.
Top Facing Support
A
B
C
Screw holes for
Top Facing
Support
Top Facing Support
is reversed
for “C” hole position
A
B
C
"C" Screw Position:
For a facing material depth of 1-1/4" (32mm),
the top facing support must be reversed.
Top Facing
Support
SIDE NAILING STRIPS
The side nailing strips come attached to the unit.
There are 2 plates, one on the top and bottom
that can be folded out as required.
Plates can be
folded out.
INSTALLATION
UNIT ASSEMBLY PRIOR TO INSTALLATION

14 Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
TOP FLUE COLLAR INSTALLATION
Note: This conversion must be done prior to the unit being placed in position.
The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.
Top Collar Assembly Kit
1 Intake Collar Assembly with Gasket
1 Intake Collar Plate with Gasket
1 Top/Rear Exhaust Assembly with Gasket
1 Heat Deflector
1 Baffle Plate
29 1/4" x 1/2" Screws (4 spares)
1 Restrictor
1 Intake Collar Gasket (spare)
1 Exhaust Assembly Gasket (spare)
Exhaust Assembly
w/ gasket
Intake Collar Plate
w/gasket
Intake Collar Assembly
w/gasket
2) From inside the firebox, remove the top heat deflector by removing
2 - 1/4" x 1/2" screws.
Heat Deflector Diagram 2
1. Remove the door assembly by releasing the adjustable latches and lifting up off the door frame assembly.
Adjustable Tension
Latch location
Diagram 1
3) From inside the firebox, remove the baffle plate by removing 4 - 1/4"
x 1/2 " screws. See Diagram 3
Baffle Plate Diagram 3
4) From the inside of the firebox, remove the exhaust assembly by
removing the 8 - 1/4" x 1/2" screws. See Diagram 4.
Diagram 4
UNIT ASSEMBLY PRIOR TO INSTALLATION

15
Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
6) From the outside top of the firebox, remove the intake collar plate
by removing the 4 - 1/4" x 1/2 " screws. See Diagram 6.
5) From the outside rear of the firebox, remove the intake collar
assembly. Remove the 4 - 1/4" x 1/2" screws. See Diagram 5.
Diagram 5
Exhaust
Assembly
Intake Collar
Assembly
Diagram 6
Before proceeding to Step 7, inspect condition of all gaskets.
DO NOT install parts with damaged gaskets. Replace if necessary
with spare gaskets supplied.
7) From the inside of the firebox, place the exhaust assembly into
position as shown in Diagram 7 and secure with 8 - 1/4" x 1/2" screws
(Diagram 8). Ensure all screws are tight, but do not over tighten.
All 8 screws must be used.
Diagram 7
Diagram 8
9) From the outside rear of the firebox, install the intake collar plate
with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not
over tighten. All 4 screws must be used.
10) From inside the firebox, re-install the baffle plate and heat
deflector - reverse steps 2 & 3.
8) From the outside top of the firebox, install the intake collar assembly.
Secure with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but
do not over tighten. All 4 screws must be used.
Diagram 10
Intake Collar
Assembly
Exhaust
Assembly
Diagram 9
VENTING
INTRODUCTION
The B36X uses the "balanced flue" technology Co-Axial system.
The inner liner vents products of combustion to the outside while the
outer liner draws outside combustion air into the combustion chamber
thereby eliminating the need to use heated room air for combustion
and losing warm room air up the chimney.
Note: These flue pipes must not be connected to any other
appliance.
The gas appliance and vent system must be vented directly to the
outside of the building, and never be attached to a chimney serving
a separate solid fuel or gas burning appliance. Each direct vent gas
appliance must use it's own separate vent system. Common vent
systems are prohibited.

16 Regency Bellavista™ B36X Gas Fireplace
EXTERIOR VENT TERMINATION REQUIREMENTS
INSTALLATION
Minimum Clearance Requirements Canada1USA2
AClearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
BClearance to window or door that may be opened 12"(30cm) 9" (23cm)
CClearance to permanently closed window **
DVertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm) 24"(60cm) 24"(60cm)
EClearance to unventilated soffit 12"(30cm) 12"(30cm)
FClearance to outside corner: with AstroCap Termination Cap. 13"(33cm) 13"(33cm)
Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
GClearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)
Clearance to inside corner: with all other approved Termination Caps. 6"(15cm) 6"(15cm)
HClearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
JClearance to service regulator vent outlet 36"(90cm) *
KClearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
LClearance to a mechanical air supply inlet 72"(1.8m) 36"(90cm)b
MClearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
NClearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor
*Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally

17
Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
APPROVED VENTING CONFIGURATIONS
HORIZONTAL & VERTICAL TERMINATIONS

18 Regency Bellavista™ B36X Gas Fireplace
APPROVED VENTING CONFIGURATIONS
HORIZONTAL & VERTICAL TERMINATIONS
INSTALLATION
Vertical Venting Configurations
Vertical Rear Vent Flex Vent 4" x 6-5/8" Not Approved Not Approved This application is NOT approved Not Approved
Vertical Rear Vent Flex Vent 5" x 8" Not Approved Not Approved This application is NOT approved Not Approved
Vertical Rear Vent Rigid Vent 4" x 6-5/8" Not Approved Not Approved This application is NOT approved Not Approved
Vertical Rear Vent Rigid Vent 5" x 8" Not Approved Not Approved This application is NOT approved Not Approved
Vertical Top Vent Flex Vent 4" x 6-5/8" Not Approved Not Approved This application is NOT approved Not Approved
Vertical Top Vent Flex Vent 5" x 8" Not Approved Not Approved This application is NOT approved Not Approved
Vertical Top Vent Rigid Vent 4" x 6-5/8" • Min. 8 ft vertical run
• Max. 35.5 ft vertical run
• Up to 2 x 90oelbows
• See manual for details
Various applications
See manual for details
Rigid Pipe Adaptor
Vent Reducer
770-994
946-606
Vertical Top Vent Rigid Vent 5" x 8" Not Approved Not Approved This application is NOT approved Not Approved

19
Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
RIGID PIPE CROSS REFERENCE CHART
4" X 6-5/8"
(MUST USE VENT REDUCER # 946-606 AND RIGID PIPE ADAPTOR #770-994)
Components from different Manufacturers may not be mixed. Not all Rigid Pipe components are available directly from FPI.

20 Regency Bellavista™ B36X Gas Fireplace
INSTALLATION
