RADIO SYSTEM MENU
Press and hold the VOL/SEL button for 2 seconds. LCD will display MENU, make
the desired selection below:
To change display SCROLL OPTIONS, rotate VOL/SEL, then press to choose:
Scroll OFF - RDS text will not display automatically, must press the DISP key to
view
Scroll ONCE - RDS text will display automatically but is limited to one time.
It will update automatically when new information is received.
Scroll ON - RDS text will display automatically and continuously
To enable the RDS option, rotate VOL/SEL, then press to choose:
RDS ON
RDS OFF
This is the firmware version present on the radio,
VER 001
To save and exit MENU mode, press and hold the VOL/SEL button.
Note: Menu will exit automatically after 5 continuous seconds without saving any
selections.
RADIO STATION LOCK-OUT
Radio station Lock-Out gives Fleet managers the ability to restrict AM/FM playback.
To enable operation, set acceptable stations into all the AM & FM presets. If only
one station is allowed, preset that same station into all presets of either the FM or AM

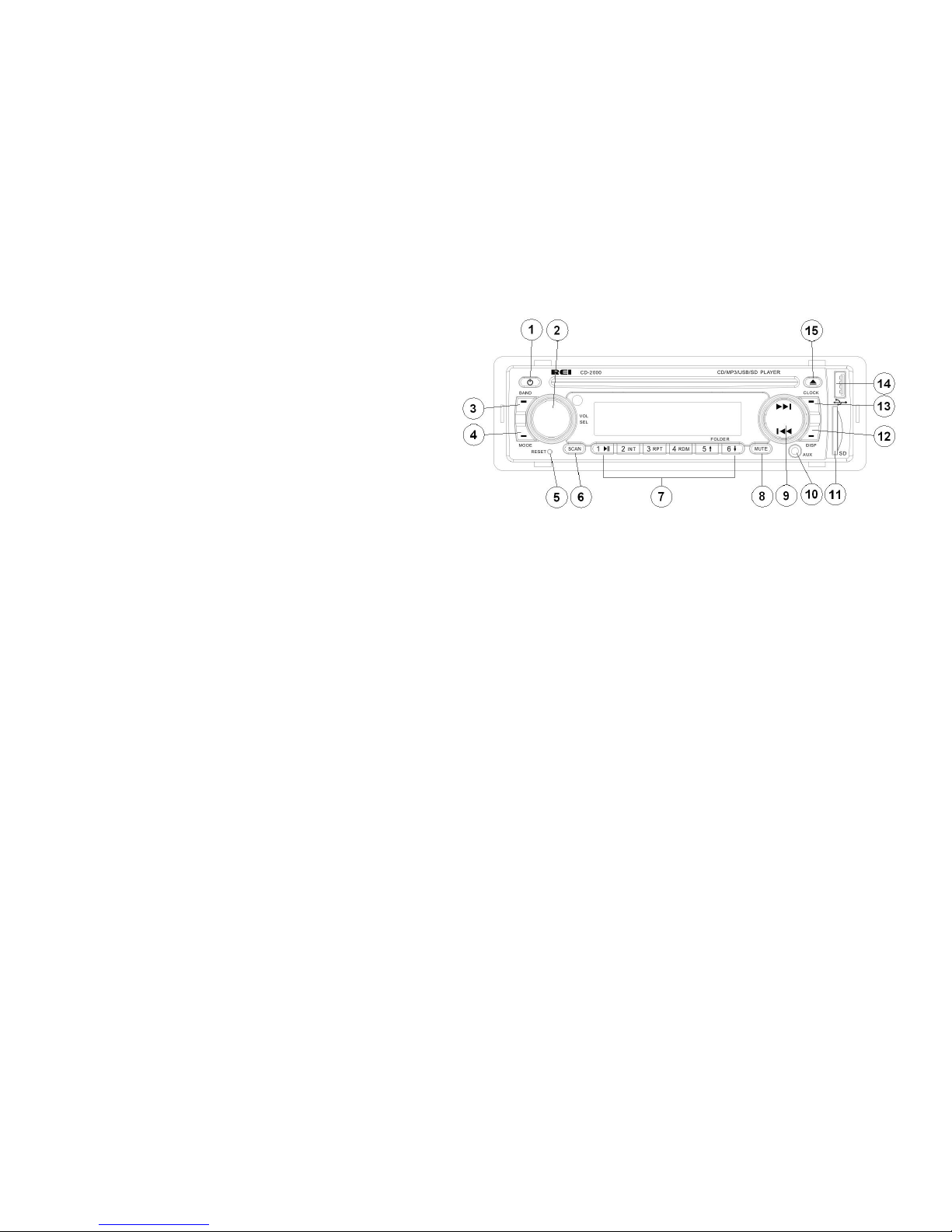

band. Once the stations are set, Press and hold both the VOL/SEL (2) and BAND (3)
buttons for 3 seconds. The display will scroll “ENTER CODE”, at which time the
user can enter a personal 4 digit code using presets 1-6. Once entered, the display
will show “LOCKED” giving the user confirmation. The user will have access to
only the AM & FM stations found in presets 1-6. If the user attempts to change the
station using the SEEK/TUNE buttons, the display will scroll “ENTER CODE”.
Entering the wrong code will scroll “ERR CODE”. Once the user enters the correct
code, the display will show “UNLOCKED” and restore the radio to normal operation.
11
SPECIFICATIONS:
General Specifications
Operating Voltage (10.0 –15.6V allowable)
Maximum Current Consumption 10A
Standby Current Consumption 10mA
POWER OUTPUT
Continuous Output (4, 20 to 20,000 Hz at 1% THD) 4 x 22 Watts
Maximum Power Output 4 x 50 Watts
Speaker load Impedance 4-8 Ohms
FM STEREO RADIO
Frequency range USA 87.5MHZ – 107.9MHZ (0.2 MHz step)
EURO 87.50MHZ –108.00MHz (0.05 MHz step)
Usable Sensitivity 10.2 dBf. (0.9 uV, 75)
50db Quieting Sensitivity 15.2 dBf. (1.6 uV, 75)
Frequency Response 30Hz – 15kHz (+/- 3dB)
Alternate Channel Selectivity 75dB
Stereo Separation 40dB (1kHz)
Image Rejection Ration 75dB
IF rejection ratio 100dB
Signal to Noise ratio 70dB
AM RADIO
Frequency range USA 530kHz – 1710kHz (10 kHz step)
EURO 522kHz – 1620kHz (9 kHz step)
Usable Sensitivity 27 dB/uV (25uV, S/N 20dB)
CD/PLAYER
Signal/Noise Ratio (1kHz) 75dB
Frequency Response (+/- 1dB) 5 – 20,000Hz
Total Harmonic Distortion (1kHz) less than 0.20% (1Khz)
Number of Channels 2 (stereo)
MP3 decoding format MPEG-1 & 2 Audio layer 3
WMA decoding format Ver. 7, 7.1,8,9,10,11 (2ch audio)
(WindowsMediaPlayer)
UsableDiscs: SVCD,CD-R/RW,CD-Audio,
CD-MP3,CD-WMA
