REI UHD-FO10-K User manual

18Gbps HDMI over Optical Fiber
Extender with Audio Extraction
USER MANUAL
Follow us on Youtube
and Facebook
www.orei.com
UHD-FO10-K

page 2
Table of Contents
Introduction 04
Features 05
Package Contents 05
Specifications 06
Operation Controls and Functions 08
Application Example 12
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting, operating
or adjusting this product. Please keep this manual for future reference.
page 02
Thank you for purchasing this product
This product contains sensitive electrical components that may be dam-
aged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of
surge protection systems is highly recommended in order to protect and
extend the service life of your equipment.
Surge protection device recommended

page 03
Registration Page
Please Activate your warranty by registering our product through the
link below - https://www.orei.com/pages/warranty-registration
Technical Support
Need Help?
Our experienced Technical Support Team is here for you to answer
your questions, give technical advice or help troubleshoot your project
to get you installed on time and on budget. Call, email or chat with us
now.
OREI Live Technical Support Hours
US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central
Time Support Email - [email protected] |
Support Number - 877-290-5530
Or
Chat Live on www.orei.com
Send us an instant message now. Our Technical Support Team will
respond momentarily. Available during live support hours.

page 04
The UHD-FO10-K can extend HDMI signal up to 33000 feet/10km
(over single-mode fiber cable). It supports video resolution up to
4K@60Hz 4:4:4. Transmitter supports loop output, audio embedding
and EDID management function. Receiver supports audio extraction.
In addition, the extender supports bi-directional IR control and RS-
232 signal pass-through. It can allow you to easily control the display
device on the signal source side or control the signal source device on
the display side when using this extender.
Introduction

page 05
1. HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant.
2. Supports 18Gbps video bandwidth.
3. Video resolution up to 4K@50/60Hz 4:4:4.
4. HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby
True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
5. Supports 3D and HDR format video, does not support CEC control.
6. Transmission distance up to 33000feet/10km (over single-mode
fiber cable).
*It is possible to use multi-mode fiber with these SFP modules but the
distance can not be guaranteed.
7. Supports bi-directional IR control, RS-232 pass-through and EDID
management for simple and convenient control.
8. Transmitter supports loop output (sharing local HD video and
audio) and audio embedding function.
9. Receiver supports audio extraction.
10. Compact design for easy and flexible installation.
Features
Package Contents
1. 1 × UHD-FO10-K (Transmitter) 5. 2 × 5V/1A Power Adapter
2. 1 × UHD-FO10-K (Receiver) 6. 2 × 3-pin 3.81mm Phoenix Connector
3. 1 × IR Blaster cable (1.5m) 7. 1 × User Manual
4. 1 × IR Receiver cable (1.5m)

page 06
Specications
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution 480i ~1080p50/60Hz, 2560x1440@24/30/50/60Hz,
4K@24/30Hz, 4K@60Hz
Color Depth 8-bit, 10-bit, 12-bit
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
IR Frequency 20KHz-60KHz
RS-232 Baud Rate 4800-115200bps
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Transmission Distance Up to 33000feet/10km over single-mode fiber cable
ESD Protection Human-body Model: ±8kV (Air-gap discharge) ,
±4kV (Contact discharge)
Connection
Transmitter
Input: 1 × HDMI IN [Type A, 19-pin Female]
1 × LINE IN [3.5mm Stereo Mini-jack]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × RS-232 [3.81mm Phoenix Connector]
1 × SERVICE [Micro USB, Update Port]
Output: 1 × HDMI OUT [Type A, 19-pin Female]
1 × Optical Fiber Out [LC Female]
1 × IR OUT [3.5mm Stereo Mini-jack]

page 07
Specications
Receiver
Input: 1 × Optical Fiber In [LC Female]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update Port]
Output: 1 × HDMI OUT [Type A, 19-pin Female]
1 × RS-232 [3.81mm Phoenix Connector]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × AUDIO OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver:
134mm (W) × 68mm (D) × 18mm (H)
Weight Transmitter: 280g, Receiver: 278g
Power Consumption Transmitter: 3.85W (Max.), Receiver: 2.7W (Max.)
Power Supply
Input: AC 100~240V 50/60Hz
Output: DC 5V/1A
(US/EU standards, CE/FCC/UL certified)
Operating Temperature 32~104°F / 0~40°C
Storage Temperature -4~140°F / -20~60°C
Relative Humidity 20~90% RH (Non-condensing)

page 08
Operation Controls
and Functions

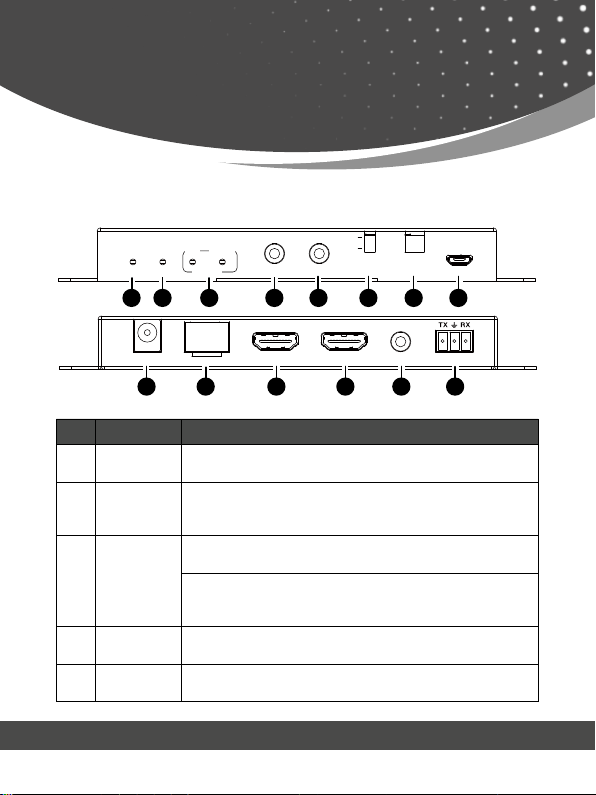

No. Name Function Description
1. POWER LED The power LED will light up when the Transmitter is
powered on.
2. FIBER LED
The optical fiber connection indicator will light up when the
Transmitter and Receiver have a normal optical fiber signal
connection.
3. HDMI LED
IN:
The HDMI signal input indicator will light up when there
is a signal input on the HDMI IN port.
LOOP: The HDMI loop output indicator will light up when the
HDMI OUT port of the Transmitter outputs signals to the HDMI
display device.
4. IR IN Connect the IR Receiver cable. The IR signal will be sent to
the IR OUT port on the Receiver.
5. IR OUT Connect the IR Blaster cable. The IR signal will be received
from the IR IN port on the Receiver.
Transmitter Panel
HDMI
LINE
IR OUTIR IN
LOOPINFIBERPOWER
HDMI
1
0
AUDIO EDID
SERVICE
RS-232
LINE INHDMI INHDMI OUT
FIBER
DC 5V
678
910 11 12 13 14
12345

page 09
Operation Controls
and Functions
No. Name Function Description
6. AUDIO
switch
Switch to select audio signal source (HDMI IN or LINE IN).
When there is no video signal input, audio signal can be
transmitted separately.
7. EDID DIP
switch
Dial the switch to set EDID.
11: Copy Receiver HDMI OUT
10: Copy Transmitter HDMI LOOP OUT
01: 4K60_2CH
00: 1080P_2CH
8. SERVICE
port Firmware update port.
9. DC 5V DC 5V/1A power input port.
10. FIBER Connect to the Transmitter optical fiber module, and trans-
mit signals to the Receiver via an optical fiber cable.
11. HDMI OUT HDMI loop output port. Connect an HDMI display
device such as TV or Projector with an HDMI cable.
12. HDMI IN HDMI signal input port, connect an HDMI source device
such as DVD or PC with an HDMI cable.
13. LINE IN Audio signal input port, connected to audio source device
such as MP3 Player.
14. RS-232 RS-232 signal pass-through port for transmitting RS-232
command signals between the Transmitter and Receiver.

page 10

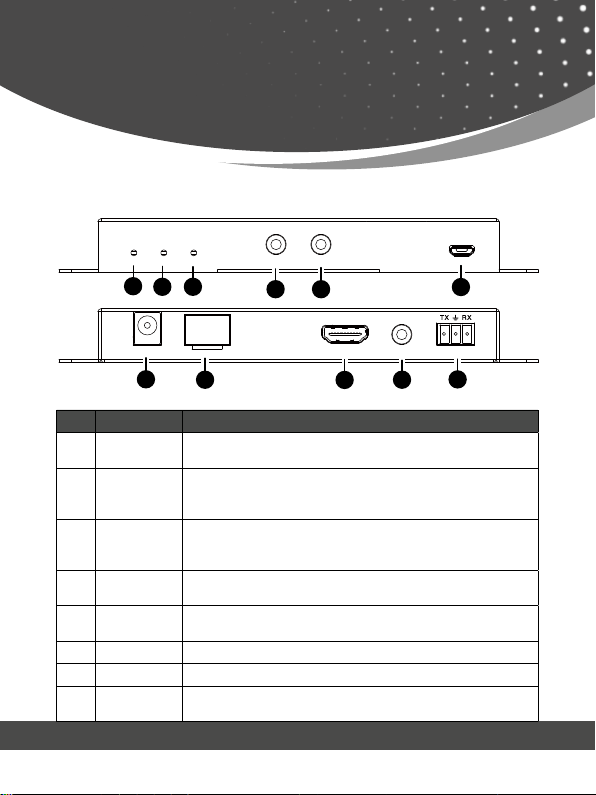

Receiver Panel
12 3
IR OUTIR IN
FIBERPOWER SERVICE HDMI
RS-232
HDMI OUT
FIBER
DC 5V AUDIO OUT
456
87 9 10 11
No. Name Function Description
1. POWER LED
The power LED will light up when the Receiver is powered
on.
2. FIBER LED
The optical fiber connection indicator will light up when the
Transmitter and Receiver have a normal optical fiber signal
connection.
3. HDMI LED
The HDMI signal output indicator will light up when the
HDMI OUT port of the Receiver outputs signals to the HDMI
display device.
4. IR IN
Connect the IR Receiver cable. The IR signal will be sent to
the IR OUT port on the Transmitter.
5. IR OUT
Connect the IR Blaster cable. The IR signal will be received
from the IR IN port on the Transmitter.
6. SERVICE port Firmware update port.
7. DC 5V DC 5V/1A power supply port.
8. FIBER
Connect to the Receiver optical fiber module, and receive
signals from the Transmitter via an optical fiber cable.
Operation Controls
and Functions

page 11
No. Name Function Description
9. HDMI OUT HDMI output port. Connect an HDMI display device
such as HDTV or Projector with an HDMI cable.
10. AUDIO OUT
Audio signal extracting output port (extract the HDMI OUT
audio signal), connected to audio output device such as
amplifier or speaker.
11. RS-232
RS-232 signal pass-through port for transmitting RS-232
command signals between the Transmitter and Receiver.

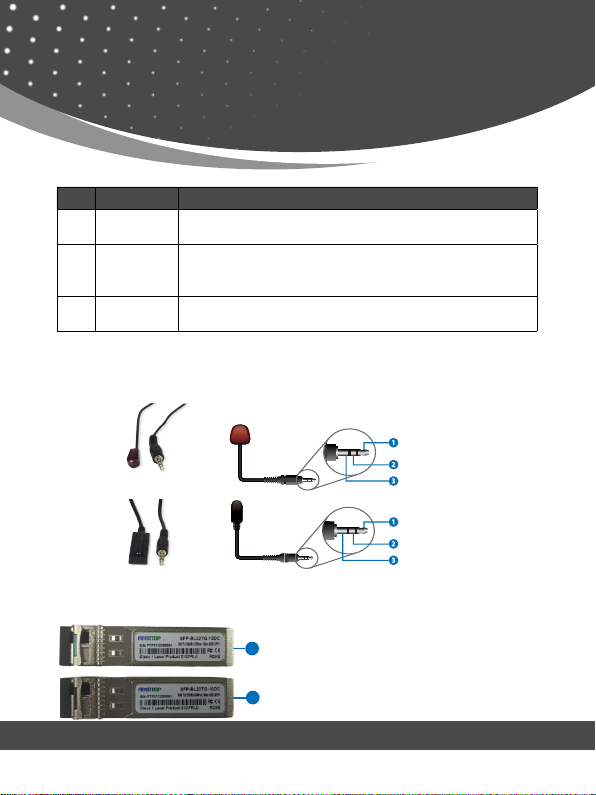

IR Pin Denition
Optical Fiber Module
IR Receiver and Blaster pin’s definition as below:
① SFP-BL32TG-10DC is the optical
fiber module of the Transmitter.
② SFP-BL23TG-10DC is the optical
fiber module of the Receiver.
IR RECEIVER
IR BLASTER
IR Blaster
IR Receiver
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
1
2
Operation Controls
and Functions

page 12

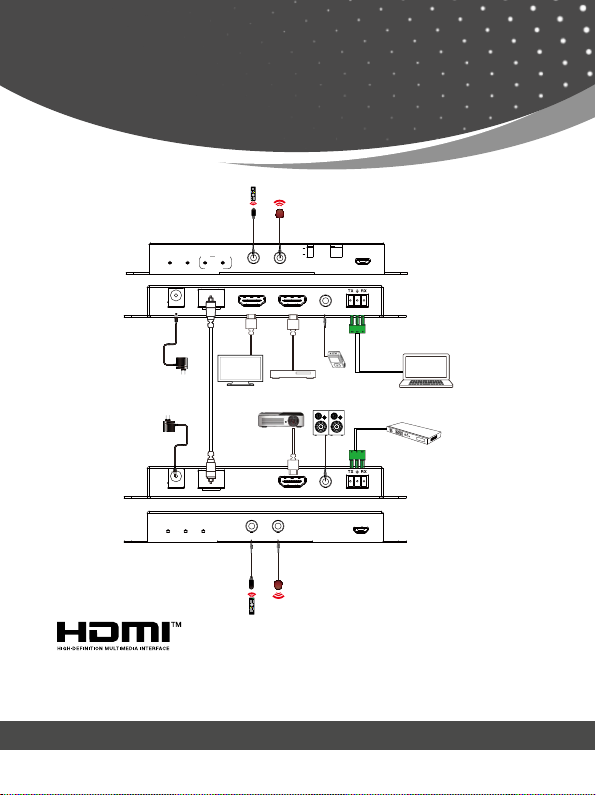

Application Example
DVD or Blu-ray Player
Power Supply
Transmitter
Receiver
IR Blaster
Projector
HDMI
LINE
IR OUTIR IN
LOOPINFIBERPOWER
HDMI
1
0
AUDIO EDID
SERVICE
RS-232
LINE INHDMI INHDMI OUT
FIBER
DC 5V
IR OUTIR IN
FIBERPOWER SERVICE HDMI
RS-232
HDMI OUT
FIBER
DC 5V AUDIO OUT
OPTICAL
Laptop
UHDTV
HDMI Matrix or other
device with RS-232 port
Speaker
IR Receiver
MP3
Power Supply
IR Blaster
IR Receiver
Optical fiber cable
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the Unit-
ed States and other countries.

© 2023
18Gbps HDMI over Optical Fiber
Extender with Audio Extraction
www.orei.com
UHD-FO10-K
