Guardian FABXR Bracket
Assembly & Operation Guide

Assembly Instructions 4
Porta Gantry Rapide 500 5
Porta Gantry Rapide 1000 7
Porta Gantry; S & M 9
Porta Gantry 12
T Davit 14
Porta Davit 500 16
Porta Davit Quantum 18
Porta Davit Quantum Single Winch 21
Porta Davit Quantum Double Winch 23
Fitting device into Bracket 25
Contents

3
Lightweight.
Portable. Safe.
Please read the following instructions and guidance notes carefully. These have been designed
to aid users in carrying out the correct assembly of the bracket for each of our compatible lifting
systems. Systems compatible with this product are:
•
•
•
•
•

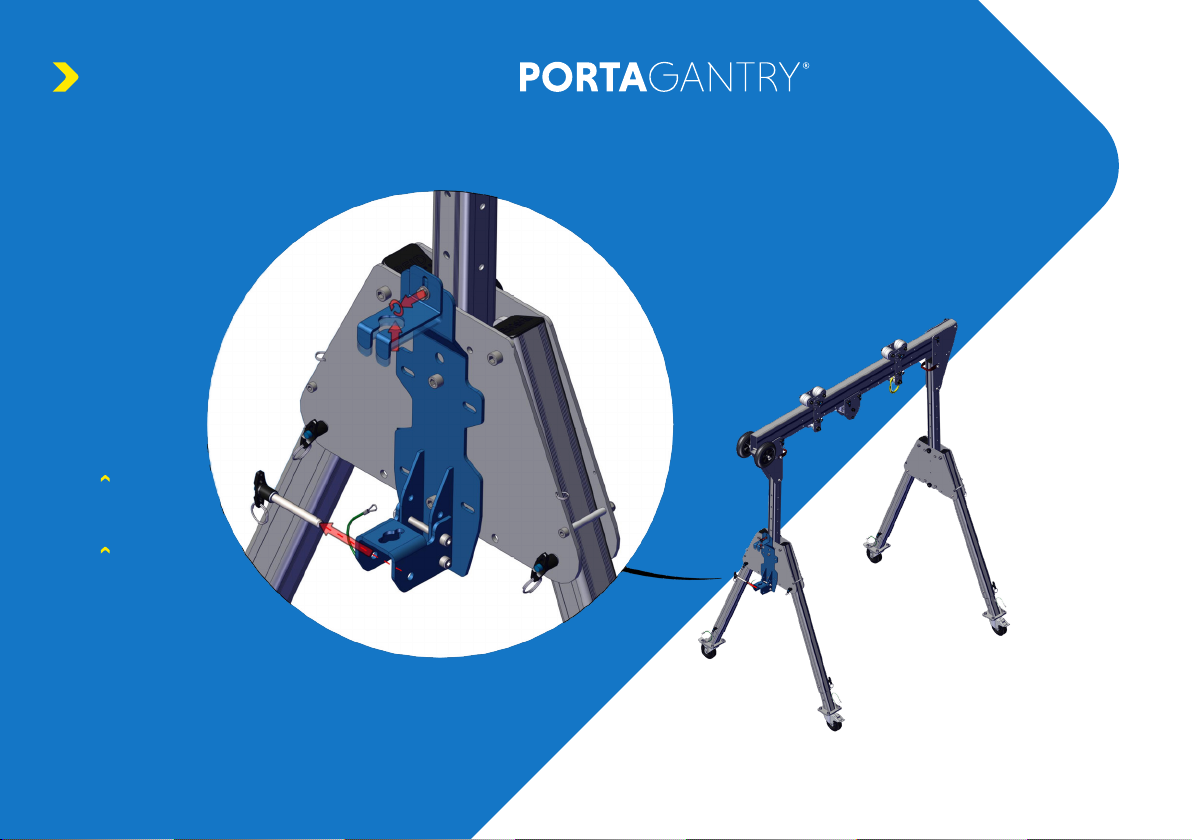

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007020] for the Porta Gantry Rapide, both Small [S] and Medium [M] frame types.
Appropriate PPE should be worn: Gloves Protective Footwear

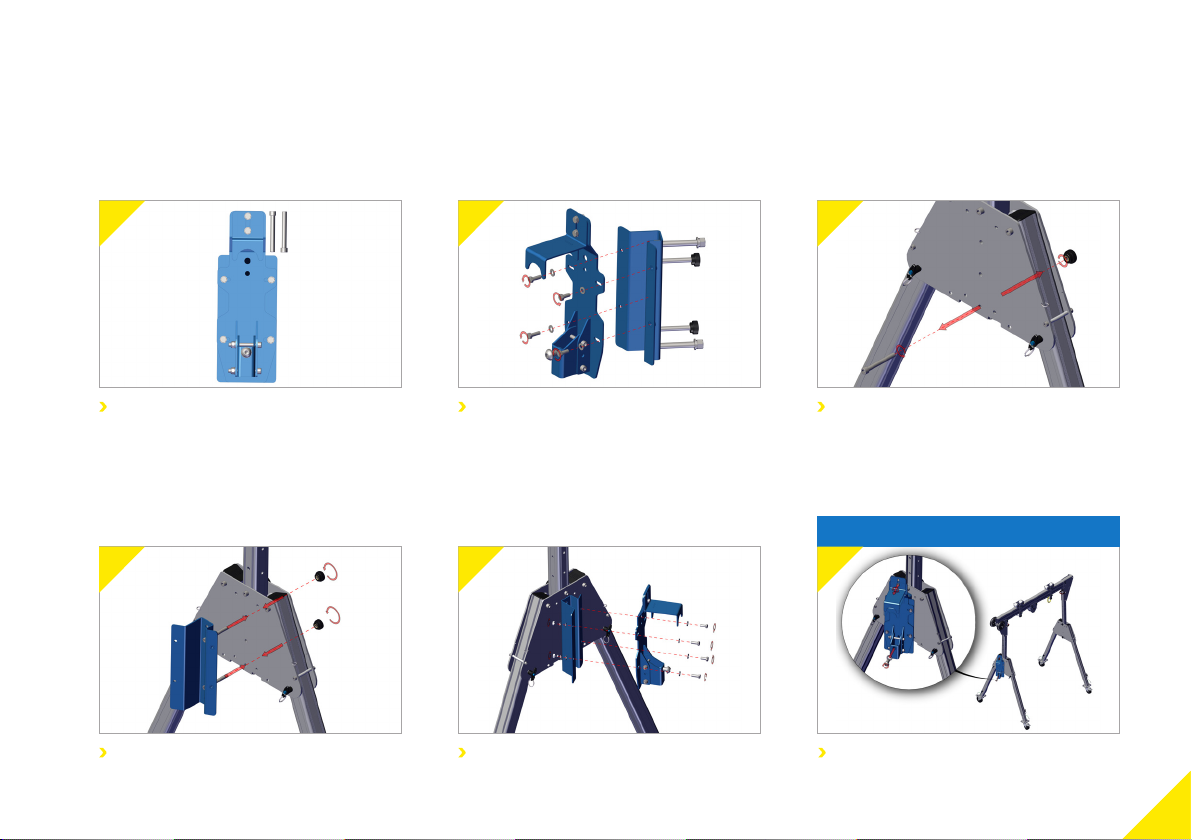

Assembly Instructions: 500

Present the bracket to the trap plate, insert and
secure the M12 bolt supplied with the bracket.
Remove the top bolt whilst holding the bracket
on an angle.
The bracket comes with the bolts supplied, as
shown above.
Before attaching the bracket to the device,
dissemble the bracket.
Remove the bottom bolt from the trap plate.
31
Insert the supplied M12 top bolt and secure.
2
5
PORTADAVIT QUANTUM
5
Assembling the PORTA GANTRY RAPIDE 500: Guardian FABXR Bracket
Guardian FABXR Bracket - [RAWB007020]
4 5 6

Re-assemble the bracket to the plate.
Prepare the bracket to recieve the device and ]]]]]]
]]]]remove the bolt from the bottom connector and
]]]]loosen the top connector.
7 8 9

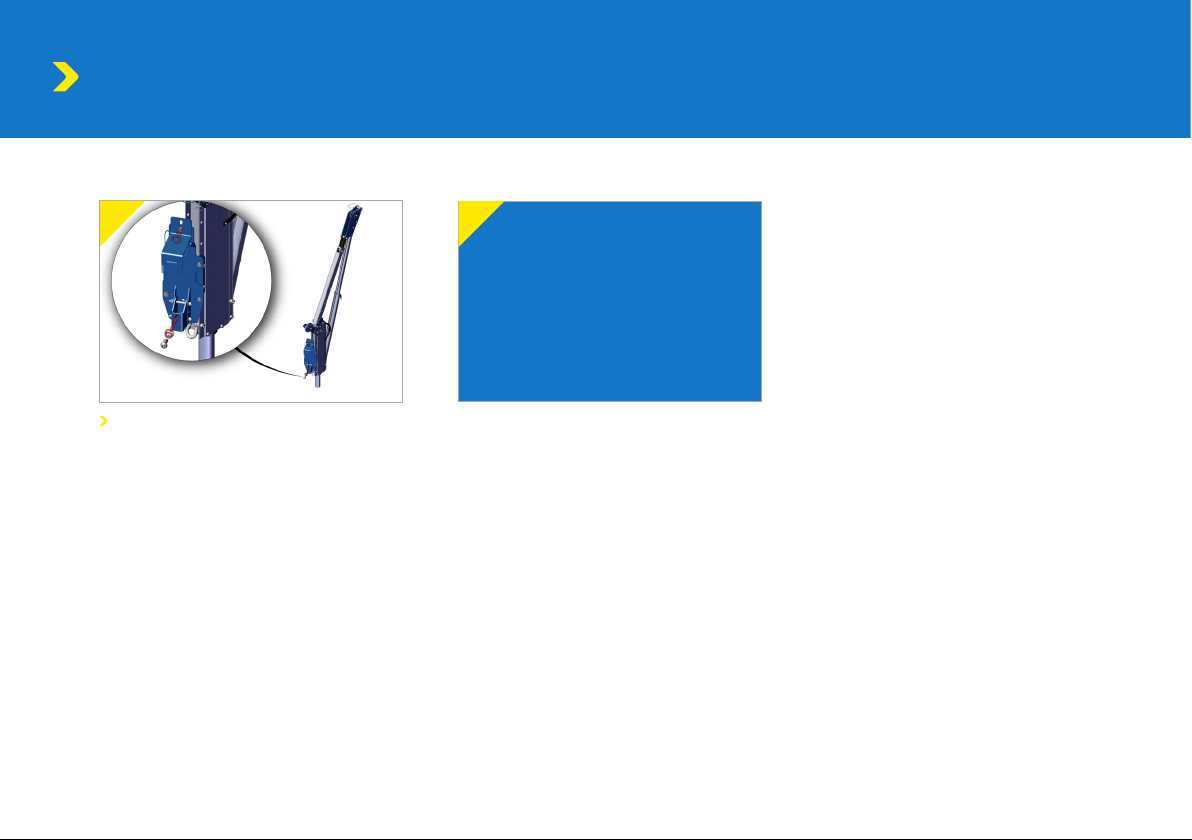

See Page 25 to view the assembly instructions for
the fitting of the device onto the bracket.
Guardian FABXR Bracket - [RAWB007020]
6
Assembling the PORTA GANTRY RAPIDE 500: Guardian FABXR Bracket

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007020] for the Porta Gantry Rapide, both Small [S] and Medium [M] frame types.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: 1000

Present the bracket to the trap plate, insert and
secure the top and bottom M12 bolts supplied
with the bracket.
Remove the top bolt whilst holding the bracket
on an angle.
The bracket comes with the bolts supplied, as
shown above.
Before attaching the bracket to the device,
di dissemble the bracket.
Remove the bottom bolt from the trap plate.
31
Prepare the bracket to recieve the device and
remove the bolt from the bottom connector and
loosen the top connector.
2
See Page 25 to fit the device onto the bracket.
9
PORTADAVIT QUANTUM
8
Assembling the PORTA GANTRY RAPIDE 1000: Guardian FABXR Bracket
Guardian FABXR Bracket - [RAWB007020]
4 5 6

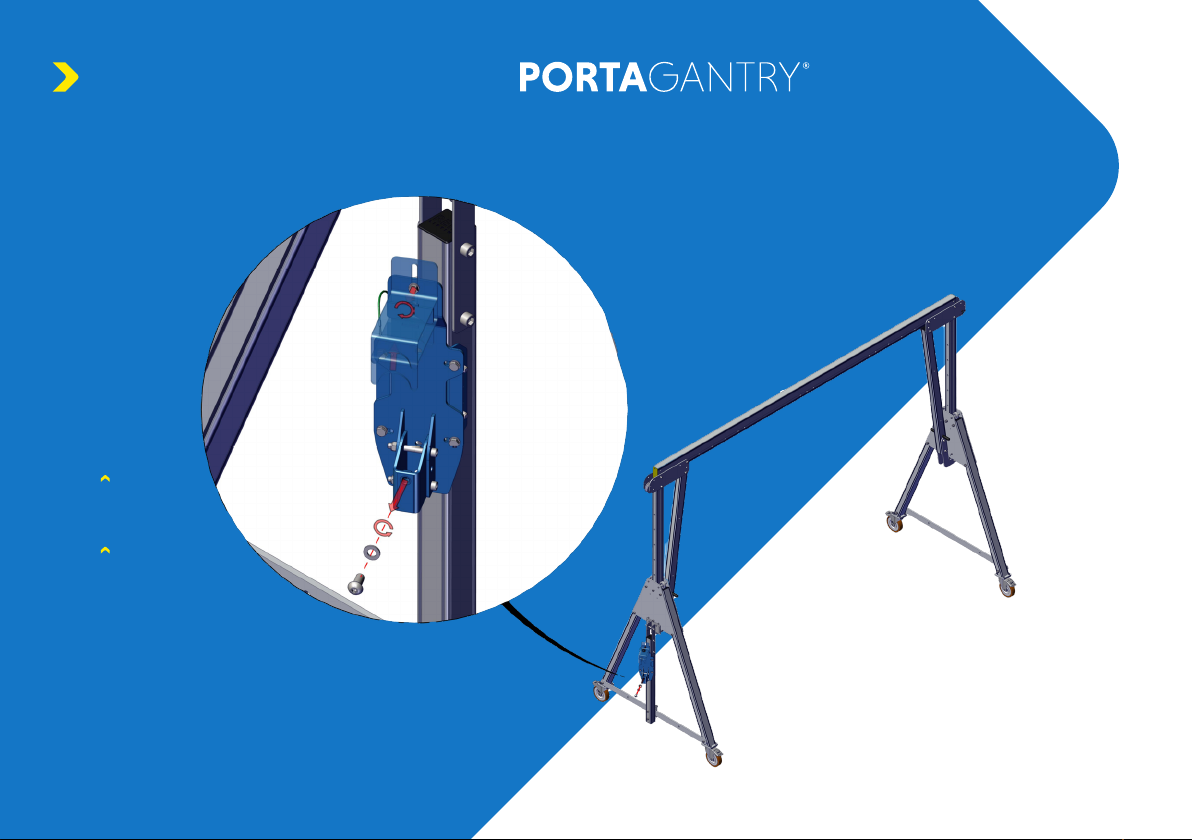

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007020] for the Porta Gantry, both Small [S] and Medium [M] frame types.
Appropriate PPE should be worn: Gloves Protective Footwear

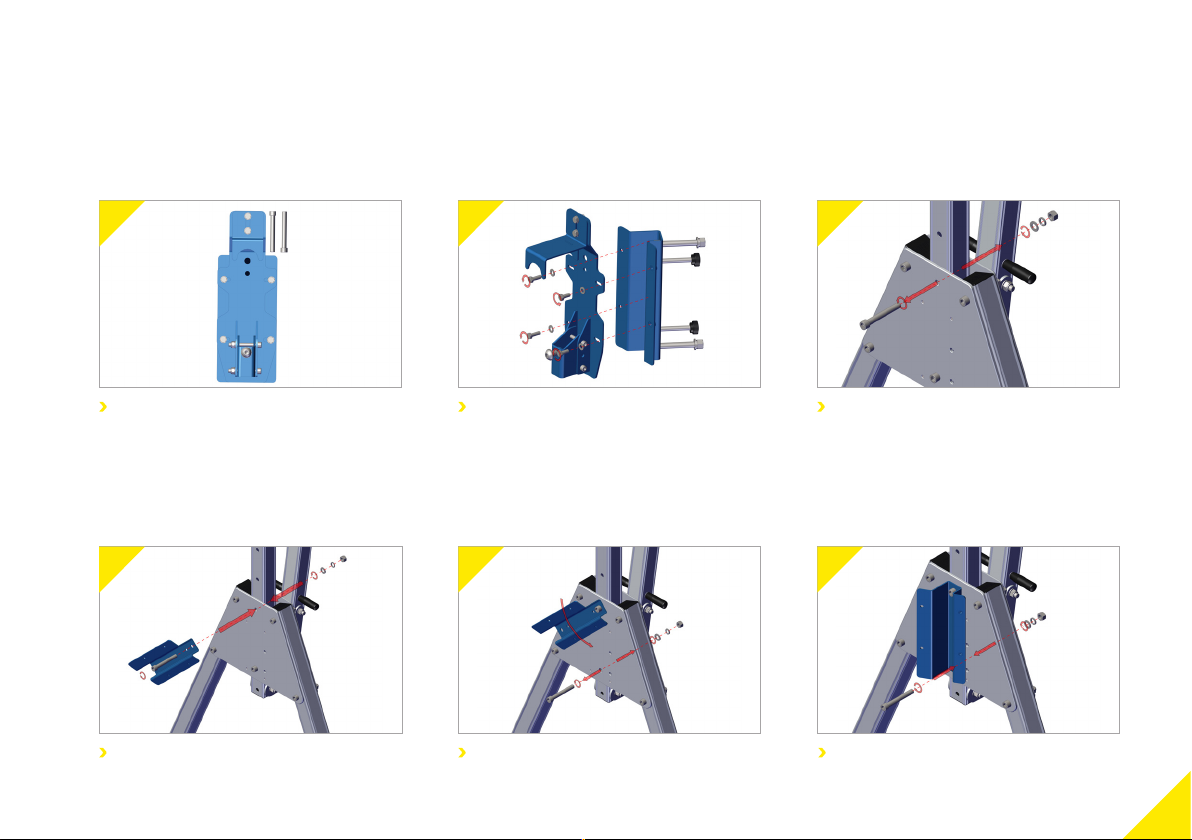

Assembly Instructions: ; S & M

Present the bracket to the trap plate, insert and
secure the M16 bolt supplied with the bracket.
Remove the bottom bolt from the trap plate, and
wing the bracket into position.
The bracket comes with the bolts supplied, as
shown above.
Before attaching the bracket to the device,
dissemble the bracket.
Remove the bottom bolt from the trap plate.
31
Insert the bottom M16 bolt supplied with bracket
and secure.
2
Guardian FABXR Bracket - [RAWB007020]
10
Assembling the PORTA GANTRY: Guardian FABXR Bracket
4 5 6

9
See Page 25 to view the assembly instructions for
the fitting of the device onto the bracket.
Assembly Instructions
Re-assemble the bracket to the plate. Prepare the bracket to receive the device, and
remove the bolt from the bottom connector and
loosen the top connector.
87

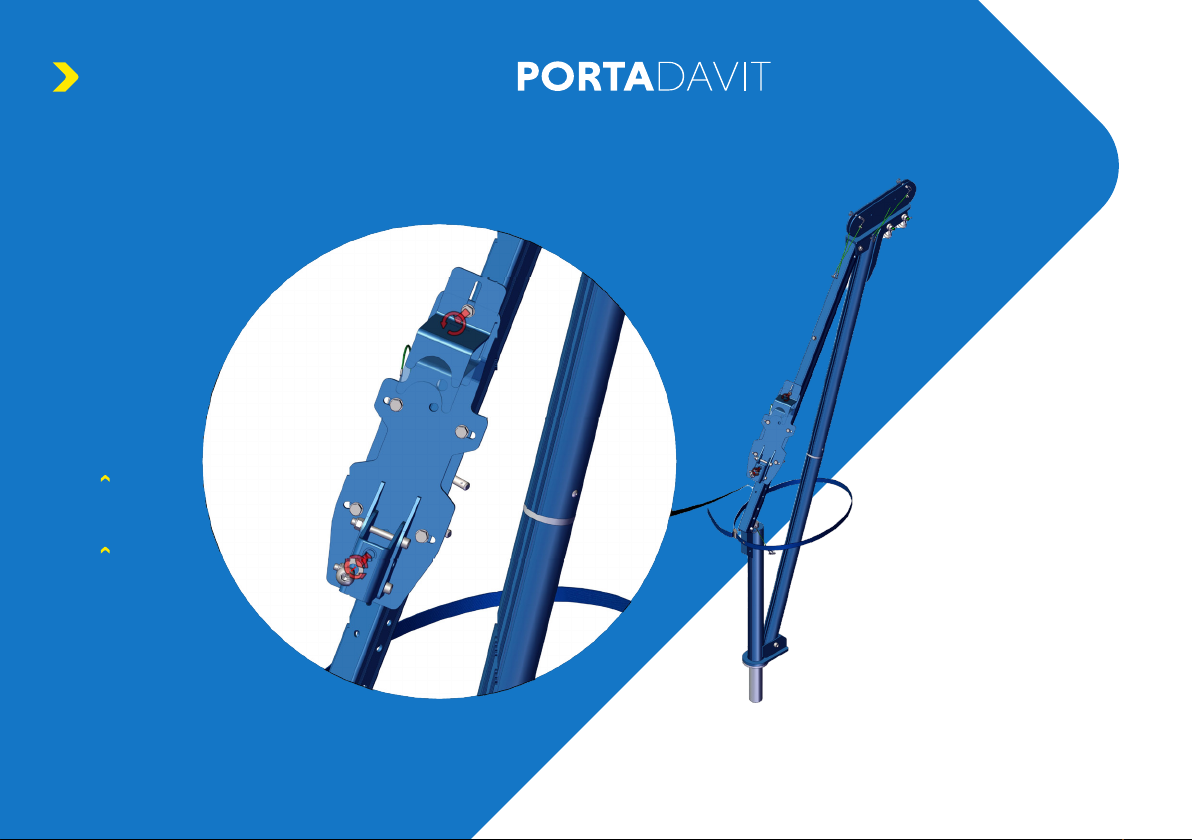

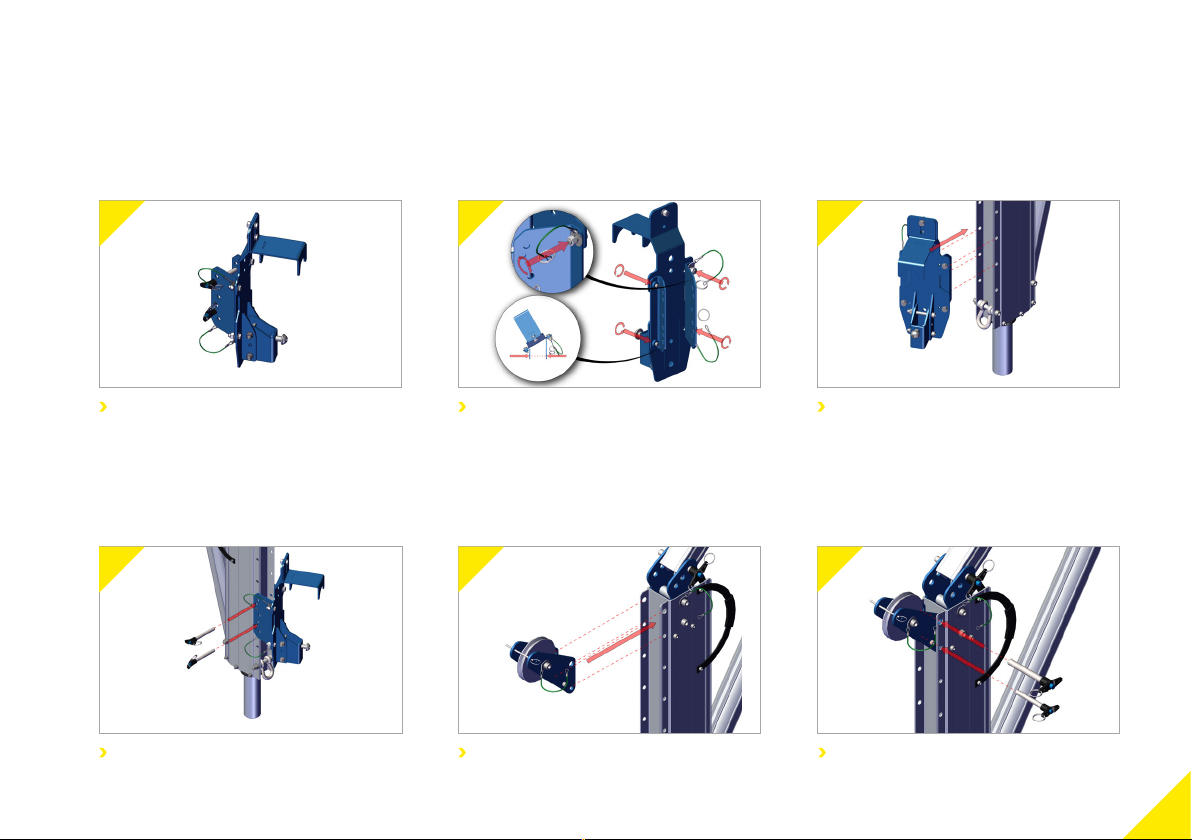

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions:

Insert pins provided to secure bracket to section. Prepare the bracket to recieve the device and
remove the bolt from the bottom connector and
loosen the top connector.
The bracket comes with the pins supplied, as
shown above.
Adjust the width of the wings to 3” (76.2mm) to fit
]]] on the winch column.
Present the bracket onto the winch column.
31 2
6
See Page 25 to view the assembly instructions for
the fitting of the device onto the bracket.
Guardian FABXR Bracket - [RAWB007000]
13
Assembling the PORTA GANTRY Intermediate and above sizes: Guardian FABXR Bracket
45

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions:

Insert the pins provided to secure bracket to the
section.
Prepare the bracket to recieve the device and
remove the bolt from the bottom connector and
loosen the top connector.
The bracket comes with the pins supplied, as
shown above.
Adjust the width of the wings to 3” (76.2mm) to fit
]] on the T davit column section.
Present to the T-Davit column.
31 2
6
See Page 25 to view the assembly instructions for
the fitting of the device onto the bracket.
Guardian FABXR Bracket - [RAWB007000]
15

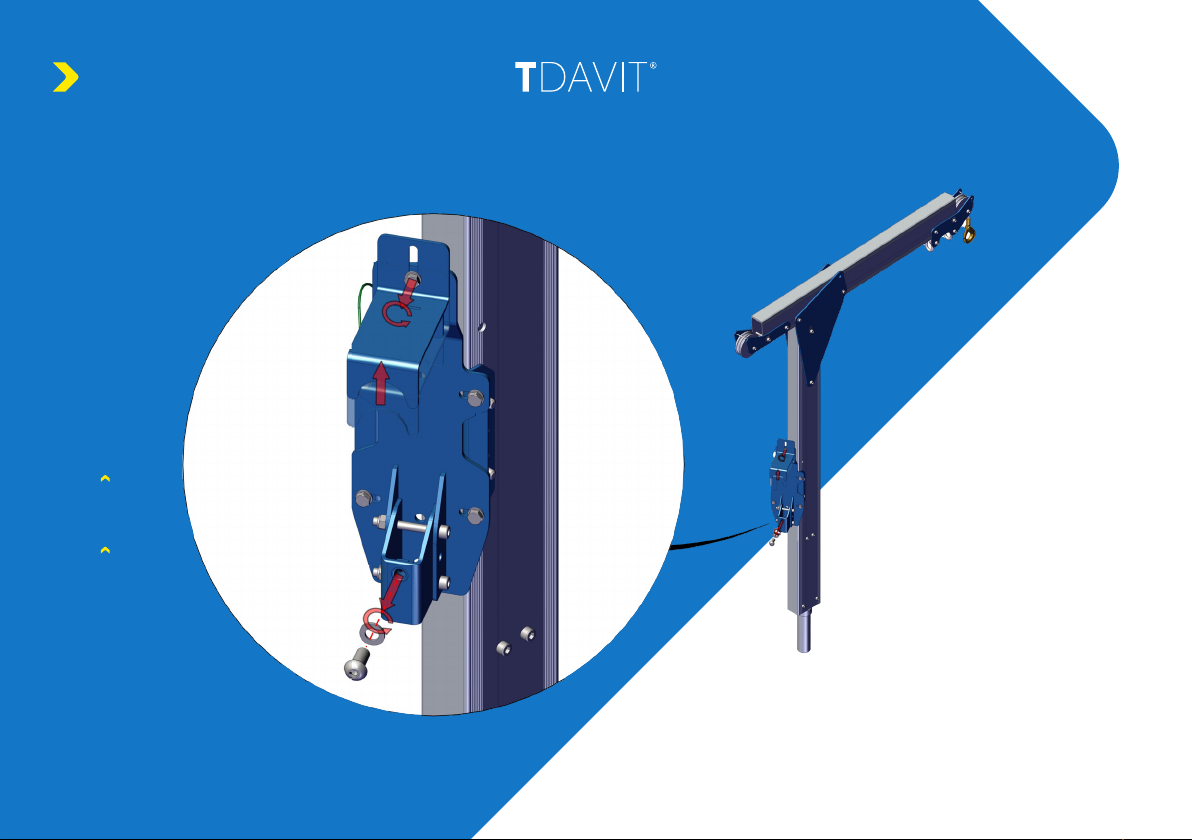

Assembling the T DAVIT: Guardian FABXR Bracket
4 5

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions: 500

Insert the pins provided through the bracket. Prepare the bracket to recieve the device and
remove the bolt from the bottom connector and
loosen the top connector.
The bracket comes with the pins supplied, as
shown above.
Adjust the width of the wings to 2” (50.8mm) to fit ]
]on the Porta Davit 500 backstay.
Present the bracket onto the Porta Davit 500
backstay.
31 2
6
See Page 25 to view the assembly instructions for
the fitting of the device onto the bracket.
17
Assembling the PORTA DAVIT 500: Guardian FABXR Bracket
Guardian FABXR Bracket - [RAWB007000]
4 5

The following instructions detail the assembly of the Guardian FABXR Bracket [RAWB007000] for the Davits & Gantry Winch Column.
Appropriate PPE should be worn: Gloves Protective Footwear
Assembly Instructions:

Insert the pins provided with the bracket. Present the sheave bracket to the top of the
column.
The bracket comes with the bults supplied, as
shown above.
Adjust the width of the wings to 3” (76.2mm) and fit
]] the bracket onto the Porta Davit Quantum column.
Present the bracket into the Porta Davit Quantum
column.
31
Insert the pins provided.
2
19
Assembling the PORTA DAVIT QUANTUM: Guardian FABXR Bracket
Guardian FABXR Bracket - [RAWB007000]
For this configuration a sheave bracket column is required.
RAWB000095 – Sheave bracket PDQ column Medium sheave (4-7mm).
4 5 6

8
See Page 25 to view the assembly instructions for
the fitting of the device onto the bracket.
Assembly Instructions
Prepare the bracket to recieve the device and
remove the bolt from the bottom connector and
loosen the top connector.
7
