REITEL POLYCURE User manual

Operating Instructions
LABORATORY EQUIPMENT IN
STAINLESS STEEL
POLYCURE
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen | Germany
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]

II
Dear Customer!
The POLYCURE offers three light frequencies for a wide variety of materials. Durable high-
performance LEDs, a large turntable and integrated ventilation in the interior ensure optimum
curing conditions. Ideal operability is ensured by the individual setting on the electric timer
and the large access area via the hinged lid.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
To ensure quick access we recommend to keep it at a safe place near the device. In case of
loss it can be ordered at a nominal fee from the manufacturer.
This document is protected by the copyright law. Passing on or duplication of this document
or extracts thereof, evaluation and communication of its contents are not authorised. In case
of loss it can be ordered at a nominal fee from the manufacturer.

III
INDEX
TECHNICAL DESCRIPTION......................................................................................... 4
1.1 BASIC EQUIPMENT......................................................................................................... 4
1.2 DEVICE COMPONENTS................................................................................................... 4
1.3 TECHNICAL DATA........................................................................................................... 5
SAFETY NOTES........................................................................................................... 5
2.1 GENERAL SAFETY NOTES .............................................................................................. 5
2.2 SPECIFIC SAFETY INSTRUCTIONS ................................................................................... 6
INSTALLATION............................................................................................................ 7
3.1 CONTROL PANEL ........................................................................................................... 7
OPERATING INSTRUCTIONS...................................................................................... 8
4.1 COMMISSIONING............................................................................................................ 8
4.2 PROGRAMMING ............................................................................................................. 8
TROUBLESHOOTING .................................................................................................. 9
MAINTENANCE............................................................................................................ 9
WARRANTY.................................................................................................................10
DISPOSAL REGULATIONS ........................................................................................13

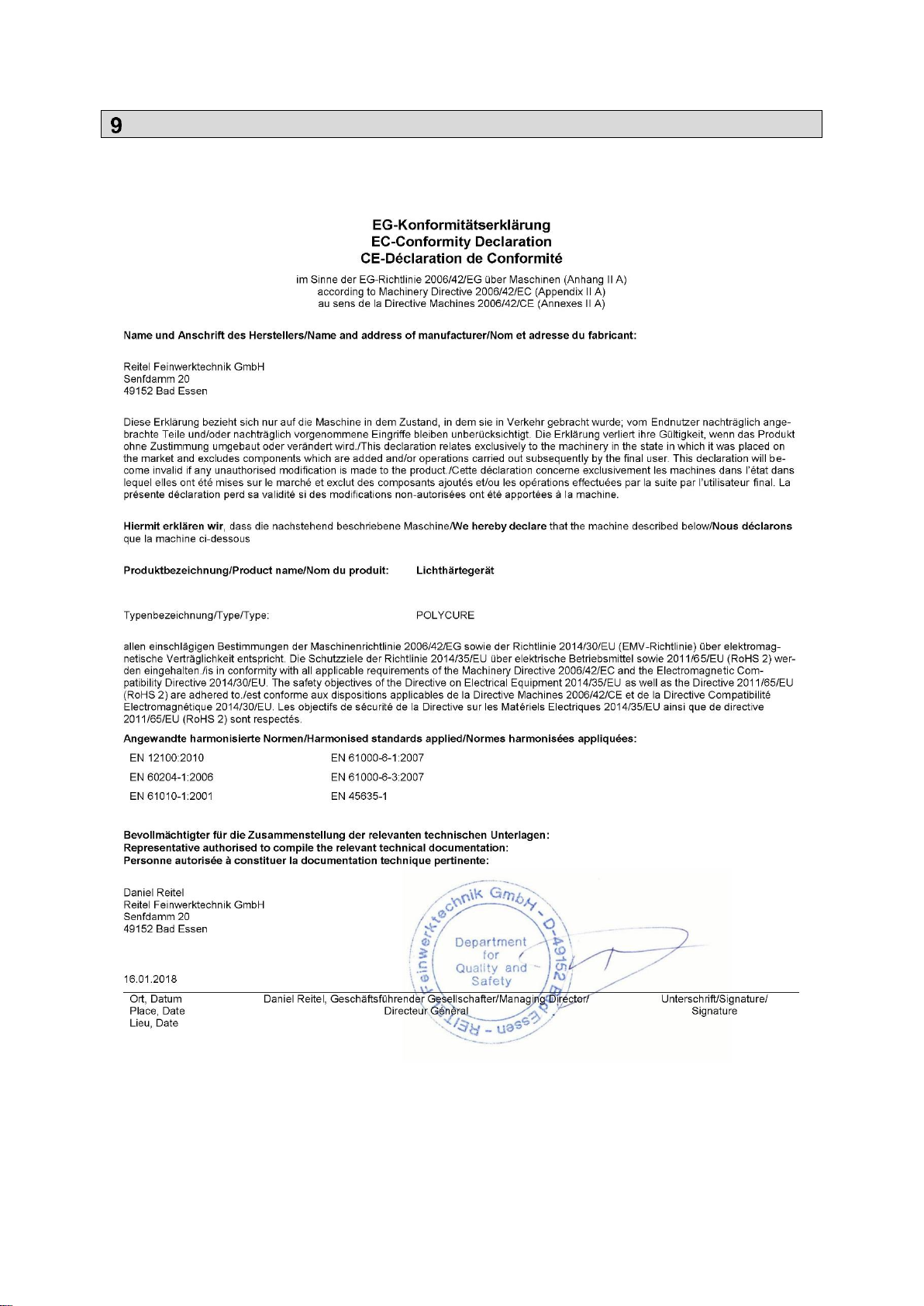

EC CONFORMITY DECLARATION.............................................................................14

4
Technical Description
1.1 Basic Equipment
•POLYCURE

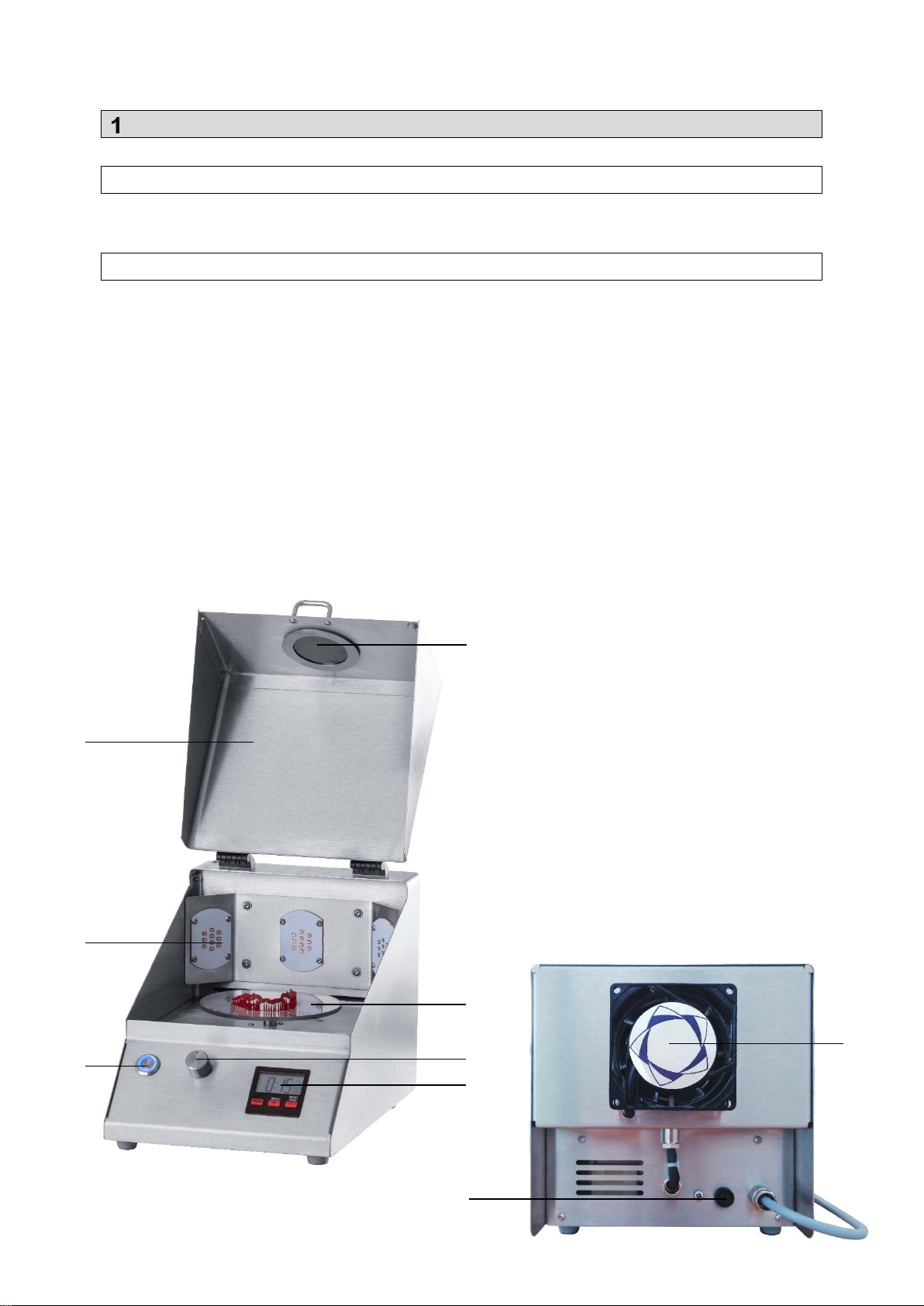

1.2 Device Components
1 Power switch
2 Control panel with display and programming keys
3 Frequency controller
4 Viewing window
5 Lid
6 Turntable
7 High-performance LED
8 Ventilation
9 Device’s fuse
3
6
2
1
4
5
7
8
9

5
1.3 Technical Data
Line voltage
230 V/50-60 Hz
Current consumption
100 W
Sound level
≤ 70 dB(A)
Wavelength
385-390 / 405-410 / 465-470 nm
Dimensions W x H x D
21 x 21 / 44 x 33,5 cm
Housing
Stainless steel
Order-No.:
18310000
Made in Germany (Subject to modifications)
Safety Notes
2.1 General Safety Notes
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.

6
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 –warranty.
•In case of leaking water out of housing or tank shut down device and call service.
•Check all hose joints for tightness, if necessary fasten clamps.
2.2 Specific Safety Instructions
•Install the unit on a stable and water-repellent surface.
•The device works with UV light. Therefore, be careful not to look directly into the light
inside the device.
•In the immediate vicinity of the device no flammable or explosive substances may be
stored.
Note:
To avoid retinal damage when using the device with UV light, be sure to observe
appropriate precautions and use the viewing window (4) to view the objects during the
curing process.

7
Installation
The electric equipment is being delivered fully installed. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to chapter 2.

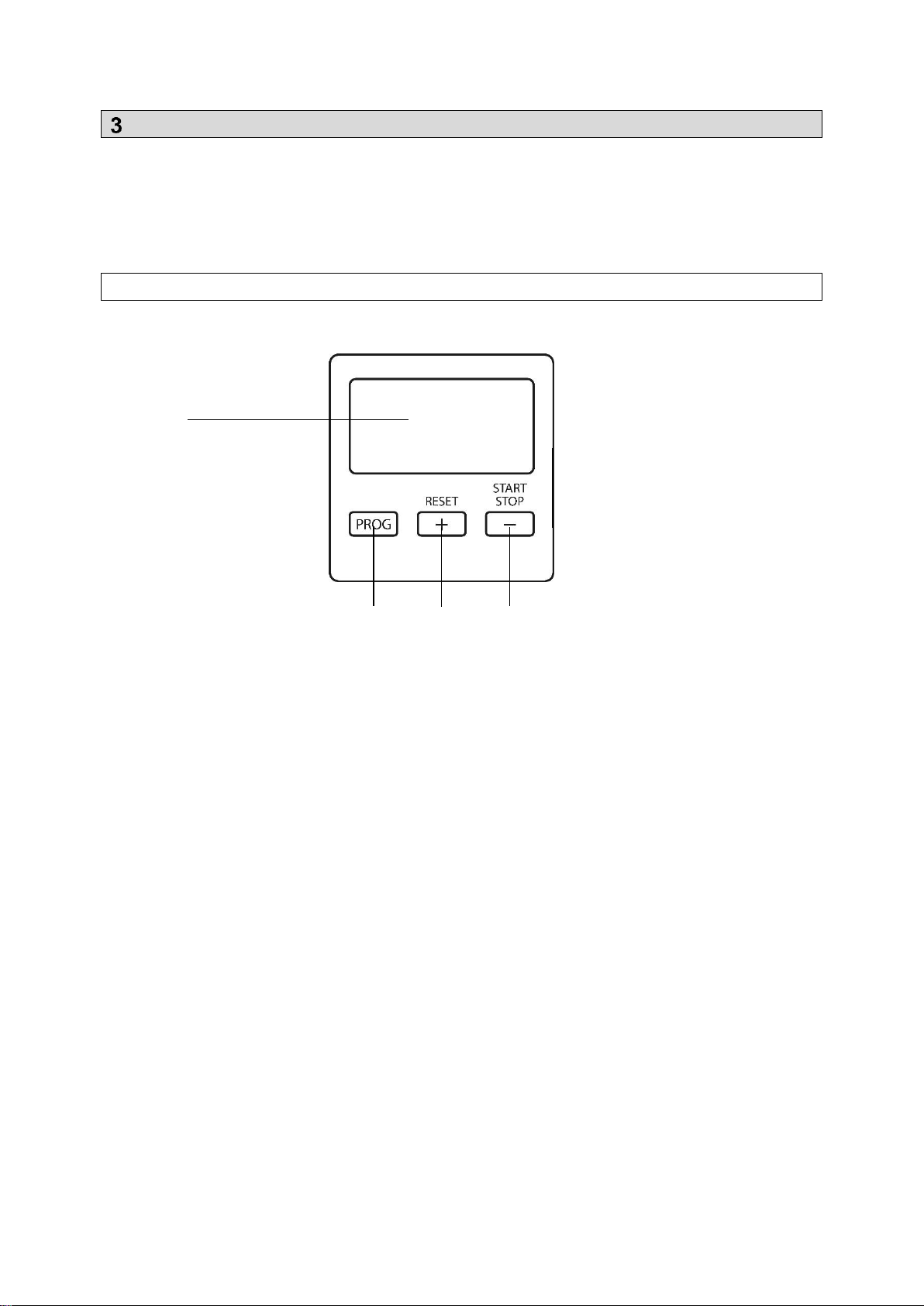

3.1 Control panel
Display
Fig.: Control panel
Program keys
1 Programming button (hours, minutes, seconds)
2 Time + or Reset
3 Time –or start/stop button
1
3
2
1

8
Operating Instructions
4.1 Commissioning
1. Connect the power supply with the mains plug located on the device. On the front side is
the main switch (1) for switching on the device. After finishing work, switch off the
appliance with the main switch (1).
2. Open the lid (5) by turning it upwards.
3. Place the materials you want to harden on the turntable (6).
4. Close the lid (5).
5. Select the desired wavelength using the frequency control (3).
4.2 Programming
1. After being switched on by the main switch (1), the display shows the last stored runtime.
Press the „Prog“button on the control panel (2) to start setting the time. By repeatedly
pressing button 1, you automatically jump to the next setting (1x = hours, 2x = minutes,
3x = seconds, 4x = confirm).
2. Use the (+) or (-) button to set the respective time higher or lower. By holding the keys,
the time can also be set in increments of ten.
3. After confirming the selected time, press the Start / Stop button (3). The turntable (6) now
automatically starts to turn and the high-power LEDs (7) start to light up.
4. By pressing the Start / Stop button again, you can interrupt or restart the curing process
at any time.
5. By pressing the Reset key the time can be reset to the origin during the stop phase.
6. Once the time is up, the device stops automatically and an audible signal sounds. The
time is automatically reset to the startup setting.

9
Troubleshooting
Device doesn’t turn on.
a. Check fuses in the building.
b. Check device’s fuse
Objects do not harden properly.
a. Check whether the LEDs or the interior
are possibly dirty (see also chapter 6)
b. Possibly ventilation defective - contact
service
Ventilation does not turn off.
a. If higher temperatures have been
reached during light curing, the device
cools down until a standard
temperature is reached again
b. If the ventilation doesn‘t turn off even
after several minutes → please contact
our service hotline
Other disorders.
Contact service.
Maintenance
•Regularly check the device. Pay attention to visible damage to housing our power cord.
•Make sure that the interior of the device remains clean. Only in this way an optimal curing
of the objects can be guaranteed.
•Clean the housing regularly with a damp cloth.
Note
•Clean and protect your device regularly with the REITEL stainless steel care spray
(order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants
from the surface of equipment and to prevent corrosion. The spray creates a water
repellent protective film which helps keep the equipment clean.

10
Warranty
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.
4.

11
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manfactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorised by REITEL Feinwerktechnik GmbH
−the product is continued to be operated despite a functional defect

12
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a processing fee if you do not want to carry out a repair and
the device should be returned unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

13
Disposal Regulations
According to valid laws our devices are properly disposed of according to B2B –
Regulations for proper disposal. Pls. contact your local dealer for additional
information.

14
EC Conformity Declaration

15

We manufacture in compliance with Quality Management ISO 9001:2015 incorporating
established standards.
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen | Germany
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]
112019
