REITEL ROTOCLEAN EASY User manual

Operating Instructions
DENTAL PRACTICE EQUIPMENT
ROTOCLEAN EASY
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]

II
Dear Customer!
The ROTOCLEAN EASY is a cleaner suitable for manual pre-cleaning of dental and surgical
instruments. Two rotating brushes integrated in a disinfection bath allow even stubborn blood
stains, secretions and calculus deposits to be removed from instruments and tools used in
daily practice. Integrate the ROTOCLEAN EASY into your daily routine by manually pre-
cleaning all instruments prior to putting them into a thermo disinfector or in a chemical
cleaning bath. As this will eliminate the need to remove organic residues at a later stage,
your workflow becomes more efficient and makes it easier to conform to recommended
hygienic directives (pre-cleaning of dental and surgical instruments, thermo disinfector,
packing and sterilization).
The cleaning brush set of the ROTOCLEAN EASY consists of two sterilizable brushes: One
brush including a bristle-less area and one brush with a larger diameter for pre-cleaning
pliers and places which are difficult to access. Consequently, and in comparison with manual
brushing, direct contact with contaminated areas is completely avoided.
Any other use or usage beyond this scope is considered unintended use. The manufacturer
shall not be responsible for any damages that may result thereby.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
Store it at a safe place near the device. This documentation is protected by copyright.
Transmittal or reproduction of this document in whole or in part and disclosure of its contents
is not permitted. If the operation manual gets lost an extra copy can be ordered from the
manufacturer.

III
INDEX
TECHNICAL DESCRIPTION......................................................................................... 4
BASIC EQUIPMENT....................................................................................................... 4
SPECIAL ACCESSORIES................................................................................................ 4
DEVICE DESCRIPTION.................................................................................................. 4
TECHNICAL DATA......................................................................................................... 5
SAFETY NOTES........................................................................................................... 6
GENERAL SAFETY NOTES ............................................................................................ 6
SPECIFIC SAFETY NOTES............................................................................................. 7
INSTALLATION............................................................................................................ 8
NOTES FOR THE USER............................................................................................... 8
INSTALLATION.............................................................................................................. 8
OPERATION................................................................................................................. 8
INSTALLATION AND REMOVAL OF CLEANING BRUSHES..................................................... 9
TROUBLESHOOTING .................................................................................................10
MAINTENANCE...........................................................................................................10
WARRANTY.................................................................................................................11
DISPOSAL REGULATIONS ........................................................................................14
SPARE PARTS LIST ...................................................................................................14

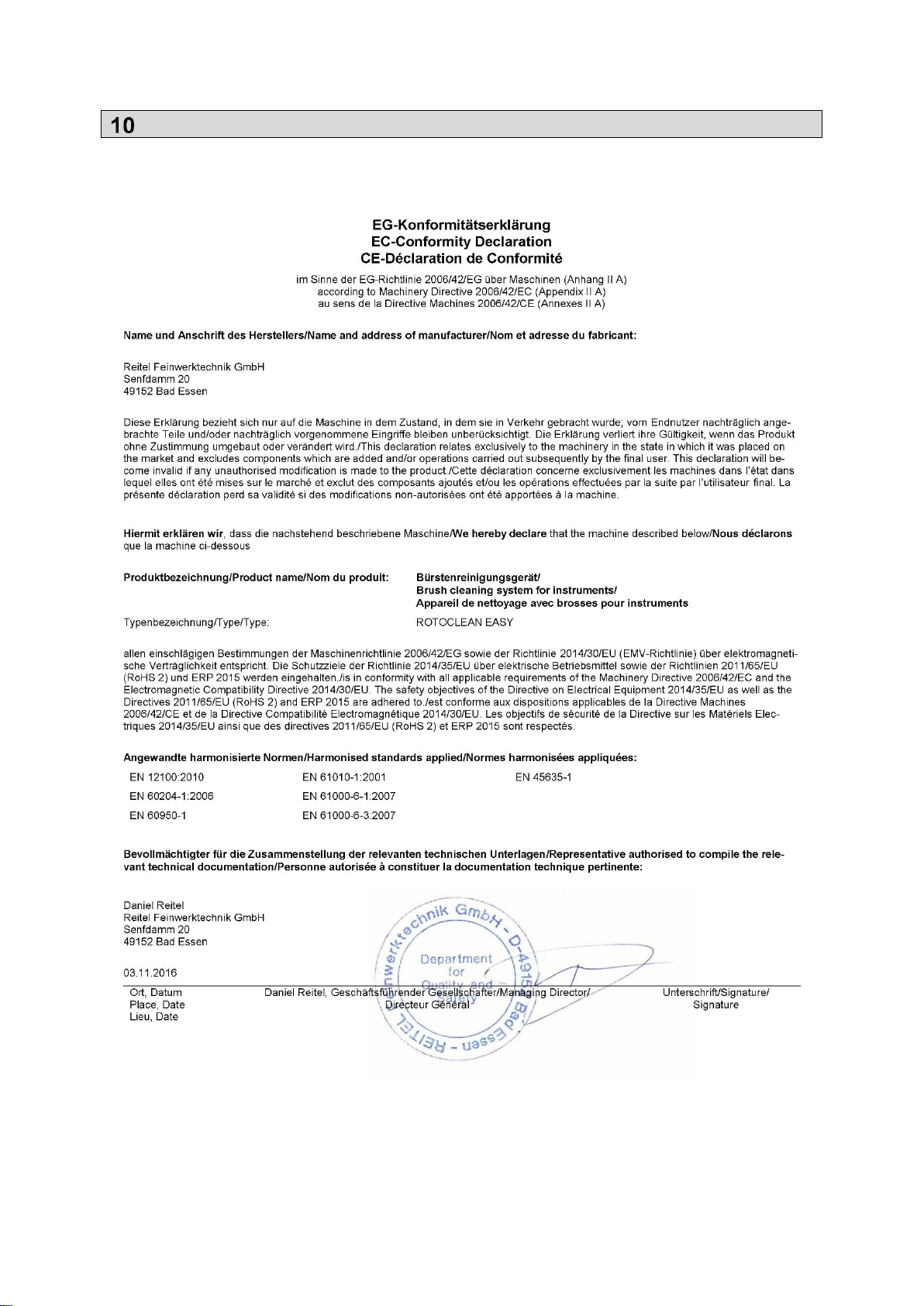

EC-CONFORMITY DECLARATION.............................................................................15

4
Technical Description
Basic Equipment
•ROTOCLEAN EASY Brush cleaning system for instruments
•Cleaning brush set consisting of two rotating brushes
•Protective plexiglas cover that can be inserted either in the front or the back of the device
Special Accessories
•Order-No.: 20300000 Set of cleaning brushes
Device Description
1 Stainless steel housing
2 Protective plexiglas cover
3 Rubber feet
4 Screw marked „L“
5 Screw marked „R“
6 Cleaning brush including a bristle-less area
7 Cleaning brush with extended bristles
8 Tank
9 Switch
10 Power plug
Device view
1
3
2

5
Technical Data
Line voltage
230 V/50-60 Hz
Current consumption
30 W
Height/witdth/depth
180+160/350/190 mm
Weight
6 kg
Volume
2,7 l
Sound level
≤70 dB(A)
Housing
Stainless steel
Order-No.:
10300000
Made in Germany (Subject to modifications)
9
10
Switch and power plug
4
5
Screw marked left „L“ and right “R”
Tank
7
8
6

6
Safety Notes
General Safety Notes
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 –warranty.
•In case of leaking water out of housing or tank shut down device and call service.
•Check all hose connections for leak tightness, if necessary tighten hose clamps again.

7
Specific Safety Notes
Note:
Avoid using chlorine-free cleaning fluids. Using chlorine cleaning agents keep action time
short and thoroughly rinse with water to avoid deposit and progressive concentration.
Operate the instrument only with appropriate instrument cleaners, e.g. the cleaner Dürr ID
215. Field of application only in compliance with instrument manufacturer’s instructions.
The brushes must be stored upright to prevent deflection.
•The ROTOCLEAN EASY is a cleaner suitable for manual pre-cleaning of dental and
surgical instruments prior to putting them into a thermo disinfector or in a chemical
cleaning bath. Workflow according to hygienic directives (pre-cleaning of instruments with
the ROTOCLEAN EASY, thermo-disinfector, packing, sterilization).
•The brushes may be disinfected and sterilized up to 50 times (no lot number,
identification through basket number).
•Only use cleaning fluid according to instruments manufacturer’s instructions. The
instruments‘ manufacturer determines cleaning fluid or its components. Application
according to manufacturer’s instructions:
•acidic cleaning agents = inorganic contamination (scale, deposit) –especially in the lab;
•alkaline cleaner = organic contamination (grease, protein, blood);
•enzymatic cleaner = organic contamination (grease, protein, blood) not suitable for alkali-
resistant instruments.
•Filling level in the container: shorthaired brush must be completely covered. The almost
optimized speed prevents splashing cleaning fluid. For special angular positions
splashing cannot be prevented. Always pay attention to the position and avoid sudden
change of angle adjustment.
•Prior to cleaning instruments insert the protective glass in working direction to prevent
splashing cleaning fluid.
•To avoid injury, appropriate protection should be worn, gloves, protective eyewear and
mouth protection.
•The cleaning brushes stop moving on accidental manual intervention.
•Don’t deposit any devices sensitive to cleaning agents near the device.
•Keep the transformer away from humidity.

8
Installation
The electrical equipment is being delivered fully installed. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to safety notes in
chapter 2.
Notes for the User
Installation
Insert mains power plug (10).
Fill the tank (8) with approx . 2,7 liters of cleaning fluid. The short haired brush area must
be completely covered. (Follow the instructions of the cleaning fluid manufacturer and the
instruments’manufacturer.)
The device is designed to be directly installed in the sink either on the left or on the right.
The suction feet (3) on the underside of the device prevent slipping in the sink. The
protective plexiglas cover (2) can be inserted either in the front or in the back of the
device, dependent on the working direction.
Operation
Switch the device on using switch (9). (The illuminated switch is easy to operate wearing
gloves.)
Hold the instruments which need cleaning into the cleaning bath, positioning them
between the brushes. The two rotating brushes, one brush including a bristle-less area
and one brush with a larger diameter are perfectly suited for pre-cleaning pliers and
places which are difficult to access.
After cleaning your instruments, use switch (9) to switch off the device. Remove the
protective plexiglas cover (2) and put it on the opening. The protective plexiglas cover
serves at the same as a lid, preventing outgassing of liquids.
When the device is not used for a longer period of time empty it and treat it with stainless
steel care products. The device is splash water protected according to DIN 65.
Note:
After a prolonged standstill of the brushes, e.g. in the event of jammed instruments, turn off
the device and/or pull the plug to remove the instruments.

9
Installation and removal of cleaning brushes
Cleaning brush removal:
Pull the mains power plug.
Pour out cleaning liquid down the sink.
Remove cleaning brush (6) by turning screw marked „L“ (4) to the left. Remover cleaning
brush (7) by turning screw marked “R” (5) to the right.
Replace the cleaning brushes. Fasten the screw marked „L“ (4) to the threaded insert
marked “L” by turning it to the right, in order attach the cleaning brush including a bristle-
less area. Fasten the screw marked “R” (5) to the threaded insert marked „R“ by turning it
to the left, in order to attach the cleaning brush with extended bristles.
Fill the cleaning fluid (see chapter 4.1) into the tank.
Note:
Clean and protect your device regularly with the REITEL stainless steel care spray
(order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants
from the surface of equipment and to prevent corrosion. The spray creates a water
repellent protective film which helps keep the equipment clean.
Note:
Use appropriate cleaning fluid in compliance with instruments manufacturers‘ instructions.
The cleaning brushes stop spinning on accidental manual intervention or as soon as
instruments get stuck in the appliance.

10
Troubleshooting
Device doesn’t turn on.
a. Check domestic fuses.
b. If water penetrates into the housing,
immediately switch off the device and
pull the power plug. Call customer
service!
Irregular rotation speed of cleaning
brushes.
The cleaning brushes (6,7) might be
insufficiently fixed →Check screw fixation
(4,5) and if necessary tighten screws.
Lamp of switch (9) doesn’t shine.
Lamp defective →call customer service!
Maintenance
•Regularly check the appliance for visible damage to the housing, power cord or sensor
switch.
•The cleaning and disinfection fluids have to be periodically renewed according to
recommended hygienic directives. (Recommendation according to use and degree of
contamination every two days or more frequently.)
•Regular sterilization of cleaning brushes according to recommended hygienic directive.
The cleaning brushes can be disinfected and sterilized up to 50 times. They can be
ordered from your distributor or from REITEL.
•Regular disinfection of the housing according to recommended hygienic directive. Only
us chlorine-free cleaning agents..
•Clean the housing regularly with a damp cloth and polish it with the REITEL stainless
steel spray.

11
Warranty
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.
4.

12
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manufactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorised by REITEL Feinwerktechnik GmbH
−the product is continued to be operated despite a functional defect

13
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a fee if repair of the device is rejected and the device is
destined to be sent back unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

14
Disposal Regulations
According to valid laws our devices are properly disposed of according to B2B –
Regulations for proper disposal. For further information please contact your local
distributor.
Spare Parts List
Best.-Nr.:
Ref.:
Menge
Qty.
ME
Unit
20300000
Reinigungs-Bürstenset “hart” / set of brushes “hard” (2
pieces)
1
St./pc.
20299000
Reinigungs-Bürstenset “extra hart” / set of brushes “extra
hard” (2 pieces)
E7252600
Plexiglasscheibe (ohne Halter)
1
St./pc.
E7215200
Relais 24 V
1
St./pc.

15
EC-Conformity Declaration

We manufacture in compliance with Quality Management ISO 9001:2015 incorporating
established standards.
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]
112019
