Reliance 13-030 User manual

1
1230 DC CONVERTER
installation instructions
Part # 13-030
included: tools needed:
(not supplied)
Reliance recommends professional installation. If you choose to not have this product installed
by a professional, we highly recommend that you exercise caution, care, and patience when
installing this product.

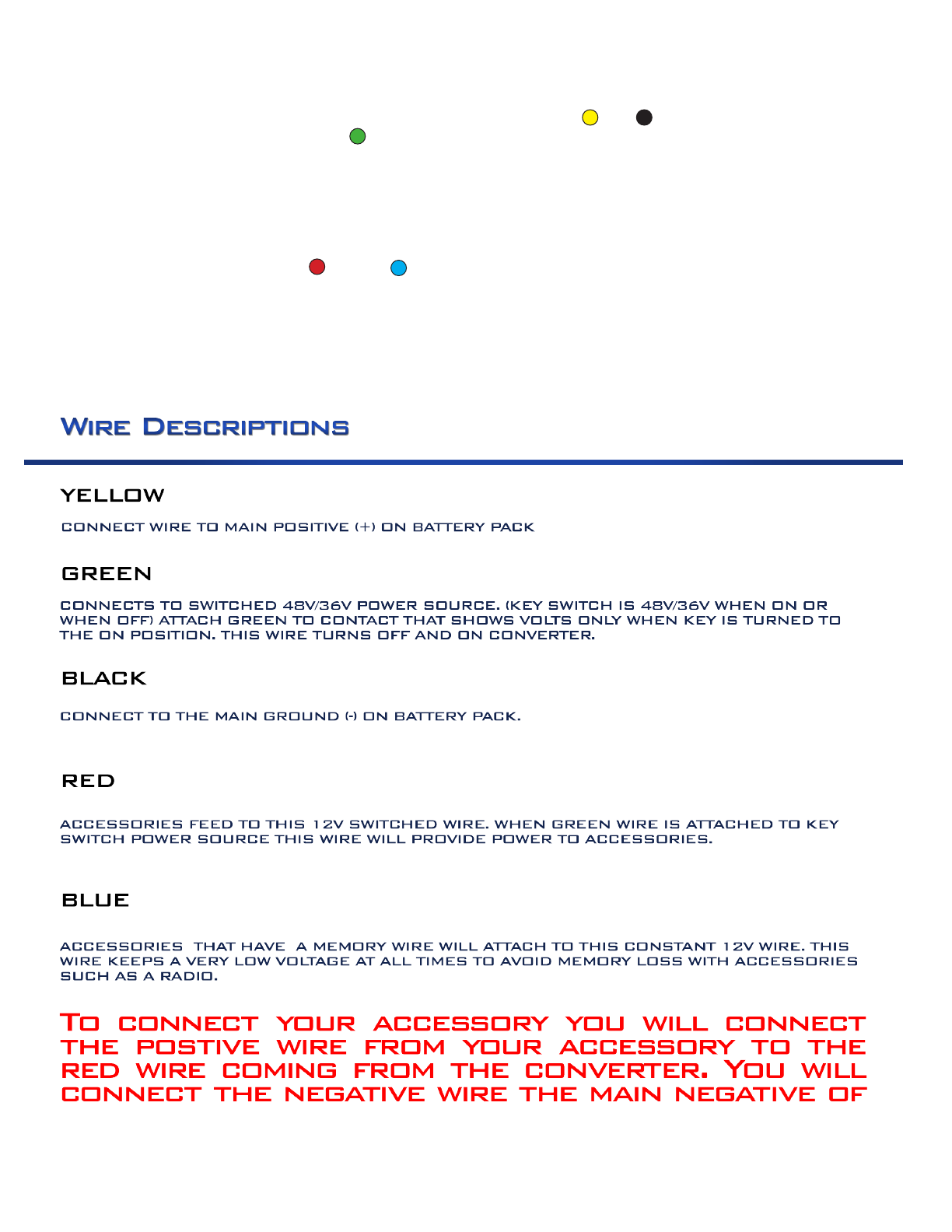

Yellow: 48v/36v Input (+) From Battery
Green: 48v/36v Switched Input (+) From Keyswitch
Black: Ground (-) From Battery
Red: 12v Switched Output (+)
Blue: 12v Constant Output (+)
NOTE: If installing this product on a E-Z-GO RXV
Please see special instructions on next page.
DC Converter
Pigtail Harness
Mounting Screws
Wire Stripper/Cutters
Cordless Drill
DC CONVERTER Wiring Pigtail

INSTALLATION COMPLETE
IMPORTANT
In order to ensure proper function of your reliance DC to DC Converter, you must first deter-
mine your main positive and negative battery terminals. Wires 3and 5MUST be connected across
your entire battery pack and wire 4MUST be connected to your keyswitch. In 48V applications,
not connecting the Converter across the entire battery pack will result in an uneven draw
which could shorten the life of your battery pack. In 36V applications, failure to connect the
Converter across the entire battery pack will result in the unit not functioning.
During normal operation, the Madjax DC to DC Converter will generate a significant amount of
heat. The unit should be mounted to a metal frame member in order to prevent possible damage
to your cart.
If you do not use either wire 1or wire 2, you MUST cap the wire with a wire nut or a crimp cap,
as the wire will be live.
***For EZ-Go RXV - Instead of connecting the green (4) wire
to your keyswitch, connect it to the switched large terminal
of your solenoid. Use a multimeter to determine which
terminal is switched***
THE BATTERY PACK.
