Remos REMOS GX nXES Owner's manual

REMOS GX nXES
Pilot Operating Handbook
Airplane Registration Number ______________________
Airplane Serial Number ______________________
REMOS Order No. 104178, dated December 2017

G3-8 MA FM 6200 –R03
Introduction
Introduction ii
Light Sport Aircraft REMOS GX
The REMOS GX was manufactured in accordance with the Light Sport
Aircraft airworthiness standards and does not conform to standard
category airworthiness requirements.
The standards to be used for certification are given by FAA and can
be obtained from the FAA’s website. For this airplane the following
standards have been used:
number
revision
purpose
ASTM F2245
16c
Design and Performance
ASTM F2245
16c
Required Equipment
ASTM F2245
16c
Aircraft Operating Instructions
ASTM F2972
15
Quality Assurance
ASTM F2295
06
Continued Airworthiness
ASTM F2483
12
Maintenance Manual
ASTM F2746
14
Pilot Operating Handbook
NOTE
This table is applicable only for newly delivered
aircraft. It is not applicable in case the POH has been
updated for existing aircraft.
NOTE
This POH may only be used for aircraft SN429 or
higher or with REMOS notification NOT-014
implemented.
Manufacturer: REMOS AG
Franzfelde 31
D-17309 Pasewalk
GERMANY
Phone: [phone]
Fax: [phone]
Internet: www.remos.com

G3-8 MA FM 6200 –R03
Introduction
Introduction iii
List of Content and Revisions
This POH consists of the following listed pages and sections. You will
find a marking indicating the revision and date of issue at the top
border of each page. Insert the latest changed pages.
Pilot Operating Handbook –Main Part
sect.
description
document-no.
revision
0
Introduction
G3-8 MA FM 6200
03
1
General Information
G3-8 MA FM 5201
01
2
Operating Limitations
G3-8 MA FM 1202
07
3
Emergency Procedures
G3-8 MA FM 1203
07
4
Normal Procedures
G3-8 MA FM 1204
07
5
Performance
G3-8 MA FM 5205
01
6
Weight and Balance
G3-8 MA FM 1206
06
7
Systems
G3-8 MA FM 5207
03
8
Handling and Servicing
G3-8 MA FM 1208
07
Pilot Operating Handbook –Supplement
sect.
description
document-no.
revision
9
Flight Training
G3-8 MA FM 1209
07
10
Glider Towing
G3-8 MA FM 1210
07
11
Banner Towing
G3-8 MA FM 1211
04
12
Continued Airworthiness
G3-8 MA FM 1212
03
13
Abbreviated Checklists
G3-8 MA FM 1213
01
NOTE
This POH may only be used for aircraft SN429 or
higher or with REMOS notification NOT-014
implemented.

G3-8 MA FM 6200 –R03
Introduction
Introduction iv
Remarks and Alterations
Please make a notation below if any changes have been made to this
manual or to the plane. This manual is an important document for the
pilot in command to ensure safe operation of the aircraft. Therefore it
is recommended to keep this Operating Handbook updated with the
newest information available. You can get the latest updates of this
manual from your dealer or directly from the manufacturer’s
homepage.
no.
page
concern
date
sign

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 1
Table of Contents
sect.
description
page
1.1
Introduction
1-2
1.2
Certification
1-2
1.3
Continued Airworthiness
1-2
1.4
Quick Reference
1-3
1.5
Technical Specifications
1-3
1.6
Views
1-4
1.7
Performance
1-5
1.8
Engine
1-5
1.9
Fuel
1-6
1.10
Oil
1-6
1.11
Propeller
1-7
1.12
ICAO Designator
1-7
1.13
Noise Certification
1-7

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 2
1.1 Introduction
This Operating Handbook is designed to help enable a safe and
successful completion of each flight with the REMOS GX. It provides
you with all necessary information for regular maintenance and
operation of the aircraft. Therefore we recommend that the pilot keep
this Operating Handbook updated with the newest information
available. You can get the latest version of this Handbook from your
local dealer or directly from the manufacturer’s homepage.
NOTE
This POH may only be used for aircraft SN429 or higher
or with REMOS notification NOT-014 implemented.
1.2 Certification
The REMOS GX was manufactured in accordance with the Light
Sport Aircraft airworthiness standards and does not conform to
standard category airworthiness requirements.
1.3 Continued Airworthiness
Technical publications for continued airworthiness are released on
the REMOS website www.remos.com and they may be downloaded
free of charge.
Bombardier-Rotax releases technical publications on their website
www.flyrotax.com from which they may be downloaded free of
charge. Documentation update for avionics may be downloaded on
www.dynonavionics.com and www.garmin.com.
It is the responsibility of the owner/operator of the aircraft to keep the
aircraft and its documentation up to date and to comply with all
technical publications.

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 3
1.4 Quick Reference
Type: Full composite carbon fiber aircraft with two seats.
Design: High wing design with struts, front mounted engine
and propeller, traditional stabilizer concept,
differential ailerons. Electrically operated flaps (0° to
40°), electric elevator trim, three-wheel landing gear
with steerable nose wheel. Main gear with hydraulic
disc brakes. The cabin is equipped with two seats
side by side and can be entered and exited by doors
on the left and right side of the fuselage.
Layout: Main components are built in half shells from
composite fiber material, which are bonded together
(carbon fiber, Kevlar and glass fiber).
1.5 Technical Specifications
wingspan
9.32 m = 30 ft 6 in
length
6.48 m = 21 ft 3 in
height
2.28 m = 7 ft 5 in
wing area
10.98 m2= 118 sq ft
MTOW
600 kg = 1,320 lb
wing loading
55 kg/m2= 11 lb/sq ft

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 4

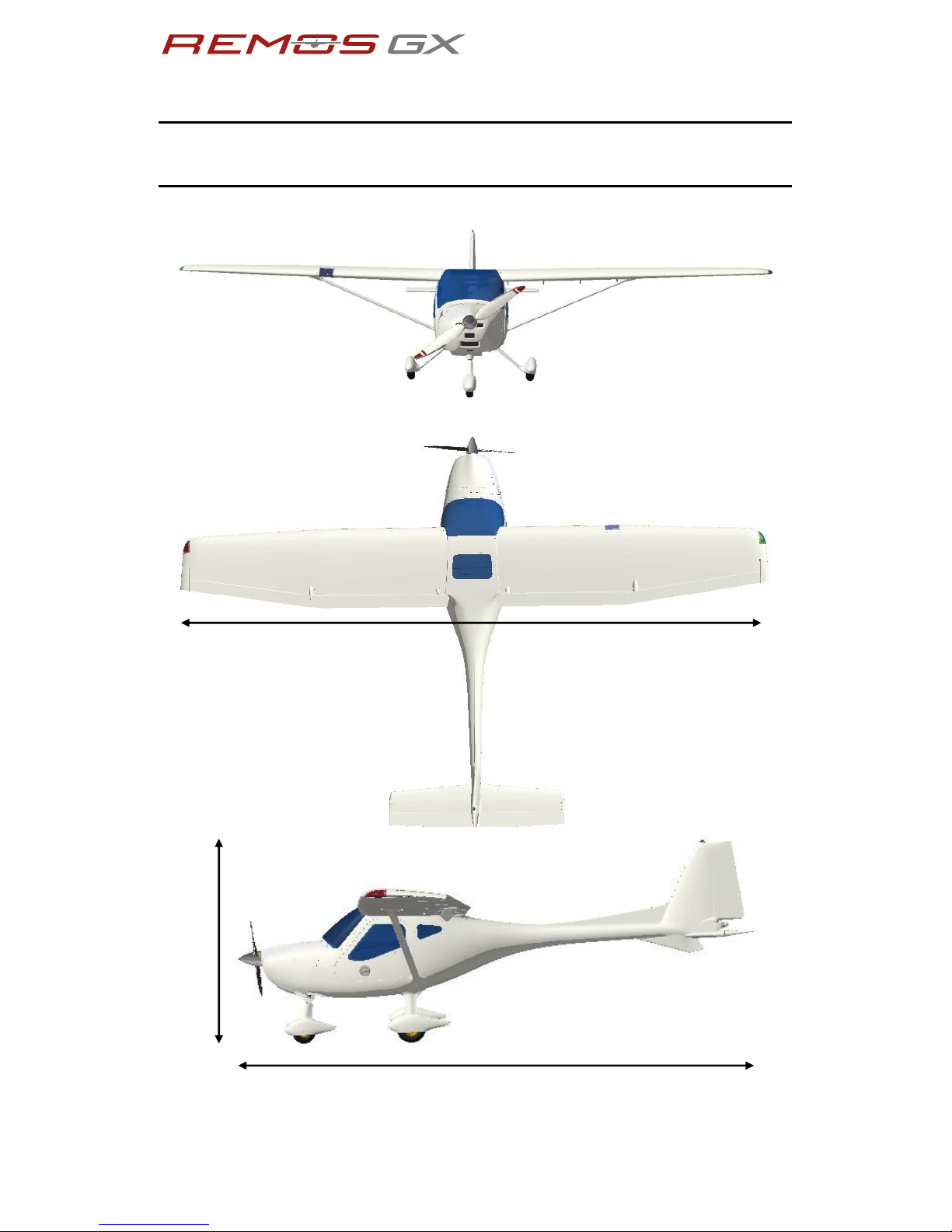

1.6 Views
Wingspan 9.32 m = 30.6 ft
Height 2.28 m = 7,.5 ft
Overall Length 6.48 m = 21.3 ft

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 5
1.7 Performance
This section shall give a summary of the performance of the
REMOS GX. Detailed performance data is given in section 5 of this
Pilot Operating Handbook.
top speed at 3,000 ft
115 kTAS @° 5.500 rpm (*)
cruise speed at 3,000 ft
102 kTAS @° 5.000 rpm (*)
range at 3,000 ft
347 nm @° 5,000 rpm (*)
endurance at 3,000 ft
3,4 h @° 5.000 rpm (*)
rate of climb at VX
780 ft/min @ VX= 50 kIAS (*)
rate of climb at VY
840 ft/min @ VY= 60 kIAS (*)
stall speed clean
44 kIAS
stall speed flaps 40 deg
42 kIAS
1.8 Engine
manufacturer
Bombardier-Rotax
engine type
912 UL-S2
max. power
take-off
73.6 kW / 100 HP
max. cont.
69.9 kW / 95 HP
max. engine speed
take-off
5,800 rpm
continuous
5,500 rpm
gear ratio
2.43 : 1
coolant
type
BASF Glysantin Protect Plus/G48
mixing ratio
see section 7

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 6
1.9 Fuel
total fuel quantity
84 ltr = 22 US gallons
usable fuel quantity
80 ltr = 21 US gallons
fuel qualities
fuel released by latest revision of
ROTAX service instruction SI-912-
016, preferably free of ethanol.
NOTE
Please refer to REMOS notification NOT-001 and
ROTAX SI-912-016 for further information on suitable
engine fluids (fuel, oil, cooling liquid, additives, etc).
Have a frequent look on www.flyrotax.com and on
www.remos.com for the latest information.
1.10 Oil
engine oil
oil released by latest revision of
ROTAX service instruction SI-912-016
oil rating
RON 424
engine oil capacity
min. 2.0 ltr = 2.1 qts
max. 3.0 ltr = 3.1 qts
recommended oil
AeroShell Sport PLUS 4 10W-40
NOTE
Please refer to REMOS notification NOT-001 and
ROTAX SI-912-016 for further information on suitable
engine fluids (fuel, oil, cooling liquid, additives, etc).
Have a frequent look on www.flyrotax.com and on
www.remos.com for the latest information.

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 7
1.11 Propeller
manufacturer
type and number of blades
Neuform
CR3-65-47-101,6
3-blade, composite
1.12 ICAO Designator
ICAO Designator: GX (as per ICAO Doc. 8643)
1.13 Noise Certification
According to noise requirements for Ultralight aircraft (LS-UL) dated
August 1996, the REMOS GX is certified to a noise level of
60 dB (A).

G3-8 MA FM 5201 - R01
1 General Information
General Information 1 - 8
intentionally left blank

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 1
Table of Contents
sect.
description
page
2.1
General
2-2
2.2
Reference Airspeeds
2-2
2.3
Airspeed Indicator Range and Markings
2-3
2.4
Stalling Speeds at Maximum Takeoff Weight
2-3
2.5
Flap Extended Speed Range
2-4
2.6
Maneuvering Speed
2-4
2.7
Never Exceed Speed
2-5
2.8
Service Ceiling
2-5
2.9
Load Factors
2-5
2.10
Approved Flight Maneuvers
2-6
2.11
Prohibited Maneuvers
2-6
2.12
Crosswind and Wind Limitations
2-6
2.13
Maximum Parachute Deploy Airspeed
2-6
2.14
Engine
2-7
2.15
Fuel
2-7
2.16
Oil
2-8
2.17
Maximum Wind Velocity for Tie-Down
2-8
2.18
Maximum Structure Temperature
2-8
2.19
Weight and Balance
2-9
2.20
Crew
2-9
2.21
Flight Conditions and Minimum Equipment List
2-10
2.22
Placards and Markings –Inside Cabin
2-12
2.23
Placards and Markings –Outside cabin
2-19

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 2
2.1 General
NOTE
This POH may only be used for aircraft SN429 or higher
or with REMOS notification NOT-014 implemented.
2.2 Reference Airspeeds
speed
IAS
description
VNE
never exceed speed
135
kts
airspeed which shall never
be exceeded
VNO
maximum speed
in turbulence
107
kts
airspeed which shall not be
exceeded in gusty weather
VO
operating
maneuvering speed
59
88
kts
kts
maximum airspeed for all
permissible maneuvers
with 880 lb (400kg) all up weight
with 1,320lb (600kg) all up weight
VFE
max. speed with
flaps fully extended
78
kts
airspeed which may never be
exceeded with flaps down
VAPP
approach airspeed
60
kts
recommended airspeed for
approach at gross weight
VX
airspeed for best
angle of climb
50
kts
airspeed for the steepest climb
with flaps up
VY
airspeed for best
rate of climb
60
kts
airspeed for the greatest altitude
gain in the shortest time, flaps up
VS
stall speed with
flaps retracted (0°)
44
kts
stall speed at gross weight
with flaps up
VS0
stall speed with
flaps extended (40°)
42
kts
stall speed at gross weight
with flaps down

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 3
2.3 Airspeed Indicator Range and Markings
The following markings must be on the airspeed indicator at least.
Additional markings are permissible, e.g. for recommended approach
speed or for maneuvering airspeed.
The yellow arc defines the “caution” range in which the aircraft should
be flown with care as vertical gusts can damage the airframe structure.
At VNO the airframe is able to support a gust with 3.000 ft/min, at VNE
the vertical gust velocity is limited to 1.500 ft/min.
2.4 Stalling Speeds at Maximum Takeoff Weight
stall speed with flaps extended VS0 = 42 kts
stall speed with flaps retracted VS= 44 kts
marking
IAS
range
description
white arc
42…78
kts
VS0 - V FE
airspeed range for flaps extended
green arc
44…107
kts
VS- V NO
normal use
yellow arc
107…135
kts
VNO - V NE
caution in gusty conditions
red line
135
kts
VNE
maximum permissible airspeed

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 4
2.5 Flap Extended Speed Range
Flaps may be operated and the aircraft may be flown at airspeeds
higher than VFE as long as flap deflection is limited. Following
restrictions apply as a function of airspeed:

VFE
[ deg ]
[ kts ]
10
133
15
113
20
99
30
86
40
78
With flaps set to any deflection the safe load factor is limited to 2.
2.6 Maneuvering Speed
operating maneuvering speed VO= 88 kIAS
with 600kg all up weight
operating maneuvering speed VO= 59 kIAS
with 400kg all up weight
For any weight between 400kg and 600kg, the operating maneuvering
airspeed may be interpolated linearly.
At maneuvering speed one control, i.e. either aileron, or elevator or
rudder control, may deflected until its stop once. Above VApermissible
deflection is reduced, until at never exceed speed VNE only one third
of the deflection is permitted.

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 5
2.7 Never Exceed Speed
Due do the reduced density of air at altitude, true airspeed is higher
than calibrated or indicated airspeed. Therefore, VNE is limited to
135 kts true airspeed in order to prevent flutter. With increasing
altitude VNE is limited to lower values than indicated by redline
according to the following table.
altitude
IAS
[ ft ]
[ kts ]
0
135
5,000
128
10,000
119
15,000
110
At never exceed speed VNE only one third of the maximum control
deflection (aileron, elevator, rudder) is permitted.
2.8 Service Ceiling
service ceiling 15,000 ft
2.9 Load Factors
safe load factors +4.0 g / -2.0 g
With flaps set to any deflection the safe load factor is limited to 2.

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 6
2.10 Approved Flight Maneuvers
The following maneuvers are permitted
•all non-aerobatic maneuvers,
including stalls and departure stalls
•flight with the doors off
2.11 Prohibited Maneuvers
Flight maneuvers not permitted
•aerobatics
•spins
•flight in icing conditions
2.12 Crosswind and Wind Limitations
maximum demonstrated cross wind
component for take-off and landing 15 knots
The maximum demonstrated crosswind component is not a limitation.
The pilot may exceed this demonstrated crosswind component on his
or her own discretion. In case the pilot operates the aircraft in
crosswind components higher than demonstrated he or she shall be
aware of the fact that this flight regime has not been tested. A general
wind limitation is not defined for the REMOS GX.
2.13 Maximum Parachute Deploy Airspeed
maximum parachute deploy airspeed 120 kts

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 7
2.14 Engine
manufacturer
Bombardier Recreational Products Rotax
engine type
912 UL-S2 or 912-S2
max. power
take-off
73.5 kW / 100 HP
max. cont.
69.0 kW / 95 HP
max. engine speed
take-off
5,800 rpm
continuous
5,500 rpm
gear ratio
2.43 : 1
exhaust gas temp
max
880°C = 1,616°F
coolant
type
BASF Glysantin Protect Plus G48
mixing ratio
see section 7
coolant or CHT temp
min
not defined
max
135°C = 275°F
120°C = 248°F with SB-012 complied
2.15 Fuel
usable fuel quantity
80 ltr = 21 US gallons
total fuel quantity
84 ltr = 22 US gallons
fuel qualities
Fuel released by latest revision of ROTAX
service instruction SI-912-016, preferably
free of ethanol.
fuel pressure
min.
0,15 bar = 2.2 psi
max.
0,50 bar = 7.3 psi
NOTE
Please refer to REMOS notification NOT-001 and
ROTAX SI-912-016 for further information on suitable
engine fluids (fuel, oil, cooling liquid, additives, etc).
Have a frequent look on www.flyrotax.com and on
www.remos.com for the latest information.

G3-8 MA FM 5202 - R03
2 Operating Limitations
Operating Limitations 2 - 8
2.16 Oil
engine oil
oil released by latest revision of ROTAX service
instruction SI-912-016
oil rating
RON 424
oil quantity
min.
2.0 ltr = 2.1 qts
max.
3.0 ltr = 3.1 qts
recommended oil
AeroShell Sport PLUS 4 10W-40
oil pressure
min.
0,8 bar = 12 psi (below 3500rpm)
2,0 bar = 29 psi (above 3500rpm)
max.
7,0 bar = 102 psi
oil temperature
min.
50 °C = 120 °F
max.
130 °C = 266 °F
NOTE
Please refer to REMOS notification NOT-001 and
ROTAX SI-912-016 for further information on suitable
engine fluids (fuel, oil, cooling liquid, additives, etc).
Have a frequent look on www.flyrotax.com and on
www.remos.com for the latest information.
2.17 Maximum Wind Velocity for Tie-Down
max. wind velocity for tie-down in the open VR= 38 kts
2.18 Maximum Structure Temperature
max. certified structure temperature 54°C = 130°F
